Operating Instructions
SECUSTARFM / FM+ and SECULIFESB
Modular Test System 3-349-311-03
13/7.14
2GMC-I Messtechnik GmbH
Standard Equipment Contact Persons
Included
1Test system
1 mains power cable
(at the test system: via 16 A inlet plug
– mains side: country-specific)
1 probe cable with test probe
1 plug-on alligator clip
1 Compact flash card type II
1 Short-form Operating Instructions
1PS3 CD ROM
Contents:
– PS3 PC software enabled for 20 objects
– Operating instructions in the available languages
D: ba_d_secustar.pdf, GB: ba_gb_secustar.pdf (in preparation)
Software Revision Level
These operating instructions describe software revision level of
the test system as of 1.9.11
Attention!
!
SECUSTAR FM+ and SECULIFE SB may not be operated
with a software version older than 1.9.6.
See section 4.10.7 for instructions on how to query the software
revision level.
Accessories (sensors, plug inserts, adapters, consumable materials)
The accessories available for your test system are checked for
compliance with currently valid safety regulations at regular inter-
vals, and are amended as required for new applications. Currently
up-to-date accessories which are suitable for your test system are
listed at the following web address along with photo, order num-
ber, description and, depending upon the scope of the respective
accessory, data sheet and operating instructions:
www.gossenmetrawatt.de ( Products Electrical Testing
Testing of Electr. Appliances)
Product Support
Technical Queries
(use, operation, software registration)
If required please contact:
GMC-I Messtechnik GmbH
Product Support Hotline
Phone: +49 911 8602-0
Fax: +49 911 8602-709
E-mail: support@gossenmetrawatt.com
Software Enabling for PS3
GMC-I Messtechnik GmbH
Front Office
Phone: +49 911 8602-111
Fax: +49 911 8602-777
E-mail: info@gossenmetrawatt.com
GMC-I Messtechnik GmbH 7
Applications and Regulations
1.1 Table: Types of DUTs – Tests – Regulations
Attention!
!
The test system may not be used for measurements
within electrical systems!
Tests after initial
start-up and
modifications
Tests after repairs
and periodic test-
ing
DUTs
to be tested in
accordance with
following regulations
IEC 62353 :2007
DIN EN 62353 :2008
(VDE 0751-1)
DIN VDE 0701- 0702 :2008
Laboratory devices
Measuring and control
equipment
Voltage generating devices
Electrical tools
Electrical heaters
Devices with electric motors
Light fixtures
Consumer, information and
communication technology
devices
Cable reels, extension and
device connector cables
Data processing equipment
and office machines
Electrical medical devices,
application parts
30 GMC-I Messtechnik GmbH
Initial Start-Up – Setup
Manual selection and entry of the IP address at the test system in the
event of communication problems between test system and the PC and in
the case of direct connection to the PC without connection to the com-
pany LAN
Normally you can skip this section and proceed with querying the
automatically selected IP address on page 31.

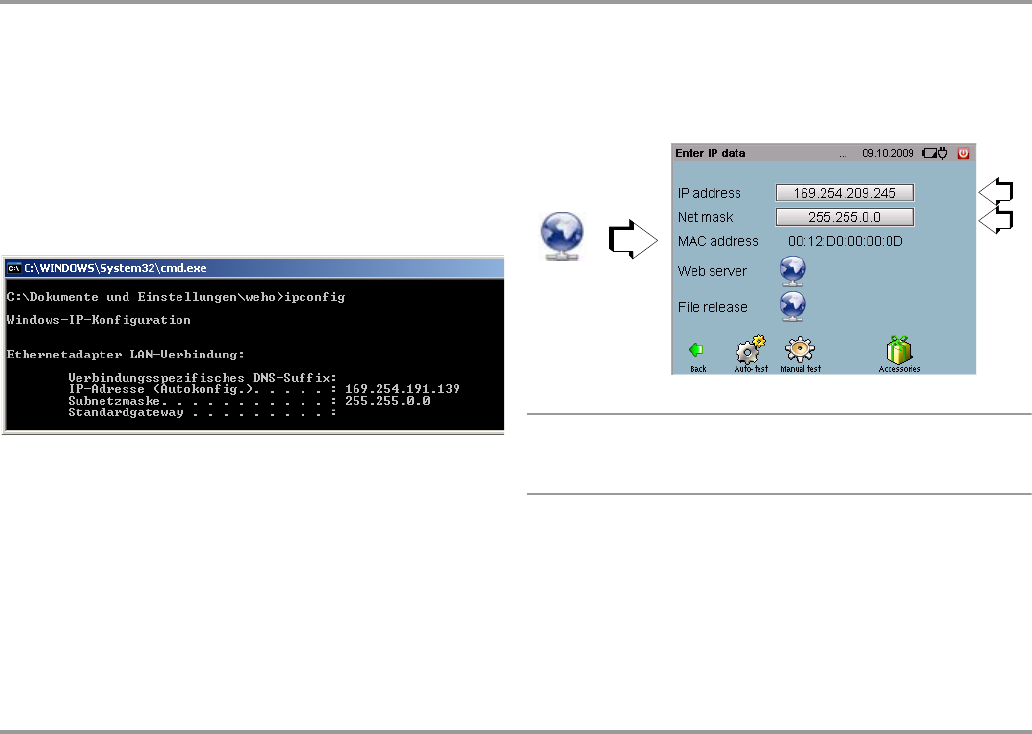

ÐCheck the IP address at your PC:
Enter the “ipconfig” command to the DOS window to this end
(Programs > Accessories > Command Prompt).
The subnet mask indicates which digits of the IP address have to
be transferred without any changes, for example the subnet
decimal number 255 corresponds to hexadecimal FF, or
1111 1111 as a binary number.
Places which are occupied by a 1 must be transferred
unchanged, and places which are occupied by a 0 can be freely
selected.
For the example described above, this means that the IP address
for the test system can be set to 169.254.xxx.xxx.
Normally, a number is selected which only differs from the PC’s IP
address by one or a few final digits, for example 169.254.191.141.
ÐEnter the selected IP address to the uppermost entry field at
the test system.
ÐEnter the sequence of numbers for the PC’s subnet mask to
the net mask field.
Note
The manually selected IP address is overwritten after
restarting.
Network
