Operating Instructions
SECUTEST BASE / PRO und SECULIFE ST BASE
Test Instruments for Measuring the Electrical Safety of Devices
per VDE 0701-0702, IEC 62353 and IEC 60974-4 3-349-752-03
14/ .176
2 GMC-I Messtechnik GmbH

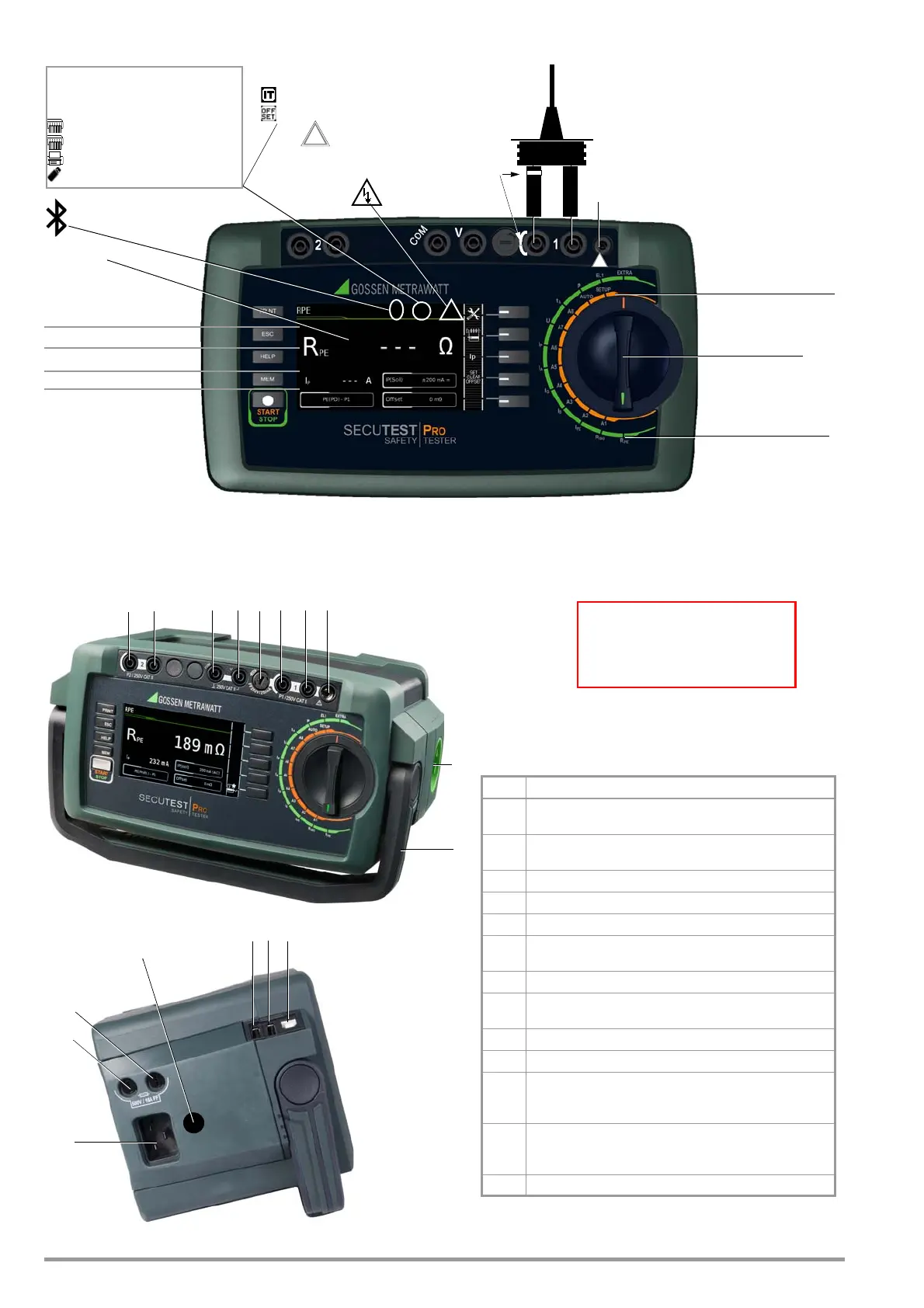

Controls
Connections
These operating instructions describe an instrument with software ersion v FW1.8. .2
Rotary
selector switch
LCD panel
Single measurements
Sequences A1 ... A8, AUTO
(automatic test sequences)
MEM:
Database functions
ESC: Return
Fixed Function Keys
HELP: Help images
START: Start/stop
– Single meas.
– Test sequence
Finger contact
PRINT: Print via USB
Rotary switch level:
Rotary switch level:
Softkeys
Standard
test probe
!
Connection for
service plug only
Lightning symbol:
mains to test socket
!
White identified
and fused high
current path
– For keyboard *
– For barcode/RFID scanner *
– For printer
– For USB drive
Display of symbols for
devices connected to the
USB master interface (see below)
Display of special symbols:
– Measurement at IT system active
– Offset for RPE active
* The receiver must be plugged in here for wireless entry devices.
** is only shown while a connection with another Bluetooth device is active
orange
green
Bluetooth
®
** (Feature M01)
Parameters see page 73
®
*
A list of suitable devices is included in the appendix (see section 14).
No. Meaning
12nd test probe for 2-pole measurement
SECUTEST PRO only (or device with feature H01)
2Voltage measuring inputs
SECUTEST PRO only (or device with feature I01))
3Fuse link for the probe input
4Test probe connection (P1)
5Connection (jack socket) for service plug only!
6Country-specific standard socket (test socket)
for connecting devices under test
7Carrying handle and tilt stand
8Country-specific socket for mains power via inlet
plug
9Fuse link 1 for the mains connection
10 Fuse link 2 for the mains connection
11 Fuse link for 10 A protective conductor test
(additionally with SECUTEST BASE10 (feature G01) or
SECUTEST PRO)
12 USB master for connecting keyboard, barcode/
RFID scanner*, printer* and USB flash drive* (FAT
formatted, not NTFS)
13 USB slave for connection to a PC
3 4 54
6
7
9
10
8
11
12 13
2 21 1 SECULIFE ST BASE (M7050-V101)
corresponds to the range of func-
tions offered by SECUTEST PRO,
but is additionally endowed with
antimicrobial properties.

Produkt Specifikationer

Mærke: Gossen Metrawatt
Kategori: Måleinstrumenter
Model: SECUTEST BASE
