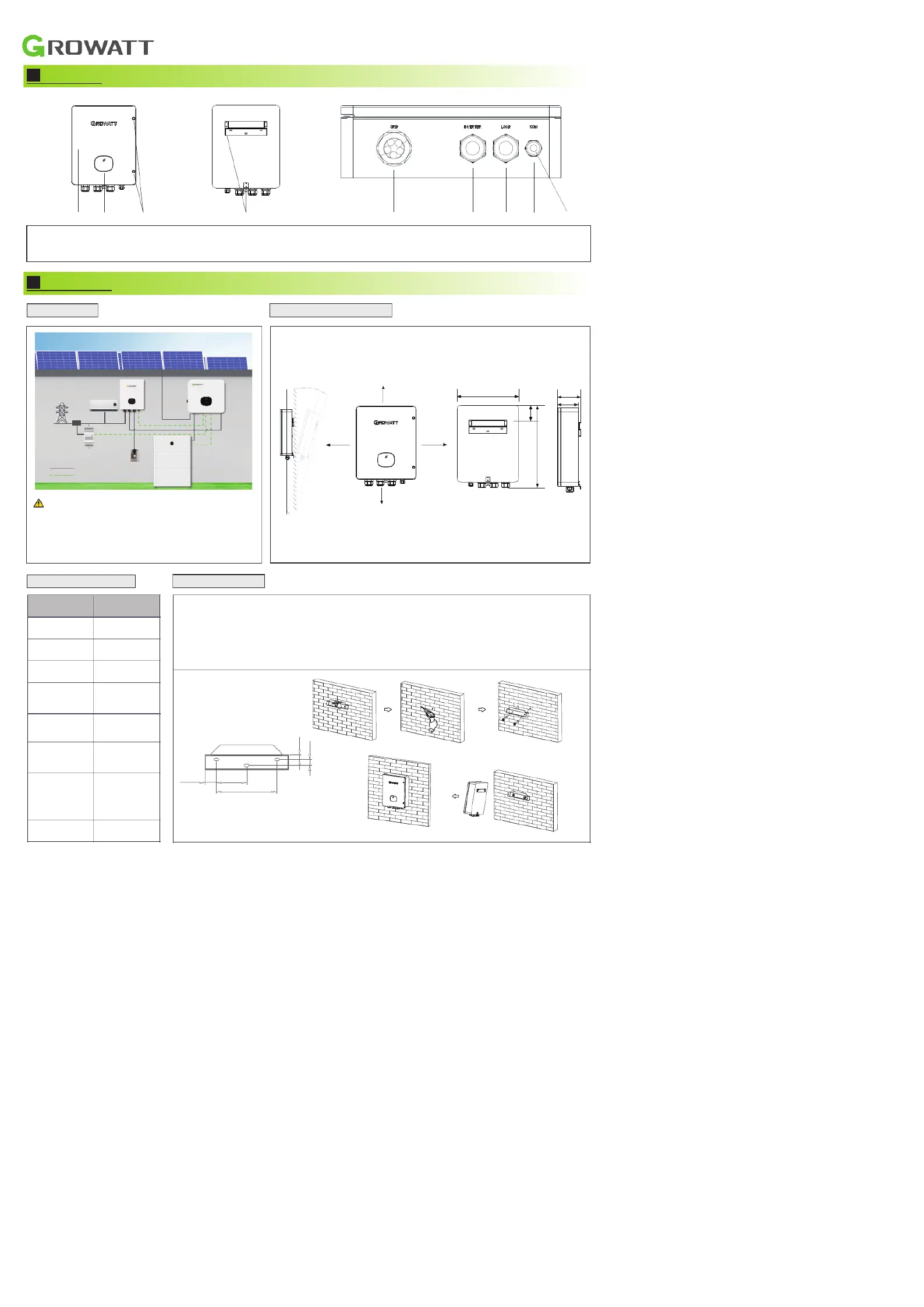

SYN 100-XH-30 Quick Guide

Overview

Installation

System overview

2.2 Installation requirements

2.1 Electrical parameters

1. Choose a suitable installation position. The SYN 100-XH-30 can be mounted on a solid wall, a stud

frame or a pole and keep it free from direct sunlight.

2. To ensure heat dissipation, please maintain at least a 300 mm clearance between the SYN 100-XH-

30 and other objects.

3. Place the mounting bracket against the wall/pole and mark the drilling hole positions.

4. Drill holes and mount the bracket. Ensure that the bracket is securely installed.

5. Install the SYN 100-XH-30 onto the mounting bracket.

1 2 3 4 5

7 8 9

Normal Loads

Critical Loads

Inverter

Battery

Meter

Backup

Bo x

Co mm un ic at io n ca bl e

Po we r ca bl e

≤15°

≥300

≥500

365.0

486.3

92.5

134.7

120.2

Note:

1. The critical load power depends on the power rating

of the inverter and battery.

2. The off-grid function is only available when the XH

inverter is paired with the APX battery system and

the backup box.

Model name

SYN 100-XH-30

Nominal grid

voltage

3W/N/PE

230/400 a.c.V

Range of grid

voltage

312 485 a.c.V～

Max. grid

current

125 a.c.A

Max.

continuous

grid current

90 a.c.A

Nominal grid

frequency

50/60Hz

Range of grid

frequency

45 65Hz～

Max.

continuous

inverter input

current

58 a.c.A

Max. backup

output current

58 a.c.A

2.3 Installation steps

(1) Front panel

(2) LED indicator

(3) Screw for front panel

(4) Mounting bracket

(9) Waterproof plugs

( ) 5 Grid wiring port

( )6 Inverter wiring port

( ) 7 Load wiring port

( )8 COM wiring port

Dimensions (Unit: mm)

Unit: mm

30.5

164

1 2 3 4

5 6

Screw torque

Power grid terminals

26.5 to 31 in*lbs

Ground terminal

13 in*lbs

SYN 100-XH-30

Grid

L3 L 2 L1

L1 L2 L3 N L 1 L2 L 3 N L1 L 2 L3 N L 1 L2 L 3 N

GR ID

BY PASS

IN VE RTE R

LO AD

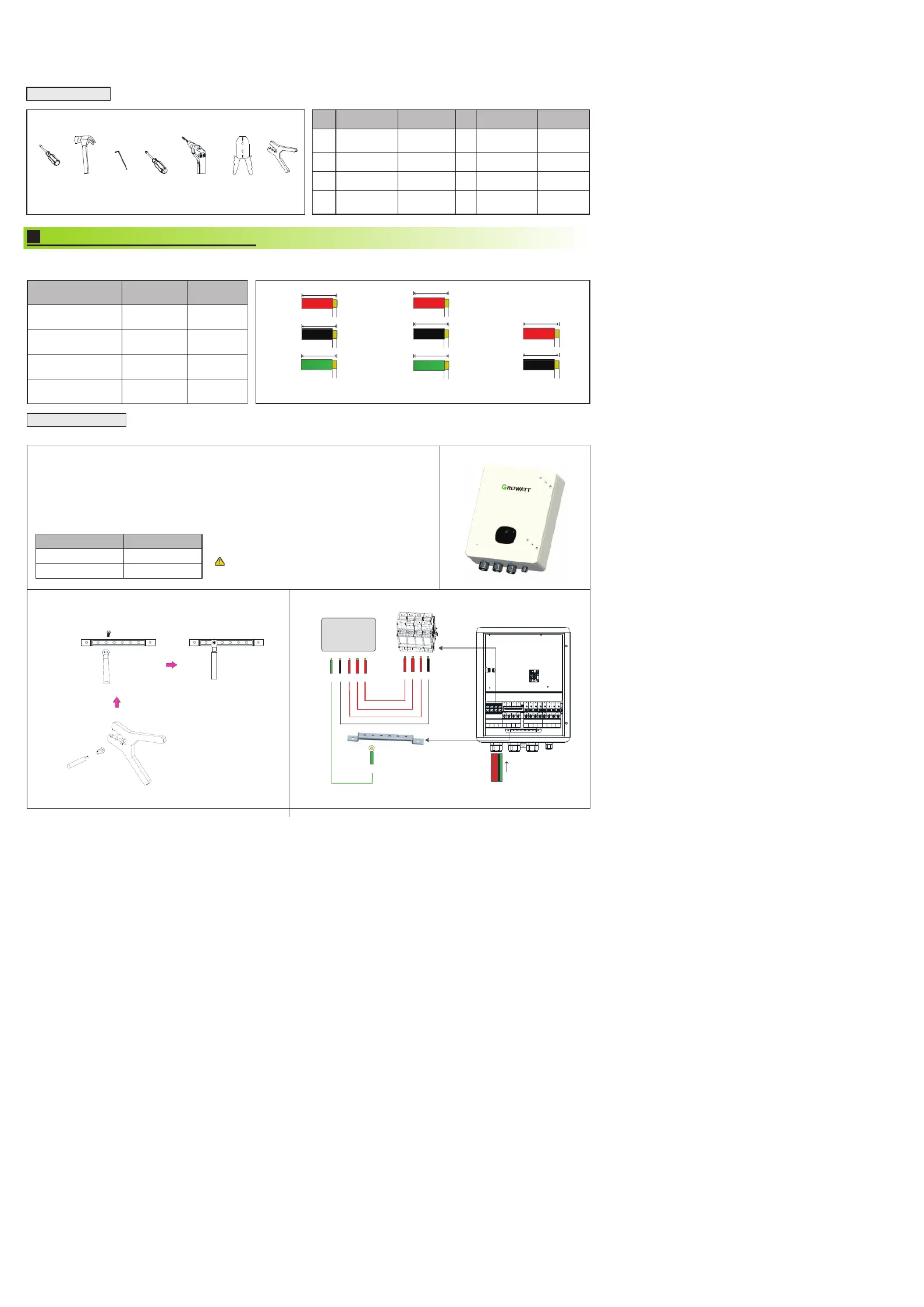

2 4. Required tools

No.

Name

Size

No.

Name

Size

Flat-blade

screwdriver

Φ2&5 mm

Hammer

Allen wrench

Φ5 mm

Phillips

screwdriver

Φ5 mm

Electric drill

Φ6 mm

Wire stripper

Pliers

33.

Recommended cable specifications

Please prepare suitable cables for the connection of the SYN box following the recommended specifications, and the stripped length of the

cables is 10 mm.

Cable

Cable outer

diameter

Cable length

Grid input cable

4-6 AWG

10 m

Inverter input cable

6-8 AWG

20 m

Load output cable

6-8 AWG

20 m

Communication cable

22-26 AWG

20 m

4-6 AWG

10 m

10 mm

10 m

4-6 AWG

10 mm

10 m

10 mm

Grid AC cable

20 m

6-8 AWG

10 mm

20 m

6-8 AWG

10 mm

20 m

10 mm

Load and lnverter AC cable

20 m

20m

22-26 AWG

10 mm

Communication cable

3 1. Wiring instructions

3.1.1 Connecting SYN 100-XH-30 to the Grid

1. Remove the two screws on the upper cover of the SYN 100-XH-30 to open the upper cover, and do

not remove the cover inside the machine.

2. Twist the plastic cover printed with "Grid" counterclockwise, remove the five waterproof plugs, and

reserve five holes.

3. Route the five power grid cables (L1/L2/L3/N/PE) through the five holes and connect them to the

power grid input terminals and the ground copper bar. Screw torques for tightening the power grid

terminals and ground terminals are shown in the following table.

4. Finally, fasten the plastic cover clockwise. The wiring method is shown in Figure 3.

Note: PE cables need to be crimped with the O-type

terminal in the accessory bag, as shown in

Figure 2.

Connecting to the Grid

3.1.2 Connecting SYN 100-XH-30 to the Inverter

When connecting the SYN 100-XH-30 to the XH Inverter, you need to connect the AC power cables and the communication cables.
