Berker GmbH & Co. KG - Klagebach 38 - 58579 Schalksmühle/Germany - Telefon: + 49 (0) 23 55/90 5-0 - Telefax: + 49 (0) 23 55/90 5-111 - www.berker.com -

Operating and

assembly instructions

8014 11 x0

KNX push button module

1gang

8014 21 x0

KNX push button module

2gang

6LE000414A - 06/2015

6LE000414A

Safety instructions z

Electrical equipment may only be installed and

assembled by a qualiﬁ ed electrician. Always fol-

low the relevant accident prevention regulations

of the country.

Failure to comply with these installation instruc-

tions may result in damage to the device, ﬁ re or

other hazards.

When installing and laying cables, always comply

with the applicable regulations and standards for

SELV electrical circuits.

During renovation work, protect the device from

pollution by paint, wallpaper paste, dust etc. The

device can be damaged.

These instructions are an integral component of

the product and must be retained by the end us-

er.

Design and layout of the device

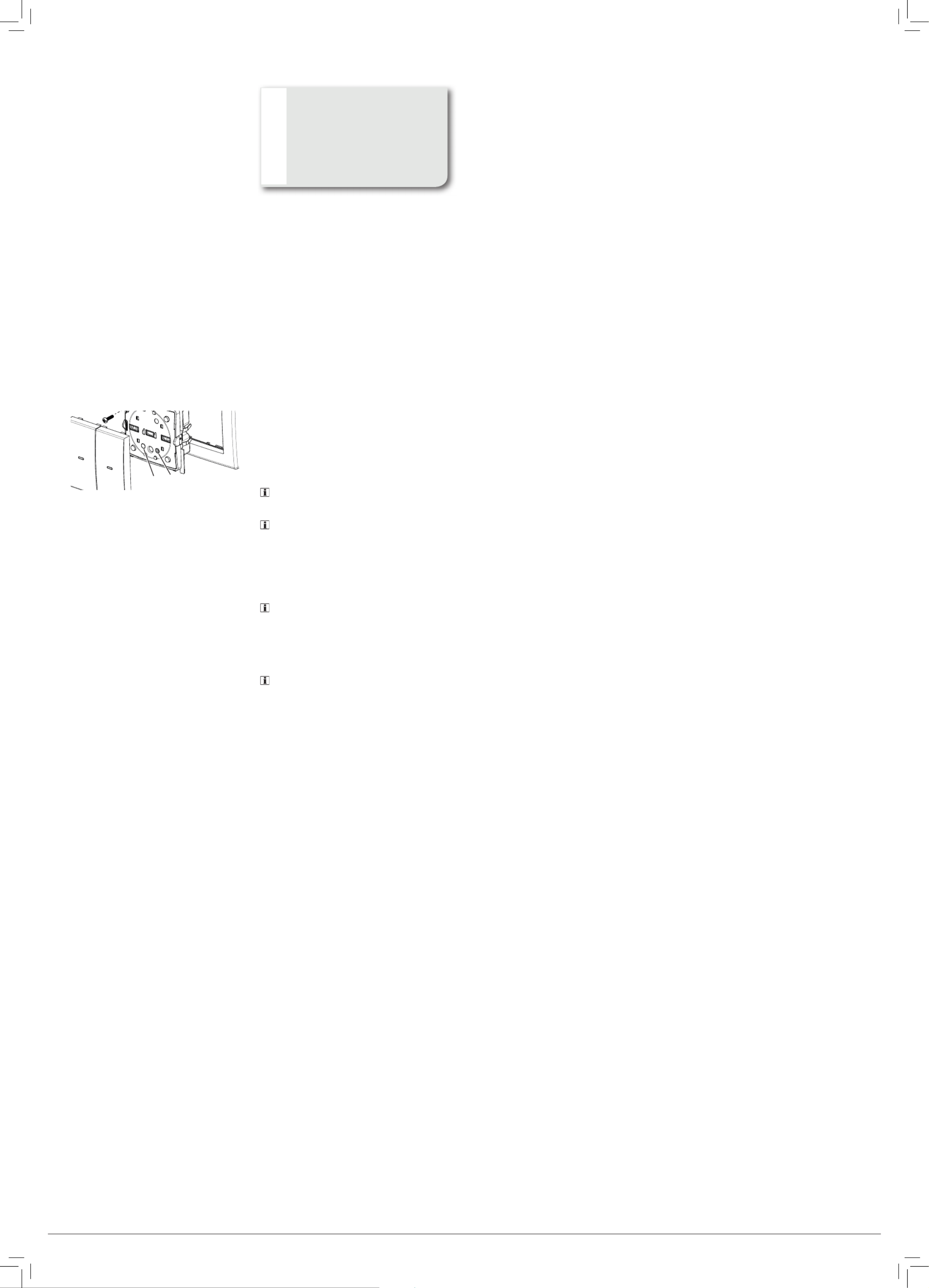

Figure 1: Design and layout of the device

(1) Touch cover (not within scope of delivery)

(2) Push-button module

(3) Fastening clamps

(4) Frame (not within scope of delivery)

(5) Supporting ring with prong connection

(6) Screw for dismantling protection

(7) Status LEDs

Function

System information

This device is a product of KNX system and corre-

sponds to the KNX guidelines. Detailed specialised

knowledge obtained from KNX training courses is

required for comprehension. The planning, installa-

tion and commissioning are carried out with the help

of KNX-certiﬁ ed software.

system link start-up

The function of the device is software-dependent. The

software is to be taken from the product database. You

can ﬁ nd the latest version of the product database,

technical descriptions as well as conversion and addi-

tional support programmes on our website.

easy link start-up

The function of the device is conﬁ guration-de-

pendent. The conﬁ guration can also be done using

devices developed specially for simple setting and

start-up.

This type of conﬁ guration is only possible with devic-

es of the easy link system. easy link stands for easy,

visually supported start-up. Preconﬁ gured standard

functions are assigned to the in/outputs by means of

a service module.

Correct use

- Operation of consumers, e.g. light on/off, dim-

ming, blind up/down, saving and opening light

scenes, etc.

- Installation into wall box according to DIN 49073

Product characteristics

- Start-up and programming in S-mode and E-mode

- Push-button functions: switching/dimming, blind

control, value transmitter, scene call-up, speciﬁ ca-

tion of the heating operating mode, forced control,

stepping switch and comparator function

- One status LED per rocker

- Function and colour of the status LEDs conﬁ gur-

able for the device

- Integrated bus application unit

Operation

Triggering of functions and operation of electrical

loads takes place via touch surfaces (ﬁ gure 2,

dashed) and can be set individually for each device.

There are two operating modes:

- Single-surface operation:

Switching lighting on/off and dimming brighter/

darker is carried out alternately by repeated

touching of a touch surface.

- Two-surface operation:

Two superimposed touch surfaces form a function

pair. For example, touching the top surface switch-

es/dims lighting on/makes it brighter, touching the

bottom surface switches it off/makes it darker.

Operating a function or load

Consumers, such as lighting, blinds, etc., are operat-

ed using the touch surfaces, which are dependent on

the device conﬁ guration.

Touch a touch surface.

The stored function is executed.

The actuation pulse lasts for the duration of the

actuation. Depending on the function, short and

long touches can trigger different actions, e.g.

switching/dimming.

(1)

(2) (3)

(4)

(5)

(6)

(7)
