Side 1/4

6 m ( 140°)α

8 m ( 200°)α

6 m ( 140°)α

8 m ( 200°)α

15 min

5 s

5 mi n

auto

lux

tes t

1 6LE001205A

6LE001205A

EE82., EE83.

Motion detectors 140°, 200°

Description

IP55

+/- 80°

0 to 30°

Terminal block (detachable)

Quick Connect

Swivelling detection head

Setting potentiometersPlate for wall xing

Setting

Detection zone

Luminosity

Shutters

Installation Accessories for corner fixing

Fixed time

(length of time of

lighting)

The optimal height of installation is 2.5 m.

The detection eld must remain free.

2,5 m

8 m 16 m

EE82. = 140° α

EE83. = 200°α

DETECTOR 140°

EE820 White

EE821 Charcoal

DETECTOR 200°

EE830 White

EE831 Charcoal

2 6LE001205A

Support for ceiling fixing

Product presentation and operating

principles

This detector allows automatic control of a

light source for a dened length of time when a

movement is detected in the surveillance zone.

Settings and Test

The detectors have 2 modes of operation:

Fixed time and Control by timer.

Power supply

The detector switches the light on for 40 s.

After 40 s, it activates the Normal mode.

Testing and validating the detection

zone

Put the potentiometer on Test mode and if 1

necessary, use the shutters to dene the detection

zone.

The Test mode is available for 3 min.

Every movement detected switches on the light for

1 s.

After 3 min without detection of movement, the

product returns to normal operation.

Limiting the detection zone

You can limit the detection zone by using the

shutters provided.

“Normal” operation (on/off)

The lighting is activated whenever the level of

luminosity dened by the potentiometer 1 is

judged to be insufcient and a movement is

detected.

After detection, the light stays on for the length of

time predened by the potentiometer 2.

The xed timing is reset after each detection.

Please note : when the potentiometer is on “auto

test”, the settings are predened.

Control by timer

An impulse is generated every 10 s whenever the

level of luminosity is judged to be insufcient and

a movement is detected when the potentiometer

2 is on

Operating precautions

In order to obtain optimal detection conditions, it is recommended that the following advice :

- The detector is sensitive to sun rays and wind and rain, avoid exposing it to direct sunlight and rain.

- It is preferable to maintain à distance of 1 m between a light source and the detector.

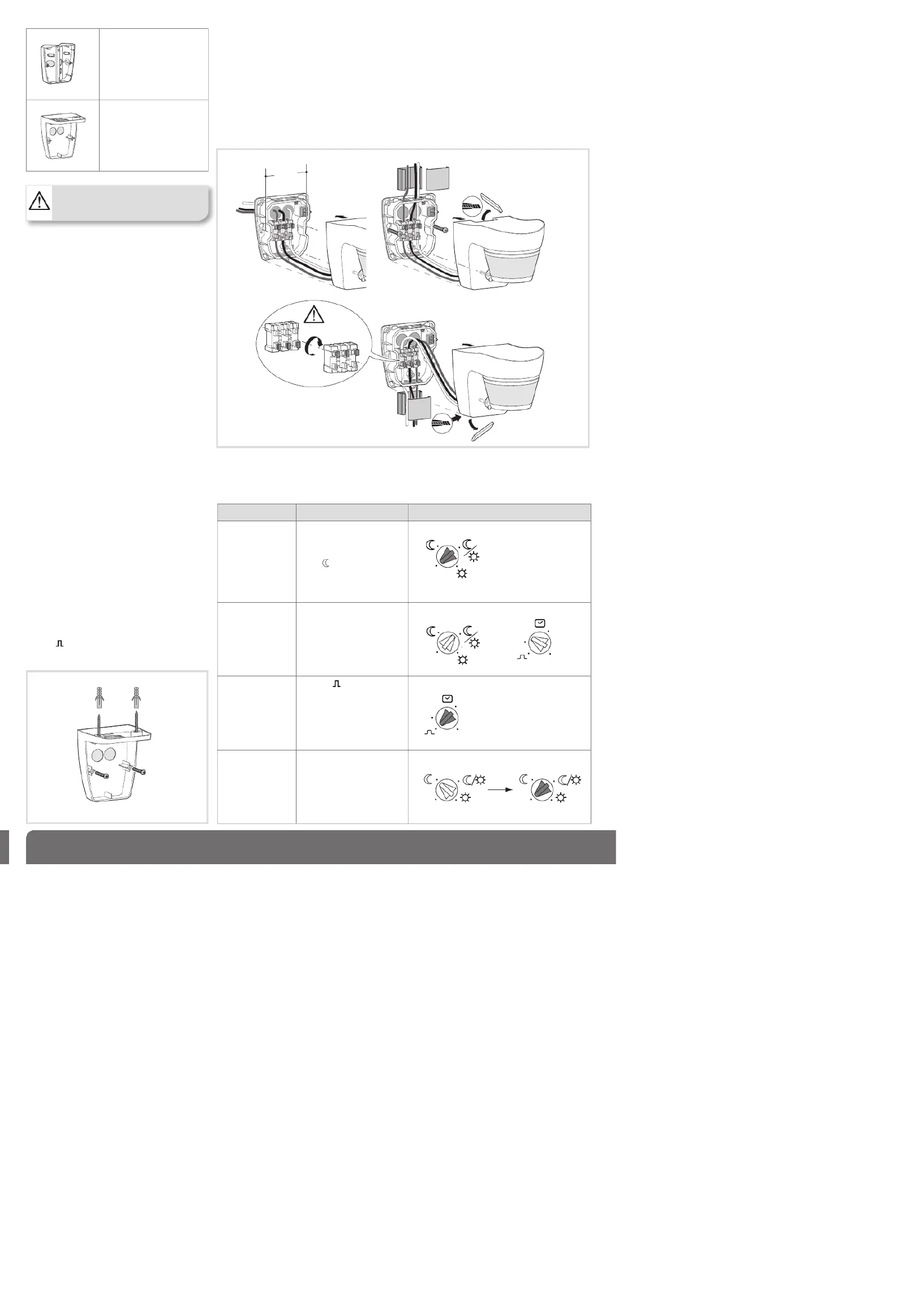

Assembly

Jutting out or on the ceiling:

- x the wall plate using the screws provided,

- connect the detector (see cabling plans in annex),

- clip the detector to the wall plate,

- screw to close.

For corner xing, the wall plate is to be xed between the accessory and the detector.

Cable entry (breakable partitions) are possible :

- by the back (box mounting), by the bottom or by the top,

- via a mould.

Wiring and connections (provide installation with fixed wiring)

IP55

N L L'

L' L N

60 mm

Action Settings Potentiometer

Use Auto settings

(factory).

Auto Settings

Put the Lux potentiometer

1 on “auto test”.

The settings are predened :

Lux =

(operating at night only)

time = 3 min.

auto

lux

test

Automatically

switch on the light

for a dened time.

Installer settings

15 min

5 s

5 min

auto

lux

test

Control a timer,

a bell, etc.

Impulse

Auto settings are usable with

time = 1 s.

(cannot be changed).

15 min

5 s

5 min

Test and validate

the detection zone.

Test mode

Move the potentiometer 1

to “auto test”.

auto

lux

test

auto

lux

test

ACCESSORY FOR

CORNER FIXING

EE825 White

EE826 Charcoal

ACCESSORY FOR

CEILING FIXING

EE827 White

EE828 Charcoal

Ateha raceways

ref. ATA 12200

or ATA 63000

This device is to be installed only by a

professional electrician tter according to

local applicable installation standards.
