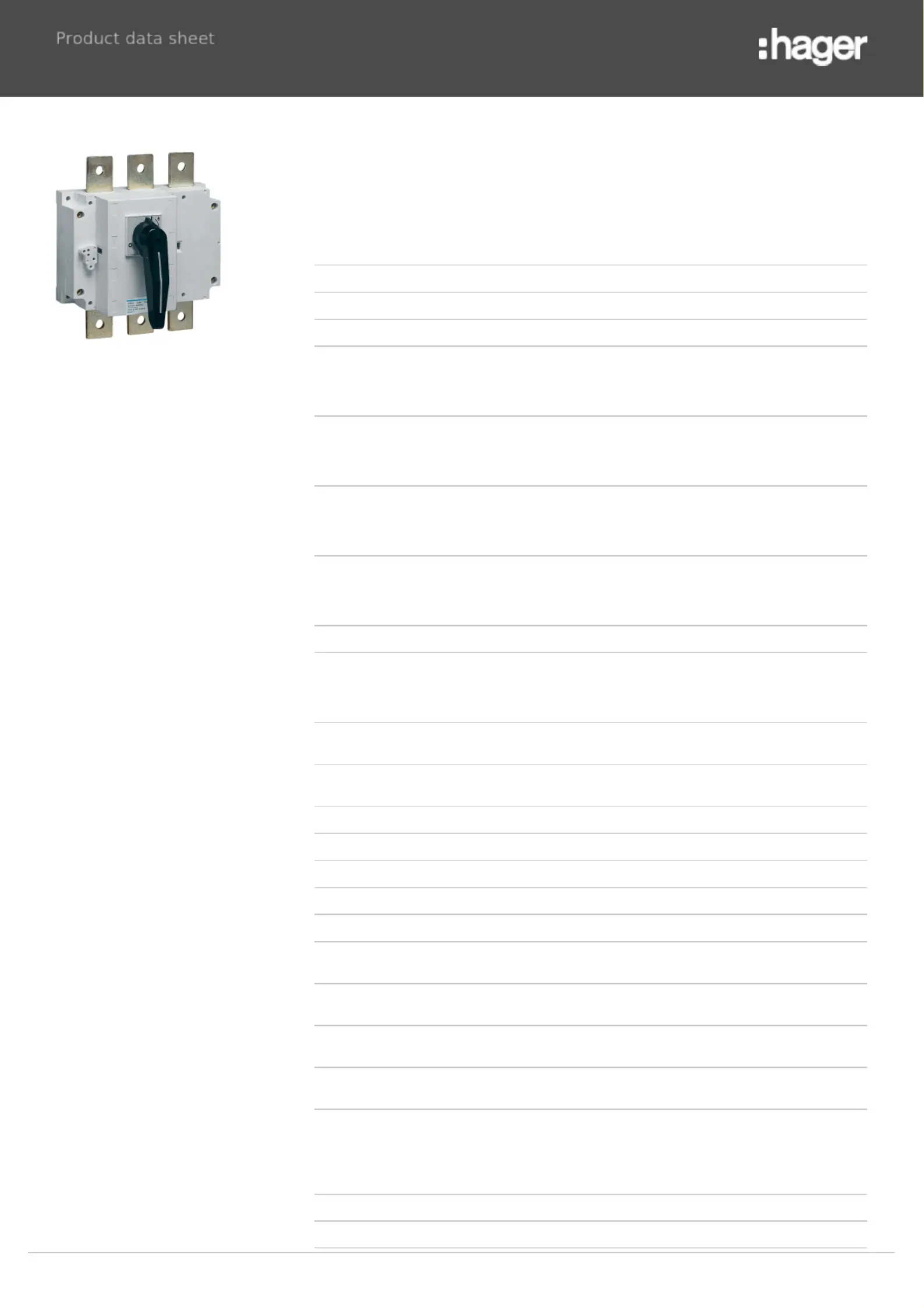

HA356

Load break switch 3P 400A

Technical characteristics

Architecture

Type of order Long thumb-grip

Number of poles 3 P

Type of pole 3 P

Type of case Fixed built-in

Functions

Reversing switch No

Controls and indicators

Motor drive integrated No

Main electrical features

Rated operational voltage Ue 380 / 415 V

Voltage

Rated insulation voltage 1000 V

Rated impulse withstand voltage 12000 V

Electric current

Rated operational current in AC21category

B 400 A

Acceptable current rating with AC22

category A 400 A

Cut off current 6.5 kA

Rated current 400 A

Short-circuit current with gI-gG fuses 50 kA

Rated short-time withstand current 1s 13 kA

Thermal rated current outside of housings 400 A

Rated operational current in AC21 category

A 400 A

Acceptable current rating with AC22

category B 400 A

Rated operational current in AC23 category

A 400 A

Acceptable current rating with AC23

category B 400 A

Conventional thermal current under

enclosure at 40°C 400 A

Dimensions

Depth of installed product 165 mm

Height of installed product 235 mm

Subject to technical modifications

Width of installed product 230 mm

Power

Nominal power under 440/500, 50Hz 150 kW

Total power loss under IN 32.4 W

Power loss per pole at In 10.8 W

Contact rating with 400 V in AC1 263 kW

Cover, door

Interlockable Yes

Installation, mounting

Fixation type Back plate monting

Connection

Connection cross-sect. flexible conductor 185mm²

Connection cross-sect. rigid cable 1x240mm²

Type of connection Terminal

Equipment

Number of auxiliary contacts as normally

closed contact 0

Number of auxiliary contacts as normally

open contact 0

Number of auxiliary contacts as change-

over contact 0

Width available for insulation connection 185

Motor drive optional No

Standards

European directive WEEE concerned

Safety

Protection index IP IP00

Use conditions

Operating temperature -20…70 °C

Subject to technical modifications
