Invicta 3 Panelboard

250A

Invicta 3 Panelboard

250A

A panelboard with 250A incoming and 125A

outgoing and a choice of glazed or plain door.

Features & Beneﬁts

-Comprises of IP3XD rated enclosure, pan assembly, twin neutral and earth

bars.

-Conforms to BS EN 61439-2. I

nA = 250A, Inc = 125A, Icc = 25kA.

-Supplied without incoming kit, JN 250A incomer kit must be used.

-Form 3B type 2 using outgoing terminal shield (form 3A without terminal

shield).

Cable Capacity Incomers & Outgoers

-Incomers: 3 and 4 pole incomers, cable capacity 150mm², max lug width

25mm, M8 bolt, direct connection kit.

-Outgoers: 1 & 3 pole MCCB 70mm² ﬂexible, 95mm² solid.

Options

-Key lock, meter pack, DIN rail extension box, spreader box.

Outgoing MCCBs

-Adjustable thermal options on triple pole devices.

Description Cat ref.

Plain Door

Cat ref.

Glazed Door

Invicta 3 Panelboards (250A Incoming 125A Outgoing)

4 Triple Pole Ways 250A Panelboard JN204B JN204BG

6 Triple Pole Ways 250A Panelboard JN206B JN206BG

8 Triple Pole Ways 250A Panelboard JN208B JN208BG

12 Triple Pole Ways 250A Panelboard JN212B JN212BG

16 Triple Pole Ways 250A Panelboard JN216B JN216BG

Incomer Kits Cat ref.

3 Pole 250A MCCB Incomer Kit (Adj. Thermal 0.63, 0.8, 1) 40kA (Magnetic 5, 7, 9, 11 x In) JN223BM

4 Pole 250A MCCB Incomer Kit (Adj. Thermal 0.63, 0.8, 1) 40kA (Magnetic 5, 7, 9, 11 x In) JN224BM

3 Pole Switch Disconnector Incomer Kit JN223BS

4 Pole Switch Disconnector Incomer Kit JN224BS

250A Direct Connection Kit JN224BD

The panelboard conforms to BS EN 61439-2 providing an efcient solution

for lectrical istribution n ommercial nd ndustrial pplications. e d i c a i a

Outgoing moulded case circuit breakers from the x160 ranges are utilised

in this board.

Max Cable

Capacity

M8 Lug

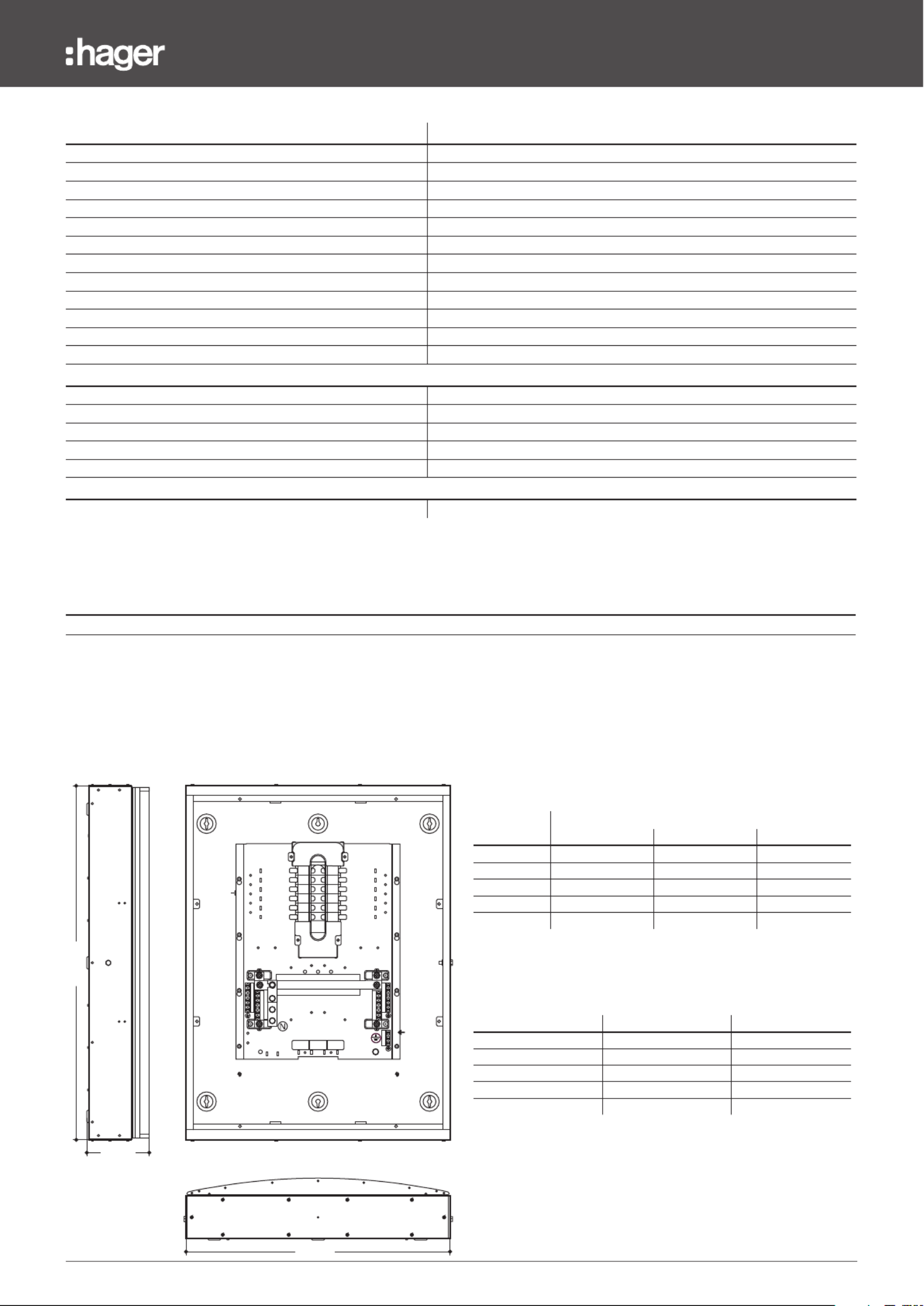

Hager Ltd. Hortonwood 50, Hortonwood, Telford, TF1 7FT / 01952 675 675 2

Invicta 3 Panelboard

250A

Devices Single & Triple Pole

Fixed Thermal

Triple Pole

Adjustable Thermal

MCCB x160 18kA HDA***Z HDA***U

MCCB x160 25kA HHA***Z HHA***U

Characteristics 250A

Series JN2**

Busbar current rating 250A

Busbar type Type B Fully Shrouded Copper

Busbar rated short-time withstand current 25kA for 1 sec

Internal separation Form 3A

Incoming Up to 250A MCCB, MCS

Outgoing 16 - 125A max.

Voltage rating in AC 415V

IP Protection IP3X

Enclosure body type Steel

Enclosure paint type Powder coat Grey white BS 4800 00A01

Cable entry Via Gland Plates

Terminal Connection capacity

Incoming earth terminal M8

Incoming neutral terminal M8

Outgoing earth terminals Up to 50mm²

Outgoing neutral terminals Up to 50mm²

Enclosure earth stud M8

Installation

Mounting Surface (Wall)

Primary Boards

Dimensions (mm)

Height Width Depth

JN204B/G 950 710 160

JN206B/G 1100 710 160

JN208B/G 1100 710 160

JN212B/G 1250 710 160

JN216B/G 1550 710 160

Terminals

Neutral Earth Bond

2 x 6 x 50mm 2 x 6 x 50mm 1 x 3 x 50mm

2 x 9 x 50mm 2 x 9 x 50mm 1 x 3 x 50mm

2 x 12 x 50mm 2 x 12 x 50mm 1 x 3 x 50mm

2 x 18 x 50mm 2 x 18 x 50mm 1 x 3 x 50mm

2 x 24 x 50mm 2 x 24 x 50mm 1 x 3 x 50mm

Cables outgoing ways:

25 - 50mm2 CSA Flex

25 - 70mm2 CSA Solid

MCCB Connections M8

Earth M8

Neutral M8

ISOLATE BEFORE

REMOVING COVER

ISOLATE BEFORE

REMOVING COVER

L1 L2 L3

Width

Height

Depth

Produkt Specifikationer

Mærke:	Hager
Kategori:	Ikke kategoriseret
Model:	JN201BE
Kode for international beskyttelse (IP):	IP30
Bredde:	710 mm
Dybde:	178.9 mm
Højde:	300 mm
Nominel strøm:	250 A
