Hager Ltd. Hortonwood 50, Hortonwood, Telford, TF1 7FT / 01952 675 675 1
Invicta 3 Panelboard
250A
Invicta 3 Panelboard
250A
A panelboard with 250A incoming and 125A
outgoing and a choice of glazed or plain door.
Features & Benefits
-
Comprises of IP3XD rated enclosure, pan assembly, twin neutral and earth
bars.
-Conforms to BS EN 61439-2. I
nA = 250A, Inc = 125A, Icc = 25kA.
-Supplied without incoming kit, JN 250A incomer kit must be used.
-Form 3B type 2 using outgoing terminal shield (form 3A without terminal
shield).
Cable Capacity Incomers & Outgoers
-Incomers: 3 and 4 pole incomers, cable capacity 150mm², max lug width
25mm, M8 bolt, direct connection kit.
-Outgoers: 1 & 3 pole MCCB 70mm² flexible, 95mm² solid.
Options
-Key lock, meter pack, DIN rail extension box, spreader box.
Outgoing MCCBs
-Adjustable thermal options on triple pole devices.
Description Cat ref.
Plain Door
Cat ref.
Glazed Door
Invicta 3 Panelboards (250A Incoming 125A Outgoing)
4 Triple Pole Ways 250A Panelboard JN204B JN204BG
6 Triple Pole Ways 250A Panelboard JN206B JN206BG
8 Triple Pole Ways 250A Panelboard JN208B JN208BG
12 Triple Pole Ways 250A Panelboard JN212B JN212BG
16 Triple Pole Ways 250A Panelboard JN216B JN216BG
Incomer Kits Cat ref.
3 Pole 250A MCCB Incomer Kit (Adj. Thermal 0.63, 0.8, 1) 40kA (Magnetic 5, 7, 9, 11 x In) JN223BM
4 Pole 250A MCCB Incomer Kit (Adj. Thermal 0.63, 0.8, 1) 40kA (Magnetic 5, 7, 9, 11 x In) JN224BM
3 Pole Switch Disconnector Incomer Kit JN223BS
4 Pole Switch Disconnector Incomer Kit JN224BS
250A Direct Connection Kit JN224BD
The panelboard conforms to BS EN 61439-2 providing an efcient solution
for lectrical istribution n ommercial nd ndustrial pplications. e d i c a i a
Outgoing moulded case circuit breakers from the x160 ranges are utilised
in this board.
Max Cable
Capacity
M8 Lug
M8 Lug
M8 Lug
M8 Lug
M8 Lug
Hager Ltd. Hortonwood 50, Hortonwood, Telford, TF1 7FT / 01952 675 675 2
Invicta 3 Panelboard
250A
Devices Single & Triple Pole
Fixed Thermal
Triple Pole
Adjustable Thermal
MCCB x160 18kA HDA***Z HDA***U
MCCB x160 25kA HHA***Z HHA***U
Characteristics 250A
Series JN2**
Busbar current rating 250A
Busbar type Type B Fully Shrouded Copper
Busbar rated short-time withstand current 25kA for 1 sec
Internal separation Form 3A
Incoming Up to 250A MCCB, MCS
Outgoing 16 - 125A max.
Voltage rating in AC 415V
IP Protection IP3X
Enclosure body type Steel
Enclosure paint type Powder coat Grey white BS 4800 00A01
Cable entry Via Gland Plates
Terminal Connection capacity
Incoming earth terminal M8
Incoming neutral terminal M8
Outgoing earth terminals Up to 50mm²
Outgoing neutral terminals Up to 50mm²
Enclosure earth stud M8

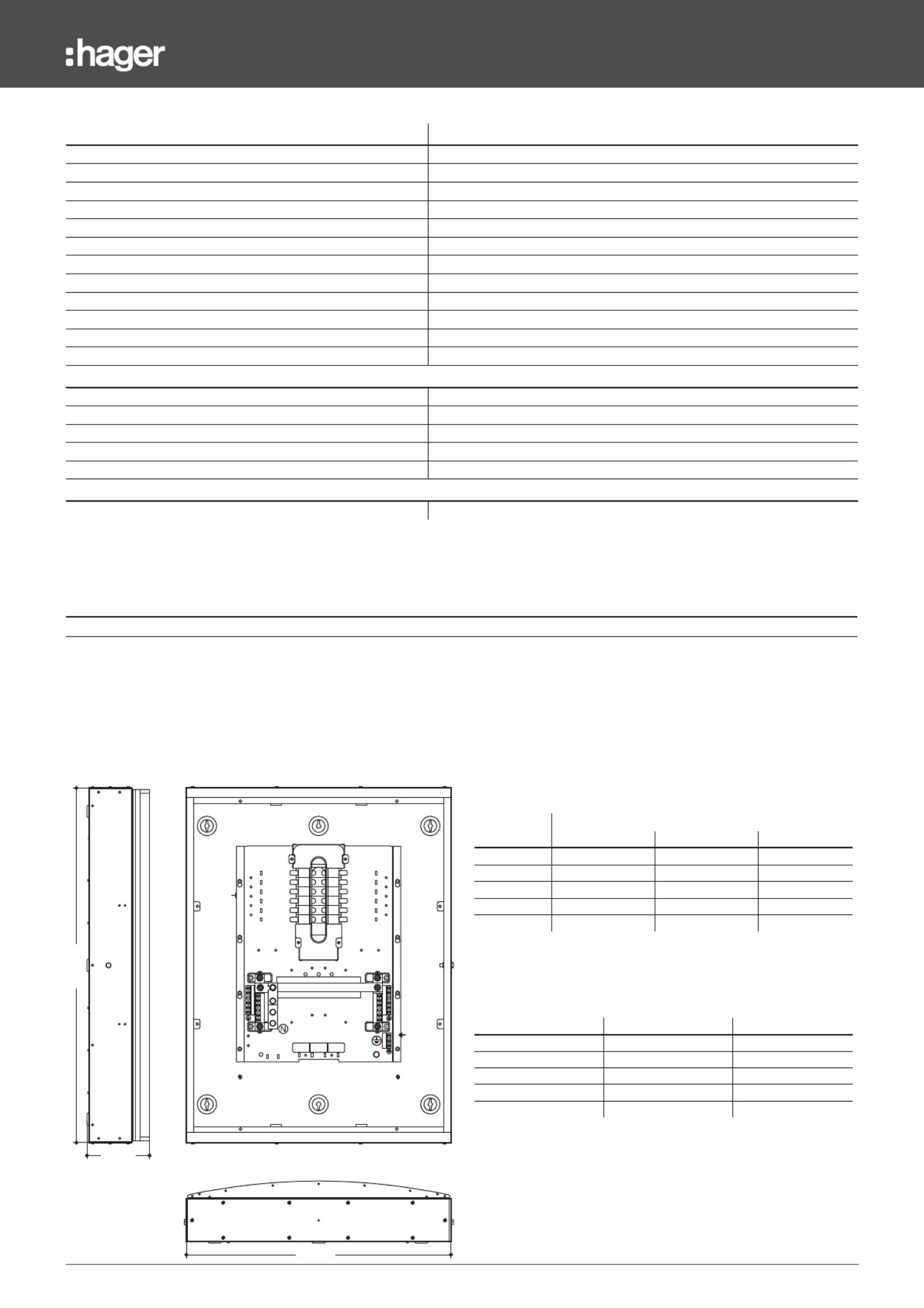

Installation
Mounting Surface (Wall)
Primary Boards
Dimensions (mm)
Height Width Depth
JN204B/G 950 710 160
JN206B/G 1100 710 160
JN208B/G 1100 710 160
JN212B/G 1250 710 160
JN216B/G 1550 710 160
Terminals
Neutral Earth Bond
2 x 6 x 50mm 2 x 6 x 50mm 1 x 3 x 50mm
2 x 9 x 50mm 2 x 9 x 50mm 1 x 3 x 50mm
2 x 12 x 50mm 2 x 12 x 50mm 1 x 3 x 50mm
2 x 18 x 50mm 2 x 18 x 50mm 1 x 3 x 50mm
2 x 24 x 50mm 2 x 24 x 50mm 1 x 3 x 50mm
Cables outgoing ways:
25 - 50mm2 CSA Flex
25 - 70mm2 CSA Solid
MCCB Connections M8
Earth M8
Neutral M8
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
7
8
9
10
11
12
B1
B2
B3
ISOLATE BEFORE
REMOVING COVER
ISOLATE BEFORE
REMOVING COVER
L1 L2 L3
L1
L2
L3
L1
L2
L3
Width
Height
Depth

Produkt Specifikationer

Mærke: Hager
Kategori: Ikke kategoriseret
Model: JN205BE
Kode for international beskyttelse (IP): IP30
Bredde: 710 mm
Dybde: 130 mm
Højde: 300 mm
