User Instructions
Tools needed
1 6A XXXX.a
6AA XXXXX.a 6A XXXX.a
performa 2
apex & apex PLUS
Panelboard
#2 Phillips head screwdriver
Flat Blade screwdriver
8mm & 13mm spanner
Earth wire fitted
Earth and Neutral links
E = Central keyhole fixing point
Board mounting
Dimensions A B C D
apex 24 pole 350 500 560 820
apex 36 pole 350 700 560 1020
apex 48 pole 350 900 560 1020
apex 60 pole 350 900 560 1220
apex 72 pole 350 1100 560 1220
apex 96 pole 350 1300 560 1420
apex + 24 pole 350 700 560 1020
apex + 36 pole 350 900 560 1220
apex + 48 pole 350 900 560 1220
apex + 60 pole 350 1100 560 1420
apex + 72 pole 350 1100 560 1420
apex + 96 pole 350 1300 560 1620
apex extension 350 150 560 420
Note: Only registered Electrical
Contractors are to do any
installation to panelboards
The electrical contractor is to ensure
that the panelboard meets site specific
requirements. Final installation is to
meet all rules as described in
AS/NZS 3000:2007.
Switchboard Mounting
The electrical contractor must
ensure that the support structure
or wall is adequate to support
the weight of the panelboard.
All cables entering or exiting
the switchboard are to be via a
gland or sealed as required.
All panelboards have lockable doors
suitable for restricted areas as per
AS/NZS 3439.3:2002.
Switchgear mounting in Panelboard
The electrical contractor is to ascertain
that all installed devices are suitable
to meet the appropriate fault
current ratings required.
The chassis on this panel board
is suitable for Hager 10kA type
of MCBs and RCBOs and was
designed to suit only Hager MCBs.
Hager’s recommends fitting only
Hager approved switchgear otherwise
this may void warranty. If the fault level
at the switchboard is greater than the
MCB fault rating, they must be backed
up by current limiting fuses or current
limiting circuit breakers. For backup
protection levels refer to Hager.
Devices are to be mounted
with the DIN clip toward the
centre of the enclosure.
Transportation may cause
terminations, mechanical supports
and other connections to become
loose. The electrical contractor is
to ensure all these connections are
tightened prior to any energisation.
Final overview prior to Energisation
Review alignment of all devices
and ensure there has been no
damage during final terminations.
The panelboard is to be cleaned
and vacuumed from filings and
other foreign objects after final
terminations are completed.
Neutral bars Integrated neutral bars
Neutral bar size (mm) 12x9
Split neutral As standard
Earth bars Earth bars both sides
Earth bar size (mm) 12x9
Earth and neutral
bar tunnels
Single screw tunnel
Ø7mm (up to 25mm²
cable) solid and
stranded conductors1
Earth and neutral
bar connection
Single stud (M6
= 2.5Nm)
Earth and neutral
bar rating
250A
1 Copper strands must be firmly twisted together using
a tool i.e. pliers.
2 6A XXXX.a

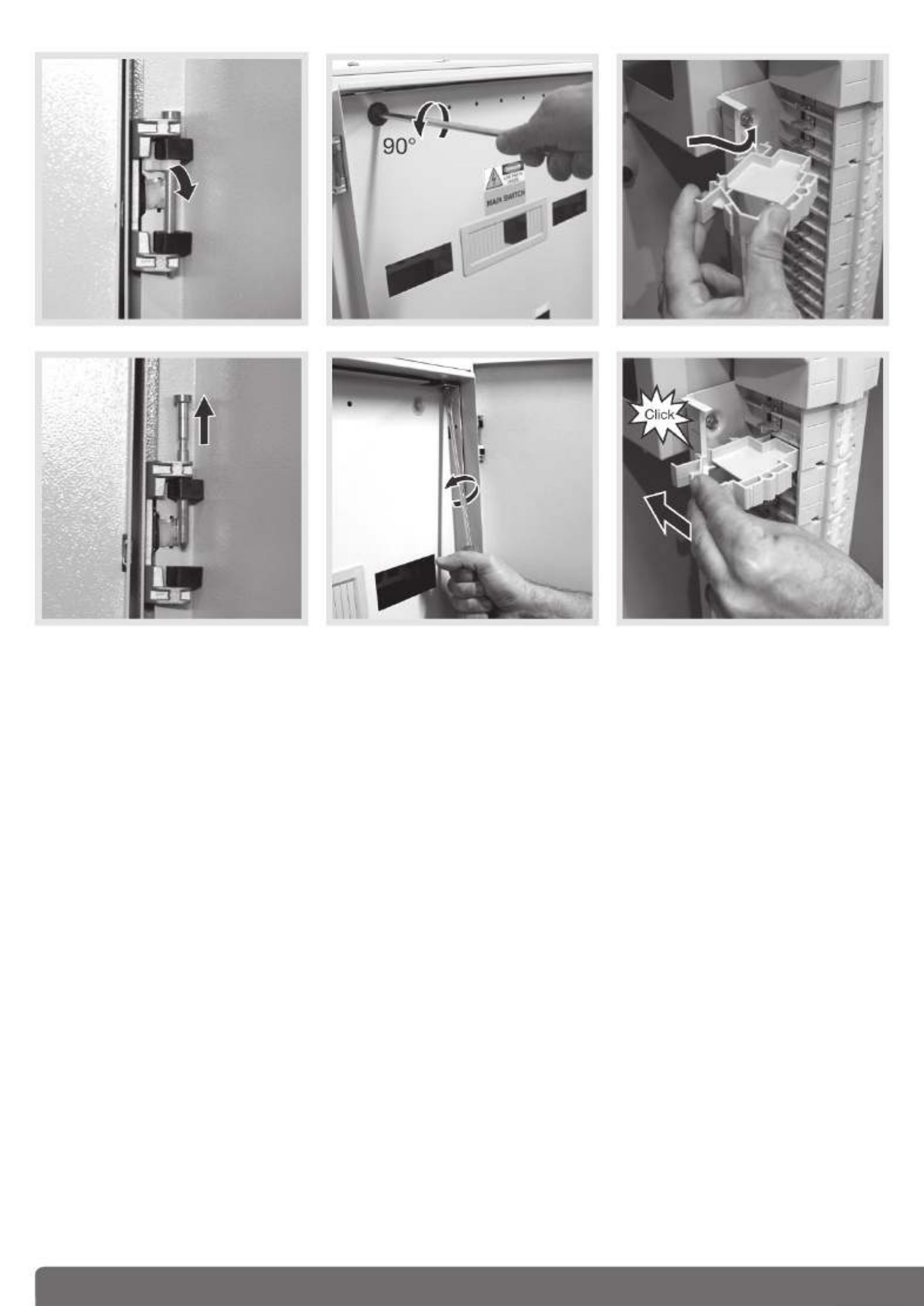

Door removal
Note: for door reversal, the apex lock
position is universal.
Escutcheon removal
1
2
1
2
Mounting a safety pole filler
1
2
