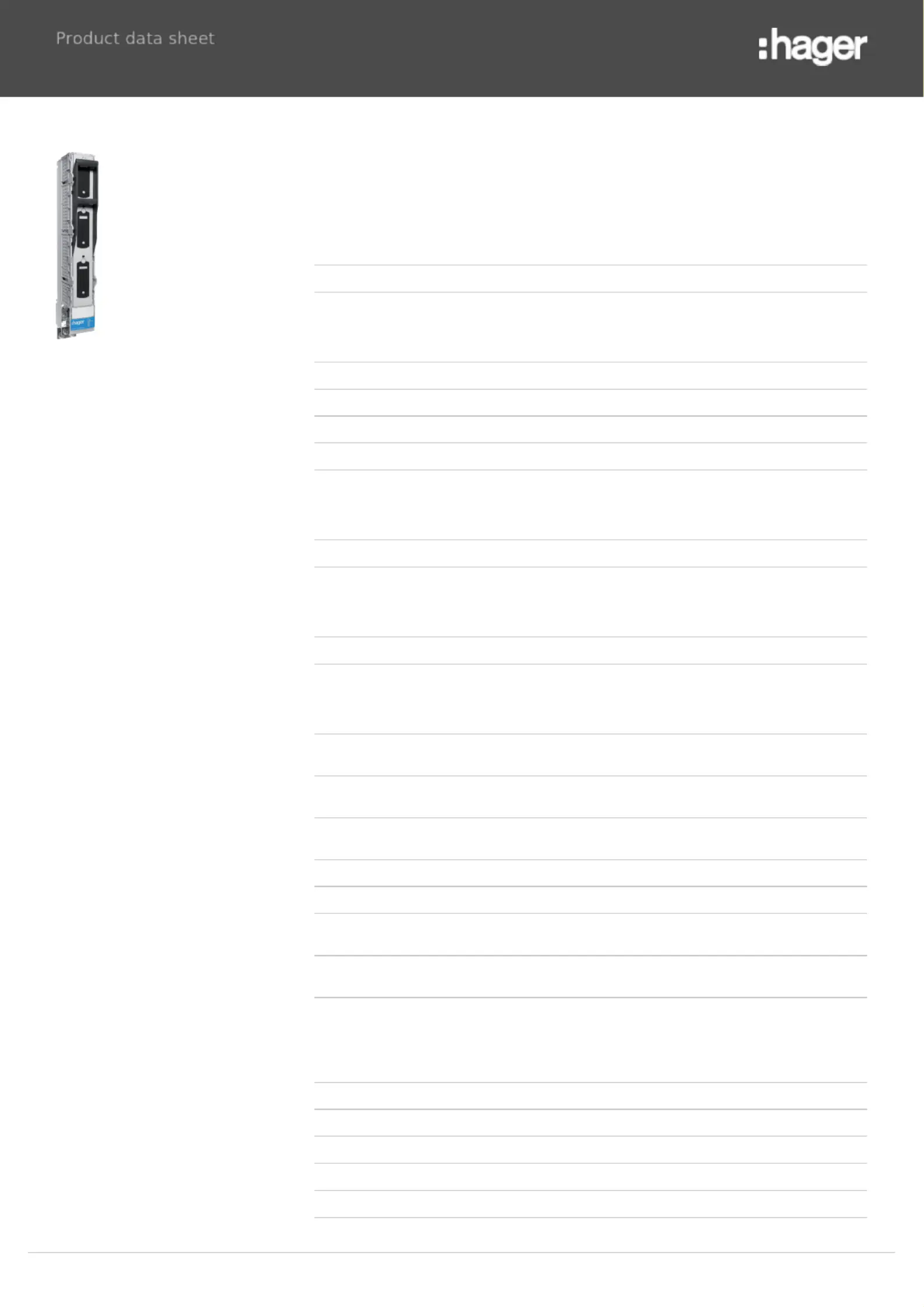

LVTG1000CP

NH Disconnector vertical design LV size 3 1000A 185mm 3pole M12

Technical properties

Architecture

Number of poles 3 P

Type of pole 3 P

Configuration

Distance between rail centre, 40 mm No

Distance between rail centre, 50 mm No

Distance between rail centre, 60 mm No

Distance between rail centre, 100 mm No

Distance between rail centre, 185 mm Yes

Main electrical features

Rated operational voltage Ue 0 / 690 V AC

Frequency 50/60 Hz

Voltage

Rated insulation voltage 1000 V

Rated impulse withstand voltage 12 kV

Electric current

Rated current for Ue=400V AC according to

IEC 61439-1 5.3.2 1000 A

Rated current for Ue=500V AC according to

IEC 61439-1 5.3.2 1000 A

Rated current for Ue=690V AC according to

IEC 61439-1 5.3.2 1000 A

Rated current 1000 A

Rated short-time withstand current 1s 15 kA

Conventional free air thermal current with

Trennmesser and std. cross section 1000 A

Acceptable current rating with AC22

category B 1000 A

Acceptable current rating with AC23

category B 1000 A

Electric current / temperature

Rating current 40°C 1000 A

Rating current 45°C 950 A

Rating current 50°C 900 A

Rating current 55°C 850 A

Rating current 60°C 800 A

Rating current 65°C 750 A

Subject to technical modifications

Rating current 70°C 700 A

Fuse

Fuse Size NH3

Dimensions

Height of installed product 188 mm

Length 743 mm

Width of installed product 100 mm

Width of the busbars 5 / 10 mm

Busbar distance 185 mm

Power

Total power loss under IN 318 W

Dissipated energy in cable 366 W

Endurance

Electric endurance in number of cycles 100

Number of mechanical operations 500

Total service life (mechanical and electrical

endurance) IEC 60947-3 Table 4 600

Materials

Copper weight of the product 3980 g

Silver weight of the product 4.57 g

Material Plastic/metal

Installation, mounting

Tightening torque 32Nm

Torque at mounting on busbar 32 Nm

Connection

Connection cross-sect. flexible conductor 2x 30mm x 5mm - 2x 60mm x 5mm

Connection cross-sect. rigid cable 2x 30mmx5mm - 2x60mmx5mm

Connector type with permanently installed NH solid link 1000A

Type of connection Screw connection

Standards

Rated duties according to IEC 60947-1 4.3.4 Continuous operation

Operation of switching devices according to

IEC 60947-1 2.4

depending manual operation (of a mechanical

switching device)

Utilisation category for Ue=400V AC

according to IEC 60947-3 Table 5 AC-22B

Utilisation category for Ue=500V AC

according to IEC 60947-3 Table 5 AC-21B

Utilisation category for Ue=690V AC

according to IEC 60947-3 Table 5 AC-21B

European directive WEEE concerned

Safety

Protection index IP IP2X

Halogen free Yes

Subject to technical modifications
