Side 1/6
1
6LE000691A
REQ0..X, REQ1..X
Door station AUDIO 2wire
z
z
Safety instructions
Electrical equipment may only be installed and
assembled by a qualifi ed electrician in accord-
ance with the relevant installation standards,
guidelines, regulations, directives, safety and
accident prevention regulations of the country.
When installing and laying cables, always com-
ply with the applicable regulations and stand-
ards for SELV electrical circuits.
These instructions are an integral component
of the product and must be retained by the end
user.
Design and layout of the device
(5)
(4)
(1)
(2)
(3)
(6)
Figure 1: Design and layout of the device front
(1) Front plate stainless steel
(2) Microphone
(3) Door loudspeaker
(4) Twilight sensor for call button
(5) Button panel with call push-buttons
(6) Cover strip for dismantling protection
(10)
(7)
(8)
(9)
TOP
(11)
(12)
Figure 2: Design and layout of the device back
(7) Adjustment button Upwards
(8) 7-segment display
(9) Selection button
(10) Adjustment button downwards
(11) Module bus connector
(12) Connection terminal block
Function
The audio door station works in the 2wire bus sys-
tem and enables communication via sound.
Correct use
- for surface- or  ush-mounted installation
- not compatible with intercom systems of other
manufacturers
- suitable for use exterior applications
Product characteristics
- completely pre-assembled
- protected against vandalism
- with brushed 2 mm stainless steel front plate
- Name plate can be changed from the front with-
out any special tools
- One-man commissioning
- call button with acknowledge tone (can be
switched off) and tactile feedback
- call button, light release or door release can be
adjusted even without any function
- durable, homogeneous, white LED call
push-button backlighting
- Twilight controlled call push-button backlighting
with adjustable switch-on brightness level
- Opening of door station only with enclosed
opening tool
- break-proof  ush-mounted call buttons
- Loudspeaker and microphone protected against
sabotage
- Volume and microphone sensitivity settable
- Door release contact on 1 ... 10 s adjustable
- Door release without previous call adjustable in
single door systems
- Safety rope as installation aid
Operation
Establish call (ringing)
zPress the call push-button assigned to the
desired subscriber.
If con gured, the call push-button activation is
con rmed by an acknowledge tone. Addressed
indoor stations are called.
Switch-on lights
A call push-button is con gured and labelled for
lighting control (light insert supplied).
zPress the call push-button for lighting.
zIf con gured, the call push-button activation is
con rmed by an acknowledge tone. The light
contact of a line power supply is closed for the
set time.

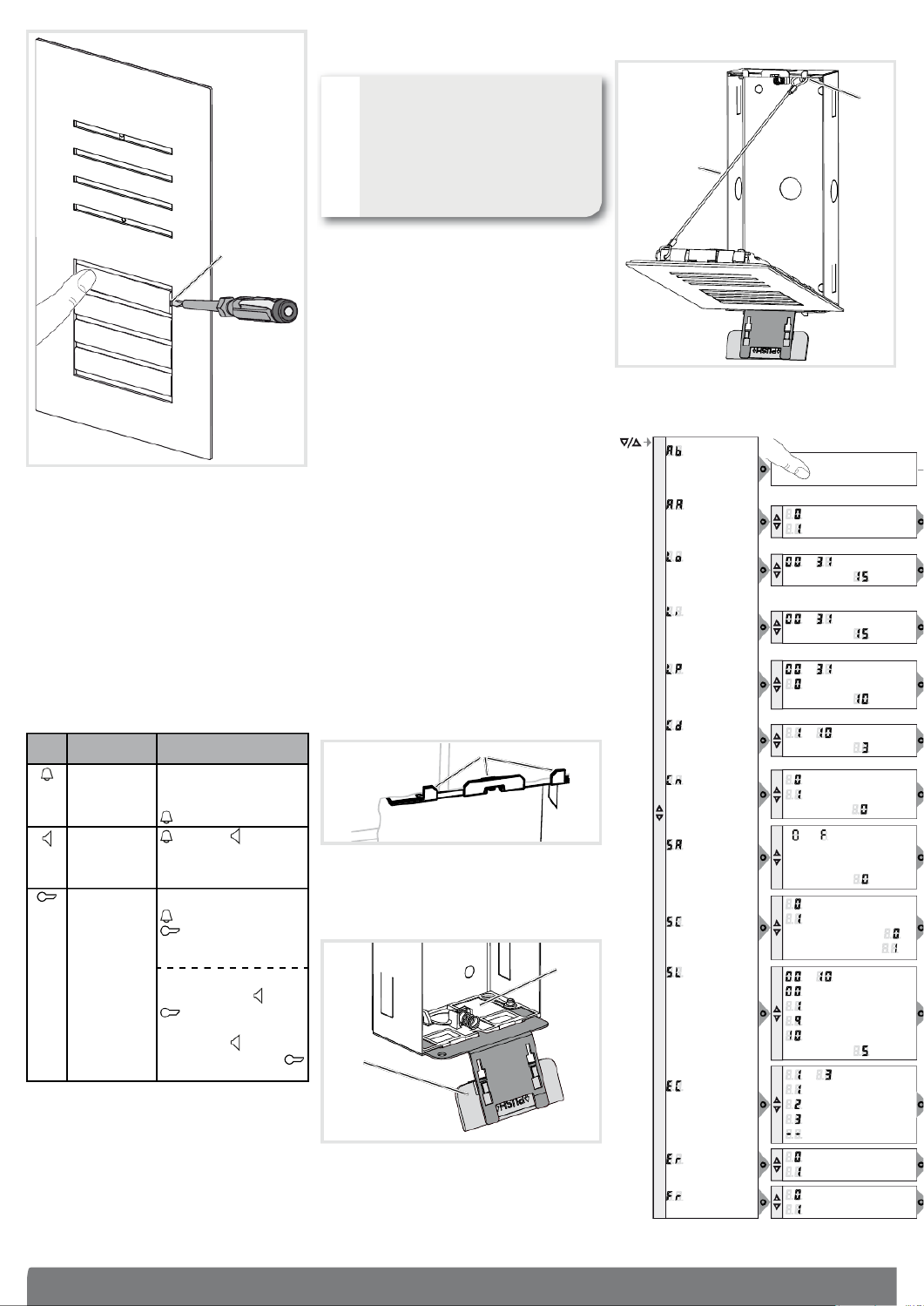

Label call push-button
zKeep call push-button pressed on one side.
On the opposite side, the lever opening (14) is
accessible for a screwdriver.
zPosition the screwdriver in the lever opening
(13) and release the interlock (Figure 3).
zRemove cover with name plate insert.
