Design 30 Two Row Consumer Unit

Instructions/Data Sheet

This Consumer Unit and Hager devices conform with the following standards:

Consumer Unit: BS EN 61439-3 including Annex ZB.

Switch-disconnectors: BS EN 60947-3.

Residual Current Circuit Breaker (RCCB): BS EN 61008-1

Residual current operated circuit breaker with integral overload (RCBO): BS EN 61009-1

Miniature Circuit Breaker (MCB): BS EN 60898-1

Installation Instructions:

All product(s) must be installed by a suitably competent electrician

Giving consideration to their intended use and in accordance with the

current edition of BS 7671 (IET Wiring Regulations).

The Electricity at Work regulations and the Health and Safety at Work Act

shall be complied with.

Only equipment and arrangements speci ed in Hager’s technical 

documentation / catalogue shall be used.

Install in the horizontal plane only.

For guidance when making connections in a consumer unit electrical

safety rst /BEAMA document “Guidance for installers when making 

connections in consumer units” is available from hager.co.uk/63026.htm

Important notice:

To prevent potential overheating from loose connections the installer

shall check connections are tight to the torque levels stated in these

instructions prior to energizing this board. This check should include

factory made connections which may have loosened in transit.

Good workmanship and proper materials must be applied by the installer.

The cable entry method shall, as far as reasonably practical, maintain the

non-combustable arrangement of the enclosure. Account shall be taken of

these instructions.

Easy t front cover assembly allows the cover to be located at the 

top of the board and locked Into place that enables the cover to stay

secure when replacing or removing during an installation. The units have multiple xing points that will suit No.8 & No.10 screws

Where Electrical Knockouts are provided for top or bottom cable entry

are sized and positioned to suit standard trunking i.e 100x50mm,

50x50mm & 40x25mm, grommet strip is provide to protect the cables

when entering the board.

Rear cable entries shall enter thorough selected rear Knockout; once

the Knockout is removed the cable protector bracket can be tted 

to allow safe installation of the cables. Grommet strip lengths: Small

EKO Large EKO Rear EKO – 79mm, – 127mm – 255mm

Note: Only BASEC approved cable should be used

1.0mm2 to 16mm2 for outgoing cables

up to 35.0mm2 for incoming live cables

Single conductors below 1.5mm need to be doubled back in the 2

terminal bar.

Removal of front

cover:

Wall Fixing:

Cable entry facilities:

Additional Extras

Accessory Ref.

Cable protector plate

Can be used on the rear knockouts to smooth any

sharp edges

Insulated:

VM02CE

Metal:

VM01CE

1 ZD0830 - Issue 4 9-16

ZD0830ZD0830

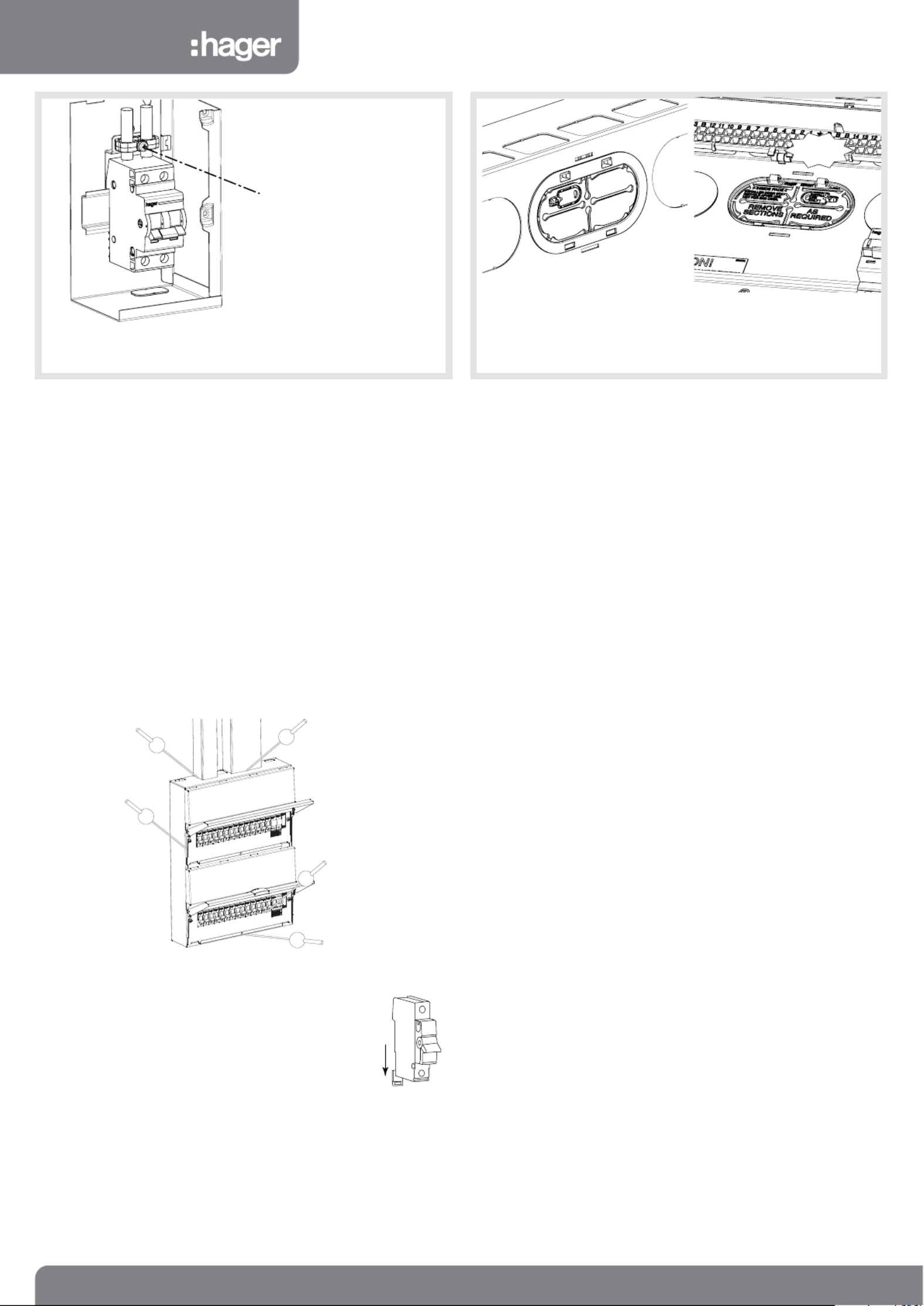

Incoming meter tails can be safely secured using the cable clamp

system eliminating stress within the switch terminal.

Rear cable entries shall enter thorough selected rear knockout; once

the knockout is removed the cable protector frame can be tted in 

order to avoid any damage to the cable insulation or sheath during

installation.

Guidance Notes:

The total load must not exceed the rating of the incoming device or the assigned assembly rating (InA) whichever is the lower. Each neutral and earth

connection must correspond numerically to its outgoing way. Additional blanks (ref. JK01B) are available to cover spare ways.

A pack is provided to label this consumer unit, please consult us for spares or replacements.

Operating Instruction lea et is provided overleaf. This lea et should be left for the end user. 

Single conductors below 1.5mm need to be doubled back in the terminal bar.2

Consumer Units incorporating RCDs in TT systems should incorporate an S type (time Delayed) RCCB, e.g. 100 mA s-type RCCB . Alternatively a main

switch with RCBO protection on all outgoing circuits should be used.

Precautions need to be taken to prevent faults to earth on the supply side of the RCD (as per BS7671 regulation 531.4.1)

Cable Access:

Cable access into the metal consumer unit must maintain the integrity of the non-combustable consumer unit so far as reasonably practicable. This can

generally be achieved by the installer ensuring that cable access holes they make in the enclosure do not to leave gaps greater than:

· 1.0 mm for the horizontal top surface and

· 2.5 mm for all other surfaces of the enclosure that are accessible after installation.

For rear cable access, the minimum number of knockout(s) shall be removed and a cable protector tted; see illustration above.

Tests on hager consumer units have indicated that there is no speci c need for external re rated cable glands or intumescent sealing in addition to the  

guidance below, with respect to achieving a non-combustible enclosure. However this does not preclude the designer/installer from using re rated cable 

glands or external intumescent sealing should they consider necessary. Internal intumescent pads shall not be used.

Warranty

This distribution board is offered with a 24 month warranty against defective material or manufacture. If a warranty claim is necessary, please call the

technical support number given at the bottom of the page and we will be pleased to help.

For dimensional information and weights please consult the Hager catalogue. Hager Technical Help Line: 01952 675 689

Hager Technical Fax: 01952 675 557

Hager Technical E-mail: technical@hager.co.uk

Website: www.hager.co.uk

Fitting Hager MCBs and RCBOs:

Only equipment and arrangements speci ed in Hager’s technical 

documentation / catalogue shall be used.

1. Isolate the electrical supply from the consumer unit.

2. Remove the front cover.

3. Fully slacken the lower terminal of the device.

4. Fully open the bottom device clip ( g 1.)

5. Locate the device onto the din rail, and busbar. Ensure that the

busbar tooth is within the device terminal cage.

6. Close the bottom device clip.

7. While holding the device rmly onto the busbar, fully tighten the lower 

terminal screw.

8. After tting all outgoing devices and connecting all outgoing cables, 

please check the tightness of all cable connections. This should

include all factory made connections, which may have loosened

during installation or transit.

g 1.

Click!

2 ZD0830 - Issue 4 9-16

ZD0830 ZD0830

2.5mm

1mm

Produkt Specifikationer

Mærke:	Hager
Kategori:	Ikke kategoriseret
Model:	VM10606
Kode for international beskyttelse (IP):	IP2XC
Bredde:	220 mm
Dybde:	102.5 mm
Højde:	480 mm
Husmateriale:	Stål
Monteringstype:	Overflade
