Side 1/4

Design 30 Consumer Unit

Instructions/Data Sheet

This Consumer Unit and Hager devices conform with the following standards:

Consumer Unit: BS EN 61439-3 including Annex ZB.

Switch-disconnectors: BS EN 60947-3.

Residual Current Circuit Breaker (RCCB): BS EN 61008-1

Residual current operated circuit breaker with integral overload (RCBO): BS EN 61009-1

Miniature Circuit Breaker (MCB): BS EN 60898-1

Installation Instructions:

All product(s) must be installed by a suitably competent electrician

Giving consideration to their intended use and in accordance with the

current edition of BS 7671 (IET Wiring Regulations).

The Electricity at Work regulations and the Health and Safety at Work Act

shall be complied with.

Only equipment and arrangements specied in Hager’s technical

documentation / catalogue shall be used.

Install in the horizontal plane only.

For guidance when making connections in a consumer unit electrical

safety rst /BEAMA document “Guidance for installers when making

connections in consumer units” is available from hager.co.uk/63026.htm

Important notice:

To prevent potential overheating from loose connections the installer

shall check connections are tight to the torque levels stated in these

instructions prior to energizing this board. This check should include

factory made connections which may have loosened in transit.

Good workmanship and proper materials must be applied by the installer.

The cable entry method shall, as far as reasonably practical, maintain the

non-combustable arrangement of the enclosure. Account shall be taken of

these instructions.

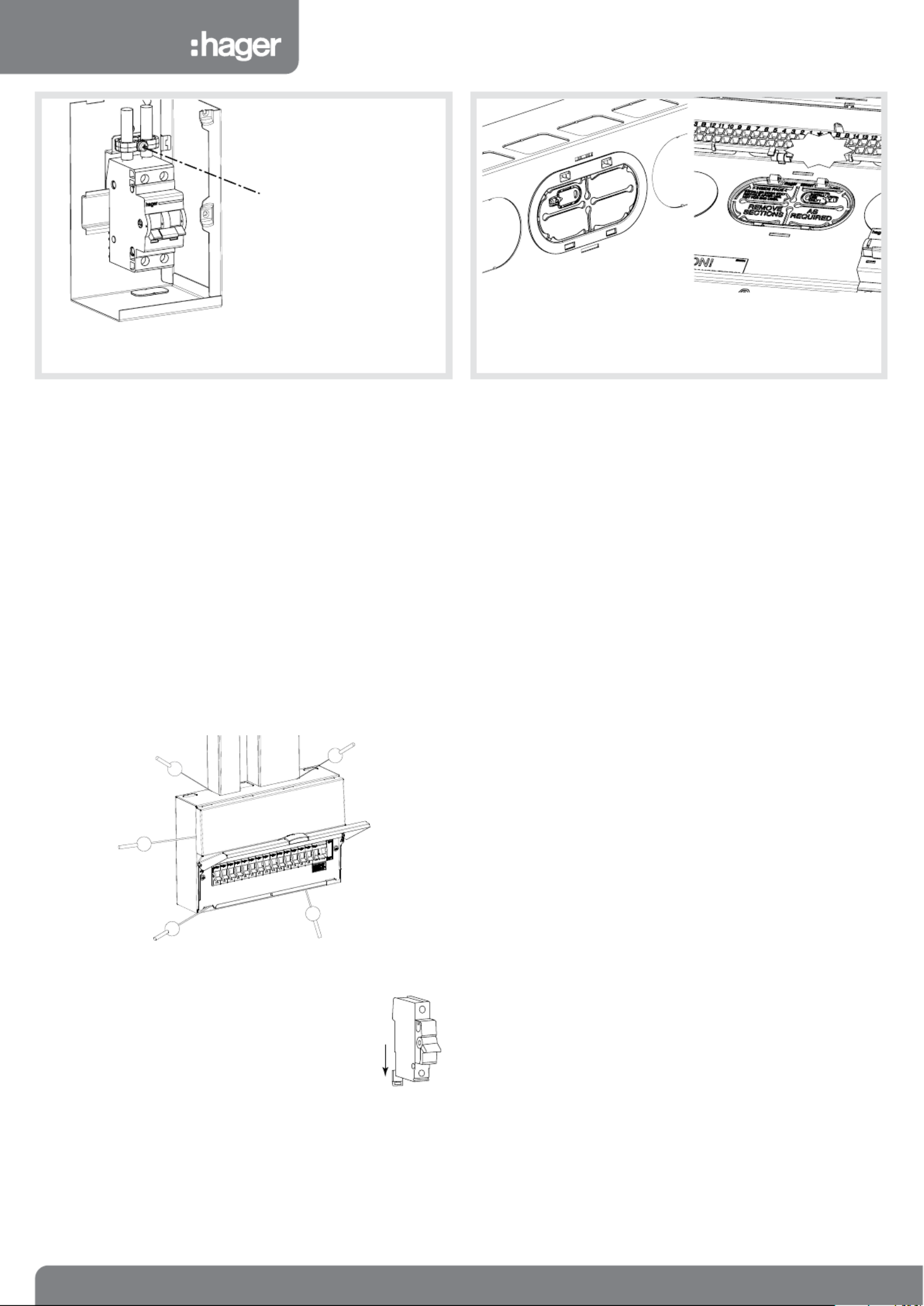

Easy t front cover assembly allows the cover to be located at the

top of the board and locked Into place that enables the cover to stay

secure when replacing or removing during an installation. The units have multiple xing points that will suit No.8 & No.10 screws

Where Electrical Knockouts are provided for top or bottom cable entry

are sized and positioned to suit standard trunking i.e 100x50mm,

50x50mm & 40x25mm, grommet strip is provide to protect the cables

when entering the board.

Rear cable entries shall enter thorough selected rear Knockout; once

the Knockout is removed the cable protector bracket can be tted

to allow safe installation of the cables. Grommet strip lengths: Small

EKO – 79mm, – 127mm – 255mmLarge EKO Rear EKO

Note: Only BASEC approved cable should be used

1.0mm2 to 16mm2 for outgoing cables

Up to 35.0mm2 for incoming live cables

Single conductors below 1.5mm² need to be doubled back in the

terminal bar.

Removal of front

cover:

Wall Fixing:

Cable entry facilities:

Additional Extras

Accessory Ref.

Cable protector plate

Can be used on the rear knockouts to smooth any

sharp edges

Insulated:

VM02CE

Metal:

VM01CE

1 ZD0821 - Issue 4 9-16

ZD0821ZD0821

Produkt Specifikationer

Mærke:	Hager
Kategori:	Ikke kategoriseret
Model:	VM120
Kode for international beskyttelse (IP):	IP2XC
Bredde:	471 mm
Dybde:	102.5 mm
Højde:	240 mm
Husmateriale:	Stål
Monteringstype:	Overflade
