Side 1/4
www.hager.com
Safety instructions
Electrical equipment must only be installed and assembled by a qualied
electrician in accordance with the relevant installation standards, regulations,
directives and safety and accident prevention directives of the country.
Failure to comply with these installation instructions may result in damage to
the device, re or other hazards.
Function
Multiple frames for 2gang to 5gang combinations of ush-mounted devices. Dierent
versions for horizontal and vertical installation.
The frames are compatible with most ush-mounted devices of the Hager Muse:
design with centre plates (Width x Height) = 65 x 52 mm.
In case of centre plates 52 x 52 mm, the accomodation ring must be used.
Not compatible with centre plates 52 x 65 mm.
Correct use
- For ush-mounted installation with standard connectable wall boxes.
- Only suitable for use in indoor areas with no drip and no spray water.
Technical data
Hager Muse:
Dimensions (Width x Height)
- 2gang horizontal 172 x 86 mm
- 3gang horizontal 258 x 86 mm
- 4gang horizontal 344 x 86 mm
- 5gang horizontal 430 x 86 mm
Hager Inspire:
Dimensions (Width x Height)
- 2gang horizontal 172 x 86 mm
- 3gang horizontal 258 x 86 mm
- 4gang horizontal 344 x 86 mm
- 5gang horizontal 430 x 86 mm
- 2gang vertical 86 x 172 mm
- 3gang vertical 86 x 258 mm
Multi-gang frames
2gang / 3gang / 4gang / 5gang
Hager Muse / Hager Inspire
Installation manual
2
Information for electricians
Installation and electrical connection
Preparing the devices for installation
Remove frame at every single device to be combined
(see installation manual of the respective device).
Hager Inspire:
Furthermore, remove cover plate at every single device
(see installation manual of the respective device).
Installing the devices into the wall boxes
(for example with “3gang frame (horizontal)”)
DANGER!
Touching live parts can result in an electric shock.
An electric shock can lead to death.
Disconnect the connecting cables before working on the device and
cover all live parts in the area!
ç

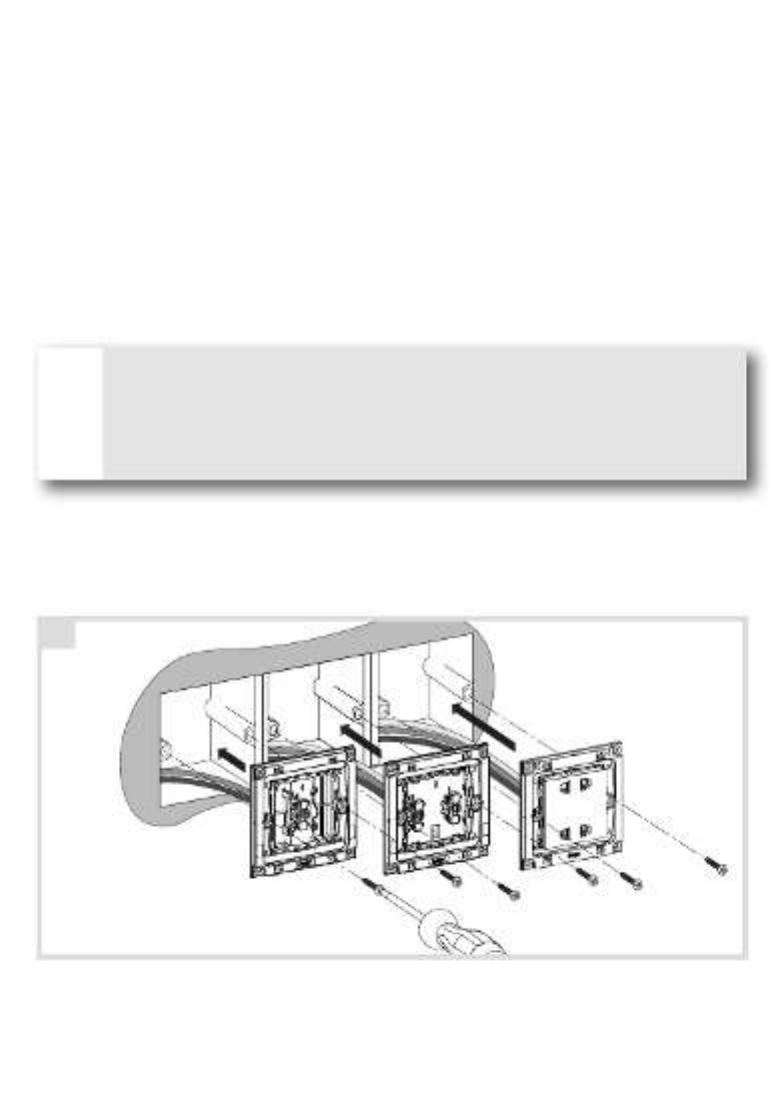

Arrange the devices horizontally or vertically in the desired order depending on
frame type. Example here: horizontal.
Wire each device of the combination according to its wiring diagram
(see installation manual of the respective device).
1
After wiring, x the devices with the screws into the wall boxes ( ).1
