Side 1/4
www.hager.com
Safety instructions
Electrical equipment must only be installed and assembled by a qualied
electrician in accordance with the relevant installation standards, regulations,
directives and safety and accident prevention directives of the country.
Failure to comply with these installation instructions may result in damage to
the device, re or other hazards.
Function/Correct use
- Mechanical double pole switches/control switches for electrical installations in
buildings.
- For switching hard-wired electrical appliances.
- With earthing contact for bonding connected loads to protective earth.
- Control switches equipped with LED indicator per each rocker.
- For the ush-mounted installation in standard wall boxes (recommended wall box
depth ≥ 35 mm). Attention: When installed in metal wall box, the box must be
connected with earth directly.
- Only suitable for use in indoor areas with no drip and no spray water.
Technical data
Rated voltage: 250 V~
Frequency: 50/60 Hz
Rated current: max. 20 AX
Conductor cross-section of screw terminals: max. 3 x 2,5 mm²
Distance of fixing holes: 60.3 mm
Switch compliance: BS EN 60669-1, IEC 60669-1
20AX DP switches
20AX DP control switches
Hager Muse / Hager Inspire
Installation manual
2
Information for electricians
Installation and electrical connection
DANGER!
Touching live parts can result in an electric shock.
An electric shock can lead to death.
Disconnect the connecting cables before working on the device and
cover all live parts in the area!
ç

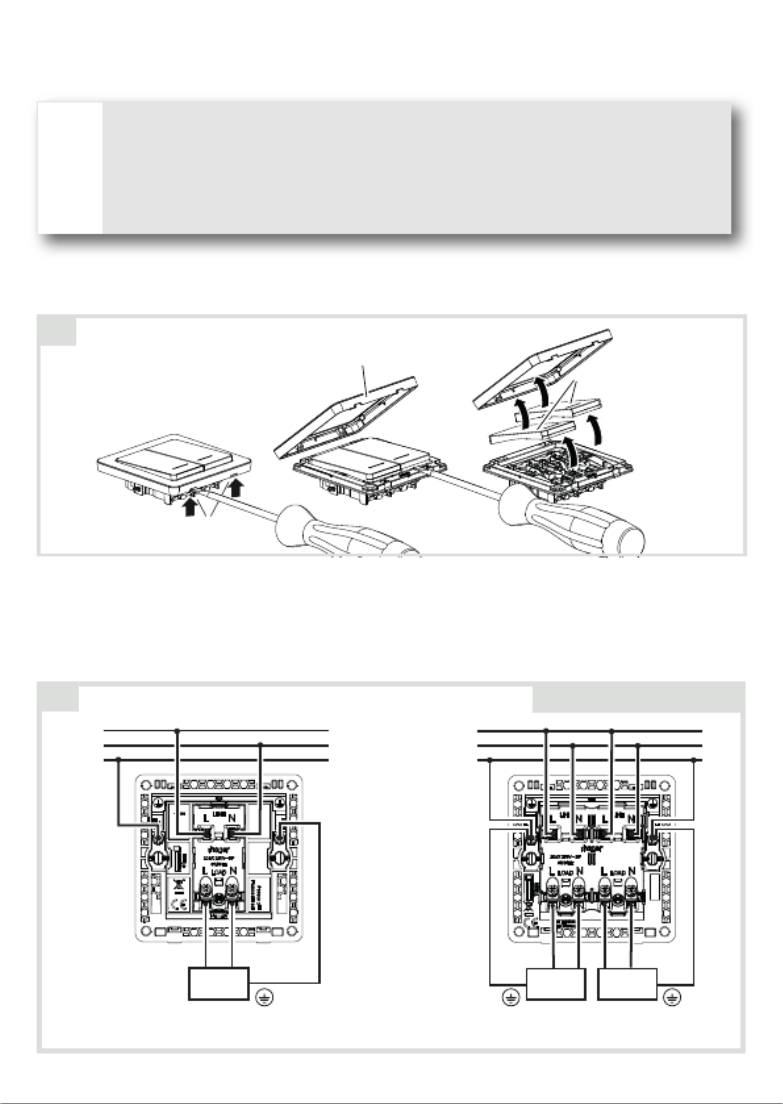

Preparing the device for installation
(for example “20AX 2gang DP switch w/LED”)
Rockers
Frame
Notches
1
Carefully loosen the frame on the notches with a at-blade screwdriver. Lift up and
remove the frame (1).
Remove the rockers also with a at-blade screwdriver.
Connecting the device
2A Double pole switch
E
NL
LOAD 2
N
LOAD 1
LOAD
E
N
LL
L LN N
1gang DP switch 2gang DP switch
