Safety instructions

Electrical equipment must only be installed and assembled by a qualied

electrician in accordance with the relevant installation standards, regulations,

directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to

the device, re or other hazards.

Function

German socket outlet for electrical installations in buildings. 3pole design with shutter

for enhanced contact protection.

Compatibility

The socket outlet is compatible with the following plug types:

Plugs Pins AmperagePlug types Plug designs Plug standards

Type “F” 3pole round pin ( 4.8 mm) Ø

with earthing contact L, N, Õmax. 16A CEE 7/4

Type “E+F” 3pole round pin ( 4.8 mm) Ø

with earthing contact L, N, Õmax. 16A CEE 7/7

Type “C” max. 16A CEE 7/172pole round pin ( 4.8 mm) L, NØ

Type “C”

Europlug 2pole round pin ( 4.0 mm) L, NØ max. 2.5A CEE 7/16

Correct use

- For the ush-mounted installation in standard wall boxes (wall box depth ≥ 35 mm).

- Only suitable for use in indoor areas with no drip and no spray water.

16A German socket w/shutter

Hager Muse / Hager Inspire

Installation manual

Technical data

Rated voltage: 250 V~

Frequency: 50/60 Hz

Socket rated current: 16 A

Conductor cross-section of screw terminals: min. 1 x 1.5 mm² ... max. 2 x 4 mm²

Distance of xing holes: 60.3 mm

Socket compliance: IEC 60884-1

Information for electricians

Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and

cover all live parts in the area!

Preparing the device for installation

Notches

Frame

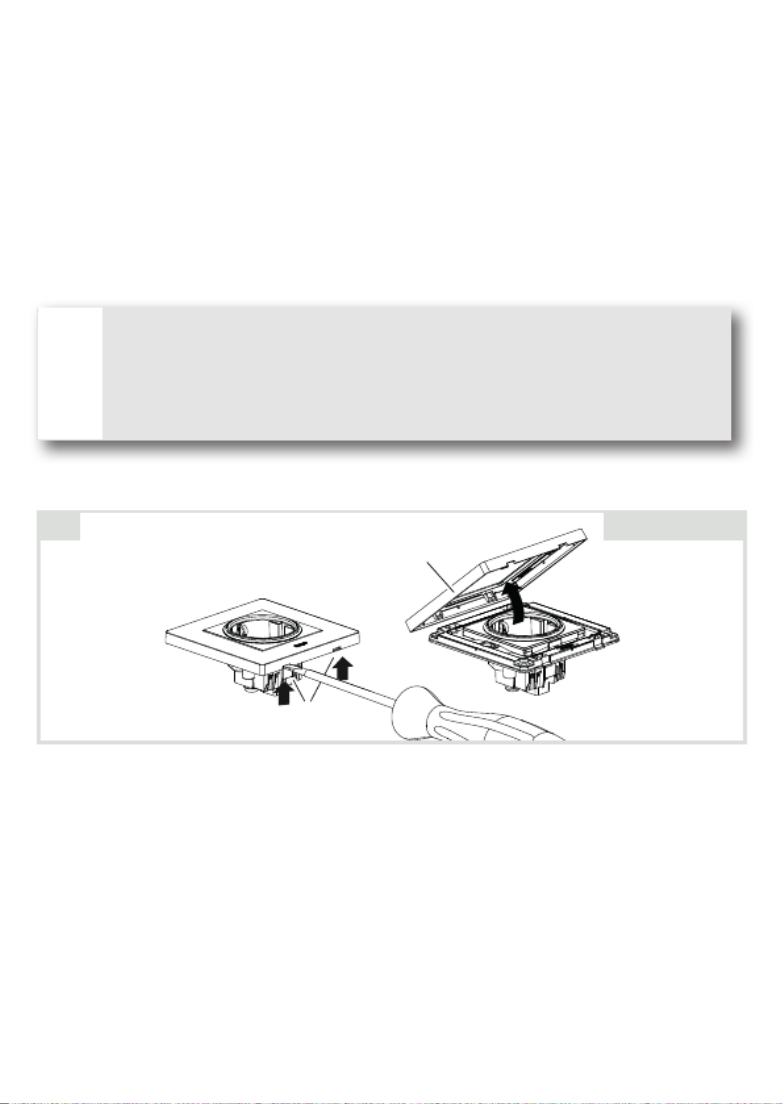

1A Hager Muse

Hager Muse: Carefully loosen the frame on the notch with a at-blade screwdriver.

Lift up and remove the frame ( ).1A
