HOUSEHOLD GAS HOB

INSTALLATION AND USER INSTRUCTIONS

Note: Do not use the hob until you have read the instruction manual.

1. INTRODUCTION

2. TECHNICAL DATA

3. INSTALLATION INSTRUCTIONS

Product features◆

◆ Part name

◆ Installation method

Connection method◆

HCX-Q72GB

Even if you have used a gas hob before, it is important that you read these instructions thoroughly

before using the appliance, paying particular attention to the installation and safety instructions. If you

have any problems installing, operating or cooking with your hob, please check through these instruc-

tions to ensure all of them have been adhered to.

WARNING! For your own safety, make sure that these instructions on installation, use and

maintenance are followed.

Please keep these instructions in a safe place for future reference.

Should the appliance be sold or transferred, please pass on these instructions to the new owner.

Note: the picture is the appearance sketch of the product and the specific appearance and color are

subject to the purchased product.

Type

650

750 430

350

a(mm) b(mm) c(mm) d(mm)

Overall dimensions Cooktop hole size

＞16

150

<R50

≥50 d

100

≥550

≥1000

≥

200

≥

200

≥

200

Unit: mm

Rubber hose

Pipe clamp

Red line

Intake joint

combustibles

Unit: mm

Do not install the gas hob above poorly ventilated ovens, refrigerators, freezers,

dishwashers, sterilizer, or other types of kitchen appliances.

After the installation, make sure the gas connecting pipe is not twisted, squeezed, bent

and is not in touch with any movable part of the cabinet, such as drawers, rails, etc .;

avoid high temperature area.

At least 100mm vacant space shall be reserved below the bottom of hob after the gas hob

is embedded into cabinet and all items are prohibited to be stored in the vacant space. To

ensure good ventilation and cooling of the gas hob, open 2 openings of about 50mm in

diameter on the back or side of the cabinet to the atmosphere to avoid the explosion

caused by the accumulation of unburned gas mixture. If the cabinet is not perforated, take

ventilation measures.

Note

● Accidental flameout protection design

In case of an accidental flameout due to air, overflow, accidental flameout protection function will

start to automatically cut off internal gas access of gas hob and avoid mass gas leakage to ensure

user safety.

● Glass panel hob applies tempered glass with explosion-proof mesh, which is safe, durable and

easy to clean.

● When the gas hob is embedded in the cooktop, please follow the steps 1-5 to install.

When the gas hob is put on the cooktop, please follow the steps 4-5 to install.

1. Please choose the cabinet with table thickness greater than 16mm, width not less than 550mm;

Note: The cabinet countertops should be made of fire, high temperature-resistant, thermocycling-

resistant material. The coating layer and plywood on the cabinet must be fire-resistant and glued

together to avoid deformation or surface detachment.

2. According to the hole-digging size and requirements in the instruction, dig holes in the correspond-

ing position of the table with fillet radius around the holes less than 50mm;

3. gas hob fitted with a battery is installed in the hole

of the table;

4. Refer to the connection method and connect the

gas hob and gas source with the gas special

connecting pipe. If the rubber pipe is used, please

use the pipe clamp to fix it firmly and avoid turning

the gas pipe joint;

5. After installation, carry out gas leakage detection,

apply soap water on the connection parts, open the

indoor gas valve and carefully observe whether there

is a bubble. If bubbles are generated, immediately

close the indoor gas main valve, and adjust the

intake connection according to the connection

method. If there is no bubble, please refer to the

instruction manual for ignition commissioning; after

commissioning, make sure that the indoor gas main

valve is closed.

● Gas hobs should strictly follow the

dimensions specified the diagram and

keep the distance from combustible

materials. If it’s surrounded by

fire-resistant materials, it’s not subject

to the requirements; if a range hood is

installed above, it should be

650-700mm away from the hob

(specific installation requirements of

range hood refer to its instruction

manual).

● Gas-dedicated rubber hose

If you select the gas-dedicated rubber hose (length should not

exceed 1.5m) with diameter of 9.5mm, please connect the

rubber hose to the intake joint of red marking of gas hob and fix

it firmly with pipe clamps. The rubber hose used should meet

the relevant safety standards within service period.

SAFETY INSTRUCTIONS

Make sure that this instruction booklet is read thoroughly and understood before attempting

to install or operate this hob.

The instructions are provided in the interest of your safety.

GAS SAFETY REGULATIONS AND USE OF YOUR HOB

1. Please carefully read the nameplate of the gas hob you purchased and make sure the

type of gas specified on the nameplate matches the type of gas you are currently using.

2. It is recommended to check the connections of gas hob for air tightness at least once a

year and replace the gas-dedicated connecting pipe.

3. In the use process of gas hob, note ventilation, open the window or turn on the ventilation

fan on a regular basis to ensure fresh air convection and ventilation.

4. In case of a leakage, avoid all the acts and sources of fire that cause gas explosion,

immediately close the gas valve and open the windows and doors for ventilation.

5. It is a legal requirement that all gas appliances are installed by qualified personnel only in

accordance with current legislation. It is your responsibility to ensure compliance with the

law.

6. Repairs or servicing of this product must only be carried out by an authorised service

agent using approved parts.

7. No attempt must be made to modify this appliance under any circumstances.

8. Cooking appliances can become very hot in use – please keep children and pets away

from them.

9. Do not allow children to operate or play with any part of the appliance.

10.Do not use unstable pans and ensure that the handle is positioned away from the edge of

the worktop.

11. In the interest of hygiene and safety, please ensure the hob is kept clean.

12. This appliance is designed for domestic cooking only. Commercial use will invalidate the

warranty.

13. Do not cover the hob or place combustible materials on or near the surface even when

the hob is not in use.

14. Do not fill deep fat frying containers more than one third full of oil and NEVER leave

unattended.

15. Before cleaning the hob, switch off at the mains.

16. When cooking is finished, switch off all controls and allow to cool.

17. These appliances are not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety.

18. If the supply cable is damaged, it must be replaced by the authorised service agent or

qualified person only.

19. Do not immerse the appliance or the power cable into water or any other liquid.

20. Prior to installation, ensure that the local distribution conditions (nature of the gas and

gas pressure) and the adjustment of the appliance are compatible.

21. The adjustment conditions for this appliance are stated on the label (or data plate)

22. This appliance is not connected to a combustion products evacuation device. It shall be

installed and connected in accordance with current installation regulations. Particular

attention shall be given to the relevant requirements regarding ventilation.

23. The use of a gas cooking appliance results in the production of heat and moisture in the

room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation

holes open or install a mechanical ventilation device (mechanical extractor hood).

24. Prolonged intensive use of the appliance may call for additional ventilation, for example

opening of a window, or more effective ventilation, for example increasing the level of

mechanical ventilation where present.

Type

Total Heat Input

Applicable

gas type

Rated pressure

(Pa)

Rated heat load

Left burner

Right burner

Net Weight /

Gross Weight(kg)

Size(mm)

Length × Width

× Height

3000

LPG

I3B/P(30)

Unit: mm

750×430×150

11.0/13.0

cooktop

hob shell

knob

pot rack

Outer-ring fire cover

inner-ring fire cover

Ignition porcelain needle

thermocouple

Drip pan

5.0kW

(364g/h)

5.0kW

(364g/h)

10.0kW

(728g/h)

ATTENTION！

This appliance must be installed in

compliance with the current

regulations and only installed in rooms

equipped with adequate ventilation.

Consult the instruction manual before

proceeding with installation or use of

the appliance.

Correct Disposal of This Product:

This marking indicates that this product should not be disposed of together with other

household waste. To prevent possible harm to the environment or human health from

uncontrolled waste disposal, recycle it responsibly to promote sustainable re-use of

material resources. To return your unwanted product, please use local return and collect

systems or contact the retailer where the product was purchased. They should be able to

take the appliance for environmentally-safe recycling.

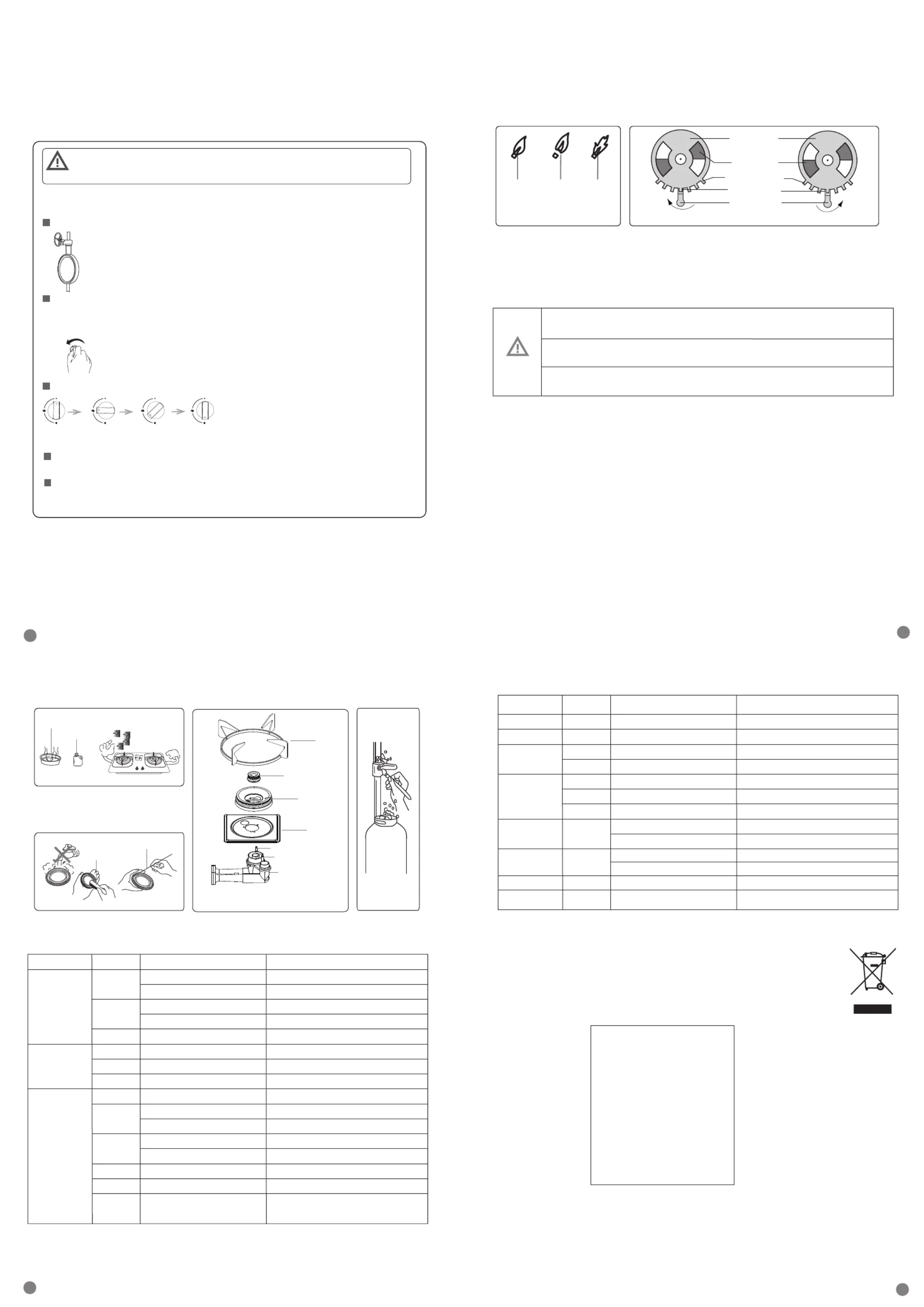

4. USER MANUAL

5. ROUTINE INSPECTION AND MAINTENANCE

6. TROUBLESHOOTING AND HANDLING

◆ Ignite and adjust the fire

◆ Air regulator adjustment and air volume control

◆ Change the applicable gas type

Before using for the first time, make sure the gas type specified on the nameplate of the gas hob is the

same as the type of gas you are currently using, and confirm that the burner parts, pot rack, knobs,

gas-dedicated connecting pipe and gas pipe are correctly installed. There will be residual air in the gas

line for the first-time use and ignition will be difficult, which is a normal phenomenon. Please repeat

igniting until it’s normal.

First of all, install a D dry battery in the battery box at the bottom of the gas hob and follow the order in

the diagram to ignite and adjust the fire.

When the flame is in poor condition, adjust the air regulator at the bottom of the hob. When the flame

is long and yellow, turn the adjustable handle to the right to increase the air volume; when the flame is

away from the fire hole, turn the adjustable handle to the left to reduce the air volume. When the flame

state is normal, fasten the slot of adjustable handle with fixed throttle gear.

In case of changes in gas type due to relocation or local uniform gas reform, etc., professional trained

maintenance personnel will implement gas type changes to the gas hob. Please change the gas type

according to the gas type applicable to the models in the technical data list and the dedicated sales

area of the product. It is forbidden to disassemble the gas hob by yourself to avoid any safety accident.

Fault Cause Troubleshooting method

No ignition

Flame is

extinguished when

releasing

Failure or diﬃculty

in ignition in pulsed

ignition

Dead battery

Dirty or wet top

Parts failure

Contact service center for maintenance

Re-ignite and keep 3-5 seconds after ignition

Clean the top with a soft cloth

Hold the knob, press the valve body to the end

and ignite

Ignition porcelain far away from the

ﬁre hole

Replace with new battery

please adjust the discharge distance to 3-5mm

Clean the top with a soft cloth and wipe dry

Re-install and conﬁrm the correct polarity

No battery, poor contact or reverse

installation

Battery

Pulser

Safety valve Not working due to short press time

Thermocouple

Dirty top

Valve body is not fully pressed

Valve is not open or not fully open

Fire cover is not installed in place

Conﬁrm that the ﬁre cover is properly installed in place

Fire hole is blocked

Dirty or wet top

Clean the top with a soft cloth

Clean with dry and soft cloth

Replace with new gas dedicated connecting pipe

Damp or spilled water

Flattened or bent

Low battery, slow discharge frequency

Too high or too low gas outlet pressure

Use gas hob dedicated reducing valve in line with

national standards or check the gas supply for gas

Replace with new battery

Clear and clean the ﬁre hole dirt

Verify that the valve is fully open

Valve body

Gas valve

Fire cover

Battery

Gas

Thermocouple

Gas source

Unstable gas pressure

Fire cover is not installed in place

Please contact the gas company to handle it

Replace with new gas dedicated connecting pipe

Conﬁrm that the ﬁre cover is properly installed in place

Clear and clean ﬁre hole dirt

Calcium contained in moisture causes red ﬂame, but

it doesn’t aﬀect burning

Conﬁrm the battery level and replace with a new

battery

Conﬁrm that the ﬁre cover is properly installed in place

Fire cover

Air regulator

Fire cover

Air source

Gas leakage

Fire cover

Gas

Fire cover is not installed in place

Blocked ﬁre hole

High gas humidity

low batteryBattery

Too little air output

Fire cover is not installed in place

Impurities contained in gas

Connecting pipe ages, cracks, breaks

or falls oﬀ

Fire cover is not installed in place and gas

is leaked while igniting

Readjust air regulator until the ﬂame is burning

correctly

Conﬁrm that the ﬁre cover is properly installed in place

Fire cover

Air regulator

Fire cover is not installed in place

Excessive air output

Dirty top Clean the top with a soft cloth

Conﬁrm that the ﬁre cover is corrected installed

in place

Re-adjust the air regulator until the ﬂame is burning

properlye

Loud burning noise

Flameout in use

Unstable ﬂame

Long and yellow

ﬂame

Foul smell

Uncertain length

of ﬂame

Red ﬂame

The time is up but the

ﬁre is not turned oﬀ

Lifted ﬂame and

blow-oﬀ

Connecting

pipe

Ignition

porcelain

needle

Ignition

porcelain

needle

Correct

combustion

state

Fixed air regulator

Adjustable air regulator

Adjustable air regulator slot

Adjustable air handle

Turn left to reduce air volume

Turn right to increase air volume

Fixed air regulator gear teeth

Note: Normal ﬂame color is light blue

Lifted ﬂame

state

Yellow ﬂame

state

Note

Before cleaning and maintaining the gas hob, please close the indoor gas main valve and

make sure the gas hob is in a cooling state. Do not dismantle the gas hob cooktop and

internal parts during the cleaning process.

As ignition porcelain needle surface is made of ceramic material, avoid crush due to hard

objects in cleaning and maintenance. Otherwise it will affect the ignition performance.

The thermocouple is a sensitive component that controls the on-off of the gas line.

Regular cleaning is required to prevent dirt from attaching. Otherwise, the accidental

flameout protection function will be affected.

◆ Inspection

◆ Maintenance

● Gas connecting pipe should be connected reliably without cracks. If leakage is found, please

immediately stop using and carry out timely replacement. It is advisable to check the air tightness of

the connections (as shown in the soapy water leak detection diagram, apply soap and water on the

connections to check the air tightness) and replace the connecting pipe at least once a year.

● Do not stack inflammable objects around the gas hob.

● The burner parts must be properly installed in place (as shown in the burner assembly) and the fire

holes should not be blocked by spills.

● Ignition porcelain needle and thermocouple surface can not have residual food, dirt and water.

● Cooktop, pot rack are cleaned with soft cloth dipped in neutral, non-corrosive detergent.

● In case that the gas contains impurities, after long-term use, it will form carbon deposition,

sintering, etc. within fire holes of the fire cover and block the fire holes. In the use of gas hobs, if

uneven or individual fire holes are found to be flameless, please turn off the gas hob, remove the fire

cover in time until the burner is cooled, use a fine steel needle to remove the dirt and carbon

deposition inside the fire hole and use the hob again after the treatment.

Do not apply water directly to the fire cover (as the blisters temporarily block the fire hole) and do not

rub the coated surface with a harder object, which can cause irreparable damage to the black-coated

surface. Please use a soft brush to clean the dirt on the surface of the fire cover.

● After cleaning, please refer to the illustration of the burner assembly to properly install the inner ring

fire cover, outer ring fire cover and pot rack, and confirm that the installation is in place. Otherwise,

uneven flame and lifted flame caused may affect the normal use of hob. Scratches beyond repair

caused by bump, impact and other improper installation will not be warranted.

◆ Use an appropriately sized pan

The minimum bottom diameter of the pan to be used is 120mm.

The picture shows the burner parts diagram and

please refer to purchased products for details.

Warm water

Cotton brush

Neutral detergent

Fine steel needle

Cooktop cleaning diagram

Burner parts diagram

Soapy water leakage

detection diagram

Fire cover cleaning diagram

Inner ring ﬁre cover

Outer ring ﬁre cover

Drip pan

Pot rack

Thermocouple

Ignition porcelain needle

Burner

Note

Note: when adjusting the fire, please do not adjust the position near "●" to avoid

flameout. It is normal to hear the sound of "bang" when it’s off.

Open the indoor gas main valve

Adjust the fire

Main gas valve diagram

LowMediumHigh Off

Turn the knob clockwise to the vertical "●" position, turn off the gas hob.

Make sure to close the indoor gas main valve after using the hob.

Press the knob downwards and turn counterclockwise to the horizontal position (the state of

high flame). After the fire holes are all ignited, continue to press for 3-5 seconds and

release for use after the flameout protection is launched; if the flame is extinguished when

releasing, turn the knob clockwise to off position and repeat the above ignition operation.

Country of Destination: MALAYSIA

Diimport & Diedar oleh:

Haier Electrial Appliances (Malaysia) Sdn. Bhd.

No. 12F-1 & 2, 12TH Floor, Tower 5 @ PFCC, Jalan Puteri 1/2, Bandar Puteri,

47100 Puchong, Selangor, Malaysia.

Produkt Specifikationer

Mærke:	Haier
Kategori:	Ovn
Model:	HCX-Q72GB

Har du brug for hjælp?

Hvis du har brug for hjælp til Haier HCX-Q72GB stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ovn Haier Manualer

Haier H6 ID2P3T1HTB Manual

11 September 2025

Haier H6 ID2P3T1HTX Manual

11 September 2025

Haier HOQ-F6QAN3GB/EE Manual

30 August 2025

Haier HWO60S7MX5 Manual

18 August 2025

Haier H6 ID48M5YTB1 Manual

30 Juli 2025

Haier H6 ID68CSYTB1 Manual

30 Juli 2025

Haier HWO60SM2E9B Manual

27 Juli 2025

Haier HWO60SM2E01BE Manual

26 Juli 2025

Haier HIL3001CBSH Manual

26 Juli 2025

Haier HWO60SM5S9B1H Manual

26 Juli 2025

Ovn Manualer

Nyeste Ovn Manualer

Siemens HB672GBS1 Manual

13 September 2025

Bosch HBG8769B6 Manual

13 September 2025

Bosch HBN4820 Manual

13 September 2025

AEG BBP6052B Manual

13 September 2025

Grunkel HR-23 Manual

13 September 2025

Signature FC46-BL Manual

13 September 2025

Brandt FC55MUW Manual

12 September 2025

Brandt BFP7554W Manual

12 September 2025

Brandt FC609MUB Manual

12 September 2025

Schneider SCEO2345CTB Manual

12 September 2025
