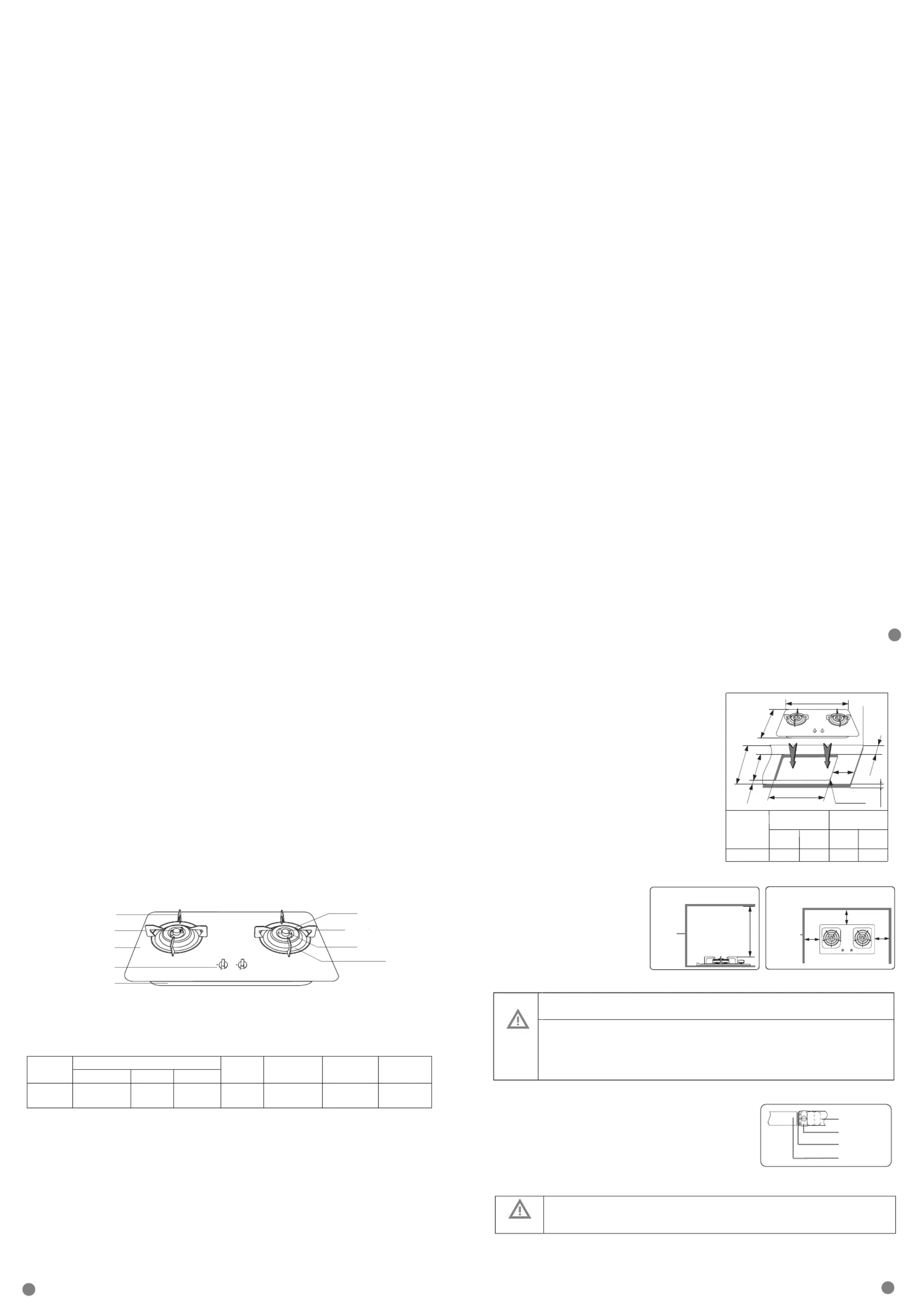

HOUSEHOLD GAS HOB

INSTALLATION AND USER INSTRUCTIONS

Note: Do not use the hob until you have read the instruction manual.

1. INTRODUCTION

2. TECHNICAL DATA

3. INSTALLATION INSTRUCTIONS

Product features◆

◆ Part name

◆ Installation method

Connection method◆

HCX-Q72TGB

Even if you have used a gas hob before, it is important that you read these instructions thoroughly

before using the appliance, paying particular attention to the installation and safety instructions. If you

have any problems installing, operating or cooking with your hob, please check through these instruc-

tions to ensure all of them have been adhered to.

WARNING! For your own safety, make sure that these instructions on installation, use and

maintenance are followed.

Please keep these instructions in a safe place for future reference.

Should the appliance be sold or transferred, please pass on these instructions to the new owner.

Note: the picture is the appearance sketch of the product and the specific appearance and color are

subject to the purchased product.

Type

650

750 430

350

a(mm) b(mm) c(mm) d(mm)

Overall dimensions Cooktop hole size

＞16

150

<R50

≥50 d

100

≥550

≥1000

≥

200

≥

200

≥

200

Unit: mm

Rubber hose

Pipe clamp

Red line

Intake joint

combustibles

Unit: mm

Do not install the gas hob above poorly ventilated ovens, refrigerators, freezers,

dishwashers, sterilizer, or other types of kitchen appliances.

After the installation, make sure the gas connecting pipe is not twisted, squeezed, bent

and is not in touch with any movable part of the cabinet, such as drawers, rails, etc .;

avoid high temperature area.

At least 100mm vacant space shall be reserved below the bottom of hob after the gas hob

is embedded into cabinet and all items are prohibited to be stored in the vacant space. To

ensure good ventilation and cooling of the gas hob, open 2 openings of about 50mm in

diameter on the back or side of the cabinet to the atmosphere to avoid the explosion

caused by the accumulation of unburned gas mixture. If the cabinet is not perforated, take

ventilation measures.

Note

● Accidental flameout protection design

In case of an accidental flameout due to air, overflow, accidental flameout protection function will

start to automatically cut off internal gas access of gas hob and avoid mass gas leakage to ensure

user safety.

● Glass panel hob applies tempered glass with explosion-proof mesh, which is safe, durable and

easy to clean.

● When the gas hob is embedded in the cooktop, please follow the steps 1-5 to install.

When the gas hob is put on the cooktop, please follow the steps 4-5 to install.

1. Please choose the cabinet with table thickness greater than 16mm, width not less than 550mm;

Note: The cabinet countertops should be made of fire, high temperature-resistant, thermocycling-

resistant material. The coating layer and plywood on the cabinet must be fire-resistant and glued

together to avoid deformation or surface detachment.

2. According to the hole-digging size and requirements in the instruction, dig holes in the correspond-

ing position of the table with fillet radius around the holes less than 50mm;

3. gas hob fitted with a battery is installed in the hole

of the table;

4. Refer to the connection method and connect the

gas hob and gas source with the gas special

connecting pipe. If the rubber pipe is used, please

use the pipe clamp to fix it firmly and avoid turning

the gas pipe joint;

5. After installation, carry out gas leakage detection,

apply soap water on the connection parts, open the

indoor gas valve and carefully observe whether there

is a bubble. If bubbles are generated, immediately

close the indoor gas main valve, and adjust the

intake connection according to the connection

method. If there is no bubble, please refer to the

instruction manual for ignition commissioning; after

commissioning, make sure that the indoor gas main

valve is closed.

● Gas hobs should strictly follow the

dimensions specified the diagram and

keep the distance from combustible

materials. If it’s surrounded by

fire-resistant materials, it’s not subject

to the requirements; if a range hood is

installed above, it should be

650-700mm away from the hob

(specific installation requirements of

range hood refer to its instruction

manual).

● Gas-dedicated rubber hose

If you select the gas-dedicated rubber hose (length should not

exceed 1.5m) with diameter of 9.5mm, please connect the

rubber hose to the intake joint of red marking of gas hob and fix

it firmly with pipe clamps. The rubber hose used should meet

the relevant safety standards within service period.

SAFETY INSTRUCTIONS

Make sure that this instruction booklet is read thoroughly and understood before attempting

to install or operate this hob.

The instructions are provided in the interest of your safety.

GAS SAFETY REGULATIONS AND USE OF YOUR HOB

1. Please carefully read the nameplate of the gas hob you purchased and make sure the

type of gas specified on the nameplate matches the type of gas you are currently using.

2. It is recommended to check the connections of gas hob for air tightness at least once a

year and replace the gas-dedicated connecting pipe.

3. In the use process of gas hob, note ventilation, open the window or turn on the ventilation

fan on a regular basis to ensure fresh air convection and ventilation.

4. In case of a leakage, avoid all the acts and sources of fire that cause gas explosion,

immediately close the gas valve and open the windows and doors for ventilation.

5. It is a legal requirement that all gas appliances are installed by qualified personnel only in

accordance with current legislation. It is your responsibility to ensure compliance with the

law.

6. Repairs or servicing of this product must only be carried out by an authorised service

agent using approved parts.

7. No attempt must be made to modify this appliance under any circumstances.

8. Cooking appliances can become very hot in use – please keep children and pets away

from them.

9. Do not allow children to operate or play with any part of the appliance.

10.Do not use unstable pans and ensure that the handle is positioned away from the edge of

the worktop.

11. In the interest of hygiene and safety, please ensure the hob is kept clean.

12. This appliance is designed for domestic cooking only. Commercial use will invalidate the

warranty.

13. Do not cover the hob or place combustible materials on or near the surface even when

the hob is not in use.

14. Do not fill deep fat frying containers more than one third full of oil and NEVER leave

unattended.

15. Before cleaning the hob, switch off at the mains.

16. When cooking is finished, switch off all controls and allow to cool.

17. These appliances are not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety.

18. If the supply cable is damaged, it must be replaced by the authorised service agent or

qualified person only.

19. Do not immerse the appliance or the power cable into water or any other liquid.

20. Prior to installation, ensure that the local distribution conditions (nature of the gas and

gas pressure) and the adjustment of the appliance are compatible.

21. The adjustment conditions for this appliance are stated on the label (or data plate)

22. This appliance is not connected to a combustion products evacuation device. It shall be

installed and connected in accordance with current installation regulations. Particular

attention shall be given to the relevant requirements regarding ventilation.

23. The use of a gas cooking appliance results in the production of heat and moisture in the

room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation

holes open or install a mechanical ventilation device (mechanical extractor hood).

24. Prolonged intensive use of the appliance may call for additional ventilation, for example

opening of a window, or more effective ventilation, for example increasing the level of

mechanical ventilation where present.

Type

Total Heat Input

Applicable

gas type

Rated pressure

(Pa)

Rated heat load

Left burner

Right burner

Net Weight /

Gross Weight(kg)

Size(mm)

Length × Width

× Height

3000

LPG

I3B/P(30)

5.0kW

(364g/h)

5.0kW

(364g/h)

10.0kW

(728g/h)

Unit: mm

750×430×150

11.0/13.0

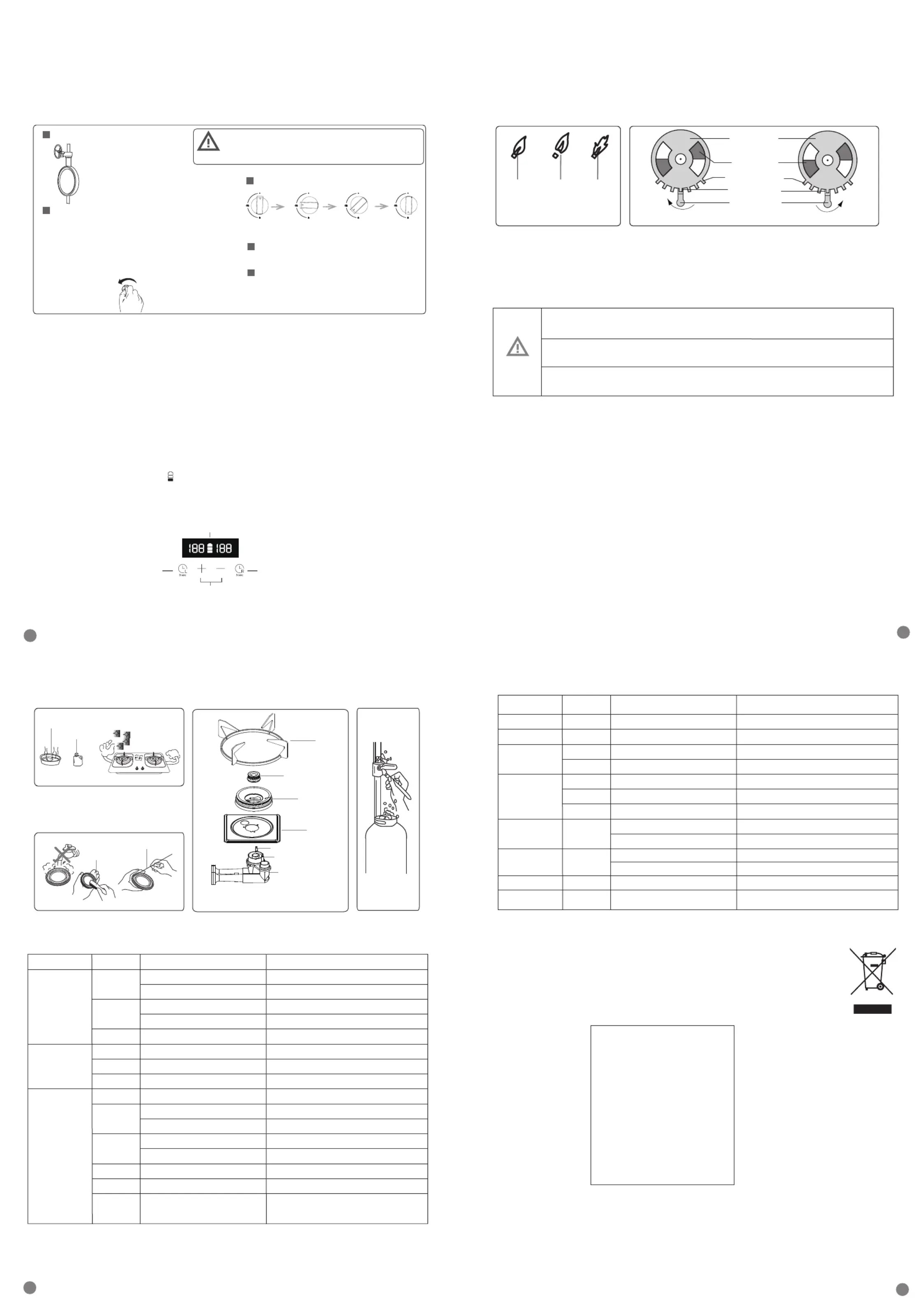

cooktop

hob shell

knob

pot rack

Outer-ring fire cover

inner-ring fire cover

Ignition porcelain needle

thermocouple

Drip pan
