Side 1/8
HTHB-LR*1A, HTHB-LR*2A, HTHB-8*1A, HTHB-8*2A, HTHB-8*3A
HTHB-LR-NF*1A, HTHB-LR-NF*2A, HTHB-8-NF*1A, HTHB-8-NF*2A, HTHB-8-NF*3A
Page 1
98558C (Rev. N - 11/20)
B CA
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
A B C

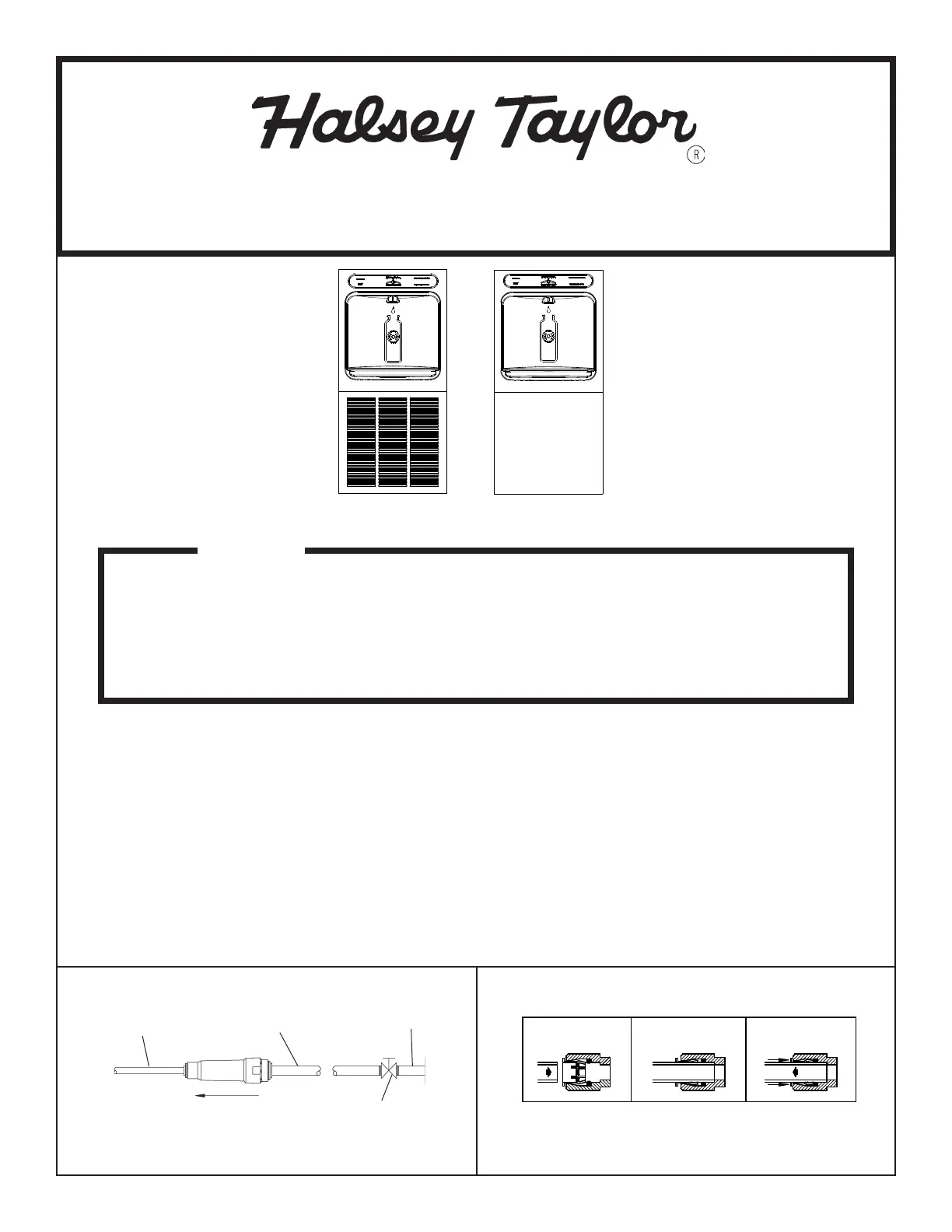

Installation/Care/Use Manual
Hydroboost
®
In Wall Bottle Filling Station
To assure you install this model easily and correctly,
PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE
INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH
PLUMBING, ELECTRICAL AND OTHER APPLICABLE CODES. After installation,
leave these instructions inside the fountain for future reference.
IMPORTANT
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
IMPORTANT! INSTALLER PLEASE NOTE.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO
WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY
OCCUR AWAY FROM THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK
INTO A FOUNTAIN, CREATING AN ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN
INCREASE IN THE METAL CONTENT OF THE WATER. THIS CONDITION IS AVOIDABLE BY USING
THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS PROVIDED BY THE INSTALLER
SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN FROM THE BUILDING
PLUMBING SYSTEM. WE SUGGEST THAT THE BOTTLE FILLER BE PROTECTED BY A GROUND
FAULT CIRCUIT INTERRUPTER (GFCI).
FIG. 2FIG. 1
Installer
NOTE: WATER FLOW
DIRECTION
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
1/4" O.D. TUBE
WATER INLET
TO COOLER
3/8" O.D. UNPLATED COP-
PER TUBE CONNECT
COLD WATER SUPPLY
HTHB-8* HTHB-LR*
HTHB-8-NF* HTHB-LR-NF*
HTHB-LR*1A, HTHB-LR*2A, HTHB-8*1A, HTHB-8*2A, HTHB-8*3A
HTHB-LR-NF*1A, HTHB-LR-NF*2A, HTHB-8-NF*1A, HTHB-8-NF*2A, HTHB-8-NF*3A
Page 2
98558C (Rev. N - 11/20)

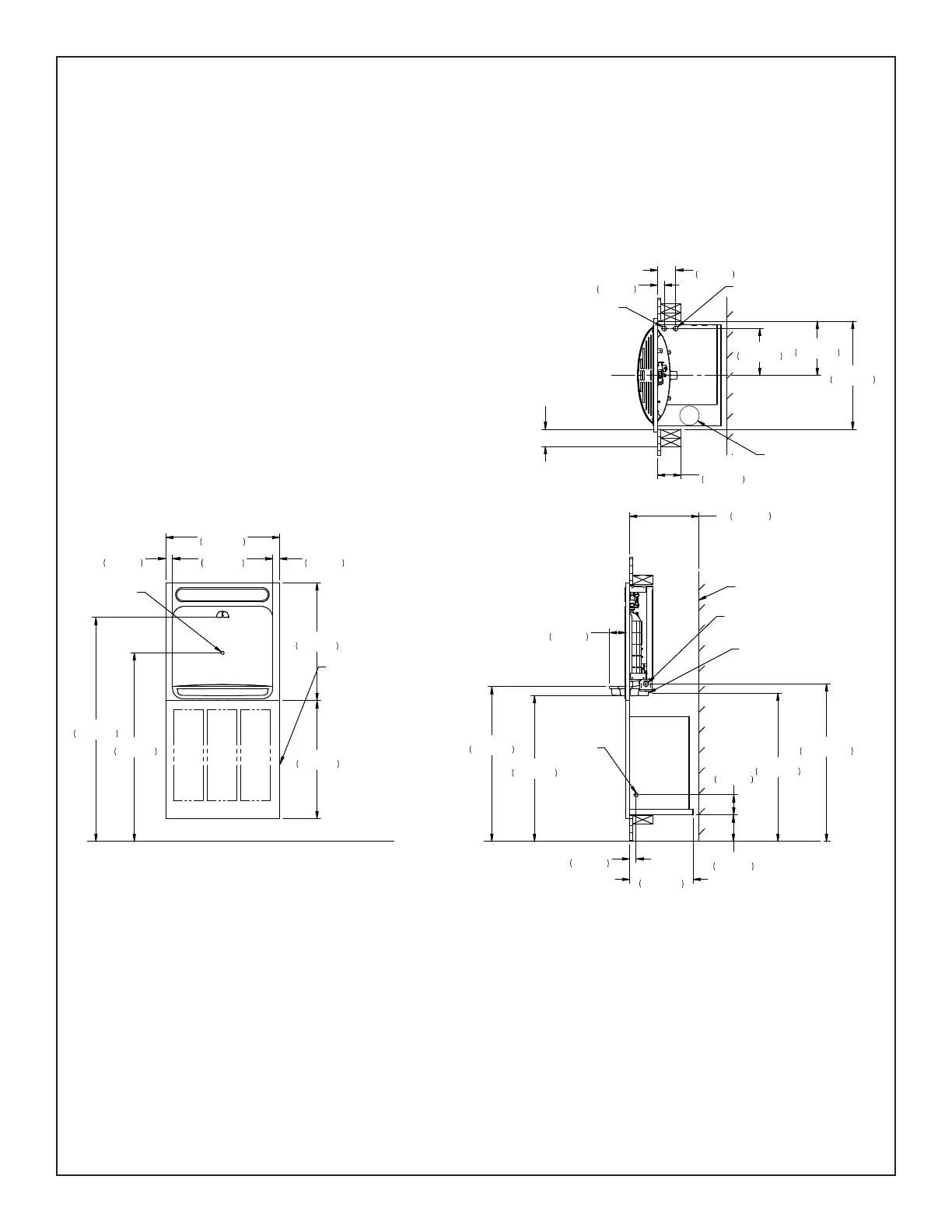

HTHB-8*, HTHB-LR*, HTHB-8-NF*, HTHB-LR-NF* ROUGH IN
FIG. 3
20 3/8"
518mm
20 7/16"
519mm
19 3/4"
502mm
17 3/8"
441mm
1 3/16"
30mm
1 3/16"
30mm
8 1/8"
206mm
9 3/8"
238mm
1 1/8"
29mm
3"
79mm
18 3/4"
476mm
4"
102mm
FILTER LOCATION
1/4" O.D. TUBE CONNECT
(CHILLER WATER OUTLET)
3/8" O.D. TUBE CONNECT
(CHILLER WATER INLET)
SHUT OFF VALVE BY OTHERS
BACK WALL LINE
8" 203MM MINIMUM
FOR DRAIN CONNECTION
AND ACCESS TO
BOTTLE FILLER
ELECTRICALS
FINISHED FLOOR
25 1/4"
642mm
27"
682mm
2 7/8"
73mm
25 7/8"
657mm
1-1/4" (32MM)
WASTE TUBE
FURNISHED
3 1/2"
89mm
4 1/2"
117mm
1 1/8"
29mm
11"
279mm
ELECTRICAL
INLET
FINISHED FLOOR
DOUBLE STUD OR 3" (76mm)
BETWEEN MOUNTING FRAMES
IF PLACED NEXT TO ANOTHER
FOUNTAIN OR WALL
32 11/16"
831mm
ACTIVATION
SENSOR
38 7/8
987mm
NOTE: NON-REFRIGERATED
MODELS (WITHOUT CHILLER)
DO NOT INCLUDE LOUVERS
JUNCTION BOX
LOCATION
27 3/8"
693.74MM
