Wireless Access Point 300
802.11n Wireless with 4 Port 10/100 Switch
User Manual
HNW300APN
www.hamletcom.com
Wireless Access Point HNW300APN
User Manual 2
INDEX
1. Introduction..........................................................................................6
1.1 System Requirements....................................................................................................................... 6
1.2 Package Contents ............................................................................................................................. 6
2. Specification ........................................................................................ 7
2.1 LED Meaning ..................................................................................................................................... 7
2.2 Connectors......................................................................................................................................... 8
3. Installation & Setup .............................................................................9
3.1 Connection of Access Point.............................................................................................................. 9
4. Configuration Procedures ................................................................10
4.1 Windows 98SE/ME/2000/XP .......................................................................................................... 10
4.2 Windows Vista 32/64....................................................................................................................... 12
4.3 Windows 7 32/64 ............................................................................................................................. 15
5. Access Point Configuration ............................................................. 17
6. Connect Wirelessly............................................................................ 21
7. Web Configuration............................................................................. 23
7.1 Accessing the Web Interface .......................................................................................................... 23
8. Quick Setup........................................................................................24
8.1 Operation Mode Setup .................................................................................................................... 25
8.2 WAN Interface Setup ...................................................................................................................... 27
8.3 Wireless Basic Setup ...................................................................................................................... 32
8.4 Wireless Security Setup .................................................................................................................. 41
9. Operation Mode .................................................................................53
9.1 Setting Operation Mode .................................................................................................................. 53
10. Wireless Network............................................................................. 54
10.1 Basic Settings ................................................................................................................................ 54
10.2 Advanced Settings ........................................................................................................................ 56
10.3 Security .......................................................................................................................................... 57
10.4 Access Control .............................................................................................................................. 63
10.5 WDS settings ................................................................................................................................. 66
10.6 Mesh settings................................................................................................................................. 74
10.7 WPS ............................................................................................................................................... 83
10.8 Operations of AP - AP being an enrollee..................................................................................... 87
10.9 Operations of AP - AP being a registrar ...................................................................................... 96
10.10 Wireless Schedule .................................................................................................................... 100
11. LAN Interface .................................................................................101
11.1 LAN Interface Setup .................................................................................................................... 101
11.2 Changing the LAN IP address and subnet mask ...................................................................... 103
11.3 Show Client.................................................................................................................................. 105
12. WAN Interface ................................................................................ 106
12.1 Configuring Static IP connection ................................................................................................ 109
12.2 Configuring DHCP Client connection......................................................................................... 111
12.3 Configuring PPPoE connection .................................................................................................. 113
12.4 Configuring PPTP connection .................................................................................................... 115
12.5 Configuring L2TP connection ..................................................................................................... 117
12.6 Clone MAC Address.................................................................................................................... 118
13. Port Filtering ..................................................................................120
13.1 Port filtering for TCP port 80....................................................................................................... 121
Wireless Access Point HNW300APN
User Manual 3
13.2 Port filtering for UDP port 53 ...................................................................................................... 122
14. IP Filtering ...................................................................................... 123
14.1 IP filtering for TCP with specified IP........................................................................................... 124
14.2 IP filtering for UDP with specified IP .......................................................................................... 125
14.3 IP filtering for both TCP and UDP with specified IP.................................................................. 126
15. MAC Filtering ................................................................................. 127
15.1 MAC filtering for specified MAC Address .................................................................................. 128
16. Port Forwarding ............................................................................. 129
16.1 Port Forwarding for TCP with specified IP ................................................................................ 130
16.2 Port Forwarding for UDP with specified IP ................................................................................ 131
17. URL Filtering .................................................................................. 132
17.1 URL filtering for specified URL Address .................................................................................... 133
18. DMZ ................................................................................................. 134
18.1 DMZ Host IP Address ................................................................................................................. 135
19. VLAN ............................................................................................... 136
20. QoS.................................................................................................. 137
21. Status .............................................................................................. 138
22. Statistics......................................................................................... 139
23. Dynamic DNS .................................................................................140
23.1 Configure DynDNS...................................................................................................................... 142
23.2 Configure TZO ............................................................................................................................. 143
24. Time Zone Setting.......................................................................... 144
SNTP Server and SNTP Client Configuration settings ..................................................................... 144
25. Denial-of-Service 145...........................................................................
26. Log .................................................................................................. 147
System Log .......................................................................................................................................... 147
27. Firmware Update............................................................................ 149
27.1 About firmware versions ............................................................................................................. 149
27.2 Manually updating firmware........................................................................................................ 149
28. Save/Reload Settings .................................................................... 150
28.1 Save Settings to File ................................................................................................................... 150
28.2 Load Settings from File ............................................................................................................... 152
28.3 Resetting to Defaults................................................................................................................... 153
29. Password........................................................................................ 155
29.1 Setting your username and password ....................................................................................... 155
30. Logout............................................................................................. 157
A Configuring your Computers........................................................ 158
Configuring Ethernet PCs ................................................................................................................... 158
B IP Addresses, Network Masks, and Subnets ..............................159
IP Addresses........................................................................................................................................ 159
Subnet masks ...................................................................................................................................... 160
C UPnP Control Point Software on Windows XP ...........................161
UPnP Control Point Software on Windows XP with Firewall............................................................ 161
Wireless Access Point HNW300APN
User Manual 4
D Troubleshooting.............................................................................164
Troubleshooting Suggestions ............................................................................................................. 164
Diagnosing Problem using IP Utilities ................................................................................................ 165
E Glossary 167..........................................................................................
Wireless Access Point HNW300APN
User Manual 5
Dear Customer,
thanks for choosing an Hamlet product. Please carefully follow the instructions for its use and
maintenance and, once this item has run its life span, we kindly ask You to dispose of it in an
environmentally friendly way, by putting it in the separate bins for electrical/electronic waste, or to bring
it back to your retailer who will collect it for free.
Responsibility Statement
The European importer declares that this product is compliant with CE standards. Importer references
and contact details available on www.hamletcom.com in the “About Us” section.
The importer for Italy is:
Careca Italia S.p.A.
VAT number 02078660350
www.careca.com
In order to reduce paper consumption we only printed a concise version of CE declaration of conformity
and Quick installation guide.
Full compliance declaration and product documentation will be available contacting us at
info@hamletcom.com specifying product code and documentation required.
We inform You this product is manufactured with materials and components in compliance with RoHS
directives: 2002/95/CE; with RAEE Directives: 2003/96/CE, Italian Legislative Decree 2005/151 and
following EEC Directives: ETSI EN 300 328 V1.7.1 (2006- - - -10), ETSI EN 301 489 17: V1.3.2 (2008 04),
ETSI EN 301- - - -489 1: V1.8.1 (2008 04), IEC EN 60950 1: 2001 + A11: 2004, ETSI EN 300 386 V1.3.3
(2005- . 04)
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
Trademarks
All trademarks and company names mentioned in this manual are used for description purpose only
and remain property of their respective owners.
Changes
The material in this document is for information only and subject to change without notice. While
reasonable efforts have been made in the preparation of this document to assure its accuracy, Hamlet
assumes no liability resulting from errors or omissions in this document, or from the use of the
information contained herein. Hamlet reserves the right to make changes or revisions in the product
design or the product manual without reservation and without obligation to notify any person of such
revisions and changes.
Wireless Access Point HNW300APN
User Manual 6
1. Introduction
The Hamlet HNW300APN is a 300Mbit Wireless Access Point based on IEEE 802.11n Wi-Fi standard with
a built in 4- -sport fast Ethernet Switch. It offers the easiest way to share and extend your high peed
DSL/Cable Modem Internet connection, either with or without wires. Network Address Translation (NAT)
and VPN pass-through provide your network protection from hackers, while WEP and WPA encryption
guard your wireless network for maximum privacy.
1.1 System Requirements
- A computer with pre installed ethernet adapter
Pentium 200MHz processor or above
Windows 98SE / Windows Me / Windows 2000 / Windows XP / Windows Vista and Windows 7
64MB of RAM or above
25MB free disk space
1.2 Package Contents
802.11n Wireless Access Point
- CD ROM (Software & Manual)
Quick Installation Guide
- Ethernet Cable (RJ 45)
Power Adaptor
Wireless Access Point HNW300APN
User Manual 7
2. Specification
2.1 LED Meaning

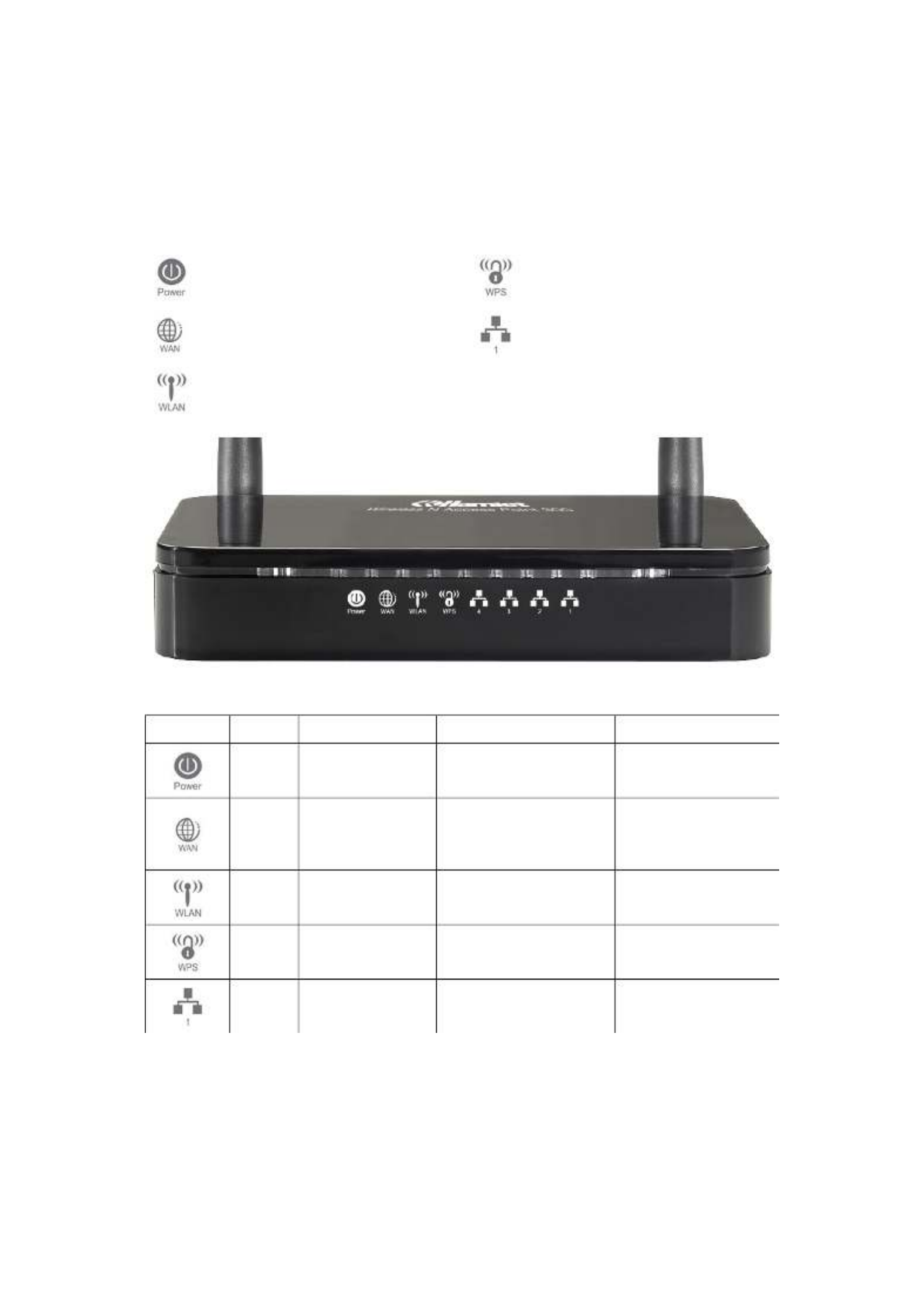

The Access Point has indicator lights on the front side. Please see below for an explanation of the
function of each indicator light.
Power indicator
WPS Active indicator
WAN Active indicator
Ethernet Active indicator
Wireless Active indicator
Table 1. LED function
Label Color On Flash Off
Green Ready Waiting for device
ready Power Off
Green
The device has a
WAN IP address
from xDSL/Cable
Modem
Transmit / Receive
Data
No WAN IP address
from xDSL/Cable
Modem
Green WLAN Ready Transmit / Receive
Data WLAN Off
Green N/A Start WPS peer within 2
minutes WPS Idle
Green Ethernet
Connected
Transmit / Receive
Data
Ethernet
Disconnected
Wireless Access Point HNW300APN
User Manual 8
2.2 Connectors
The below table shows the function of each connector and switch of the device.
CONNECTOR DESCRIPTION
ANTENNA ANTENNA
ON/OFF
SWITCH
Power on/off the device
POWER Connects to the supplied power cable
LAN 4/3/2/1 Connects the device via Ethernet to up to four PCs on your LAN
WAN Connects the device via Ethernet to xDSL / Cable Modem
WLAN Press this button for at least two full second to turn off/on wireless signals
WPS Press this button for at least three full seconds and the WPS LED will flash to start WPS.

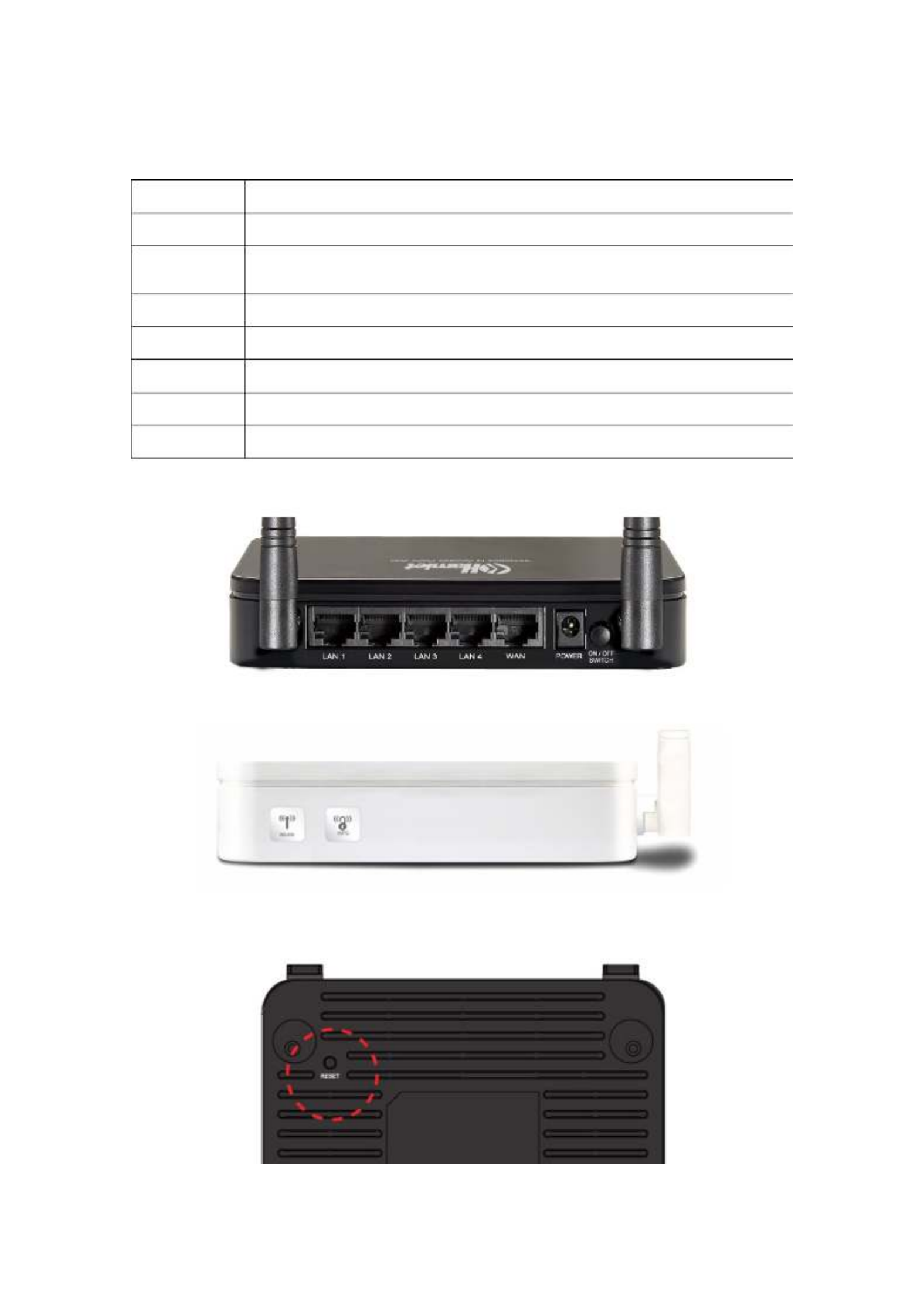

Figure1. Rear View of the Wireless ADSL2+ Router
Figure2. WPS and WLAN button
Figure3. RESET button
Wireless Access Point HNW300APN
User Manual 9
3. Installation & Setup
Follow each step carefully and only go to the next step once you have completed the previous one.
Note: Be sure that you are well insulated from any power source to avoid electricity shock.
Note: Use only the manufacturer-approved power supply that shipped with the Access point.
1. Connect the power to the Access Point by plugging the power supply into an appropriate
electrical outlet.
2. If the Power LED is off, refer to “Troubleshooting” for information.
3.1 Connection of Access Point

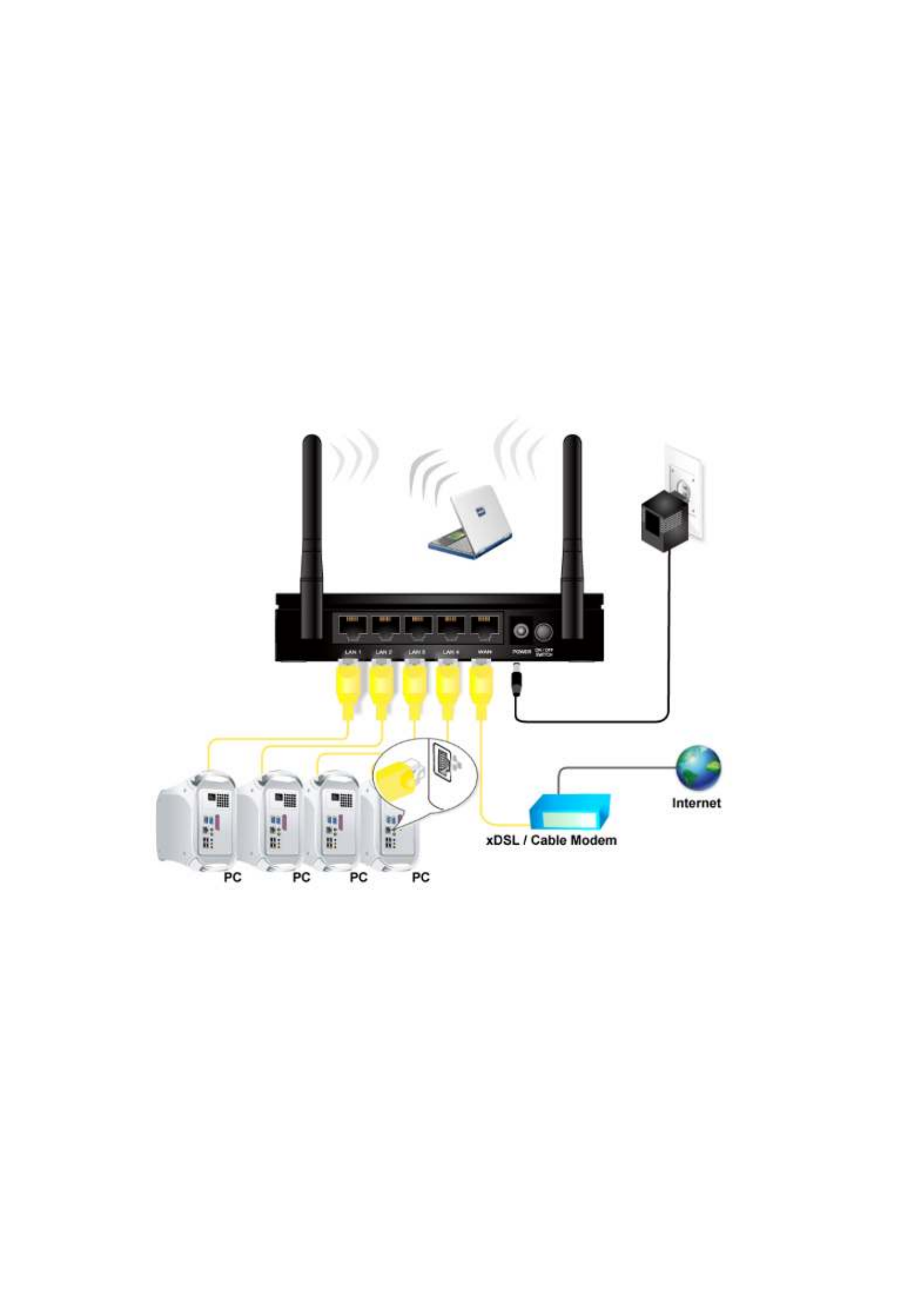

1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to any of the 4 802.11n
Wireless Access Point's WAN Ports.
2. Connect the supplied RJ45 Ethernet cable from your xDSL/Cable Modem's Ethernet port to
802.11n Access Point's WAN Port.
3. Connect the power adapter to the power inlet Power of the 802.11n Access Point and turn the
power switch “ of your 802.11n Access Point onON/OFF Switch .
Wireless Access Point HNW300APN
User Manual 10
4. Configuration Procedures
Before starting the Access Point configuration, please kindly configure the PC computer as below, to
have automatic IP address / DNS Server.

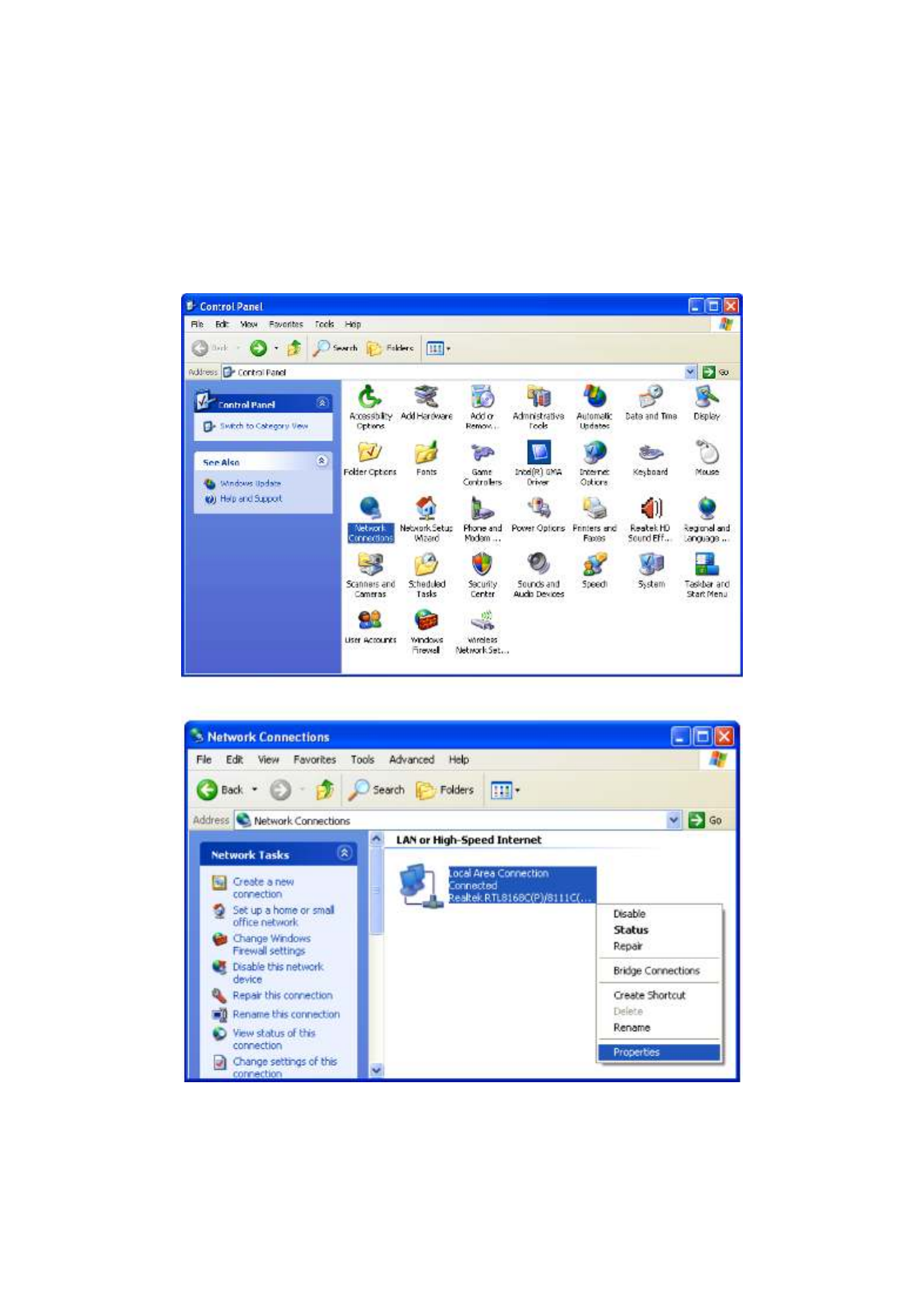

4.1 Windows 98SE/ME/2000/XP
1. Click on Start > Control Panel (in Classic View). In the Control Panel; double click on
Network Connections to continue.
2. Single right click on Local Area connection , then click Properties.
Wireless Access Point HNW300APN
User Manual 15

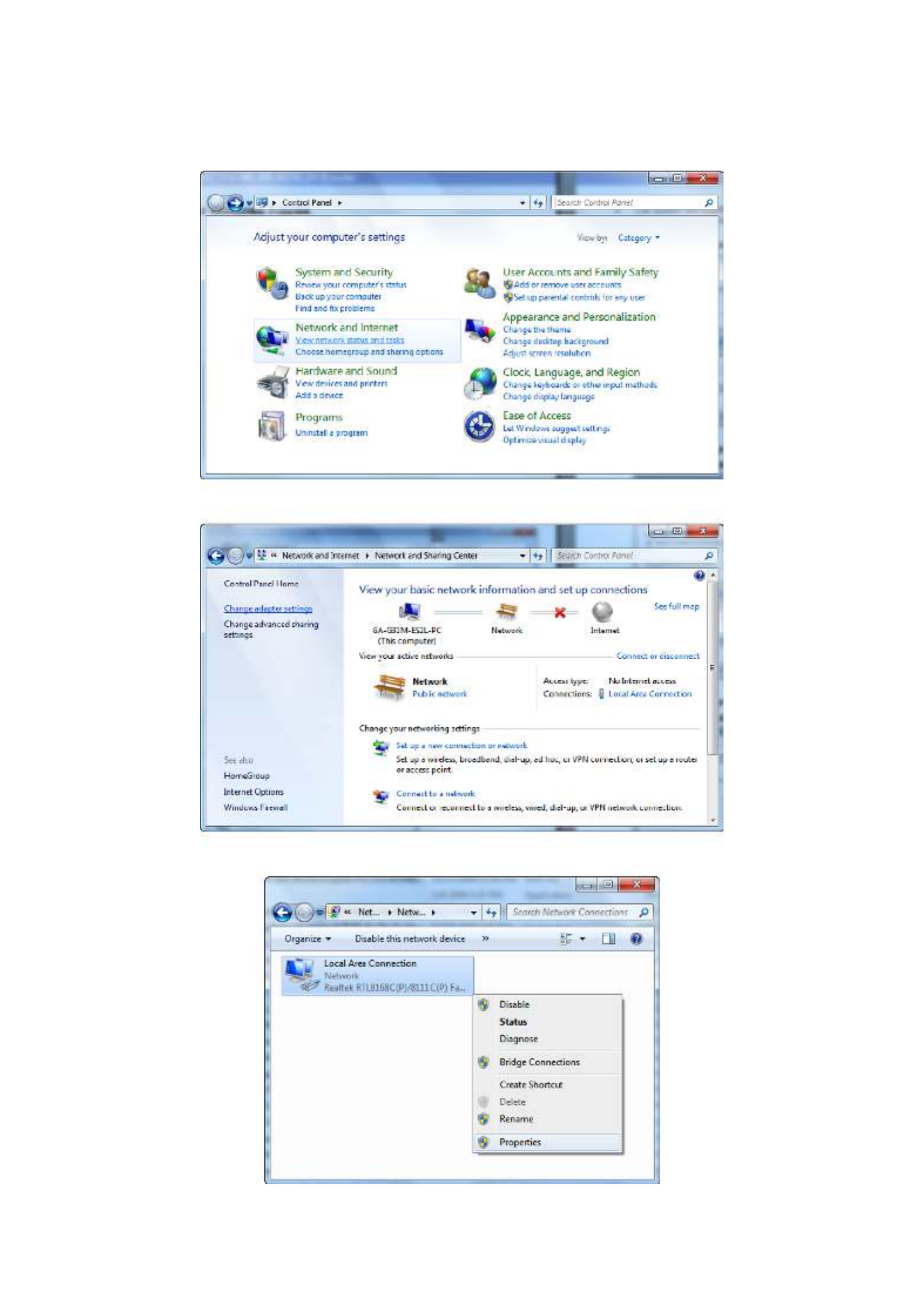

4.3 Windows 7 32/64
1. Click on Start” > (in Control Panel Category View) > “View network status and tasks.
2. In the Control Panel Home, click onChange adapter settings to continue.
3. Single right click on “Local Area Connection . , then click “Properties
4. Double click on “ Internet Protocol Version 4 (TCP/IPv4)”.
Wireless Access Point HNW300APN
User Manual 17
5. Access Point Configuration

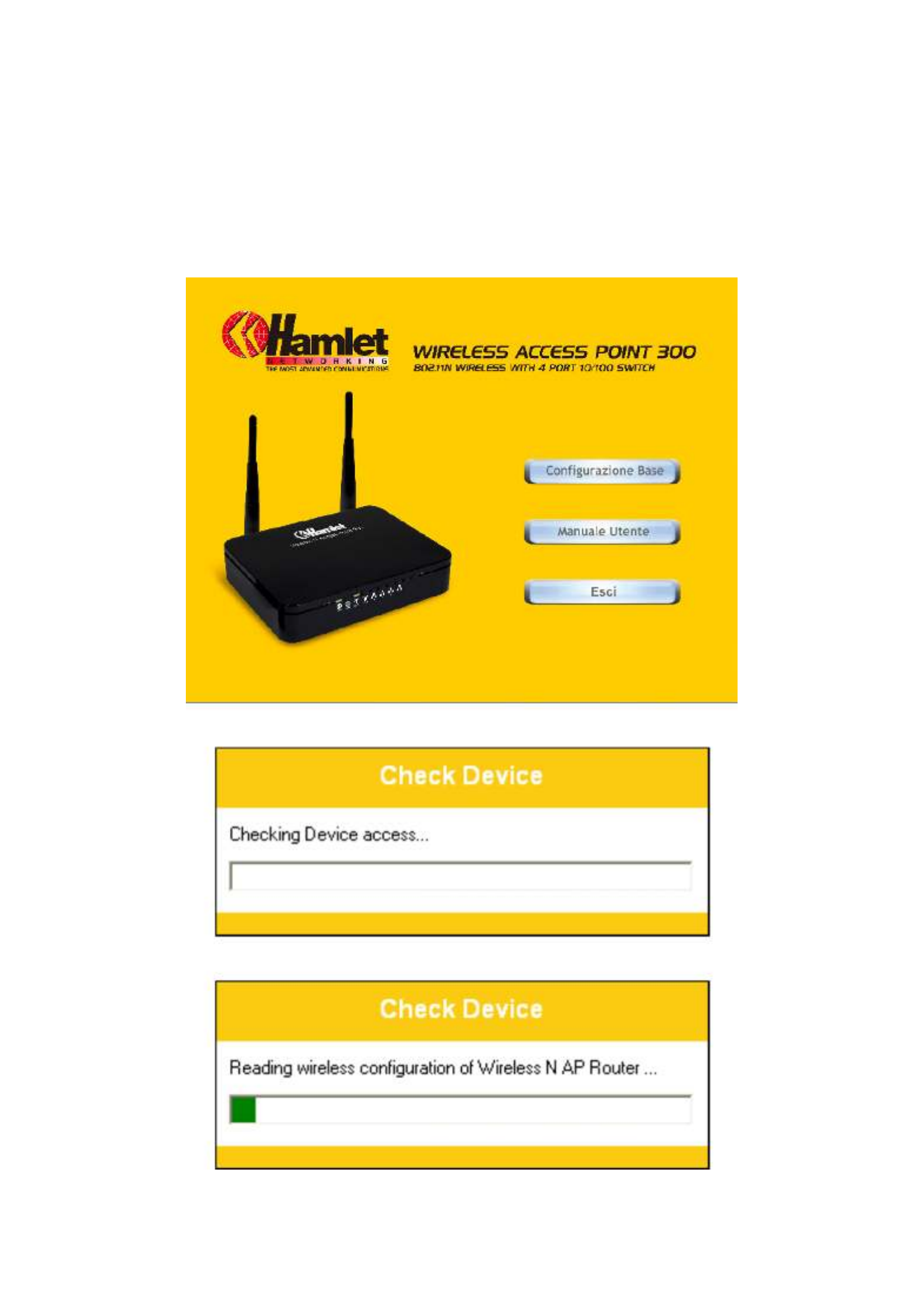

1. Please insert the supplied CD into your CD- ROM drive.
2. The CD should auto start, displaying the window shown in 3 below. If your CD does not start -
automatically, go to Windows Explorer, Select your CD drive and double click “autorun.exe.
3. The screen below will appear. To configure the device, please click “Easy Configuration” button
and follow the steps illustrated in the following pages.
4. The Easy Configuration program is checking device access.
5. The Easy Configuration program is reading the wireless configuration.
Wireless Access Point HNW300APN
User Manual 18

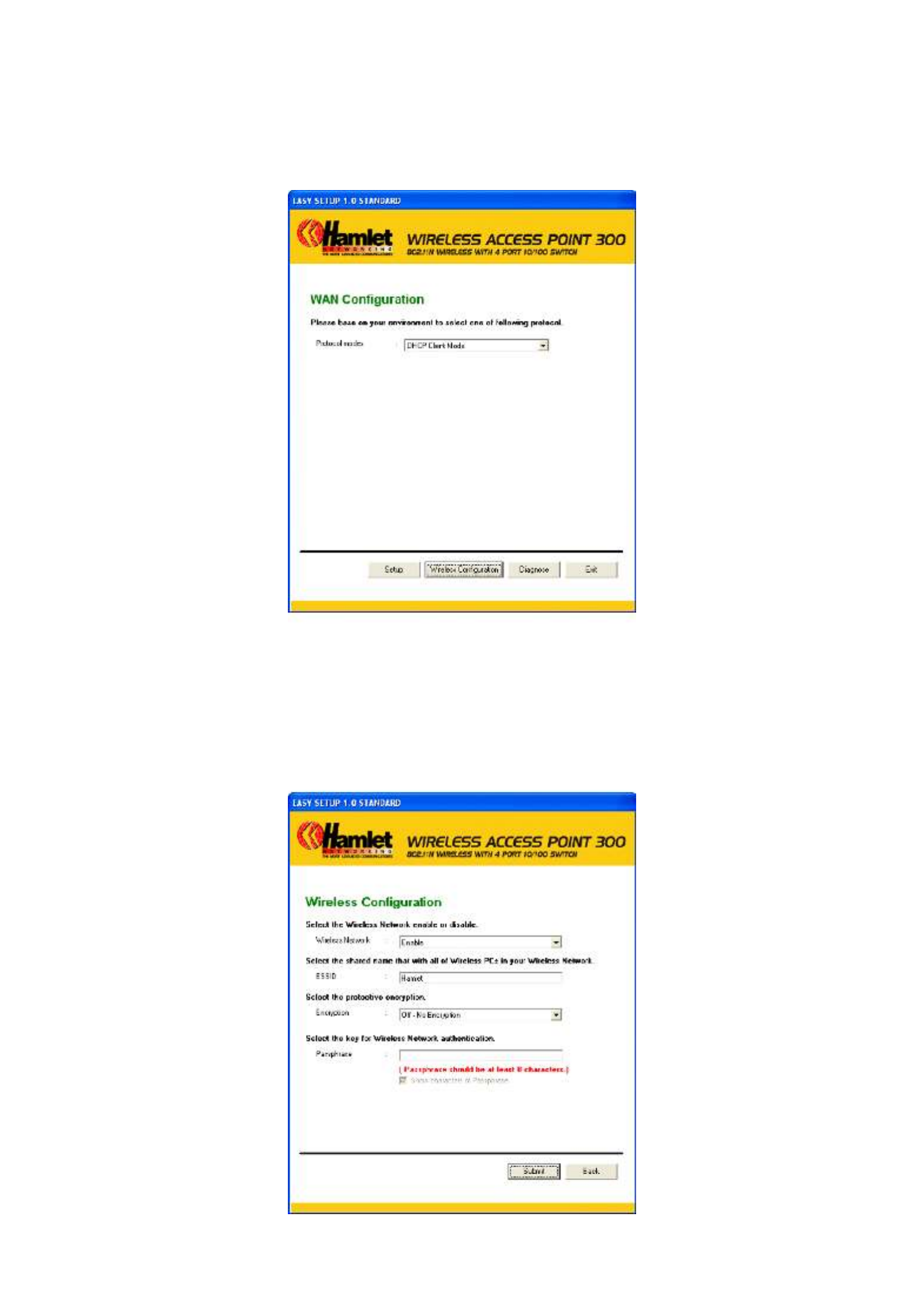

6. Select the Protocol mode Fixed IP, DHCP client or PPPoE Mode and enter related parameters that
your ISP (Internet Services Provider) or Network Administrator provided and then clickWireless
Configuration“.
7. Please enter the “ESSID” if you want to change the default settings (Network= Enable, ESSID =
Hamlet).
8. Choose the Encryption type if necessary, as Off – No Encryption (Default) / 64 Bit Encryption /
128 Bit Encryption / Wi- -Fi Protected Access (TKIP) / Wi Fi Protected Access2 (AES-CCMP) and
WPA Mixed Mode. For example, you choose the WPA Mixed Mode type and configure
Passphrase.
9. Please clickSubmit” button to continue.
Wireless Access Point HNW300APN
User Manual 19

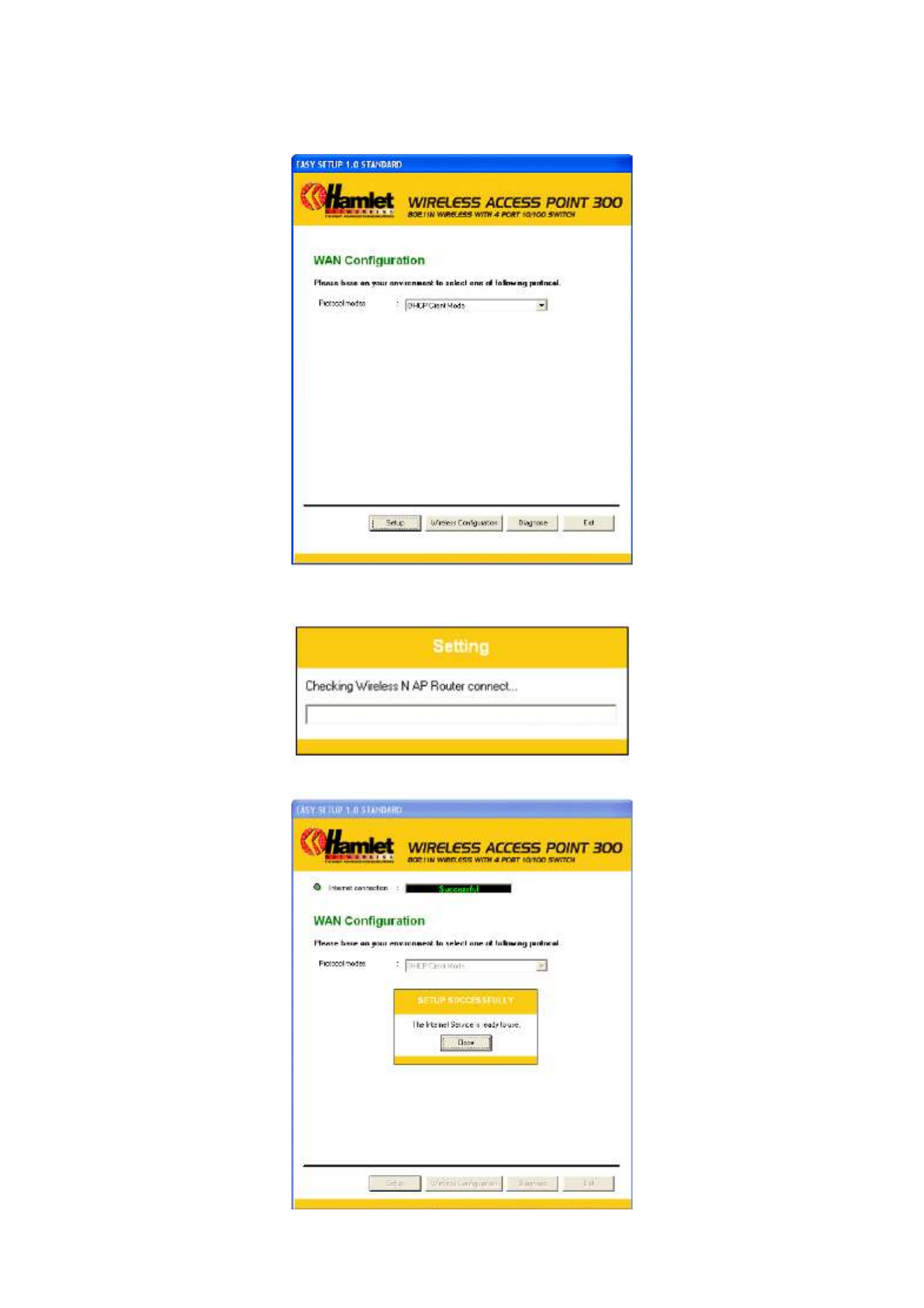

10. Please clickSetup button, when the procedure is completed, it will start to configure the device
for a while.
11. Now, checking Access Point hardware connection, Internet settings, WLAN settings, and
connection status.
12. Easy setup configuration completed. Click on "Close" to exit this program.
Wireless Access Point HNW300APN
User Manual 20
13. "Click on "Exit to exit this program.
14. Now, the Access Point has been configured completely, and suitable for Wireless and Internet
Connections.
Wireless Access Point HNW300APN
User Manual 21
6. Connect Wirelessly
Now that the Easy configuration setup is completed, you can connect wirelessly to your Wireless
Access Point. Follow the steps below to create a new wireless connection.

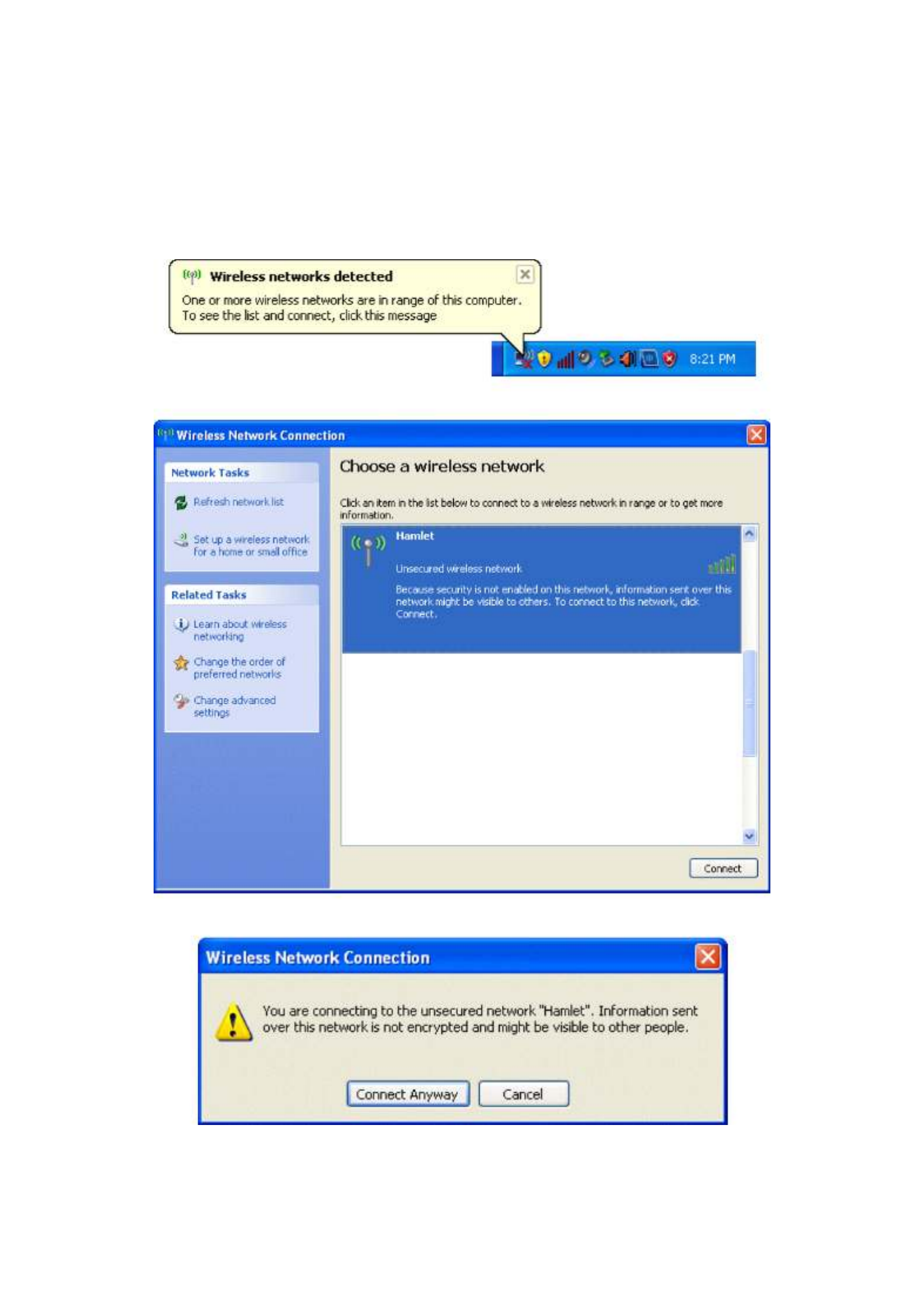

1. Double click on the wireless icon on your computer and search for the wireless network that you
enter ESSID name.
2. Click on the wireless network that you enter ESSID name to connect.
3. If the wireless network isn’t encrypted, click onConnect Anyway" to connect.
Wireless Access Point HNW300APN
User Manual 24

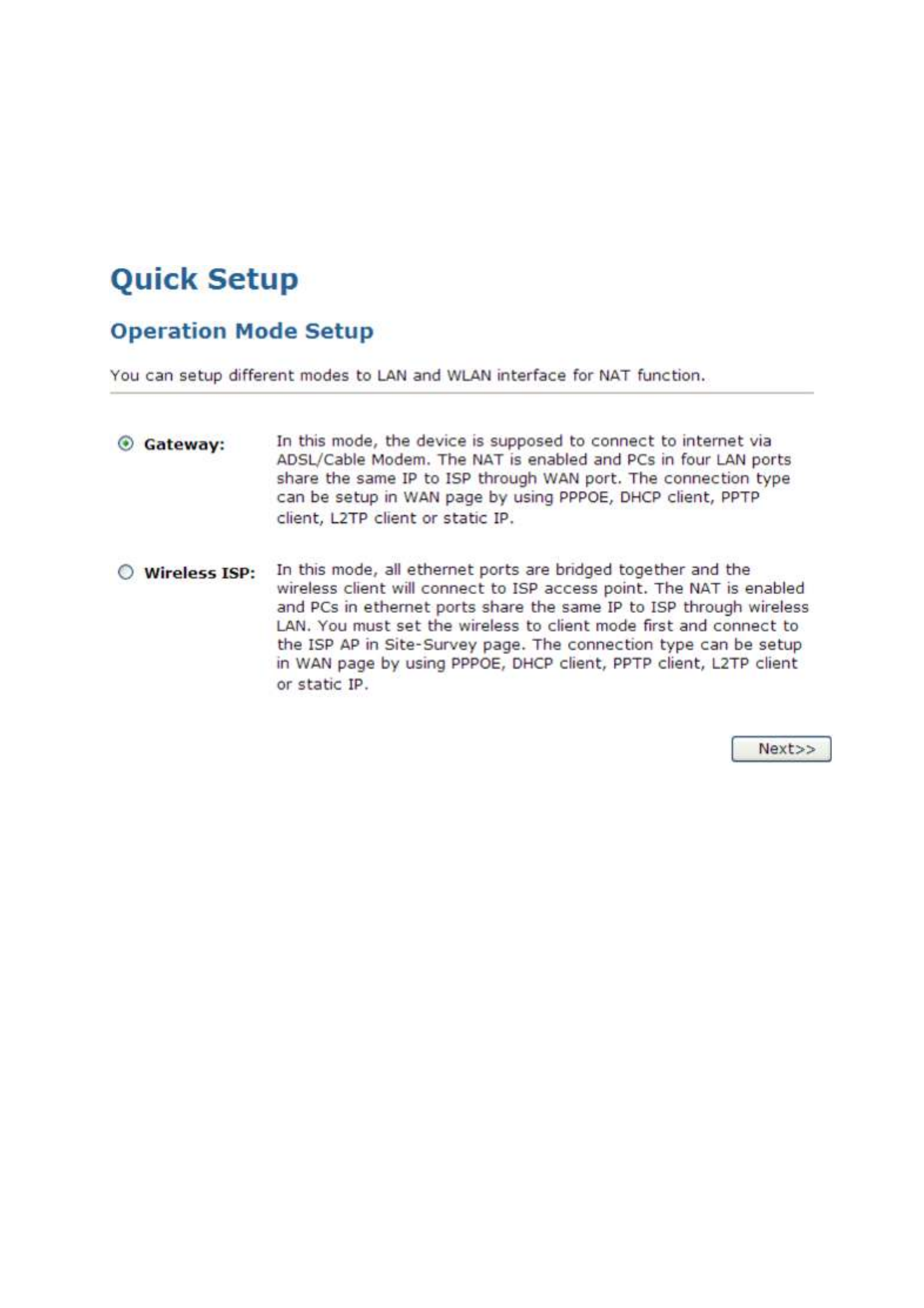

8. Quick Setup
You can use “Quick Setup” to setup the Access Point as follows, and the Access Point will connect to
the Internet. From the left hand menu, click on - Quick Setup. The following page is displayed:
Figure 1: Quick Setup page
Wireless Access Point HNW300APN
User Manual 26

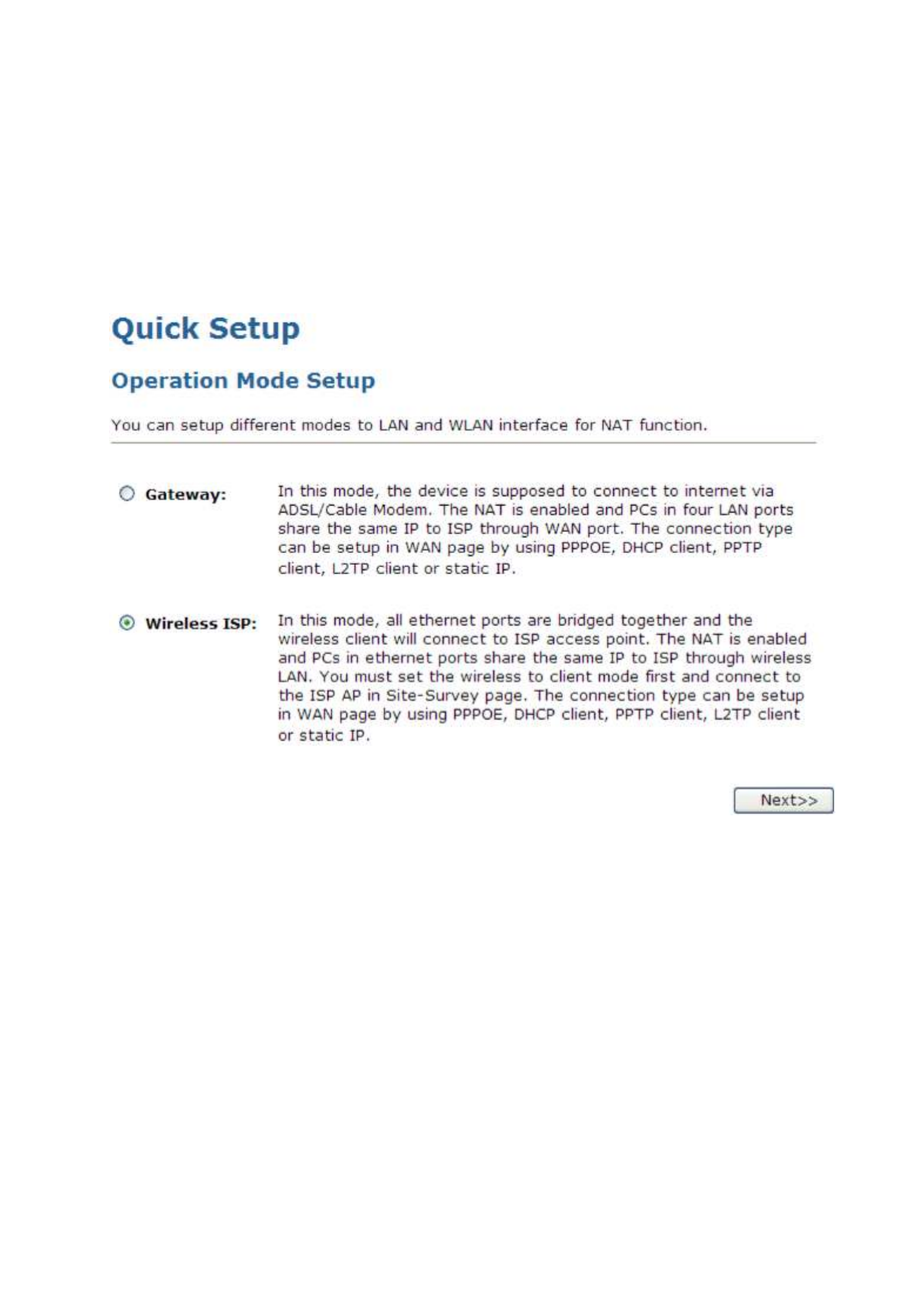

Wireless ISP
In this mode, all Ethernet ports are bridged together and the wireless client will connect to ISP access point.
The NAT is enabled and PCs in Ethernet ports share the same IP to ISP through wireless LAN. You must
set the wireless to client mode first and connect to the ISP AP in Site-Survey page. The connection type can
be setup in WAN page by using PPPOE, DHCP client or static IP.
To change the Operation Mode:
1. From the left-hand menu, click on Quick Setup. The following page is displayed:
2. Click on the ratio of Wireless ISP and then click on Next>>.
Wireless Access Point HNW300APN
User Manual 27

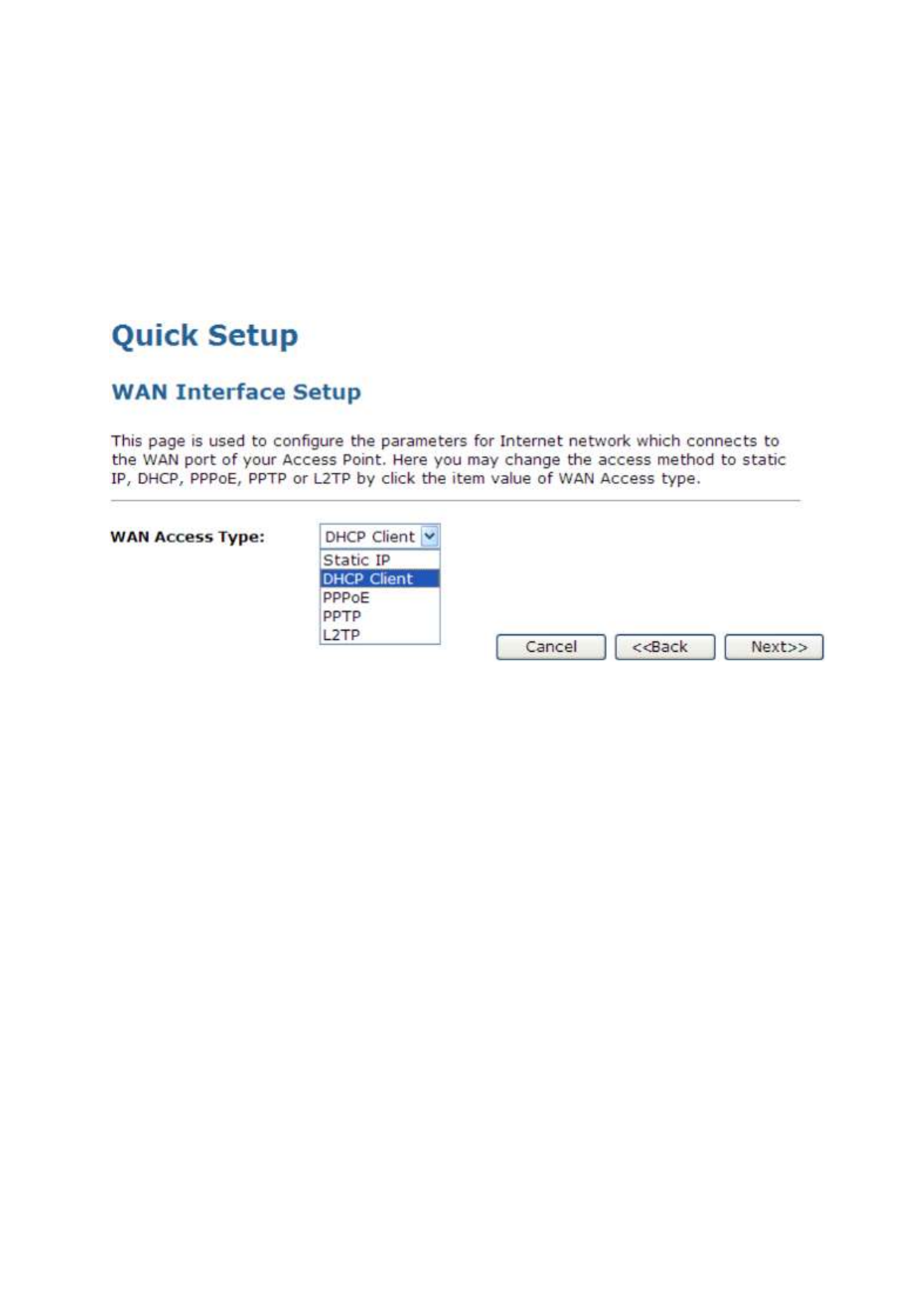

8.2 WAN Interface Setup
This page is used to configure the parameters for Internet network which connects to the WAN port of your
Access Point. Here you may change the access method to static IP, DHCP, or PPPoE by click the item
value of WAN Access type.
To change the WAN Access Type:
1. From the WAN Access Type drop-down list, select Static IP, DHCP Client, PPPoE, PPTP, or L2TP
setting determined by your Network Administrator or ISP.
2. Click Next>>.
Wireless Access Point HNW300APN
User Manual 28

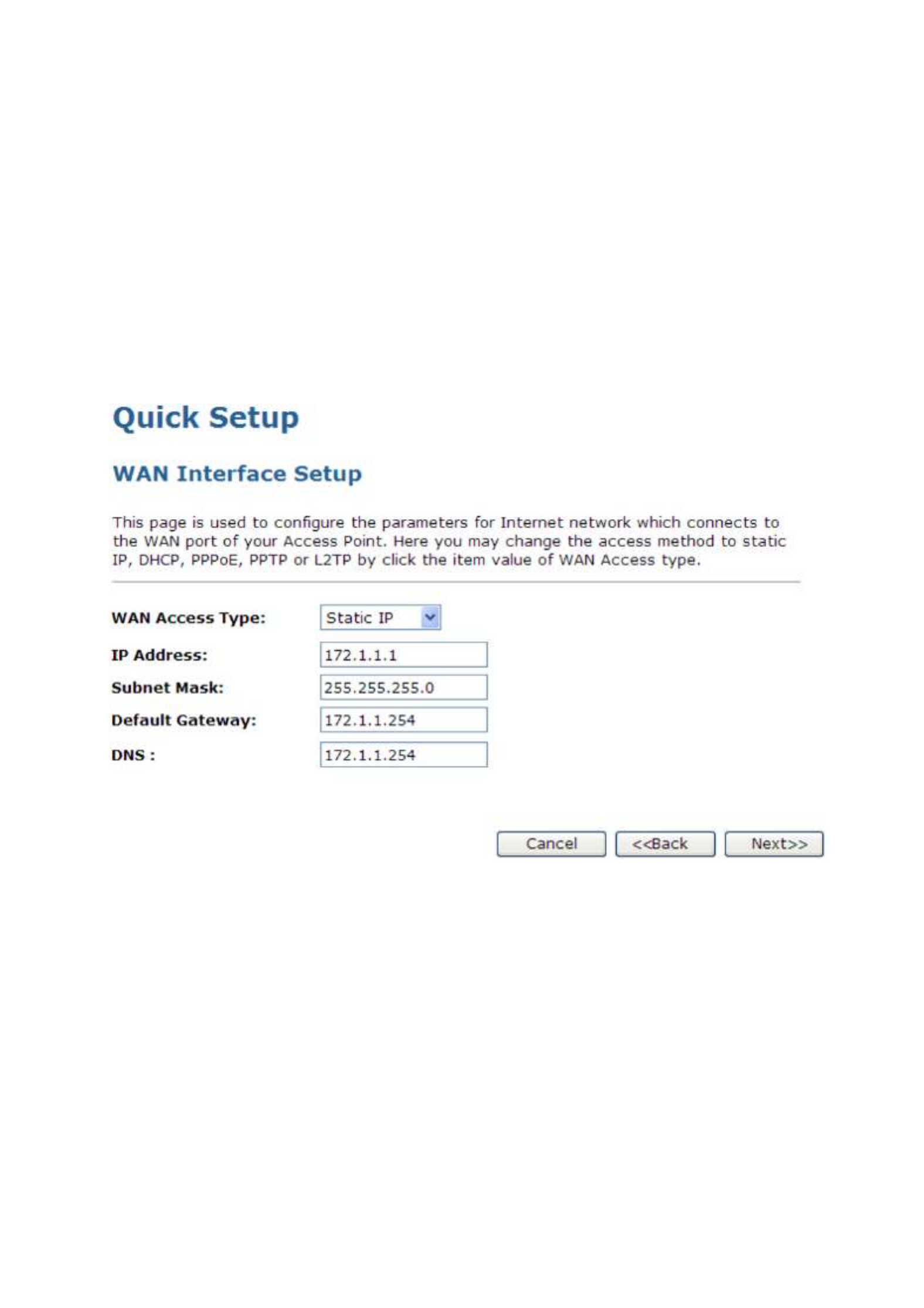

Static IP
In this mode, the device is supposed to connect to internet via ADSL/Cable Modem. The NAT is enabled
and PCs in four LAN ports share the same IP to ISP through WAN port. The connection type can be setup
in WAN page by using static IP.
1. From the WAN Access Type drop-down list, select Static IP setting determined by your Network
Administrator or ISP.
2. Enter IP Address for example 172.1.1.1.
3. Enter Subnet Mask for example 255.255.255.0.
4. Enter Default Gateway for example 172.1.1.254.
5. Enter DNS for example 172.1.1.254.
6. Click Next>>.


Produkt Specifikationer

Mærke: Hamlet
Kategori: Router
Model: HNW300APN
Vægt: - g
Produktfarve: Sort
Ethernet LAN-porte (RJ-45): 4
Ethernet LAN: Ja
Wi-Fi-standarder: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN-datahastigheder: 10, 100 Mbit/s
Sikkerhedsalgoritmer: 128-bit WEP, 64-bit WEP, WPA, WPA2, WPS
Dimensioner (BxDxH): 140 x 107 x 30 mm
Hurtig start guide: Ja
Kabler inkluderet: LAN (RJ-45)
Frekvensområde: 2.412 - 2.484
Ethernet WAN: Ja
Bedste Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN dataoverførselshastighed (maks): 300 Mbit/s
Ethernet LAN-grænsefladetype: Hurtigt ethernet
Kabelteknologi: 10/100Base-T(X)
Netværksstandarder: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
DC-in-stik: Ja
DHCP-klient: Ja
DHCP-server: Ja
Universal Plug and Play (UPnP): Ja
Antenner, antal: 2
Webbaseret administration: Ja
Knap til nulstilling: Ja
Servicekvalitet support (QoS): Ja
Filtrering: Ja
LED-indikatorer: Power, WAN, WLAN
AC-adapter inkluderet: Ja
Kompatible operativsystemer: Windows 98SE/Windows Me/Windows 2000/Windows XP/Windows Vista/Windows 7
Grænseflade: RJ45
Understøttede WLAN-dataoverførselshastigheder: 150,300 Mbit/s
Firmware kan opgraderes: Ja
Strøm over Ethernet (PoE): Ja
Filtrering af MAC-adresser: Ja
Dataoverførselshastighed: 300 Mbit/s
Understøttede dataoverførselshastigheder: 10/100/300Mbps
Understøttelse af DMZ: Ja
Båndbredde: 2.4 GHz
Hukommelse og processor: Pentium 200MHz, 64MB RAM

Har du brug for hjælp?

Hvis du har brug for hjælp til Hamlet HNW300APN stil et spørgsmål nedenfor, og andre brugere vil svare dig




Router Hamlet Manualer

Hamlet

Hamlet HHTSPT3GM21 Manual

14 Januar 2025
Hamlet

Hamlet HNW300APN Manual

9 November 2024
Hamlet

Hamlet HHTSPT3GM42 Manual

24 August 2024
Hamlet

Hamlet HHTSPT4GLTE Manual

24 August 2024
Hamlet

Hamlet HRDSL300N2 Manual

24 August 2024
Hamlet

Hamlet HNW300APN2 Manual

24 August 2024

Router Manualer

Nyeste Router Manualer

Tenda

Tenda TX2L Pro Manual

12 August 2025
Asus

Asus RT-AX57 Go Manual

12 August 2025
Asus

Asus RT-AX82U V2 Manual

12 August 2025
Asus

Asus RT-AX52 Manual

12 August 2025
Tenda

Tenda G1 Manual

12 August 2025
Tenda

Tenda 4G06c Manual

12 August 2025
Tenda

Tenda G0-8G-PoE Manual

12 August 2025
Asus

Asus RT-AX3000 V2 Manual

12 August 2025
D-Link

D-Link M30 Manual

12 August 2025
Asus

Asus RT-AC65U Manual

11 August 2025
