DESCRIPTION

The SHD-46VDx Kit provides an economical, integrated solution for any indoor flush

mount application for Hanwha XNB-6001 with SLA-T4680V lens head. Like all of

our products, this mount is designed for quick, simple installation and servicing.

SUGGESTED INSTALLATION EQUIPMENT

 Phillips Head Screwdriver

 #29 Drill Bit

 Tool to cut hole pattern

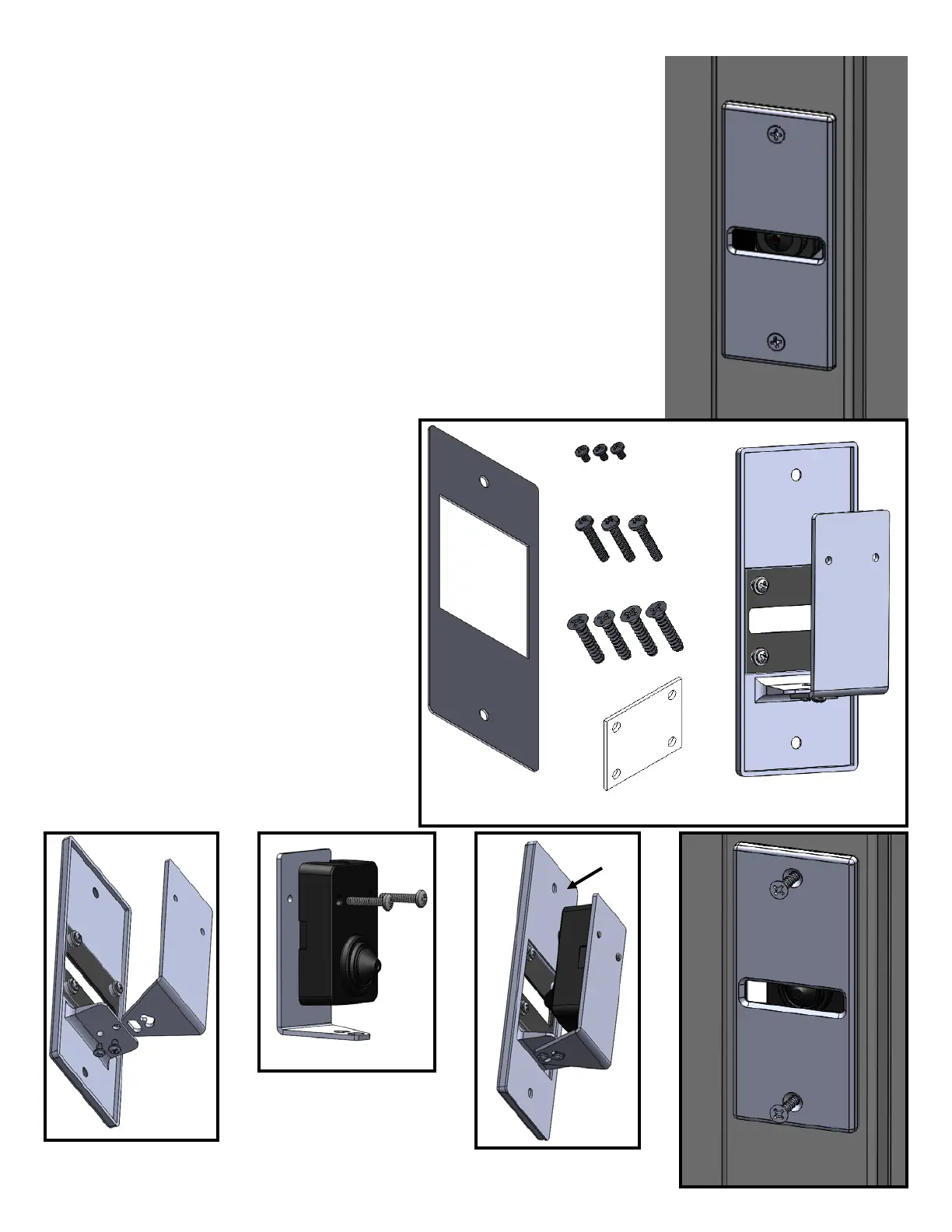

COMPONENT LIST [FIGURE 1]

A. Door Mullion Housing - 1

B. Neoprene Mullion Gasket - 1

C. Spare Camera Window - 1

D. Spare M3 x 4mm Screws - 3

E. M3 x 16mm Screws - 3

F. 6-32 x 3/4” Screws - 3

INSTALLATION

1. Carefully unpack box and verify that all compo-

nents listed in the component list are included.

2. Locate desired installation location, use the in-

cluded template to cut out the clearance hole and

drill pilot holes for the mounting screws.

3. Remove the pivot bracket from the faceplate as

seen in [FIGURE 2]

4. Route cable through hole in wall.

5. Secure the Hanwha camera to the pivot bracket

using the provided screws (E) as seen in

[FIGURE 3]

6. Secure pivot bracket back to faceplate and Install

Neoprene Gasket (B) as seen in [FIGURE 4].

7. Make all necessary connections and secure face-

plate to its location using the provided screws (F)

as seen in [FIGURE 5]

FIGURE 1

FIGURE 2

FIGURE 3

FIGURE 5

FIGURE 4

SHD-46VDE, SHD-46VDB INSTRUCTIONS

(Door Mullion Flush Mount)

SHD-46VDE, SHD-46VDB INSTRUCTIONS

(Door Mullion Flush Mount)

MECHANICAL PROPERTIES

 Housing: Cast Aluminum Alloy 380

 Camera Bracket: Steel

 Unit weight: 0.16 lbs without camera

ENVIRONMENT

 Indoor
