Side 1/12

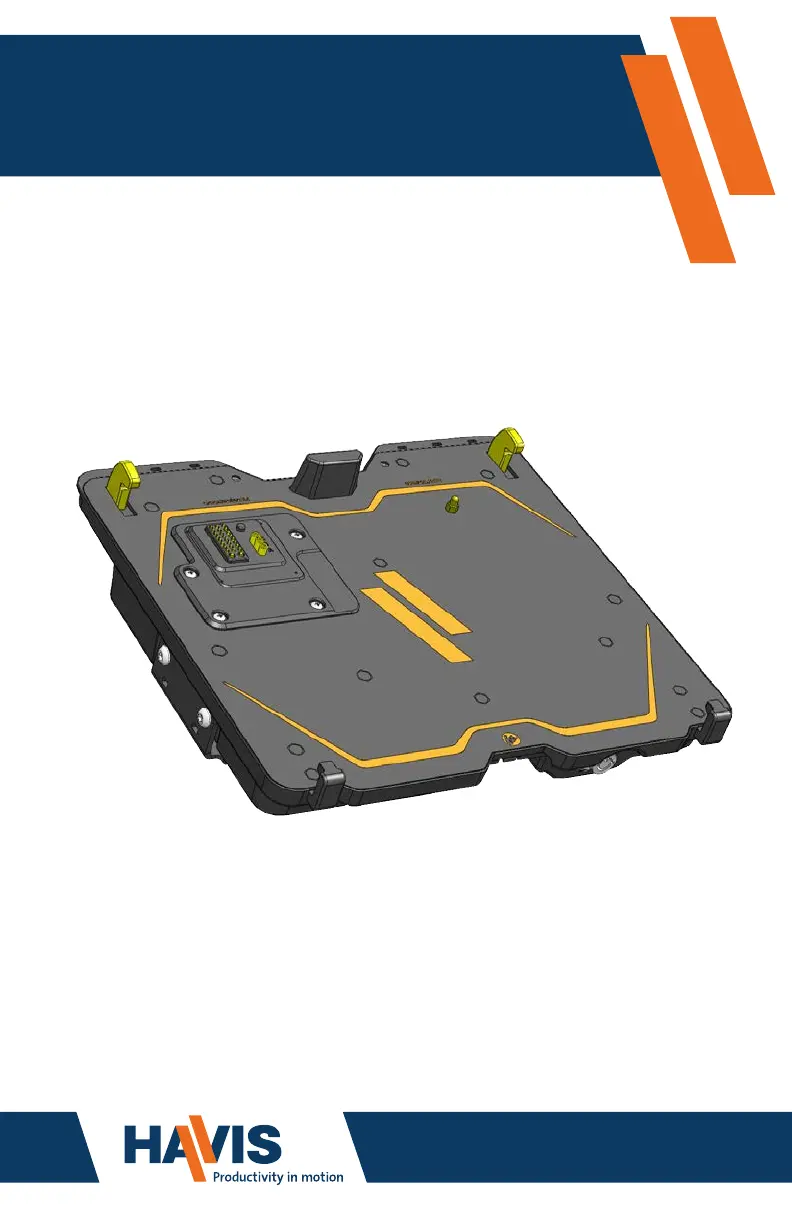

Owner’s Manual

Havis Docking Station for

Getac V110 Convertible Notebook

DS-GTC-300-SERIES_OMN_8-14

www.havis.com

1-800-524-9900

DS-GTC-301

DS-GTC-301-3

DS-GTC-302

DS-GTC-302-3

DS-GTC-303

DS-GTC-300 Series

Havis, Inc.

75 Jacksonville Road

Warminster, PA 18974

www.havis.com 1-800-524-9900

DS-GTC-301

DS-GTC-301-3

DS-GTC-302

DS-GTC-302-3

DS-GTC-303

Before Beginning

(Original Instructions)

2 11

• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE

AIRBAG DEPLOYMENT ZONE.

• DO NOT USE COMPUTER WHILE DRIVING.

Havis is pleased to provide this Owner’s Manual to aid in the proper

installation and use of the DS-GTC-300 Series Docking Station for

Getac V110 Fully Rugged Convertible Notebooks

For questions regarding the set-up of your DS-GTC-300 Series Docking Station,

please contact Havis at 1-800-524-9900 or visit www.havis.com for additional

product support and information.

This Owner’s Manual applies to the following Part Numbers:

• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY

(DS-GTC-302, DS-GTC-302-3) REFER TO THE SUPPLIED LIND POWER SUPPLY REFERENCE GUIDE.

• WHEN NOTEBOOK IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN

0°C to 50°C (32°F to 122°F).

PLEASE REFER TO GETAC V110 OWNER’S MANUAL FOR MORE INFORMATION.

• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.

• DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR

UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES

CAN CAUSE PERMANENT DAMAGE.

• FOR THE DS-GTC-301, DS-GTC-301-3, DS-GTC-302, & DS-GTC-302-3 DOCKING STATIONS:

DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires

a certied, automotive grade, Getac approved 95W power source rated for a

continuous, regulated 19VDC output (Havis Part Number LPS-116 or equivalent).

Failure to comply with this requirement will cause product damage that is NOT

repairable and is NOT covered under warranty.

• FOR THE DS-GTC-303 DOCKING STATION:

DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Getac V110 notebook

requires a certied, Getac approved power source rated for a continuous, regulated

19VDC output. Failure to comply with this requirement will cause product damage

that is NOT repairable and is NOT covered under warranty.

Produkt Specifikationer

Mærke:	Havis
Kategori:	Andet computertilbehør
Model:	DS-GTC-302-3
Bredde:	299 mm
Dybde:	279 mm
Højde:	71 mm
Vægt:	2313 g
Produktfarve:	Sort
Pakkevægt:	3629 g
Antal HDMI-porte:	1
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	1
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	3
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Forbindelsesteknologi:	Docking
Certificering:	MIL-STD 810G 514.5, SAE J1455
Mikrofonindgang:	Ja
Antal VGA-porte (D-sub):	1
Kapabilitet:	Getac V110
Mærke kompatibilitet:	Getac
Antal serielle porte:	2
