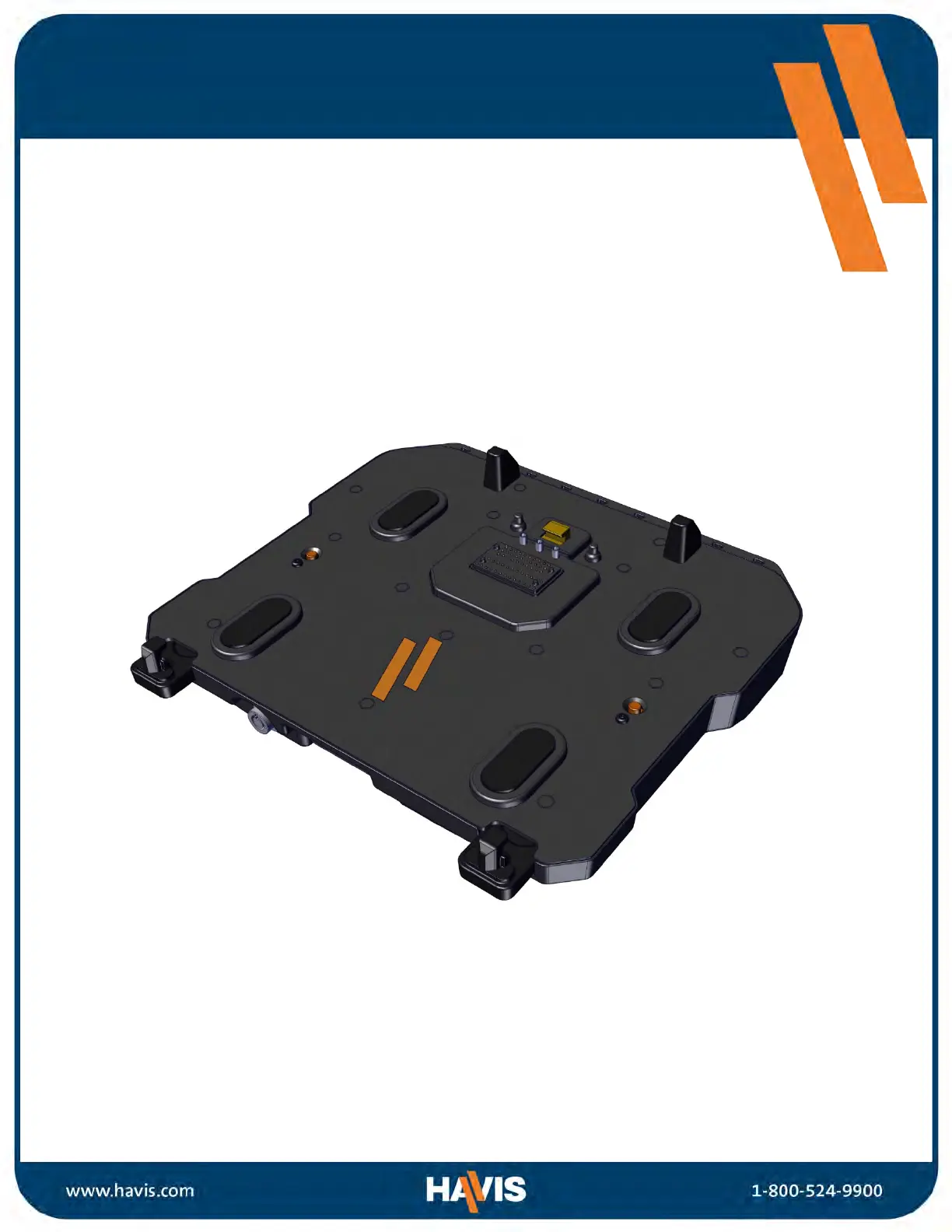

Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the
DS-DELL-410 Series Docking Station for the Dell Latitude Rugged Extreme Notebooks.
For questions regarding the set- -DELL-up of your DS 410 Series Docking Station,
please contact 9900 or visit www.havis.com for additional product support and informationHavis at 1- - -800 524 .
This Owner’s Manual applies to the following Part Numbers:
DS DELL- -411
DS DELL- -411-3
DS DELL- -412
DS DELL- -412-3
DS DELL- -413
DS DELL- -413-3
DS DELL- -414
DS DELL- -414-3
DS DELL- -415
DS DELL- -415-3
DS DELL- -416
DS DELL- -416-3
DS DELL- -417
DS DELL- -417-3
DS DELL- -418
DS DELL- -418-3
•NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE AIRBAG DEPLOYMENT ZONE.
•DO NOT USE COMPUTER WHILE DRIVING.
•READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
•DO NOT STORE, INSTALL, OR OPERATE THE DOCKING STATION WHERE WATER, MOISTURE, STEAM, DUST, ETC.
ARE PRESENT
•FOR THE DS DELL DELL DS DELL DELL DELL DELL DELL- -411, DS- - -411 3, - - -412, DS - -412 3, DS- - -415, DS - -415 3, DS- -416, &
DS DELL DOCKING - - -416 3 STATIONS: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product
requires a certified, automotive grade, Dell approved 90W power source rated for a continuous, regulated
19.5VDC output (Havis Part Number LPS-137 or equivalent). Failure to comply with this requirement will cause
product damage that is NOT repairable and is NOT covered under warranty.
•THE DS-DELL DELL DELL DELL DOCKING - -414, DS - -414 3, DS- - -417, & DS - -417 3 STATIONS MUST BE USED WITH
POWER CABLE (PART # DS- -DA 316). THIS CABLE INCLUDES A 15AMP PROTECTION FUSE.
•FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY (DS DELL DELL- - -412, DS - -412 3,
DS DELL DELL DELL DELL 3) - - -416, DS - -416 3, DS- - -418, DS - -418 REFER TO THE SUPPLIED LIND POWER SUPPLY
REFERENCE GUIDE.
Precautions
•Do Station.not place metal objects or containers of liquid on top of the Docking
•If a malfunction occurs, immediately unplug the Power Supply and remove the laptop.
•Use only the specified Power Supply (Part # LPS- -137, LPS 126, or LPS-127) with this Docking Station, or
Internal Power Supply Cable (Part # DS-DA-316) with Internal Power Supply Docking Stations.
•Do not connect cables into ports other than what they are specified for.
•Do not leave the Docking Station in a high temperature environment (greater than for a long 71 160°C, °F)
period of time.
