Haws 8164 Manual

Haws Ikke kategoriseret 8164

Læs gratis den danske manual til Haws 8164 (2 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 6 personer og har en gennemsnitlig bedømmelse på 4.3 stjerner ud af 3.5 anmeldelser. Har du et spørgsmål om Haws 8164, eller vil du spørge andre brugere om produktet?

Download PDF
Side 1/2
46"
1173mm
MAX
ON POSITION
82"-96"
2083mm-2438mm
376mm
ROUGH-IN
14-3/4"
16"
9"
3 1/2"
89mm
ROUGH-IN
198mm
7-3/4"
SUSPENDED
CEILING
REMOVABLE
ACCESS
PLATE
HANGER BRACKETS
(NOT SUPPLIED)
(AS REQUIRED)
3-1/2"
89mm
35mm
1 3/8"
1" IPS
SUPPLY
1-5/8"
41mm
REF
876mm
34 1/2"
MAX
1" BRASS STAY
OPEN BALL VALVE
1" UNION & CLOSE NIPPLE
2X
HANDLE,
CLOSED
POSITION
WALL
1" IPS PIPE & FITTINGS
(NOT SUPPLIED)
STAINLESS STEEL
CABINET
16" MIN
406mm MIN
10-1/2"
267mm
FLANGE DIA.
10"
254mm
HOLE DIA.
9 3/8"

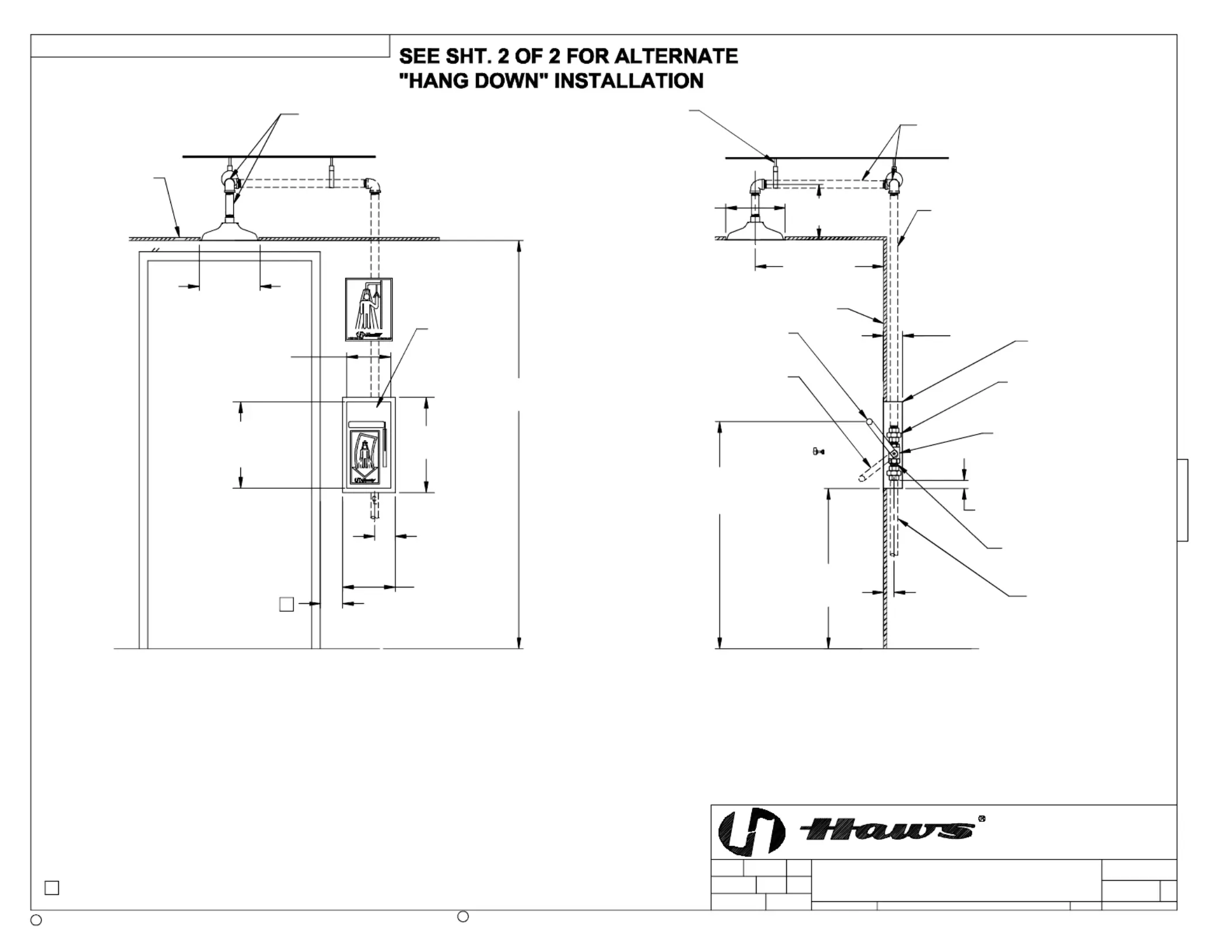

NOTES:
1. TO COMPLY WITH ANSI Z358.1-2009 FOR EMERGENCY SHOWER EQUIPMENT:
- UNIT SHALL BE INSTALLED IN ACCORDANCE WITH MANUFACTURER'S INSTRUCTIONS AND
ACCEPTABLE PLUMBING PRACTICES.
- SHOWER SHALL BE POSITIONED SO THAT SHOWER HEAD IS NOT LESS THAN 208.3 CM (82 IN.)
NOR MORE THAN 243.8 CM (96 IN.) FROM SURFACE ON WHICH USER STANDS.
- SHOWER SPRAY PATTERN SHALL HAVE A MINIMUM DIAMETER OF 50.8 CM (20 IN.) AT
152.4 CM (60 IN.) ABOVE SURFACE ON WHICH USER STANDS, AND CENTER OF SPRAY
PATTERN SHALL BE LOCATED AT LEAST 40.6 CM (16 IN.) FROM ANY OBSTRUCTION.
2. DIMENSIONS MAY VARY ±1/2" [12.7mm].
3 INSTALL STAINLESS STEEL CABINET AS CLOSE TO DOOR JAM AS POSSIBLE.
3
1" IPS PIPE
(NOT SUPPLIED)
1" IPS PIPE
(NOT SUPPLIED)
DWG. NO.
APPROVED:
DRAWN:
PART NUMBER:
DRAWING NO.:
SCALE: SHEET OF
REV.
DRAWING TYPE:
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
SIZE:
BY:ECN NO.
Page
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
R
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
1455 KLEPPE LANE
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
MODEL(S)
13622A00
DO
03/09/00
13622A00 14
0002080138.D
8164
SHOWER
1/19
1 2
A
HM
1 of 2
INSTALLATION
4838
2013
1" IPS ELBOW & PIPE
(SUPPLIED)
(NOT SUPPLIED)
ESCUTCHEON
10 7/8"
276mm

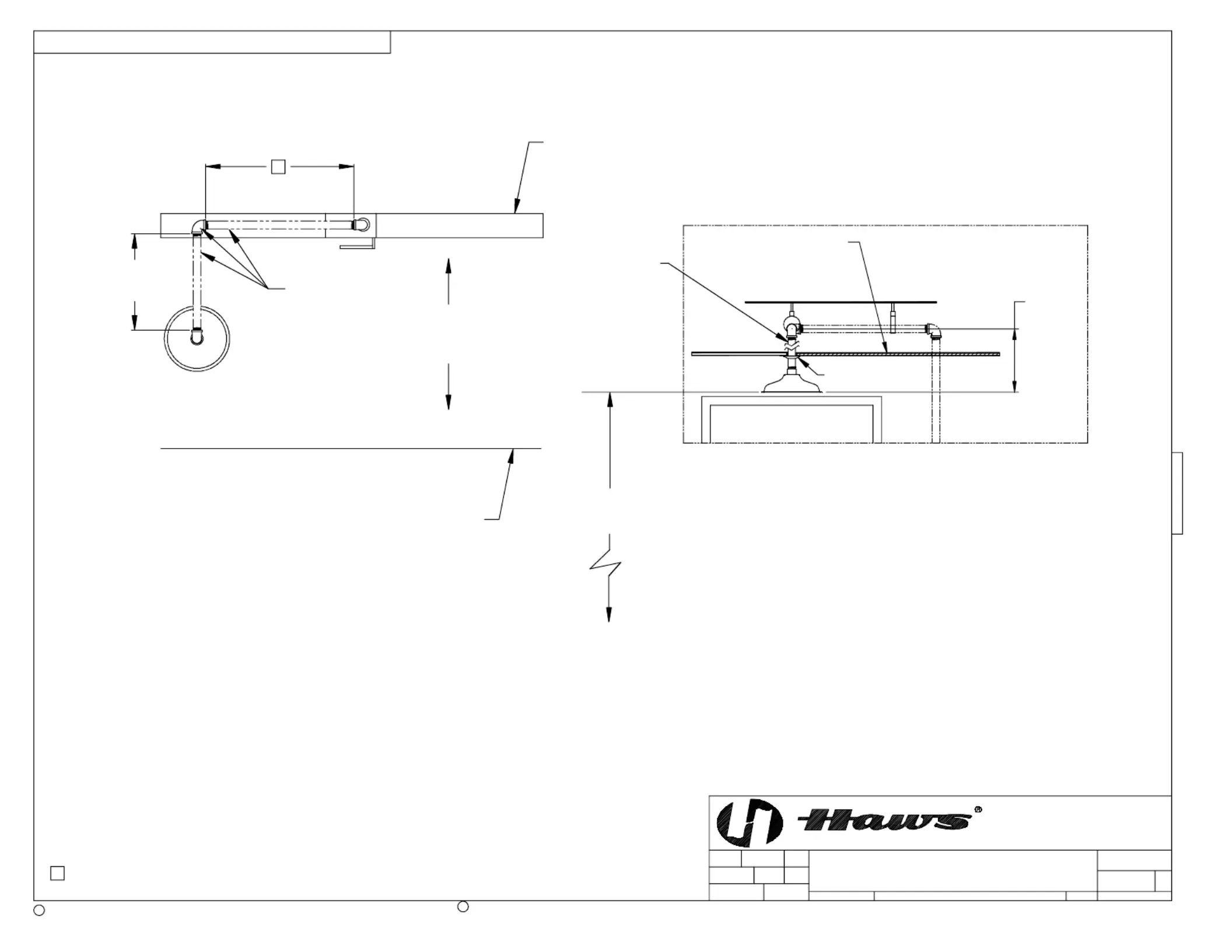

FOR ALTERNATE "HANG DOWN" INSTALLATION
OF SHOWER HEAD (SHOWN ABOVE) PERFORM
THE FOLLOWING STEPS:
A) SWAP OUT 1" X 5" NIPPLE FOR
1" X 6-1/2" HI POLISHED NIPPLE (SUPPLIED)
B) USE CEILING ESCUTCHEON FOR 1" PIPE (SUPPLIED)
SUSPENDED
CEILING
WALL
WALL
3
16" MIN.
406mm
1" IPS PIPE & FITTINGS
(NOT SUPPLIED)
TOP VIEW
NOTES:
1. TO COMPLY WITH ANSI Z358.1-2009 FOR EMERGENCY SHOWER EQUIPMENT:
- UNIT SHALL BE INSTALLED IN ACCORDANCE WITH MANUFACTURER'S INSTRUCTIONS AND
ACCEPTABLE PLUMBING PRACTICES.
- SHOWER SHALL BE POSITIONED SO THAT SHOWERHEAD IS NOT LESS THAN 208.3 CM (82 IN.)
NOR MORE THAN 243.8 CM (96 IN.) FROM SURFACE ON WHICH USER STANDS.
- SHOWER SPRAY PATTERN SHALL HAVE A MINIMUM DIAMETER OF 50.8 CM (20 IN.) AT
152.4 CM (60 IN.) ABOVE SURFACE ON WHICH USER STANDS, AND CENTER OF SPRAY
PATTERN SHALL BE LOCATED AT LEAST 40.6 CM (16 IN.) FROM ANY OBSTRUCTION.
2. DIMENSIONS MAY VARY ±1/2" [12.7mm].
3 INSTALL STAINLESS STEEL CABINET AS CLOSE TO DOOR JAM AS POSSIBLE.
DWG. NO.
APPROVED:
DRAWN:
PART NUMBER:
DRAWING NO.:
SCALE: SHEET OF
REV.
DRAWING TYPE:
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
SIZE:
BY:ECN NO.
Page
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
R
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
1455 KLEPPE LANE
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
MODEL(S)
13622A00
DO
03/09/00
13622A00
14
0002080138.D
8164
SHOWER
1/19
2 2
A
HM
2 of 2
INSTALLATION
4838
2013
1" IPS HIGH
POLISH NIPPLE
(SUPPLIED)
HALLWAY
82" - 96"
2083mm - 2438mm
ALTERNATE
"HANG DOWN"
INSTALLATION
