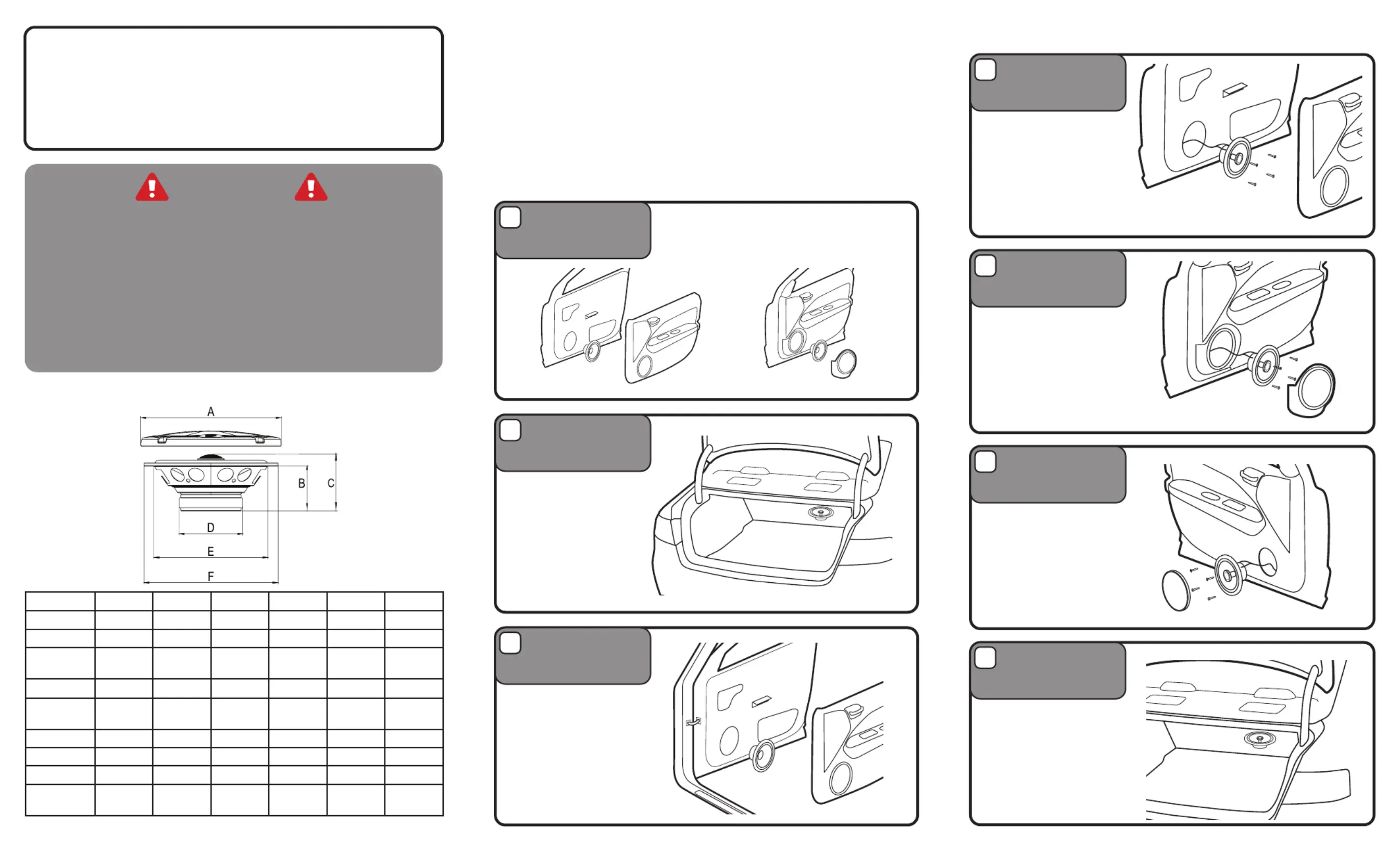

Most modern vehicles have speakers that are

mounted directly to the structure of the door. Access

is achieved by the removal of the door panel. Some

vehicles may only require the removal of a small

panel around the speaker itself.

Most rear speakers are

accessed from within the

trunk. Some may require the

removal of the rear package

tray. Hatchbacks and SUV’s

will usually require the

removal of a side panel.

Once the factory speakers are

removed, check the t and

determine if there is enough

depth clearance for the new

speaker. A good way to do this is

to roll the window down and back

up while holding the speaker in

place. If you decide to run wires,

make sure to use factory harness

boots and grommets where ever

possible.

Access and

remove factory

door speakers

Access and

removal of rear

factory speakers

Fit and Wiring

Factory Speaker Removal

Speaker Dimensions

CAUTION

Always consider consulting a professional audio installer

before installing new speakers. Many car manufacturers locate

speakers behind interior panels that require special tools to

remove those panels to access the speakers. Some panels will

be screwed in, some will use plastic fasteners, many will have

both. Be careful and take your time.

If you are using the speaker wire supplied with your new

speakers make sure that you run the speaker wires through

the factory boot. Do not let speaker wire make contact with

metal edges of doors or other access holes.

Congratulations on your choice of a Hifonics speaker. This

“Quick Start Installation” guide is meant to help you “hook

up” and play music. For more detailed information on

system setting, speaker and subwoofer conguration, and

full specications by model, visit the website at

Hifonics.com

It’s a good idea to conrm that you have purchased the correct

size speakers to t your vehicle. If you have any reservations

about being able to complete the installation yourself, we

recommend contacting a professional. The removal of interior

panels can be tricky and may require special tools. Be careful

as you go.

A B C D E F

HCC35CX N/A 1.53”/39mm 2.12”/54mm 2.75”/70mm 3.11”/79mm 3.42”/87mm

HCC4CX N/A 1.85”/47mm 2.44”/62mm 2.99”/76mm 3.46”/88mm 4.01”/102mm

HCC46CX N/A 1.73”/44mm 2.28”/58mm 2.99”/76mm 3.46” x 5.59”

88 x 142mm

3.85” x 6.02”

98 x 153mm

HCC525CX 6.26”/159mm 2.2”/56mm 2.63”/67mm 3.38”/86mm 4.52”/115mm 5.11”/130mm

HCC5768CX N/A 2.28”/58mm 2.67”/68mm 3.38”/86mm 5” x 7.12”

127 x 181mm

5.47” x 7.51”

139 x 191mm

HCC65CXS 7.13”/181mm 1.88”/48mm 2.59”66mm 3.38”/86mm 5.51”/140mm 6.49”/165mm

HCC65CX 7.13”/181mm 2.2”/56mm 2.75”/70mm 3.38”/86mm 5.55”/141mm 6.57”/167mm

HCC65C 7.13”/181mm 2.2”/56mm 2.48”/63mm 3.38”/86mm 5.55”/141mm 6.57”/167mm

HCC69CX 7.08” x 10.39”

180 x 264mm 3.11”/79mm 3.54”/90mm 4.33”/110mm 5.94” x 8.66”

151 x 220mm

6.49” x 9.21”

165 x 234mm

Before you start

Once you are sure the speaker

ts and has adequate clearance,

connect the positive and negative

wires to the proper terminals.

Securely screw the speaker into

place. Replace door panel.

Once you are sure the speaker

ts and has adequate clearance,

connect the positive and negative

wires to the proper terminals.

Securely screw the speaker into

place. Replace speaker cover

panel.

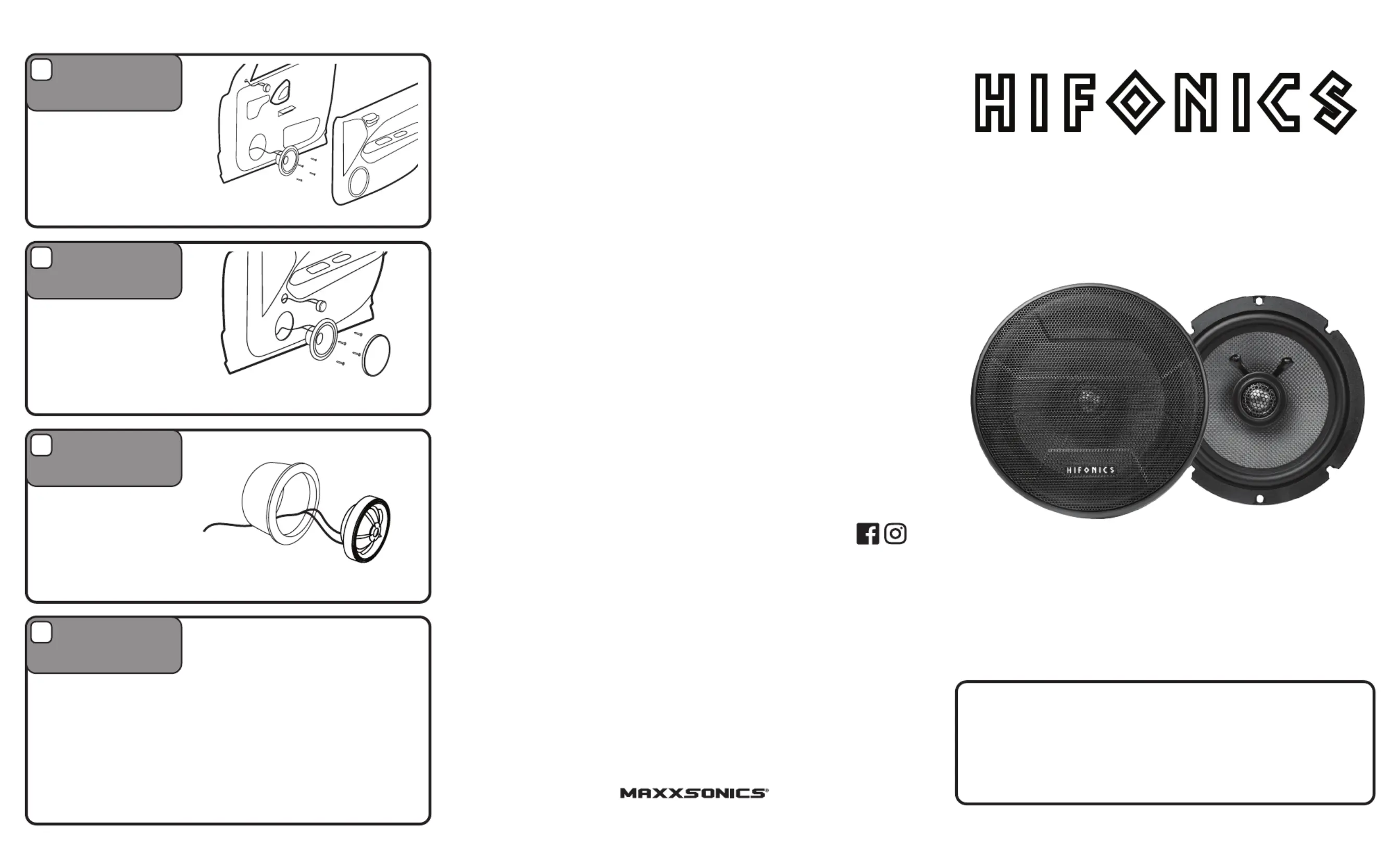

Some vehicles may not have a

door speaker location. While it is

possible to install the speakers in

this situation, it is more difcult.

Consider using a professional for

custom installations.

Factory location

behind door

panel

Factory location

behind small

panel

Custom location

Coax installation

Mount the speakers in same

way that the factory speaker was

mounted. Attach the positive

and negative wires to the proper

terminals. Make sure any wires

are secured properly.

Rear factory

locations

Vehicles that have premium

sound systems will often

have separate tweeters in

a dash or door location.

Try to use this location for

mounting the component

tweeter if possible.

If there is not a suitable

factory location for woofer

or tweeter to be mounted,

custom mounting may be

necessary. Before making

any permanent changes to

your vehicle make sure there

is adequate mounting depth.

There are two primary

ways the tweeter can be

mounted. Surface and Flush

mounting. The ush mount

conguration is shown here.

The crossover is necessary for the proper operation of

the component speaker system. Secure the crossover

to a surface that is free of interference from window

mechanisms and excessive moisture.

Factory location

behind door panel

Custom location

Tweeter mounting

Crossover wiring

Component installation

Visit Hifonics.com

Hifonics products are designed and engineered in the USA by

WARRANTY

Maxxsonics, LLC. warrants this product, to the original consumer purchaser, to be free from

defects in material and workmanship for a period of one (1) year from the date of purchase.

Maxxsonics, LLC. will, at it’s discretion, repair or replace defective products during the warranty

period. Components that prove to be defective in materials and workmanship under proper

installation and use must be returned to the original authorized Maxxsonics, LLC. retailer from

where it was purchased. A photocopy of the original receipt must accompany the product being

returned. The costs associated with removal, re-installation and freight are not the responsibility of

Maxxsonics, LLC. This warranty is limited to defective parts and specically excludes any incidental

or consequential damages connected therewith. To view the full warranty, please visit the website.

The information contained within this document is intended to offer some basic guidelines

for a few of the most common installations. More complex audio systems should be

installed by a competent professional. Additional installation information available at

www.maxxsonics.com

HF HCC Speakers QSG 01 - rev 1

HCC35CX

HCC4CX

HCC46CX

HCC525CX

HCC5768CX

HCC65CXS

HCC65C

HCC65CX

HCC69CX

Quick Start

Installation Guide

Congratulations on your choice of a Hifonics amplier.

This “Quick Start Installation” guide is meant to help you

“hook up” and play music. For more detailed information,

on system setting, speaker and, subwoofer conguration

and full specications by model visit the website,

http://hifonics.com/manuals.html
