DS-9500NI-S Series NVR
USER MANUAL
Version 1.2.0
1
Hikvision® Network Digital Video Recorder User’s Manual
This manual, as well as the software described in it, is furnished under license and may be used or copied only in
accordance with the terms of such license. The content of this manual is furnished for informational use only, is subject
to change without notice, and should not be construed as a commitment by Hikvision Digital Technology Co., Ltd.
(Hikvision). Hikvision assumes no responsibility or liability for any errors or inaccuracies that may appear in the book.
Except as permitted by such license, no part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, recording, or otherwise, without the prior written
permission of Hikvision.
HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
REGARDING THE HIKVISION SOFTWARE. HIKVISION DOES NOT WARRANT, GUARANTEE, OR MAKE
ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE HIKVISION
SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS, OR
OTHERWISE. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE HIKVISION
SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED BY
SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.
IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO
YOU FOR ANY CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES (INCLUDING DAMAGES FOR
LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, AND THE
LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE HIKVISION SOFTWARE EVEN IF
HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
2
Preventive and Cautionary Tips
Before connecting and operating your NVR, please be advised of the following tips:
• Ensure unit is installed in a well-ventilated, dust-free environment.
• Unit is designed for indoor use only.
• Keep all liquids away from the NVR.
• Ensure environmental conditions meet factory specifications.
• Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it may cause
damage to the sensitive electronics within the unit.
• Use the NVR in conjunction with an UPS if possible.
• Power down the unit before connecting and disconnecting accessories and peripherals.
• A factory recommended HDD should be used for this device.
3
TABLEOFCONTENTS
C H A P T E R 1 ..................................................................................................................................... 5
Introduction ........................................................................................................................................... 5
1.1Front Panel Introduction............................................................................................................ 6
1.2 Starting and Shutting Down Your NVR .................................................................................... 8
C H A P T E R 2 ................................................................................................................................... 10
Network Parameters Configuration .................................................................................................. 10

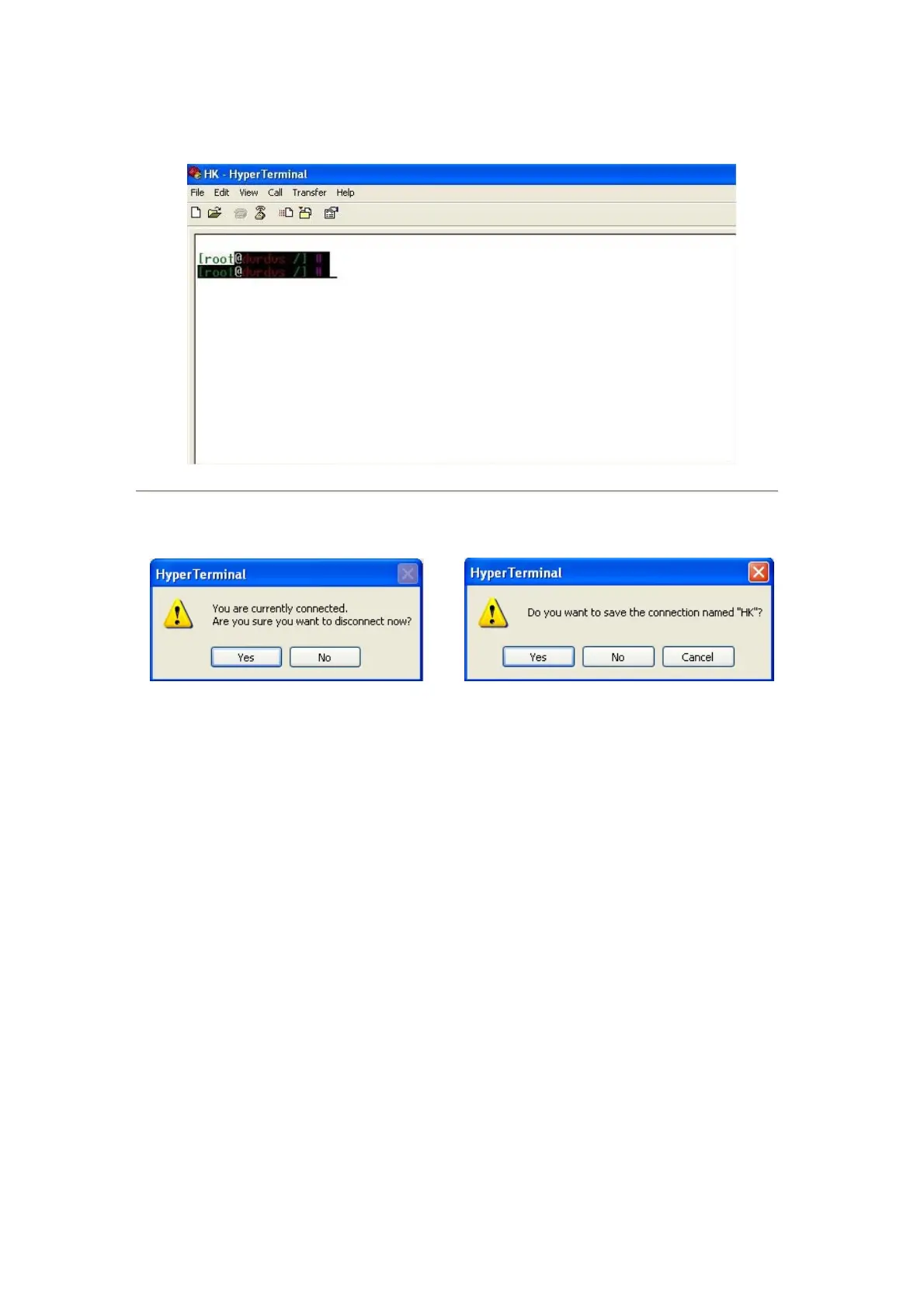

2.1 Hyper Terminal Setup ............................................................................................................. 11
2.2 Network Configuration by Hyper Terminal ............................................................................ 13
C H A P T E R 3 ................................................................................................................................... 15
ActiveX Control Installation .............................................................................................................. 15
C H A P T E R 4 ................................................................................................................................... 17
User Login and Exit ............................................................................................................................ 17
C H A P T E R 5 ................................................................................................................................... 19
Preview ................................................................................................................................................. 19
5.1 Preview ................................................................................................................................... 20
5.1.1 Windows Division ........................................................................................................ 20
5.1.2 Preview ......................................................................................................................... 21
5.1.3 Preview Control ........................................................................................................... 21
5.1.4 Stop Preview ................................................................................................................ 22
5.2 Recording and Capturing Image ............................................................................................. 22
5.2.1 Recording ..................................................................................................................... 22
5.2.2 Capturing Image ........................................................................................................... 23
5.3 Video Parameters Setting ........................................................................................................ 23
C H A P T E R 6 ................................................................................................................................... 24
PTZ Control......................................................................................................................................... 24
C H A P T E R 7 ................................................................................................................................... 26
Playback ............................................................................................................................................... 26
7.1 Playback Query ....................................................................................................................... 27
7.2 Play Recording File ................................................................................................................. 28
7.3 Capturing Image and Download ............................................................................................. 29
7.4 Remote Backup ....................................................................................................................... 30
C H A P T E R 8 ................................................................................................................................... 31
Log Search ........................................................................................................................................... 31
C H A P T E R 9 ................................................................................................................................... 33
Configuration ...................................................................................................................................... 33
9.1 Local Configuration ................................................................................................................ 34
9.2 IP Camera Configuration ........................................................................................................ 34
9.2.1 Quick Add of IP camera ............................................................................................... 35
9.2.2 Single Add of IP camera ............................................................................................... 36
9.3 Recording Settings .................................................................................................................. 38
9.3.1 Video Parameters ......................................................................................................... 39
9.3.2 Schedule Recording ..................................................................................................... 39
9.3.3 Motion Detection Recording ........................................................................................ 41
9.3.4 Alarm Recording .......................................................................................................... 43
9.3.5 Other Recording Modes ............................................................................................... 45
9.4 Alarm Settings ......................................................................................................................... 45
9.4.1 Motion Detection Alarm .............................................................................................. 45
9.4.2 Signal Level Alarm ...................................................................................................... 46
9.4.3 Video Loss .................................................................................................................... 47
9.4.4 Video Tampering .......................................................................................................... 48
4
9.4.5 Exceptions .................................................................................................................... 49
9.5 Network Configuration ........................................................................................................... 50
9.5.1 Basic Configuration ..................................................................................................... 50
9.5.2 PPPoE Settings ............................................................................................................. 51
9.5.3 DDNS Settings ............................................................................................................. 51
9.5.4 NTP Settings ................................................................................................................ 51
9.5.5 Net Disk Settings ......................................................................................................... 52
9.5.6 E-Mail Settings ............................................................................................................ 52
9.6 Channel Configuration ............................................................................................................ 53
9.6.1 Channel Display Settings ............................................................................................. 53
9.6.2 Video Mask .................................................................................................................. 53
9.7 Account Management ............................................................................................................. 54
9.8 Remote Upgrade ..................................................................................................................... 55
9.9 HDD Settings .......................................................................................................................... 56
C H A P T E R 10 ................................................................................................................................. 58
Appendix .............................................................................................................................................. 58
Glossary ........................................................................................................................................ 59
FAQ ............................................................................................................................................... 60
5
C H A P T E R 1
Introduction
6
1.1Front Panel Introduction
DS-9504NI-S Front Panel:
No.
Name
Description
1
Status
LED
Indicators
Power
Turning red indicates power supply but without system running, turning blue
indicates power supply and system running.
Alarm Alarm indicator turns red when a sensor alarm is detected.
TX/RX TX/RX indictor blinks blue when network connection is functioning properly.
HDD HDD indicator blinks red when data is being read from or written to HDD.
Ready Ready indicator turns blue when NVR is functioning properly.
Backup Backup indicator blinks blue when data is being backup.
2
Power Button
Powers NVR on/off.
3
USB Ports Universal Serial Bus (USB) ports for additional devices such as USB mouse and
USB Hard Disk Drive (HDD).
4
Channel Status
Indicators
Blue indicates recording, red indicates network connection, purple indicates
recording & network connection.
5
Backup Button
Backup video files. Press this button, NVR will backup all IP cameras’ 24-hour
recorded video into USB flash memory.
7
DS-9508NI-S Front Panel:
No.
Name
Description
1
Status
LED
Indicators
Power
Turning red indicates power supply but without system running, turning blue
indicates power supply and system running.
Alarm Alarm indicator turns red when a sensor alarm is detected.
TX/RX TX/RX indictor blinks blue when network connection is functioning properly.
HDD HDD indicator blinks red when data is being read from or written to HDD.
Ready Ready indicator turns blue when NVR is functioning properly.
Backup Backup indicator blinks blue when data is being backup.
2
USB Ports Universal Serial Bus (USB) ports for additional devices such as USB mouse and
USB Hard Disk Drive (HDD).
3
Power Button
Powers NVR on/off.
4
Backup Button Backup video files. Press this button, NVR will backup all IP cameras’ 24-hour
recorded video into USB flash memory.
5
Channel Status Indicators Blue indicates recording, red indicates network connection, purple indicates
recording & network connection.
8
DS-9516NI-S Front Panel:
No.
Name
Description
1
Status
LED
Indicators
Power
Turning red indicates power supply but without system running, turning blue
indicates power supply and system running.
Alarm Alarm indicator turns red when a sensor alarm is detected.
TX/RX TX/RX indictor blinks blue when network connection is functioning properly.
HDD HDD indicator blinks red when data is being read from or written to HDD.
Ready Ready indicator turns blue when NVR is functioning properly.
Backup Backup indicator blinks blue when data is being backup.
2
Backup Button Backup video files. Press this button, NVR will backup all IP cameras’ 24-hour
recorded video into USB flash memory.
3
USB Ports Universal Serial Bus (USB) ports for additional devices such as USB mouse and
USB Hard Disk Drive (HDD).
4
Power Button
Powers NVR on/off.
5
Channel Status
Indicators
Blue indicates recording, red indicates network connection, purple indicates
recording & network connection.
1.2 Starting and Shutting Down Your NVR
Power On
If the power LED indicator on the front panel is off, please plug the power supply into an electrical outlet, the LED
should turn red, indicating the unit is receiving power.
When the LED is red, please press the Power button on the front panel. The Power indicator will turn blue. The unit
will begin to start.
Note: DS-9500NI-S series NVR do not have local output, when Ready indicator turns blue, that means the unit is
power on and ready to be configured.
9
Power Off
Standard Shutdown
Press and hold the POWER button for 3 seconds; the device will enter power off process, when power indicator turns
red, turn off the power switch on the back panel.
Other Methods of Shutdown
Shutdown with Power Switch
Please try to avoid shutting down the unit by turn off the power switch on the back panel (especially during recording).
Shutdown by Unplug Power Supply
Please try to avoid shutting down the unit by unplug power supply (especially during recording).
Note: It is highly recommended that an Uninterruptible Power Supply (UPS) be used in conjunction with the unit.
10
C H A P T E R 2
NetworkParametersConfiguration
11
DS-9500NI-S Series NVR are mainly for IPC, DVS network video storage and playback. Network configurations are
needed before operating, including: IP address, subnet mask, gateway and port.
Note: The factory default username is admin, password is 12345.
The factory default IP address of DS-9500NI-S series is 192.168.0.1.

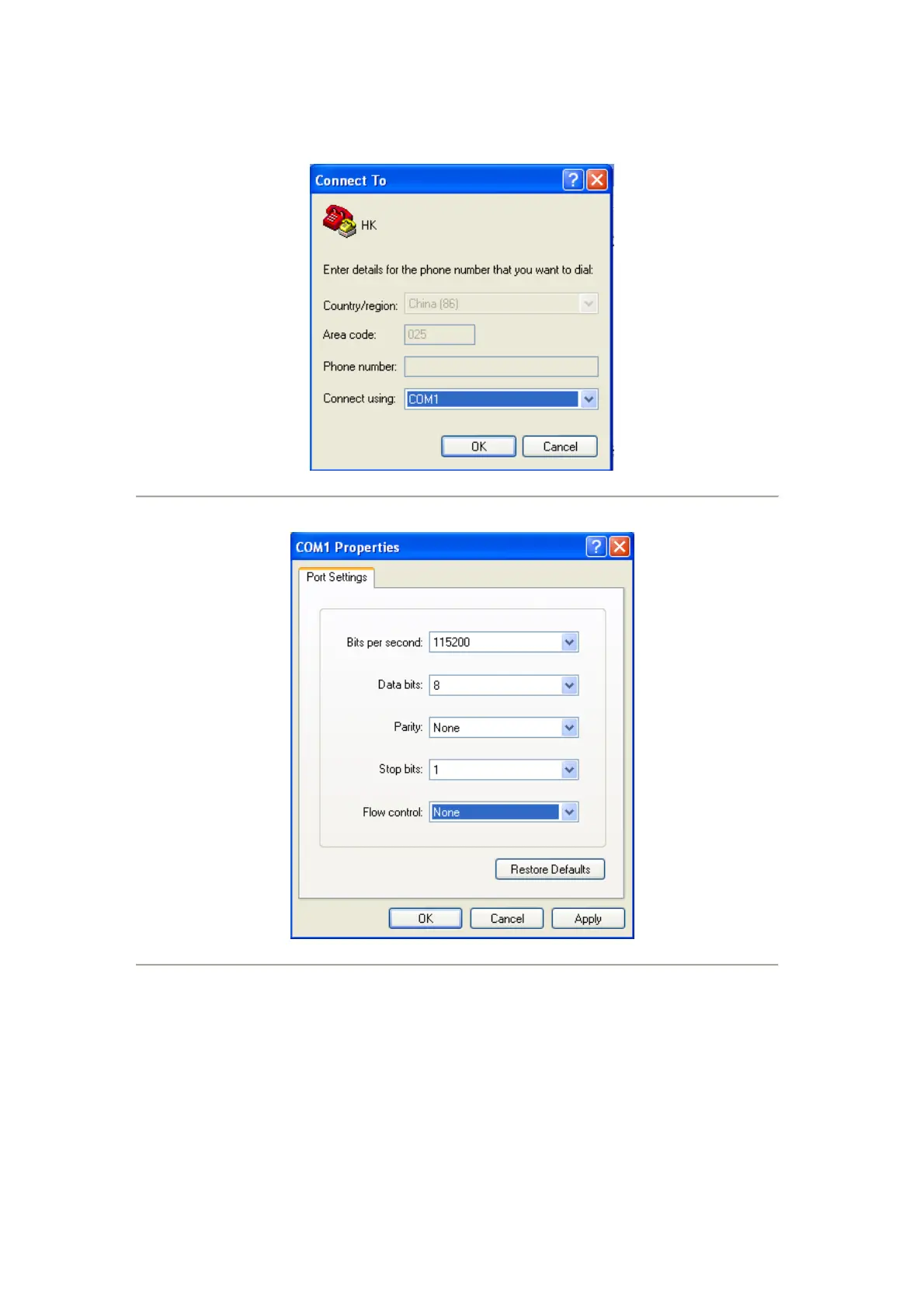

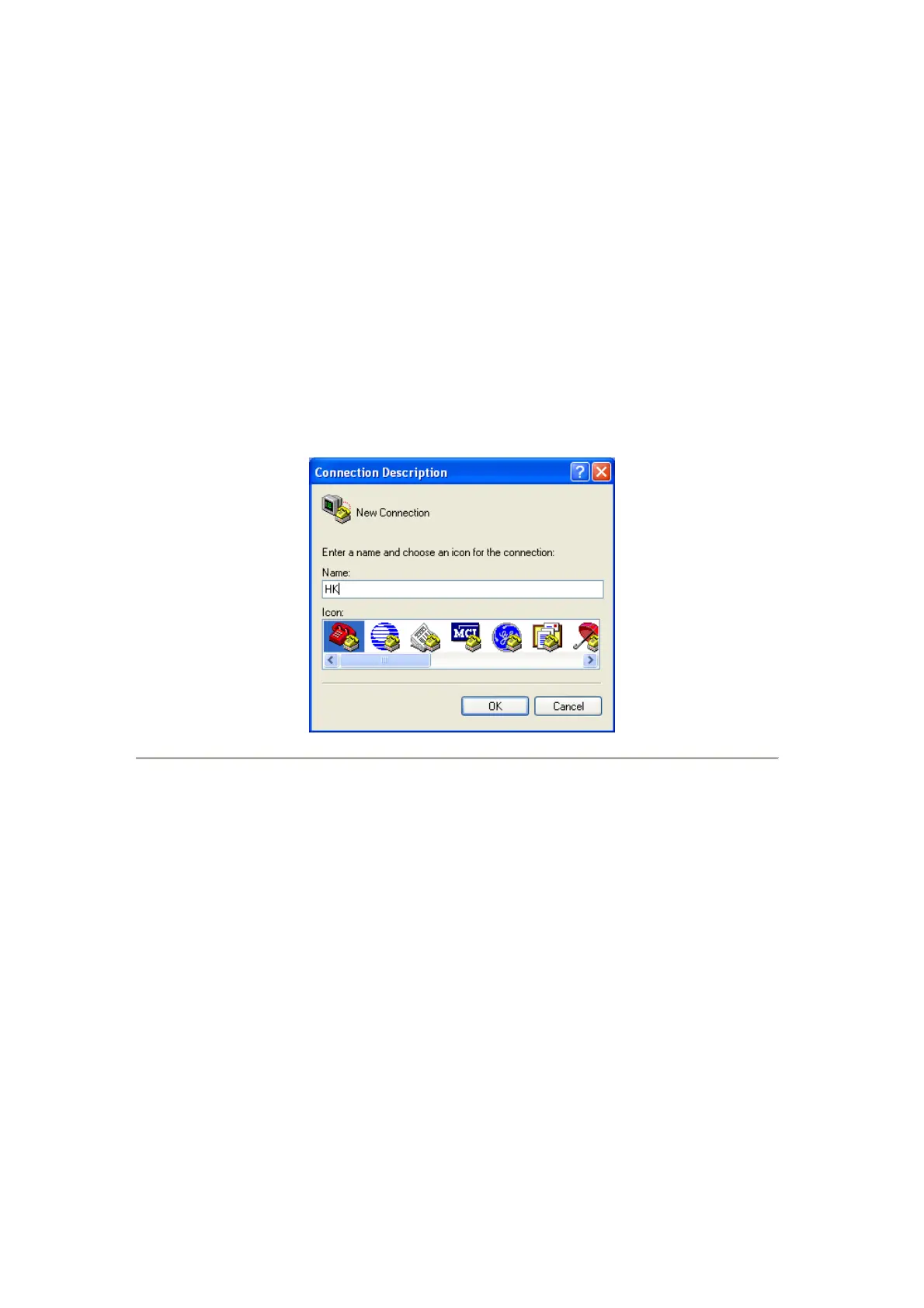

2.1 Hyper Terminal Setup
The common method is to connect NVR and PC with serial line, run Hyper Terminal and modify parameters with serial
command. Please connect the RS-232 port of NVR with the COM port of PC directly, power on the NVR and PC and
follow the steps:
Step 1: Enter Hyper Terminal.
Click “Start”-> “Programs” -> “Accessories” -> “Communications” -> “Hyper Terminal” in Windows system, and the
dialogue box below will appears as Figure 2.1.1.
Figure 2.1.1
Step 2: Name the connection and define the icon.
Input a name (e.g. HK), select an icon, and press “OK” to enter “Connect To” dialogue box.
Step 3: Select the communication port.
Select “COM1” in “Connect To” inter face (Please select the COM port according to the reality, in case PC has more
than 1 COM.) Press “OK” to enter “Properties” dialogue box.
12
Figure 2.1.2
Step 4: Serial port setup.
Set port parameters in “COM1 Properties” dialogue box as follow: (Fig 2.1.3)
Figure 2.1.3
The parameters should be:
Bits per second: 115200
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
Press “Apply” and “OK” after the setup. Press “Enter” under Hyper Terminal interface. When “[root@dvrdvs/]#”
appears, the connection is established.
13
Figure 2.1.4
Step5: Disconnect and save connection.
According to the tips, disconnect and save “HK” for the next time. After saving, there will be a new “Hyper Terminal”
item established in the program group “Start”-> “Accessories”->“Communications”->“Hyper Terminal”. “Connection”
names of all Hyper Terminal are included. You can see an icon named as “HK” here.
2.2 Network Configuration by Hyper Terminal
Enter Hyper Terminal
Click “Start”->“Programs”->“Accessories”->“Communications”->“Hyper Terminal”->“HK”, then the Hyper Terminal
interface will appear as figure below. Type “Enter”, and the prompt “[root@dvrdvs/]#” will appear which means
connection between RS232 interface of PC and RS232 interface of NVR is established successfully by Hyper Terminal.
The following operation commands are to accomplish the parameters setup in the prompt.
14
Figure 2.2.1
Commands Utilities
helpm Console help command is used to print common commands, show as Figure 2.2.1.
getIp Show the current IP address of NVR. Command format: getIp “Enter”.
setIp
Setup NVR IP address. Command format: setIp IP: mask
e.g. setIp 192..168.1.11:255.255.255.0
getPort Show the current port of NVR. Command format: getPort “Enter”.
setPort
Setup NVR port. Command format: setPort Port
e.g. setPort 9000
getGateway Show current NVR gateway address. Command format: getGateway “Enter”.
setGateway
Setup NVR gateway. Command format: setGateway Gateway
e.g. setGateway 192.168.1.1
15
C H A P T E R 3
ActiveXControlInstallation
16
DS-9500NI-S series NVR can be accessed and configured by web server. Open IE browser, input the IP address of
DS-9500NI-S and then click Enter. The system will remind you to install the ActiveX control. After the installation,
you can configure and manage the NVR remotely.
The ActiveX control has English and Chinese to selections. It can be used under 1024*768, 1152*864, 1280*1024
display resolutions.
Note: Please use IE 6.0 or IE 7.0 as browser, and upgrade OS to the latest version.
17
C H A P T E R 4
UserLoginandExit
18

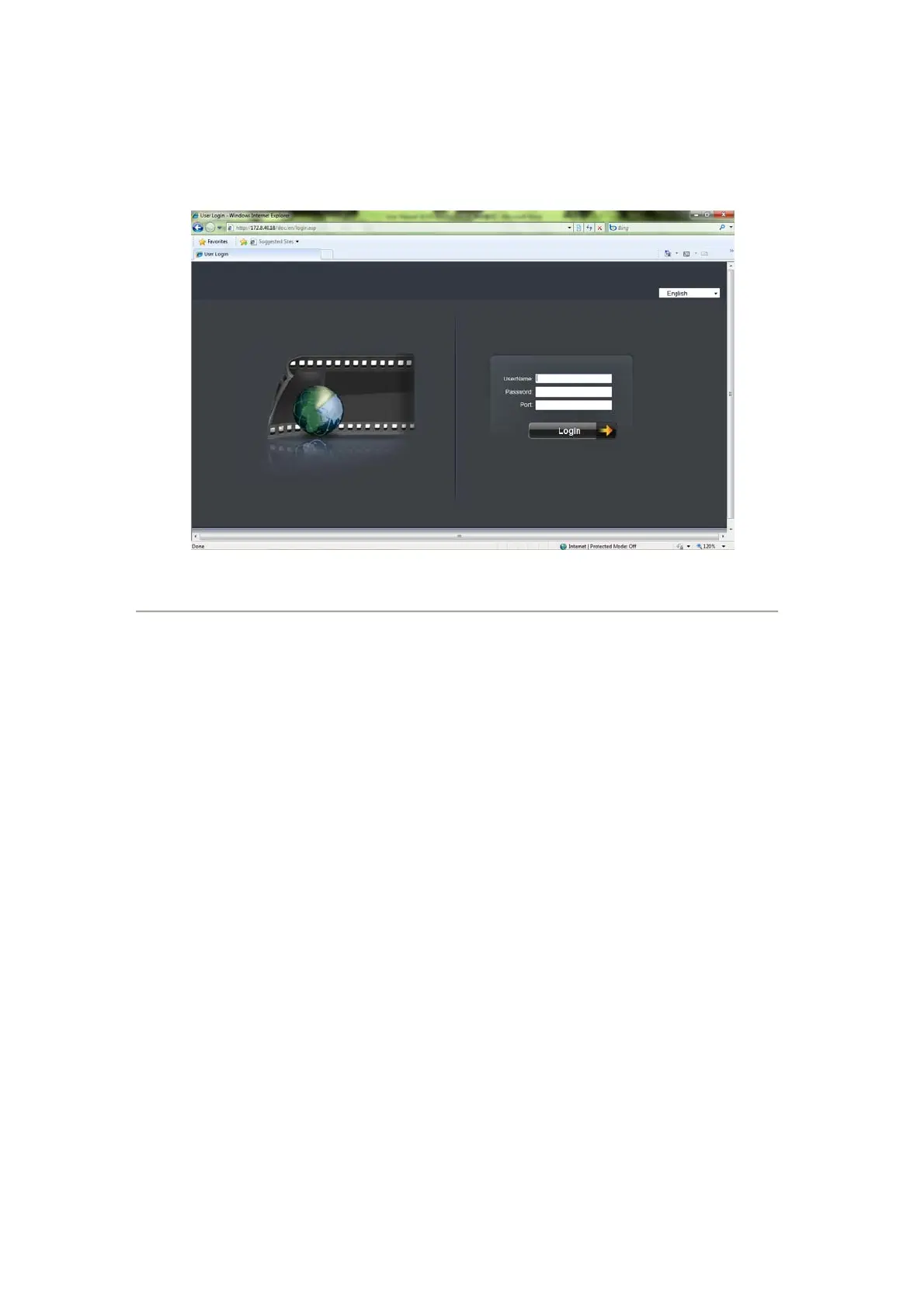

Open IE browser, input the IP address of NVR, the web server will select the language automatically according to the
system language and maximize the IE browser.
Figure 4.1
On the top right corner, language is selectable between Chinese and English.
Input the correct user name, password and port, click “Login” to enter preview interface, or it will pop up an error box.
The default user name is admin, password is 12345, and port is 8000.
After login, click “Exit” to log off and return to the login interface.
19
C H A P T E R 5
Preview
20
After login, the preview interface will display:
Figure 5.1
Interface description:
Area Description Area Description
Channel list
Live view
PTZ
Video adjustment
Play control
Play control buttons description:
Button Description Button Description
1 window division
4 windows division
9 windows division
16 windows division
Stop all preview
Capture image
Start all recording
Stop all recording
Previous page
Next page
Open/ Close audio
5.1 Preview
5.1.1WindowsDivision
When live preview, the windows division can be selected by click the button on play control area. It can support 1, 4, 9
and 16 windows division. The change between different windows division modes will not stop the current preview; the
window still can be operated.
21
5.1.2Preview
5.1.3PreviewControl
Note: When preview with web server, only one channel audio can be previewed at one time.
Preview by channel:
After choosing window division mode, select one
window, and click
on channel list to preview the
current channel. If preview successful, the icon will
become
.
Preview by page:
Click the device node on the list, then multiple
channels will start to display synchronously
according to the selected window divisions. Click
to switch to the next page, click
to the previous
page.
Or just click
and to start preview by page.
Double click to maximize:
Click the selected window can maximize the window
to full screen, double click again to resume.
Full screen display:
Click
to change the multi-channel preview to
full screen, click
to resume.
When previewing, select the channel, and click
to open audio, the status will be
. Then click to
open audio scroll bar and adjust the audio. After the
adjustment, the bar will disappear automatically.
When audio is open, click
to close audio and the
status will resume to
.
22
5.1.4StopPreview
5.2 Recording and Capturing Image
The previewing channel is required when recording and capturing image.
Note: When stop previewing, will also stop the recording of this channel.
5.2.1Recording
Click on the playlist, it will become . This
can stop the channel preview.
Click
to stop all channels preview.
Click “Config”, enter local configuration menu
where can change the directory of saving recording
file and the size of file packing.
Click button on playlist to start recording of this
channel, if the icon is not
, it will note “Recording
failed”.
Click
icon again to stop recording, and the saving
file folder will pop up automatically.
When multiple channels are under previewing, user may
click
to start all channel recording, or click to
stop all channel recording.
Stop previewing will also stop recording of this
channel.
23
Note: If saving file disk space is less than 500M, the web server will stop recording automatically.
5.2.2CapturingImage
Note:
When disk space is less than 500M, capture image will be failed.
5.3 Video Parameters Setting
Click “Config” to enter local configuration menu, where can
modify the saving capturing image directory.
Select a previewing window, click to capture image. If
capture image successfully, the saving folder will pop up
automatically.
Select the previewing channel, and adjust the brightness,
contrast, saturation and Hue for it.
Click
to increase and click to decrease. Click or
can also adjust the value.
Click
icon to resume the default values.
24
C H A P T E R 6
PTZControl
25
If the front-end connects with PTZ, PTZ control is available when preview.
With the direction buttons, it can achieve 8 directions control.
Also zoom, focus, iris, light and wiper are adjustable.
Click
to enable auto scan, click again to stop it.
If preset point is set, the point can be called by selecting in the
draw down list and clicking
.
26
C H A P T E R 7
Playback
27
Click “Playback” to enter playback menu.
Figure 7.1
Playback interface description:
Area Description Area Description
Channel list
Playback video
Playback control
Playback status
Calendar
Download/ Backup
Timeline
Playback control buttons description:
Button Description Button Description
Play
Stop
Slow down
Speed up
Play by single frame
Snapshot
Video clip
Open/Close audio
7.1 Playback Query
Step 1:
Select a channel on the channel list. (Channel 1 is the default.)
28
Step 3:
Click “Search” to search the matched recorded files. If there are search results, then they will be shown in the time line
area.
Drag the timeline to select the specific time. Different file types will be indicated with different colors.
7.2 Play Recording File
Step 2:
Select a date in calendar.
After searching file, click to play.
When playback, the playback status will indicate
the channel number, time and status.
29
7.3 Capturing Image and Download
When playback, click
to capture image. If capturing image successfully, the saving image folder will pop up
automatically.
Recording file location:
Click
, input the time in the pop-up box and click “Go”.
This will start the file playback from the specified time.
Drag timeline, and set “ ” to the specified time to play back
the video.
When playback, click to pop up saving file window. After
the selection, the status will become
, click again to stop
saving.
Click “Config” to enter local configuration menu, where
can change saving directory of captured image and
recorded file.
30
7.4 Remote Backup
DS-9500NI-S series NVR support local one key backup function, and it can also support backup to USB storage
devices remotely.
Note:
If USB device cannot be detected, please try to connect again. If it still cannot be detected, this may be because
of the compatible problem between NVR and backup device.
After searching file, click to pop up a new
page where list all the files for the specific day.
Select one file and click
to start download, click
again to stop download.
During download, the window will display the file number
and download progress.
After searching files, click to pop up a new page
where list all the files for the specific day.
Select the backup device, enable backup player or not, select
the files and click
to start backup, click again to
stop backup.
During backup, the window will display the file number and
backup progress.
31
C H A P T E R 8
LogSearch
32
Click “Log” to enter log query menu:
Figure 8.1
Click can export the logs as Excel or TXT file.
Note: Up to 2000 logs can be listed; if the items are more than 2000, please choose a certain period and search again.
Select the log type and date, and click to list all
matched logs.
Enable “Start” as to search the log file in a certain period
of a day.
33
C H A P T E R 9
Configuration
34
Click “Config” button in the menu bar and enter parameters setup menu, which displays local configuration by default.
9.1 Local Configuration
Figure 9.1
Local Parameters Information:
Local
Configurations
Parameters Descriptions
Protocol Type Select network transmission protocol: TCP or UDP.
The Size of File Packaging Set the size of recordings
Stream Type
Main Stream for recording. Substream for viewing
live images.
Network Transmission
Feature
Set real-time and fluency of network feature
Path for saving recording
files
Select a folder to save the recordings
Path for saving preview
captured images
Select a folder to save the pictures captured while
preview
Path for saving playback
captured images
Select a folder to save the pictures captured while
playback
Path for saving download
files
Select a folder to save downloaded recordings
9.2 IP Camera Configuration
Click “Remote Config” and enter IP camera configuration menu.
35
Figure 9.2
Model Name IP camera connections
DS-9504NI-S Up to 4-ch D1 or 2-ch 720P or 1-ch UXGA IP cameras
DS-9508NI-S Up to 8-ch D1 or 4-ch 720P or 2-ch UXGA IP cameras
DS-9516NI-S Up to 16-ch D1 or 8-ch 720P or 4-ch UXGA IP cameras
Note: For DS-2CD852MF series IP camera at UXGA resolution, up to 1 channel can be connected to DS-9504NI-S
model, 2 channels to DS-9508NI-S model and 4 channels to DS-9516NI-S model.
9.2.1QuickAddofIPcamera
DS-9500NI-S series NVR provides a function of remote auto searching IP camera. When there are supported IP
cameras in the same network segment of a LAN with NVR, you may add it in one button with default user name,
password and port number.
Note: Before applying Quick Add function, please make sure that IP camera is compatible with NVR and default user
name, password, port number are not changed.
Click , the on-line IP cameras will be listed as figure below shown:
36
Figure 9.3
Tick a box in front of the listed camera and click OK to finish.
9.2.2SingleAddofIPcamera
This function enables you to add a single IP camera quickly. When there are supported IP cameras in the same network
segment of a LAN with NVR, you may add it in one button with default user name, password and port number.
Note: Before applying Single Add function, please make sure that IP camera is compatible with NVR and default
user name, password, port number are not changed.
First, select a Channel No. then click
and the on-line IP cameras will be listed as figure below shown:
37
Figure 9.4
Select one camera in the list and click
to finish.
Then you can change IP address, sub mask or user name, password in the menu on the right, and click “Modify” to
confirm.
Manually Add
IP camera
First select a Channel No. to enable IP camera Config menu shown on the right.
Input the IP address, port, user name and password, click “Modify” to finish adding an IP
camera that will be listed in the IP Camera Information area.
Clicking Reset button will restore the configurations of IPC back to the previous ones.
Clicking
button will delete the selected IP camera.
38
9.3 Recording Settings
Click “Remote Config” and select to enter remote settings menu where you can configure
recording, alarm, network settings and etc.
Figure 9.5
39
9.3.1VideoParameters
Figure 9.6
Settings for recording:
Items Descriptions
Encoding
Parameters
Main Stream (Normal/Event) and Sub stream.
Stream Type Video and Video & Audio
Resolution Recording Resolution
Bit rate Type Variable and Constant
Frame Type BBP,BP and Single P
9.3.2ScheduleRecording
Step1: Enable Schedule Recording.
Note: When NVR is succeed to connect to IP camera, it will start schedule recording which means recording
for 7/24.
40
Figure 9.7
Step 2: Set recording time and type.
Click Settings button besides to “Record Time” to enter setup
page.
Select one day in a week, and select All Day recording if
necessary. You may also set period recording by disable All
Day Recording; there are 8 time periods in one day. Then you
can select schedule recording from the drop-down menu
beside the periods. Then you may also select copy the settings
to whole week or to one day.
Note: Please make sure that each time period is not
overlapped.
41
9.3.3MotionDetectionRecording
Go to Motion Detection page:
Figure 9.8
Note: If you are using IP camera that is not from Hikvision, please setup this function by using its own software.
Step1: Select Channel No. for motion detection recording.
Step2: Enable motion detection by tick the box.
Step3: Then you can click settings buttons to set area, arm schedule and linkage.
In the “Advanced Record Settings”, you may configure
parameters of Pre Record time, Post Record time, Recordings
Duration, Redundant Recording and whether to record audio.
42

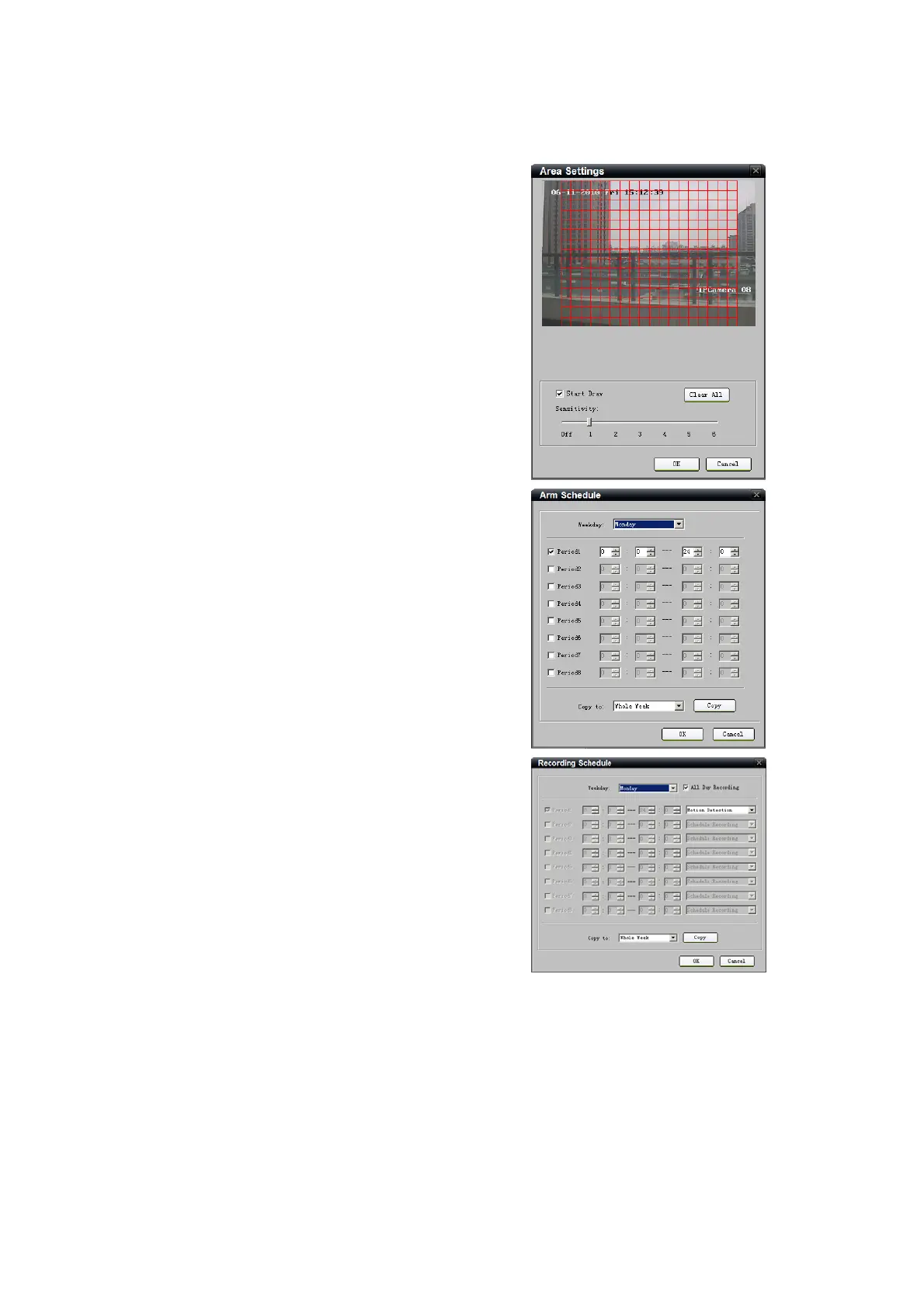

Step4: Tick box of Start Draw and draw an area on the image
by lift-pressing and holding the mouse. Double-click can
select full screen.
Step5: Select a sensitivity level for motion detection. Level 1
is the lowest, 6 is the highest.
Step7: Go back to Schedule Record page and click settings
button besides Record Time to enter Recording Schedule
menu.
Step8: Select one day in a week, and select All Day recording
if necessary. You may also set period recording by disable All
Day Recording; there are 8 time periods in one day. Then you
can select Motion Detection from the drop-down menu beside
the periods. Then you may also select copy the settings to
whole week or to one day.
Note:
(1) Please make sure that each time period is not overlapped.
(2)The valid time of motion detection recording is the
intersection of arm schedule and recoding schedule.
Step6: Arm Schedule Setup
You may select one day in a week, or select several time
periods in one day. Then you may also select copy the settings
to whole week or to one day.
Note:There are 8 time periods in one day.
43
9.3.4AlarmRecording
Select Æ
Step1: Select alarm input.
Note:It refers to the alarm input of IP channel.
Step2: Select the type of alarm input, “NO” or “NC”.
Note: “NO” is the default status. The settings will become
effective after rebooting.
If you are using IP camera that is not from Hikvision, please
setup this function by using its own software.
Step3: Enable “Alarm Handle” to activate “Arm Schedule” &
“Linkage Method”.
44

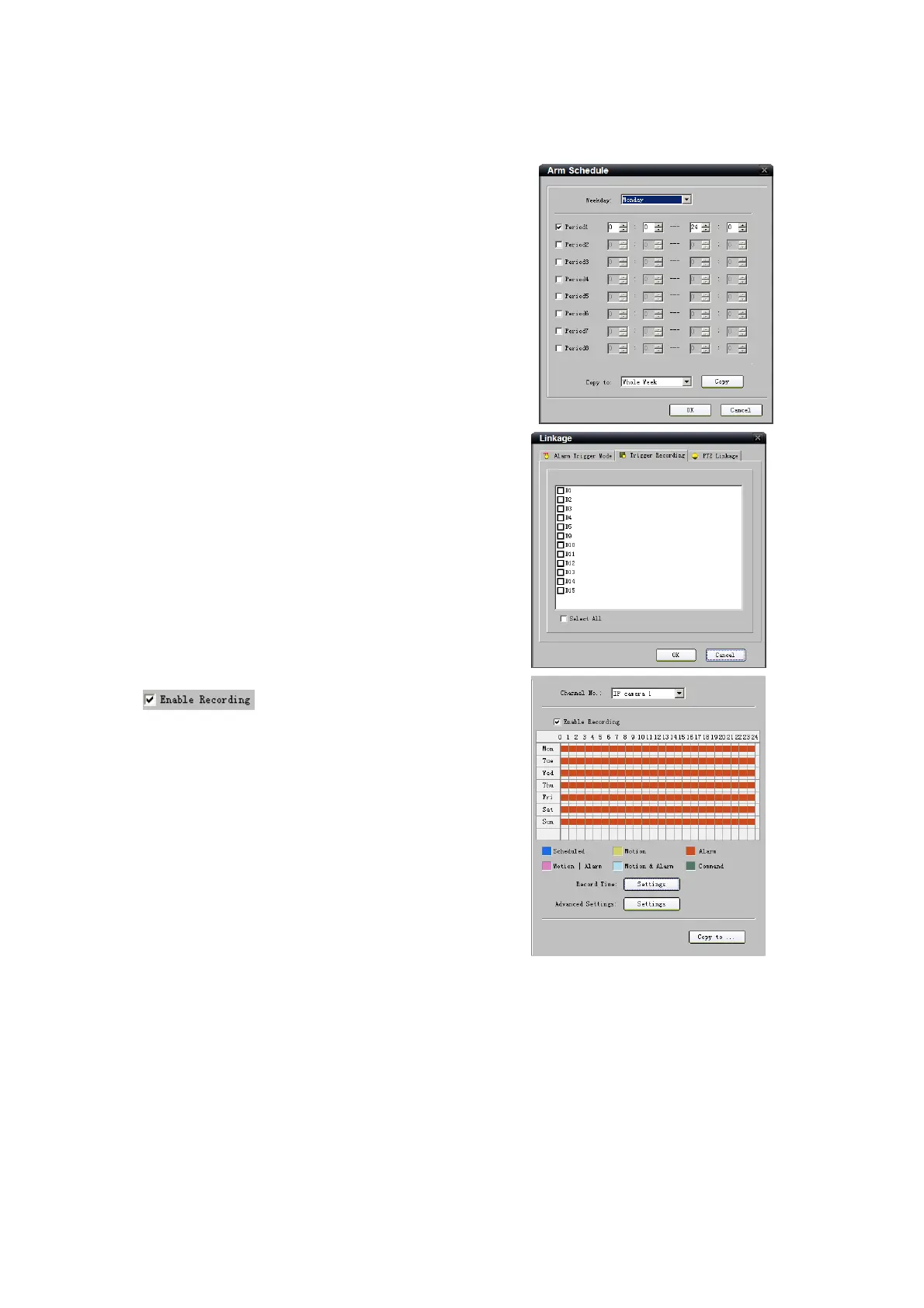

Step5: Set recording channel triggered by alarm.
Click “Settings” in “Linkage” menu and select “Trigger
Recording” tab.
Enable the recording channels you want.
Step6: Enter schedule recording interface. Click
to enable Recording.
Step4: Set the fortify time for alarm input.
Click “Settings” in “Fortify Time” menu. Select “Weekday”
as some day of the week or the whole week for recording
time. The “All Day Record” or 8 “Segments” can be selected
as well.
Note: The time of each segment can not be overlapped.
45
9.3.5OtherRecordingModes
Other Recording Modes are including “Motion detection & Alarm”, “Motion detection | Alarm”.
“&” means recording is triggered when two situations happened together.
“|” means recording is triggered when one of the situations happened.
The configurations are the same with “Motion detection recording” or “Alarm recording”.
9.4 Alarm Settings
You can configure motion detection alarm, signal level alarm, video loss alarm and other alarm and linkage through
web client.
9.4.1MotionDetectionAlarm
Step1: The same with the Step 1 of Section 9.3.3 Motion Detection Recording.
Step2: The same with the Step 2 of Section 9.3.3 Motion Detection Recording.
Step3: The same with the Step 3 of Section 9.3.3 Motion Detection Recording.
Step4: The same with the Step 4 of Section 9.3.3 Motion Detection Recording.
Step7: Select one day in a week, and select All Day recording
if necessary. You may also set period recording by disable All
Day Recording; there are 8 time periods in one day. Then you
can select Alarm Recording from the drop-down menu beside
the periods. Then you may also select copy the settings to
whole week or to one day.
Note:
(1) Please make sure that each time period is not overlapped.
(2)The valid time of alarm recording is the intersection of arm
schedule and recoding schedule.
46
Alarm Linkages Description:
Linkage Description
Warning on Monitor
When the alarm signal is detected, the image of corresponding channel will pop out as
single screen.
Audio Warning Alarm triggers buzzer
Upload to Center Upload the alarm signal to the center, such as client software
E-mail Linkage
When the alarm signal is detected, the client software will send the email to the
designated mailbox.
Trigger Alarm Output
Trigger alarm output of the device; if the device is 9000 series, triggering alarm output
of IP channel can be selected as well.
9.4.2SignalLevelAlarm
Step1: The same with the Step1 of Section 9.3.4 Alarm Recording.
Step2: The same with the Step2 of Section 9.3.4 Alarm Recording.
Step3: The same with the Step3 of Section 9.3.4 Alarm Recording.
Step4: The same with the Step4 of Section 9.3.4 Alarm Recording.
Step5: Set the alarm linkage for motion detection and select
alarm output channel.
Step5: Set the alarm linkage for signal level and select alarm
output channel.
47

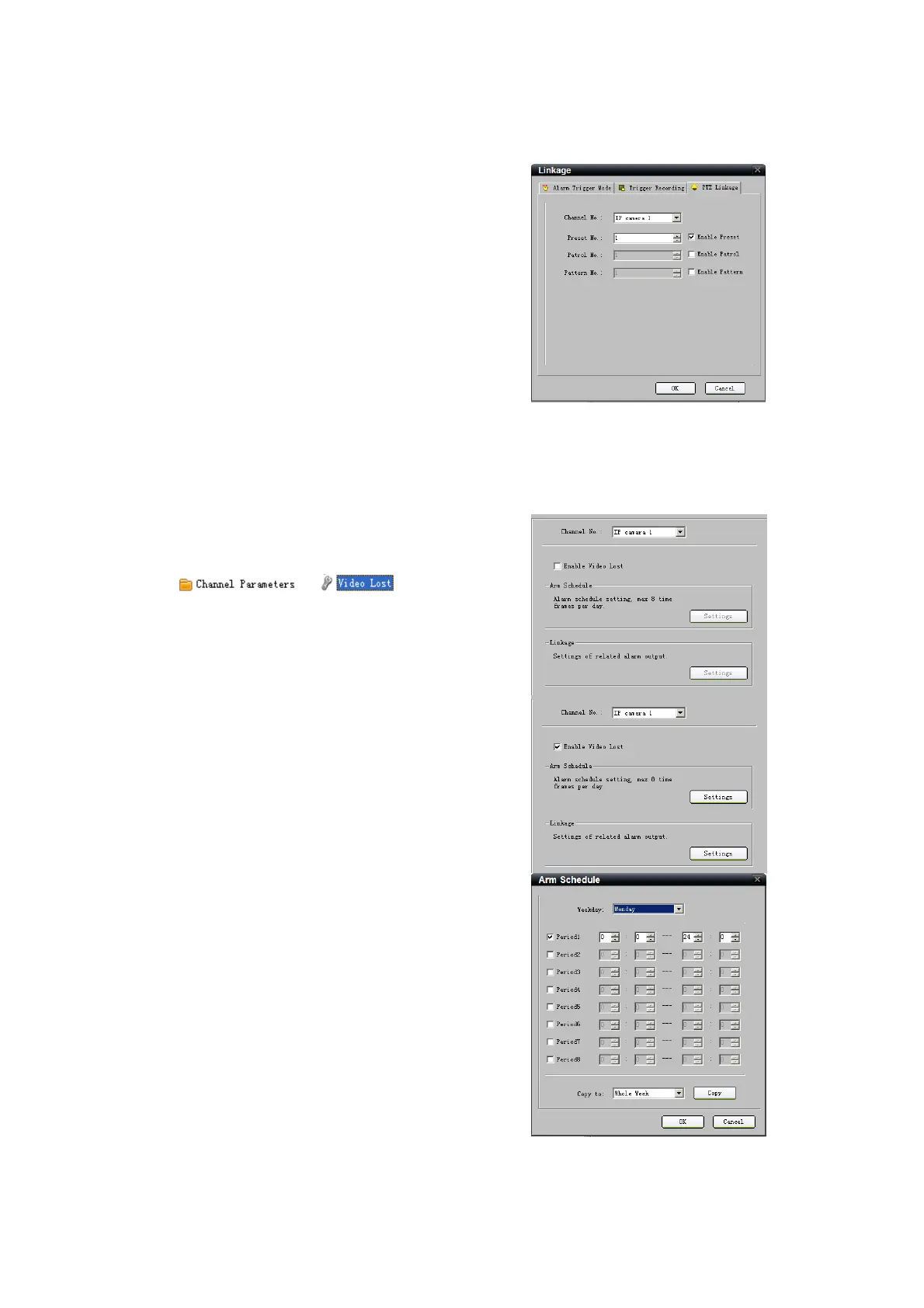

9.4.3VideoLoss
Note:This function is only available on IP cameras from Hikvision.
Step6: Set PTZ linkage for signal level alarm.
Note: Alarm input can link PTZ of several channels, but
one channel can only link one option of preset, sequence and
pattern.
Step1: Select the channel number for video loss.
Select Æ
Step2: Enable “Video Loss” to activate settings of “Fortify
Time” and “Linkage”
Step3: Set the fortify time for video loss.
Click “Settings” in “Fortify Time” menu.
Select “Weekday” as some day of the week or the whole week
for the fortify time.
The “All Day Record” or 8 “Segments” can be selected as
well.
Note:The time of each segment can not be overlapped.
48

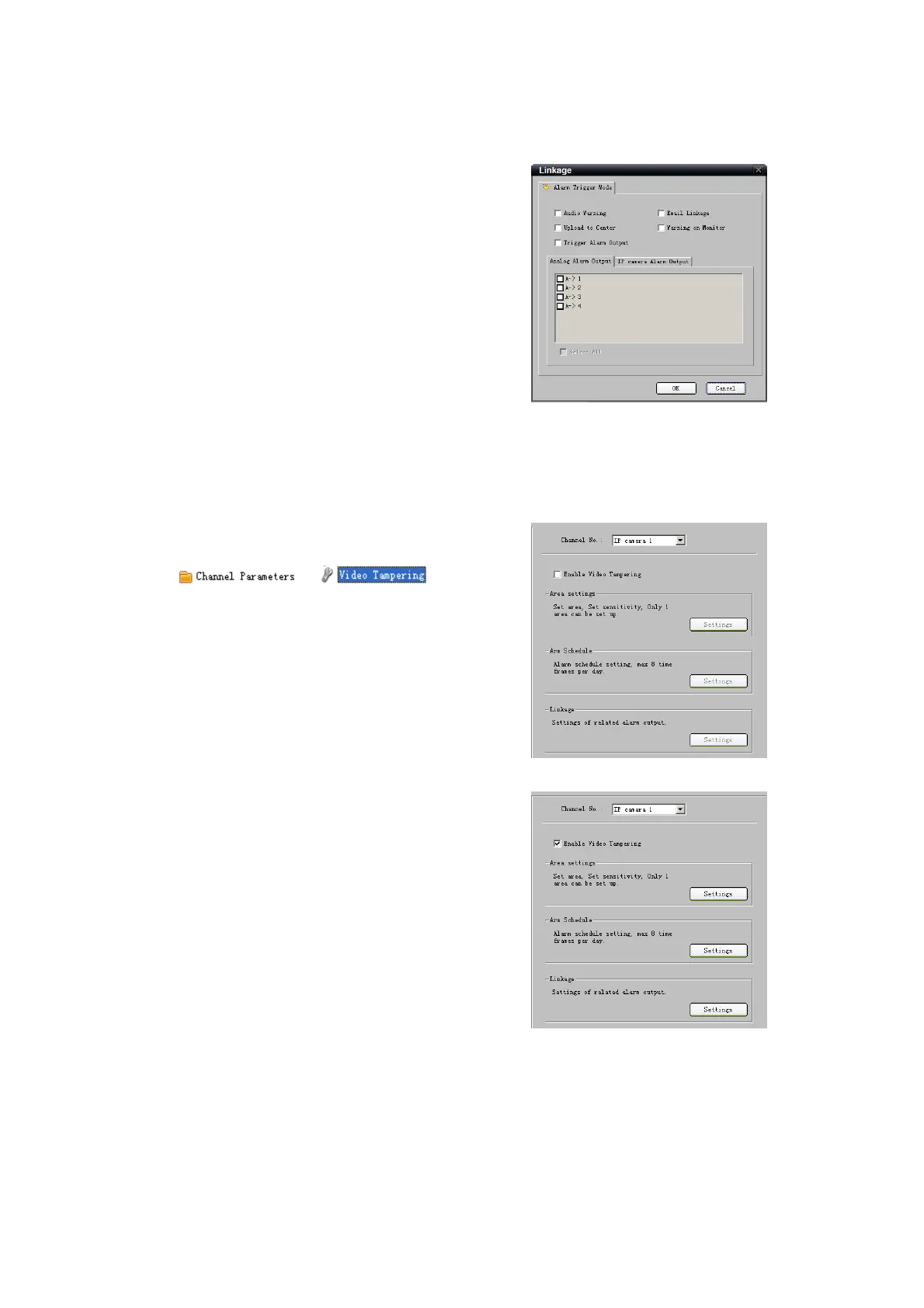

9.4.4VideoTampering
Note: This function is only available on IP cameras from Hikvision.
Step4: Set linkage for video loss.
Click “Settings” in the “Linkage” menu.
Step1: Select the channel number for video tampering.
Select
Æ
Step2: Enable “Video Tampering Alarm” to activate settings
of “Area Settings”, “Arm Schedule” and “Linkage”.
49
9.4.5Exceptions
Exception parameters are for the alarm handle of abnormal event, which is including “HDD Full”, “HDD Fault” (HDD
errors or HDD not initialization), “Network Broken”, “IP Address Conflict”, “Illegal Access” (user name or password
wrong), “Video Output Standard Mismatch” and “Video Signal Exception” (video signal unstable).
Step4: Set the fortify time for video tampering.
Click “Settings” in “Arm Schedule” menu.
Select “Weekday” as some day of the week or the whole week
for the arm schedule.
The “All Day Record” or 8 “Periods” can be selected as well.
Note: The time of each segment can not be overlapped.
Step5: Set linkage for video tampering.
Click “Settings” in the “Linkage” menu.
区域
、
布防时间和联动方式的设置
。
Step3: Set the video tampering area and sensitivity.
The sensitivity can be divided into three levels: Low,
Medium, and High.
Enable “Start Draw”, and select the detection area by using
mouse.
50
9.5 Network Configuration
9.5.1BasicConfiguration
Parameters Description
DNS1 DNS2 Preferred and spare DNS server
Alarm host Alarm signal can be uploaded to the IP address automatically
IP sever IP address of IP server
Select the exception type and handle method.
Select
to enter configuration
interface.
Select Æ
Configure the network according to the actual situation. If
there is DHCP server in the network, enable “Obtain Auto”
and reboot the device to get the IP address under this network
segment automatically.
Select “Advance” to enter advanced configuration. You can
configure preferred DNS server1 and spare DNS server2, IP
address of alarm host and IP server.
51

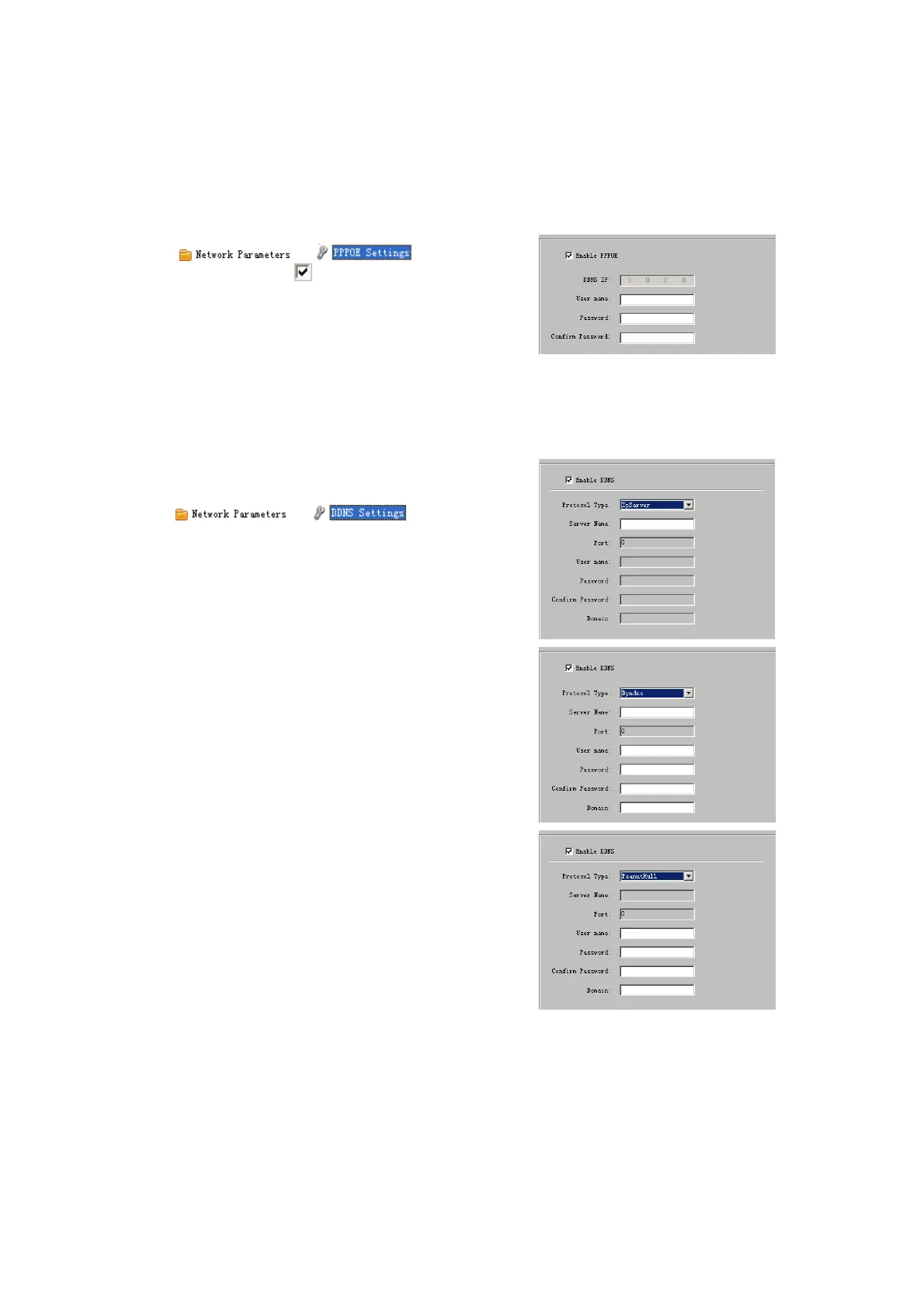

9.5.2PPPoESettings
9.5.3DDNSSet tings
Adopting DDNS function can solve the problems caused by dynamic IP.
9.5.4NTPSettings
Adopting NTP function can enable client software to synchronize the time and data of the device regularly.
Select Æ
Enable PPPoE by ticking
, input the user name and
password, then save the changes and reboot the device to
make the parameters become effective.
If succeed to dial, the current IP address will be displayed in
the blank “DDNS IP”.
Click Æ
Enable DDNS.
If the “IP Server IP” is selected as protocol, then input the
address where the IP server is running.
If the “Dyndns” is selected as protocol:
Server Name: Input the IP address of the server, such as
members.dyndns.org;
Domain: the domain name that user applied for the device,
such as test.dynlia.com;
User name, password and verify: the account information that
user registered on the Dyndns website.
If the “Peanut Hull” is selected as protocol:
Input the user name and password applied on the Peanut Hull
website to visit the device by the applied domain name.
52
9.5.5NetDiskSet tings
By Net Disk Settings, recorded data can be saved to the network storage disk provided by NAS or IP SAN server.
9.5.6E‐MailSettings
Through E-mail configuration, the e-mail can be sent to the designated mailbox when there is an alarm.
Select Æ
Tick
to enable NTP function.
Note: Time Synchronization Interval: 0~10080 min (default
60min).
If the device connected to the public network, the IP address
of NTP server provided by carrier can be input in the blank
“Server Address”;
If the device connected to private network, the IP address of
NTP server built by NTP software can be input the blank
“Server Address”.
Select Æ
If server authentication is needed, enable it (i.e.
) and input
user name and password.
Input the sender and recipient information, if it needs to send
picture, you can enable “Attachment” (i.e.
).
Note: Currently the function of captured picture attachment
is invalid for DS-9500 NI-S.
Select Æ
Input the IP address of NAS or IP SAN server in the blank
“Server IP address”; input the saving path allocated by NAS
or IP SAN server in the blank “File Path”.
Note:
1. Make sure that the device supports NFS function and
NAS or IP SAN server allocated the storage space
correctly.
2. Up to 1 IP SAN server is allowable to be used.
53
9.6 Channel Configuration
9.6.1ChannelDisplaySettings
Note: This function is only available on IP cameras from Hikvision.
9.6.2VideoMask
Note: This function is only available on IP cameras from Hikvision.
Select Æ
You can configure channel name, OSD and related
parameters here.
Step1: Select channel number, and enable video mask
(i.e.
).
Select
Æ
54
9.7 Account Management
The default user name and password of device administrator are “admin” and “12345”. Administrator can remote add,
delete users or distribute authority for users. The new added users are divided into two levels: user and operator. (For
“Remote Configuration” privilege, operator has “Voice Talk” right, user does not; for “Channel Configuration”
privilege, operator has all the rights, user has local playback, remote playback rights.)
Step2: Set the mask area.
Click “Settings” to enter area set menu.
Enable “Start Draw” (i.e.
), select the mask area by clicking
and dragging the mouse.
Note: Max. 4 areas can be configured in one image.
Select
55
Note:
Local PTZ Control: Locally control PTZ cameras.
Local Manual Record: Locally start and stop manual recording on any of the channels.
Local Playback: Locally play recorded files that are on the NVR.
Local Parameters Settings: Configure the settings, restore to default settings, import/export configuration file.
Local Log Query: Search and view logs of NVR.
Local Advanced Operation: HDD management (including the initialization and changing the properties of a
disk). Ability to update system firmware as well as to stop the relay output.
Local Camera Management: Enable and disable analog channels. Ability to add and delete IP cameras.
Local Backup: Locally backup recorded files from any of the channels.
Local Shutdown/Reboot: Shutdown or reboot the NVR.
Remote PTZ Control: Remotely control PTZ cameras.
Remote Manual Record: Remotely start and stop manual recording on any of the channels.
Remote Playback: Remotely play and download recorded files that are on the NVR.
Remote Configuration: Remotely configure parameters, restore parameters to factory defaults and import
settings to as well as export settings from NVR.
Remote Log Search: Remotely view logs that are saved on the NVR.
Remote Advanced Operation: Remotely manage hard disk drives (initializing and setting properties for HDDs).
Ability to remote update system firmware and stop of the relay output.
Voice Talking: Ability to use two-way radio between the remote client and the NVR.
Remote preview: Select and view live video over the network.
Remote Alarm Control: Remote alert or control the relay output of the NVR. Alarm and exception settings must
be configured properly to upload to host.
Remote Video Output Control: Send remote button control signal.
Remote Serial Port Control: Configure settings for RS232 and RS485 ports.
Remote Camera Management: Remotely enable and disable analog channels. Add and delete IP cameras.
Remote Shutdown/Reboot: Remotely shutdown or reboot the NVR.

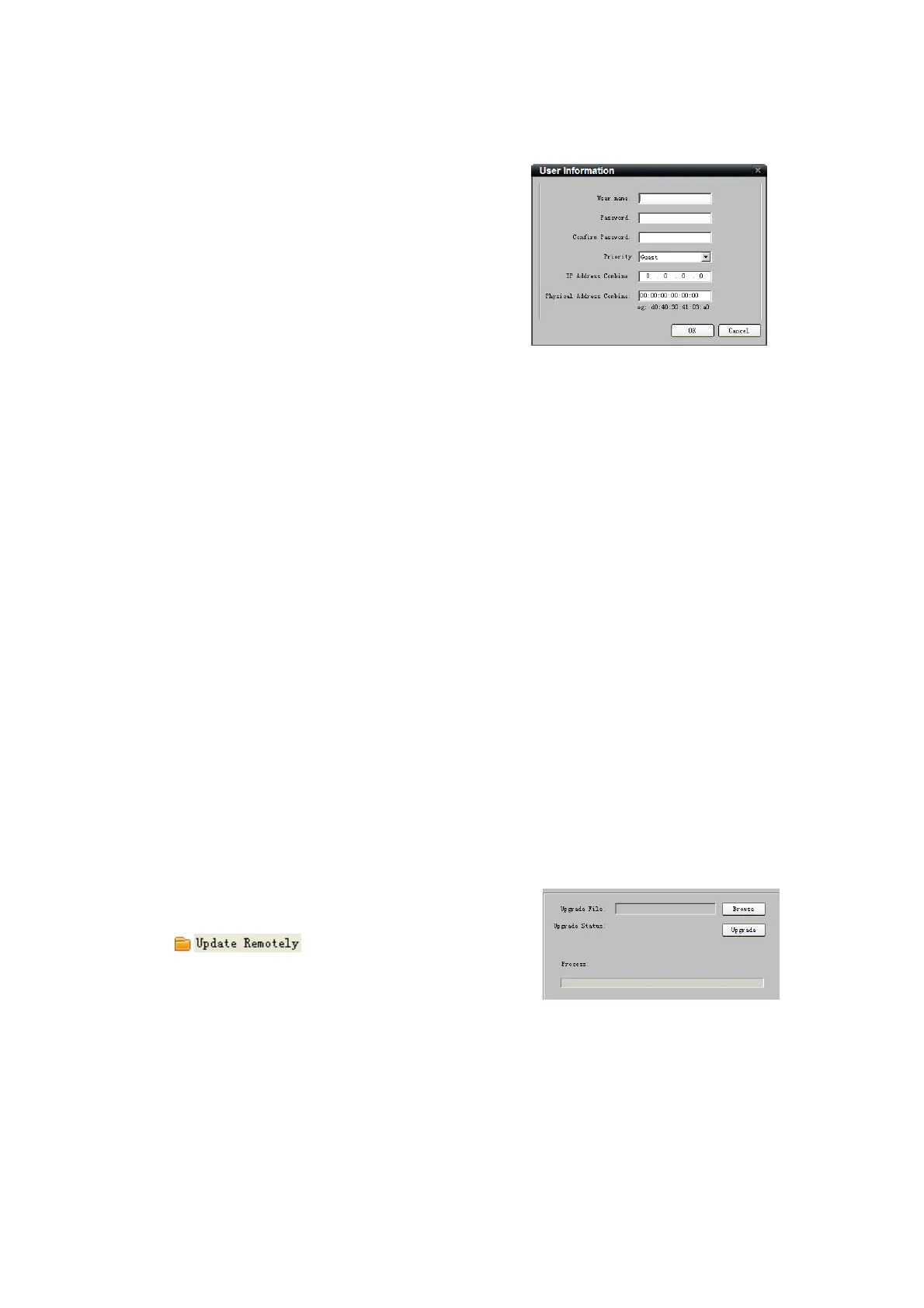

9.8 Remote Upgrade
Click “Add” to add user.
Note: If you set the IP address or physical address, and then
only the PC with the same IP address or physical address can
visit the device through network.
Remote Upgrade:
Click
Click “Browse” to search the local upgrade file, click
“Upgrade” to start upgrade remotely.
56

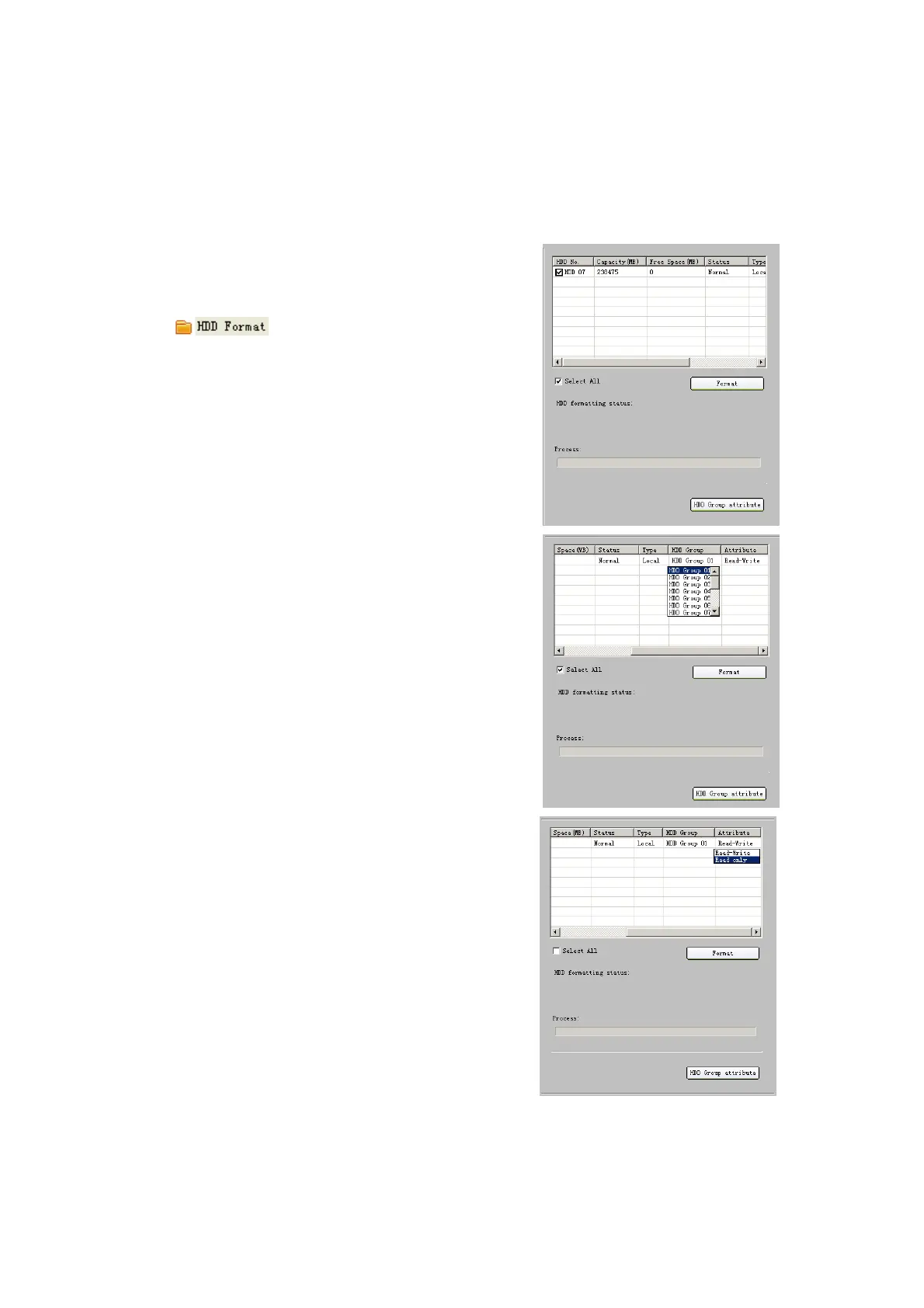

9.9 HDD Settings
HDD Formatting:
Click
Note: Please backup the data before formatting hard disk.
Disk Group Management：
Select one disk and select one HDD Group you want it to be
shown as figure right.
Note: NVR supports up to 16 HDD Groups.
HDD Property Settings:
Select one disk, and configure its property by selecting
Read-Write, Read-Only or redundant from drop-down menu,
shown as figure right.
Note:
Read-Write: Writing in or Read from this disk is allowed
when selecting this option.
Write-Only: Unable to write in this disk to protect existed
recordings from being overwritten when selecting this option.
Redundant: Redundant recording in this disk is allowed
when selecting this option.
57
HDD Group record channel:
Click “HDD Group attribute” button to enter setup page.
First select a HDD group and then tick channels you want to
record in this HDD group, and then click OK to finish
Note: Recording the images of one channel in one HDD
group is recommended.
58
C H A P T E R 10
Appendix
59
Glossary
DHCP
Dynamic Host Configuration Protocol (DHCP) is a network application protocol used by devices (DHCP clients) to
obtain configuration information for operation in an Internet Protocol network.
NTP
Acronym for Network Time Protocol. A protocol designed to synchronize the clocks of computers over a network.
PPPoE
PPPoE, Point-to-Point Protocol over Ethernet, is a network protocol for encapsulating Point-to-Point Protocol (PPP)
frames inside Ethernet frames. It is used mainly with ADSL services where individual users connect to the ADSL
transceiver (modem) over Ethernet and in plain Metro Ethernet networks.
DDNS
Dynamic DNS is a method, protocol, or network service that provides the capability for a networked device, such as a
router or computer system using the Internet Protocol Suite, to notify a domain name server to change, in real time
(ad-hoc) the active DNS configuration of its configured hostnames, addresses or other information stored in DNS.
MTU
Maximum Transmission Unit. Unit is represented by bytes. MTU of most network devices is 1500. If it’s bigger than
gateway MTU, the data packets will be split into smaller ones for transmission. In this case, there will be pieces of data
packet causing packet loss ratio to raise and slow down network speed. When MTU is preset smaller than the gateway
MTU, the packet loss ratio will decrease.
NVR
Acronym for Network Video Recorder. An NVR can be a PC-based or embedded system used for centralized
management and storage for IP cameras, IP Domes and other DVRs.
60
FAQ
• Why does my NVR make a beeping sound after booting?
There are a few reasons for the warning beep your NVR makes after booting.
1. There is no HDD present in the NVR.
2. The HDD has not been initialized.
3. The HDD is defective.
If you wish to use your NVR without any HDDs, you may disable this warning beep in the Exception Settings menu
(See Exceptions).
• Why is there no video recorded after setting the motion detection?
If there are no recorded video after setting the motion detection, please check:
1. Check that the recording schedule is setup correctly by following the steps listed in Schedule Recording.
2. Check that the motion detection area is configured correctly (See Motion Detection).
3. Make sure that channels are being triggered for motion detection (See Motion Detection).
• Why doesn’t the NVR detect my USB export device for exporting recorded files?
There’s a chance that the NVR and your USB device is not compatible. Please refer to our company’s website to view a
list of compatible devices.
Produkt Specifikationer
| Mærke: | Hikvision |
| Kategori: | Overvågningskamera |
| Model: | DS-9516NI-S |
Har du brug for hjælp?
Hvis du har brug for hjælp til Hikvision DS-9516NI-S stil et spørgsmål nedenfor, og andre brugere vil svare dig
Overvågningskamera Hikvision Manualer
4 August 2025
29 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
Overvågningskamera Manualer
- Canon
- Aluratek
- Netis
- Exacq
- Crest
- Trevi
- EKO
- Moog
- Stabo
- Control4
- GVI Security
- AVUE
- Geovision
- Bea-fon
- I3International
Nyeste Overvågningskamera Manualer
29 August 2025
28 August 2025
28 August 2025
28 August 2025
28 August 2025
28 August 2025
28 August 2025
28 August 2025
27 August 2025
27 August 2025
