Quick Start Guide

UD34479B

Analog Amplifier

Indicators:

Power indicator (solid white): the device is normally working.

USB flash drive indicator (solid white): the device is in USB flash drive mode.

Bluetooth indicator (solid blue): the device is in Bluetooth mode. The default Bluetooth name is "HIK-

Audio xxx".

Buttons:

Mode switch: switch to the USB flash drive mode or Bluetooth mode. You can view which mode the device

is in by idicators.

Single cycle: single cycle playback of USB flash drive audio.

Knobs:

MIC volume knob: adjust the output volume of MIC.

Partition 1 volume knob: adjust the volume output of CH1 on the rear panel.

Partition 2 volume knob: adjust the volume output of CH2 on the rear panel.

Interfaces:

MIC input: connect to the 6.35 mm moving-coil microphone.

USB flash drive input: connect to the USB flash drive in USB2.0 format.

RCA ouput: for amplifier cascading.

RCA input: connect to the audio device with RAC interface.

Power interface: 24 VDC.

Constant resistance output: a channel can be connected to a speaker which power resistor is 4 Ω, 30 W or

two speakers which power resistor is 8 Ω, 15 W.

Constant voltage output: a channel can be connected to speakers with a voltage of 100 V.

Power Switch MIC Input

USB Flash

Drive Input

Power

Indicator

USB Flash

Drive Indicator

Bluetooth

Indicator

Play/Pause Forward

Backward

Single Cycle

Mode Switch

Partition 1

Volume Knob

Partition 2

Volume Knob

MIC Volume Knob

MIC

OFF

VOL-1 VOL-2

Front Panel

RC A IN CH 2

4 Ω- 8 Ω

CH 1

4 Ω- 8 Ω

CH 1

1 00 V

CH 2

1 00 V

DC 24 V

Power Interface

Constant Resistance

Output

Constant Voltage

Output

RCA Input

RC A OU T

RCA Output

46 mm(1.81")

51.2 mm(2.01")

MIC

OFF

VOL-1 VOL-2

190.8 mm(7.48"）

230.8 mm(9.06"）

About this Manual

The Manual includes instructions for using and managing the Product. Pictures,

charts, images and all other information hereinafter are for description and

explanation only. The information contained in the Manual is subject to change,

without notice, due to firmware updates or other reasons. Please find the latest

version of this Manual at the Hikvision website (https://www.hikvision.com/).

Please use this Manual with the guidance and assistance of professionals trained

in supporting the Product.

Trademarks

and other Hikvision’s trademarks and logos are the properties of

Hikvision invarious jurisdictions.

Other trademarks and logos mentioned are the properties of their respective

owners.

Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND

THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE,

ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION MAKES

NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR

PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT

WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL,

INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES

FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA,

CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON

BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY,

OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF

HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.

YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR

INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY

RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER

DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION,

OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE

TIMELY TECHNICAL SUPPORT IF REQUIRED.

YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS,

AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS

TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS

PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD

PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL

PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU

SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE

DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE

DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY

ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE

NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT

OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE

LATTER PREVAILS.

Appearance

Rear Panel

Dimensions

The total power of constant resistance output CH1 and constant voltage output CH1 cannot exceed 60 W.

The total power of constant resistance output CH2 and constant voltage output CH2 cannot exceed 60 W.

Place the device directly on a sturdy and

stable table.

Use the standard power adapter.

Complete wiring before installation.

Make sure all the related equipment is power-off during the

installation.

MIC

OFF

VOL-1 VOL-2

Table

Warning

• Refer to the device label for the standard power supply. Please make sure your power supply matches with your device.

• In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.

• CAUTION: If the fuse of the device can be replaced, replace it only with the same model to reduce the risk of fire or electric shock.

• CAUTION: If the device needs to be installed with a specific bracket of our company, use the corresponding bracket only. Use others (such as carts, stands, and carriers) may result in instability and cause injury.

Refer to the device datasheet for bracket model details. Refer to datasheet for details.

• For the device with sound playing function, to prevent possible hearing damage, do not listen at high volume levels for long periods. Refer to the user manual for details.

• Refer to the device label for the standard power supply. Please make sure your power supply matches with your device.

• Make sure that the power has been disconnected before you wire, install, or disassemble the device.

• To avoid heat accumulation, good ventilation is required for a proper operating environment.

• If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the power cable, and contact the service center.

• If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the product yourself. We shall not assume any responsibility for problems caused by

unauthorized repair or maintenance.

Caution

• For the battery with + and - signs, + identifies the positive terminals of the device which is used with or generates direct current, and - identifies the negative terminals of the device which is used with or generates

direct current.

• No naked flame sources, such as lighted candles, should be placed on the equipment.

• If the serial port of the device is used for debugging only, it is reserved only for professionals or technical support for device maintenance. Refer to the document for details.

• Attach the device properly to the floor/wall in accordance with the installation instructions to prevent injury. Refer to the document for details.

• DO NOT drop the product or subject it to physical shock. Do not install the product on vibratory surface or places.

• DO NOT expose the device to high electromagnetic radiation.

• DO NOT expose the device to extremely hot, cold, dusty, corrosive, saline-alkali, or damp environments. For temperature and humidity requirements, refer to the datasheet for details.

• DO NOT install indoor product where it may get wet by water or other liquid.

• To avoid fire hazard or electric shock, DO NOT expose the device to rain or extremely damp environments.

• Accessing to the Internet may cause network security problems. Please strengthen the protection of your personal information and data security. When you find that the device may have network security risks,

please contact us in time.

• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

• Keep all wrappers after unpacking them for future use. In case of any failure occurred, you need to return the device to the factory with the original wrapper. Transportation without the original wrapper may result

in damage on the device and the company shall not take any responsibilities.

These clauses apply only to the products bearing the corresponding

mark or information.

EU/UK Compliance Statement

This product and - if applicable - the supplied accessories too are

marked with "CE" and comply therefore with the applicable

harmonized European standards listed under the Directive

2014/30/EU (EMCD) and Directive 2011/65/EU (RoHS).

Note: The products with the input voltage of within 50 to 1000 VAC or 75

to 1500 VDC comply with Directive 2014/35/EU (LVD), and the rest

products comply with Directive 2001/95/EC (GPSD). Please check the

specific power supply information for reference.

The full text of the EU declaration of conformity is available at the

following internet address: https://www.hikvision.com/en/support/

compliance/declaration-of-conformity.

This product and - if applicable - the supplied accessories too are

marked with "UKCA" and comply therefore with the following

directives: Electromagnetic Compatibility Regulations 2016,

Electrical Equipment (Safety) Regulations 2016, the Restriction of

the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012.

Directive 2012/19/EU (WEEE Directive): Products marked with this

symbol cannot be disposed of as unsorted municipal waste in the

European Union. For proper recycling, return this product to your

local supplier upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more information see:

www.recyclethis.info.

According to the Waste Electrical and Electronic Equipment Regulations

2013: Products marked with this symbol cannot be disposed of as

unsorted municipal waste in the United Kingdom. For proper recycling,

return this product to your local supplier upon the purchase of equivalent

new equipment, or dispose of it at designated collection points. For more

information see: www.recyclethis.info.

Directive 2006/66/EC and its amendment 2013/56/EU (Battery

Directive): This product contains a battery that cannot be disposed

of as unsorted municipal waste in the European Union. See the

product documentation for specific battery information. The

battery is marked with this symbol, which may include lettering to

indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling,

return the battery to your supplier or to a designated collection point. For

more information see: www.recyclethis.info.

According to the Batteries and Accumulators (Placing on the Market)

Regulations 2008 and the Waste Batteries and Accumulators Regulations

2009: This product contains a battery that cannot be disposed of as

unsorted municipal waste in the United Kingdom. See the product

documentation for specific battery information. The battery is marked

with this symbol, which may include lettering to indicate cadmium (Cd),

lead (Pb), or mercury (Hg). For proper recycling, return the battery to your

supplier or to a designated collection point. For more information see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-003 (B) / NMB-003 (B) standards

requirements.

Conformité Industrie Canada ICES-003

Cette appareil répond aux exigences des normes CAN ICES-003 (B) /

NMB-003 (B).

B급 기기: 이 기기는 가정용(B급) 전자파적합기기로써 주로 가정에서

사용하는 것을 목적으로 하며, 모든 지역에서 사용할 수 있습니다.

• This installation should be made by a qualified service person and should conform to all the local codes.

Note

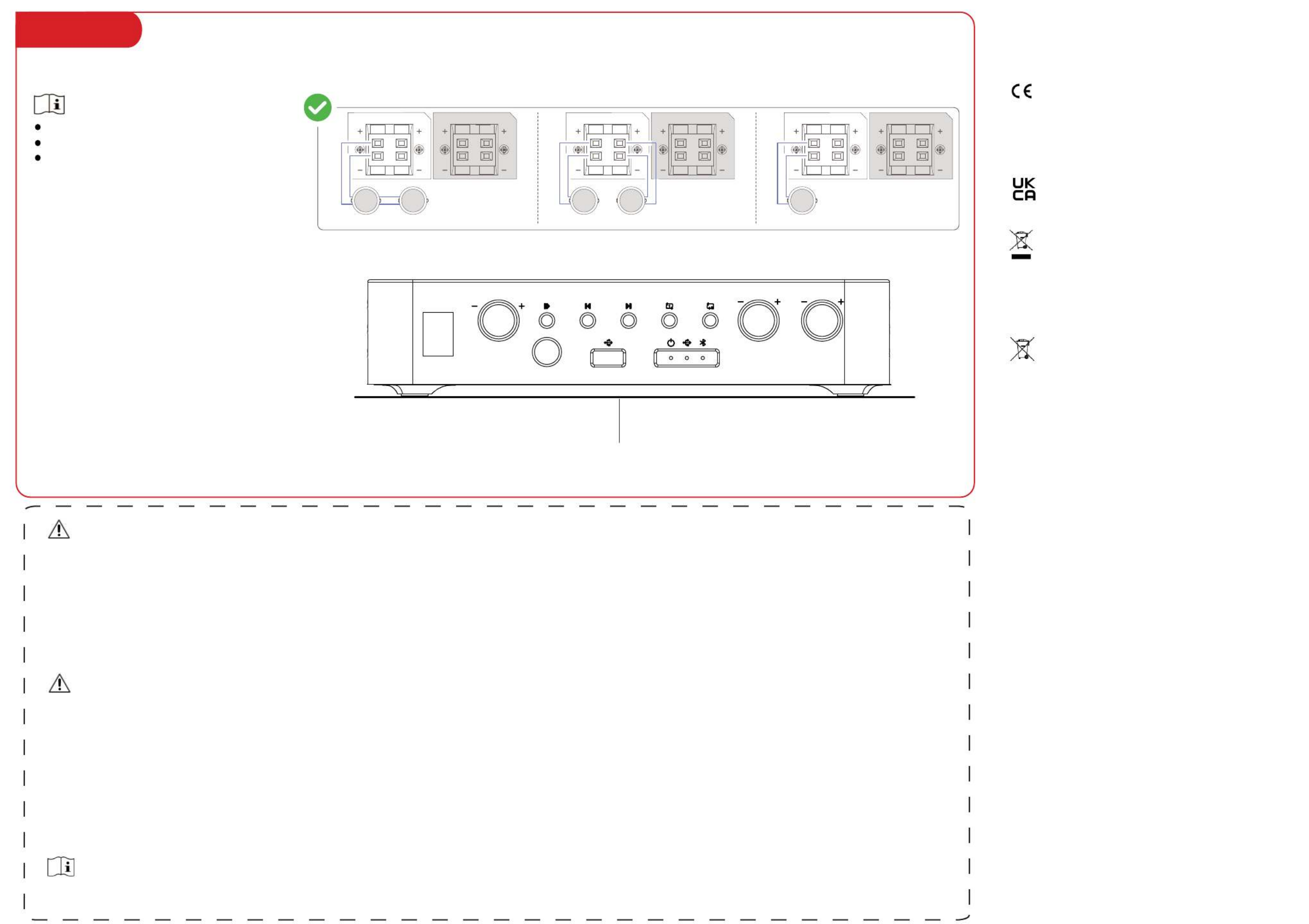

Installation

4 Ω 30 W

CH 2

4 Ω- 8 Ω

CH 1

4 Ω- 8 Ω

CH 1

1 00 V

CH 2

1 00 V

CH 2

4 Ω- 8 Ω

CH 1

4 Ω- 8 Ω

CH 1

1 00 V

CH 2

1 00 V

CH 2

4 Ω- 8 Ω

CH 1

4 Ω- 8 Ω

CH 1

1 00 V

CH 2

1 00 V

8 Ω 15 W 8 Ω 15 W 8 Ω 15 W 8 Ω 15 W

Produkt Specifikationer

Mærke:	Hikvision
Kategori:	Ikke kategoriseret
Model:	DS-QAE0A60G1-VB

Har du brug for hjælp?

Hvis du har brug for hjælp til Hikvision DS-QAE0A60G1-VB stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret Hikvision Manualer

Hikvision DS-A81024S Manual

28 Juli 2025

Hikvision ISD-SC5030S-2CVL Manual

28 Juli 2025

Hikvision DS-1471ZJ-155 Manual

28 Juli 2025

Hikvision DS-MDT301 Manual

27 Juli 2025

Hikvision ISD-SC5030SA-2CL Manual

27 Juli 2025

Hikvision DVR-208G-K1 Manual

27 Juli 2025

Hikvision DVR-204G-M1 Manual

27 Juli 2025

Hikvision DS-PI-D100 Manual

27 Juli 2025

Hikvision DS-MDT201 Manual

27 Juli 2025

Hikvision DS-TVG100-DH Manual

27 Juli 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

IFM SU9030 Manual

13 September 2025

IFM O2U554 Manual

13 September 2025

Speco Technologies HTi70TM Manual

13 September 2025

QSC RMXa Manual

13 September 2025

Tineco Floor One S2 Series Manual

13 September 2025

Tineco Floor One S3 Breeze Manual

13 September 2025

Tineco Floor One S5 Steam Manual

13 September 2025

Osram VX500-CB Manual

13 September 2025

Zelmer ZTS7990 Manual

13 September 2025

Osram VX250-SP Manual

13 September 2025
