Appearance

Interface

Rear Panel

Note

Appearance and Dimensions

GND

IN2

IN1

Line In

Alarm In

The corresponding wiring method：

The supported power supply is 24 VDC。

• This installation should be made by a qualified service person and should

conform to all the local codes.

Note

Caution

Warning

• Refer to the device label for the standard power supply. Please make sure your

power supply matches with your device.

• In the use of the product, you must be in strict compliance with the electrical

safety regulations of the nation and region.

• CAUTION: If the fuse of the device can be replaced, replace it only with the

same model to reduce the risk of fire or electric shock.

• CAUTION: If the device needs to be installed with a specific bracket of our

company, use the corresponding bracket only. Use others (such as carts, stands,

and carriers) may result in instability and cause injury. Refer to the device

datasheet for bracket model details. Refer to datasheet for details.

• For the device with sound playing function, to prevent possible hearing

damage, do not listen at high volume levels for long periods. Refer to the user

manual for details.

• Refer to the device label for the standard power supply. Please make sure your

power supply matches with your device.

• Make sure that the power has been disconnected before you wire, install, or

disassemble the device.

• To avoid heat accumulation, good ventilation is required for a proper operating

environment.

• If smoke, odor, or noise arises from the device, immediately turn off the power,

unplug the power cable, and contact the service center.

• If the product does not work properly, please contact your dealer or the

nearest service center. Never attempt to disassemble the product yourself. We

shall not assume any responsibility for problems caused by unauthorized repair or

maintenance.

• For the battery with + and - signs, + identifies the positive terminals of the

device which is used with or generates direct current, and - identifies the negative

terminals of the device which is used with or generates direct current.

• No naked flame sources, such as lighted candles, should be placed on the

equipment.

• If the serial port of the device is used for debugging only, it is reserved only for

professionals or technical support for device maintenance. Refer to the document

for details.

• Attach the device properly to the floor/wall in accordance with the installation

instructions to prevent injury. Refer to the document for details.

• DO NOT drop the product or subject it to physical shock. Do not install the

product on vibratory surface or places.

• DO NOT expose the device to high electromagnetic radiation.

• DO NOT expose the device to extremely hot, cold, dusty, corrosive, saline-

alkali, or damp environments. For temperature and humidity requirements, refer

to the datasheet for details.

• DO NOT install indoor product where it may get wet by water or other liquid.

• To avoid fire hazard or electric shock, DO NOT expose the device to rain or

extremely damp environments.

• Accessing to the Internet may cause network security problems. Please

strengthen the protection of your personal information and data security. When

you find that the device may have network security risks, please contact us in

time.

• Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

• Keep all wrappers after unpacking them for future use. In case of any failure

occurred, you need to return the device to the factory with the original wrapper.

Transportation without the original wrapper may result in damage on the device

and the company shall not take any responsibilities.

Indicator

Weep Hole

Microphone Microphone

Signal Line

Reset Button

Network Column Speaker

Quick Start Guide

UD33499B

Weep Hole

Alarm Input Device

Note

The appearance varies with the models. The actual device prevails.

292.8 mm(11.53")

160 mm(6.30") 160 mm(6.30")

Network Interface

Alarm Input Interface

Line Input Interface

Power Input Interface

About this Manual

The Manual includes instructions for using and managing the Product. Pictures,

charts, images and all other information hereinafter are for description and

explanation only. The information contained in the Manual is subject to change,

without notice, due to firmware updates or other reasons. Please find the latest

version of this Manual at the Hikvision website (https://www.hikvision.com/).

Please use this Manual with the guidance and assistance of professionals trained

in supporting the Product.

Trademarks

and other Hikvision’s trademarks and logos are the properties of

Hikvision invarious jurisdictions.

Other trademarks and logos mentioned are the properties of their respective

owners.

Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND

THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE,

ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION MAKES

NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR

PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT

WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL,

INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES

FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA,

CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON

BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY,

OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF

HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.

YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR

INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY

RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER

DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION,

OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE

TIMELY TECHNICAL SUPPORT IF REQUIRED.

YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS,

AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS

TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS

PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD

PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL

PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU

SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE

DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE

DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY

ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE

NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT

OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE

LATTER PREVAILS.

Weep Hole Weep Hole

Scan the QR Code to Get User Manual

Quick Setup

You should activate the device before the first login. After powering

on the device, the system will switch to Device Activation page.

We highly recommend you change the password of your

own choosing (using a minimum of 8 characters, including

at least three kinds of following categories: upper case

letters, lower case letters, numbers, and special characters)

in order to increase the security of your product.

Activate via Web Browser

1. Go to -> -> ->Configuration Network Network Settings TCP/IP for

parameter settings.

2. Network Parameter Settings

- Manually enter the , ,IPv4 Address IPv4 Subnet Mask IPv4 Default

Gateway Preferred DNS Address Alternate Address, and .

- Check to obtain the parameters automatically.Auto DNS

3. Click .Save

1. Go to ->Configuration Broadcast Settings Library-> to import

broadcast materials.

2. Go to ->Configuration Broadcast Settings Scheduled->

Broadcast Settings to create scheduled broadcast.

Network Settings

Broadcast Settings

The power supply the network column speaker supports is 24 VDC, 2.1 A. Please make sure your power supply matches your device.

Complete wiring before installation. Refer to chapter 2 for wiring details.

Make sure all the related equipment is power-off during the installation.

For more information about settings, see .User Manual

Wall Mount

Vertical Pole Mount

Hang the safety rope in the bracket hole.

Drill holes in the wall, and install the expansion bolts into the screw holes.

Fix the column speaker to the L-bracket with 2 screws.

3Installation

Fix the column speaker to the L-bracket with 2 screws.

Note

The wall must be a solid wall when you choose wall mounting, and the wall

thickness is recommended to be greater than 80 mm.

The recommended drilling distance is 257 mm.

Fix the L-bracket to the wall with 2 screws.

Note

Drill holes in the pole, and install the expansion bolts into the screw holes.

The recommended drilling distance is 257 mm.

Fix the L-bracket to the pole with 2 screws.

Hang the safety rope in the bracket hole.

Note

1. Make sure the device IP address and the computer's should be in

the same IP segment.

2. Enter the device default IP address (192.0.0.64) in the address bar

of the web browser, and press Enter.

3. If you have more than one device in your network, please change

the IP address of the device to prevent the abnormal access caused

by IP address confilict. After logging in to the device, you can go to

Configuration Network Network Settings TCP/IP-> -> -> , and modify

the IP address, subnet mask, gateway and other parameters.

Note

Recommended

Drilling Distance:

257 mm

Screw

L-Bracket Wall

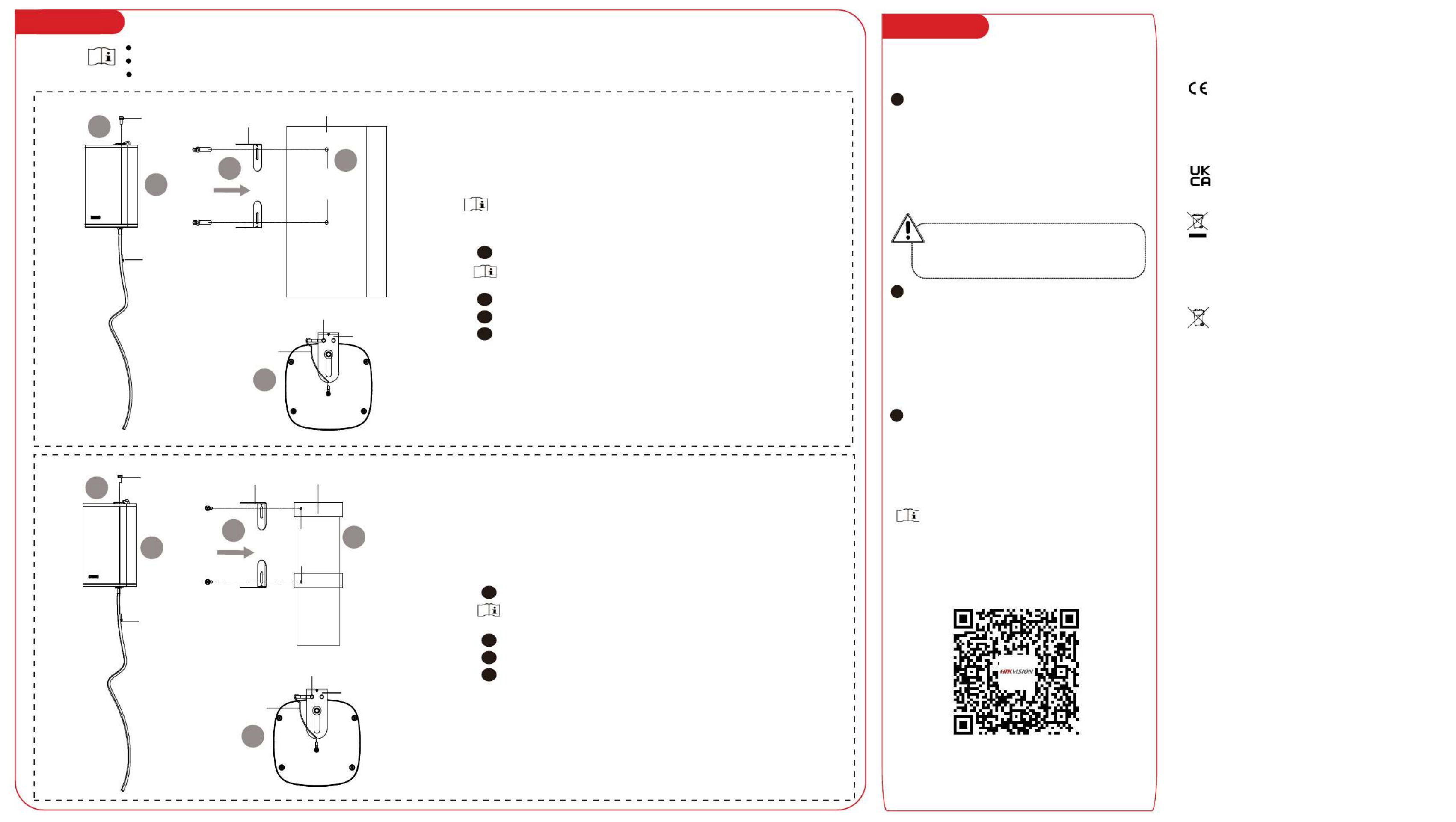

Bracket

Safety Rope

Bracket Hole

L-Bracket

Screw

PoleScrew

Recommended

Drilling Distance:

257 mm

These clauses apply only to the products bearing the corresponding

mark or information.

EU/UK Compliance Statement

This product and - if applicable - the supplied accessories too are

marked with "CE" and comply therefore with the applicable

harmonized European standards listed under the Directive

2014/30/EU (EMCD) and Directive 2011/65/EU (RoHS).

Note: The products with the input voltage of within 50 to 1000 VAC or 75

to 1500 VDC comply with Directive 2014/35/EU (LVD), and the rest

products comply with Directive 2001/95/EC (GPSD). Please check the

specific power supply information for reference.

The full text of the EU declaration of conformity is available at the

following internet address: https://www.hikvision.com/en/support/

compliance/declaration-of-conformity.

This product and - if applicable - the supplied accessories too are

marked with "UKCA" and comply therefore with the following

directives: Electromagnetic Compatibility Regulations 2016,

Electrical Equipment (Safety) Regulations 2016, the Restriction of

the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012.

Directive 2012/19/EU (WEEE Directive): Products marked with this

symbol cannot be disposed of as unsorted municipal waste in the

European Union. For proper recycling, return this product to your

local supplier upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more information see:

www.recyclethis.info.

According to the Waste Electrical and Electronic Equipment Regulations

2013: Products marked with this symbol cannot be disposed of as

unsorted municipal waste in the United Kingdom. For proper recycling,

return this product to your local supplier upon the purchase of equivalent

new equipment, or dispose of it at designated collection points. For more

information see: www.recyclethis.info.

Directive 2006/66/EC and its amendment 2013/56/EU (Battery

Directive): This product contains a battery that cannot be disposed

of as unsorted municipal waste in the European Union. See the

product documentation for specific battery information. The

battery is marked with this symbol, which may include lettering to

indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling,

return the battery to your supplier or to a designated collection point. For

more information see: www.recyclethis.info.

According to the Batteries and Accumulators (Placing on the Market)

Regulations 2008 and the Waste Batteries and Accumulators Regulations

2009: This product contains a battery that cannot be disposed of as

unsorted municipal waste in the United Kingdom. See the product

documentation for specific battery information. The battery is marked

with this symbol, which may include lettering to indicate cadmium (Cd),

lead (Pb), or mercury (Hg). For proper recycling, return the battery to your

supplier or to a designated collection point. For more information see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-003 (B) / NMB-003 (B) standards

requirements.

Conformité Industrie Canada ICES-003

Cette appareil répond aux exigences des normes CAN ICES-003 (B) /

NMB-003 (B).

B급 기기: 이 기기는 가정용(B급) 전자파적합기기로써 주로 가정에서

사용하는 것을 목적으로 하며, 모든 지역에서 사용할 수 있습니다.

Bracket

Safety Rope

Bracket Hole

Produkt Specifikationer

Mærke:	Hikvision
Kategori:	Ikke kategoriseret
Model:	DS-QAZ1430G1

Har du brug for hjælp?

Hvis du har brug for hjælp til Hikvision DS-QAZ1430G1 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret Hikvision Manualer

Hikvision DS-A81024S Manual

28 Juli 2025

Hikvision ISD-SC5030S-2CVL Manual

28 Juli 2025

Hikvision DS-1471ZJ-155 Manual

28 Juli 2025

Hikvision DS-MDT301 Manual

27 Juli 2025

Hikvision ISD-SC5030SA-2CL Manual

27 Juli 2025

Hikvision DVR-208G-K1 Manual

27 Juli 2025

Hikvision DVR-204G-M1 Manual

27 Juli 2025

Hikvision DS-PI-D100 Manual

27 Juli 2025

Hikvision DS-MDT201 Manual

27 Juli 2025

Hikvision DS-TVG100-DH Manual

27 Juli 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

IFM SU9030 Manual

13 September 2025

IFM O2U554 Manual

13 September 2025

Speco Technologies HTi70TM Manual

13 September 2025

QSC RMXa Manual

13 September 2025

Tineco Floor One S2 Series Manual

13 September 2025

Tineco Floor One S3 Breeze Manual

13 September 2025

Tineco Floor One S5 Steam Manual

13 September 2025

Osram VX500-CB Manual

13 September 2025

Zelmer ZTS7990 Manual

13 September 2025

Osram VX250-SP Manual

13 September 2025
