Side 1/56

Projector

CP-D27WN/CP-D32WN/CP-DW25WN

User's Manual (detailed)

Operating Guide – Technical

Example of computer signal

NOTE • Be sure to check jack type, signal level, timing and resolution before

connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these modes

will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some cases.

Refer to the number of display pixels above.

•

Although the projector can display signals with resolution up to UXGA (1600x1200), the signal

will be converted to the projector’s panel resolution before being displayed. The best display

performance will be achieved if the resolutions of the input signal and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

•

The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Signal modeRating

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1280 x 800 49.7 60.0 VESA

1280 x 800 (60Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

*1 1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1440 x 900 55.9 59.9 VESA WXGA+ (60Hz)

*2 1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)

*3 1680 x 1050 65.3 60.0 VESA WSXGA+ (60Hz)

*1 1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

*1) Supported except for HDMITM input. *2) Only for CP-D27WN/CP-D32WN

*3) Only for CP-DW25WN

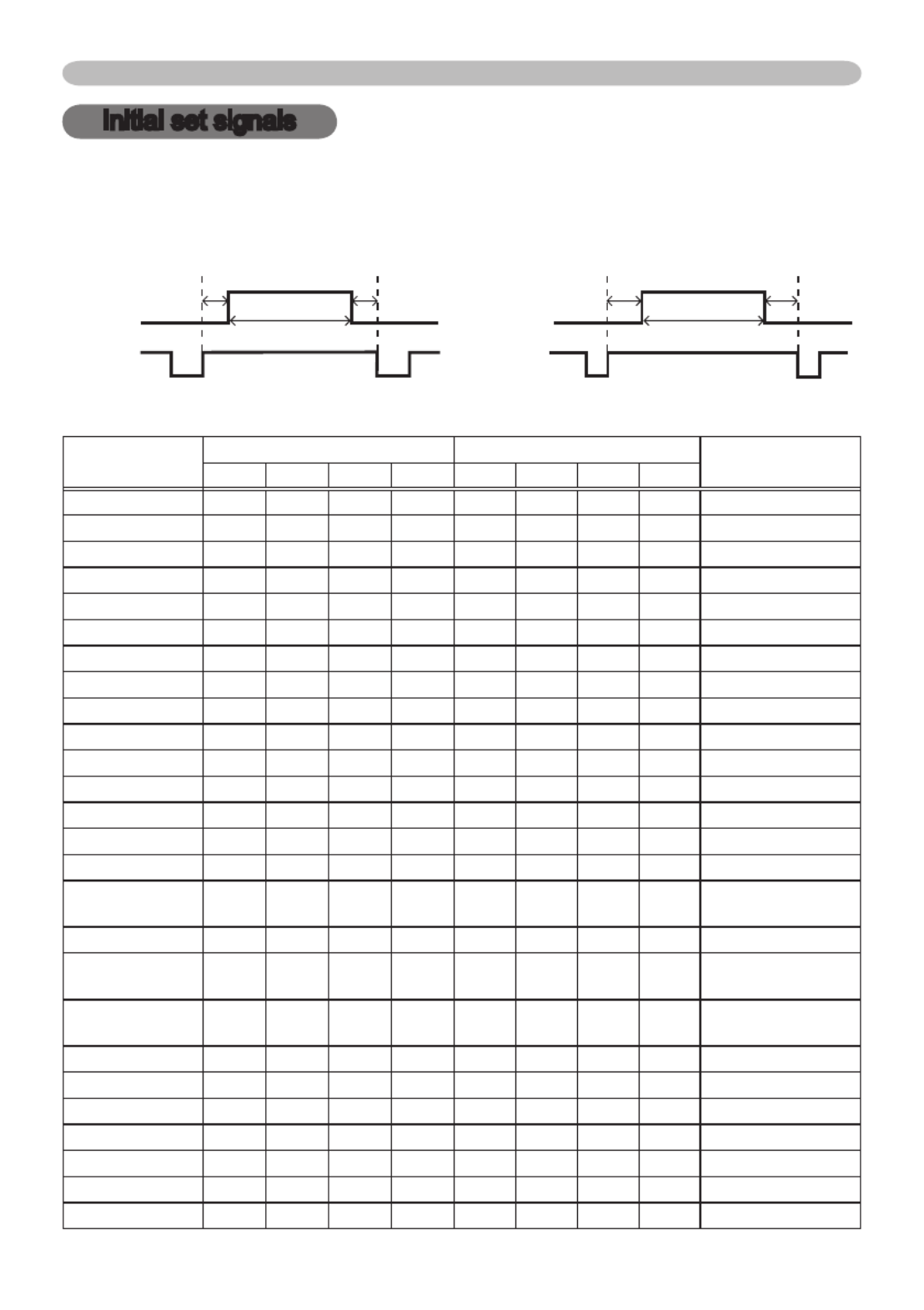

Initial set signals

The following signals are used for the initial settings. The signal timing of some

computer models may be different. In such case, adjust the items V POSITION

and H POSITION in the IMAGE menu.

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Active video (C)

Data Data

H. Sync. Sync.V.

Sync (A) Sync (a)

Active video (c)

Resolution

(H x V)

Horizontal signal timing (μs) Vertical signal timing (lines) Signal mode

(A) (B) (C) (D) (a) (b) (c) (d)

720 x 400 2.0 3.0 20.3 1.0 42 400 TEXT3 1

640 x 480 3.8 1.9 25.4 0.6 2 480 10 VGA (60Hz)33

640 x 480 1.3 4.1 20.3 0.8 28 480 9 VGA (72Hz)3

640 x 480 2.0 3.8 20.3 0.5 16 480 VGA (75Hz)3 1

640 x 480 1.6 2.2 17.8 1.6 25 480 VGA (85Hz)3 1

800 x 600 2.0 3.6 22.2 0.7 2 22 600 SVGA (56Hz)1

800 x 600 3.2 2.2 20.0 1.0 4 23 600 SVGA (60Hz)1

800 x 600 2.4 1.3 16.0 1.1 6 23 600 SVGA (72Hz)37

800 x 600 1.6 3.2 16.2 0.3 21 600 SVGA (75Hz)3 1

800 x 600 1.1 2.7 14.2 0.6 27 600 SVGA (85Hz)3 1

832 x 624 1.1 3.9 14.5 0.6 39 624 Mac 16" mode3 1

1024 x 768 2.1 2.5 15.8 0.4 6 29 768 XGA (60Hz)3

1024 x 768 1.8 1.9 13.7 0.3 6 29 768 XGA (70Hz)3

1024 x 768 1.2 2.2 13.0 0.2 28 768 XGA (75Hz)3 1

1024 x 768 1.0 2.2 10.8 0.5 36 768 XGA (85Hz)3 1

1152 x 864 1.2 2.4 10.7 0.6 32 8643 1 1152 x 864

(75Hz)

1280 x 768 1.7 2.5 16.0 0.8 23 768 W-XGA (60Hz)3 1

1280 x 800 1.6 2.4 15.3 0.8 24 8003 1 1280 x 800

(60Hz)

1280 x 960 1.0 2.9 11.9 0.9 36 9603 1 1280 x 960

(60Hz)

1280 x 1024 1.0 2.3 11.9 0.4 1024 SXGA (60Hz)3 38 1

1280 x 1024 1.1 1.8 9.5 0.1 1024 SXGA (75Hz)3 38 1

1280 x 1024 1.0 1.4 8.1 0.4 44 1024 SXGA (85Hz)3 1

1440 x 900 1.4 2.2 13.5 0.8 6 25 900 WXGA+ (60Hz)3

1400 x 1050 1.2 2.0 11.4 0.7 1050 SXGA+ (60Hz)3 33 1

1680 x 1050 1.2 1.9 11.5 0.7 6 30 1050 WSXGA+ (60Hz)3

1600 x 1200 1.2 1.9 9.9 0.4 46 1200 UXGA (60Hz)3 1

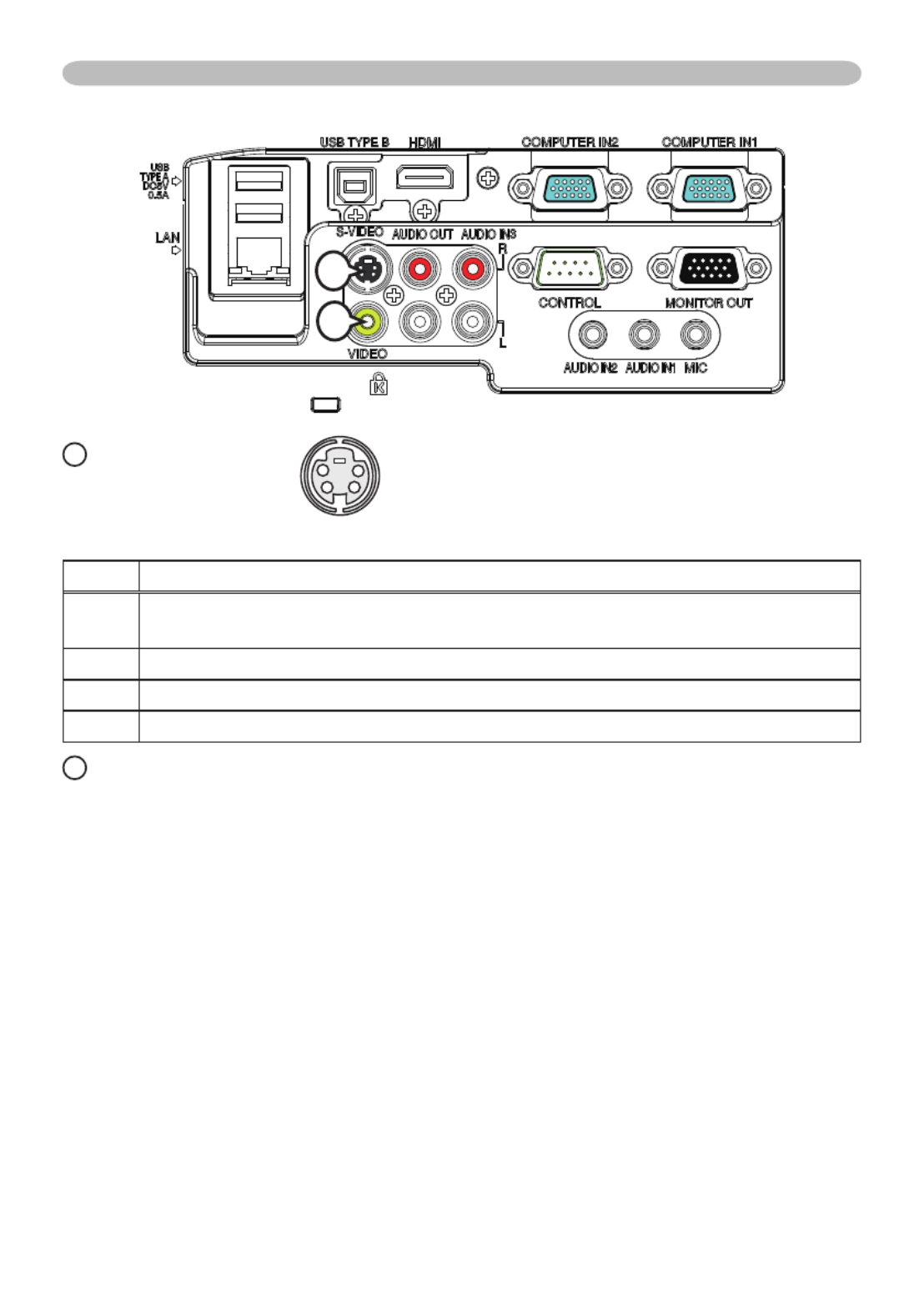

Connection to the ports (continued)

DS-VIDEO

Mini DIN 4pin jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

Pin Signal

1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator

Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator

2 Brightness signal, 1.0Vp-p, 75Ω terminator

3Ground

4 Ground

EVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

• 1.0±0.1Vp-p, 75Ω terminator

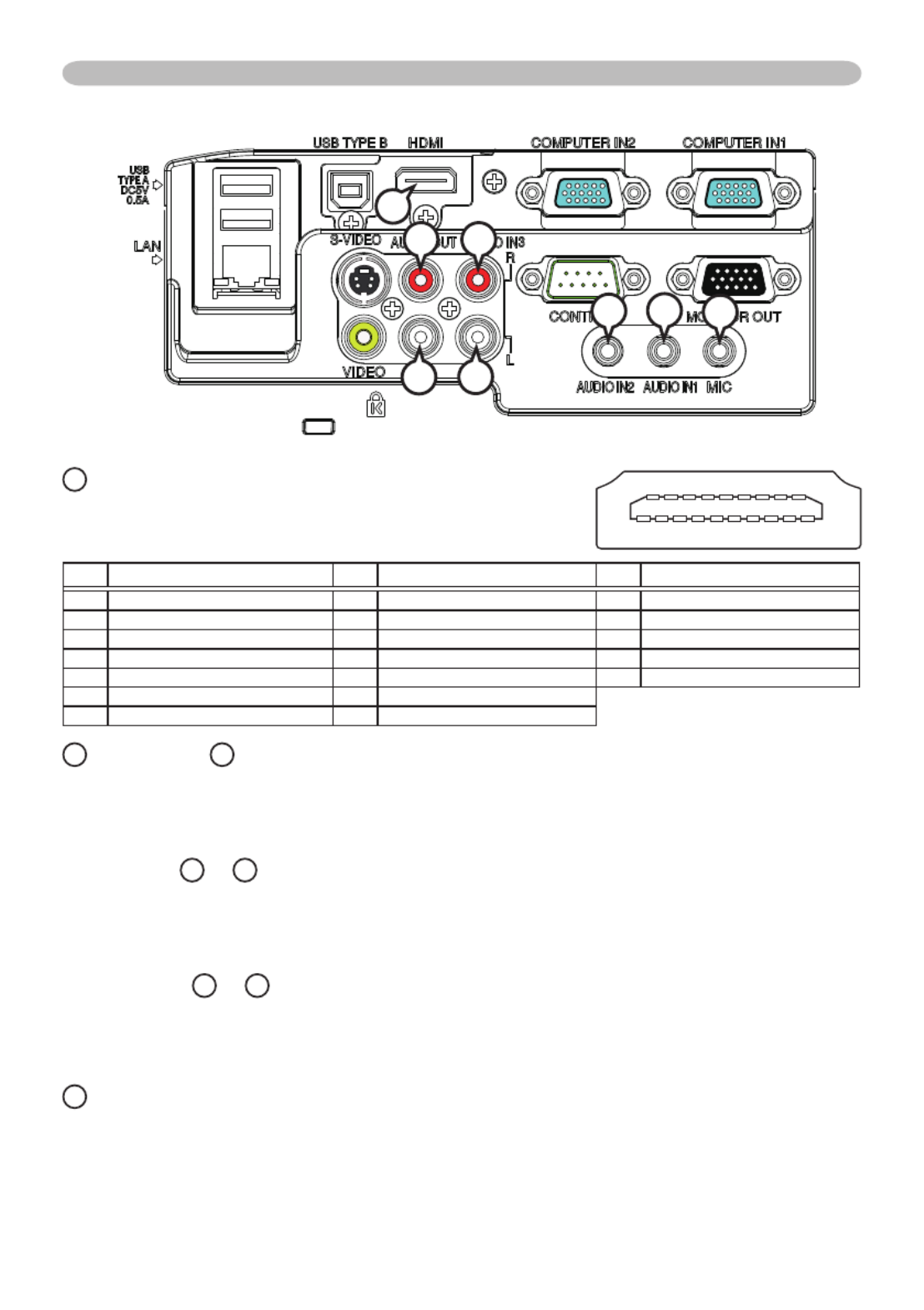

Connection to the ports (continued)

GAUDIO IN1,

AUDIO IN2

Ø3.5 stereo mini jack

• 200 mVrms, 47kΩ terminator

AUDIO IN3

RCA jack x2

• 200 mVrms, 47kΩ terminator

AUDIO OUT

R, LL

RCA jack x2

• 200 mVrms, 1kΩ output impedance

MMIC

Ø3.5 mono mini jack

• 2 mVrms, 1kΩ terminator

• 20 mVrms, 1kΩ terminator

FHDMI

• Type :Digital audio/video connector

• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

Pin Signal Pin Signal Pin Signal

1T.M.D.S. Data2 + T.M.D.S. Data0 Shield SCL8 15

2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA

3T.M.D.S. Data2 - 10 T.M.D.S. Clock + DDC/CEC Ground17

4 T.M.D.S. Data1 + T.M.D.S. Clock Shield11

+5V Power

5T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect

6 T.M.D.S. Data1 - CEC13

7T.M.D.S. Data0 + 14 Reserved(N.C. on device)

10 12 14 16 182 4 6 8

9 11 13 15 17 191 3 5 7

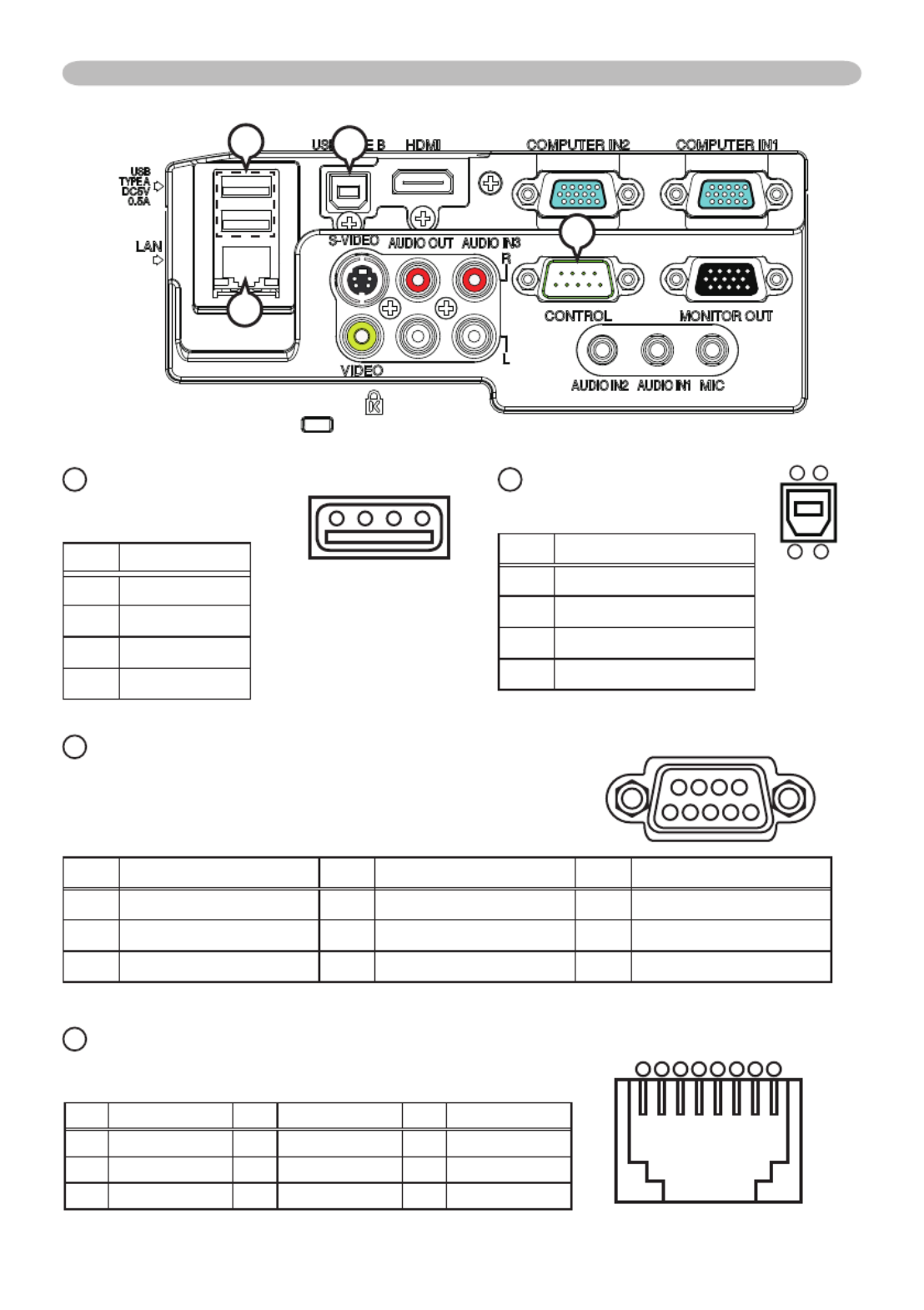

Connection to the ports (continued)

USB

TYPE B

USB B type jack

Pin Signal

1+5V

2 - Data

3+ Data

4 Ground

CONTROL

D-sub 9pin plug

• About the details of RS-232C communication,

please refer to the section "RS-232C Communication".

Pin Signal Pin Signal Pin Signal

1 7(No connection) 4 (No connection) RTS

2 RD Ground CTS5 8

3TD 6 (No connection) 9 (No connection)

LAN

RJ-45 jack 87654

Pin Signal Pin Signal Pin Signal

1 7TX+ 4 - -

2 TX- - -5 8

3RX+ 6 RX-

NUSB TYPE A

USB A type jack 4321

Pin Signal

1+5V

2 - Data

3+ Data

4 Ground

5314 2

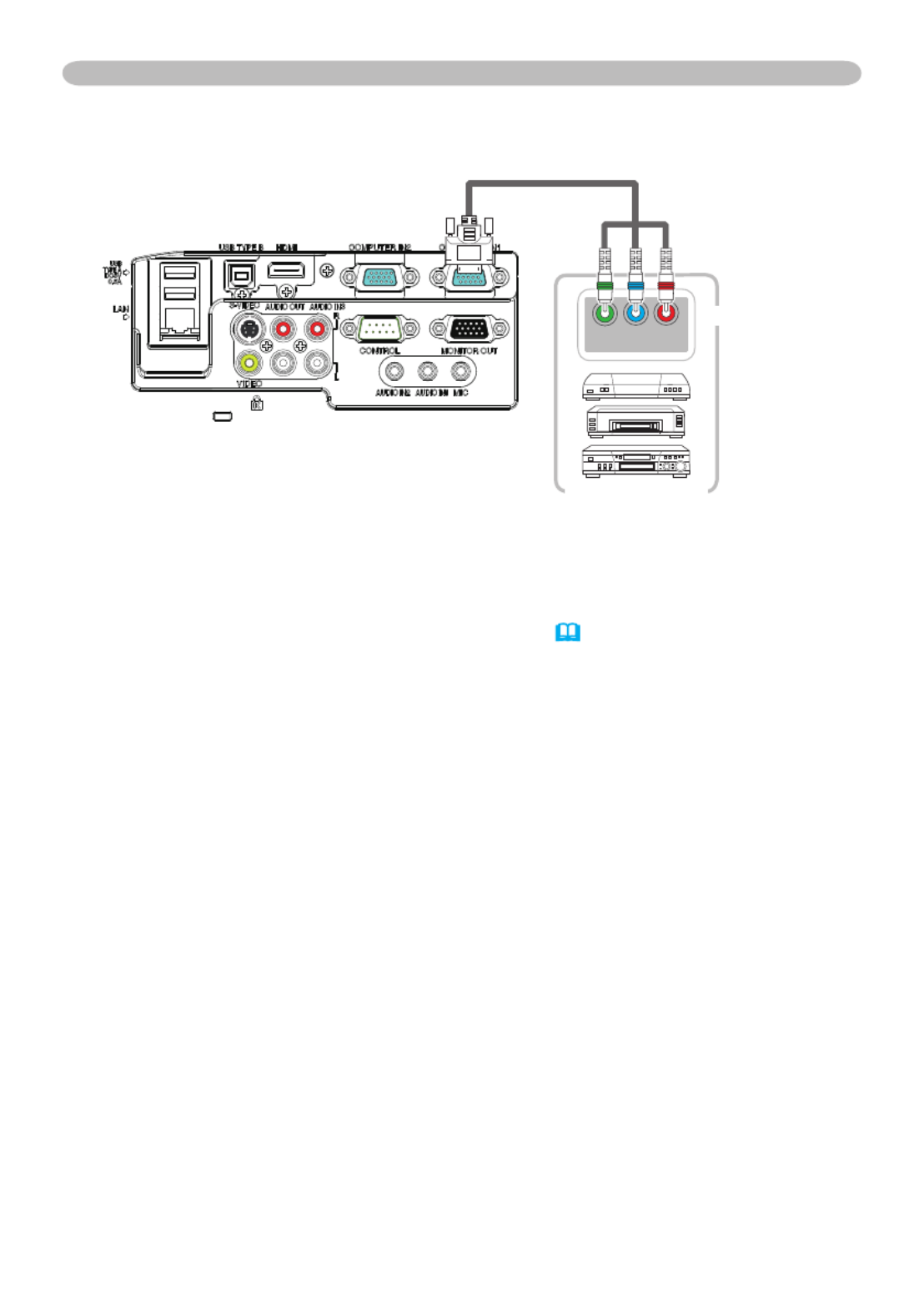

Connection to the ports (continued)

To input component video signal to COMPUTER IN ports

ex.

To input component video signal to the port of the COMPUTER IN1 IN2 or

projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the

descriptions about and port ( ).COMPUTER IN1 IN2 &3

Y C /P C /PB B R R

COMPONENT VIDEO OUT

RCA plugs

D-sub plug

VCR/DVD/Blu-ray

Disc player

RCA connectors

Produkt Specifikationer

Mærke:	Hitachi
Kategori:	videoprojektorer
Model:	CP-D32WN
Vekselstrømsindgangsspænding:	220 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	345.44 mm
Dybde:	302.26 mm
Højde:	86.36 mm
Vægt:	3719.46 g
Brugervejledning:	Ja
Produktfarve:	Hvid
Indbygget skærm:	Ingen
Produkttype:	Projektor med kort projiceringsafstand
Wi-Fi:	Ja
Naturligt aspektforhold:	4:3
Understøttede videotilstande:	480i, 480p, 576i, 720p, 1080i, 1080p
3D:	Ingen
Indbyggede højttaler(e):	Ja
Format til analogt signal:	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Udgangseffekt (RMS):	10 W
Antal HDMI-porte:	1
HDCP:	Ja
DVI-port:	Ingen
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	2
Komponentvideo (YPbPr/YCbCr) indgang:	2
Ethernet LAN:	Ja
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Elektronisk programguide (EPG):	Ja
Strømforbrug (standby):	- W
Strømforbrug (typisk):	320 W
Driftstemperatur (T-T):	0 - 40 °C
Ethernet LAN-datahastigheder:	10, 100 Mbit/s
Markedspositionering:	Short throw
Kabler inkluderet:	AC, VGA
Understøttede grafikopløsninger:	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+)
Sammensat videoindgang:	1
Indgang til pc'en (D-Sub):	Ja
Understøttede billedformater:	16:10, 16:9
Støjniveau:	- dB
Fjernbetjening inkluderet:	Ja
Strømkilde:	Vekselstrøm
Certificering:	UL, FCC,
Placering:	Væg
AC-adapter inkluderet:	Ja
Indbygget kortlæser:	Ingen
Full HD:	Ingen
Antal indbyggede højttalere:	1
Pc lydindgang:	Ja
Antal lamper:	1 Lampe( r)
Mikrofonindgang:	Ja
Andre understøttede operativsystemer:	iOS
Antal farver:	16,78 millioner farver
Lyd (L, R) indgang:	4
Kontrastforhold (typisk):	3000:1
Antal VGA-porte (D-sub):	3
AC (strøm) indgang:	Ja
USB-stik type:	USB Type-A, USB Type-B
Lyd (L, R) udgang:	1
Brændviddeområde:	2 - 6.1 mm
Projektor lysstyrke:	3200 ANSI lumens
Projektionsteknologi:	3LCD
Projektor indbygget opløsning:	XGA (1024x768)
Skærmstørrelse kompatibilitet:	60 - 100 "
Projiceringsafstand:	0.55 - 0.91 m
RS-232-porte:	1
Levetid for lyskilde:	3000 t
Lampeeffekt:	215 W
Levetid for lyskilde (økonomisk tilstand):	5000 t
Lyskilde type:	Lampe
Antal af S-video-indgange:	1
Seriel grænsefladetype:	RS-232
Trapezkorrektion, horisontal:	-5 -5 °
Farve lysudbytte:	3200 ANSI lumens
Horisontal opløsning:	1024 Linier
Hvidt lysudbytte:	3200 ANSI lumens
