Side 1/2

LCD Projectors

*Projected images are simulations

Hitachi America, Ltd., Digital Media Division 900 Hitachi Way, Chula Vista, CA 91914-3556, U.S.A. and Canada Tel: +1-800-225-1741 www.hitachi-america.us/digitalmedia

Hitachi Home Electronics Asia (S) Pte. Ltd. 438A Alexandra Road #01-01/02/03, Alexandra Technopark, 119967, Singapore Tel: +65-6536-2520 www.hitachiconsumer.com.sg

Hitachi Sales (Malaysia) Sdn. Bhd. Lot 12, Jalan Kemajuan, Bangi Industrial Estate, 43650 Bandar Baru Bangi, Selangor Darul Ehsan, Malaysia Tel: +60-3-8911-2670 www.hitachiconsumer.com.my

Hitachi Sales (Thailand), Ltd. 994, 996 Soi Thonglor, Sukhumvit 55 Road, Klongtonnua, Vadhana Bangkok 10110, Thailand Tel: +66-2335-5455 www.hitachi-th.com

Hitachi (Hong Kong), Ltd. 18th Floor, Ever Gain Centre, 28 On Muk Street, Shatin, N.T., Hong Kong Tel: +852-2113-8883 www.hitachi-hk.com.hk

Hitachi Sales Corp. of Taiwan 2nd Floor, No.65, Nanking East Road, Section 3, Taipei 104, Taiwan Tel: +886-2-2516-0500 www.hsct.com.tw

Hitachi Australia Pty Ltd. Suite 801, Level 8, 123 Epping Road, North Ryde NSW 2113, Australia Tel: +61-2-9888-4100 www.hitachi.com.au

Hitachi Europe Ltd., Digital Media Group Consumer Affairs Department Whitebrook Park, Lower Cookham Road, Maidenhead, Berkshire, SL6 8YA, UK Tel: +44-1628-585000 www.hitachidigitalmedia.com

Specifications

Terminals

Model name CP-WX3030WN CP-EW300

Product name Liquid crystal projector

Liquid Crystal Panel 1,024,000 pixels (1280 horizontal x 800 vertical)

Lamp 225 W UHP

Light output (brightness) 3,000lm

Contrast ratio

(Presentation mode)

Speaker 16 W mono 1 W mono

Power supply

/Rated current

Power consumption

Temperature range

Dimensions(WxHxD)

Weight (mass) approx. 3.0 kg approx. 2.9 kg

Ports

Environment

Dimensions

Projection Distance

LCD Projectors

CP-WX3030WN

CP-EW300

USB(A)x2

VIDEO VIDEO

MIC

S-VIDEO

AUDIO OUT

AUDIO IN x3 AUDIO IN

HDMI

LAN

USB(B)

COMPUTER IN 2

COMPUTER IN 1 COMPUTER IN 2

COMPUTER IN 1

MONITOR OUT CONTROL

CONTROL

320mm(12.6” )

245mm(9.6” )

85mm

(3.3”)

Optional parts

AC 100-120 V: 3.4 A,

AC 220-240 V: 1.7 A

AC 100-120 V: 330 W, AC 220-240 V: 310 W

5 ~ 35 °C

(Operating at an altitude up to 7500 ft.(2286 m))

5 ~ 30 °C

(Operating at an altitude over 7500 ft.(2286 m))

COMPUTER IN1 D-sub 15 pin mini jack x1

COMPUTER IN2 D-sub 15 pin mini jack x1

HDMI HDMI connector x1

MONITOR OUT D-sub 15 pin mini jack x1

S-VIDEO Mini DIN 4 pin jack x1

VIDEO RCA jack x1

AUDIO IN1 3.5 mm (stereo) mini jack x1

AUDIO IN2 3.5 mm (stereo) mini jack x1

AUDIO IN3 (R, L) RCA jack x2

AUDIO OUT (R, L) RCA jack x2

USB TYPE A USB type A connector x2

USB TYPE B USB type B connector x1

CONTROL D-sub 9 pin plug x1

LAN RJ45jackx1

MIC 3.5 mm (mono) mini jack x1

COMPUTER IN1 D-sub 15 pin mini jack x1

COMPUTER IN2 / MONITOR OUT

D-sub 15 pin mini jack x1

HDMI HDMI connector x1

VIDEO RCA jack x1

AUDIO IN (R, L) RCA jack x2

AUDIO OUT (R, L) RCA jack x2

CONTROL D-sub 9 pin plug x1

320 (W) x 85 (H) x 245 (D) mm

AC 100-120 V: 3.3 A,

AC 220-240 V: 1.6 A

5 ~ 35 °C (Operating)

AC 100-120 V: 320 W, AC 220-240 V: 300 W

NM-E386 042013

Compliance with EU Directive RoHS *1

Reduction of resin usage in production

Use of hot runners in molds for making upper housing in

order to reduce mill ends.

Reduction of CO2

emissions

Carton volume has been cut down to 64%

*2, reducing CO2

emissions during transport.

Power saving mode engaged during standby

Eco mode

Eco mode provides power saving.

RoHS is the acronym of "Directive

2011/65/EU of the European

Parliament and of the Council of 8

June 2011 on the restriction of the

use of certain hazardous substances

in electrical and electronic equipment".

Compared to Hitachi CP-X3015WN

network capable projector on the

basis of one carton box.

−Design and specifications are subject to change without notice.

・

The projected images and comparison photos in this catalog are simulations.

・

LCD panels, polarizers and other optical components and cooling fans may need replacement after prolonged usage. For more details, please consult a Hitachi sales representative.

・

Do not use in places where there is a lot of water, dampness, steam, dust, soot or tobacco smoke. This may result in fire or malfunction.

・

Optical components (lamp, LCD panel, polarizing plate, PBS [polarizer beam splitter]) have limited service lives. They must be repaired or replaced if they are used for a long period of time.

・

These projectors use a mercury lamp with high internal pressure. Because of its properties, this lamp may burst with a loud noise or burn out if struck or after it has been used for a period of

time. The time until it bursts or burns out varies greatly according to differences between lamps and usage conditions. Turning the lamp’s power on and off frequently shortens its service life.

・

Optical components other than the lamp: If the projector is used for six hours or more per day, they may need to be replaced in less than a year.

・

LCD panel: If the projector is used continuously for six hours or more, its replacement cycle may be shortened.

・

Do not turn projector on again for ten minutes after shutdown. Neglect can shorten the lifetime or the lamp. During use and immediately after use, do not touch anywhere near the lamp and

the vents as these parts are extremely hot.

・

Windows®, Windows Vista®

and Internet Explorer® are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

・

Pentium® is trademark of Intel Corporation in the U.S. and/or other countries.

・

Crestron® and Crestron RoomView

® are registered trademarks of Crestron Electronics, Inc. in the United States and other countries.

・

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

・

ImageCare is a trademark or a registered trademark of Royal Philips Electronics in the United States and other countries.

・

All other trademarks are the properties of their respective owners.

On a horizontal surface Suspended from the ceiling

CP-WX3030WN CP-EW300

* Not including protruding parts.

Lamp: DT01481 / Filter set: UX38841

USB wireless adapter: USB-WL-11N

Mounting accessory: HAS-X1 (Bracket for ceiling mount)

HAS-204L (Fixing adaptor for low ceilings) / HAS-304H (Fixing adaptor for high ceilings)

* For more information,

please consult your dealer.

(inch) m m inch m inch cm inch cm inch m inch m inch cm inch cm inch

30 0.8 0.9 36 1.1 44 38 15 3 1 1.0 41 1.3 50 42 17 3 1

40 1.0 1.2 49 1.5 59 50 20 4 2 1.4 56 1.7 67 57 22 4 2

50 1.3 1.6 62 1.9 74 63 25 5 2 1.8 70 2.1 84 71 28 5 2

60 1.5 1.9 74 2.3 89 75 30 6 2 2.1 84 2.6 101 85 33 7 3

70 1.8 2.2 87 2.7 105 88 34 7 3 2.5 99 3.0 119 99 39 8 3

80 2.0 2.5 99 3.0 120 100 39 8 3 2.9 113 3.4 136 113 45 9 3

90 2.3 2.8 112 3.4 135 113 44 9 3 3.2 127 3.9 153 127 50 10 4

100 2.5 3.2 125 3.8 150 125 49 10 4 3.6 142 4.3 170 142 56 11 4

120 3.0 3.8 150 4.6 181 150 59 12 5 4.3 170 5.2 205 170 67 13 5

150 3.8 4.8 188 5.7 226 188 74 14 6 5.4 213 6.5 256 212 84 16 6

200 5.1 6.4 251 7.7 302 250 98 19 8 7.2 285 8.7 342 283 111 22 9

250 6.4 8.0 315 9.6 378 313 123 24 9 9.1 357 10.9 428 354 139 27 11

300 7.6 9.6 378 11.5 454 375 148 29 11 10.9 428 13.1 514 425 167 33 13

16:10 4:3

Screen

size

(diagonal)

type min max

Projection distance c1

Screen

height

Screen

height

Screen

height

Screen

height

Projection distance

min max

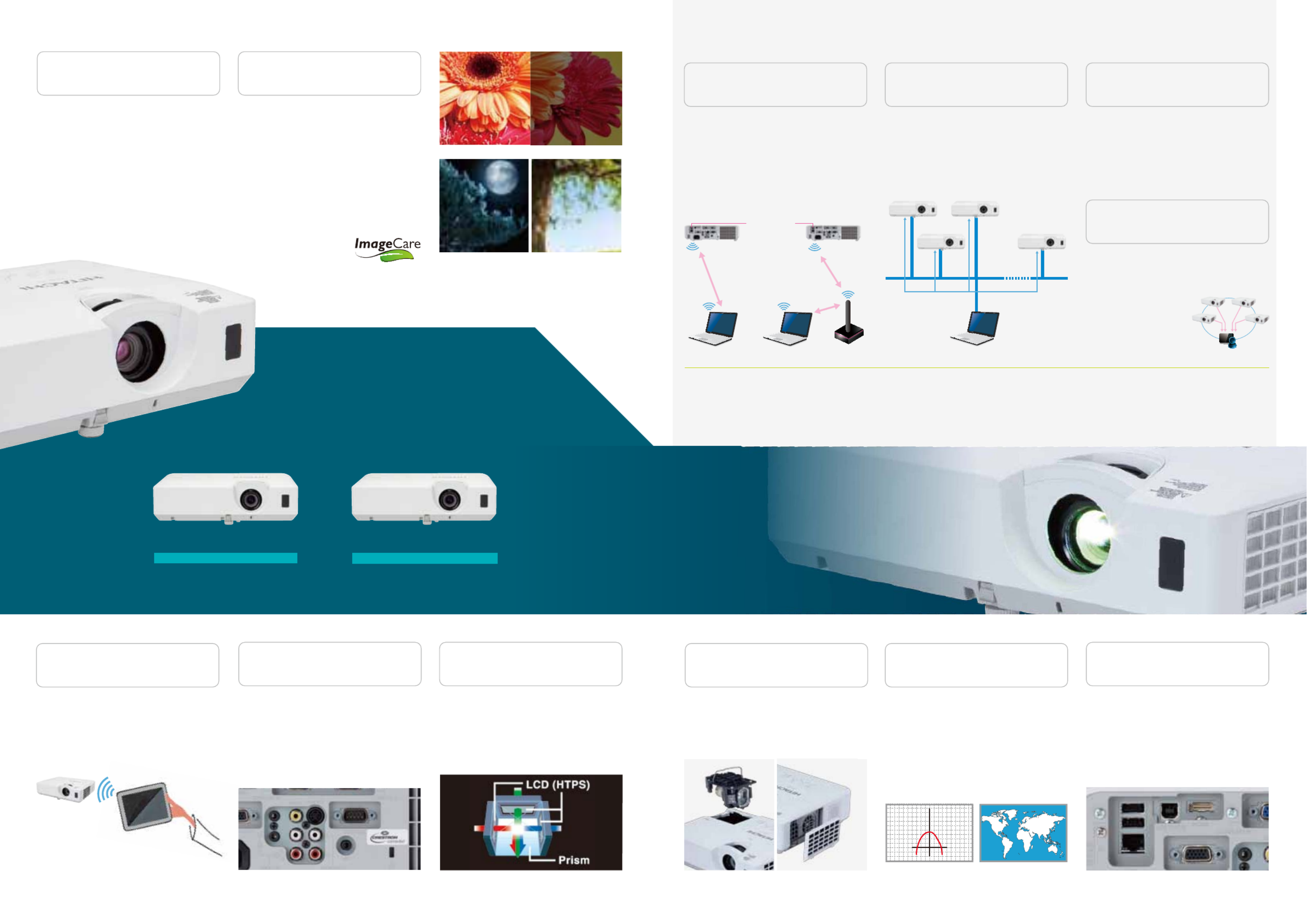

High spec features in an

LCD projector packed

with useful functions

4000:1 2000:1

c1 b

(1280 x 800) (±10%)

Lamp: DT01491 / Filter set UX38851

Laser remote control: RC-R008

CP-WX3030WN

CP-EW300

Normal mode Saver Mode

Saver mode is a feature developed by

Hitachi, based on ImageCare® technology,

that reduces the projector lamp brightness

and consumption power, resulting in

considerable energy savings. You can set

the Saver mode time 1 to 30 minutes, and if

the projected image does not change in

that time, Saver mode activates. Saver mode

can also be activated manually.

Intelligent Eco Mode

Intelligent Eco mode is a feature developed

by Hitachi, based on ImageCare technology,

that automatically changes the brightness

of the lamp according to the level of the

input signal. Lamp brightness is reduced

when a darker image is projected and

returns to normal when a brighter image is

projected, eliminating unnecessary energy

consumption from the lamp.

Wireless Capability

You can use a wireless network by connecting

the projector to a computer using the

Optional USB wireless adapter. The adapter

supports IEEE802.11b/g/n. Use the adapter

cover to prevent the USB wireless adapter

from coming off easily.

Multi Projector*1*2

You can project the same image from up to

12*3 projectors simultaneously. This is useful

for meetings and lectures in large venues

where a single screen would not be sufficient.

Moderator Control Mode*1*2

This mode lets you network 50*4 computers

to the projector, with one computer acting as

the moderator. The teacher can use the

moderator computer to select and project

images from the students’ computers.

Convenient Networking

Embedded networking gives you the ability to

manage and control multiple projectors over

your LAN: Centralized

Reporting , Scheduling,

E-mail Alerts, and My

Image (Image Transfer)

HDMI® Terminal and

2 USB Type A Inputs*

These projectors provide two USB Type A

inputs. This makes it possible to use the

optional USB wireless adapter and other USB

devices. There is also an HDMI terminal

allowing you to connect compatible devices to

the projectors.

Smart Device Control*

Saver Mode

3 LCD chips with

Inorganic Alignment Layers

These projectors incorporate three LCD

Panels with inorganic alignment layers that

are extremely light resistant, increasing

brightness and contrast ratio. They ensure

smooth images and high reliability.

Template Function*

The Template Function equipped in these

projectors projects pre-installed templates

on a whiteboard, blackboard, or other

surface. Templates include a line template

to make writing on a board easier, a grid

template, a world map, and more.

*Patent pending

Plugging the USB wireless adapter to the

pr oj ect or a nd usi ng t he de di cat ed

a pp l i c a t i o n de v e l o pe d b y Hi t a c h i ,

projectors can be controlled from a tablet

or smartphone.*

Black lines on a white grid World map

Mic. Input* and 16W

Internal Speakers*

The projectors are equipped with a

microphone input, so you can use a

microphone system, even when the

projector is in standby. Projectors also

have built-in 16W high power speakers.

Lamp becomes darker Lamp becomes brighter

*See the Hitachi website for details

http://www.hitachi.co.jp/proj/en/apps/pj_connection.html

LCD Projectors

*On CP-WX3030WN model.

CP-WX3030WN

WXGA 3000lm

CP-EW300

WXGA 3000lm

Administration Room

projector1

projector2

projector3

projector12

Optional USB

wireless

adapter

With access point

Without access point

LAN

・・・

*1 *2 *3 These functions will be provided later by software updates from the website http://www.hitachi-america.us/digitalmedia To secure better performance, a wired network is preferable. Video transfer speed may vary

depending on number of projectors connected. Video and audio transfer speed may vary depending on number of projectors connected.*4

Hardware and software requirements f or network capability OS: One of the following. Windows

® XP Home Edition/Professional Edition (32bit version only), Windows Vista

® Home Basic/Home

Premium/Business/Ultimate/Enterprise, Windows

® 7 Starter/Home Basic/Home Premium/Professional/Ultimate/Enterprise PentiumCPU: ®4 (2.8GHz or higher) 16bit, XGA or higher (When using the “Live Graphic card:

Viewer” it is recommended that the display resolution of your computer be set to 1024x768.) 512 MB or higher 100MB or higher Internet ExplorerMemory: Hard disk space: Web browser: ®6.0 or higher CD-ROM drive

*If many computers are connected to the network or the connected computer is under excessive load, higher specifications may be required.

Easy Maintenance

The lamp door is on the top and the filter

cover is on the side, so maintenance and

replacement of these parts can be done

easily.

Network Function / Capability

Produkt Specifikationer

Mærke:	Hitachi
Kategori:	videoprojektorer
Model:	CP-WX3030WN
Bredde:	320 mm
Dybde:	245 mm
Højde:	85 mm
Vægt:	3000 g
Produktfarve:	Hvid
Lampe type:	UHP
Indbygget skærm:	Ingen
Produkttype:	Standard kasteprojektor
Wi-Fi:	Ja
Naturligt aspektforhold:	16:10
Understøttede videotilstande:	1080i,1080p,480i,480p,576i,720p
3D:	Ingen
Indbyggede højttaler(e):	Ja
Format til analogt signal:	NTSC,NTSC 4.43,PAL,SECAM
Udgangseffekt (RMS):	16 W
Antal HDMI-porte:	1
HDCP:	Ja
DVI-port:	Ingen
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	3
Ethernet LAN:	Ja
Wi-Fi-standarder:	802.11b,802.11g,Wi-Fi 4 (802.11n)
Skærmvisning (OSD):	Ja
Strømforbrug (standby):	0.5 W
Strømforbrug (typisk):	310 W
Understøttede billedformater:	4:3,16:9,16:10
Støjniveau:	37 dB
Fjernbetjening inkluderet:	Ja
Strømkilde:	Vekselstrøm
Certificering:	UL60950-1/cUL, FCC, CE, EN61000-3-2, EN61000-3-3, EN55022, EN55024, EN60950-1, WEEE, RoHS, ErP
Placering:	Desktop
Indbygget kortlæser:	Ingen
Full HD:	Ja
Luftfilter:	Ja
Antal indbyggede højttalere:	1
Mikrofonindgang:	Ja
Slot til kabellås:	Ja
Fokus:	Vejledning
Plug and play:	Ja
Antal farver:	16,78 millioner farver
Lyd (L, R) indgang:	1
Kontrastforhold (typisk):	4000:1
Antal VGA-porte (D-sub):	3
Kabellåseslids type:	Kensington
Lyd (L, R) udgang:	1
Brændviddeområde:	- mm
Projektor lysstyrke:	3000 ANSI lumens
Projektionsteknologi:	3LCD
Projektor indbygget opløsning:	WXGA (1280x800)
Skærmstørrelse kompatibilitet:	30 - 300 "
Projiceringsafstand:	- m
Trapezkorrektion, vertikal:	-30 - 30 °
RS-232-porte:	1
Levetid for lyskilde:	5000 t
Lampeeffekt:	225 W
Levetid for lyskilde (økonomisk tilstand):	6000 t
Lyskilde type:	Lampe
Antal af S-video-indgange:	1
Seriel grænsefladetype:	RS-232
Zoomforhold:	1.2:1
Støjniveau (økonomisk tilstand):	29 dB
HD-Ready:	Ja
Projektionsafstand (bred):	0.9 - 9.6 m
Projektionsafstand (tele):	1.1 - 11.5 m
