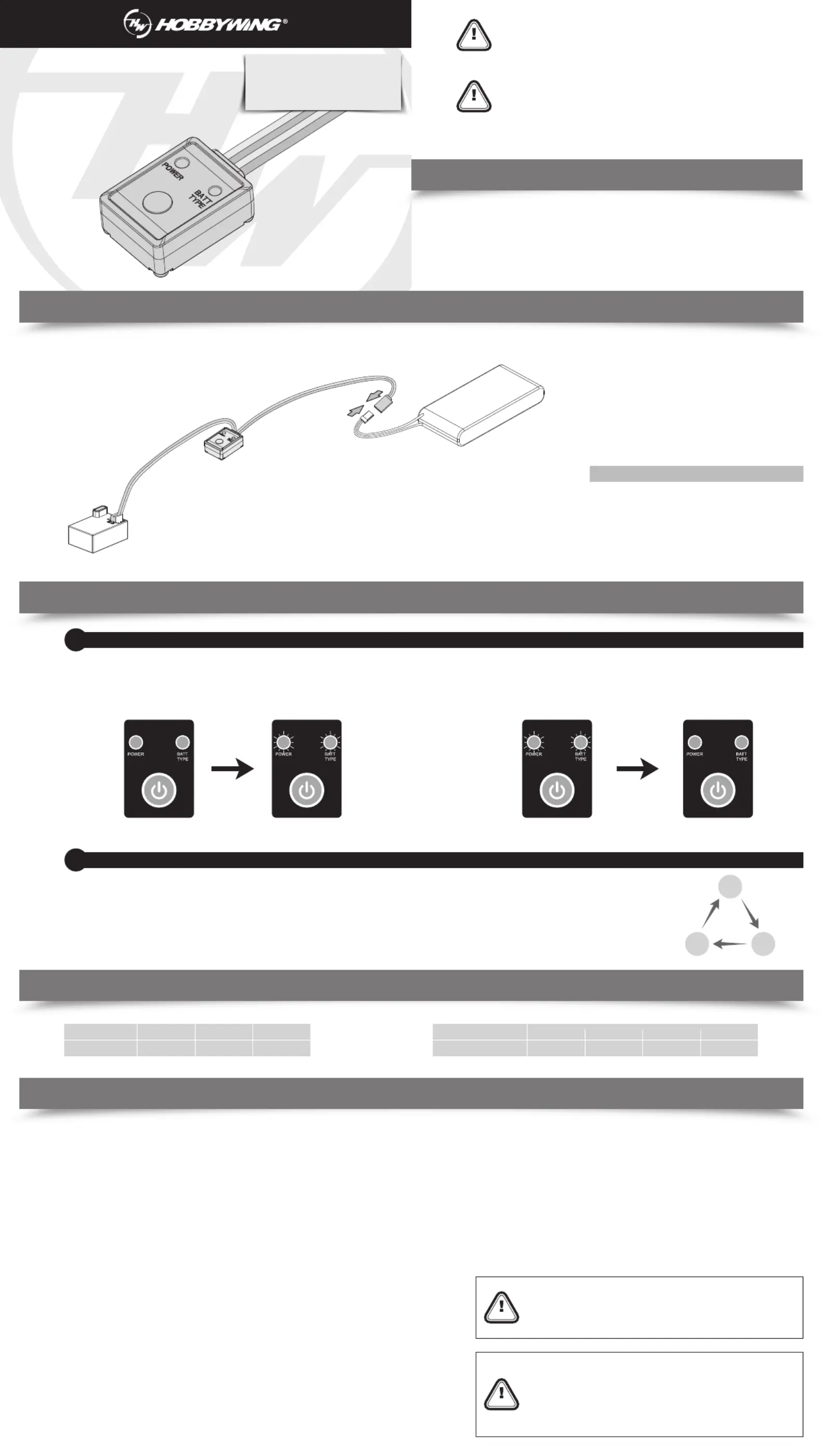

This Electronic Power Switch features multiple functions like battery capacity indication,

low-voltage indication, over-current protection, short-circuit protection and thermal

protection; it can control the ON/OFF of current flow to the receiver, and it is operated by

only one button, this helped to solve problems like bad contact caused by vibration or

oxidation of contacts conventional mechanical switches have. As its case is made of plastic,

it can be easily mounted at any place via the double-faced adhesive tape.

Besides, the waterproof design makes it applicable for all weather conditions.

Please connect the JR female connector (Input end) to the receiver battery and plug the JR male connector (Output end) into the Battery channel or any other unoccupied channel on the receiver

according to the following diagram.

Introduction

CA UT IONS

Thank you for purchasing this HOBBYWING product! Devices used on RC

models can be dangerous, any improper use may cause personal injury and

damage to devices, so please make sure to read through this manual before

use. In that we have no control over the use, installation and maintenance of

this product or other related electronics, no liability may be assumed nor will

be accepted for any damages, losses or costs resulting from the use of the

product. Besides, we don’t shoulder any responsibility for any losses caused by

unauthorized modifications to our product. The last but not least, we have the

right to change the product design, appearance, features and operating

requirements without notice.

AT T ENT ION

Begin to Use the Electronic Power Switch

Switching On/Off & Setting

Explanations for Different LED Status

Other Protections & Indications

Switching On/Off

Setting (Battery Type)

NiMH

LiPo LiFe

BATT TYPE LED

Battery Type

Green

LiPo

Blue

LiFe

Red

NiMH

POWER LED

Remaining Capacity

Solid Green

80%~100%

Solid Orange

60%~80%

Solid Red

30%~60%

Blinking Red

0%~30%

Specifications

LiPo / LiFe / NiMH

2S LiPo / 2S LiFe / 5S NiMH

12A

26.5X19.7X10.5mm (LxWxH)

7.5g

Battery

Receiver

Electronic Power Switch

Switching On:

Please press the power (/RED) button to turn on the electronic switch after connecting

it to the battery; then both the POWER LED and the BATT TYPE LED will come solid on.

(For detailed explanation about LED status, please check the two forms below)

It’s important to set the battery type properly. If not, then the battery capacity indicator and low-voltage indicator will function abnormally.

Therefore, when the first time you turn on this switch and find the color of the BATT TYPE LED doesn’t match with the actual battery type, please set

it again. And you also need to reset the battery type after changing another type of battery. The following part explains how to set the battery type:

Keep pressing the POWER button after turning on the electronic switch, then the BATT TYPE LED will blink, about 3 seconds later the switch will

enter the battery type selection mode and the LED will flash Green/Blue/Red circularly; release the button, then you can select the corresponding

battery type to the color. (Please check the “BATT TYPE LED” form below for reference.)

Low-voltage Indication

When the battery voltage goes below the following threshold value for about 2 seconds, the POWER LED will blink RED slowly in this way “ ”, but the electronic switch won’t cut off its power ☆ ☆ ☆, ,

output. Threshold Voltage of Different Batteries are listed below:

For a 2S LiPo: 6.0V;

For a 2S LiFe: 4.0V;

For a 5cells Ni-MH: 4.5V;

Thermal / Overheat Protection

1. Threshold “Temperature”: 100 (212℃ ℉);

2. When the internal temperature of the electronic switch goes above 100 (212 ) for about 2 seconds, the POWER LED will flash RED in the following way “ ”, but the switch ℃ ℉ ☆☆☆ ☆☆☆ ☆☆☆, ,

will continue outputting power.

Over-current / Short-circuit Protection

1. Trigger condition of the over-current protection: The current is between 20~39Amp and that lasts

for about 500ms;

Trigger condition of the short-circuit protection: The current is over 40Amp and that lasts for

about 500µs.

2. When the over-current/short-circuit protection is activated, the electronic switch will automatically

CUT OFF the output and enter the protection; and the POWER LED will blink RED in this way

“☆☆ ☆☆ ☆☆, , ”.

Battery Polarity Reversal Protection

( )Note: It only works when no load is connected to the switch

1. If it’s not connected to any load, the electronic switch will trigger this protection to stop itself from

starting up when detected the battery polarity at the input end is reversed.

2. If it’s connected to some load and the battery polarity is wrong, the receiver and other connected

devices will get damaged as they get the polarity-reversed voltage from the electronic power switch.

Switching Off:

After turning on the electronic switch, press the power button again for about 0.5

second can turn off the switch and make both LEDs go out.

Press the power button, then both LEDs will turn solid on. Press the button for about 0.5 second, both LEDs will turn off.

BATT TYPE LED Different LED color indicates different battery type. POWER LED: For battery capacity indication.：

USER MANUAL

Electronic Power Switch

Battery Type

Input Voltage

Max. Current

Size

Weight

Either over-current protection or short-circuit protection can cause the

receiver to lose power supply, so please ensure the current draw of all

the devices connected to the receiver is below 12Amp (12 Amp is the

maximum output current this switch can stand).

IMPORT ANT

For avoiding possible damages caused by battery reversal, we strongly

recommend disconnecting the JR male connector (Output end) from your

receiver before connecting this electronic power switch to the battery;

After connecting to the battery, try to turn on the electronic switch first;

if you can turn it on normally, then you can plug the JR male connector

(Output end) into the receiver.

IMPORT ANT
