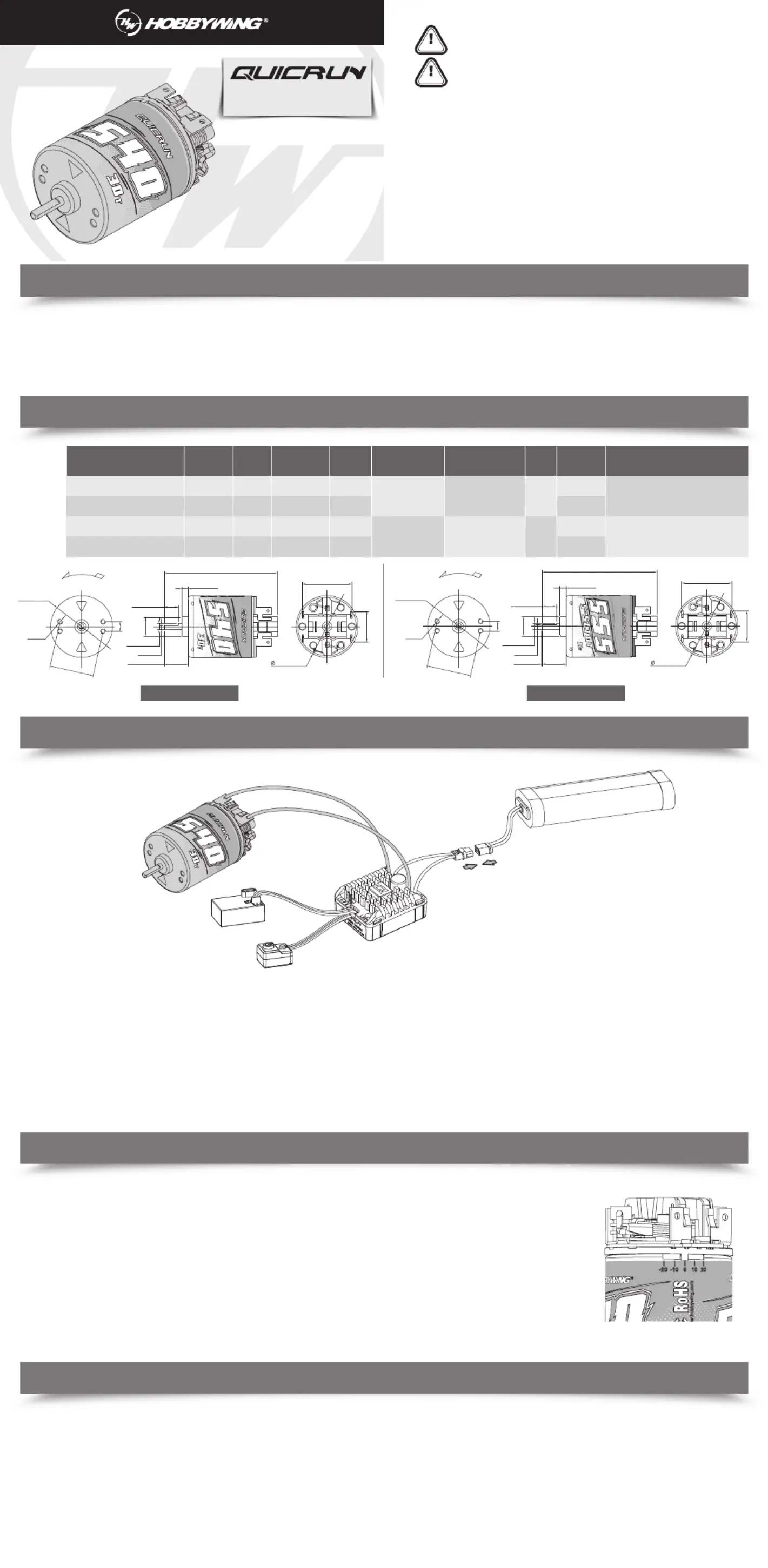

Thank you for purchasing this HOBBYWING product! Any
improper use may cause personal injury and damage to the
product and related devices. We strongly recommend
reading through this user manual before use and strictly
abide by the specified operating procedures. We shall not
be liable for any liability arising from the use of this
product, including but not limited to reimbursement for
incidental or indirect losses. Meanwhile, we do not assume
any responsibility caused by unauthorized modification of
the product. We have the right to change the product
design, appearance, performance and use requirements
without notice.
CAU T IO NS
AT T ENT IO N
Switch
Motor
Electronic Speed Controller
Battery
Receiver
QUICRUN Brushed 540 QUICRUN Brushed 555
03 I sn ta at on onne t onll i &Cci
05 Gear ngi
04 Ti i jm ng Ad u tments
02 Spe f at onci icis
01 Warn ngis
• Please carefully check power devices and manual of car frame to ensure the power pairing is reasonable. Avoid wrong pairing to overload and damage
the motor.
• Always wire up all the parts of the equipment carefully. If any of the connections come loose as a result of vibration, your model RC may lose control.
• Never allow the motor case to get 85 degrees Celsius (185 degrees Fahrenheit) because the motor maybe damaged by high temperature.
• If the motor stops during running, please confirm whether the carbon brush is stuck or not.
Reasonable selection of gear ratio is very important. Improper gear ratio may bring you great loss. You can select the gear ratio according to the following points!
1. The running temperature of the motor
The motor temperature should be lower than 85 degrees Celsius (185 degrees Fahrenheit) in operation. Because high temperature may cause the
magnets to get demagnetized, the coil to get melt and short circuited, and the ESC to get damaged. A suitable gearing ratio can effectively prevent the
motor from overheating.
2. The principle of selecting gear ratio
To avoid the possible damage to ESC and motor caused by the overheat, please start with a small pinion/a big FDR and check the motor temperature
regularly. If the motor and ESC temperature always stay at a low level during the running, you can change a big pinion/a low FDR and also check the
motor temperature regularly to ensure that the new FDR is suitable for your vehicle, local weather and track condition. (Note: For the safety of electric
devices, please check the ESC and motor temperature regularly.)
1. Install the motor
There are 4 motor mounting holes in M3 specification, and the mounting holes are 5mm in depth, before installing the motor on the vehicle, please carefully
confirm whether the specification of the screws is appropriate according to the thickness of the motor mounting plate to avoid damage to the motor due to
too long screws.
2. How to Connect the Motor to an ESC
As shown in the figure above, connect the esc with the two wires of the motor. If the motor rotation direction is incorrect, it can be adjusted by exchanging
the positions of the two wires of the motor.
3. Inspection
Before power on the esc, please check the reliability of the motor installation and the correctness of all connections.
As shown in the right figure, the motor has an adjustable timing range from - 20 degrees to + 20 degrees, and the default
value is 0 degrees. The timing can be adjusted by unfastening the two screws of the rear end plate of the motor and
rotating the rear end plate.
Timing adjustment mechanism: When the motor rotation direction is CCW (counterclockwise), the effective range of timing
is between 0 and + 20 degrees, that is, adjust the timing in the direction of + 20 degrees, the motor rpm will increase;
When the motor rotation direction is CW (clockwise), the effective range of timing is between 0 and - 20 degrees, that is,
adjust the timing in the direction of - 20 degrees, the motor rpm will increase.
Note:
1. CCW (counter clockwise) and CW (clockwise) directions are defined as the rotation direction of the motor when the
output shaft of the motor faces the face.
2. Adjusting the timing will increase the rpm of the motor, so the running current will also increase. Therefore, please
adjust it carefully according to the load.
Model
QUICRUN Brushed 540-30T
QUICRUN Brushed 540-40T
QUICRUN Brushed 555-11T
QUICRUN Brushed 555-13T
30T
40T
11T
13T
30404313
30404314
30404315
30404316
PN Turns （ ）RPM@7.4V
≤12.6V
≤12.6V
≤10V
≤12.6V
Input
Voltage
Diameter/
Length(mm)
14000
10500
17000
14000
ϕ=36mm(1.42in)
L=53mm(2.09in)
ϕ=36mm(1.42in)
L=58.5mm(2.30in)
Shaft Diameter/
Length (mm)
ϕ=3.175mm(0.125in)
L=16.5mm(0.65in)
ϕ=3.175mm(0.125in)
L=16.5mm(0.65in)
Slot
3
Weight
(W/O Wires)
168g
169g
193g
193g
51/10 Crawler / Short course truck /
Monster truck
Applications
1/10 On-road / Buggy / Crawler
& 2WD Truck
QUICRUN Brushed 540 & 555
USER MANUAL
20220922
CCW
69.5±0.5
3.7±0.2
10.0±0.2
35.8±0.2
28
22.5
35.5±0.2
25.0±0.2
4-M3
5.0
11.0±0.2
3.175－0.008
＋0
2.5－0.05
＋0
16.5±0.5
CCW
35.5±0.2
35.8±0.2
28
22.5
25.0±0.2
4-M3
5.0
75.0±0.5
3.7±0.2
11.0±0.2
11.0±0.2
3.175－0.008
＋0
2.5－0.05
＋0
16.5 0.5±0.05~0.5
