PROLINE G2 INTERNAL COMPONENTS Rack-Mount ShelveS and acceSSoRieS

nVent.com/HOFFMANSUBJECT TO CHANGE WITHOUT NOTICEMODULAR ENCLOSURE SOLUTIONS1 Spec-01202 F

RACK-MOUNT SLIDING SHELF

The Rack-Mount Sliding Shelf allows easy access to shelf-mounted

devices. Shelf is 16-gauge steel with 12-gauge steel supports.

The entire assembly is nished with RAL 7035 textured light-gray

polyester powder paint. The shelf mounts to the front surface of

front and back rack angles.

When mounted directly to a frame, load rating is 150 lb. (68 kg) with

four rack angle mountings and 75 lb. (34 kg) with front rack angle

mounting.

Rack accessories that are shorter than the enclosure depth can be

mounted to rack angles or frame accessory brackets attached to

grid straps. Order these items separately.

Note: only mount shelves in applications with four points of

attachment.

Bulletin: P20

2-IS O2



>@



>@





>@

Catalog Number

D Max

in./mm

Shelf Pullout

in./mm Fits Rack Width Rack Units

P19SHP68 37.40

950

16.72

425

16.20

412

17.00

432

19 in. 2

P19SHP810 41.30

1050

24.59

625

16.20

412

17.00

432

23 in. 2

TOOL-LESS SHELF

An easy-to-install tool-less vented 19-in. shelf. Mounts onto

rack angles that have EIA-spaced square holes (.375 in.). Shelf

slides open and provides a variable-sized, continuous surface

for equipment. Back of shelf has oval cutouts for power and data

cables. Accessory hole patterns at back of shelf t small and large

D-rings to help manage cable. Made of steel with a 150 lb. (68 kg)

static load rating. Available with RAL 9005 black or RAL 7035 gray

polyester powder coat nish.

Note: For square-hole rack angles only!

Bulletin: DACCY

Catalog Number Description Finish

Minimum

Depth

mm/in.

Maximum

Depth

mm/in. Rack Angle Type

D19FVt69G Shelf, vented, 19 in. tool-less Gray 495

19.50

851

33.50

Square hole only

D19FVt912G Shelf, vented, 19 in. tool-less Gray 792

31.20

1151

45.30

Square hole only

Minimum and maximum depth measured from rack angle to rack angle.

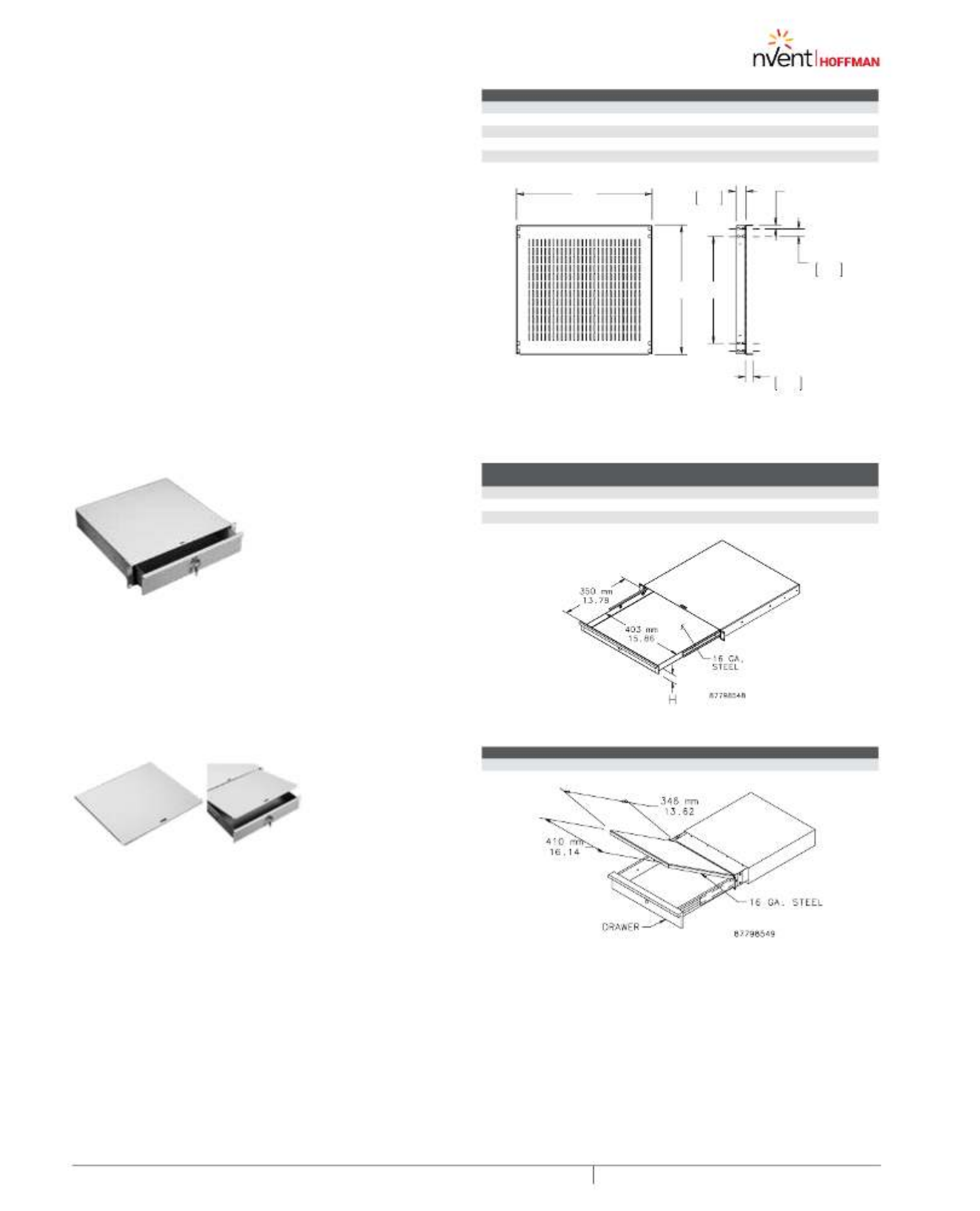

PROLINE G2 INtERNaL COmPONENts Rack-Mount ShelveS and acceSSoRieS

PH 763.422.2211nVent.com/HOFFMAN mOduLaR ENCLOsuRE sOLutIONs 2

Spec-01202 F

RaCk-mOuNt fIxEd shELf

aPPLICatION

The PROLINE G2 Rack Mount Frame Shelf mounts to the front and

rear rack angles to provide a stationary surface for equipment.

sPECIfICatIONs

•

Mounts to front and rear rack angles

•

Ventilation slots in shelf surface

•

14-guage (1.75mm) steel shelf with 12-gauge (2.5mm) supports

•

Adjustable to t multi-depth enclosures or rack angle placements

•

Mounting hardware included

fINIsh

•

Polyester powder paint; RAL 7035 textured light gray standard

•

Custom colors available

LOad RatING

150 lb. (68 kg)

Bulletin: P40

Catalog Number D (mm) D (in.) E (mm) E (in.) J (mm) J (in.) Fits Rack Width

P2RSH4 255 10.05 175 6.89 477 18.78 19 in.

P2RSH5 355 13.99 303 11.93 477 18.78 19 in.

P2RSH6 455 17.92 376 14.81 477 18.78 19 in.

P2RSH8 655 25.80 576 22.69 477 18.78 19 in.

P2RSH10 855 33.67 776 30.56 477 18.78 19 in.

'

-



>@







 





(

 







RaCk-aNGLE mOuNtEd dRawER

Steel drawer for 19-in. rack-angle mounting. Mounts to the front

surface of the rack angles. Integral steel box contains the drawer

and protects surrounding internal equipment. Extends 13 in. (330

mm) on ball bearing slides. Front includes handle and key lock.

Finish is RAL 7035 textured light-gray polyester powder paint.

Mounting hardware is included.

Bulletin: P20

Catalog Number H (mm) H (in.)

Fits Rack

Width

Rack

Units

P19DR1uS 43 1.69 19 in. 1

P19DR2uS 88 3.47 19 in. 2

P19DR3uS 132 5.20 19 in. 3

wRItING suRfaCE

A 16-gauge steel cover mounts on top of the drawer to serve as a

writing surface and drawer cover. Finish is RAL 7035 textured light-

gray polyester powder paint.

Bulletin: P20

Catalog Number Fits

P19WS Drawer

Produkt Specifikationer

Mærke:	Hoffman
Kategori:	Ikke kategoriseret
Model:	D19FVT69G
Type:	Stativhylde
Dybde:	495 mm
Vægt:	7393 g
Antal pr. pakke:	1 stk
Produktfarve:	Grå
Husmateriale:	Stål
Hurtig installationsvejledning:	Ja
Maksimal vægtkapacitet:	68 kg
Tykkelse af materiale:	1.9 mm
Rackkapacitet:	19U
Dybde (maks.):	851 mm
Perforeret:	Ja
