Side 1/4

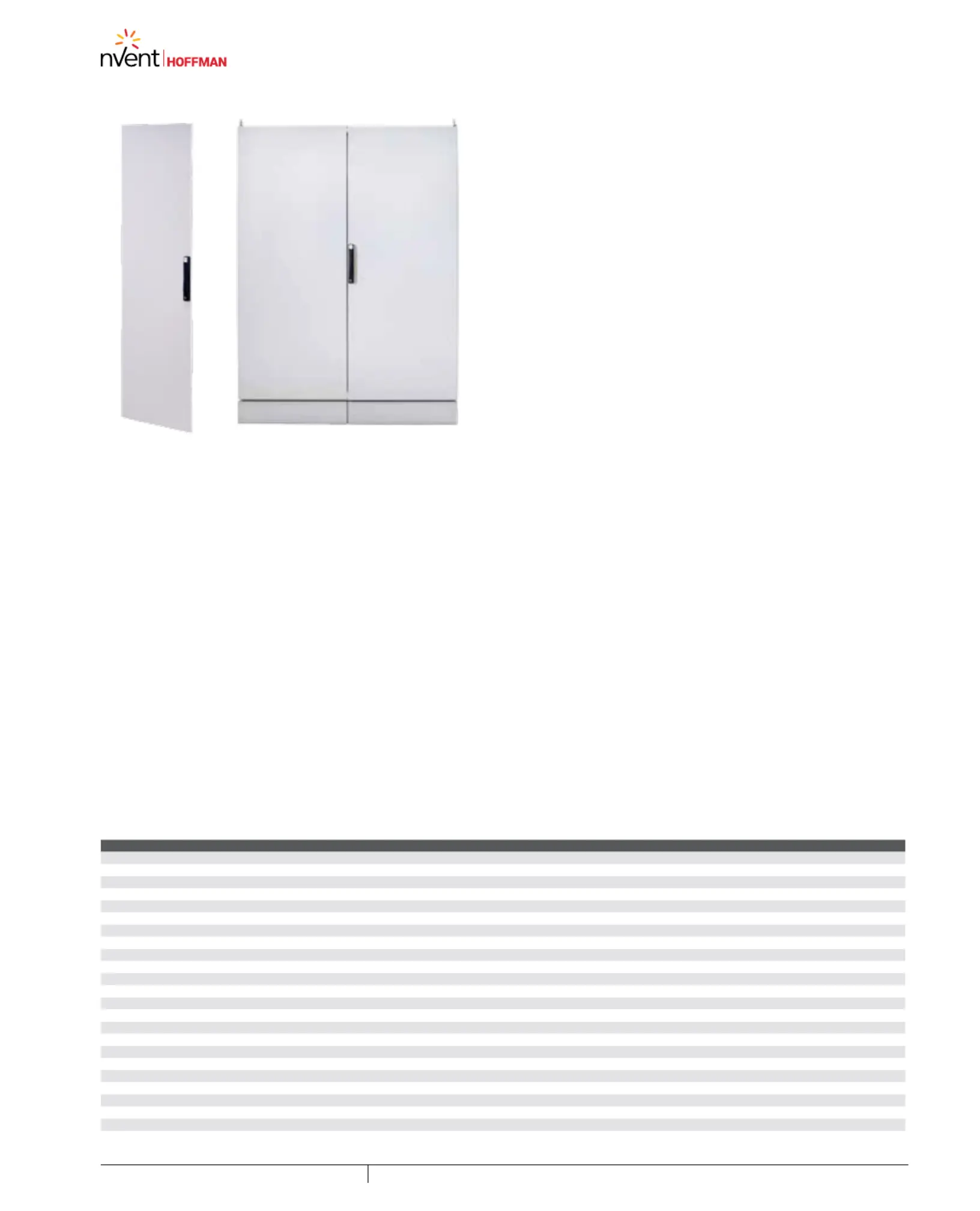

PROLINE G2 ExtERNaL COmPONENts Doors

nVent.com/HOFFMANSUBJECT TO CHANGE WITHOUT NOTICEmOduLaR ENCLOsuRE sOLutIONs1

Spec-01119 H

sOLId dOORs (sINGLE OR OvERLaPPING dOubLE)

aPPLICatION

ProLine G2 Solid Doors (Single or Overlapping Double) feature a

solid swing and a high load capacity. The Smooth Glide latching

system is made from quality components and incorporates an

innovative timed latch action, ensuring a solid door seal with a low

closure force. Sold individually.

FEatuREs

•

Smooth Glide latching system – for a smooth, reliable and

repeatable door close over enclosure lifetime

•

Low-proleSwingHandlewithkeylock;otheroptionsavailable

•

Seamlesspolyurethanegasket(ULComponentRecognized)

provides a watertight, dust-tight seal against moisture and

contaminants

sPECIFICatIONs

•

Single doors available for frames up to 1000 mm wide

•

Overlapping double doors available for frames 800 mm wide and

greater

•

Door bar system on all doors

•

Timed latch engagement to ensure top and bottom of door catch

reliably

•

Durable,double-angedlatchrodandthreeDelrin

rollers to

prevent metal-on-metal grinding

• 3-point latch system for doors 1000 mm or greater in height

• Keylockhandlestandard;otheroptionsavailable

• Singledoorscanbehingedonleftorright(defaultleft);

overlapping double doors can have the primary door as the left or

right door (default right)

• 14 gauge (1.75 mm) mild steel

•

140-degree hinging standard (180-degree hinge option available)

• Door can be reversed without removing the side covers

• Canbeusedonfrontorrearofenclosure;canbeusedonthe

sides of enclosure with side door adapter (not included)

• Two grounding studs

• All mounting hardware included

• Sold individually

Overlapping Double Doors – Additional Specications

• Primary door with Smooth Glide latching system

• Secondary door has two latch points with a center lever to ensure

secure door closure

EMC Doors – Additional Specications:

• Plated to provide corrosion resistance while maintaining a metal-

to-metalcontactwiththemetalbergasket

• Metalizednon-wovenfabricEMI/RFImaterialcoveringUL94HP

ratedurethanefoamgasket

• Plating exposed in interior and paint over plated exterior

• LongerleadtimesrequiredforEMCitems

FINIsH

• Polyesterpowderpaint;RAL7035texturedlightgraystandard

• Customcolorsavailable

LOad RatING

•

250/113kg,safetyfactor1.5;framesize:2000x600x800mm(load

ratingsvarybyframesize)

aCCEssORIEs

• ProLine Grounding Kit

• Door Stop Kit

• 180-Degree Hinge Kit

• Side Door Adapter

• Flush Swing Handles

• L Handle

• FlushBezels

• Small Flush Swing Handle

• SteelDataPocket

• ThermoplasticDataPocket

• Door Bar Grid Straps

• DoorSupportRollerKit

Bulletin: P40

Standard Product Single Door

Catalog Number

H (mm) H (in.) W (mm) W (in.) Fits Frame HxW (mm)

Description

P2D64 583 23.0 398 15.7 600x400 Painted

P2D66 583 23.0 598 23.5 600x600 Painted

P2D68 583 23.0 798 31.4 600x800 Painted

P2D86 783 30.8 598 23.5 800x600 Painted

P2D88 783 30.8 798 31.4 800x800 Painted

P2D105 983 38.7 498 19.6 1000x500 Painted

P2D106 983 38.7 598 23.5 1000x600 Painted

P2D108 983 38.7 798 31.4 1000x800 Painted

P2D125 1183 46.6 498 19.6 1200x500 Painted

P2D126 1183 46.6 598 23.5 1200x600 Painted

P2D128 1183 46.6 798 31.4 1200x800 Painted

P2D145 1383 54.4 498 19.6 1400x500 Painted

P2D146 1383 54.4 598 23.5 1400x600 Painted

P2D146HF 1383 54.4 598 23.5 1400x600 EMC

P2D164 1583 62.3 398 15.7 1600x400 Painted

P2D165 1583 62.3 498 19.6 1600x500 Painted

P2D166 1583 62.3 598 23.5 1600x600 Painted

P2D168 1583 62.3 798 31.4 1600x800 Painted

P2D184 1783 70.2 398 15.7 1800x400 Painted

P2D185 1783 70.2 498 19.6 1800x500 Painted

P2D186 1783 70.2 598 23.5 1800x600 Painted

P2D186HF 1783 70.2 598 23.5 1800x600 EMC

P2D187 1783 70.2 698 27.5 1800x700 Painted

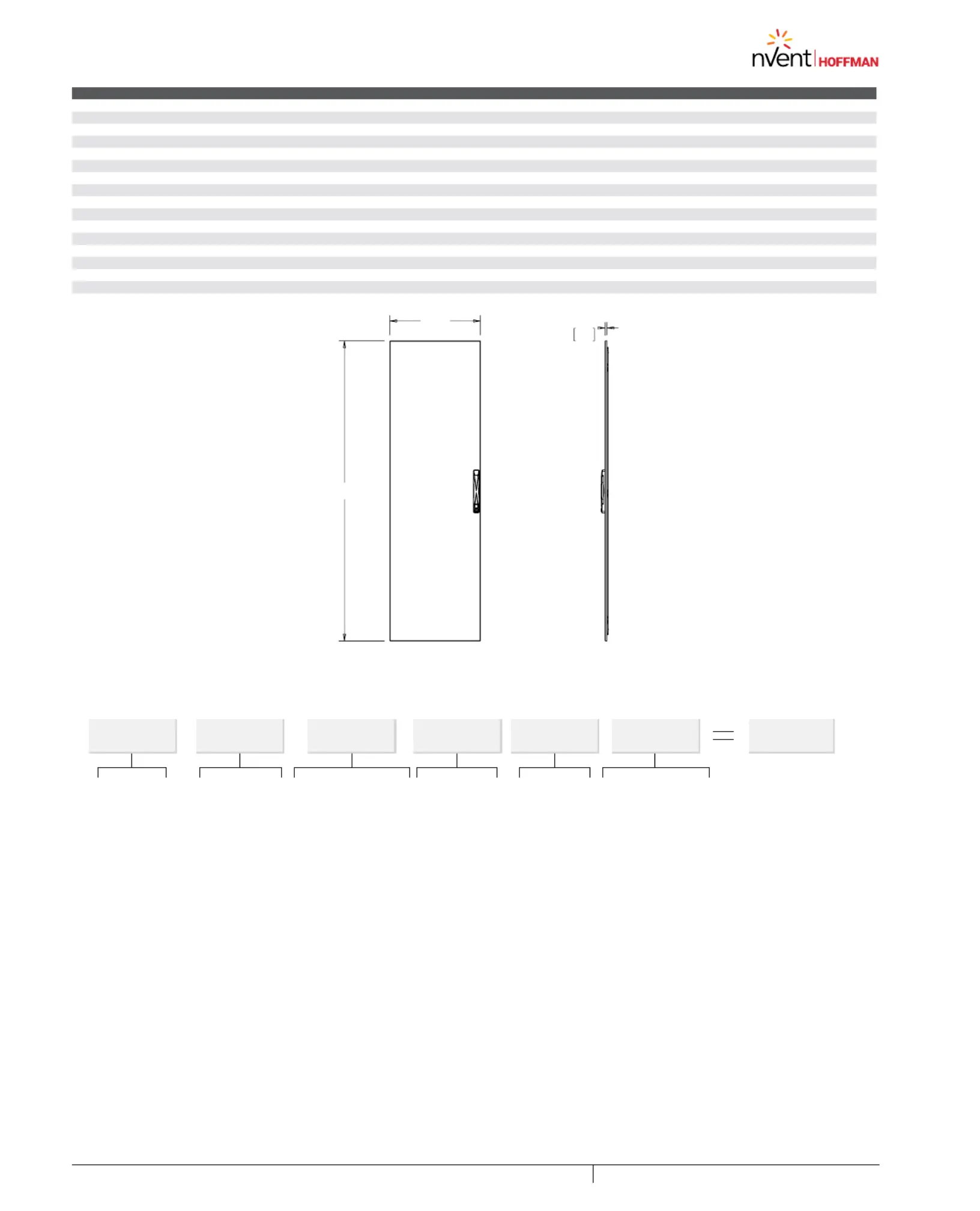

PROLINE G2 ExtERNaL COmPONENts Doors

PH763.422.2211nVent.com/HOFFMAN mOduLaR ENCLOsuRE sOLutIONs 2

Spec-01119 H

Catalog Number

H (mm) H (in.) W (mm) W (in.) Fits Frame HxW (mm)

Description

P2D188 1783 70.2 798 31.4 1800x800 Painted

P2D189 1783 70.2 898 35.4 1800x900 Painted

P2D1810 1783 70.2 998 39.3 1800x1000 Painted

P2D205 1983 78.1 498 19.6 2000x500 Painted

P2D206 1983 78.1 598 23.5 2000x600 Painted

P2D206HF 1983 78.1 598 23.5 2000x600 EMC

P2D207 1983 78.1 698 27.5 2000x700 Painted

P2D208 1983 78.1 798 31.4 2000x800 Painted

P2D208HF 1983 78.1 798 31.4 2000x800 EMC

P2D2010 1983 78.1 998 39.3 2000x1000 Painted

P2D225 2183 85.9 498 19.6 2200x500 Painted

P2D226 2183 85.9 598 23.5 2200x600 Painted

P2D226HF 2183 85.9 598 23.5 2200x600 EMC

P2D227 2183 85.9 698 27.5 2200x700 Painted

P2D228 2183 85.9 798 31.4 2200x800 Painted

P2D228HF 2183 85.9 798 31.4 2200x800 EMC

P2D2210 2183 85.9 998 39.3 2200x1000 Painted

:

+











Model

PROLINE G2

Component

Door

Blank

Specialty

Blank = standard

HF = EMC

protected

Blank

Type

Height

22 = 2200

20 = 2000

18 = 1800

16 = 1600

14 = 1400

12 = 1200

10 = 1000

8 = 800

6 = 600

Width*

18 = 1800

16 = 1600

12 = 1200

10 = 1000

9 = 900

8 = 800

7 = 700

6 = 600

5 = 500

4 = 400

P2D208

Catalog Number

Blank = single door

O = lappingover

double door

W = window door, single,

polycarbonate

WG = window door, single,

safety glass

WO = window door,

overlapping double,

polycarbonate

WOG = window door,

overlapping double,

safety glass

A = side door

adapter

DR = disconnect right

DL = disconnect left

DR2 = disconnect right

large cutout

F = dress frame

NOTE: Not ever y combination is

available as a standard product.

*Side Door Adapters use Depth

instead of Width
