T5 Smart
Thermostat
Programmable
Thermostat
Quick Install Guide
For more information visit honeywellhome.com
Mode
Menu Fan
Mode Fan
Heat Auto
Wake Away Home Sleep
Following Schedule
RCHT8610WF2006,
RCHT8610WF2014,
RCHT8610WF3005,
RCHT8612WF2005,
RCHT8612WF2015,
RCHT8612WF3006,
RTH8800WF2022,
Read before installing
2
Included in your box:
Screws and
anchors
UWP™
Mounting
System
(UWP)
T5 Smart
Thermostat
Quick Install
Guide
5
Compatibility
• Compatible with most heating, cooling, and heat pump systems
• Required: 24 VAC power (“C” wire)
• Does not work with electric baseboard heat (120-240V)
• Does not work with millivolt systems
• Does not support input (S terminals) for indoor and outdoor sensors
• Does not support relay (U terminals) for ventilation
• Android or iOS smartphone, tablet, or device
For help, contact:
WEB honeywellhome.com
PHONE 18006333991
SOCIAL Twitter: @Honeywell_Home, Facebook: Honeywell Home
CAUTION: MERCURY NOTICE
If this product is replacing a control that contains mercury in a sealed tube, do not place the old
control in the trash. Contact your local waste management authority for instructions regarding
recycling and proper disposal.
CAUTION: EQUIPMENT DAMAGE HAZARD
Compressor protection is bypassed during testing. To prevent equipment damage, avoid cycling the
compressor quickly.
CAUTION: ELECTRICAL HAZARD
Can cause electrical shock or equipment damage. Disconnect power before beginning installation.
REQUIRED: 24 VAC POWER (“C” WIRE)
CAUTION: ELECTRONIC WASTE NOTICE
The product should not be disposed of with other household waste. Check for the nearest authorized
collection centers or authorized recyclers. The correct disposal of end-of-life equipment will help
prevent potential negative consequences for the environment and human health.
6
Removing your old thermostat
2 Check that your system is off
Change the temperature on your old
thermostat. If you don’t hear the system
turn on within 5 minutes, the power
is off.
Note: If you have a digital thermostat
that has a blank display, skip this step.

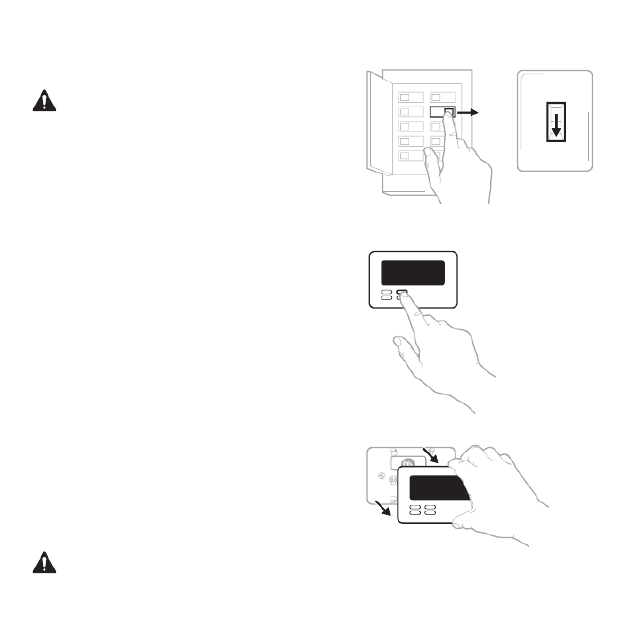

1 Turn power OFF
To protect yourself and your equipment,
Turn off the power at the breaker box
or switch that controls your heating/
cooling system.
3 Remove your old thermostat from the
wall plate
On most thermostats, you can take off
the thermostat by grasping and gently
pulling. Some thermostats may have
screws, buttons, or clasps.
Do not remove any wires from your
thermostat at this time!
OFF
OFF
ON
75
Breaker box
Switch
8
7 Record if you have wires in the following terminals
Do not include jumpers as a part of your count. The thermostat does not need
jumpers.
Terminal Wire Color
R
Rh
Rc
8 Write down the color of the wires
Check mark the wires that are connected to terminals. Next to the check mark,
write down the color of the wire. Do not include jumpers as a part of your count.
Check all that apply (Not all will apply):
Terminal Wire Color
Y
Y2
G
C
Terminal Wire Color
A or L/A
O/B
W2 or AUX
E
W
K
Required
S and U terminals are not supported with this thermostat.
If there are wires in terminals that are not listed, you will need additional wir-
ing support. Visit honeywellhome.com to find out if the thermostat will work
for you.
10
Installing your T5 Smart Thermostat

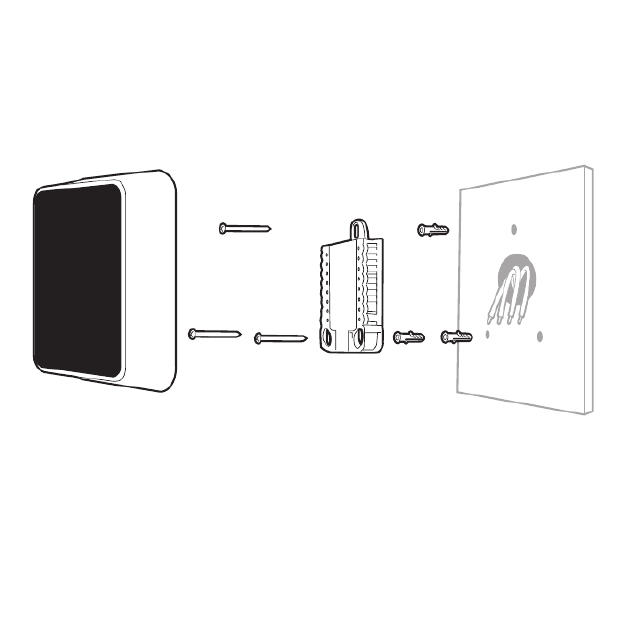

T5 Smart Thermostat Screws
UWP
Mounting
System
Anchors Wall
12

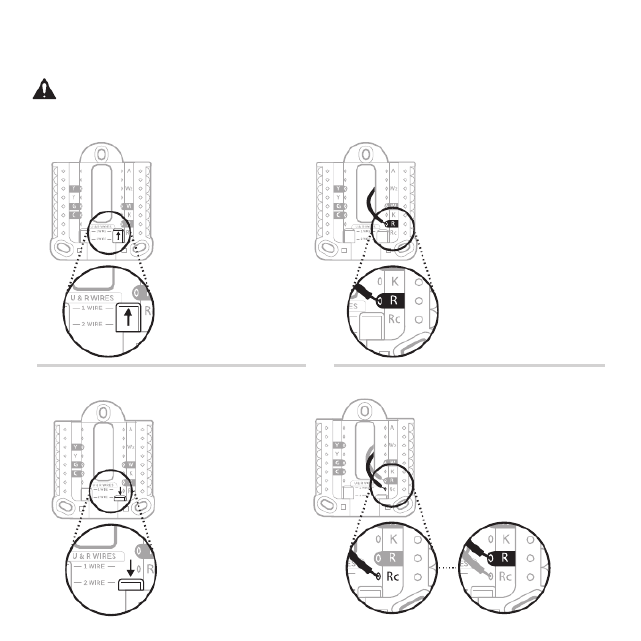

12 Set R-switch position and insert R-wire or wires
Set the R-switch up or down based on your wiring notes in Step 7.
Insert wires into the inner holes of the terminals on the UWP. The tabs will
stay down once the wire is inserted.
If you have 1 R-wire (R, Rh, or Rc)
If you have 2 R-wires (R or Rh, and Rc)
or
1. Set R-switch to
the up position.
1. Set R-switch
to the down
position.
2. Insert your R-wire
(R, Rh or Rc) into
R-terminal.
2. Insert your Rc wire
into Rc-terminal.
3. Insert your R or Rh
wire into RTerminal.
13
13 Connect remaining wires from Step 8
Tip: Do not mount the UWP to the wall
prior to connecting the wires.

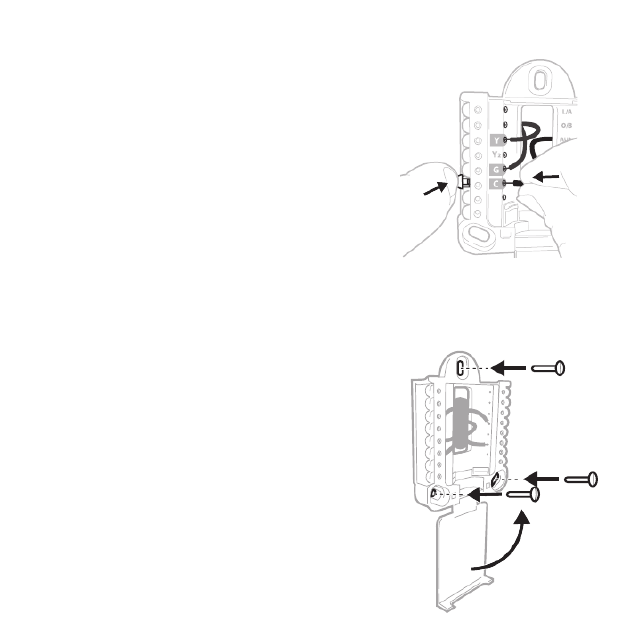

Depress the tabs to put the wires into
the inner holes of their corresponding
terminals on the UWP (one wire per ter-
minal) until it is firmly
in place.
Gently tug on the wires to verify they
are secure.
Tip: If you need to release the wires
again, push down the terminal tabs on
the sides of the UWP.
14 Mount the UWP and close the door
Mount the UWP using the provided
screws. Install all three screws for a
secure fit on your wall. Close the door
after you’re finished.
This wiring is just an example,
actual wiring may vary.
Use 3x
supplied
screws
#8 11/2”
(38.1 mm)
6
Retrait de l’ancien thermostat
2 Vérifiez que le système est
hors tension
Modifiez la température sur l’ancien
thermostat. Si le système ne se met
pas en marche dans les 5 minutes qui
suivent, l’alimentation vers l’appareil est
coupée.
Remarque : Si vous avez un thermostat
numérique qui a un écran vierge, sautez
cette étape.

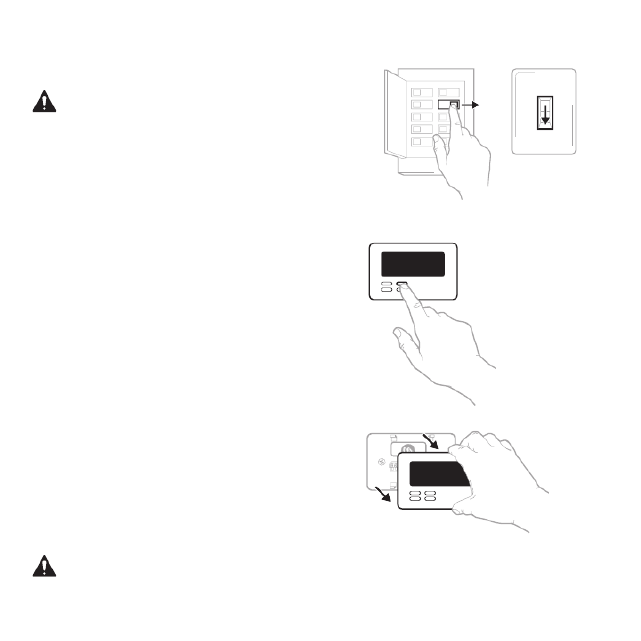

1 Coupez l’électricité
Pour vous protéger ainsi que pour
protéger votre équipement, coupez
l’alimentation au niveau du disjoncteur
ou de l’interrupteur contrôlant le
système de chauffage/refroidissement.
3 Retirez l’ancien thermostat de la
plaque murale
Avec la plupart des thermostats,
vous pouvez le retirer en saisissant le
thermostat et en le tirant doucement.
Certains thermostats peuvent avoir
des vis, des boutons ou des fermoirs.
Ne retirez aucun fil du thermostat à
ce stade!
75
Disjoncteur
Interrupteur
Marche
Marche
Arrêt
