HP Pavilion dv6 Entertainment PC
Maintenance and Service Guide
© Copyright 2008, 2009 Hewlett-Packard
Development Company, L.P.
ATI Mobility Radeon is a registered
trademark of Advanced Micro Devices, Inc.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-
Packard Company under license. Intel,
Celeron, Core, and Pentium are trademarks
of Intel Corporation in the U.S. and
other countries. Microsoft, Windows, and
Windows Vista are U.S. registered
trademarks of Microsoft Corporation.
SD Logo is a trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
Third Edition: May 2009
First Edition: December 2008
Document Part Number: 505495-003
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Product description
2 External component identification
Top components ................................................................................................................................... 8
TouchPad ............................................................................................................................ 8
Lights ................................................................................................................................... 9
Buttons, speakers and fingerprint reader ........................................................................... 11
Keys ................................................................................................................................... 13
Front components .............................................................................................................................. 14
Rear component ................................................................................................................................. 15
Right-side components ....................................................................................................................... 15
Left-side components ......................................................................................................................... 16
Bottom components ........................................................................................................................... 17
Display components ........................................................................................................................... 18
Wireless antennas (select models only) ............................................................................................. 19
3 Illustrated parts catalog

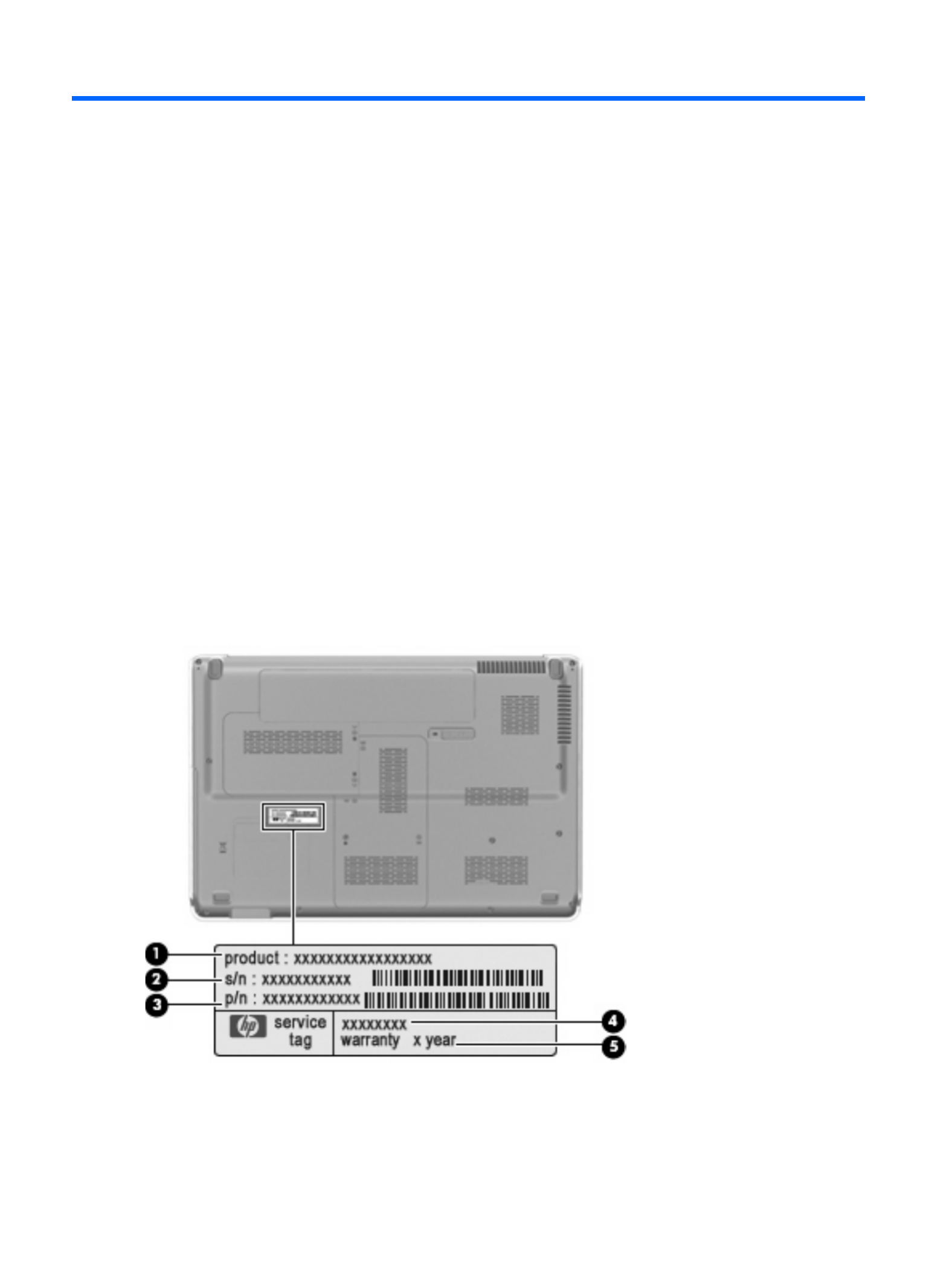

Service tag ......................................................................................................................................... 20
Computer major components ............................................................................................................. 21
Display assembly components ........................................................................................................... 33
AntiGlare display assembly spare parts ............................................................................ 33
BrightView display assembly spare parts .......................................................................... 35
Plastics Kit .......................................................................................................................................... 37
Cable Kit ............................................................................................................................................. 38
Miscellaneous parts ............................................................................................................................ 39
Sequential part number listing ............................................................................................................ 40
4 Removal and replacement procedures
Preliminary replacement requirements ............................................................................................... 52
Tools required .................................................................................................................... 52
Service considerations ....................................................................................................... 52
Plastic parts ....................................................................................................... 52
Cables and connectors ..................................................................................... 53
v
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Intel Core Duo P8400 2.26-GHz with 3-MB L2
cache and 1066-MHz FSB
√ √
Intel Core Duo P7550 2.26-GHz with 3-MB L2
cache and 1066-MHz FSB
√ √
Intel Core Duo P7450 2.13-GHz with 3-MB L2
cache and 1066-MHz FSB
√ √
Intel Celeron® 900 2.20-GHz with 1-MB L2 cache
and 667-MHz FSB
√
Intel Celeron® T1600 1.66-GHz with 1-MB L2
cache and 667-MHz FSB
√
Chipset Northbridge: Intel PM45 √
Northbridge: Intel GM45 √
Southbridge: Intel ICH9M √ √
Graphics nVIDIA GeForce 9200M GS with 512 MB of
dedicated video memory (64 MB × 16 DDR2 × 4
PCs)
●Up to 767 MB video memory on computer
models equipped with 1 GB of main system
memory
●Up to 1279 MB video memory on computer
models equipped with 2 GB of main system
memory
●Up to 1791 MB video memory on computer
models equipped with 3 GB of main system
memory
●Up to 1791 MB video memory on computer
models equipped with 4 GB of main system
memory (32-bit OS)
●Up to 2303 MB video memory on computer
models equipped with 4 GB of main system
memory (64-bit OS)
√
ATI Discrete PCI Express x 16 Graphics
●ATI Mobility Radeon
TM
HD 4650 (M96) with
1 GB dedicated video memory (64MBx16
DDR3 x 8 PCs)
●ATI Mobility Radeon HD 4530 (M92) with
512 MB dedicated video memory (64MBx16
DDR3 x 4 PCs)
√
Intel Extreme Graphics - Intel GMA 4700MHD √
2 Chapter 1 Product description
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Unified memory architecture (UMA) with shared
video memory:
●Up to 270 MB of graphics subsystem
memory on computer models equipped with
1024 MB of main system memory
●Up to 782 MB of graphics subsystem
memory on computer models equipped with
2048 MB of main system memory
●Up to 1294 MB of graphics subsystem
memory on computer models equipped with
3072 MB of main system memory
●Up to 1294 MB of graphics subsystem
memory on computer models equipped with
4096 MB of main system memory (32-bit
OS)
●Up to 1759 MB of graphics subsystem
memory on computer models equipped with
4096 MB of main system memory (64-bit
OS)
●Memory size is dynamic change
√
Panels ●15.6-inch, WXGA (1366 × 768) BrightView √ √
●16.0-inch, WXGA (1366 × 768) BrightView √ √
●15.6-inch WXGA (1366 × 768) AntiGlare √ √
●16.0-inch, WXGA (1366 × 768) AntiGlare √ √
●AntiGlare glass panel cover support √ √
●Support for lighted logo on display enclosure √ √
●Typical brightness 200 nits √ √
Memory 2 SODIMM slots √ √
Customer-accessible/upgradable √ √
PC2-6400, 800-MHz, DDR2 √ √
Dual-channel support √ √
3
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Supports up to 8 GB system memory
●1024-MB total system memory (1024 MB ×
1, dual-channel)
●2048-MB total system memory (1024 MB ×
2, dual-channel)
●2048-MB total system memory (2048 MB ×
1, dual-channel)
●3072-MB total system memory (2048 MB +
1024 MB)
●4096-MB total system memory (2048 MB ×
2, dual-channel)
●6144-MB total system memory (2048 MB +
4096 MB)
●8192-MB total system memory (4096 MB ×
2, dual-channel)
√ √
Hard drives Supports all Serial ATA (SATA) 9.5 mm, 6.35-cm
(2.5-inch) hard drives
√ √
Supports one hard drive √ √
Support for HP ProtectSmart Hard
Drive Protection
√ √
Single hard drive configurations:
●160 GB (5400 rpm)
●250 GB (7200 rpm) (select models only)
●250 GB (5400 rpm)
●320 GB (7200 rpm) (select models only)
●320 GB (5400 rpm)
●400 GB (5400 rpm)
●500 GB (5400 rpm) (select models only)
√ √
Optical drives 12.7-mm tray load √ √
Serial ATA √ √
Fixed (removal of 1 screw required) √ √
Supports the following optical drives:
●DVD±RW and D-RW SuperMulti Double-
Layer Combo Drive with
●Blu-ray ROM DVD±R/RW SuperMulti
Double-Layer Drive
●Blu-ray ROM with LightScribe DVD±R/RW
SuperMulti Double-Layer Drive
√ √
4 Chapter 1 Product description
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Webcam VGA camera √ √
Fixed (no tilt) √ √
Activity LED √ √
640 × 480 by 24 frames per second √ √
Microphone 2 omnidirectional microphones, dual-array with
appropriate software (supports beam forming,
echo cancellation, and noise suppression)
√ √
Audio HD Audio (IDT) √ √
Supports Microsoft® Premium Requirements √ √
Pavilion-branded Altec Lansing speakers √ √
Modem 56K V.92 data/fax modem (select models only) √ √
Supports all worldwide certification requirements √ √
Ethernet Integrated Realtek 10/100/1000 network
interface card (NIC)
√
Integrated Realtek 10/100 NIC √
Wireless Integrated wireless local area network (WLAN) options by way of wireless module:
Broadcom BCM4312 802.11b/g √ √
Broadcom BCM4312 802.11b/g + Bluetooth®
with two antennas
√ √
Broadcom 4322 802.11a/b/g/n WLAN √ √
Broadcom 4322 802.11a/b/g/n WLAN +
Bluetooth
√ √
Intel Wi-Fi Link 5100 802.11a/b/g/n
WLAN module with two antennas
√ √
Intel Wi-Fi Link 5100 802.11a/b/g/n
WLAN module + Bluetooth with two antennas
√ √
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module
with two antennas
√ √
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module
+ Bluetooth with two antennas
√ √
TV tuner Integrated NTSC/ATSC/ANG hybrid
TV tuner module (select models only)
√ √
Integrated worldwide analog DVB-T/ANG
TV tuner module (select models only)
√ √
Integrated DVB-T TV tuner module (select
models only)
√
Support for TV tuner antennas for both DVB-T
and NTSC/ATSC (select models only)
√ √
5
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
External media card One ExpressCard 54 slot √ √
Digital Media Slot, supports Secure Digital (SD )
Memory Card, MultiMediaCard (MMC), Memory
Stick (MS, Memory Stick Pro (MSP), xD-Picture
Card (XD)
√ √
Internal card
expansion
Two Mini Card slots
●One slot for WLAN
●One slot for TV tuner or other technologies
√ √
Ports VGA, 15-pin supporting 1920 × 1200 resolution
at 75Hz
√
VGA, 15-pin supporting 1600 × 1200 resolution
at 75Hz
√
High-Definition Multimedia Interface (HDMI)
v1.3b supporting 1080p with HDCP key
√ √
eSATA port combo with fourth USB port √ √
Four USB 2.0 ports √ √
IEEE 1394a √
RJ-11 modem (select models only) √ √
RJ-45 Ethernet √ √
Consumer infrared √ √
MCX connector for TV antennas (select models
only)
√ √
Two stereo headphone jacks (audio-out) √ √
Microphone input (audio-in) √ √
2-pin AC power for 90-W AC adapter √ √
Docking Expansion port 3 supports the HP xb3000
Notebook Expansion Base and HP Notebook
QuickDock
√ √
Keyboard/pointing
devices
16-inch full-size keyboard with numeric keypad √ √
Standard IMR keyboard with molded keyboard
characters
√ √
EspressoTextured Keyboard (select models
only)
√ √
TouchPad supports 2-way scrolling √ √
Taps enabled as default √ √
Power requirements 6-cell, 47-Wh, 2.55-Ah Li-ion battery √
6 Chapter 1 Product description
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
6-cell, 55-Wh, 2.55-Ah Li-ion battery (Germany
only)
√
6-cell, 55-Wh, 2.55-Ah Li-ion battery √
12-cell, 95-Wh, 8.8-Ah Li-ion battery √
90-W AC adapter with localized cable plug
support (2-wire plug with ground pin, supports 2-
pin DC connector)
√
65-W AC adapter with localized cable plug
support (2-wire plug with ground pin, supports 2-
pin DC connector)
√
Security Security cable slot √ √
Fingerprint reader (select models only) √ √
Operating system Preinstalled:
Windows Vista® Business (32 bit) √ √
Windows Vista Home Basic (32 bit) √ √
Windows Vista Premium (32 bit and 64 bit) √ √
Windows Vista Ultimate (64 bit) √ √
Serviceability AC adapter √ √
Battery (system) √ √
Hard drive √ √
Memory module √ √
Optical drive √ √
Mini Card components √ √
WLAN module √ √
7
Item Component Description
(11) Stop light On: The stop button has been pressed.
(12) Wireless light ●Blue: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth device, is
turned on.
●Amber: All wireless devices are turned off.
(13) Num lock light On: The integrated numeric keypad is enabled, or num lock is
enabled on a connected optional keypad.
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The
power light on the front of the computer is visible whether the computer is open or closed.
10 Chapter 2 External component identification
Buttons, speakers and fingerprint reader
Item Component Description
(1) Speakers (2) Produce sound.
(2) Power button* ●When the computer is off, press the button to turn on the
computer.
●When the computer is on, press the button briefly to initiate
Sleep.
●When the computer is in the Sleep state, press the button
briefly to exit Sleep.
●When the computer is in Hibernation, press the button briefly
to exit Hibernation.
If the computer has stopped responding and Windows® shutdown
procedures are ineffective, press and hold the power button for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Maintenance > Power Options.
(3) Volume mute button Mutes and restores speaker sound.
(4) Volume scroll zone Adjusts speaker volume. Slide your finger to the left to decrease
volume and to the right to increase volume. You can also tap the
minus sign (-) on the scroll zone to decrease volume, or tap the
plus sign (+) on the scroll zone to increase volume.
(5) Previous/rewind button ●Plays the previous track or chapter when the button is pressed
once.
●Rewinds media when the button is pressed simultaneously
with the fn key.
(6) Play/pause button Plays or pauses media.
Top components 11

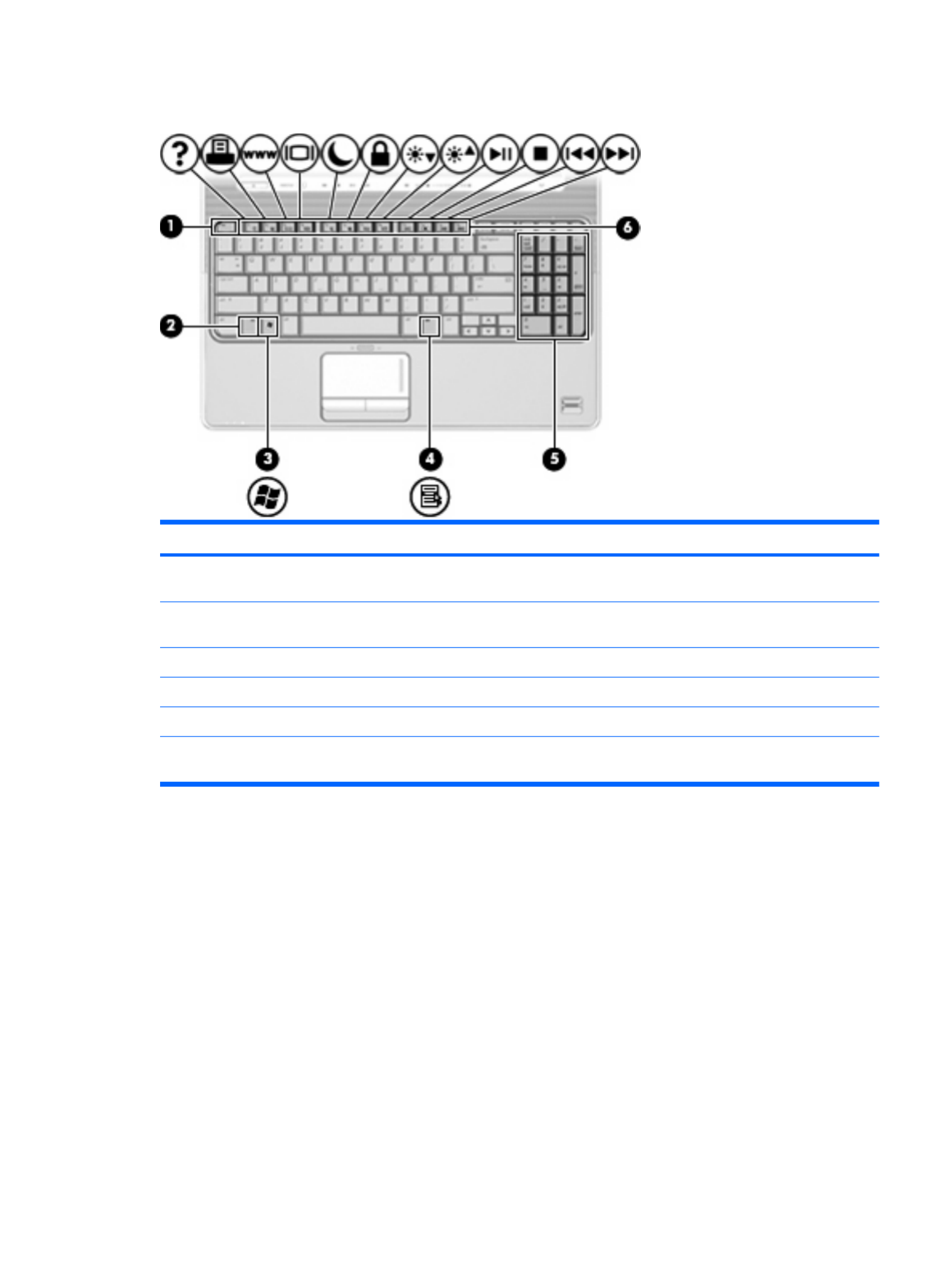

Keys
Item Component Description
(1) esc key Displays system information about your computer when pressed in
combination with the fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Integrated numeric keypad keys Can be used like the keys on an external numeric keypad.
(6) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
Top components 13
Rear component

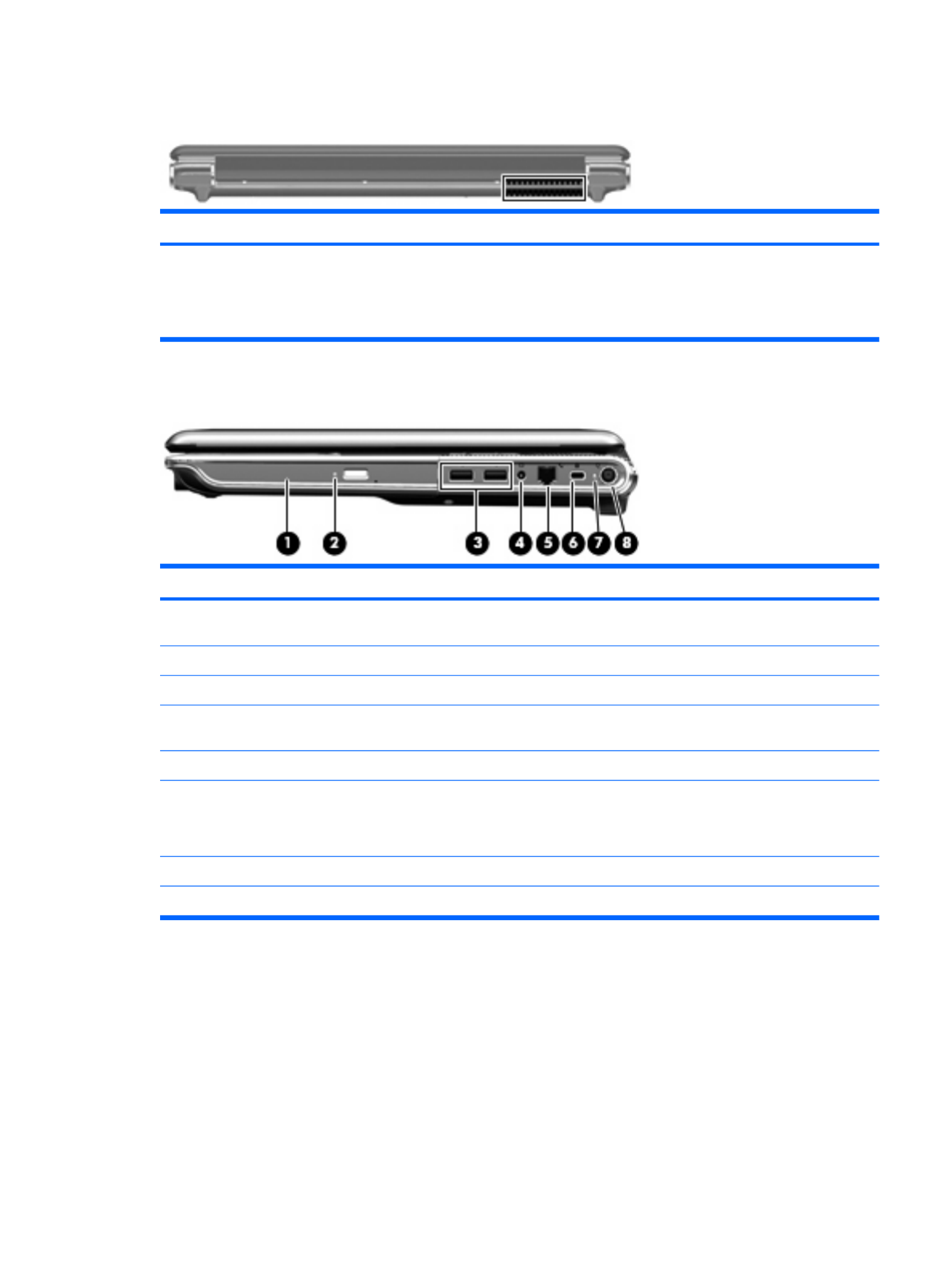

Component Description
Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
Right-side components
Item Component Description
(1) Optical drive Reads optical discs and, on select models, also writes to optical
discs.
(2) Optical drive light Blinking: The optical drive is being accessed.
(3) USB ports (2) Connect optional USB devices.
(4) TV antenna/cable jack (select models only) Connects a TV antenna, a digital cable device, or a satellite device
that receives standard or high-definition TV broadcasts.
(5) RJ-11 (modem) jack (select models only) Connects a modem cable.
(6) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
(7) Activity light for the power connector Indicates that the power is on.
(8) Power connector Connects an AC adapter.
Rear component 15
Left-side components

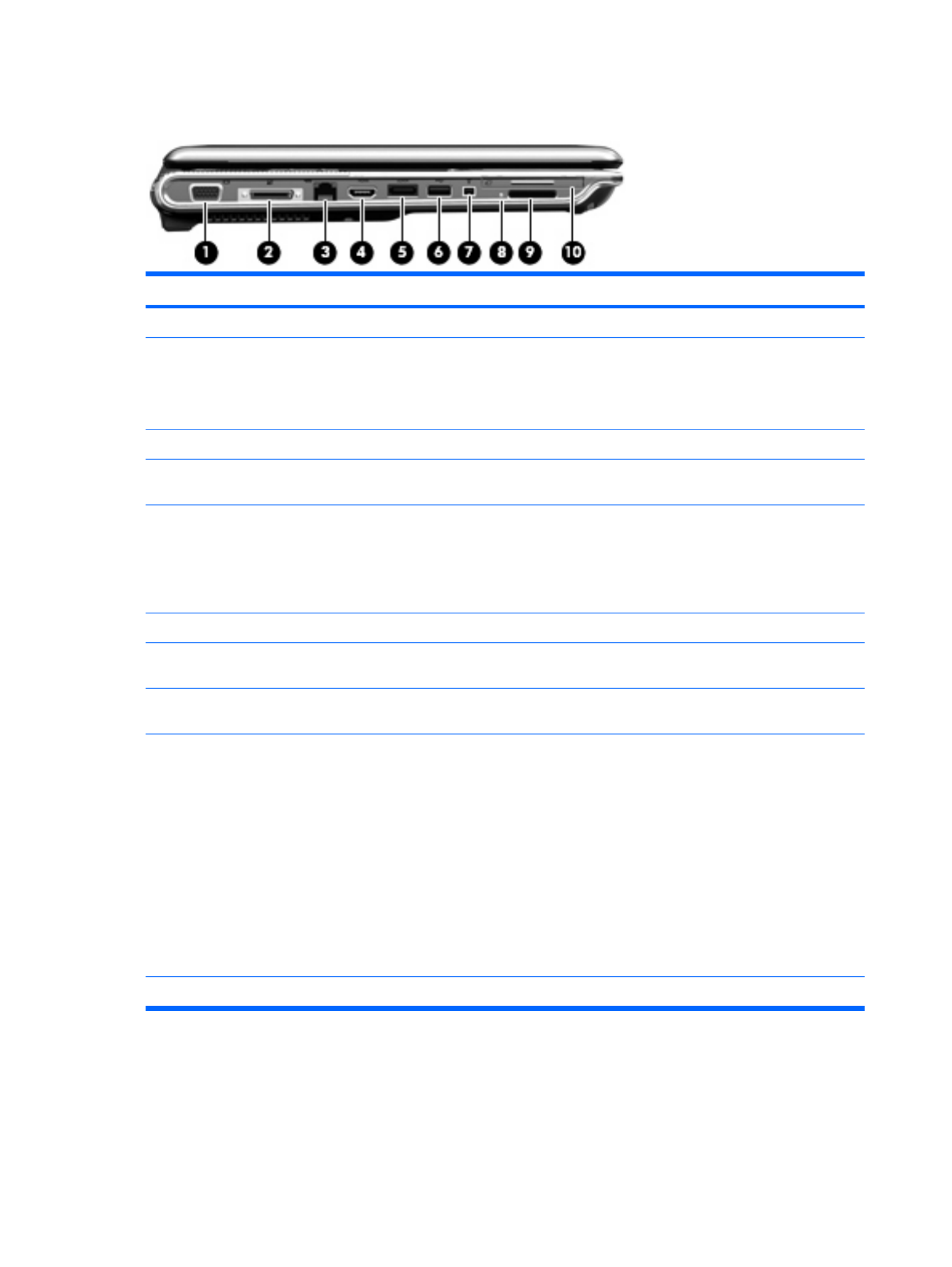

Item Component Description
(1) External monitor port Connects an external VGA monitor or projector.
(2) Expansion port 3 Connects the computer to an optional docking device or an optional
expansion product.
NOTE: The computer has only one expansion port. The term
expansion port 3 describes the type of expansion port.
(3) RJ-45 (network) jack Connects a network cable.
(4) HDMI port Connects an optional video or audio device, such as a high-
definition television, or any compatible digital or audio component.
(5) eSATA/USB port (select models only) Connects an optional high-performance eSATA component, such
as an eSATA external hard drive, or connects an optional USB
device.
NOTE: Depending on your computer model, the computer may
include a USB port only.
(6) USB port Connects an optional USB device.
(7) 1394 port (select models only) Connects an optional IEEE 1394 or 1394a device, such as a
camcorder.
(8) Activity light for the Digital Media Slot Indicates that the component installed in the Digital Media Slot is
operating.
(9) Digital Media Slot Supports the following optional digital card formats:
●Memory Stick (MS)
●Memory Stick Pro (MSP)
●MultiMediaCard (MMC)
●Secure Digital (SD) Memory Card
●Secure Digital High Capacity (SDHC) Memory Card
●xD-Picture Card (XD) Type H
●xD-Picture Card (XD)Type M
(10) ExpressCard slot Supports optional ExpressCard/54 cards.
16 Chapter 2 External component identification
Display components
Item Component Description
(1) Internal display switch Turns off the display and initiates Sleep if the display is closed while
the power is on.
(2) Internal microphones (2) Record sound.
(3) Integrated webcam light On: The integrated webcam is in use.
(4) Integrated webcam Records audio and video and captures still photographs.
18 Chapter 2 External component identification

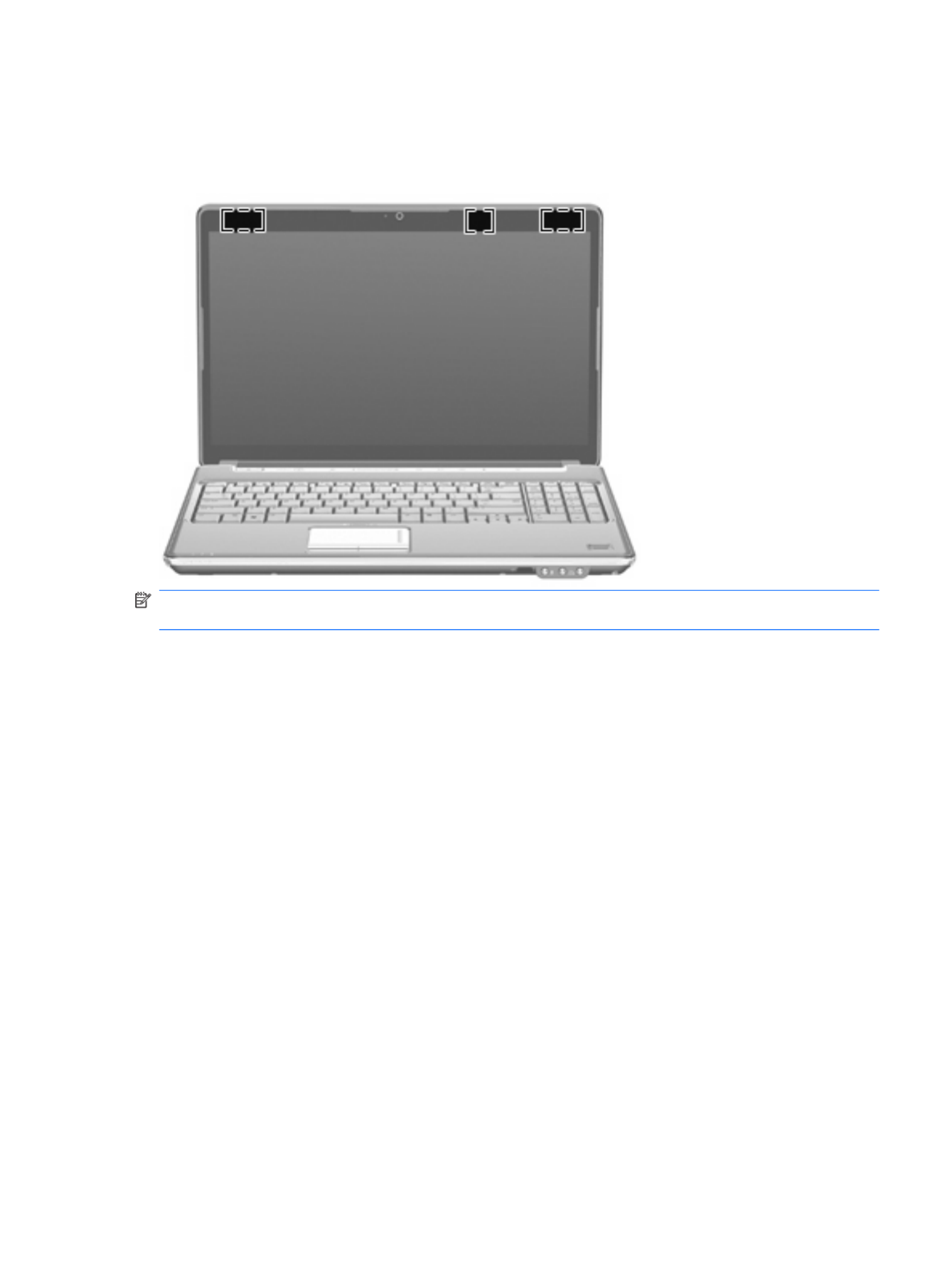

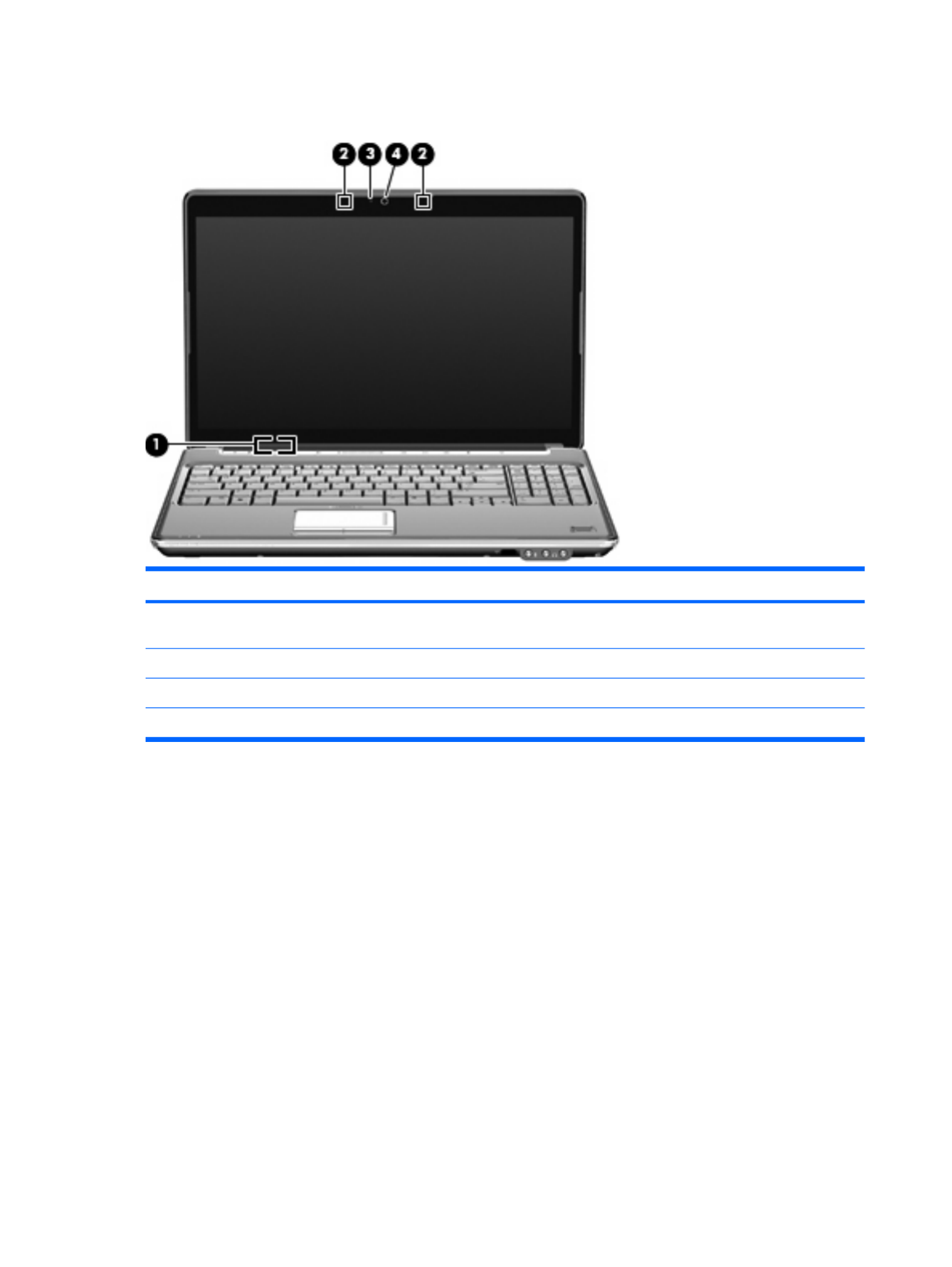

Wireless antennas (select models only)
On select computer models, at least 2 antennas send and receive signals from one or more wireless
devices.
NOTE: The antennas are not visible from the outside of the computer. For optimal transmission, keep
the areas immediately around the antennas free from obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
Wireless antennas (select models only) 19
3 Illustrated parts catalog
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.
(1) Product name: This is the product name affixed to the front of the computer.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Part number/Product number (p/n): This number provides specific information about the product's
hardware components. The part number helps a service technician to determine what components and
parts are needed.
(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and support
for the computer.
(5) Warranty period: This number describes the duration of the warranty period for the computer.
20 Chapter 3 Illustrated parts catalog
Item Description Spare part number
15.6-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Moonlight White (replaced by 571743–001)
517862-001
15.6-inch WXGA BrightView display assembly with standard VGA webcam and 2
microphones, Moonlight White (replaces 517862–001)
571743–001
15.6-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaced by 571745-001)
518776-001
15.6-inch WXGA BrightView display assembly with standard VGA webcam and 2
microphones, Espresso Black (replaces 518776–001)
571745-001
15.6-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Moonlight White (replaced by 571744–001)
518775-001
15.6-inch WXGA AntiGlare display assembly with standard VGA webcam and 2
microphones, Moonlight White (replaces 518775–001)
571744–001
15.6-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaced by 571746-001)
518777-001
15.6-inch WXGA AntiGlare display assembly with standard VGA webcam and 2
microphones, Espresso Black (replaces 518777–001)
571746-001
16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Onyx
511865-001
16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Moonlight White (replaced by 571738-001)
512357-001
16.0-inch WXGA BrightView display assembly with standard VGA webcam and 2
microphones, Moonlight White (replaces 512357–001)
571738-001
16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaced by 571740-001)
518771-001
16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaces 518771–001)
571740-001
16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Onyx
511866-001
16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Moonlight White (replaced by 571739-001)
512358-001
16.0-inch WXGA AntiGlare display assembly with standard VGA webcam and 2
microphones, Moonlight White (replaces 512358–001)
571739-001
16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaced by 571741-001)
518772-001
16.0-inch WXGA AntiGlare display assembly with standard VGA webcam and 2
microphones, Espresso Black (replaces 518772–001)
571741-001

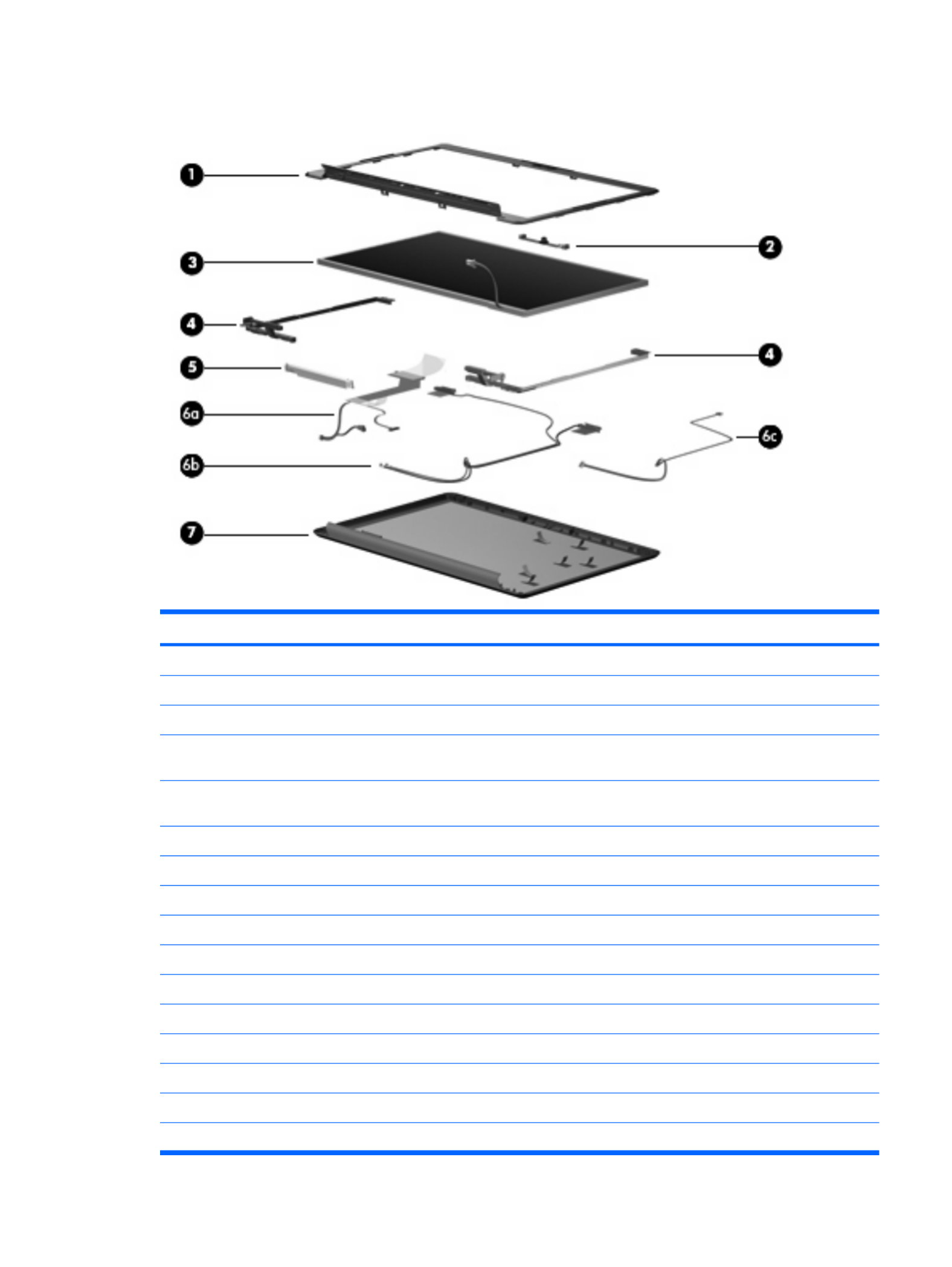

NOTE: See Display assembly componentson page 33 for more information on display assembly spare part
numbers.
(2) Switch cover (includes LED board and cable)
Onyx 512829-001
Moonlight White (replaced by 571747-001 on select models) 518110-001
Moonlight White (replaces 518110–001 on select models) 571747-001
Espresso Black (replaced by 571757-001 on select models) 518790-001
22 Chapter 3 Illustrated parts catalog
Item Description Spare part number
For use in Spain 517683-071
For use in Switzerland 517683-BG1
For use in Taiwan 517683-AB1
For use in Turkey 517683-141
For use in the United Kingdom 517683-031
For use in the United States 517683-001
Keyboard, Espresso Black, IMR, molded keyboard characters (includes keyboard cable)
For use in Belgium 518965-A41
For use in the Czech Republic 518965-221
For use in France 518965-051
For use in Germany 518965-041
For use in Greece 518965-DJ1
For use in Hungary 518965-211
For international use 518965-B31
For use in Israel 518965-BB1
For use in Italy 518965-061
For use in Latin America 518965-161
For use in Portugal 518965-131
For use in Russia 518965-251
For use in Saudi Arabia 518966-171
For use in Spain 518965-071
For use in Switzerland 518965-111
For use in Taiwan 518965-AB1
For use in Turkey 518965-141
For use in the United Kingdom 518965-031
For use in the United States 518965-001
Espresso Textured Keyboard, Espresso Black, IMR, (includes keyboard cable)
For use in Belgium 518966-A41
For use in the Czech Republic 518966-221
For use in Denmark, Norway, and Sweden 518966-DH1
For use in France 518966-051
For use in French Canada 518966-121
For use in Germany 518966-041
For use in Greece 518966-DJ1
Computer major components 25
Item Description Spare part number
For use in Hungary 518966-211
For international use 518966-B31
For use in Israel 518966-BB1
For use in Italy 518966-061
For use in Japan 518966-291
For use in Latin America 518966-161
For use in Portugal 518966-131
For use in Russia 518966-251
For use in Saudi Arabia 518966-171
For use in South Korea 518966-AD1
For use in Spain 518966-071
For use in Switzerland 518966-
For use in Taiwan 518966-AB1
For use in Thailand 518966-281
For use in Turkey 518966-141
For use in the United Kingdom 518966-031
For use in the United States 518966—001
Espresso Textured Keyboard, Espresso Black, (includes keyboard cable)
For use in Belgium 570228-A41
For use in the Czech Republic 570228-221
For use in Denmark, Norway, and Sweden 570228-DH1
For use in France 570228-051
For use in French Canada 570228-121
For use in Germany 570228-041
For use in Greece 570228-DJ1
For use in Hungary 570228-211
For international use 570228-B31
For use in Israel 570228-BB1
For use in Italy 570228-061
For use in Japan 570228-291
For use in Latin America 570228-161
For use in Portugal 570228-131
For use in Russia 570228-251
For use in Saudi Arabia 570228-171
26 Chapter 3 Illustrated parts catalog
Item Description Spare part number
For use in South Korea 570228-AD1
For use in Spain 570228-071
For use in Switzerland 570228–111
For use in Taiwan 570228-AB1
For use in Thailand 570228-281
For use in Turkey 570228-141
TFor use in the United Kingdom 570228-031
(5) Top cover (includes TouchPad and TouchPad buttons, and speaker assembly):
For use only with computer models equipped with a fingerprint reader, Onyx 512828-001
For use only with computer models not equipped with a fingerprint reader, Onyx 511888-001
For use only with computer models equipped with a fingerprint reader, Moonlight White 518108-001
For use only with computer models not equipped with a fingerprint reader, Moonlight
White
518109-001
For use only with computer models equipped with a fingerprint reader, Espresso Black 518788-001
For use only with computer models not equipped with a fingerprint reader, Espresso
Black
518789-001
(6) Fingerprint reader board (select models only) Included with the top cover
Plastics Kit, includes:
●(7a) Express card slot bezel
●(7b) Memory module cover
●(7c) Hard drive bay cover
NOTE: See Plastics Kit on page 37 for more information.
511890-001
(8) System board (includes replacement thermal material):
●For use with computer models equipped with UMA graphics subsystem memory 511863-001
●For use with computer models equipped with discrete graphics subsystem
memory
511864-001
●For use with computer models equipped with ATI Mobility Radeon HD4650
graphics with 1-GB memory
518431-001
●For use with computer models equipped with ATI Mobility Radeon HD4530
graphics with 512-MB memory
518432-001
●For use with computer models equipped with UMA graphics and GM47 chipset 518433-001
(9) Modem module:
NOTE: The modem module spare part kit does not include a modem module cable. The modem module cable is
included in the Cable Kit, spare part number 512832-001. For more information, see Cable Kit on page 38.
For use in all countries and regions except Australia and New Zealand 461749-001
For use only in Australia and New Zealand 461749-011
(10) Processor (includes replacement thermal material):
Computer major components 27
Item Description Spare part number
Intel Core2 Duo T9900 3.06-GHz with 6-MB L2 cache and 1066-MHz FSB 570434-001
Intel Core2 Duo T9800 2.93-GHz with 6-MB L2 cache and 1066-MHz FSB 507951-001
Intel Core2 Duo T9600 2.80-GHz with 6-MB L2 cache and 1066-MHz FSB 507955-001
Intel Core2 Duo T9550 2.66-GHz with 6-MB L2 cache and 1066-MHz FSB 507953-001
Intel Core2 Duo T9400 2.53-GHz with 6-MB L2 cache and 1066-MHz FSB 507954-001
Intel Core2 Duo T6600 2.20-GHz with 2-MB L2 cache and 800-MHz FSB 513593-001
Intel Core2 Duo T6500 2.10-GHz with 2-MB L2 cache and 800-MHz FSB 572928-001
Intel Core2 Duo T6400 2.00-GHz with 2-MB L2 cache and 800-MHz FSB 513592-001
Intel Core2 Duo T5800 2.00-GHz with 2-MB L2 cache and 800-MHz FSB 515040-001
Intel Pentium Dual-Core T4300 2.10-GHz with 1-MB L2 cache and 800-MHz FSB 572929-001
Intel Pentium Dual-Core T4200 2.00-GHz with 1-MB L2 cache and 800-MHz FSB 513599-001
Intel Pentium Dual-Core T3400 2.16-GHz with 1-MB L2 cache and 667-MHz FSB 509549-001
Intel Core Duo P8800 2.66-GHz with 3-MB L2 cache and 1066-MHz FSB 570036-001
Intel Core Duo P8700 2.53-GHz with 3-MB L2 cache and 1066-MHz FSB 507960-001
Intel Core Duo P8600 2.40-GHz with 3-MB L2 cache and 1066-MHz FSB 507961-001
Intel Core Duo P8400 2.26-GHz with 3-MB L2 cache and 1066-MHz FSB 507962-001
Intel Core Duo P7550 2.26-GHz with 3-MB L2 cache and 1066-MHz FSB 573076-001
Intel Core Duo P7450 2.13-GHz with 3-MB L2 cache and 1066-MHz FSB 507122-001
Intel Celeron 900 2.20-GHz with 1-MB L2 cache and 667-MHz FSB 534419–001
Intel Celeron T1600 1.66-GHz with 1-MB L2 cache and 667-MHz FSB (for use only
with computers equipped with UMA graphics memory subsystems)
501894-001
(11) WLAN module: (Bluetooth supported)
Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use with computer models in all
countries and regions
480985-001
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use with computer models in all
countries and regions
482957-001
Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam,
Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
487330-001
28 Chapter 3 Illustrated parts catalog
Item Description Spare part number
Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,
Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh,
Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines,
Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
487330-002
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam,
Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
459263-001
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,
Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh,
Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines,
Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
459263-002
Computer major components 29
Item Description Spare part number
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam,
Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
504593-001
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,
Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh,
Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines,
Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
504593-002
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam,
Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
504664-001
30 Chapter 3 Illustrated parts catalog
Item Description Spare part number
12-cell, 95-Wh, 8.8-Ah Li-ion battery for use with all computer models 511884-001
6-cell, 55-Wh, 2.55-Ah Li-ion battery for use with all computer models 511872-001
6-cell, 55-Wh, 2.55-Ah Li-ion battery for use only with computers for Germany 511872-002
6-cell, 47-Wh, 2.55-Ah Li-ion battery for use with all computer models 511883-001
(18) Base enclosure (includes rubber feet) 511887-001
Rubber Feet Kit (not illustrated, includes 4 base enclosure rubber feet) 516499-001
(19) RTC battery 449729-001
TV tuner module (not illustrated):
NOTE: The TV tuner module spare part kits do not include a TV tuner module cable. The TV tuner module cable
is included in the Cable Kit, spare part number 512832-001.
NTSC/ATSC/ANG hybrid TV tuner module 482899-001
DVB-T/ANG TV tuner module 482899-002
DVB-T TV tuner module (for use only with computers equipped with discrete graphics
memory)
482899-003
TV tuner external antenna cable (not illustrated):
With F-PAL jack 482900-001
With PAL jack 482900-002
(20) Optical drive (includes bezel and bracket):
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 511880-001
Blu-ray ROM DVD±R/RW SuperMulti Double-Layer Drive 511881-001
Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive 511882-001
(21) Memory module (DDR2, 800-MHz, PC2-6400, 1-DIMM):
4 GB 511871-001
2 GB 511870-001
1 GB 511869-001
(22) Hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab, and four rubber isolators):
160 GB, 5400 rpm 511873-001
250 GB, 7200 rpm (select models only) 511874-001
250 GB, 5400 rpm 511875-001
320 GB, 7200 rpm (select models only) 511876-001
320 GB, 5400 rpm 511877-001
400 GB, 5400 rpm 511878-001
500 GB, 5400 rpm 511879-001
Hard Drive Hardware Kit (not illustrated, includes left and right bracket rails, connector
cable, Mylar cover with tab, and 4 rubber isolators)
483862-001
32 Chapter 3 Illustrated parts catalog
Display assembly components
The HP Pavilion dv6 Entertainment PC offers two types of display assemblies. Component spare parts
are listed in this section for AntiGlare display assemblies and BrightView display assemblies.
AntiGlare display assembly spare parts
Item Description Spare part number
(1) Display enclosure, Onyx (for 16-inch only) (includes wireless antenna transceivers
and cables)
513478-001
Display enclosure, Moonlight White (for 16-inch only) (includes wireless antenna
transceivers and cables)
517861-001
Display enclosure, Espresso Black (for 16-inch only) (includes wireless antenna
transceivers and cables)
518774-001
Display enclosure, Moonlight White (for 15.6-inch only) (includes wireless antenna
transceivers and cables) (replaced by 571744–001)
518775-001
Display enclosure, Moonlight White (for 15.6-inch only) (includes wireless antenna
transceivers and cables) (replaces 518775–001)
571744–001
Display enclosure, Espresso Black (for 15.6-inch only) (includes wireless antenna
transceivers and cables) (replaced by 571746–001)
518777-001
Display enclosure, Espresso Black (for 15.6-inch only) (includes wireless antenna
transceivers and cables) (replaces 518777–001)
571746–001
(2) Display inverter 488317-001
(3) Webcam/microphone module, low light VGA (includes cable) 512827-001
Webcam/microphone , standard VGA (includes cable) 571742–001
(4) Display Hinge Kit (for 16-inch only) (includes left and right hinges) 513477-001
Display Hinge Kit (for 15.6-inch only) (includes left and right hinges) 519209-001
Display Rubber Kit, (for 16-inch only) (not illustrated, includes display bezel rubber
screw covers)
512361-001
Display Rubber Kit, (for 15.6-inch only) (not illustrated, includes display bezel rubber
screw covers)
513479-001
Display assembly components 33
BrightView display assembly spare parts
Item Description Spare part number
(1) Display bezel (includes logo and display lid switch actuator magnet)
For use with computer models equipped with 16-inch displays 512359-001
For use with computer models equipped with 15.6-inch displays 512364-001
(2) Webcam/microphone module, low light VGA (includes cable) (replaced by
571742-001)
512827-001
Webcam/microphone module, standard VGA (includes cable) (replaces 512827–
001)
571742-001
(3) BrightView display panel (includes display panel cable):
For use with computer models equipped with 16-inch display panels 511868-001
For use with computer models equipped with 15.6-inch display panels 512363-001
(4) Display Hinge Kit (includes left and right hinges)
For use with computer models equipped with 16-inch display panels 512360-001
For use with computer models equipped with 15.6-inch display panels 512365-001
(5) Display inverter 488317-001
(6a) Display cable 512825-001
(6b) Wireless antenna cable (included in Cable Kit 512832-001)
(6c) Webcam/microphone cable (includes module) 512827-001
Webcam/microphone cable (includes module) (replaces 512827–001) 571742-001
Display assembly components 35
Item Description Spare part number
(7) Display enclosure, Onyx (includes wireless antenna transceivers and cables and
logo LED board and cable) 16-inch
512824-001
DIsplay enclosure, Moonlight White (includes wireless antenna transceivers and
cables and logo LED board and cable) 15.6-inch
517860-001
DIsplay enclosure, Espresso Black (includes wireless antenna transceivers and
cables and logo LED board and cable) 16-inch
518773-001
Display Rubber Kit (not illustrated, includes display bezel rubber screw covers) 15.6-
inch
513479-001
Display Rubber Kit (not illustrated, includes display bezel rubber screw covers) 16-
inch
512361-001
Display Screw Kit (not illustrated) 512362-001
36 Chapter 3 Illustrated parts catalog

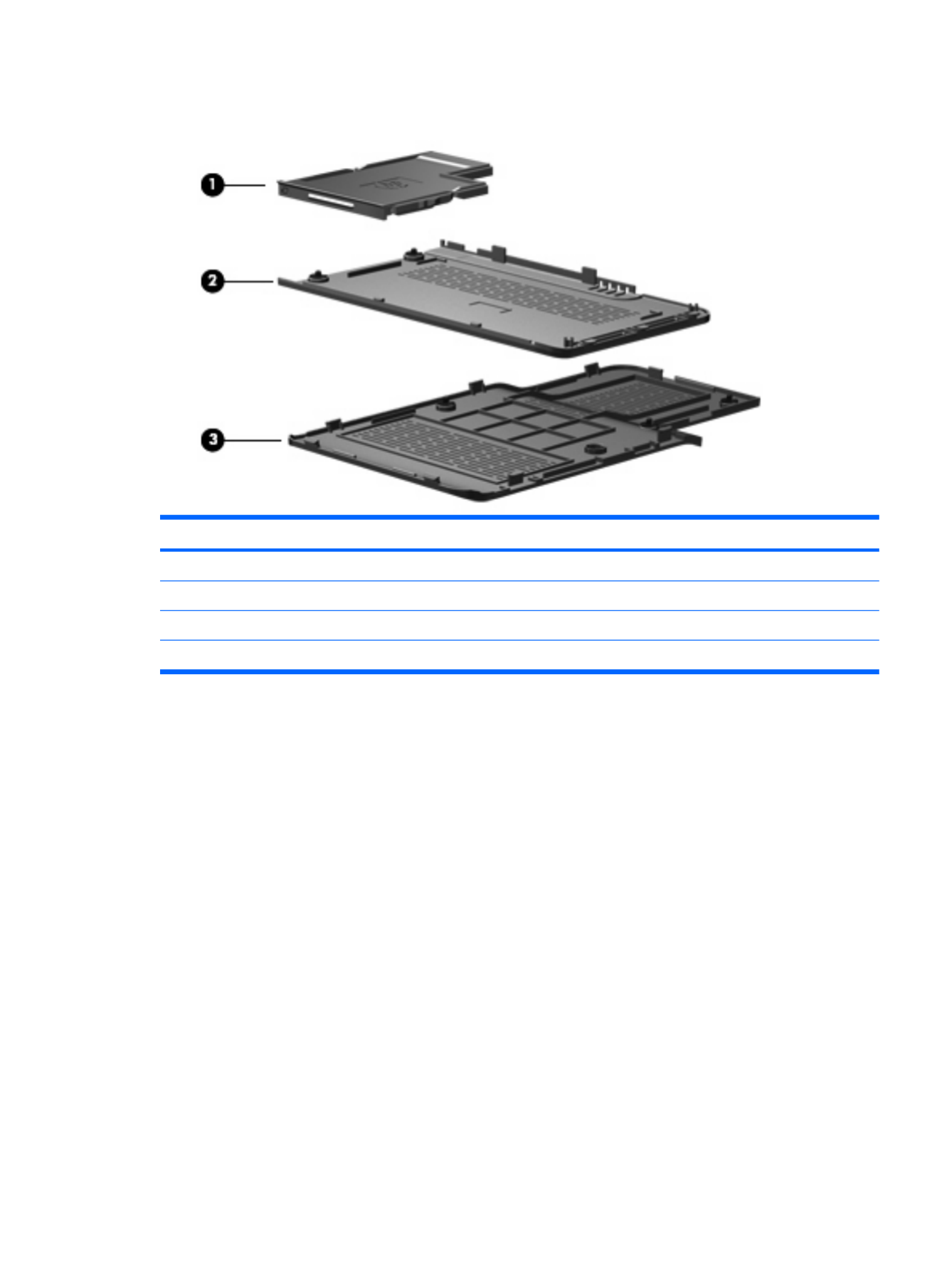

Plastics Kit
Item Description Spare part number
Plastics Kit 511890-001
(1) ExpressCard slot bezel
(2) Hard drive bay cover (includes 2 captive screws, secured by C-clips)
(3) Memory module compartment cover (includes 1 captive screw, secured by a C-clip)
Plastics Kit 37

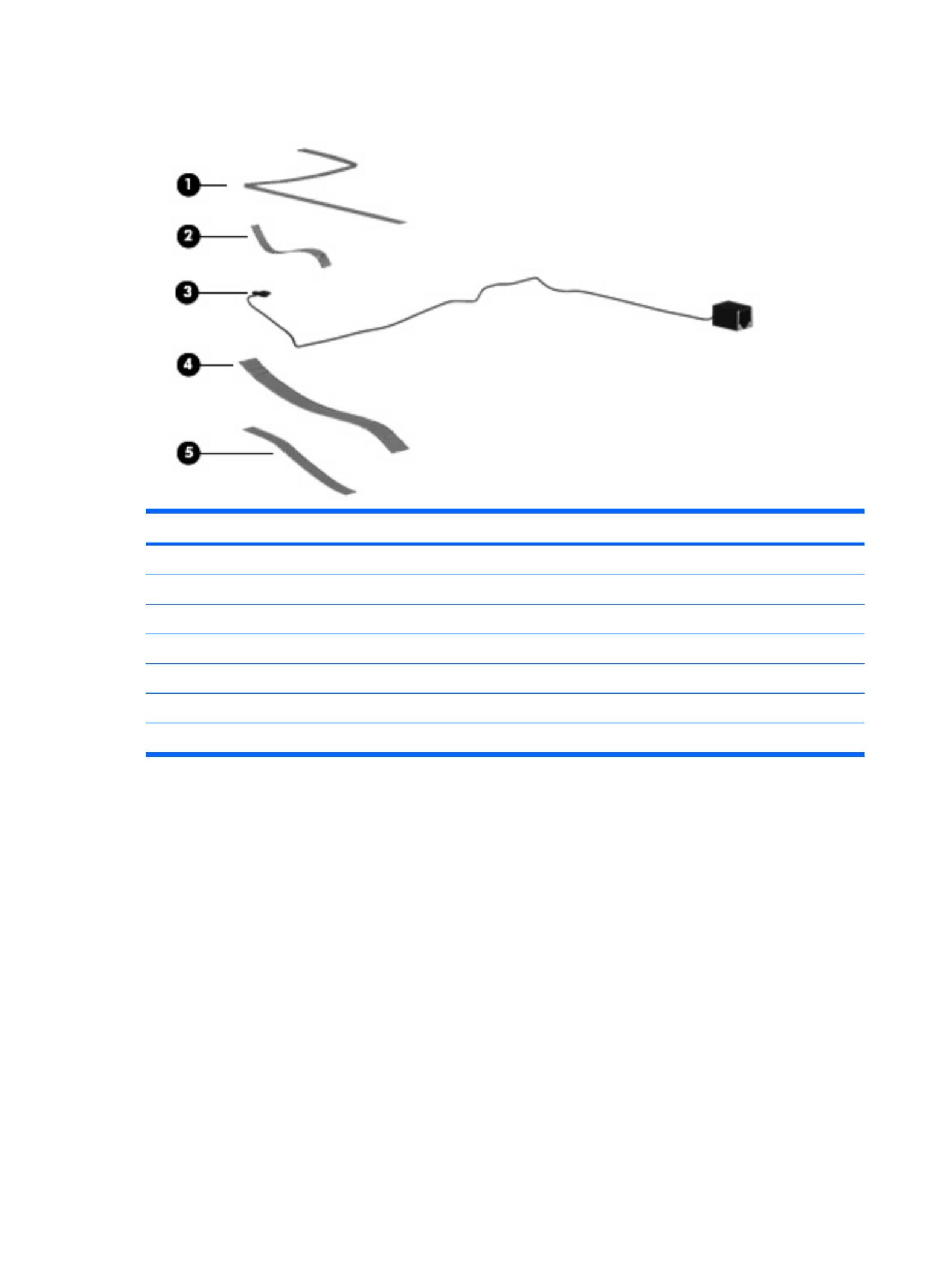

Cable Kit
Item Description Spare part number
Cable Kit 512832-001
(1) Fingerprint reader cable
(2) Audio/Infrared module cable
(3) Modem module cable (includes RJ-11 jack)
(4) USB cable
(5) Power connector cable
TV tuner module cable (not illustrated)
38 Chapter 3 Illustrated parts catalog
Miscellaneous parts
Description Spare part number
AC adapters
65-W AC adapter 463958-001
90-W AC adapter, PFC 463955-001
90-W AC adapter for use only in Germany 510485-005
Power cords, Black:
Argentina 490371-D01
Australia and New Zealand 490371-011
Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway, Portugal, Spain,
and Sweden
490371-021
Brazil 490371-201
Canada, French Canada, Latin America, Thailand, and the United States 490371-001
Denmark 490371-081
India 490371-D61
Israel 490371-BB1
Italy 490371-061
Japan 490371-291
The People's Republic of China 490371-AA1
South Africa 490371-AR1
South Korea 490371-AD1
Switzerland 490371-111
Taiwan 490371-AB1
The United Kingdom and Hong Kong 490371-031
Bluetooth cable 489822–001
Remote controls
Full-function remote control 465540-001
Full-function remote control with teletext 465541-001
Rubber Kit 516499–001
Miscellaneous parts 39
Description Spare part number
Headphone, black, with volume control and stereo/mono switch 371693–001
Screw Kit
●Phillips PM2.0×3.0 screw
●Phillips PM2.0×14.0 captive screw
●Phillips PM2.5×3.0 screw
●Phillips PM2.5×4.0 screw
●Phillips PM2.5×5.0 screw
●Phillips PM2.5×5.0 captive screw
●Phillips PM2.5×5.5 captive screw
●Phillips PM2.5×6.5 screw
●Phillips PM3.0×3.5 screw
516498-001
Sequential part number listing
Spare part
number
Description
371693-001 Headphone, black, with volume control and stereo/mono switch
449729-001 RTC battery
459263-001 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States
459263-002 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in Afghanistan, Albania,
Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea,
Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
461749-001 Modem module for use in all countries and regions except Australia and New Zealand
461749-011 Modem module for use only in Australia and New Zealand
40 Chapter 3 Illustrated parts catalog
Spare part
number
Description
463955-001 90-W AC adapter, PFC
463958-001 65-W AC adapter
465540-001 Full-function remote control
465541-001 Full-function remote control with teletext
480985-001 Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use with computer models in all countries and
regions
482899-001 NTSC/ATSC/ANG hybrid TV tuner module
482899-002 DVB-T/ANG TV tuner module
482899-003 DVB-T TV tuner module (for use only with computers equipped with discrete graphics memory)
482900-001 TV tuner external antenna cable with F-PAL jack
482900-002 TV tuner external antenna cable with PAL jack
482957-001 Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use with computer models in all countries and
regions
483113-001 Bluetooth module
483862-001 Hard Drive Hardware Kit (includes left and right bracket rails, connector cable, Mylar cover with tab, and
4 rubber isolators
487330-001 Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in Antigua and Barbuda,
Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico, Trinidad and Tobago,
the U.S. Virgin Islands, and the United States
487330-002 Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in Afghanistan, Albania,
Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea,
Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
488317-001 Display inverter
489822-001 Bluetooth cable
490371-001 Power cord for use in Canada, French Canada, Latin America, Thailand, and the United States
490371-011 Power cord for use in Australia and New Zealand
Sequential part number listing 41
Spare part
number
Description
490371-021 Power cord for use in Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway,
Portugal, Spain, and Sweden
490371-031 Power cord for use in the United Kingdom and Hong Kong
490371-061 Power cord for use in Italy
490371-081 Power cord for use in Denmark
490371-111 Power cord for use in Switzerland
490371-201 Power cord for use in Brazil
490371–291 Power cord for use in Japan
490371-AA1 Power cord for use in the People's Republic of China
490371-AB1 Power cord for use in Taiwan
490371-AD1 Power cord for use in South Korea
490371-AR1 Power cord for use in South Africa
490371-BB1 Power cord for use in Israel
490371-D01 Power cord for use in Argentina
490371-D61 Power cord for use in India
501894-001 Intel Celeron T1600 1.66-GHz processor with 1-MB L2 cache and 667-MHz FSB (for use only with
computers equipped with UMA graphics memory subsystems)
504593-001 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States
504593-002 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in Afghanistan, Albania,
Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea,
Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
504664-001 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States
42 Chapter 3 Illustrated parts catalog
Produkt Specifikationer
| Mærke: | HP |
| Kategori: | Laptop |
| Model: | dv6-3019tu |
Har du brug for hjælp?
Hvis du har brug for hjælp til HP dv6-3019tu stil et spørgsmål nedenfor, og andre brugere vil svare dig
Laptop HP Manualer
12 Januar 2025
11 Januar 2025
11 Januar 2025
11 Januar 2025
27 December 2024
21 December 2024
21 December 2024
21 December 2024
21 December 2024
21 December 2024
Laptop Manualer
- CTL
- MSI
- Thomson
- Olidata
- Fellowes
- Tripp Lite
- Honor
- Getac
- Mpman
- Hannspree
- Evga
- Airis
- Vulcan
- Kogan
- Razer
Nyeste Laptop Manualer
28 Marts 2025
10 Februar 2025
5 Februar 2025
31 Januar 2025
28 Januar 2025
27 Januar 2025
12 Januar 2025
12 Januar 2025
12 Januar 2025
12 Januar 2025
