Side 1/105

HP Mini 2102, HP Mini 210, and

Compaq Mini 210

Maintenance and Service Guide

Development Company, L.P.

Intel is a trademark of Intel Corporation in

the U.S. and other countries. Microsoft,

Windows, and Windows Vista are U.S.

registered trademarks of Microsoft

Corporation.

The information contained herein is subject

to change without notice. The only

warranties for HP products and services are

set forth in the express warranty statements

accompanying such products and services.

Nothing herein should be construed as

constituting an additional warranty. HP shall

not be liable for technical or editorial errors

or omissions contained herein.

First Edition: December 2009

Document Part Number: 595074-001

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not

place the device directly on your lap or obstruct the device air vents. Use the device only on a hard,

flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft

surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to

contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device

and the AC adapter comply with the user-accessible surface temperature limits defined by the

International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description ........................................................................................................................................ 1

2 External component identification ................................................................................................................ 5

Identifying the hardware ....................................................................................................................... 5

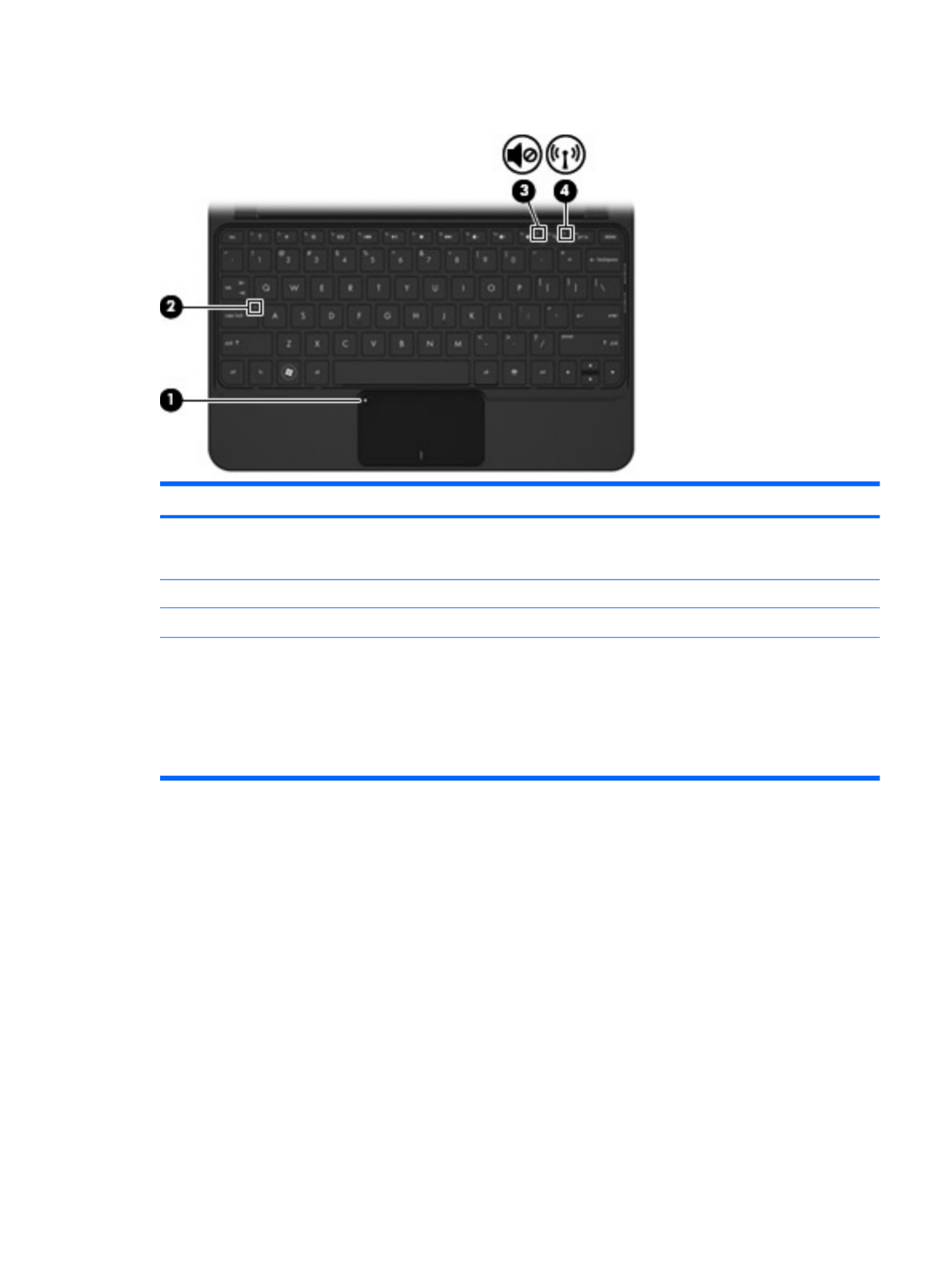

Top components ................................................................................................................................... 6

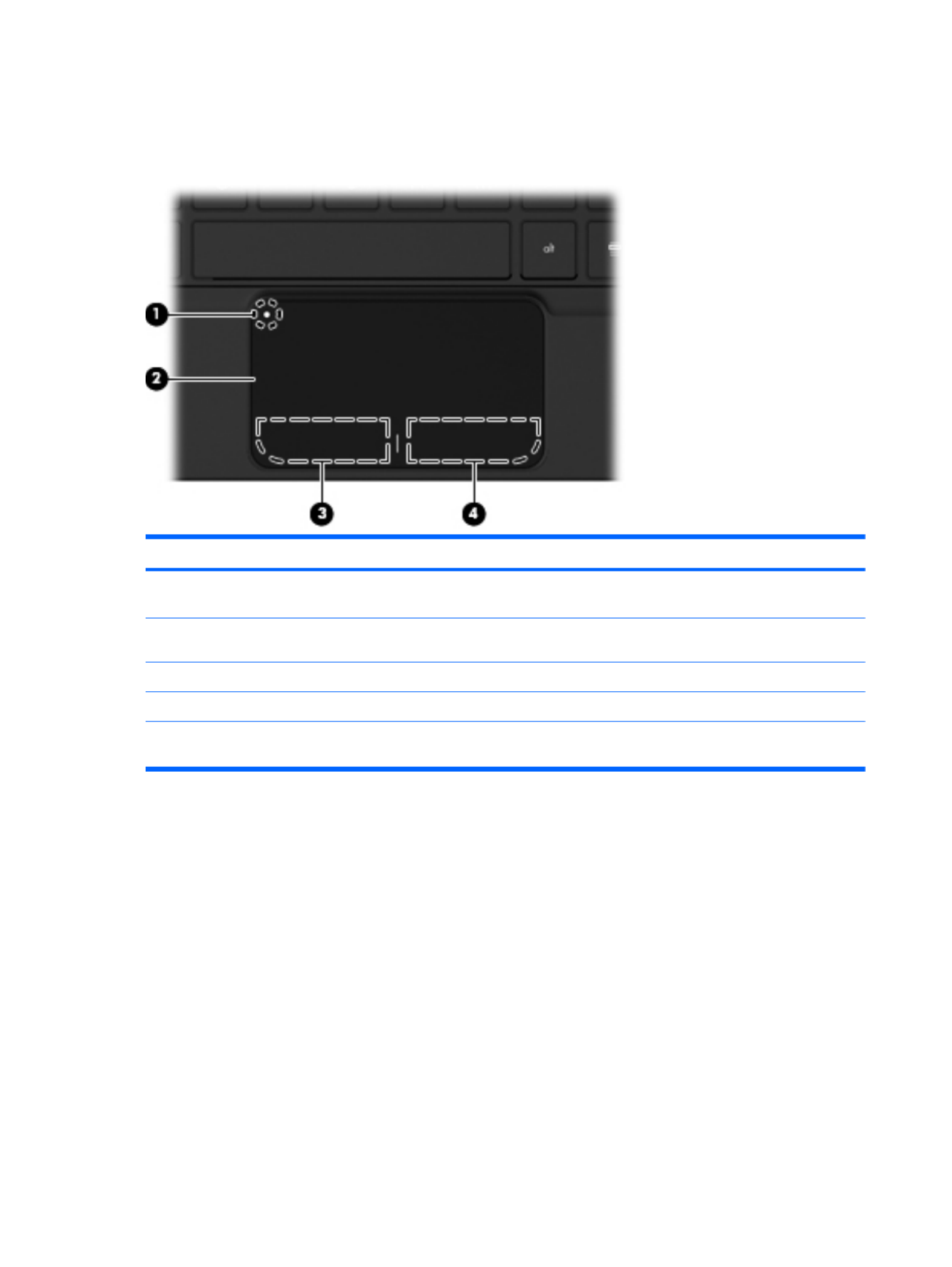

TouchPad ............................................................................................................................ 6

Lights ................................................................................................................................... 7

Keys ..................................................................................................................................... 8

Front components ................................................................................................................................ 8

Right-side components ......................................................................................................................... 9

Left-side components ......................................................................................................................... 10

Display components ........................................................................................................................... 11

Bottom components ........................................................................................................................... 12

Wireless antennas .............................................................................................................................. 13

3 Illustrated parts catalog ............................................................................................................................... 14

Service tag ......................................................................................................................................... 14

Computer major components ............................................................................................................. 15

Display assembly components ........................................................................................................... 21

Mass storage devices ......................................................................................................................... 23

Miscellaneous parts ............................................................................................................................ 24

Sequential part number listing ............................................................................................................ 25

4 Removal and replacement procedures ....................................................................................................... 31

Preliminary replacement requirements ............................................................................................... 31

Tools required .................................................................................................................... 31

Service considerations ....................................................................................................... 31

Plastic parts ....................................................................................................... 31

Cables and connectors ..................................................................................... 32

Drive handling ................................................................................................... 32

Grounding guidelines ......................................................................................................... 33

Electrostatic discharge damage ........................................................................ 33

Packaging and transporting guidelines ............................................. 34

Workstation guidelines ..................................................................... 34

Equipment guidelines ....................................................................... 35

Component replacement procedures ................................................................................................. 36

Service tag ......................................................................................................................... 36

Computer feet .................................................................................................................... 37

Battery ............................................................................................................................... 38

SIM .................................................................................................................................... 39

Service cover ..................................................................................................................... 40

Hard drive .......................................................................................................................... 41

WWAN module .................................................................................................................. 43

WLAN module .................................................................................................................... 45

Memory module ................................................................................................................. 47

RTC battery ....................................................................................................................... 48

Keyboard ........................................................................................................................... 49

Top cover ........................................................................................................................... 52

Speakers ............................................................................................................................ 55

TouchPad .......................................................................................................................... 56

Display assembly ............................................................................................................... 58

System board ..................................................................................................................... 61

Fan/heat sink assembly ..................................................................................................... 63

Power connector cable ...................................................................................................... 65

5 Setup Utility ................................................................................................................................................... 67

Starting Setup Utility ........................................................................................................................... 67

Using Setup Utility .............................................................................................................................. 67

Changing the language of Setup Utility ............................................................................. 67

Navigating and selecting in Setup Utility ............................................................................ 68

Displaying system information ............................................................................................................ 68

Restoring default settings in Setup Utility ........................................................................................... 68

Exiting Setup Utility ............................................................ ........................ ........................................ 69

Setup Utility Menus ....................... ......................................... ............................................................ 69

Main Menu ......................................................................................................................... 69

Security Menu .................................................................................................................... 69

System Configuration Menu .............................................................................................. 70

Diagnostics Menu .............................................................................................................. 70

6 Backup and recovery (Windows only) ........................................................................................................ 71

Windows 7 .......................................................................................................................................... 71

Backing up and recovering using Roxio BackOnTrack ...................................................... 71

Creating a copy of the hard drive ...................................................................... 72

Performing a recovery ....................................................................................... 72

Using the Disaster Recovery utility ................................................................... 72

Downloading and extracting the Disaster Recovery utility ................ 73

Restoring your hard drive image ...................................................... 73

Using the Instant Restore utility ......................................................................................... 74

Using the Instant Restore utility when the operating system is functioning ...... 74

Using the Instant Restore utility when the operating system is not

functioning ......................................................................................................... 74

Using Windows Backup and Restore ................................................................................ 74

Using system restore points .............................................................................................. 75

When to create restore points ........................................................................... 75

Creating a system restore point ........................................................................ 75

Restoring to a previous date and time .............................................................. 75

Backing up and recovering using HP Recovery Manager ................................................. 76

Backing up your information .............................................................................. 76

Creating a set of recovery discs ........................................................................ 77

Performing a recovery ....................................................................................................... 78

Recovering using the recovery discs ................................................................ 78

Recovering using the partition on the hard drive (select models only) .............. 78

Windows XP ....................................................................................................................................... 79

Backing up your information .............................................................................................. 79

Creating a copy of the hard drive ...................................................................... 80

Performing a recovery ....................................................................................... 80

Using the Disaster Recovery Utility ................................................................... 81

Downloading and extracting the Disaster Recovery utility ................ 81

Restoring your hard drive image ...................................................... 81

Using the Instant Restore utility ........................................................................ 82

Using the Instant Restore utility when the operating system is

functioning ........................................................................................ 82

Using the Instant Restore utility when the operating system is not

functioning ........................................................................................ 82

7 Connector pin assignments ......................................................................................................................... 83

Audio-in (microphone) ........................................................................................................................ 83

Audio-out (headphone) ....................................................................................................................... 83

External monitor ................................................................................................................................. 84

RJ-45 (network) .................................................................................................................................. 85

Universal Serial Bus ........................................................................................................................... 85

8 Power cord set requirements ...................................................................................................................... 86

Requirements for all countries ............................................................................................................ 86

Requirements for specific countries and regions ............................................................................... 87

9 Recycling ....................................................................................................................................................... 88

Battery ................................................................................................................................................ 88

Display ................................................................................................................................................ 88

vii

Index ................................................................................................................................................................... 94

viii

Category Description HP Mini 2102 and

HP Mini 210

Compaq Mini

210

Hard drives Supports the following 9.5-mm (0.37-in) × 6.35-cm (2.50-

inch), parallel SATA, 7200-rpm hard drives:

●320-GB

NOTE: Supported only on computers with Windows

●250-GB

NOTE: Supported only on computers with Windows

●160-GB

NOTE: Supported on computers with Windows 7

and Windows XP.

√ √

Optical drive Supports external USB optical drives only √ √

Diskette drive Supports external USB diskette drives only √ √

Audio/Visual HD audio √ √

Supports BEATS audio driver √ √

Integrated 1.5-w speakers (2) √ √

Fixed integrated, digital microphone √ √

Fixed Integrated VGA webcam, 640 × 480 resolution, up to

30 frames per second

√ √

Modem Supports external USB modems only √ √

Ethernet Integrated Realtek RTL8703EL 10/100 network interface

card (NIC)

√ √

Wireless Integrated WLAN by way of:

●Atheros 9285G 802.11b/g/n 1×1 WiFi Adapter module

●Broadcom 4312G 802.11b/g WiFi Adapter module

●Broadcom 4312G 802.11b/g WiFi and 2070 Bluetooth

2.1+EDR Combo Adapter module

√ √

2 WLAN antennas built into display assembly √ √

Integrated WWAN by way of HP un2400 Mobile Broadband

Module (optional)

√ √

2 Chapter 1 Product description

Category Description HP Mini 2102 and

HP Mini 210

Compaq Mini

210

External media

cards

Digital Media Slot (consumer models) or Media Card

Reader (commercial models) with push-push technology

supporting:

●Memory Stick (MS)

●MS/Pro

●MultiMediaCard (MMC)

●Secure Digital High Capacity (SDHC) Memory Card

(standard and large size)

●xD-Picture

√ √

Internal media

cards

Two Mini Card slots:

●Full-size Mini Card slot

●Half-size Mini Card slot

√ √

Ports Audio-in/out combo, supporting jack detection √ √

RJ-45 (Ethernet, includes link and activity lights) √ √

USB (2–3) √ √

VGA, supporting up to 1600 x 900 external resolution @

60Hz, hot plug /unplug, and auto detection for correct

output to wide-aspect vs. standard aspect video

√ √

3-pin AC power √ √

Keyboard/pointing

device

93% island-style keyboard √ √

HP Clikpad TouchPad with multi-touch/gesture support

No numeric pad supported.

TouchPad with 2 TouchPad buttons and 2-way scrolling

(taps enabled and some gestures enabled by default)

TouchPad on/off button with LED indicator

√ √

Power

requirements

40-W UMA AC adapter (non-Smart) with localized cable

plug support and stepped plug

√ √

AC adapter connector on cable √ √

1.0-m (3.28-ft) power cord √ √

3-cell Lithium-ion(Li-ion) battery (2.55-Ah, 28-Wh) √ √

6-cell Lithium-ion(Li-ion) battery (2.80-Ah, 62-Wh) √ √

Security Supports Kensington security lock √ √

Operating system Windows 7 Home Basic √

Windows 7 Home Premium √ √

Windows XP Home SP3, ultra low-cost personal computer

(ULCPC) edition

√ √

Category Description HP Mini 2102 and

HP Mini 210

Compaq Mini

210

Support for HP QuickWeb √ √

FreeDOS √

Serviceability End-user replaceable parts:

AC adapter √ √

Battery (system) √ √

Hard drive √ √

Memory module √ √

WLAN module √ √

WWAN module √ √

4 Chapter 1 Product description

2 External component identification

Identifying the hardware

Components included with the computer may vary by region and model. The illustrations in this

chapter identify the standard features on most computer models.

To see a list of hardware installed in the computer, follow these steps:

1. Select Start > My Computer.

2. In the left pane of the System Tasks window, select View system information.

3. Select Hardware tab > Device Manager.

You can also add hardware or modify computer configurations using Device Manager.

Identifying the hardware 5

Top components

TouchPad

Item Component Description

(1) TouchPad on/off button Turns the TouchPad on and off. Quickly double-tap the

button to turn the TouchPad on and off.

(2) TouchPad Moves the pointer and selects or activates items on the

screen.

(3) Left TouchPad button* Functions like the left button on an external mouse.

(4) Right TouchPad button* Functions like the right button on an external mouse.

*This table describes factory settings. To view or change pointing device preferences, select Start > Control Panel >

Printers and Other Hardware > Mouse.

6 Chapter 2 External component identification

Lights

Item Component Description

(1) TouchPad light ●On: The TouchPad is disabled.

●Off: The TouchPad is enabled.

(2) Caps lock light On: Caps lock is on.

(3) Mute light On: Speaker sound is off.

(4) Wireless light ●White: An integrated wireless device, such as a

wireless local area network (WLAN) device and/ or

a Bluetooth device, is on.

NOTE: Wireless devices are enabled at the

factory.

●Off: All wireless devices are off.

Top components 7

Produkt Specifikationer

Mærke:	HP
Kategori:	Bærbare computer
Model:	Mini 210-1130ET
Bredde:	268 mm
Dybde:	178 mm
Vægt:	1220 g
Brugervejledning:	Ja
Produktfarve:	Black, White
Batterikapacitet:	62 Wh
Produkttype:	Netbook
Pakkedybde:	110 mm
Pakkebredde:	415 mm
Pakkehøjde:	260 mm
Skærm diagonal:	10.1 "
Skærmopløsning:	1024 x 600 pixel
Berøringsskærm:	Ingen
Kompatible hukommelseskort:	Memory Stick (MS), MMC, MS PRO, SD, xD
Front kamera:	Ja
Wi-Fi:	Ja
Datanetværk:	Ikke understøttet
Bluetooth:	Ja
Batteriteknologi:	Lithium-Ion (Li-Ion)
Formfaktor:	Muslingeskal
Naturligt aspektforhold:	5:3
DVI-port:	Ingen
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	3
Ethernet LAN:	Ja
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Processorkerner:	1
Ethernet LAN-datahastigheder:	10, 100 Mbit/s
Intern hukommelse:	2 GB
Frekvens for vekselstrømsadapter:	50 - 60 Hz
Hurtig start guide:	Ja
Kabler inkluderet:	Vekselstrøm
Operativsystem installeret:	Windows 7 Starter
Kabelteknologi:	10/100Base-T(X)
AC-adapter inkluderet:	Ja
Indbygget kortlæser:	Ja
HDD kapacitet:	160 GB
LED-baggrundsbelysning:	Ja
Antal indbyggede højttalere:	2
Batterilevetid (maks.):	- t
Bæredygtighedscertifikater:	ENERGY STAR
Processorfrekvens:	1.83 GHz
Processorserie:	Intel Atom®
Processortråde:	2
Processor-cache:	0.5 MB
Processor cache type:	L2
Intern hukommelsestype:	DDR3-SDRAM
Maksimal intern hukommelse:	2 GB
Hukommelse form faktor:	SO-DIMM
Samlet lagringskapacitet:	160 GB
Lagermedie:	HDD
On-board grafikkort, model:	Intel® GMA 3150
Diskret grafikadaptermodel:	Ikke tilgængelig
On-board grafikkort:	Ja
Diskret grafikadapter:	Ingen
Indbygget grafikadapterfamilie:	Intel® GMA
Indbygget mikrofon:	Ja
Mikrofonindgang:	Ingen
S/PDIF-udgang:	Ingen
Docking-stik:	Ingen
ExpressCard-slot:	Ingen
Cardbus PCMCIA slot type:	Ingen
Smartcard slot:	Ingen
Opladningsport type:	DC-in-stik
Pegeredskab:	Clickpad
Numerisk tastatur:	Ingen
Tastatur i ø-stil:	Ja
Intel® Hyper Threading Teknologi (Intel® HT Technology):	Ja
Vekselstrømsadapter strøm:	40 W
Slot til kabellås:	Ja
Hukommelsesstik:	1x SO-DIMM
Processorproducent:	Intel
Oprindelsesland:	Kina
Drivere inkluderet:	Ja
Antal VGA-porte (D-sub):	1
Optisk drevtype:	Ingen
Kombineret hovedtelefon/mikrofon-port:	Ja
Antal battericeller:	6
Indbygget optisk drev:	Ingen
HDD-grænseflade:	SATA
Windows taster:	Ja
HDD-størrelse:	2.5 "
HDD hastighed:	7200 rpm
Systembus-hastighed:	2.5 GT/s
Hukommelseslayout (slots x størrelse):	1 x 2 GB
Antal installerede HDD'er:	1
Operativsystemets arkitektur:	32-bit
LightScribe:	Ingen
Højde (front):	22.9 mm
Højde (bagside):	28.3 mm
Bundkort chipsæt:	Intel® NM10
Maksimal grafikadapterhukommelse:	0.256 GB
Southbridge bundkort:	Intel ICH8M
Maksimal intern hukommelse (64-bit):	2 GB
Producent af grafikadapter:	Intel
4G WiMAX:	Ingen
