Side 1/176

HP Pavilion dv6 Entertainment PC
Maintenance and Service Guide

© Copyright 2008, 2009 Hewlett-Packard
Development Company, L.P.
ATI Mobility Radeon is a registered
trademark of Advanced Micro Devices, Inc.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-
Packard Company under license. Intel,
Celeron, Core, and Pentium are trademarks
of Intel Corporation in the U.S. and
other countries. Microsoft, Windows, and
Windows Vista are U.S. registered
trademarks of Microsoft Corporation.
SD Logo is a trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
Third Edition: May 2009
First Edition: December 2008
Document Part Number: 505495-003

iv Safety warning notice

Table of contents
1 Product description
2 External component identification
Top components ................................................................................................................................... 8
TouchPad ............................................................................................................................ 8
Lights ................................................................................................................................... 9
Buttons, speakers and fingerprint reader ........................................................................... 11

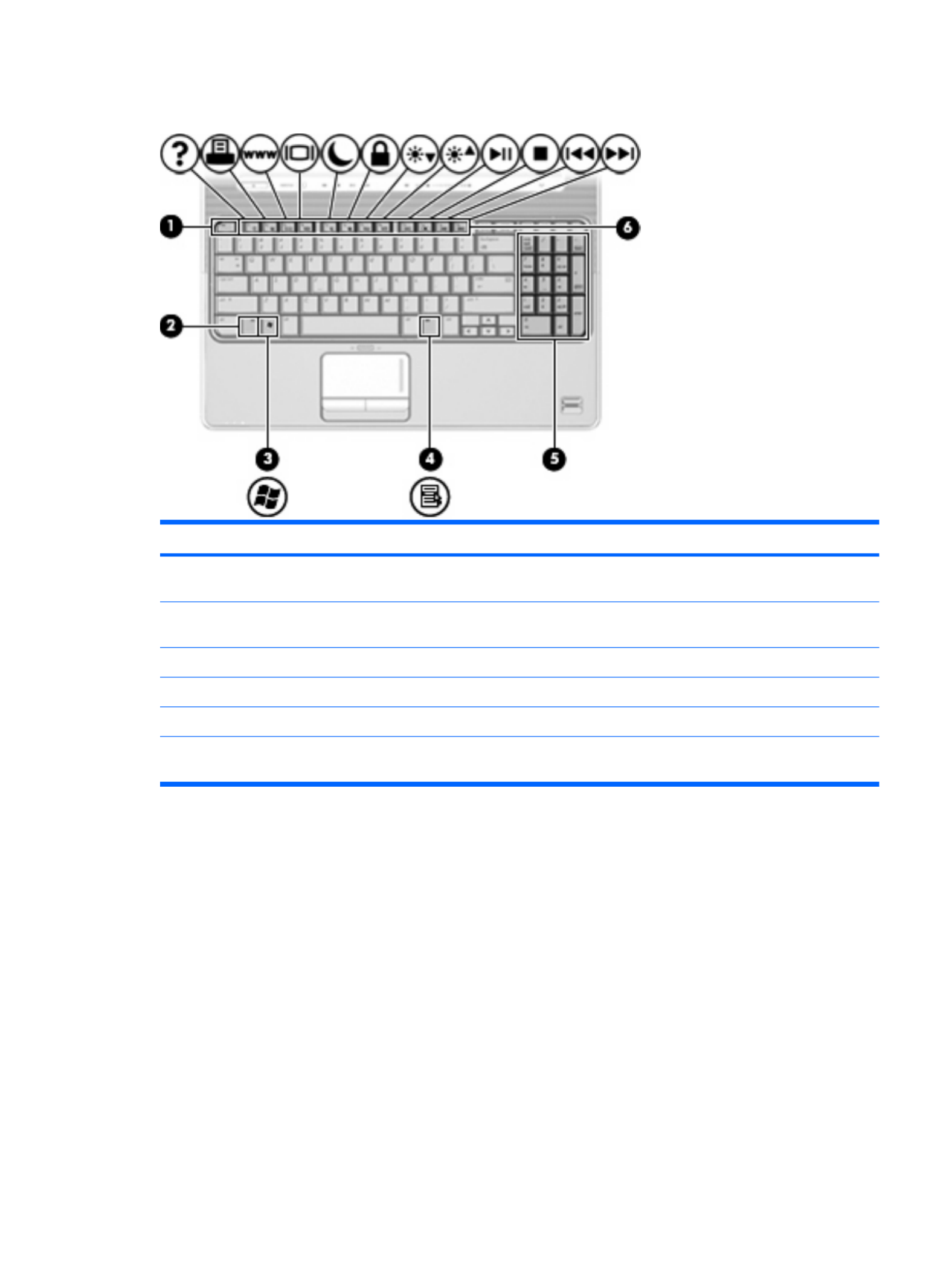

Keys ................................................................................................................................... 13
Front components .............................................................................................................................. 14
Rear component ................................................................................................................................. 15
Right-side components ....................................................................................................................... 15
Left-side components ......................................................................................................................... 16
Bottom components ........................................................................................................................... 17
Display components ........................................................................................................................... 18
Wireless antennas (select models only) ............................................................................................. 19
3 Illustrated parts catalog
Service tag ......................................................................................................................................... 20
Computer major components ............................................................................................................. 21
Display assembly components ........................................................................................................... 33
AntiGlare display assembly spare parts ............................................................................ 33
BrightView display assembly spare parts .......................................................................... 35
Plastics Kit .......................................................................................................................................... 37
Cable Kit ............................................................................................................................................. 38
Miscellaneous parts ............................................................................................................................ 39
Sequential part number listing ............................................................................................................ 40
4 Removal and replacement procedures
Preliminary replacement requirements ............................................................................................... 52
Tools required .................................................................................................................... 52
Service considerations ....................................................................................................... 52
Plastic parts ....................................................................................................... 52
Cables and connectors ..................................................................................... 53
v

System Configuration menu ............................................................................................ 112
Diagnostics menu ............................................................................................................ 113
6 Specifications
Computer specifications ................................................................................................................... 114
15.6-inch, WXGA BrightView display specifications ......................................................................... 115
16.0-inch WXGA BrightView display specifications .......................................................................... 116
15.6-inch WXGA AntiGlare display specifications ............................................................................ 117
16.0-inch WXGA AntiGlare display specifications ............................................................................ 118
Hard drive specifications .................................................................................................................. 119
Blu-ray ROM DVD±R/RW SuperMulti Double-Layer Drive specifications ........................................ 120
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications ................................ 121
System DMA specifications .............................................................................................................. 122
System interrupt specifications ......................................................................................................... 123
System I/O address specifications ................................................................................................... 124
System memory map specifications ................................................................................................. 127
7 Screw listing
Phillips PM2.0×3.0 screw ................................................................................................................. 129
Phillips PM2.0×3.0 screw ................................................................................................................. 131
Phillips PM2.0×14.0 captive screw ................................................................................................... 133
Phillips PM2.5×3.0 screw ................................................................................................................. 134
Phillips PM2.5×4.0 screw ................................................................................................................. 135
Phillips PM2.5×5.0 screw ................................................................................................................. 137
Phillips PM2.5×5.0 captive screw ..................................................................................................... 139
Phillips PM2.5×5.5 captive screw ..................................................................................................... 140
Phillips PM2.5×6.5 screw ................................................................................................................. 141
Phillips PM3.0×3.5 screw ................................................................................................................. 144
8 Backup and Recovery
Recovering system information ........................................................................................................ 145
Creating recovery discs ................................................................................................... 146
Backing up your information ............................................................................................................. 147
When to back up .............................................................................................................. 147
Backup suggestions ......................................................................................................... 147
Using system restore points ............................................................................................ 147
When to create restore points ......................................................................... 148
Create a system restore point ......................................................................... 148
Restore to a previous date and time ............................................................... 148
Performing a recovery ...................................................................................................................... 149
Recovering from the recovery discs ................................................................................ 149
Recovering from the dedicated recovery partition (select models only) .......................... 149
vii

9 Connector pin assignments
1394 ................................................................................................................................................. 150
Audio-in (microphone) ...................................................................................................................... 150
Audio-out (headphone) ..................................................................................................................... 151
External monitor ............................................................................................................................... 151
HDMI ................................................................................................................................................ 152
RJ-11 (modem) ................................................................................................................................ 153
RJ-45 (network) ................................................................................................................................ 153
Universal Serial Bus ......................................................................................................................... 154
10 Power cord set requirements
Requirements for all countries or regions ......................................................................................... 155
Requirements for specific countries or regions ................................................................................ 156
11 Recycling
Battery .............................................................................................................................................. 157
Display .............................................................................................................................................. 157
Index ................................................................................................................................................................. 163
viii

Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Intel Core Duo P8400 2.26-GHz with 3-MB L2
cache and 1066-MHz FSB
√ √
Intel Core Duo P7550 2.26-GHz with 3-MB L2
cache and 1066-MHz FSB
√ √
Intel Core Duo P7450 2.13-GHz with 3-MB L2
cache and 1066-MHz FSB
√ √
Intel Celeron® 900 2.20-GHz with 1-MB L2 cache
and 667-MHz FSB
√
Intel Celeron® T1600 1.66-GHz with 1-MB L2
cache and 667-MHz FSB
√
Chipset Northbridge: Intel PM45 √
Northbridge: Intel GM45 √
Southbridge: Intel ICH9M √ √
Graphics nVIDIA GeForce 9200M GS with 512 MB of
dedicated video memory (64 MB × 16 DDR2 × 4
PCs)
●Up to 767 MB video memory on computer
models equipped with 1 GB of main system
memory
●Up to 1279 MB video memory on computer
models equipped with 2 GB of main system
memory
●Up to 1791 MB video memory on computer
models equipped with 3 GB of main system
memory
●Up to 1791 MB video memory on computer
models equipped with 4 GB of main system
memory (32-bit OS)
●Up to 2303 MB video memory on computer
models equipped with 4 GB of main system
memory (64-bit OS)
√
ATI Discrete PCI Express x 16 Graphics
●ATI Mobility Radeon
TM
HD 4650 (M96) with
1 GB dedicated video memory (64MBx16
DDR3 x 8 PCs)
●ATI Mobility Radeon HD 4530 (M92) with
512 MB dedicated video memory (64MBx16
DDR3 x 4 PCs)
√
Intel Extreme Graphics - Intel GMA 4700MHD √
2 Chapter 1 Product description

Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Webcam VGA camera √ √
Fixed (no tilt) √ √
Activity LED √ √
640 × 480 by 24 frames per second √ √
Microphone 2 omnidirectional microphones, dual-array with
appropriate software (supports beam forming,
echo cancellation, and noise suppression)
√ √
Audio HD Audio (IDT) √ √
Supports Microsoft® Premium Requirements √ √
Pavilion-branded Altec Lansing speakers √ √
Modem 56K V.92 data/fax modem (select models only) √ √
Supports all worldwide certification requirements √ √
Ethernet Integrated Realtek 10/100/1000 network
interface card (NIC)
√
Integrated Realtek 10/100 NIC √
Wireless Integrated wireless local area network (WLAN) options by way of wireless module:
Broadcom BCM4312 802.11b/g √ √
Broadcom BCM4312 802.11b/g + Bluetooth®
with two antennas
√ √
Broadcom 4322 802.11a/b/g/n WLAN √ √
Broadcom 4322 802.11a/b/g/n WLAN +
Bluetooth
√ √
Intel Wi-Fi Link 5100 802.11a/b/g/n
WLAN module with two antennas
√ √
Intel Wi-Fi Link 5100 802.11a/b/g/n
WLAN module + Bluetooth with two antennas
√ √
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module
with two antennas
√ √
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module
+ Bluetooth with two antennas
√ √
TV tuner Integrated NTSC/ATSC/ANG hybrid
TV tuner module (select models only)
√ √
Integrated worldwide analog DVB-T/ANG
TV tuner module (select models only)
√ √
Integrated DVB-T TV tuner module (select
models only)
√
Support for TV tuner antennas for both DVB-T
and NTSC/ATSC (select models only)
√ √
5

Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
6-cell, 55-Wh, 2.55-Ah Li-ion battery (Germany
only)
√
6-cell, 55-Wh, 2.55-Ah Li-ion battery √
12-cell, 95-Wh, 8.8-Ah Li-ion battery √
90-W AC adapter with localized cable plug
support (2-wire plug with ground pin, supports 2-
pin DC connector)
√
65-W AC adapter with localized cable plug
support (2-wire plug with ground pin, supports 2-
pin DC connector)
√
Security Security cable slot √ √
Fingerprint reader (select models only) √ √
Operating system Preinstalled:
Windows Vista® Business (32 bit) √ √
Windows Vista Home Basic (32 bit) √ √
Windows Vista Premium (32 bit and 64 bit) √ √
Windows Vista Ultimate (64 bit) √ √
Serviceability AC adapter √ √
Battery (system) √ √
Hard drive √ √
Memory module √ √
Optical drive √ √
Mini Card components √ √
WLAN module √ √
7

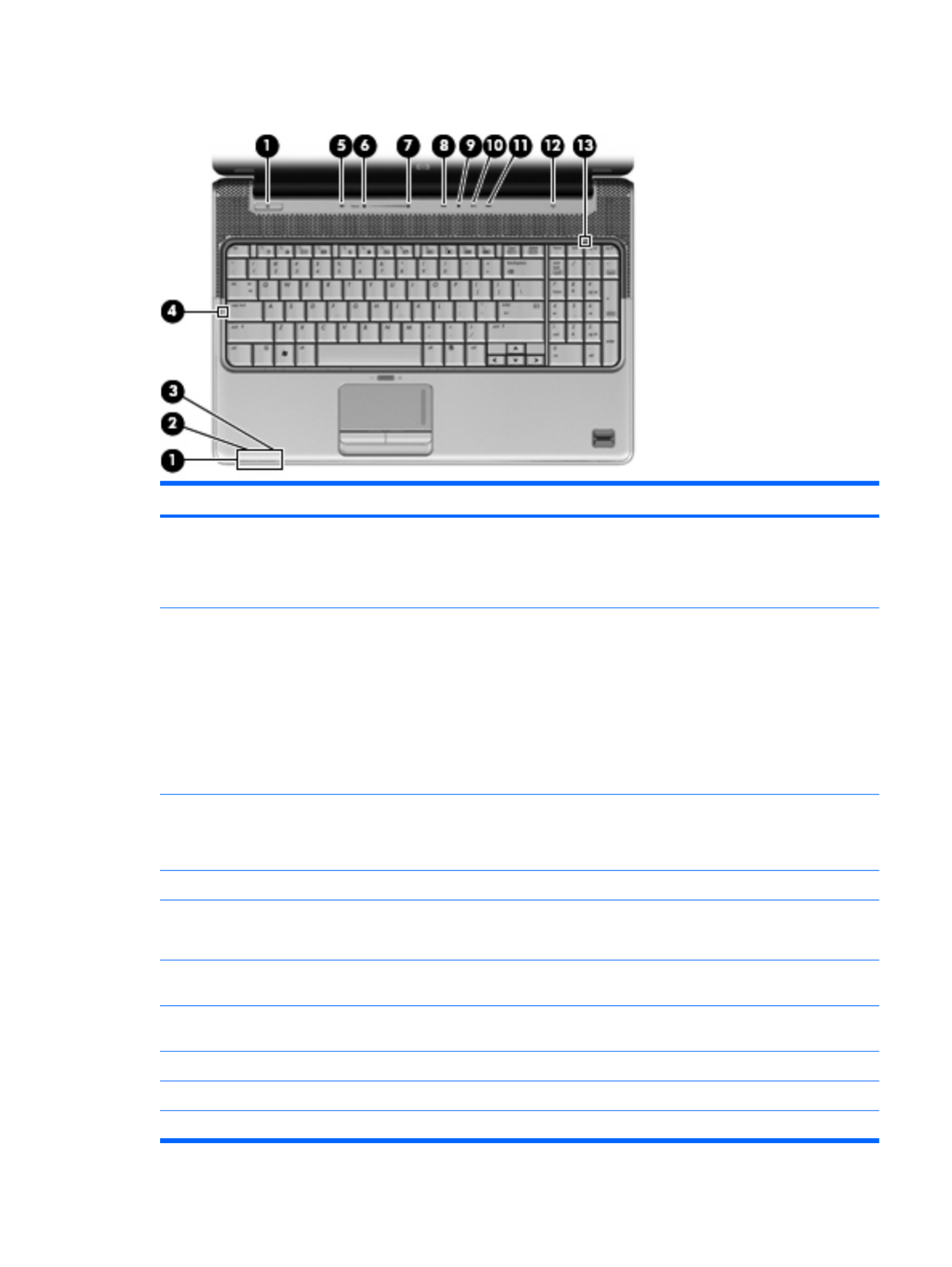

Lights
Item Component Description
(1) Power lights* (2) ●On: The computer is on.
●Blinking: The computer is in the Sleep state.
●Off: The computer is off or in Hibernation.
(2) Battery light ●On: A battery is charging.
●Blinking: A battery that is the only available power source has
reached a low battery level. When the battery reaches a
critical battery level, the battery light begins blinking rapidly.
●Off: If the computer is plugged into an external power source,
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a
low battery level.
(3) Drive light ●Blinking: The hard drive or optical drive is being accessed.
●Amber: HP ProtectSmart Hard Drive Protection has
temporarily parked the hard drive.
(4) Caps lock light On: Caps lock is on.
(5) Volume mute light ●White: Computer sound is turned on.
●Amber: Computer sound is turned off.
(6) Volume down light On: The volume scroll zone is being used to decrease speaker
volume.
(7) Volume up light On: The volume scroll zone is being used to increase speaker
volume.
(8) Previous/rewind light On: The previous/rewind button has been pressed.
(9) Play/pause light On: The play/pause button has been pressed.
(10) Next/fast forward light On: The next/fast forward button has been pressed.
Top components 9

Keys
Item Component Description
(1) esc key Displays system information about your computer when pressed in
combination with the fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Integrated numeric keypad keys Can be used like the keys on an external numeric keypad.
(6) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
Top components 13
Produkt Specifikationer
Mærke: | HP |
Kategori: | Laptop |
Model: | Pavilion dv6-1238ca |
Har du brug for hjælp?
Hvis du har brug for hjælp til HP Pavilion dv6-1238ca stil et spørgsmål nedenfor, og andre brugere vil svare dig
Laptop HP Manualer
12 Januar 2025
11 Januar 2025
11 Januar 2025
11 Januar 2025
27 December 2024
21 December 2024
21 December 2024
21 December 2024
21 December 2024
21 December 2024
Laptop Manualer
- Ematic
- Gigabyte
- Coby
- Targa
- System76
- EMachines
- Atdec
- General Dynamics Itronix
- Dell
- ADATA
- Sylvania
- Xiaomi
- Microsoft
- Tripp Lite
- Kogan
Nyeste Laptop Manualer
28 Marts 2025
10 Februar 2025
5 Februar 2025
31 Januar 2025
31 Januar 2025
28 Januar 2025
27 Januar 2025
12 Januar 2025
12 Januar 2025
12 Januar 2025
