HP Pavilion dv7 Entertainment PC
Maintenance and Service Guide
© Copyright 2009 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-
Packard Company under license. Intel and
Core are trademarks of Intel Corporation in
the U.S. and other countries. Microsoft,
Windows, and Windows Vista are
U.S. registered trademarks of
Microsoft Corporation. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: March 2009
Document Part Number: 515798-001
iv Safety warning notice
System Configuration menu .............................................................................................. 98
Diagnostics menu .............................................................................................................. 99
6 Specifications
Computer specifications ................................................................................................................... 100
17.3-inch, HD+ flush glass AntiGlare display specifications ............................................................ 101
17.3-inch HD+ BrightView display specifications ............................................................................. 102
Hard drive specifications .................................................................................................................. 103
Blu-ray ROM DVD±R/RW SuperMulti DL Drive ............................................................................... 104
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications ................................ 105
System DMA specifications .............................................................................................................. 105
System interrupt specifications ......................................................................................................... 107
System I/O address specifications ................................................................................................... 108
System memory map specifications ................................................................................................. 110
7 Screw listing
Phillips PM2.5×3.0 screw (black) ..................................................................................................... 111
Phillips PM2.5×3.0 screw (silver) ..................... ............ ......................... ............. .............................. 112
Phillips PM2.5×7.0 screw ................................................................................................................. 114
Phillips PM2.5×6.0 captive screw ..................................................................................................... 117
Phillips PM2.0×4.0 screw (black) ..................................................................................................... 119
Phillips PM2.0×4.0 screw (silver) ..................... ............ ......................... ............. .............................. 122
Phillips PM2.5×4.0 screw (silver) ..................... ............ ......................... ............. .............................. 124
Phillips PM2.5×4.0 screw (black) ..................................................................................................... 125
Phillips PM2.5×4.0 broadhead screw ......................... ................................................................... ... 126
Phillips PM2.5×5.0 screw ................................................................................................................. 127
Phillips PM2.5×5.0 broadhead screw ......................... ................................................................... ... 129
Phillips PM2.5×6.5 screw ................................................................................................................. 130
Phillips PM2.5×14.0 captive screw ................................................................................................... 131
8 Backup and Recovery
Recovering system information ........................................................................................................ 133
Creating recovery discs ................................................................................................... 134
Backing up your information ............................................................................................................. 135
When to back up .............................................................................................................. 135
Backup suggestions ......................................................................................................... 135
Using system restore points ............................................................................................ 135
When to create restore points ......................................................................... 136
Create a system restore point ......................................................................... 136
Restore to a previous date and time ............................................................... 136
Performing a recovery ...................................................................................................................... 137
Recovering from the recovery discs ................................................................................ 137
Recovering from the dedicated recovery partition (select models only) .......................... 137
vii
9 Connector pin assignments
1394 ................................................................................................................................................. 138
Audio-in (microphone) ...................................................................................................................... 138
Audio-out (headphone) ..................................................................................................................... 139
External monitor ............................................................................................................................... 139
HDMI ................................................................................................................................................ 140
RJ-11 (modem) ................................................................................................................................ 141
RJ-45 (network) ................................................................................................................................ 141
Universal Serial Bus ......................................................................................................................... 142
10 Power cord set requirements
Requirements for all countries or regions ......................................................................................... 143
Requirements for specific countries or regions ................................................................................ 144
11 Recycling
Battery .............................................................................................................................................. 145
Display .............................................................................................................................................. 145
Index ................................................................................................................................................................. 151
viii
Category Description
Discrete graphics subsystem memory
●ATI Mobility Radeon HD 4650 (M96) with 1024 MB (64 MB × 16 DDR3 × 8 PCs)
●ATI Mobility Radeon HD 4530 (M92) with 512 MB (64 MB × 16 DDR3 × 4 PCs)
Panels ●17.3-inch, HD+ (1600 × 900) flush glass
●17.3-inch, HD+ (1600 × 900) BrightView
●Flush glass panel cover support
●Support for lighted logo on top bezel
●Typical brightness 200 nits
Memory 2 SODIMM slots
Customer-accessible/upgradable
PC2-6400, 800-MHz, DDR2
Dual-channel support
Supports up to 8192-MB system memory
●8192-MB total system memory (4096 MB × 2, dual-channel)
●6144-MB total system memory (2048 MB × 1 + 4096 MB × 1)
●4096-MB total system memory (2048 MB × 2, dual-channel)
●3072-MB total system memory (2048 MB × 1 + 1024 MB × 1)
●2048-MB total system memory (1024 MB × 2, dual-channel)
●2048-MB total system memory (2048 MB × 1)
●1024-MB total system memory (1024 MB × 1)
Hard drives Supports all Serial ATA (SATA) 9.5-mm, 6.35-cm (2.50-inch) hard drives
Supports up to 2 hard drives
Support for Accelerometer Hard Drive Protection
Dual hard drive configurations:
●1-TB (500-GB, 5400-rpm × 2)
●640-GB (320-GB, 7200-rpm × 2)
●640-GB (320-GB, 5400-rpm × 2)
●500-GB (250-GB, 7200-rpm × 2)
●500-GB (250-GB, 5400-rpm × 2)
2 Chapter 1 Product description
Category Description
Single hard drive configurations:
●500-GB, 5400-rpm
●320-GB, 7200-rpm
●320-GB, 5400-rpm
●250-GB, 7200-rpm
●250-GB, 5400-rpm
Optical drives 12.7-mm tray load
Serial ATA
Fixed (1 screw for removal)
Support for the following optical drives:
●DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe
●DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive
●Blu-ray ROM DVD±R/RW SuperMulti DL Drive
Webcam Low-light VGA camera
Fixed (no tilt)
Activity LED
640 × 480 by 24 frames per second
Microphone 2 omnidirectional microphones, dual-array with appropriate software (supports beam
forming, echo cancellation, and noise suppression)
Audio HD Audio (IDT)
Integrated subwoofer
Supports Microsoft® Premium Requirements
Pavilion-branded Altec Lansing speakers
Modem 56K V.92 data/fax modem
Supports all worldwide certification requirements
Ethernet Integrated 10/100/1000 network interface card (NIC) (Discrete models)
Integrated 10/100 NIC (UMA models)
Wireless Integrated wireless local area network (WLAN) options by way of wireless
module:
Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module
Broadcom 4322 802.11a/b/g/n WLAN module
Broadcom BCM4312 802.11b/g WLAN module
Wireless Integrated ATSC/NTSC/QAM hybrid TV tuner module
Integrated worldwide analog DVB-T TV tuner module
3
Category Description
Support for TV tuner antennas for both DVB-T and ATSC/NTSC
External media card One ExpressCard 54 slot
Digital Media Slot supports Secure Digital (SD) Memory Card, MultiMediaCard
(MMC), Memory Stick (MS), Memory Stick Pro (MSP), xD Picture Card (XD)
Ports Audio-in (stereo microphone)
Two audio-out (stereo headphone)
Consumer infrared
eSATA
High-Definition Multimedia Interface (HDMI) v1.3 supporting 1080p with HDCP key
IEEE 1394a
RJ-11 (modem; select models only)
RJ-45 (Ethernet, includes link and activity lights)
TV tuner antenna (select models only)
USB 2.0
VGA (Dsub 15-pin)
2-pin AC power for 90-W AC adapter
Docking Expansion port 3 supports the HP Notebook Expansion Base and HP Notebook
QuickDock
Keyboard/pointing devices 17-inch full-size keyboard with numeric keypad
TouchPad supports 2-way scrolling
Taps enabled as default
Power requirements 8-cell 2.55-Ah Li-ion battery
6-cell 2.20-Ah Li-ion battery
90-W AC adapter with localized cable plug support (2-wire plug with ground pin,
supports 2-pin DC connector) (UMA models)
65-W AC adapter with localized cable plug support (2-wire plug with ground pin,
supports 2-pin DC connector) (Discrete models)
Security Kensington Security Lock
Fingerprint reader with Digital Persona software support
Operating system Preinstalled:
FreeDOS
Linux Red Flag
Windows Vista® Business (32 bit)
Windows Vista Home Basic (32 bit)
Windows Vista Premium (32 & 64 bit)
Windows Vista Ultimate (64 bit)
4 Chapter 1 Product description
Category Description
Serviceability AC adapter
Battery (system)
Hard drives (2)
Memory module
Optical drive
5
2 Components
Top components

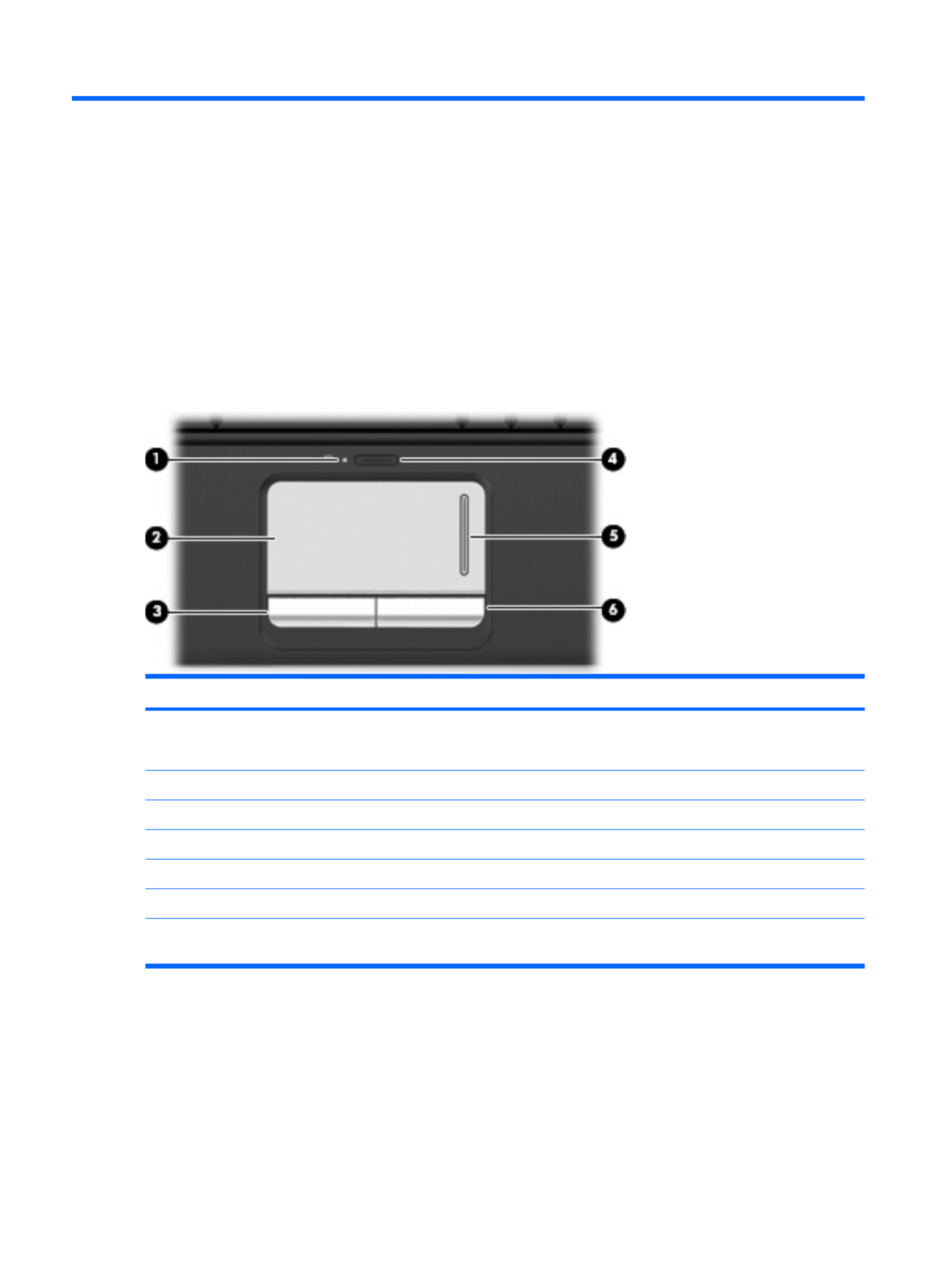

TouchPad
Component Description
(1) TouchPad light ●White: TouchPad is enabled.
●Amber: TouchPad is disabled.
(2) TouchPad* Moves the pointer and selects or activates items on the screen.
(3) Left TouchPad button* Functions like the left button on an external mouse.
(4) TouchPad on/off button Enables/disables the TouchPad.
(5) TouchPad scroll zone Scrolls up or down.
(6) Right TouchPad button* Functions like the right button on an external mouse.
*This table describes factory settings. To view and change pointing device preferences, select Start > Control Panel >
Hardware and Sound .> Mouse
6 Chapter 2 Components
Lights
Component Description
(1) Caps lock light On: Caps lock is on.
(2) Power lights (2)* ●On: The computer is on.
●Blinking: The computer is in the Sleep state.
●Off: The computer is off or in Hibernation.
(3) Volume mute light ●White: Computer sound is on.
●Amber: Computer sound is off.
(4) Volume down light On: The volume scroll zone is being used to decrease speaker
volume.
(5) Volume up light On: The volume scroll zone is being used to increase speaker
volume.
(6) Wireless light ●On: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth® device, is
on.
●Off: All wireless devices are off.
(7) Num lock light The integrated numeric keypad is enabled, or num lock is enabled
on a connected optional numeric keypad.
Top components 7
Component Description
(8) Battery light ●On: A battery is charging.
●Blinking: A battery that is the only available power source has
reached a low battery level. When the battery reaches a
critical battery level, the battery light begins blinking rapidly.
●Off: If the computer is plugged into an external power source,
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a
low battery level.
(9) Drive light ●Blinking: The hard drive or optical drive is being accessed.
●Amber: HP 3D DriveGuard has temporarily parked the hard
drive.
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The
power light on the front of the computer is visible whether the computer is open or closed.
8 Chapter 2 Components
Buttons and fingerprint reader (select models only)
Component Description
(1) Power button* ●When the computer is off, press the button to turn on the
computer.
●When the computer is on, press the button briefly to initiate
Sleep.
●When the computer is in the Sleep state, press the button
briefly to exit Sleep.
●When the computer is in Hibernation, press the button briefly
to exit Hibernation.
If the computer has stopped responding and Windows® shutdown
procedures are ineffective, press and hold the power button for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Maintenance > Power Options.
(2) Speakers (2) Produce sound.
(3) Volume mute button Mutes and restores speaker sound.
(4) Volume scroll zone Adjusts speaker volume. Slide your finger to the left to decrease
volume and to the right to increase volume. You can also tap the
minus (-) sign on the scroll zone to decrease volume, or tap the
plus (+) sign on the scroll zone to increase volume.
(5) Previous/rewind button ●Plays the previous track or chapter when the button is
pressed once.
●Rewinds media when the button is pressed in combination
with the fn key.
(6) Play/pause button Plays or pauses media.
Top components 9
Component Description
(7) Next/fast forward button ●Plays the next track or chapter when the button is pressed
once.
●Fast forwards media when pressed in combination with the
fn key.
(8) Stop button Stops playback.
(9) Wireless button Turns the wireless feature on or off but does not create a wireless
connection.
NOTE: To establish a wireless connection, a wireless network
must already be set up.
(10) Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a password
logon.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help
and Support.
10 Chapter 2 Components

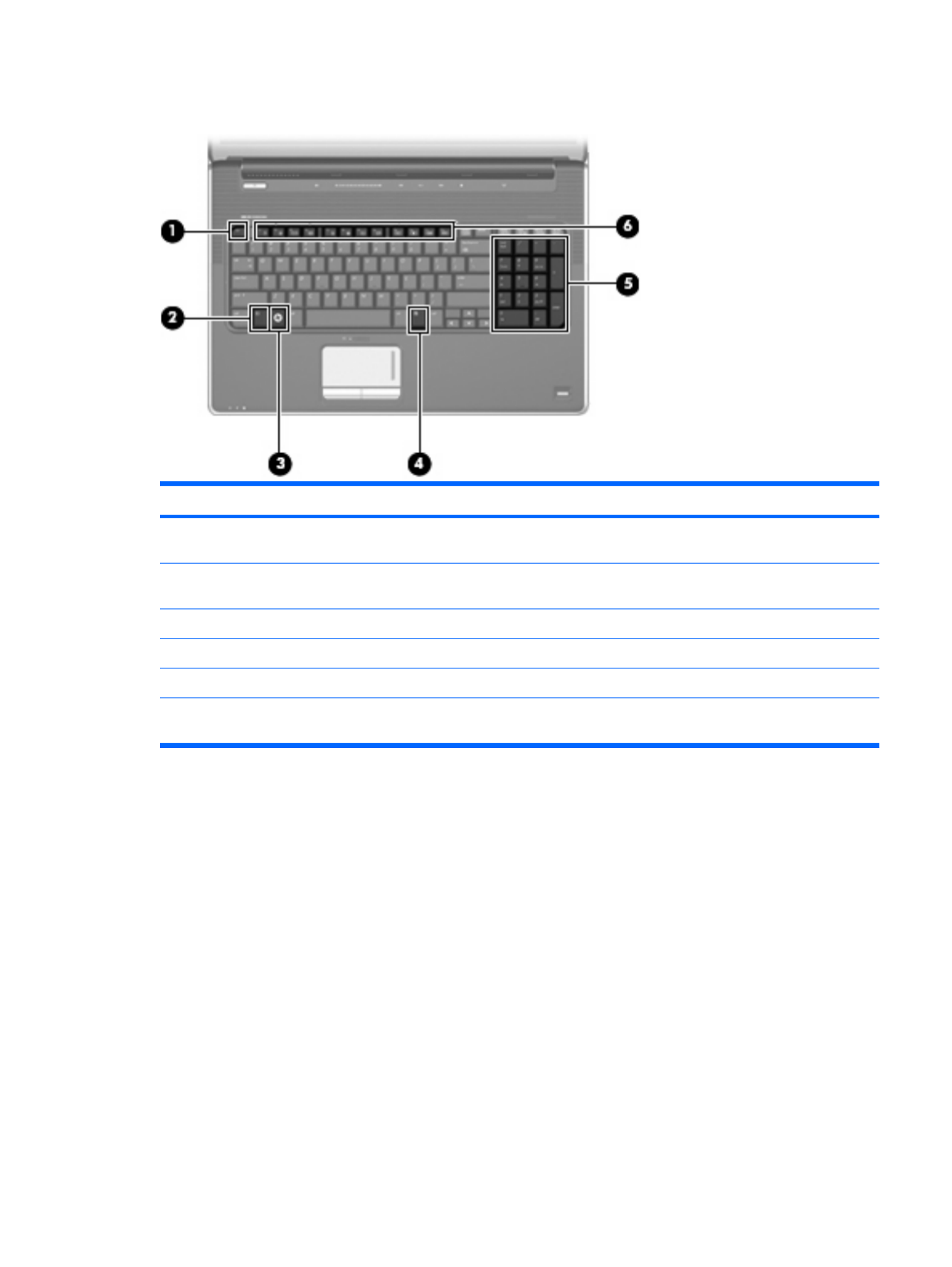

Keys
Component Description
(1) esc key Displays system information when pressed in combination with
the fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Integrated numeric keypad keys Can be used like the keys on an external numeric keypad.
(6) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
Top components 11

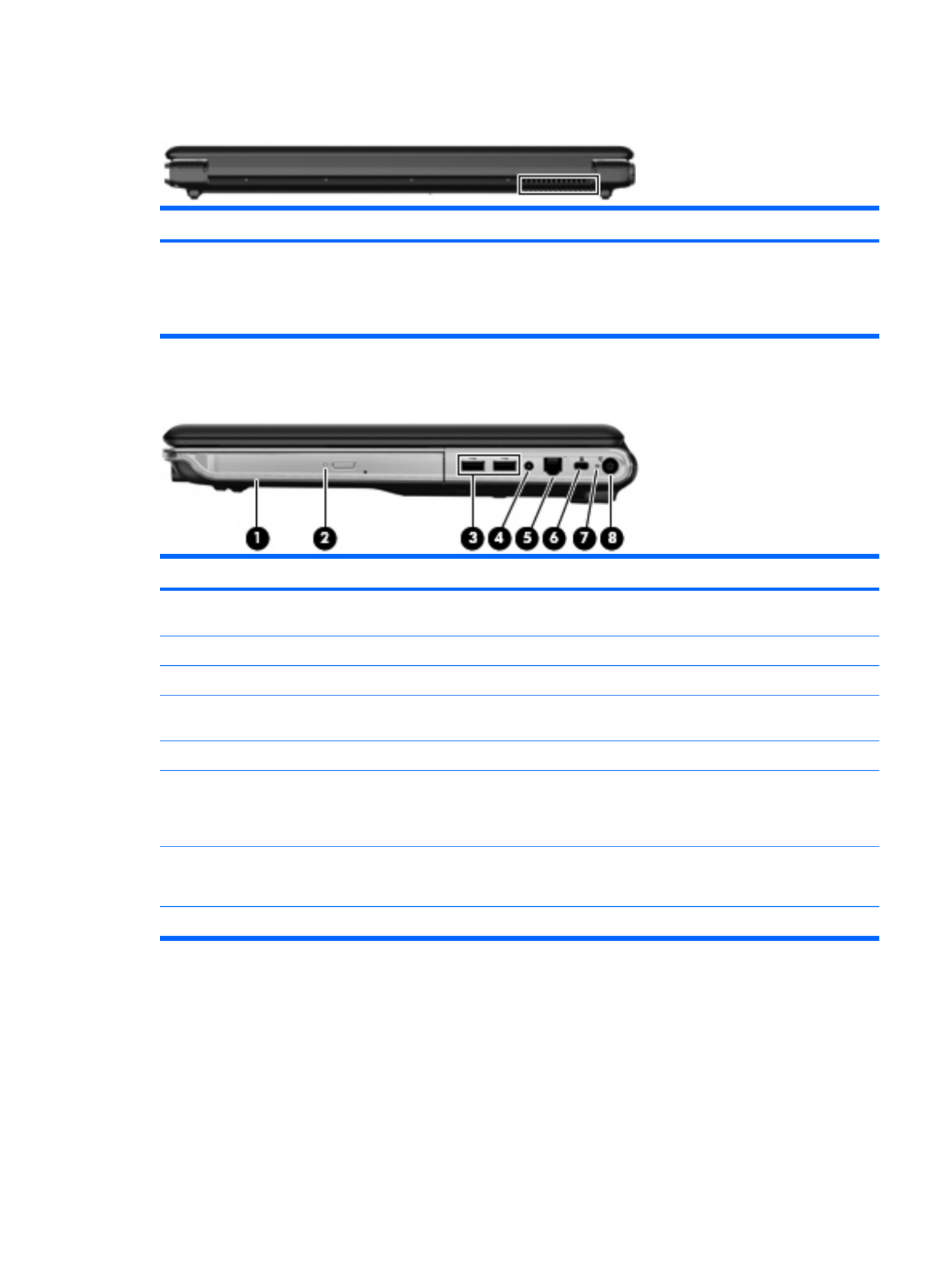

Rear component
Component Description
Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal fan to
cycle on and off during routine operation.
Right-side components
Component Description
(1) Optical drive Reads optical discs and, on select models, also writes to optical
discs.
(2) Optical drive light Blinking: The optical drive is being accessed.
(3) USB ports (2) Connect optional USB devices.
(4) TV antenna/cable jack (select models only) Connects a TV antenna, a digital cable device, or a satellite device
that receives standard or high-definition TV broadcasts.
(5) RJ-11 (modem) jack (select models only) Connects a modem cable.
(6) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
(7) AC adapter light ●On: The computer is connected to external power.
●Off: The computer is not connected to external power.
(8) Power connector Connects an AC adapter.
Rear component 13
Left-side components

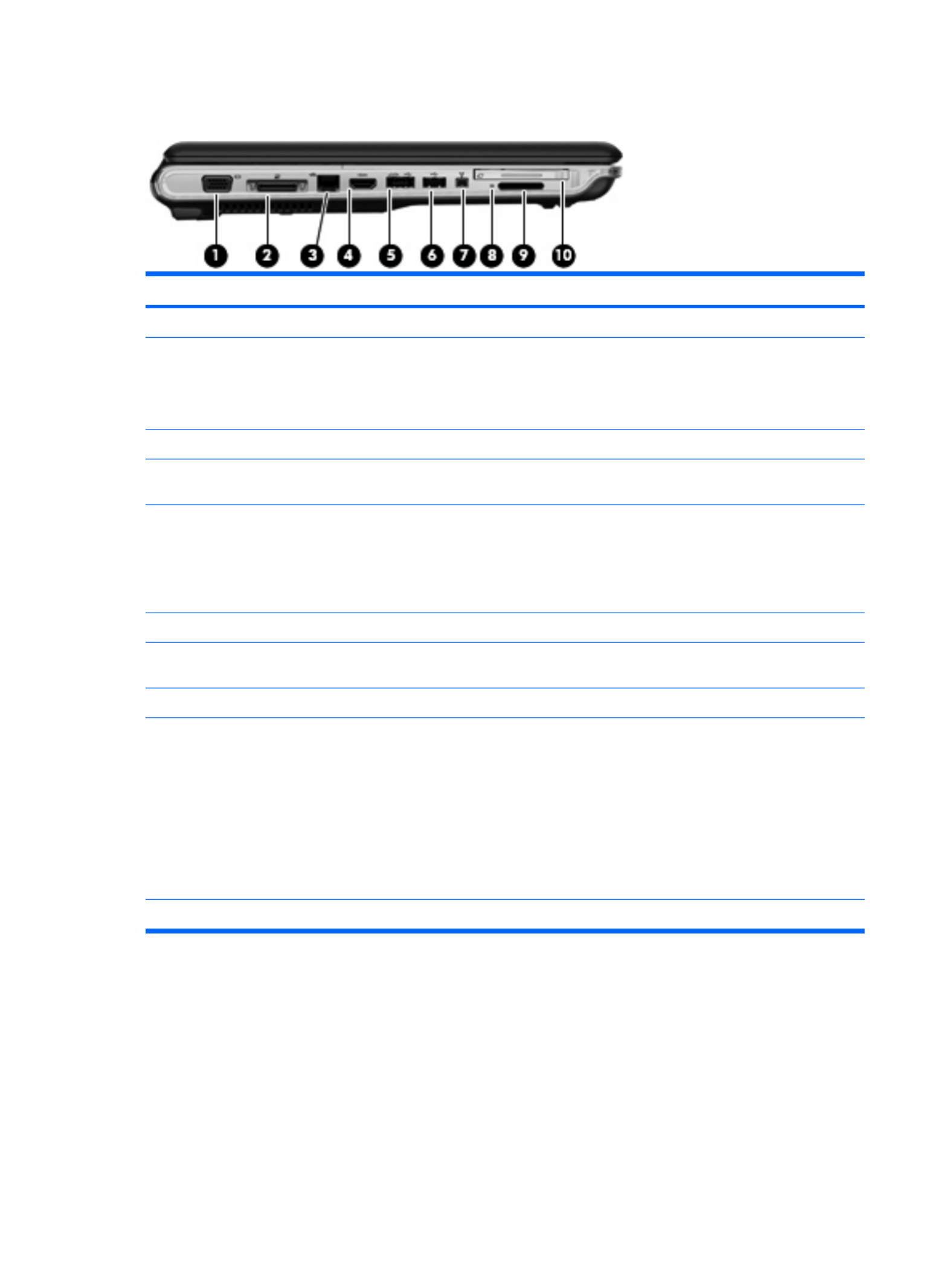

Component Description
(1) External monitor port Connects an external VGA monitor or projector.
(2) Expansion port 3 Connects the computer to an optional docking device or an optional
expansion product.
NOTE: The computer has only one expansion port. The term
expansion port 3 describes the type of expansion port.
(3) RJ-45 (network) jack Connects a network cable.
(4) HDMI port Connects an optional video or audio device, such as a high-
definition television, or any compatible digital or audio component.
(5) eSATA/USB port (select models only) Connects an optional high-performance eSATA component, such
as an eSATA external hard drive, or connects an optional USB
device.
NOTE: Depending on your computer model, the computer may
include a USB port only.
(6) USB port Connects an optional USB device.
(7) 1394 port (select models only) Connects an optional IEEE 1394 or 1394a device, such as a
camcorder.
(8) Digital Media Slot light On: A digital card is being accessed.
(9) Digital Media Slot Supports the following optional digital card formats:
●Memory Stick (MS)
●Memory Stick Pro (MSP)
●MultiMediaCard (MMC)
●Secure Digital (SD) Memory Card
●xD-Picture Card (XD)
(10) ExpressCard slot Supports optional ExpressCard/54 cards.
14 Chapter 2 Components

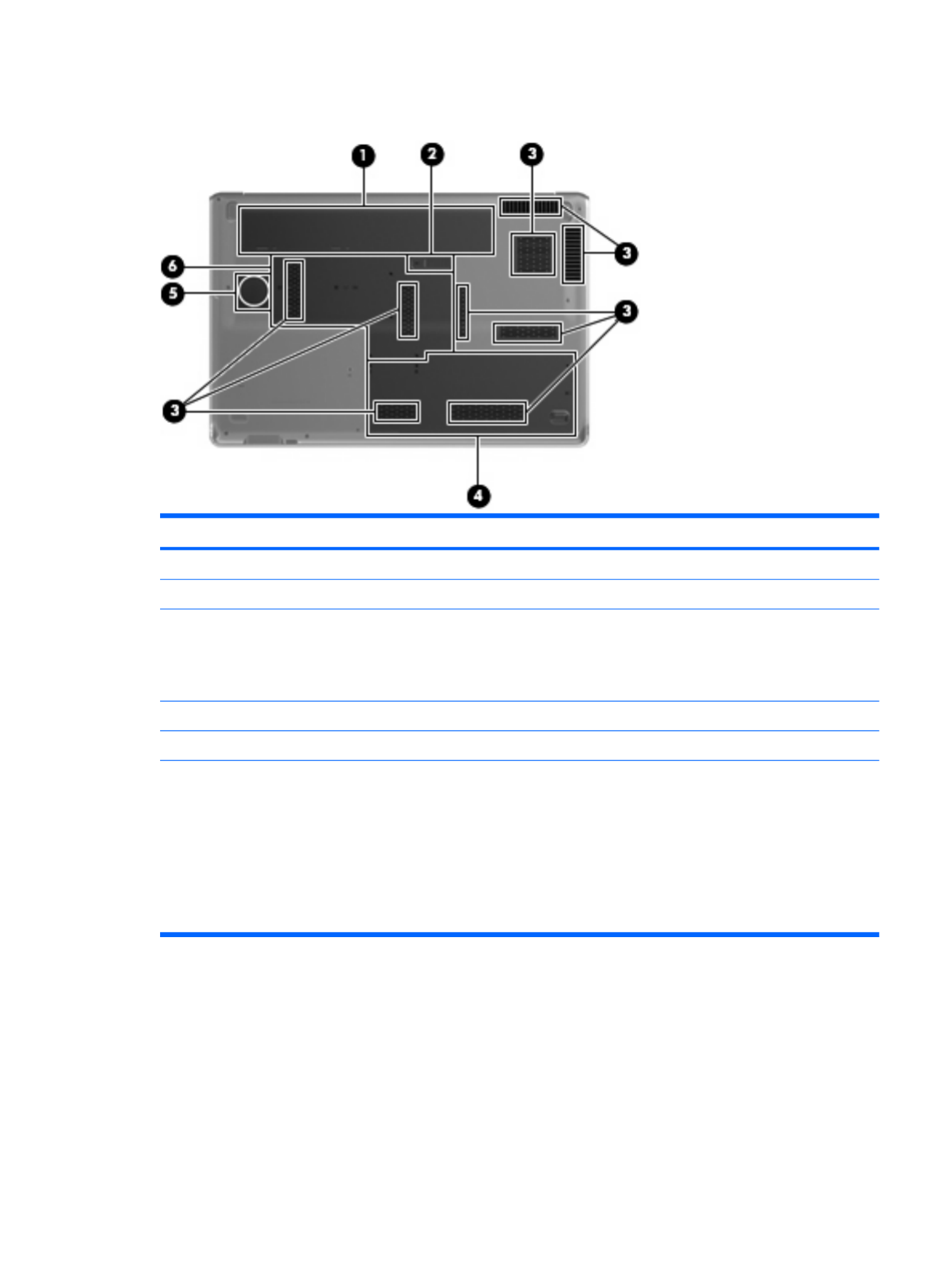

Bottom components
Component Description
(1) Battery bay Holds the battery.
(2) Battery release latch Releases the battery from the battery bay.
(3) Vents (9) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(4) Secondary hard drive bay Holds an optional secondary hard drive.
(5) Integrated subwoofer Contains the subwoofer speaker.
(6) Primary hard drive bay Holds the primary hard drive, the memory module slots, and the
WLAN module (select models only).
CAUTION: To prevent an unresponsive system, replace the
wireless module only with a wireless module authorized for use in
the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and
then receive a warning message, remove the module to restore
computer functionality, and then contact technical support through
Help and Support.
Bottom components 15

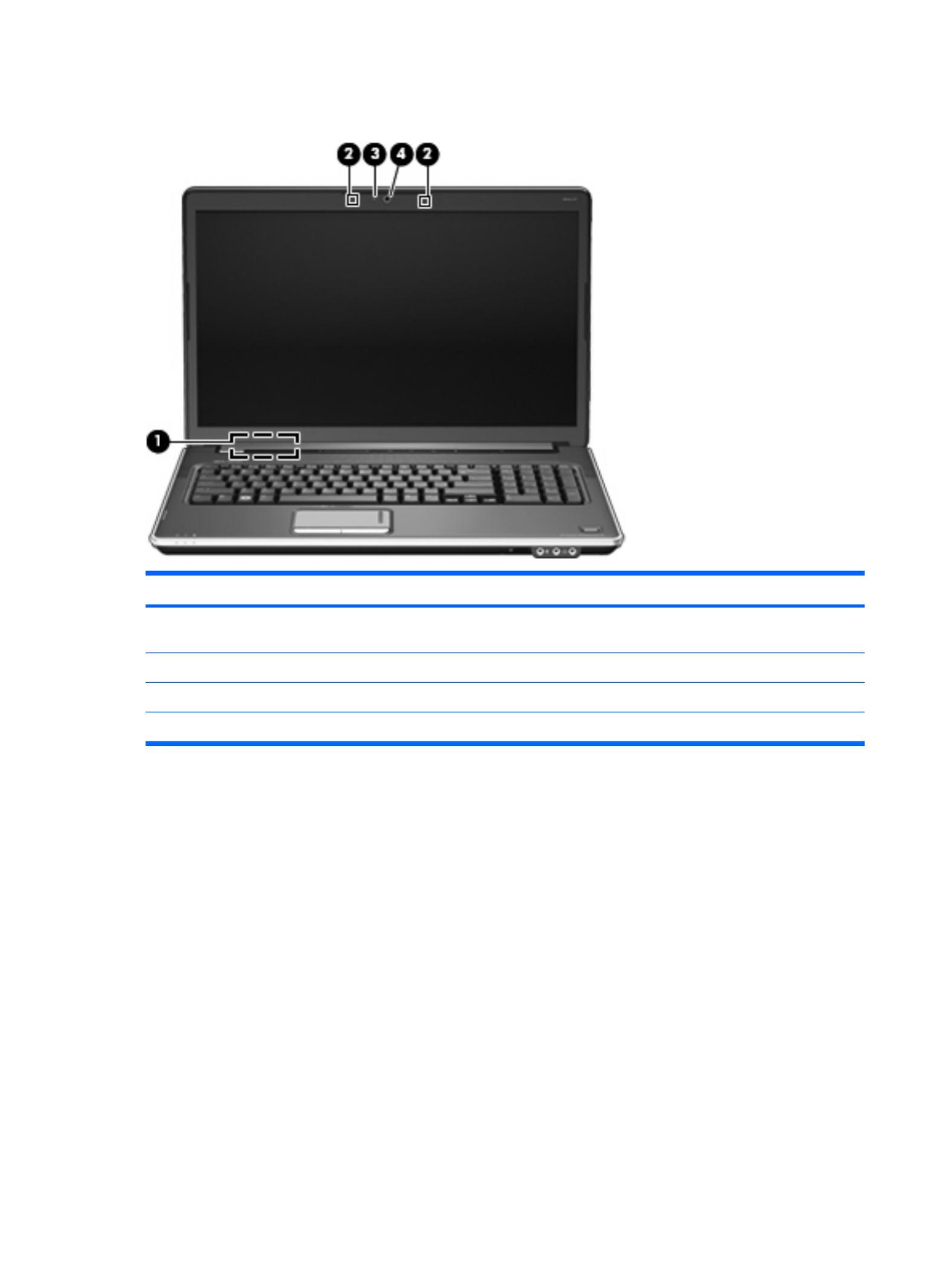

Display components
Component Description
(1) Internal display switch Turns off the display and initiates Sleep if the display is closed while
the power is on.
(2) Internal microphones (2) Record sound.
(3) Webcam light On: The webcam is in use.
(4) Webcam Records audio and video and captures still photographs.
16 Chapter 2 Components
Computer major components

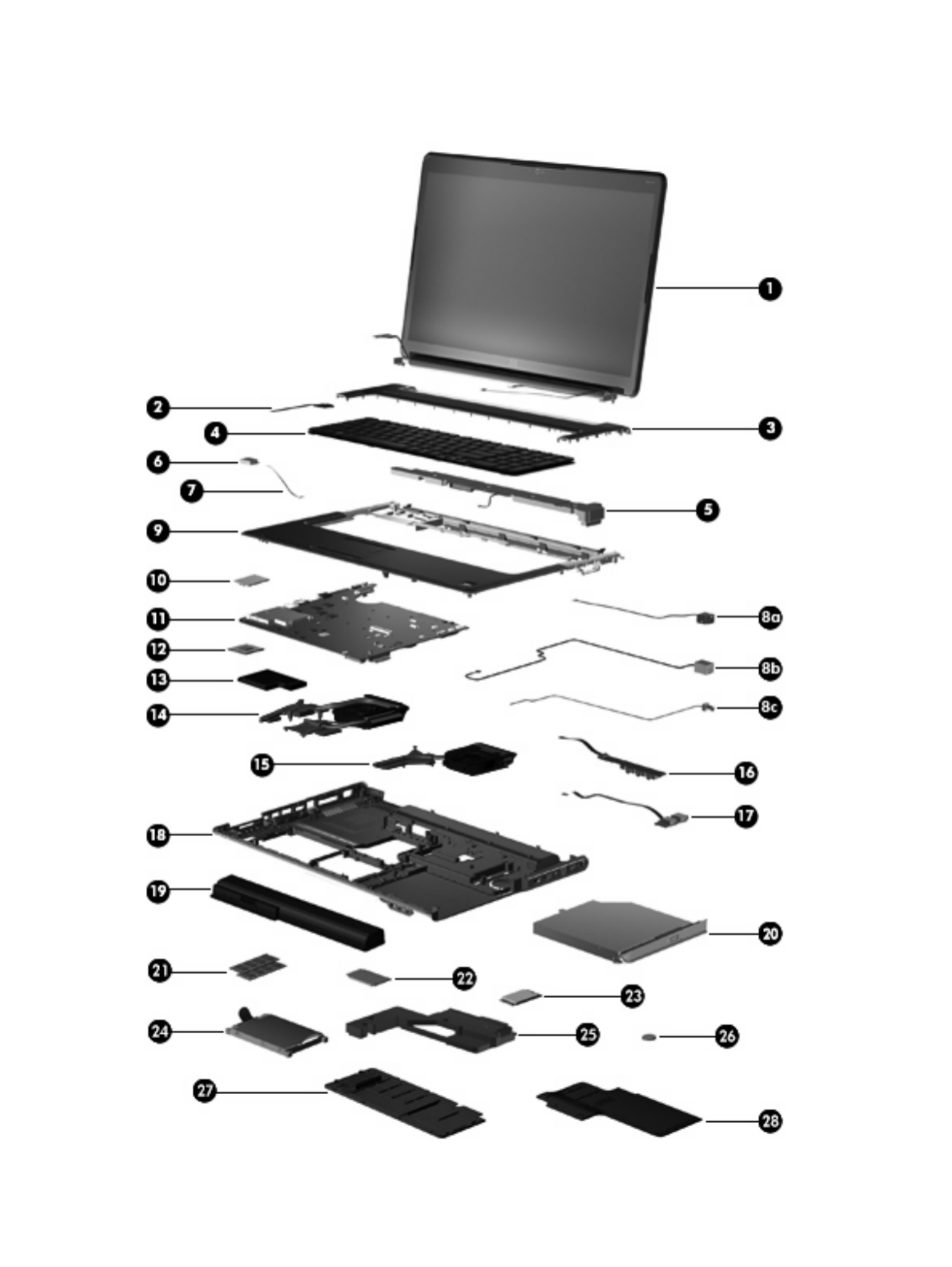

18 Chapter 3 Illustrated parts catalog
Item Description Spare part number
(1) 17.3-inch display assembly (includes wireless antenna transceivers and cables)
HD+ flush glass AntiGlare display assembly with webcam and 2 microphones for use
in white computers
516296-001
HD+ BrightView display assembly with webcam and 2 microphones for use in white
computers
516295-001
HD+ flush glass AntiGlare display assembly with webcam and 2 microphones for use
in black computers
519260-001
HD+ BrightView display assembly with webcam and 2 microphones for use in black
computers
519259-001
NOTE: See Display assembly components on page 24 for more information on display assembly spare part
numbers.
(2) Power button board (includes cable)
For use in computers with discrete graphics subsystems 516329-001
For use in computers with UMA graphics subsystems 518165-001
(3) Switch cover (includes LED board and cable)
For use in white computers 516300-001
For use in black computers 519269-001
(4) Keyboard (includes keyboard cable)
NOTE: For a detailed list of available keyboards, see Sequential part number listing on page 28.
White keyboard 516357-xxx
Black molded keyboard 519265-xxx
Black painted keyboard 519266-xxx
(5) Speaker assembly 516323-001
(6) Bluetooth® module (does not include a Bluetooth module cable) 483113-001
(7) Bluetooth module cable 517638-001
Cable Kit, includes: 516328-001
(8a) Power connector cable
(8b) Modem module cable
(8c) TV tuner module antenna cable
(9) Top cover (includes TouchPad and TouchPad buttons)
For use only with white computer models equipped with a fingerprint reader; includes
fingerprint reader board
516299-001
For use only with white computer models not equipped with a fingerprint reader 516360-001
For use only with black computer models equipped with a fingerprint reader; includes
fingerprint reader board
519267-001
For use only with black computer models not equipped with a fingerprint reader 519268-001
Computer major components 19
Item Description Spare part number
(10) Modem module
NOTE: The modem module spare part kit does not include a modem module cable. The modem module cable is
included in the Cable Kit, spare part number 516328-001.
For use in all countries and regions except Australia and New Zealand 461749-001
For use only in Australia and New Zealand 461749-011
(11) System board (includes replacement thermal material)
With ATI Mobility Radeon HD 4650 discrete graphics subsystem and 1-GB of dedicated
memory
516294-001
With ATI Mobility Radeon HD 4650 discrete graphics subsystem and 1-GB of dedicated
memory
516293-001
With ATI Mobility Radeon HD 4530 discrete graphics subsystem and 512-MB of
dedicated memory
516292-001
With Intel GMA 4700MHD UMA graphics subsystem and shared memory 516291-001
System board bracket (not illustrated) 516334-001
(12) Processor (includes replacement thermal material)
Intel Core™2 Quad Q9100 2.26-GHz with 12-MB L2 cache and 1066-MHz FSB 507947-001
Intel Core2 Quad Q9000 2.00-GHz with 12-MB L2 cache and 1066-MHz FSB 507948-001
Intel Core2 Duo T9800 2.93-GHz with 6-MB L2 cache and 1066-MHz FSB 507951-001
Intel Core2 Duo T9550 2.66-GHz with 6-MB L2 cache and 1066-MHz FSB 507953-001
Intel Core2 Duo P8700 2.53-GHz with 3-MB L2 cache and 1066-MHz FSB 507960-001
Intel Core2 Duo P8600 2.40-GHz with 3-MB L2 cache and 1066-MHz FSB 507963-001
Intel Core2 Duo P7450 2.13-GHz with 3-MB L2 cache and 1066-MHz FSB 507965-001
Intel Core2 Duo T6600 2.20-GHz with 2-MB L2 cache and 800-MHz FSB 513593-001
Intel Core2 Duo T6400 2.00-GHz with 2-MB L2 cache and 800-MHz FSB 513592-001
Intel Pentium Dual Core T4200 2.00-GHz with 1-MB L2 cache and 800-MHz FSB 513599-001
(13) ExpressCard module 516324-001
Fan/heat sink assembly (includes replacement thermal material)
(14) For use only with computer models equipped with graphics subsystems with discrete
memory
516876-001
(15) For use only with computer models equipped with graphics subsystems with UMA
memory
516331-001
Optical drive bracket (not illustrated)
For use in computers with discrete graphics subsystems 519481-001
For use in computers with UMA graphics subsystems 535085-001
(16) Audio/infrared board (includes cable)
For use in computers with discrete graphics subsystems 516330-001
For use in computers with UMA graphics subsystems 518166-001
20 Chapter 3 Illustrated parts catalog
Item Description Spare part number
Broadcom 4322 802.11a/b/g/n WLAN module for use in Afghanistan, Albania, Algeria,
Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize,
Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,
the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon,
Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China,
Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic,
Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France,
French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece,
Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras,
Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica,
Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi,
Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania,
Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands,
New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino,
Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone,
Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
504664-002
Broadcom BCM4312 802.11b/g WLAN module for use in Afghanistan, Albania, Algeria,
Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize,
Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,
the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon,
Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China,
Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic,
Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France,
French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece,
Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras,
Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica,
Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi,
Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania,
Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands,
New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino,
Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone,
Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
459263-002
Broadcom BCM4312 802.11b/g WLAN module for use in Antigua and Barbuda,
Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico, Trinidad and
Tobago, the U.S. Virgin Islands, and the United States
504593-001
22 Chapter 3 Illustrated parts catalog

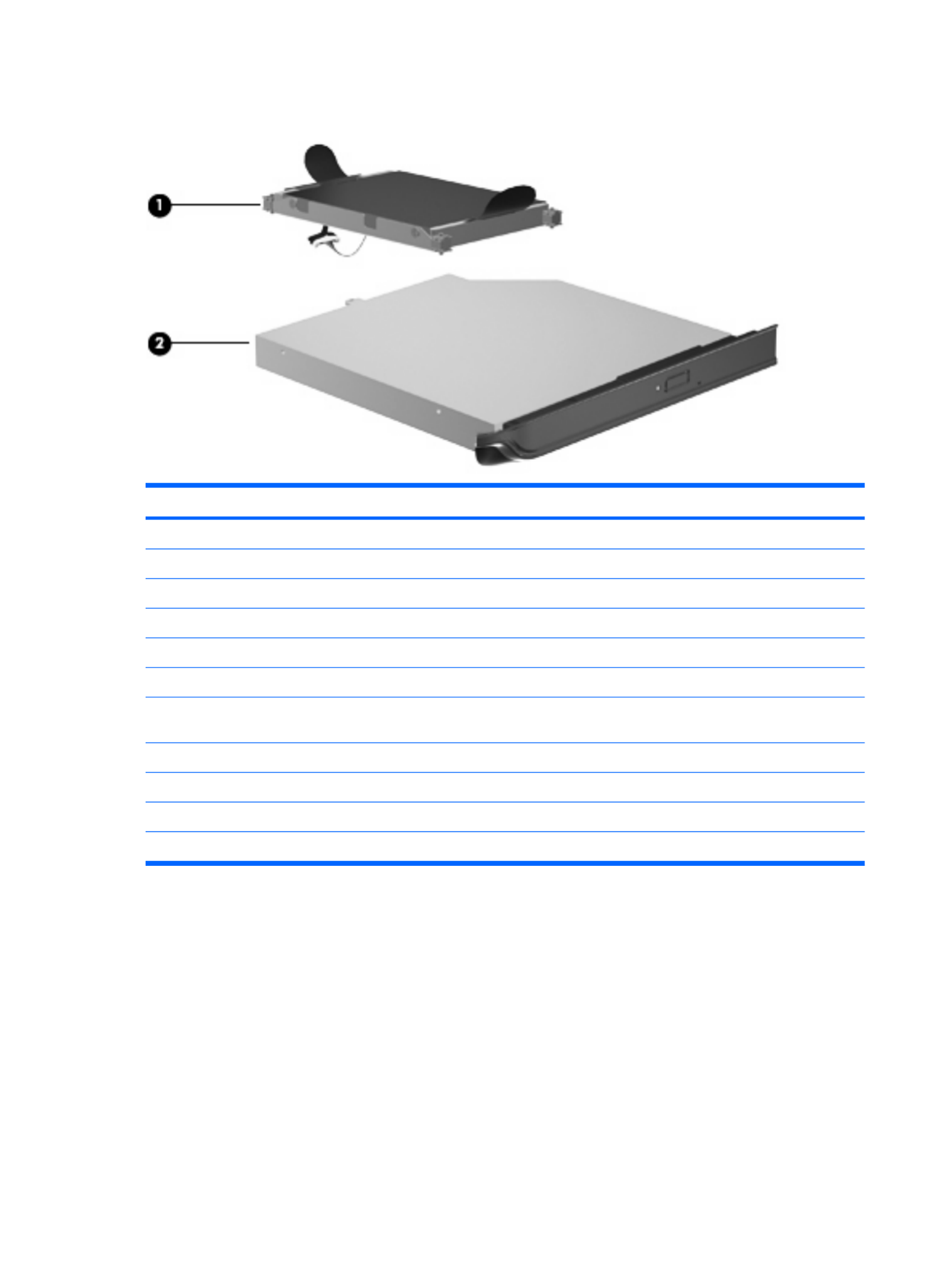

Mass storage devices
Item Description Spare part number
(1) Hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab, and 4 rubber isolators):
●500-GB, 5400-rpm 516350-001
●320-GB, 7200-rpm 516349-001
●320-GB, 5400-rpm 516346-001
●250-GB, 7200-rpm 516348-001
●250-GB, 5400-rpm 516345-001
Hard Drive Hardware Kit (not illustrated, includes left and right bracket rails,
connector cable, Mylar cover with tab, and 4 rubber isolators)
517639-001
(2) Optical drive (includes bezel and bracket)
Blu-ray ROM DVD±R/RW SuperMulti DL Drive with LightScribe 516352-001
Blu-ray ROM DVD±R/RW SuperMulti DL Drive 516351-001
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 516353-001
26 Chapter 3 Illustrated parts catalog
Miscellaneous parts
Description Spare part number
AC adapters
120-W AC adapter 463953-001
90-W AC adapter 463955-001
65-W AC adapter 463958-001
Wired headset with volume control 371693-001
Wireless laser mouse (includes infrared transceiver) 430958-001
Power cords:
Australia and New Zealand 490371-011
Belgium, Bulgaria, the Czech Republic, Finland, France, Germany, Greece, Hungary, Iceland, the
Netherlands, northwest Africa, Norway, Poland, Portugal, Russia, Slovakia, Spain, Sweden, and
Turkey
490371-021
Asia/Pacific region, French Canada, Latin America, Thailand, and the United States 490371-001
Brazil 490371-201
India 490371-D61
Israel 490371-BB1
Italy 490371-061
Japan 490371-291
The People's Republic of China 490371-AA1
South Africa 490371-AR1
South Korea 490371-AD1
Switzerland 490371-111
The United Kingdom and Hong Kong 490371-031
Remote controls:
Full-function remote control 465540-001
Full-function remote control with teletext 465541-001
Screw Kit
●Phillips PM3.0×4.0 screw
●Phillips PM2.5×7.0 screw
●Phillips PM2.5×6.0 screw
●Phillips PM2.5×6.0 captive screw
●Phillips PM2.5×4.0 screw
●Phillips PM2.0×10.0 captive screw
●Phillips PM2.0×4.0 screw
516327-001
Miscellaneous parts 27
Sequential part number listing
Spare part
number
Description
371693-003 Wired headset with volume control
430958-001 Wireless laser mouse (includes infrared transceiver)
449729-001 RTC battery
459263-002 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models equipped with Intel
processors in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia,
Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium,
Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,
the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde,
the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros,
the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia,
Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar,
Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras,
Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan,
Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands,
Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua,
Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru,
the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone,
Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain,
Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden,
Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay,
Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
461749-001 Modem module for use in all countries and regions except Australia and New Zealand
NOTE: The modem module spare part kit does not include a modem module cable. The modem module
cable is included in the Cable Kit, spare part number 501891-001.
461749-011 Modem module for use only in Australia and New Zealand
NOTE: The modem module spare part kit does not include a modem module cable. The modem module
cable is included in the Cable Kit, spare part number 501891-001.
463953-001 120-W AC adapter
463955-001 90-W AC adapter
463958-001 65-W AC adapter
465540-001 Full-function remote control
465541-001 Full-function remote control with teletext
480985-001 Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use only with computer models equipped with Intel
processors
482899-001 ATSC/NTSC/QAM hybrid TV tuner module
NOTE: The TV tuner module spare part kit does not include a TV tuner module cable. The TV tuner
module cable is included in the Cable Kit, spare part number 501891-001.
28 Chapter 3 Illustrated parts catalog
Spare part
number
Description
513592-001 Intel Core2 Duo T6400 processor (2.00-GHz with 2-MB L2 cache and 800-MHz FSB)
513593-001 Intel Core2 Duo T6600 processor (2.20-GHz with 2-MB L2 cache and 800-MHz FSB)
513599-001 Intel Pentium Dual Core T4200 processor (2.00-GHz with 1-MB L2 cache and 800-MHz FSB)
516291-001 System board with Intel GMA 4700MHD UMA graphics subsystem and shared memory
516292-001 System board with ATI Mobility Radeon HD 4530 discrete graphics subsystem and 512 MB of dedicated
memory
516293-001 System board with ATI Mobility Radeon HD 4650 discrete graphics subsystem and 1 GB of dedicated
memory
516294-001 System board with ATI Mobility Radeon HD 4650 discrete graphics subsystem and 1 -GB of dedicated
memory
516295-001 17.3-inch HD+ BrightView display assembly for use in white computers
516296-001 17.3-inch HD+ flush glass AntiGlare display assembly for use in white computers
516297-001 Base enclosure for use only in defeatured computer models equipped with an Intel Core2 Duo
processor
516298-001 Base enclosure for use only with computer models equipped with an Intel Core2 Quad processor
516299-001 Top cover for use only with white computer models equipped with a fingerprint reader; includes fingerprint
reader board
516300-001 Switch cover for use in white com D board and cable)puters (includes LE
516303-001 Flush glass display panel (includes display panel cable)
516304-001 Display enclosure for use in white computers with BrightView displays (includes wireless antenna
transceivers and cables and logo LED board and cable
516305-001 Display bezel for use in computers with BrightView displays
516306-001 Display Hinge Kit for use in computers with BrightView displays (includes left and right hinges)
516307-001 Display Cable Kit for use in computers with BrightView displays (includes display panel cable, and
microphone receiver and cable)
516308-001 Display Rubber Kit for use in computers with BrightView displays (includes display bezel rubber screw
covers)
516309-001 Display Screw Kit for use in computers with BrightView displays
516312-001 Webcam/microphone module for use in computers with BrightView displays
516323-001 Speaker assembly
516324-001 ExpressCard module
516326-001 Rubber Feet Kit (not illustrated, includes 4 base enclosure rubber feet)
516327-001 Screw Kit
516328-001 Cable Kit
516329-001 Power button board for use in computers with discrete graphics subsystems (includes cable)
516330-001 Audio/infrared board for use in computers with discrete graphics subsystems (includes cable)
516331-001 Fan/heat sink assembly for use in computers with UMA graphics subsystems
Sequential part number listing 31
Spare part
number
Description
516332-001 USB board for use in computers with discrete graphics subsystems (includes cable)
516333-001 Subwoofer
516334-001 System board bracket
516335-001 1-GB memory module (800-MHz, PC2-6400, 1-DIMM)
516336-001 2-GB memory module (800-MHz, PC2-6400, 1-DIMM)
516337-001 4-GB memory module (800-MHz, PC2-6400, 1-DIMM)
516345-001 250-GB, 5400-rpm hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab,
and 4 rubber isolators)
516346-001 320-GB, 5400-rpm hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab,
and 4 rubber isolators)
516348-001 250-GB, 7200-rpm hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab,
and 4 rubber isolators)
516349-001 320-GB, 7200-rpm hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab,
and 4 rubber isolators)
516350-001 500-GB, 5400-rpm hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab,
and 4 rubber isolators)
516351-001 Blu-ray ROM DVD±R/RW SuperMulti DL Drive
516352-001 Blu-ray ROM DVD±R/RW SuperMulti DL Drive with LightScribe
516353-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe
516354-001 6-cell, 47-Wh, 2.55-Ah Li-ion battery
516355-001 8-cell, 73-Wh, 2.55-Ah Li-ion battery
516357-001 Keyboard for use in the United States
516357-031 Keyboard for use in white computers in the United Kingdom
516357-041 Keyboard for use in white computers in Germany
516357-051 Keyboard for use in white computers in France
516357-061 Keyboard for use in white computers in Italy
516357-071 Keyboard for use in white computers in Spain
516357-121 Keyboard for use in white computers in French Canada
516357-141 Keyboard for use in white computers in Turkey
516357-151 Keyboard for use in white computers in Greece
516357-171 Keyboard for use in white computers in Saudi Arabia
516357-211 Keyboard for use in white computers in Hungary
516357-221 Keyboard for use in the white computers in the Czech Republic
516357-251 Keyboard for use in white computers in Russia
516357-281 Keyboard for use in white computers in Thailand
516357-291 Keyboard for use in white computers in Japan
32 Chapter 3 Illustrated parts catalog
Spare part
number
Description
516357-A41 Keyboard for use in white computers in Belgium
516357-AD1 Keyboard for use in white computers in South Korea
516357-B31 Keyboard for use white computers internationally
516357-BB1 Keyboard for use in white computers in Israel
516357-DH1 Keyboard for use in white computers in Denmark, Norway, and Sweden
516357-DJ1 Keyboard for use in white computers in Greece
516360-001 Top cover for use only with white computer models not equipped with a fingerprint reader
516443-001 Display enclosure for use in white computers with flush glass displays (includes wireless antenna
transceivers and cables and logo LED board and cable)
516444-001 Display Hinge Kit for use in computers with flush glass displays
516876-001 Fan/heat sink assembly for use in computers with discrete graphics subsystems
517638-001 Bluetooth module cable
517639-001 Hard Drive Hardware Kit (includes left and right bracket rails, connector cable, Mylar cover with tab, and
4 rubber isolators)
518162-001 Primary hard drive cover
518164-001 Secondary hard drive cover
518165-001 Power button board for use in computers with UMA graphics subsystems
518166-001 Audio/infrared board for use in computers with UMA graphics subsystems (includes cable)
518168-001 USB board for use in computers with UMA graphics subsystems (includes cable)
519259-001 17.3-inch HD+ BrightView display assembly for use in black computers
519260-001 17.3-inch HD+ flush glass AntiGlare display assembly for use in black computers
519261-001 Display enclosure for use in black computers with BrightView displays (includes wireless antenna
transceivers and cables and logo LED board and cable
519262-001 Display enclosure for use in black computers with flush glass displays (includes wireless antenna
transceivers and cables and logo LED board and cable)
519265-001 Black molded keyboard for use in the United States
519265-031 Black molded keyboard for use in the United Kingdom
519265-041 Black molded keyboard for use in Germany
519265-051 Black molded keyboard for use in France
519265-061 Black molded keyboard for use in Italy
519265-071 Black molded keyboard for use in Spain
519265-111 Black molded keyboard for use in Switzerland
519265-131 Black molded keyboard for use in Portugal
519265-141 Black molded keyboard for use in Turkey
519265-211 Black molded keyboard for use in Hungary
Sequential part number listing 33
Spare part
number
Description
519265-221 Black molded keyboard for use in the Czech Republic
519265-251 Black molded keyboard for use in Russia
519265-A41 Black molded keyboard for use in Belgium
519265-B31 Black molded keyboard for use internationally
519265-BB1 Black molded keyboard for use in Israel
519265-DJ1 Black molded keyboard for use in Greece
519266-001 Black painted keyboard for use in the United States
519266-031 Black painted keyboard for use in the United Kingdom
519266-041 Black painted keyboard for use in Germany
519266-051 Black painted keyboard for use in France
519266-061 Black painted keyboard for use in Italy
519266-071 Black painted keyboard for use in Spain
519266-121 Black painted keyboard for use in French Canada
519266-131 Black painted keyboard for use in Portugal
519266-141 Black painted keyboard for use in Turkey
519266-171 Black painted keyboard for use in Saudi Arabia
519266-211 Black painted keyboard for use in Hungary
519266-221 Black painted keyboard for use in the Czech Republic
519266-251 Black painted keyboard for use in Russia
519266-281 Black painted keyboard for use in Thailand
519266-291 Black painted keyboard for use in Japan
519266-A41 Black painted keyboard for use in Belgium
519266-AD1 Black painted keyboard for use in South Korea
519266-B31 Black painted keyboard for use internationally
519266-BB1 Black painted keyboard for use in Israel
519266-BG1 Black painted keyboard for use in Switzerland
519266-DH1 Black painted keyboard for use in the Netherlands
519266-DJ1 Black painted keyboard for use in Greece
519267-001 Top cover for use only with black computer models equipped with a fingerprint reader; includes fingerprint
reader board
519268-001 Top cover for use only with black computer models not equipped with a fingerprint reader
519269-001 Switch cover for use in black computers (includes LED board and cable)
519481-001 Optical drive board for computers with discrete graphics subsystems
531764-001 Display Screw Kit for use in computers with flush glass displays
34 Chapter 3 Illustrated parts catalog
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations
during the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat
or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In
all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that
they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme
care; these cables tear easily.
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the
computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the
computer is off or in Hibernation, turn the computer on, and then shut it down through the operating
system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and
be sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
Preliminary replacement requirements 37
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps
with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground,
wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors,
use alligator clips to connect a wrist strap.
●When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)
can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive strips must
be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
●Antistatic tape
●Antistatic smocks, aprons, and sleeve protectors
●Conductive bins and other assembly or soldering aids
●Nonconductive foam
●Conductive tabletop workstations with ground cords of one megohm resistance
●Static-dissipative tables or floor mats with hard ties to the ground
●Field service kits
●Static awareness labels
●Material-handling packages
●Nonconductive plastic bags, tubes, or boxes
●Metal tote boxes
●Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
Material Use Voltage protection level
Antistatic plastic Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
40 Chapter 4 Removal and replacement procedures
Component replacement procedures
This chapter provides removal and replacement procedures.
There are as many as 110 screws, in 13 different sizes, that must be removed, replaced, or loosened
when servicing the computer. Make special note of each screw size and location during removal and
replacement.
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.

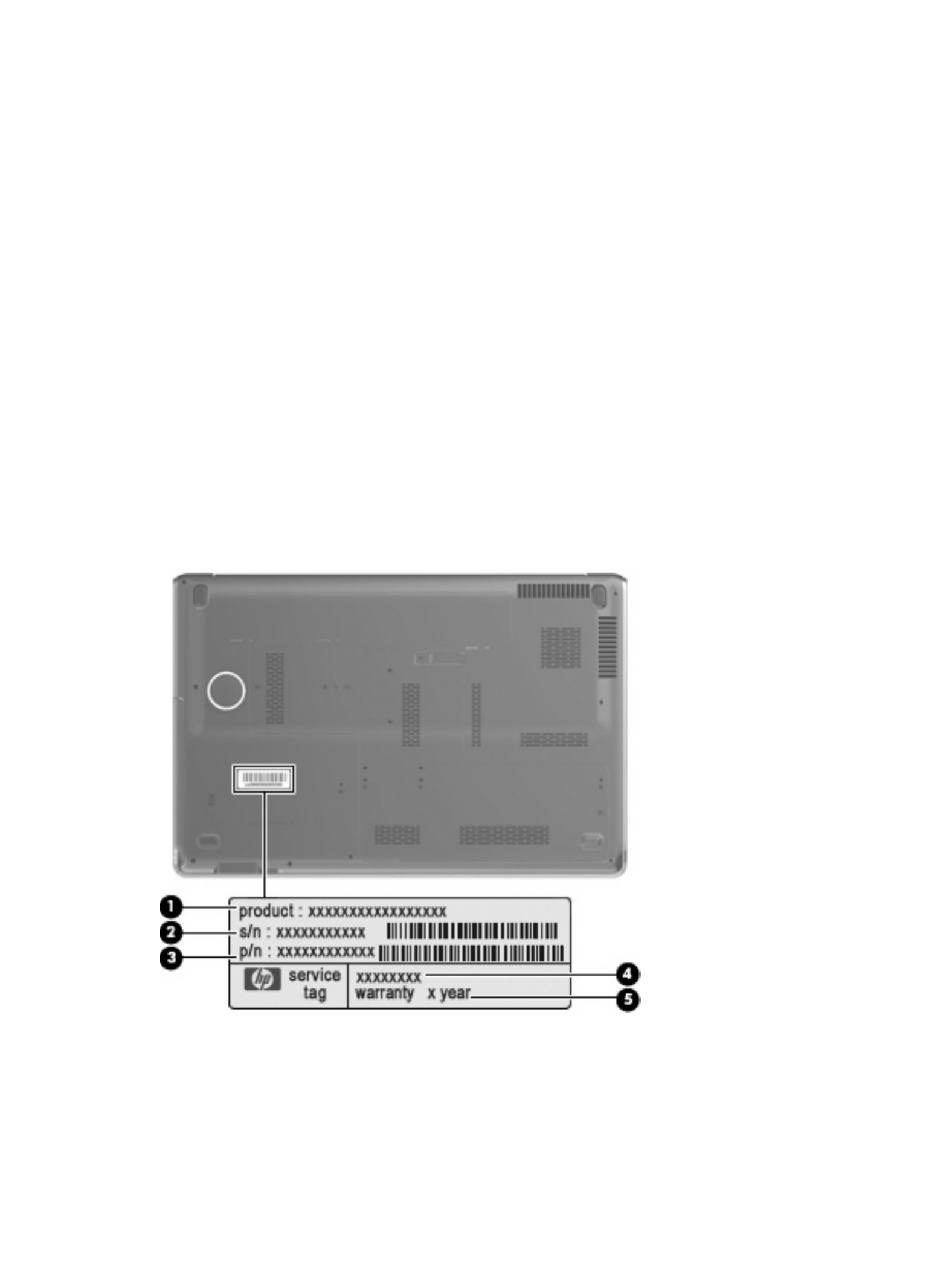

(1) Product name: This is the product name affixed to the front of the computer.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Part number/Product number (p/n): This number provides specific information about the product's
hardware components. The part number helps a service technician to determine what components and
parts are needed.
(4) Model description: This is the alphanumeric identifier needed to locate documents, drivers, and
support for the computer.
(5) Warranty period: This number describes the duration of the warranty period for the computer.
Component replacement procedures 41

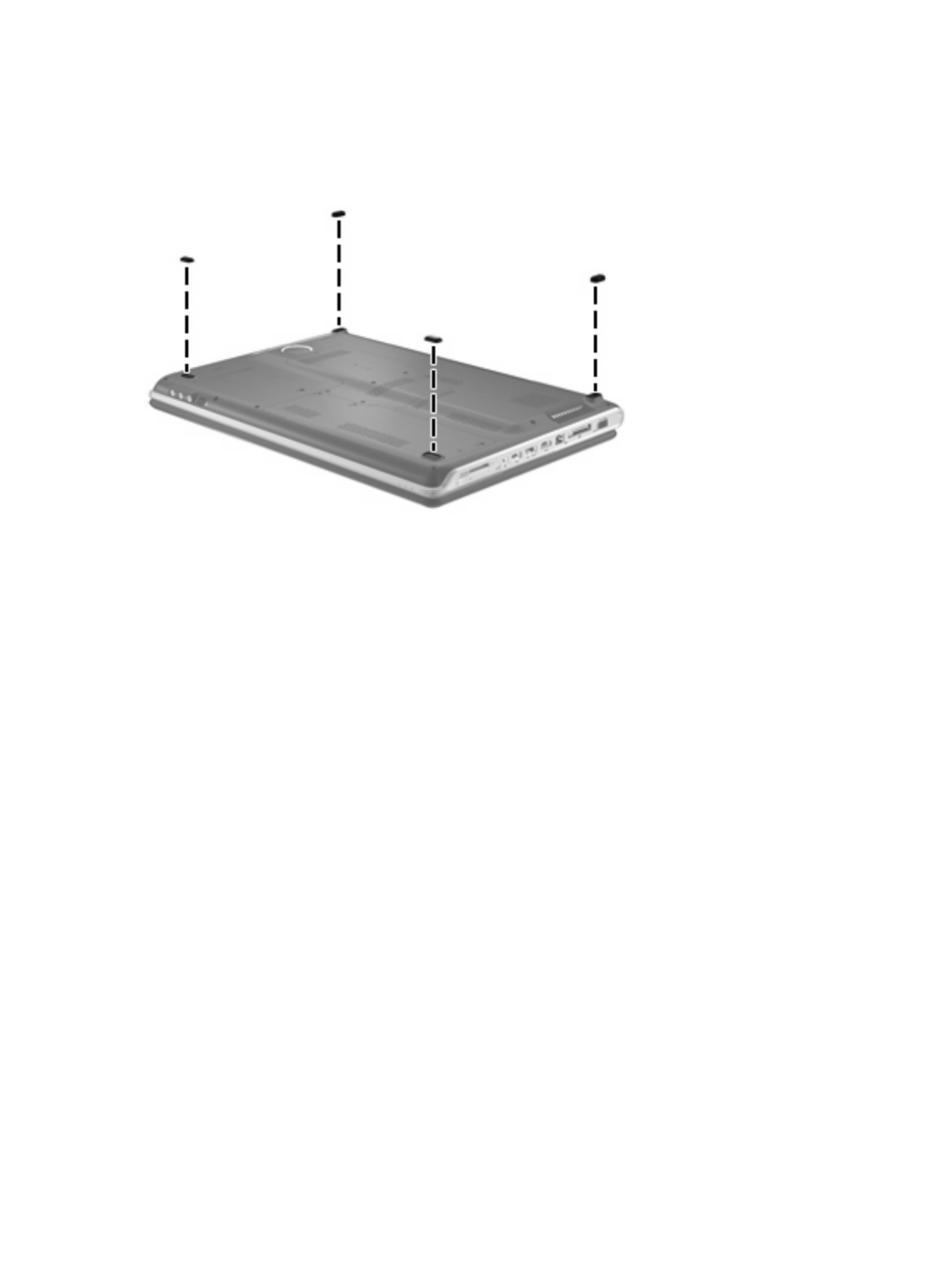

Computer feet
The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Feet Kit, spare
part number 516326-001. There are 4 rubber feet that attach to the base enclosure in the locations
illustrated below.
42 Chapter 4 Removal and replacement procedures
Battery
Description Spare part number
8-cell, 73-Wh, 2.55-Ah Li-ion battery 516355-001
6-cell, 47-Wh, 2.55-Ah Li-ion battery 516354-001
Before disassembling the computer, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.

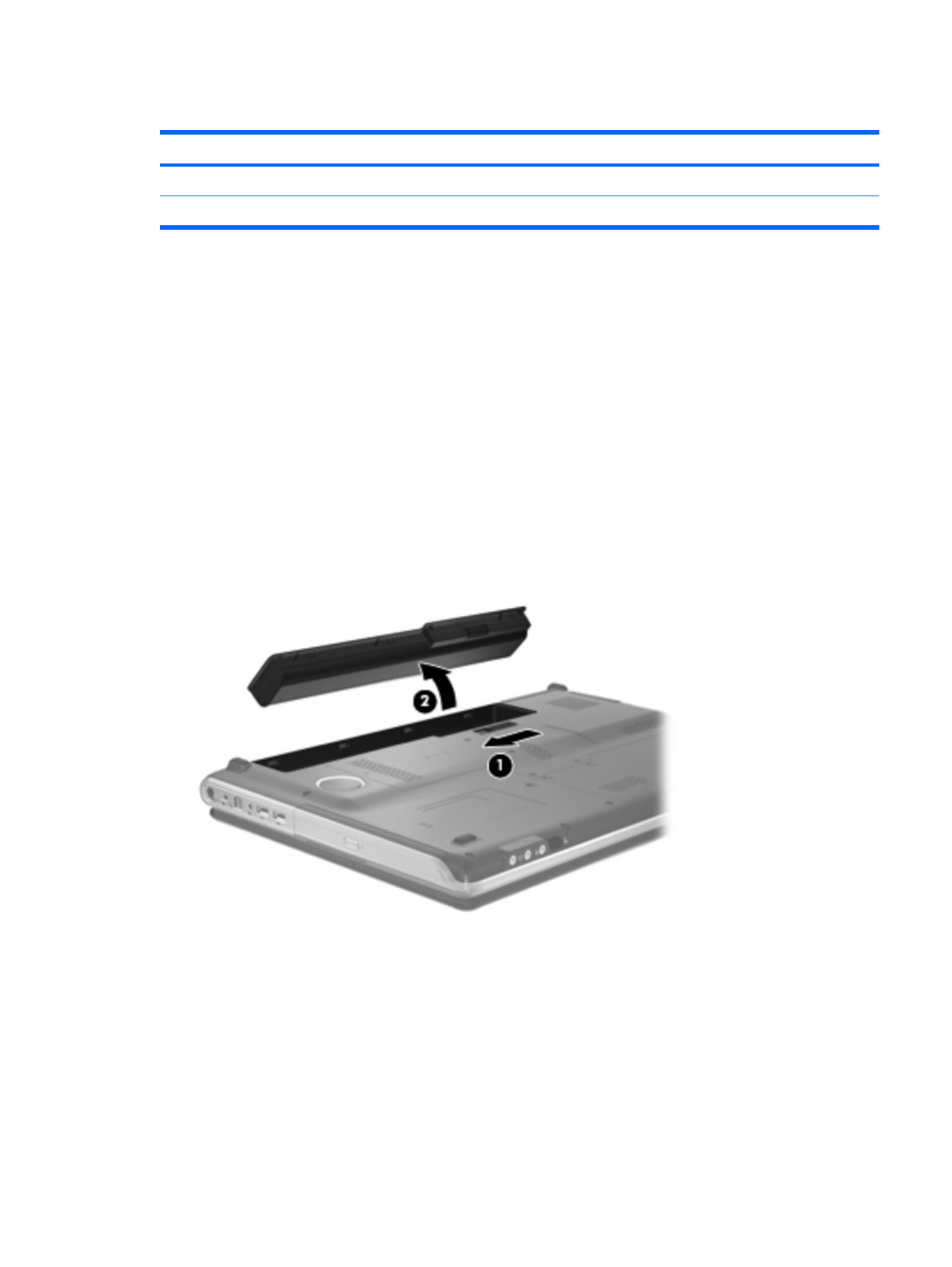

Remove the battery:
1. Turn the computer upside down on a flat surface.
2. Slide the battery release latch (1) to release the battery.
3. Pivot the battery (2) upward and remove it from the computer.
To insert the battery, insert the rear edge of the battery into the battery bay and pivot the front edge of
the battery downward until it is seated. The battery release latch automatically locks the battery into
place.
Component replacement procedures 43
Optical drive
NOTE: The optical drive spare part kit includes an optical drive bezel and bracket.
Description Spare part number
Blu-ray ROM DVD±R/RW SuperMulti DL Drive with LightScribe 516352-001
Blu-ray ROM DVD±R/RW SuperMulti DL Drive 516351-001
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 516353-001
NOTE: If it is necessary to remove the optical drive board, see System board on page 79.
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 43).

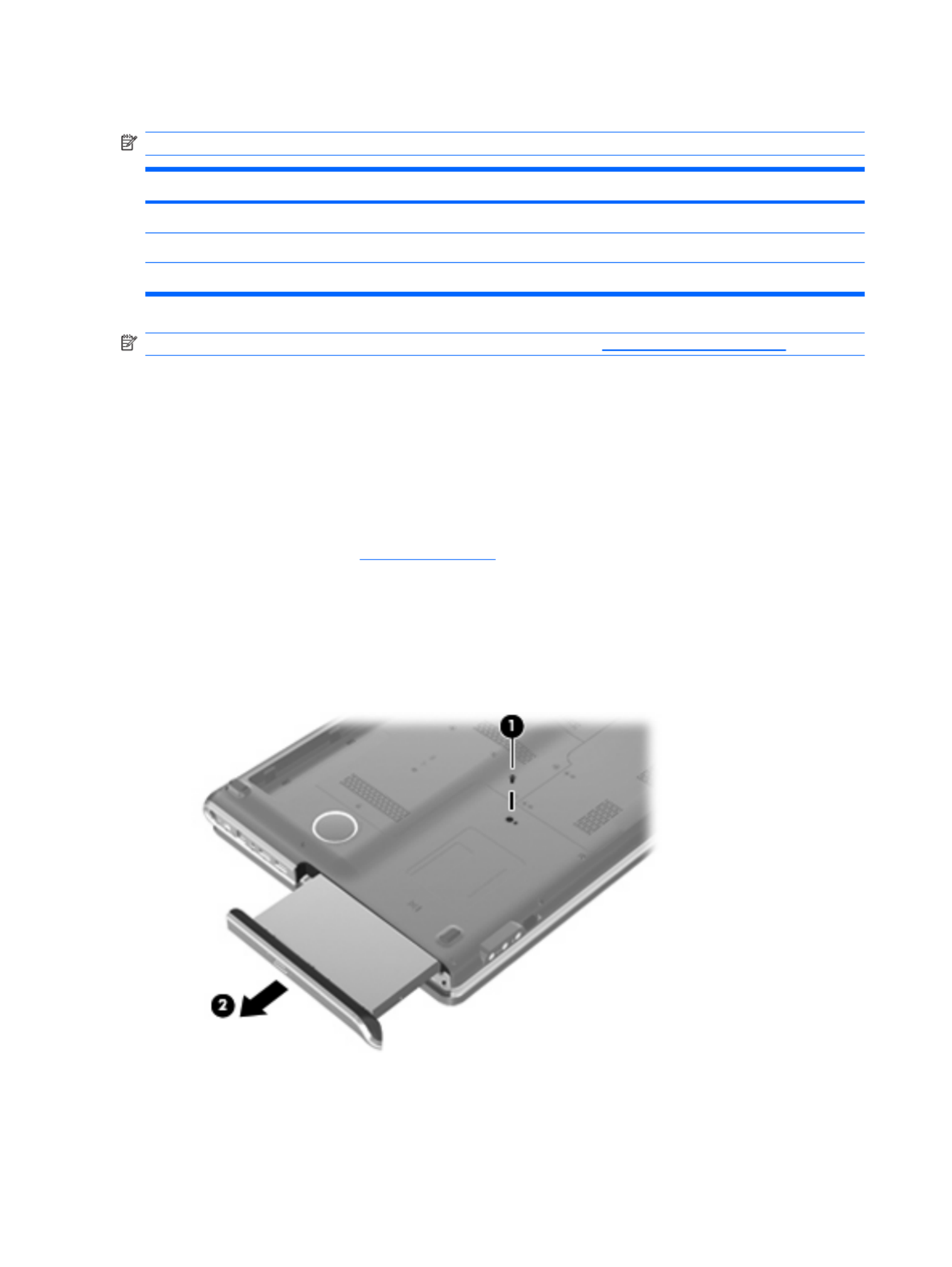

Remove the optical drive:
1. Position the computer with the front toward you.
2. Remove the Phillips PM2.5×7.0 screw (1) that secures the optical drive to the computer.
3. Remove the optical drive (2).
4. If it is necessary to replace the optical drive bracket, position the optical drive with the optical drive
bracket toward you.
44 Chapter 4 Removal and replacement procedures
2. Lift the right side (2) of the primary hard drive cover, and then remove the cover (3).
Reverse this procedure to install the primary hard drive cover.
Secondary hard drive cover
Description Spare part number
Secondary hard drive cover 518164-001
Before removing the secondary hard drive cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 43).
5. Remove the primary hard drive cover (see Primary hard drive cover on page 45).
Remove the secondary hard drive cover:
1. Loosen the three Phillips PM2.5×6.0 captive screws (1) that secure the secondary hard drive cover
to the computer.
46 Chapter 4 Removal and replacement procedures

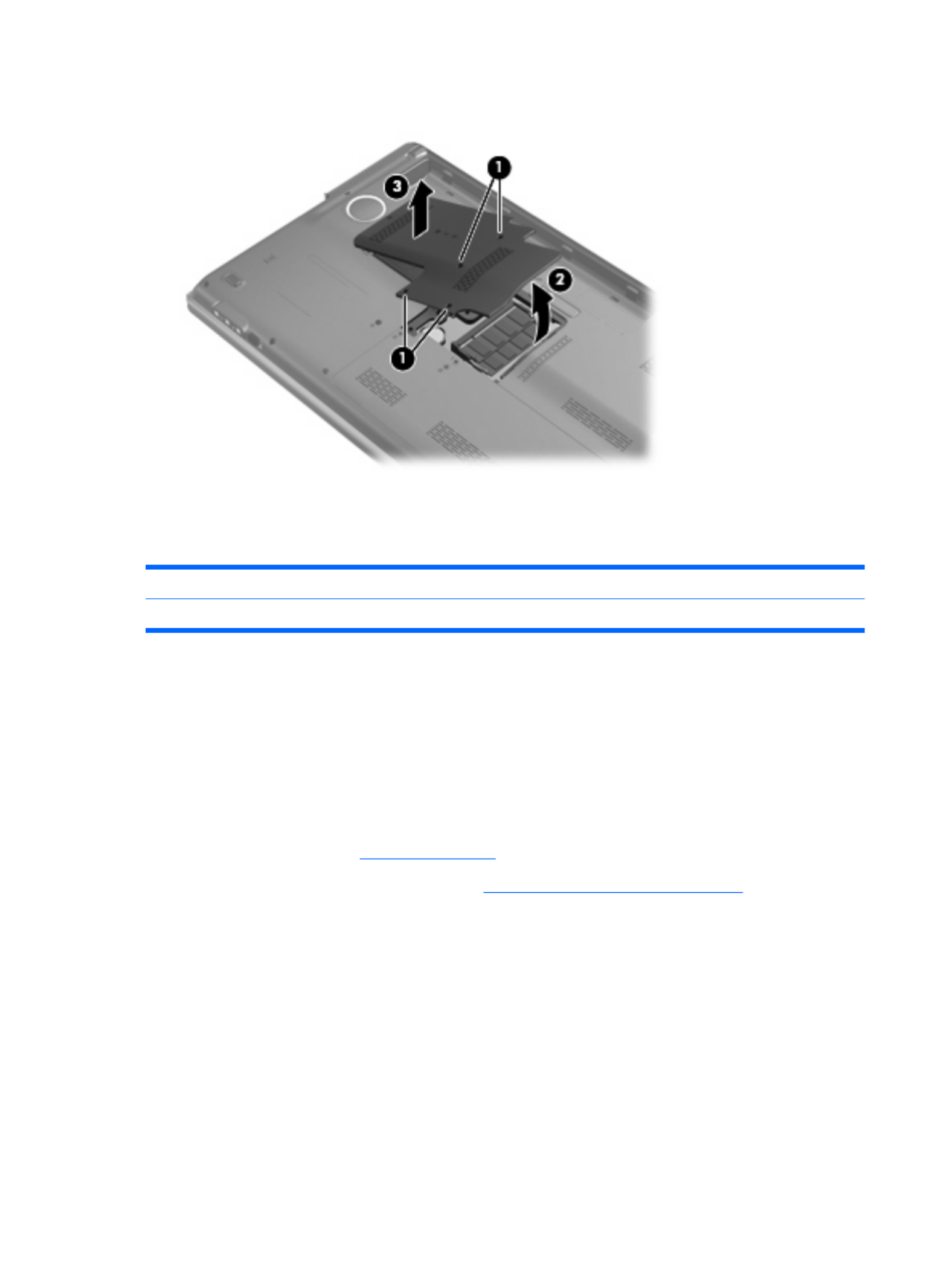

2. Lift the rear edge (2) (3), and remove the cover .
Reverse this procedure to install the secondary hard drive cover.
Component replacement procedures 47

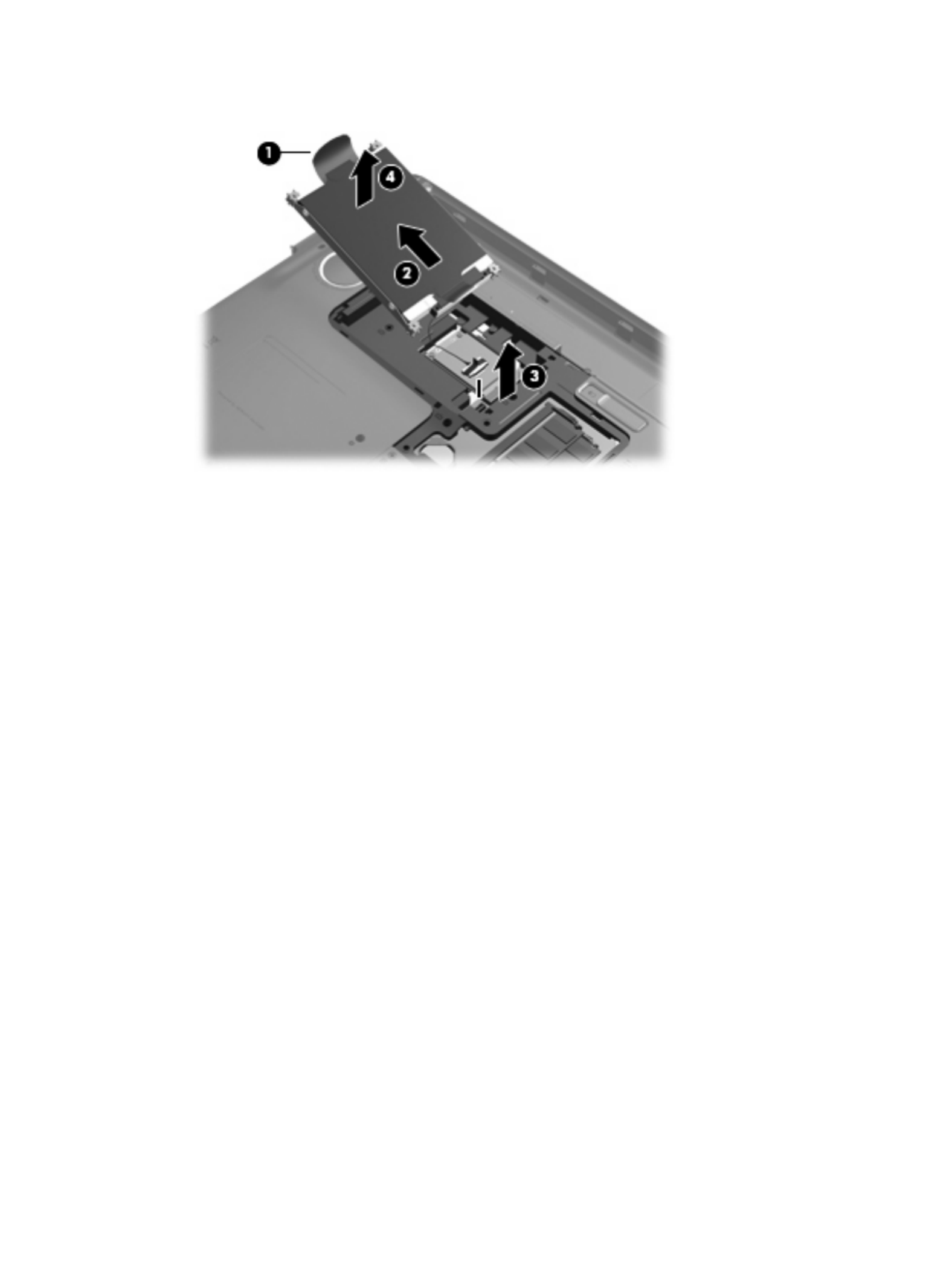

3. Remove the hard drive (4).
Reverse this procedure to install the hard drive.
Component replacement procedures 49
WLAN module
Description Spare part number
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use in all countries and regions 482957-001
Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use in all countries and regions 480985-001
Broadcom 4322 802.11a/b/g/n WLAN module for use in Antigua and Barbuda, Barbados, Belize,
Canada, the Cayman Islands, Guam, Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands,
and the United States
504664-001
Broadcom 4322 802.11a/b/g/n WLAN module for use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan,
the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei,
Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia,
Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor,
Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France,
French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan,
Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Liechtenstein, Lithuania,Lebanon, Lesotho, Liberia,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands,
New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal,
Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands,
Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan,
Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda,
Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
504664-002
Broadcom BCM4312 802.11b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan,
the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei,
Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia,
Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor,
Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France,
French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan,
Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Liechtenstein, Lithuania,Lebanon, Lesotho, Liberia,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands,
New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal,
Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands,
Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan,
Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda,
Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
459263-002
50 Chapter 4 Removal and replacement procedures
Description Spare part number
Broadcom BCM4312 802.11b/g WLAN module for use in Antigua and Barbuda, Barbados, Belize,
Canada, the Cayman Islands, Guam, Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands,
and the United States
504593-001
Broadcom BCM4312 802.11b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the
Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan,
Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the
People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the
Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador,
Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French
Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe,
Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland,
India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg,
Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands,
Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand,
Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea,
Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia,
Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the
Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South
Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the
Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo,
Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United
Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
504593-002
Before removing the WLAN module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 43).
5. Remove the primary hard drive (see Hard drive on page 48).
Remove the WLAN module:
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless
module authorized for use in the computer by the governmental agency that regulates wireless devices
in your country or region. If you replace the module and then receive a warning message, remove the
module to restore computer functionality, and then contact technical support through Help and Support.
1. Disconnect the WLAN antenna cables (1) from the WLAN module.
NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The
white WLAN antenna cable is connected to the WLAN module “Aux” terminal.
2. Remove the Phillips PM2.0×4.0 screws (2) that secure the WLAN module to the computer. (The
edge of the module opposite the slot rises away from the computer.)
Component replacement procedures 51

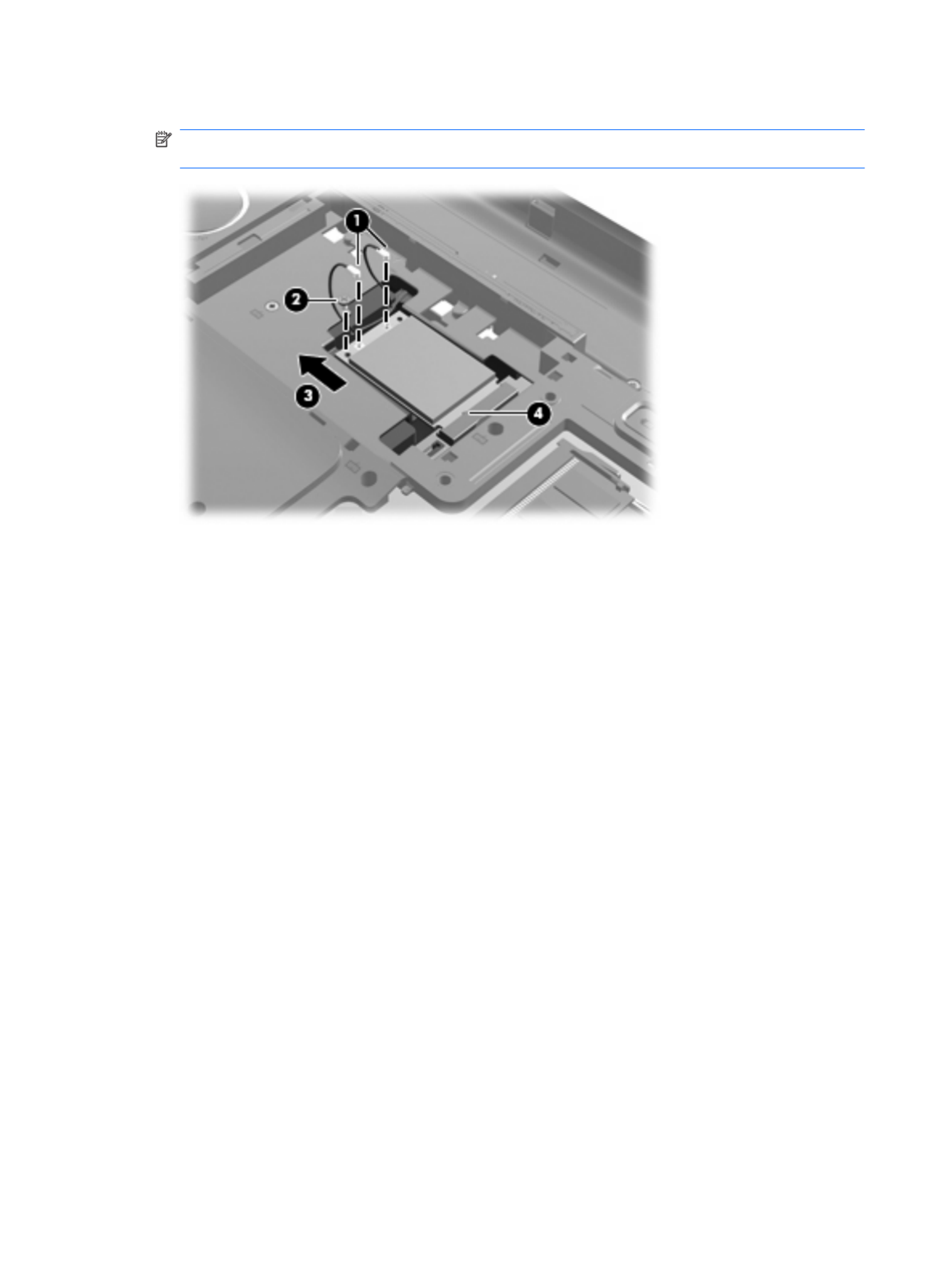

3. Remove the WLAN module (3) by pulling it away from the slot at an angle.
NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion into the WLAN
module slot.
Reverse this procedure to install a WLAN module.
52 Chapter 4 Removal and replacement procedures
Memory module
Description Spare part number
4096-MB 516337-001
2048-MB 516336-001
1024-MB 516335-001
Before removing the memory module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 43).
5. Remove the primary hard drive cover (see Primary hard drive cover on page 45).
Remove the memory module:

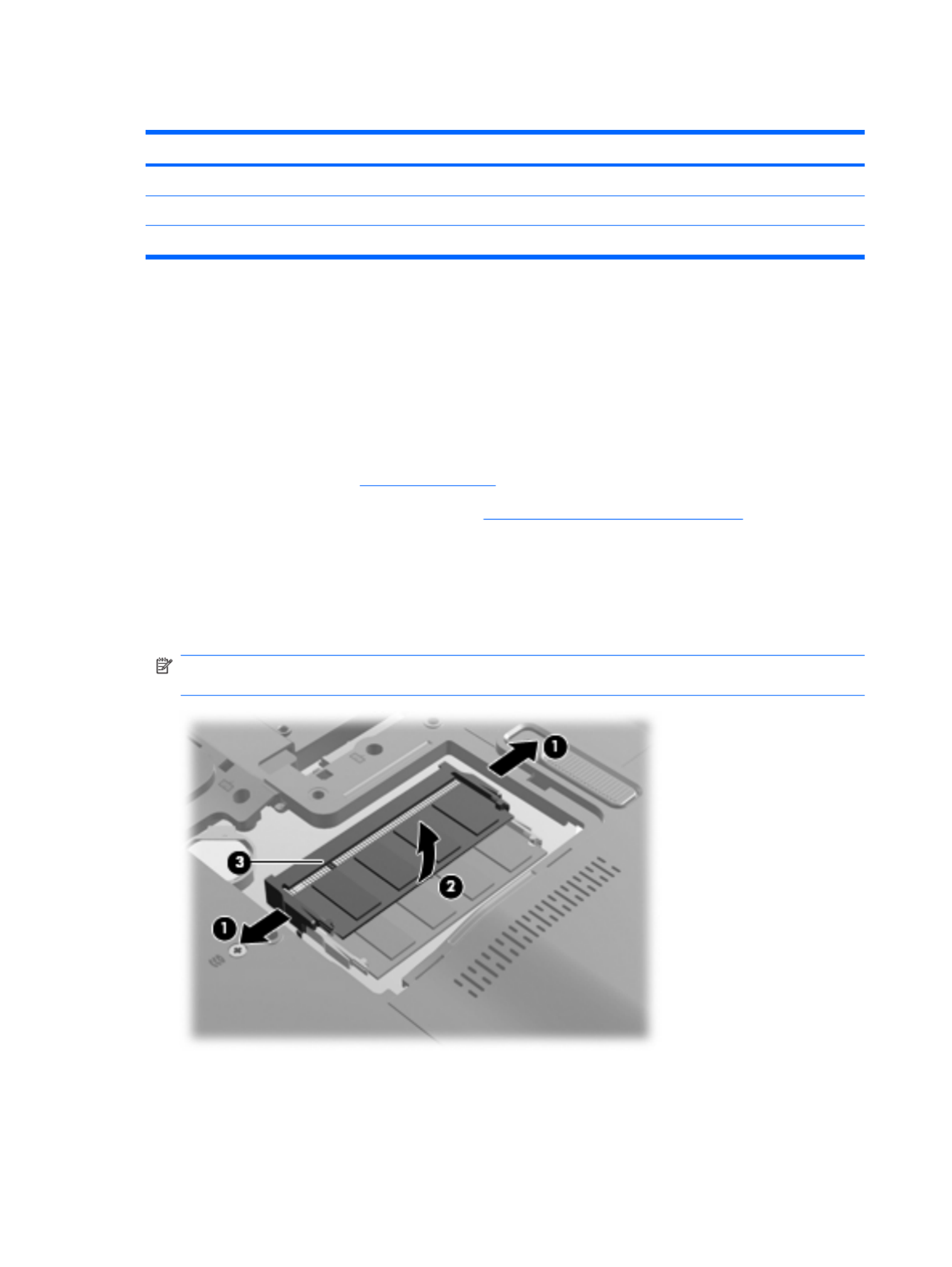

1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory
module. (The edge of the module opposite the slot rises away from the computer.)
2. Remove the module (2) by pulling it away from the slot at an angle.
NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the
memory module slot.
Reverse this procedure to install the memory module.
54 Chapter 4 Removal and replacement procedures
TV tuner module
NOTE: The TV tuner module spare part kits do not include a TV tuner module cable. The TV tuner
module cable is included in the Cable Kit, spare part number 516328-001.
NOTE: The TV tuner external antenna cables are available using spare part numbers 482900-001
(with F-PAL jack) and 482900-002 (with PAL jack).
Description Spare part number
DVB-T TV tuner module 482899-003
DVB-T/ANG TV tuner module 482899-002
ATSC/NTSC/QAM hybrid TV tuner module 482899-001
Before removing the TV tuner module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see Battery on page 43).
5. Remove the primary hard drive cover (see Primary hard drive cover on page 45).
6. Remove the secondary hard drive cover (see Secondary hard drive cover on page 46).
Remove the TV tuner module:
1. Disconnect the TV tuner module antenna cable the TV tuner module.(1) from the terminal on
2. Remove the Phillips PM2.0×4.0 screw (2) that secures the TV tuner module to the computer. (The
edge of the module opposite the slot rises away from the computer.)
Component replacement procedures 55

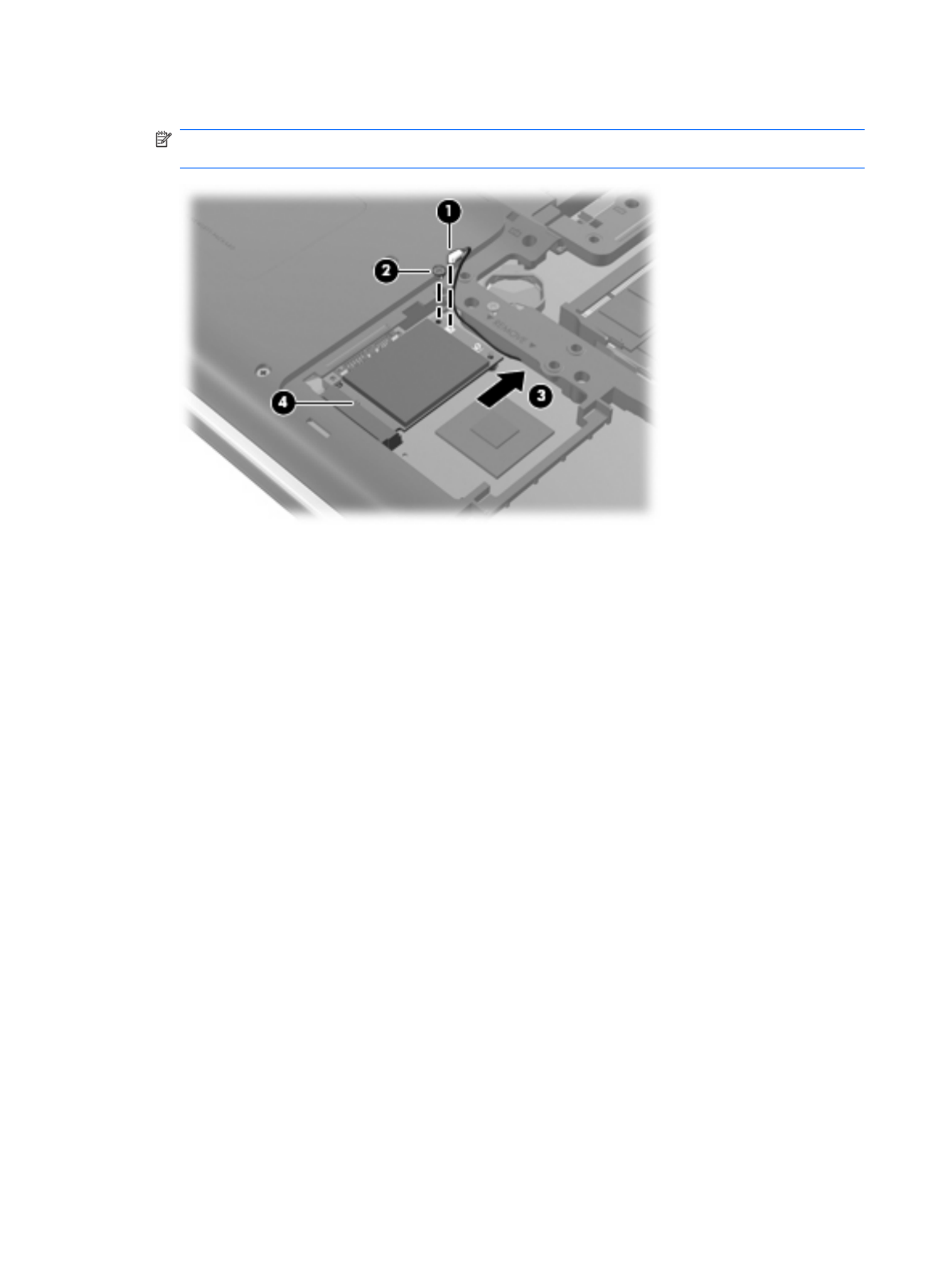

3. Remove the TV tuner module (3).
NOTE: The TV tuner module is designed with a notch (4) to prevent incorrect insertion into the
TV tuner module slot.
Reverse this procedure to install the TV tuner module.
56 Chapter 4 Removal and replacement procedures
Switch cover and keyboard
Description Spare part number
Switch cover, for use in white computers (includes LED board and cable) 516300-001
Switch cover, for use in black computers (includes LED board and cable) 519269-001
White keyboard 516357-xxx
Black molded keyboard 519265-xxx
Black painted keyboard 519266-xxx
NOTE: For a detailed list of available keyboards, see Sequential part number listing on page 28.
Before removing the switch cover and keyboard, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 43).
5. Remove the primary hard drive cover (see Primary hard drive cover on page 45).
Component replacement procedures 57

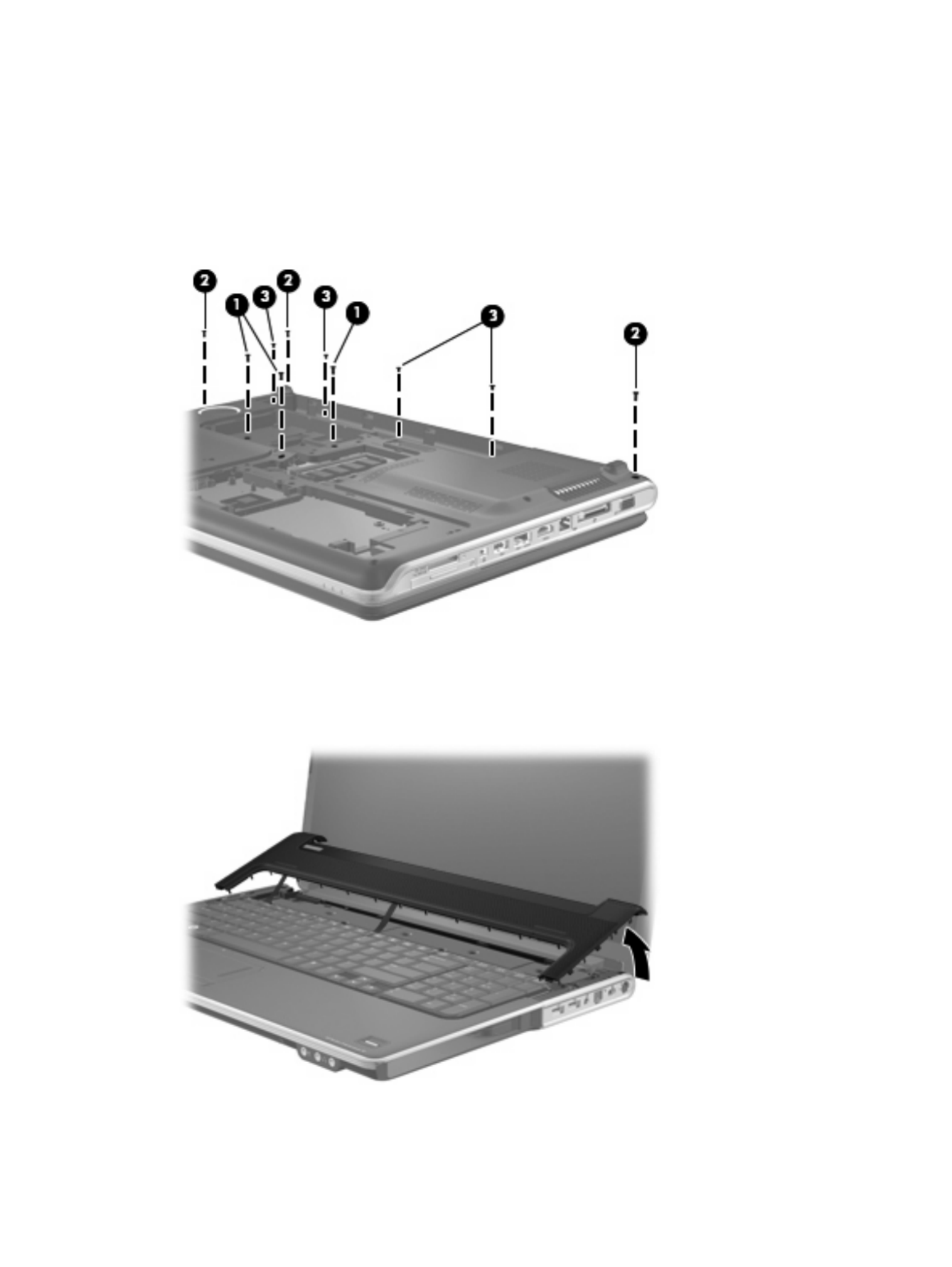

Remove the switch cover and keyboard:
1. Remove the following screws:
(1) Three Phillips PM2.5×7.0 screws that secure the keyboard to the computer
(2) Three Phillips PM2.5×7.0 screws that secure the switch cover to the computer
(3) Four Phillips PM2.5×3.0 screws that secure the switch cover to the computer
2. Turn the computer display-side up, with the front toward you.
3. Open the computer as far as possible.
4. Lift the rear edge of the switch cover until it detaches from the computer.
5. Lift the switch cover (1) to access the keyboard screws.
58 Chapter 4 Removal and replacement procedures

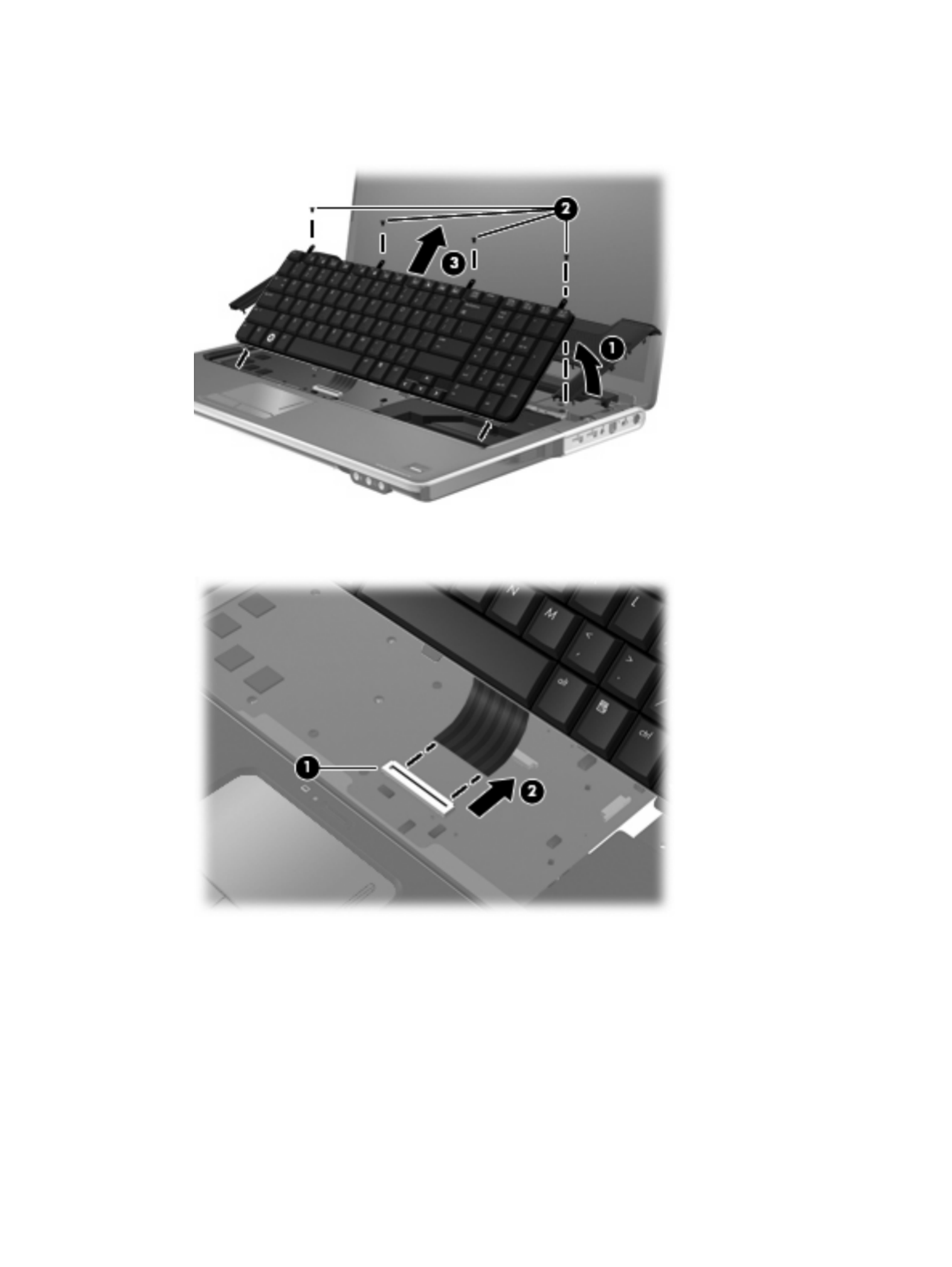

6. Remove the four Phillips PM2.0×4.0 screws (2) that secure the keyboard to the computer.
7. Lift the keyboard (3) until the keyboard connector on the system board is accessible.
8. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is connected and
disconnect the cable (2) from the system board.
9. Remove the keyboard.

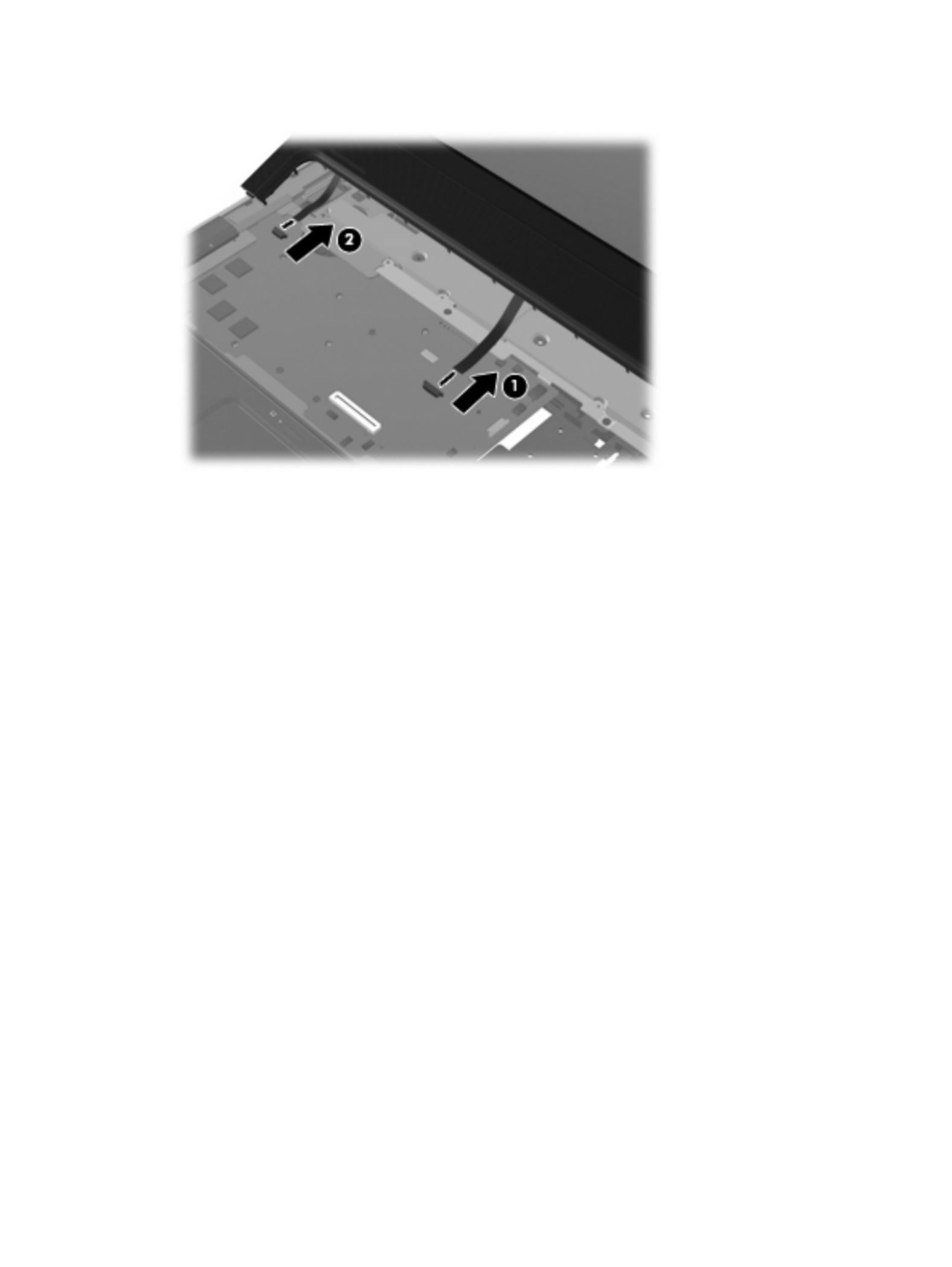

10. Disconnect the power button board cable (1) from the low insertion force (LIF) connector on the
system board.
Component replacement procedures 59
11. Disconnect the LED board cable (2) from the LIF connector on the system board.
12. Remove the switch cover.
Reverse this procedure to install the switch cover and keyboard.
60 Chapter 4 Removal and replacement procedures
Power button board
Description Spare part number
Power button board for use in computers with discrete graphics subsystems (includes cable) 516329-001
Power button board for use in computers with UMA graphics subsystems (includes cable) 518165-001
Before removing the power button board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see Battery on page 43).
5. Remove the switch cover and keyboard (see Switch cover and keyboard on page 57).
Remove the power button board:
1. Turn the switch cover upside down with the front toward you.

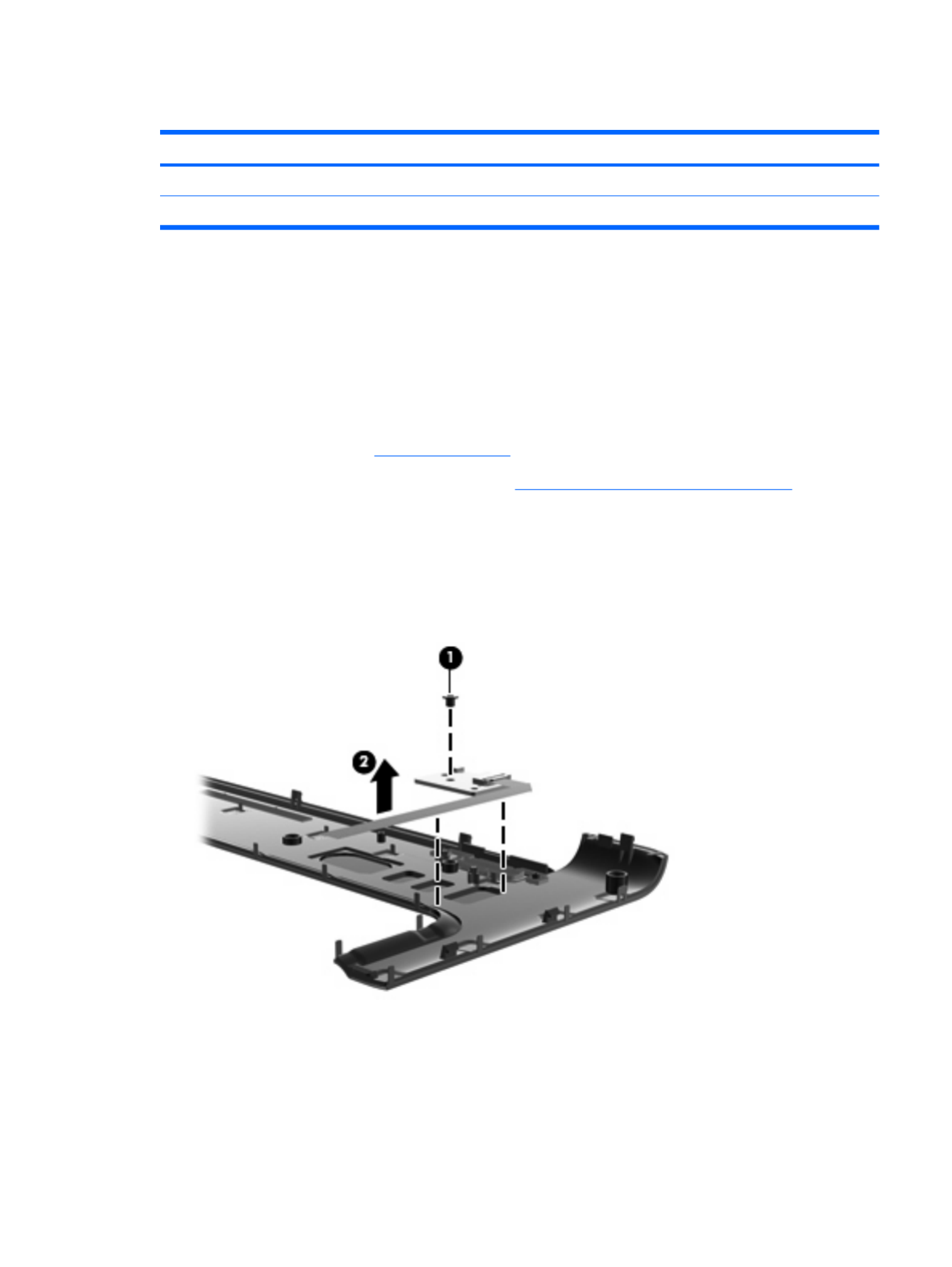

2. Remove the Phillips PM2.0×4.0 screw (1) that secures the power button board to the switch cover.
3. Remove the power button board (2) and cable.
Reverse this procedure to install the power button board.
Component replacement procedures 61

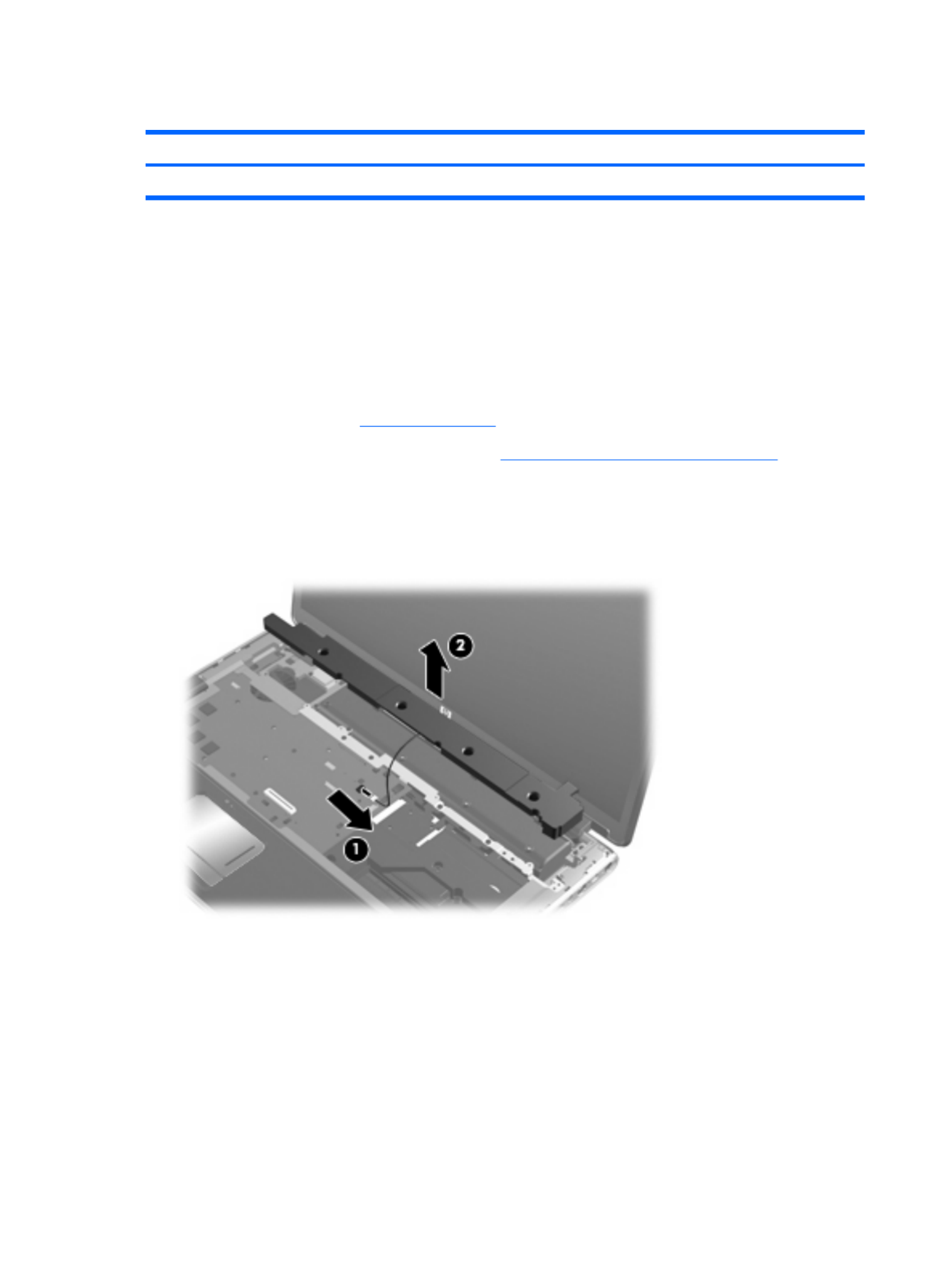

Speaker assembly
Description Spare part number
Speaker assembly 516323-001
Before removing the speaker assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 43).
5. Remove the switch cover and keyboard (see Switch cover and keyboard on page 57).
Remove the speaker assembly:
1. Disconnect the speaker assembly cable (1) from the system board.
2. Remove the speaker assembly (2).
Reverse this procedure to install the speaker assembly.
62 Chapter 4 Removal and replacement procedures
Bluetooth module
NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The Bluetooth
module cable is available using spare part number 517638-001.
Description Spare part number
Bluetooth module 483113-001
Before removing the Bluetooth module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see Battery on page 43).
5. Remove the switch cover and keyboard (see Switch cover and keyboard on page 57).
6. Remove the speaker assembly (see Speaker assembly on page 62).
Remove the Bluetooth module:

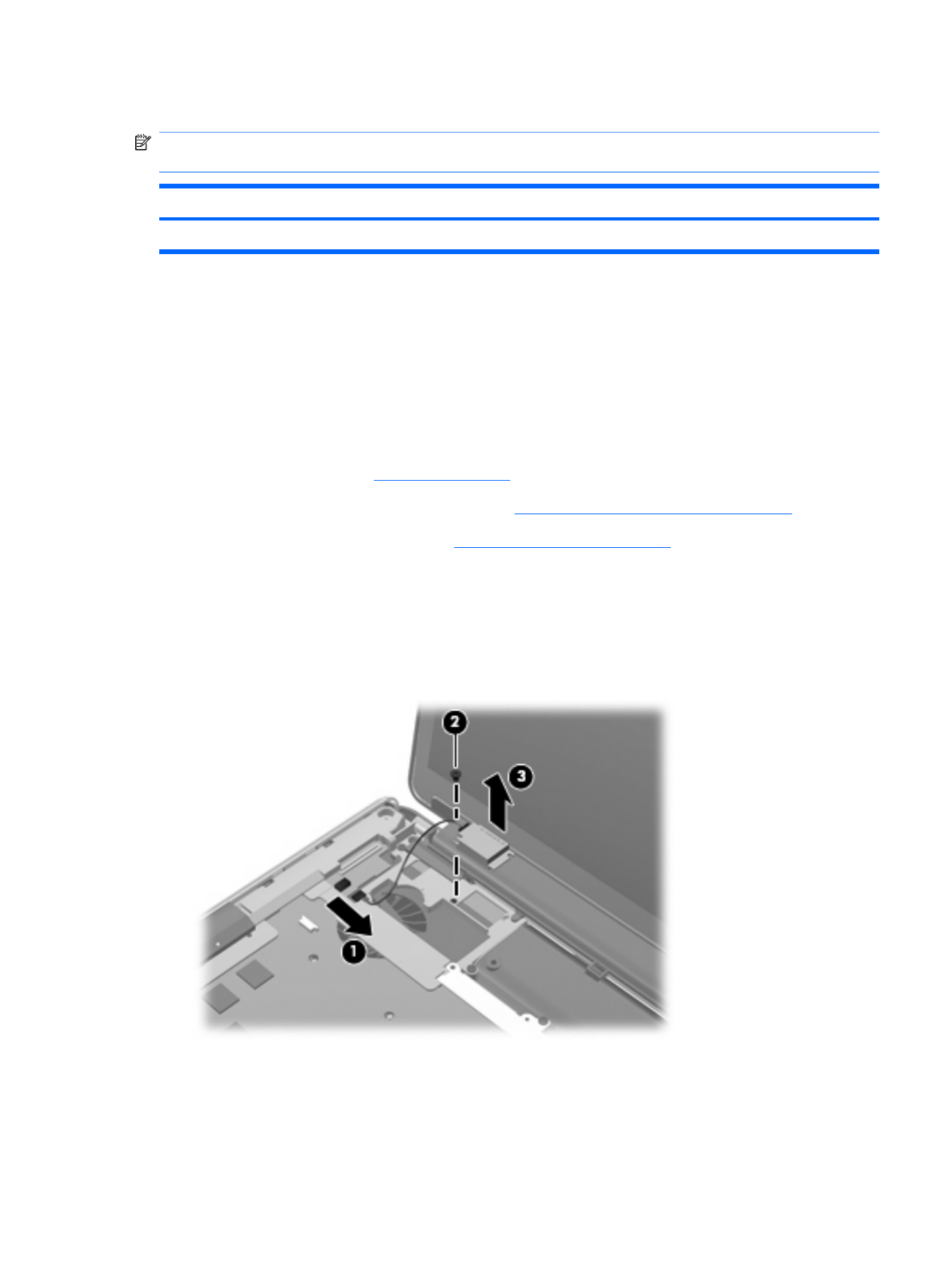

1. Disconnect the Bluetooth module cable (1) from the Bluetooth module.
2. Remove the Phillips PM2.0×4.0 screw (2) that secures the Bluetooth module to the computer.
3. Remove the Bluetooth module (3).
Reverse this procedure to install the Bluetooth module.
Component replacement procedures 63

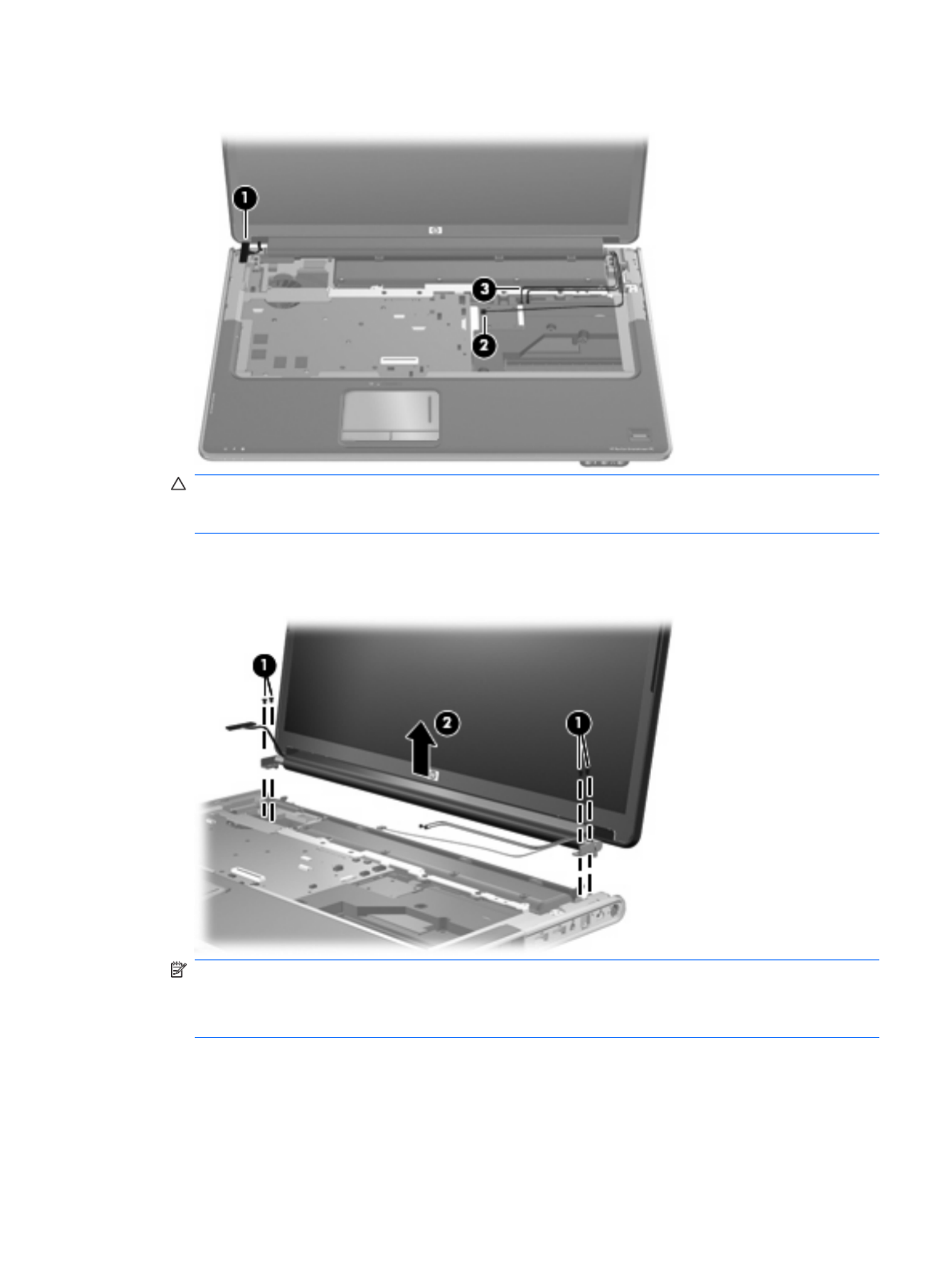

2. Remove the WLAN antenna cables from the clips (3) built into the top cover.
CAUTION: Support the display assembly when removing the following screws. Failure to support
the display assembly can result in damage to the display assembly and other computer
components.
3. Remove the four Phillips PM2.5×7.0 screws (1) that secure the display assembly to the computer.
4. Remove the display assembly (2).
NOTE: Steps 5 through 18 provide display assembly internal component removal information for
computer models equipped with flush glass display assemblies. See steps 19 through 28 for display
assembly internal component removal information for computer models equipped with BrightView
display assemblies.
Component replacement procedures 65

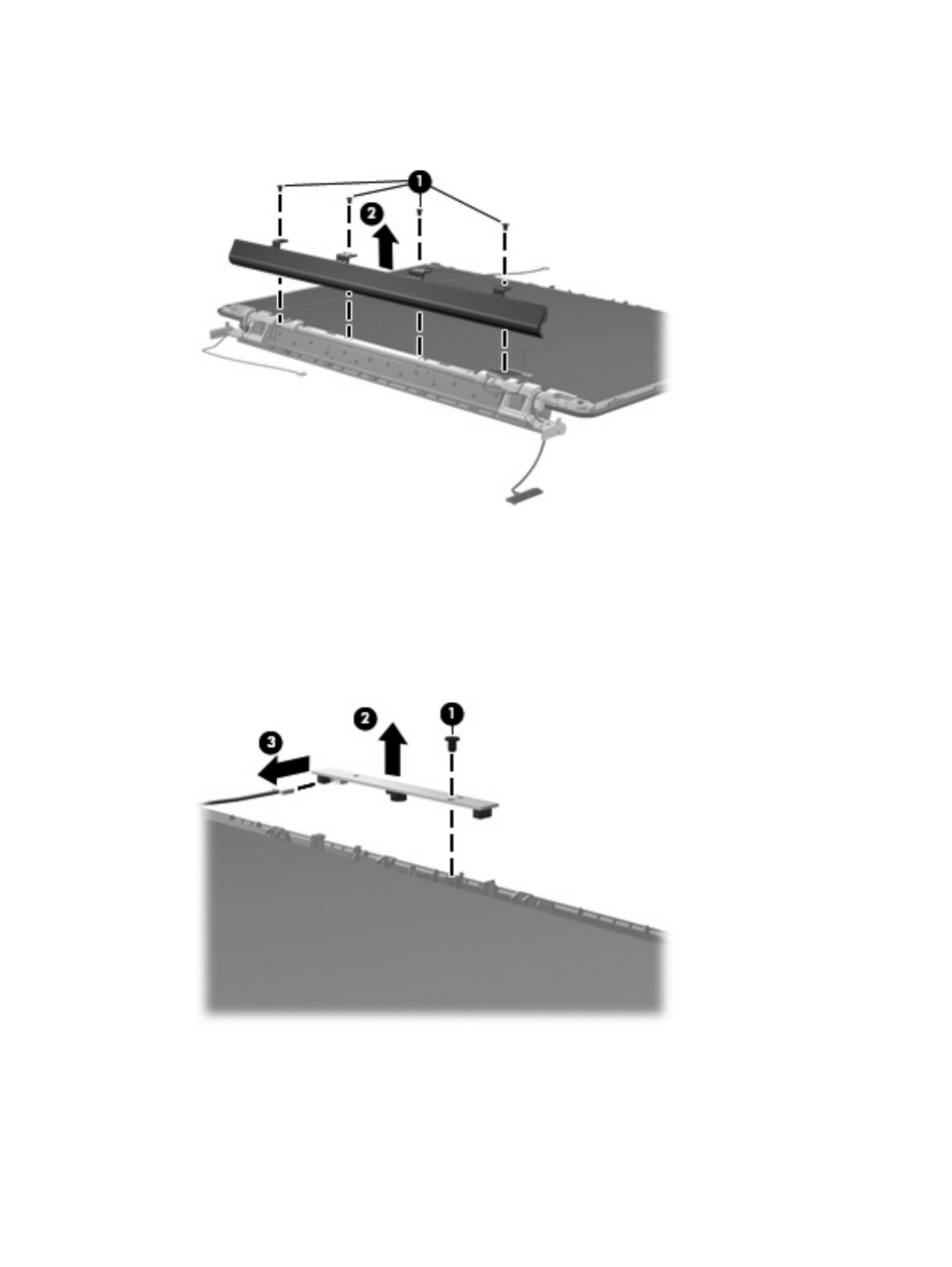

11. If it is necessary to remove the hinge cover, remove the four Phillips PM2.5×5.0 screws (1) that
secure the hinge cover to the display assembly, and then remove the cover (2). The hinge cover
is available using spare part number 537844-001.
12. If it is necessary to replace the webcam/microphone module, remove the Phillips PM2.0×4.0
screw (1) that secures the module to the display bezel.
13. Release the webcam/microphone module (2) as far as the webcam/microphone module cable
allows.
14. Disconnect the webcam/microphone module cable (3) and remove the webcam/microphone
module. The webcam/microphone module is available using spare part number 516312-001.
Component replacement procedures 67
15. Disconnect the display panel cable from the display panel. The display panel cable is available
using spare part number 516307-001.
16. If it is necessary to replace the display hinges, remove the six Phillips PM2.5×4.0 screws (1) that
secure the display hinges to the top of the display panel.
17. Remove the four Phillips PM 2.0×3.0 screws that secure the hinges to the sides of the display
panel (2).
68 Chapter 4 Removal and replacement procedures

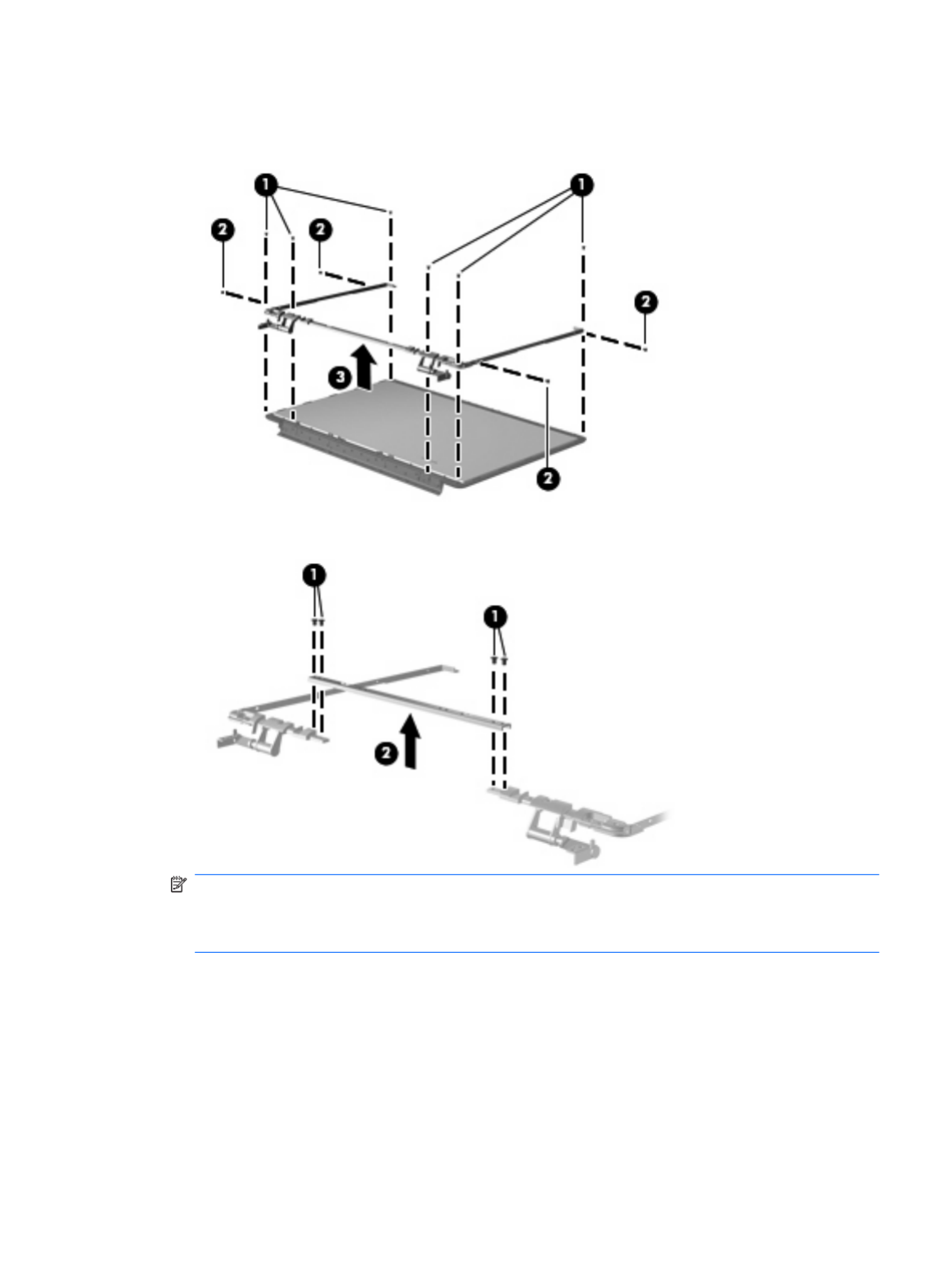

18. Remove the display hinge assembly (3) by lifting it straight up. The display hinges are available
using spare part number 516444-001. The display screw kit is available using spare part kit
531764-001.
The left and right sides of the display hinge assembly are secured using four PM 2.5×4.0
screws (1) to a bracket (2) as shown in the following image.
NOTE: Steps 19 through 28 provide display assembly internal component removal information
for computer models equipped with BrightView display assemblies. See steps 5 through 18 for
display assembly internal component removal information for computer models equipped with flush
glass display assemblies.
Component replacement procedures 69

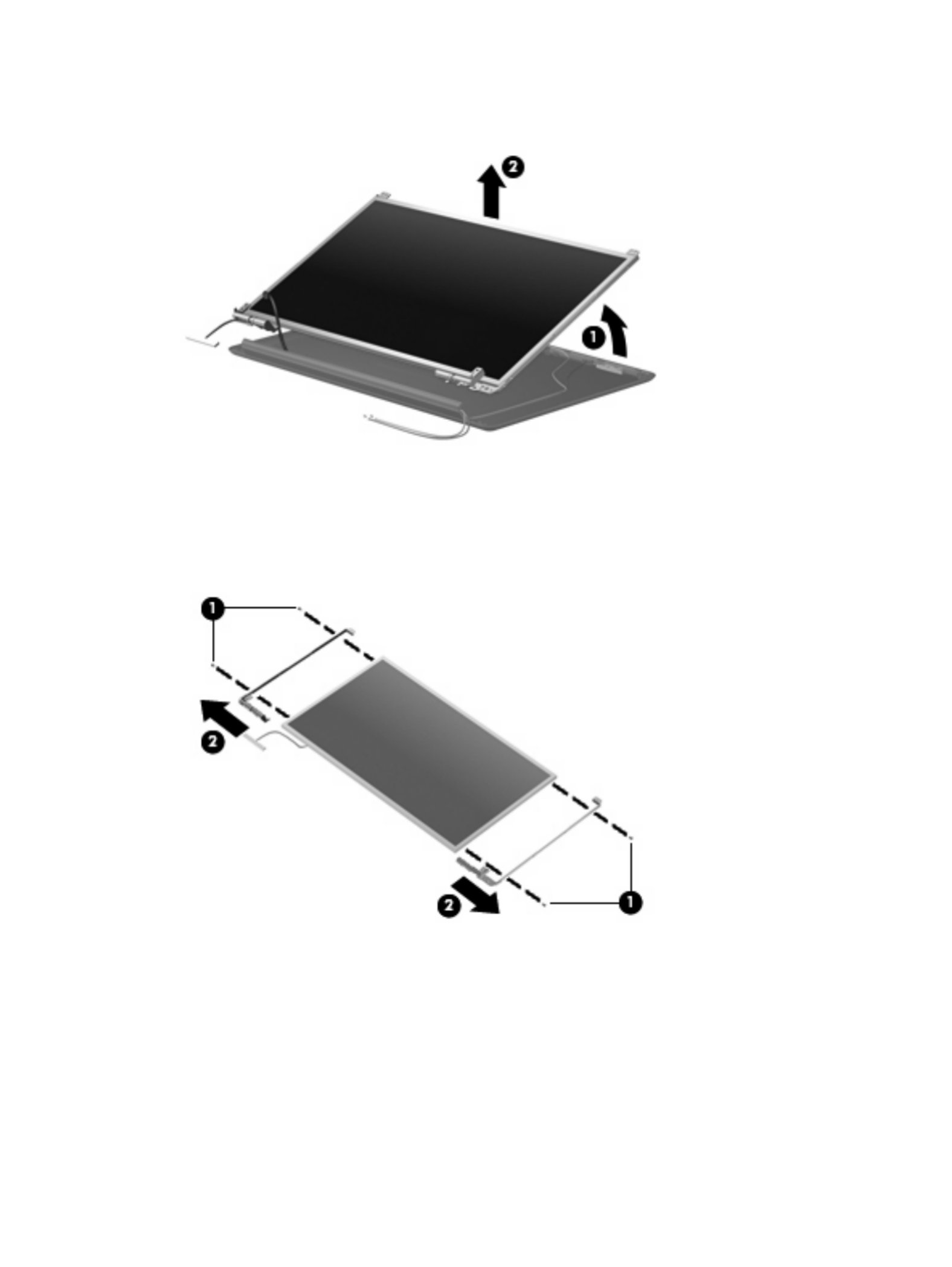

25. Flex the bottom of the display panel (1) back and release the display hinges. Remove the display
panel (2).
26. If it is necessary to replace the display hinges, remove the four Phillips PM2.0×3.0 screws (1) that
secure each display hinge to the display panel.
27. Remove the display hinges (2). The display hinges are available in the Display Hinge Bracket Kit,
spare part 516306-001. The display hinge screws are available in the Display Screw Kit, spare part
number 516309-001.
72 Chapter 4 Removal and replacement procedures

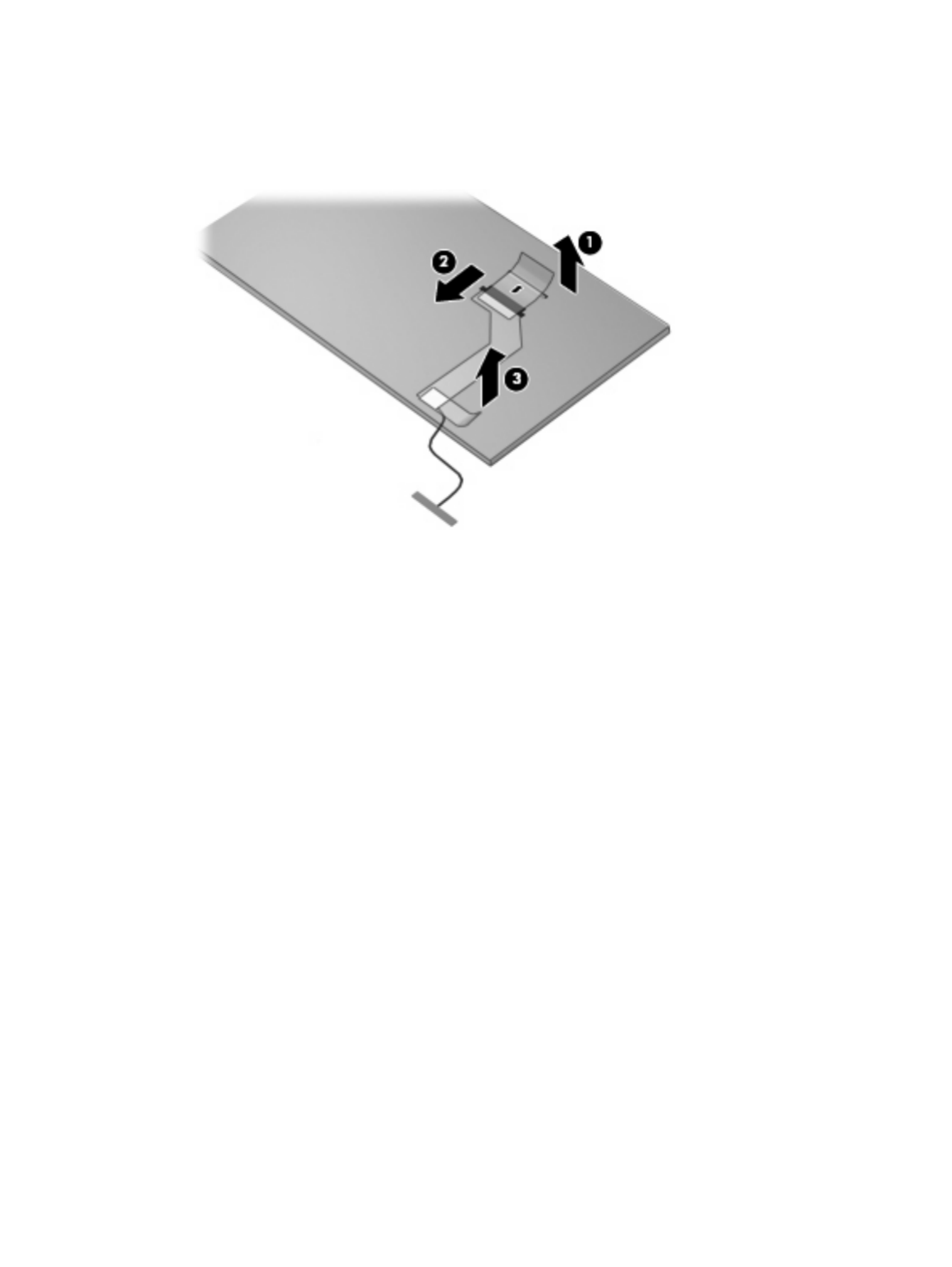

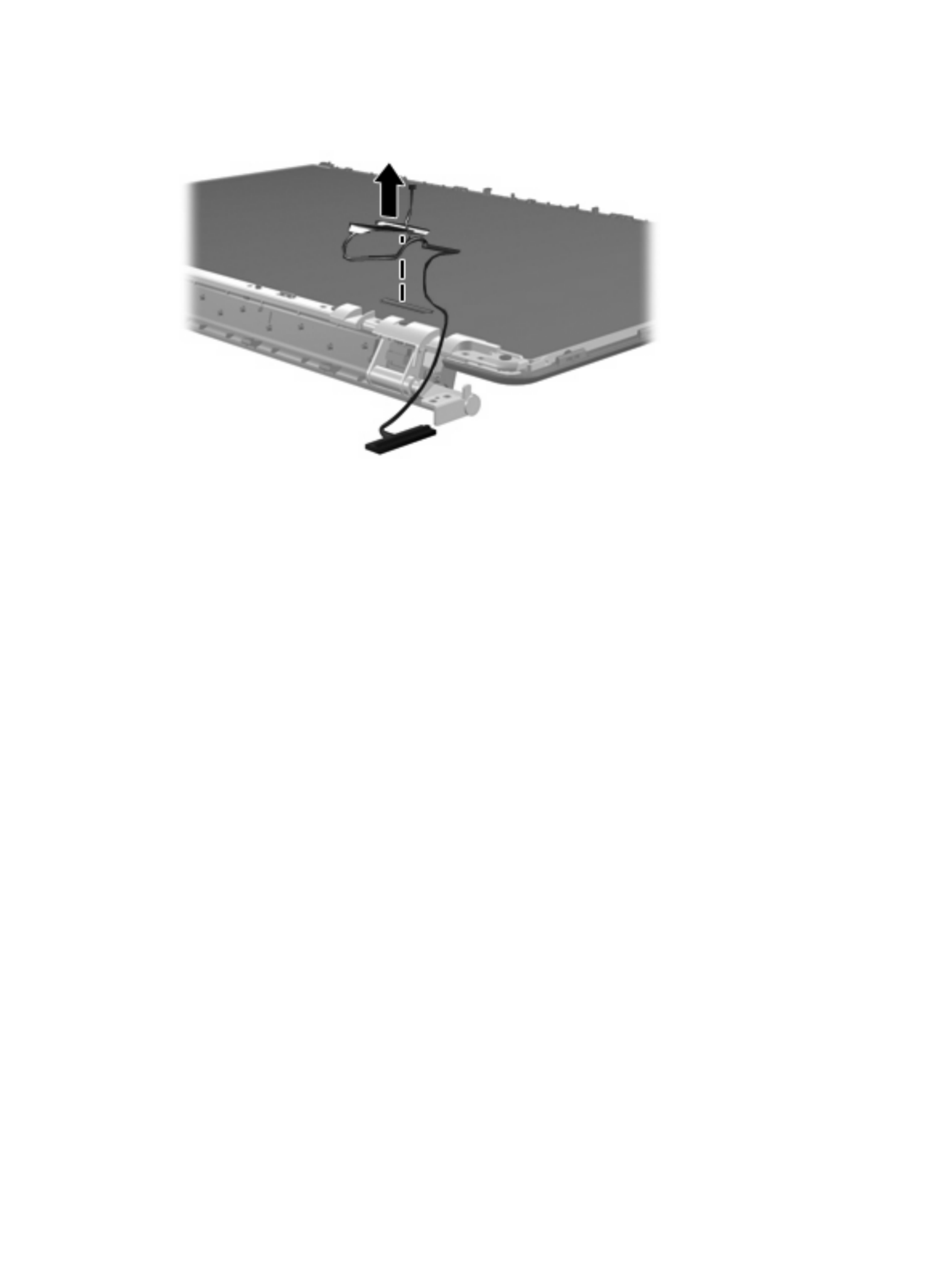

28. If it is necessary to remove the display panel cable, remove the adhesive plastic strip (1) from the
display panel cable, and lift up the display panel cable (2). Remove the tape (3) that secures the
cable to the display panel. The display panel cable is available using spare part number
516307-001.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 73
Produkt Specifikationer
| Mærke: | HP |
| Kategori: | Laptop |
| Model: | Pavilion dv7-1005eg |
Har du brug for hjælp?
Hvis du har brug for hjælp til HP Pavilion dv7-1005eg stil et spørgsmål nedenfor, og andre brugere vil svare dig
Laptop HP Manualer
21 Januar 2025
12 Januar 2025
11 Januar 2025
11 Januar 2025
11 Januar 2025
27 December 2024
21 December 2024
21 December 2024
21 December 2024
21 December 2024
Laptop Manualer
- Apple
- Oregon Scientific
- Lenovo
- Everex
- Dell
- Xiaomi
- Ibm
- AORUS
- SIIG
- Prixton
- Haier
- Compaq
- Sylvania
- Targa
- Micromax
Nyeste Laptop Manualer
28 Marts 2025
26 Februar 2025
22 Februar 2025
22 Februar 2025
21 Februar 2025
10 Februar 2025
7 Februar 2025
7 Februar 2025
6 Februar 2025
6 Februar 2025
