MANUAL (p. 2)

PURE SINE INVERTER

MODE D’EMPLOI (p. 17)

ONDULEUR PURE SINE

MANUALE (p. 32)

INVERTER AD ONDA SINUSOIDALE

PURA

BRUKSANVISNING (s. 61)

PURE SINE INVERTERS

MANUAL DE UTILIZARE (p. 76)

INVERTOARE CU UNDĂ SINUSOIDALĂ

PURĂ

BRUGERVEJLEDNING (p. 91)

ÆGTE SINUSVEKSELRETTER

HASZNÁLATI ÚTMUTATÓ (o. 47.)

PURE SZINUSZ INVERTEREK

KÄYTTÖOHJE (s. 54)

PUHDAS SINIAALTOINVERTTERI

GEBRUIKSAANWIJZING (p. 24)

PURE SINUSOMVORMER

ANLEITUNG (s. 9)

SINUS-WECHSELRICHTER

MANUAL DE USO (p. 39)

INVERSORES SINUSOIDALES PUROS

NÁVOD K POUŽITÍ (s. 69)

SINUSOVÉ MĚNIČE NAPĚTÍ S ČISTOU

SINUSOVKOU

ΕΓΧΕΙΡΙΔΙΟ XPHΣHΣ (σελ. 84)

PURE SINE INVERTERS

VEILEDNING (p. 98)

RENE SINUSINVERTERE

HQ-PURE120-12 HQ-PURE150-12

HQ-PURE300-12 HQ-PURE600-12

HQ-PURE600-24 HQ-PURE1KW-12

HQ-PURE1KW-24 HQ-PURE1500-12

HQ-PURE1500-24 HQ-PURE2KW-12

HQ-PURE2KW-24

ENGLISH

Inverter layout

Front 150/300 W

1. = AC 230 V outputs

2. = LED (green = power on)

(orange = abnormal)

3. = Power switch

Front 600/1000/1500/2000 W

1. = AC 230 V output(s)

2. = LED (over temperature)

3. = LED (over load)

4. = LED (power output)

5. = Power switch

6. = Jack for remote controller

Back (except 120/150 W)

1. = Mounting hole

2. = Cooling fan

3. = Ground terminal

4. = DC input terminals

Notes on using the instruction manual

Caution!

Safety instruction, failure to observe this instruction can cause material damage and impair the

function of the device. Supplementary information for operating the device.

Caution!

Safety instruction relating to danger from electrical current or voltage. Failure to observe this

instruction can cause material damage and personal injury and impair the function of the device.

General safety instructions

• Usethedeviceonlyasintended.

• Donotoperatethedeviceinadamporwetenvironment.

• Donotoperatethedeviceinareasthatarepotentiallyexplosive.

• Maintenanceandrepairworkmustonlybecarriedoutbyqualiedpersonnelwhoarefamiliarwith

the risks involved and the relevant regulations

Safety when installing the device

• Ensurethatthedevicehasarmfoundation.Thedevicemustbesetupandfastenedinsucha

way that it cannot tip over or fall down.

• Taketheprecautionsnecessarytoensurethatchildrencannotinterferewithoperation.Dangerous

situations may occur which cannot be recognized by children!

• Donotexposethedevicetoaheatsource(suchasdirectsunlightorheating).Avoidadditional

heating of the device in this way.

For installation on boats

• Ifelectricaldevicesareincorrectlyinstalledonboats,corrosiondamagemightoccur.Havethe

inverter installed by a specialist.

Electrical cables

• Ifcableshavetobefedthroughmetalwallsorotherwallswithsharpedges,useductsorwire

bushings to prevent damage to the cable.

• Donotlaycableswhicharelooseorbentnexttoelectricallyconductivematerial(metal).

• Donotpullonthecables.

• Donotlaythe230Vmainscableandthe12/24VDCcableinthesameduct.

• Fastenthecableswell.

• Laythecablessothattheycannotbetrippedoverordamaged.

• Operatethedeviceonlyifyouarecertainthatthehousingandthecablesareundamaged.

• Makesuretheairinletsandoutletsofthedevicearenotcovered.

• Ensureagoodventilation.

• Donotconnectthe230Voutputoftheinvertertoadifferent230Vsource.

• Evenafterthefusetriggers,partsoftheinverterremainlive.

• Alwaysdisconnectthepowersupplywhenworkingonthedevice.

Proper use

Thepuresinewaveinvertersconvert12Vor24Vdirectcurrenttoa230Valternatingcurrentata

frequencyof50Hz.

Warning!

Reverse polarity connection of the battery wires can damage the inverter. Do not use the inverter with

electrical systems using positive ground.

Withitslowweightandcompactdesigntheinvertercanbeeasilyinstalledintocampingmobiles,

commercial vehicles or motor and sailing yachts.

Theoutputvoltagecorrespondstothesocketstandard(puresinus-voltage)

Pleaseobservethevaluesforconstantoutputpowerandpeakoutputpower(foramaximumof10

minutes)asindicatedinthe“Technicaldata”section.

Neverconnectdevicesthathaveahigherpowerrequirement.

Note

Notewhenconnectingdeviceswithanelectricaldrive(suchaspowerdrillsandrefrigerators),thatthey

often need more power than is stated on the type plate.

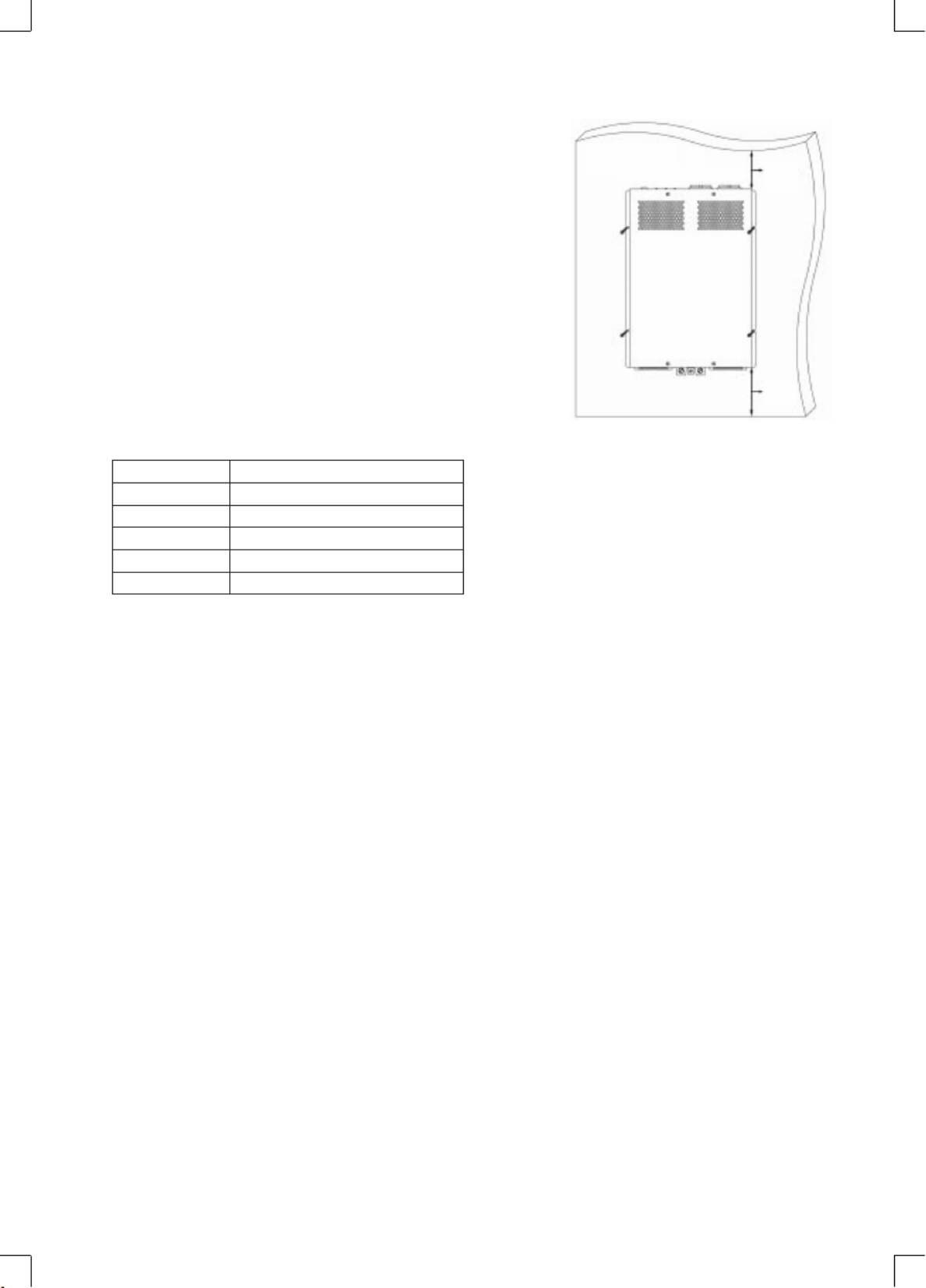

Installation instructions

Whenselectingtheinstallationlocation,observethefollowing

instructions:

• Installationoftheinvertercanbedonehorizontallyor

vertically.

• Theinverterhastobeinstalledinadryandcleanplacethatis

notexposedtohumidity.

• Makesurethattheplaceiswellventilated.Ifinstalledinto

housing,ensureproperventilation.Keepafreespaceofat

least 10 cm around the inverter.

• Theairintakeatthebottomoftheinverterandtheairoutletat

the back should not be blocked.

• Theinstallationsurfacemustbelevelandofsufcient

strength.

Incasetheinverterisinstalledintovehiclesorboatsithastobe

connected to the chassis (ground).

Observetherequiredcablecrosssection(seetable).

10cm

Device Minimum cable thickness

150W 2.5 mm2

300W 6.0 mm2

600W 10.0 mm2

1000W 35.0 mm2

2000W 50.0 mm2

1. Laytheexibleconnectingcable(plusandminus)fromthebatterytotheconnectingpolesofthe

inverter.

Warning!

 Makesurethatthepolesarenotbeingexchanged!Reversedpolaritywillblowtheinternalfuses.

Exchangeoffusesshouldbedonebyexpertsonly!

2. Connect the cable and the terminal together.

3. First connect the negative cable to the white negative terminal.

4. InstallaDCfuseoraDCcircuitbreakeratthepositivesideofthecircuitwithin18inchesofthe

battery.

5. Connect the positive cable to the red positive terminal.

Warning!

 Inorderfortheintegratedresidualcurrent-operatedprotectivedeviceoftheinverterstowork

properly,theearthconnectionoftheinvertermustbeelectricallyconnectedtothechassisofthe

vehicle or boat.

6. Laytheexibleearthcablefromtheearthpointofthevehicletotheearthpointoftheinverter.

7. Connect the earth cable to the chassis terminal.

Warning!

Reversed polarity of the battery wires can damage the inverter. Do not use the inverter with

electrical systems using positive ground.

Using the inverter

120/150/300/600 W models:

Never connect more than one consumer unit to the 230 V socket on the front of the device.

>600 W models:

Never connect more than two consumer units to each of the 230 V sockets on the front of the device.

Protection:

*Inputlowvoltage ..........................................

*Inputovervoltage.........................................

* Low battery alarm.........................................

*Overtemperature .........................................

*Overload......................................................

* Short circuit ..................................................

Reset mode

Automatic

Manual

Pure sine 1000W series

Rated input voltage 12 V DC 24 V DC

Constant output power 1000 W

Peakoutputpower(amax.of10min.) 2000 W (1200 W)

Maximuminputcurrent 80A160A

Outputvoltage 230VAC+/-3%

Outputfrequency 50Hz

Outputwaveform Pure sine wave

Totalharmonicdistortion 3%

No load current <1.2A <0.8A

Inputvoltagerange 10.7V ~ 16.5V 21.4V ~ 33V

Low voltage alarm 10.7V 21.4V

Low voltage shutdown 10 V 20 V

Efciencyupto 85%

Dimensions(LxWxH) 395x236x83mm

Weight 4Kgs

Remote controller RC-15(Option)

GFCI Option

Safetycertication EN60950-1:

EMC

EN55022: Class B

EN55024:

EN61000-3-2:

EN61000-3-3:

E Mark 10R-029726

Protection:

*Inputlowvoltage ..........................................

*Inputovervoltage.........................................

* Low battery alarm.........................................

*Overtemperature .........................................

*Overload......................................................

* Short circuit ..................................................

Reset mode

Automatic

Manual

Pure sine 1500W series

Rated input voltage 12 V DC 24 V DC

Constant output power 1500 W

Peakoutputpower(amax.of10min.) 3000W(1800W)

Maximuminputcurrent 200A 100A

Outputvoltage 230VAC+/-3%

Outputfrequency 50Hz

Outputwaveform Pure sine wave

Totalharmonicdistortion 3%

No load current <1.6A <1A

Inputvoltagerange 10.7V ~ 16.5V 21.4V ~ 33V

Low voltage alarm 10.7V 21.4V

Low voltage shutdown 10 V 20 V

Efciencyupto 85%

Dimensions(LxWxH) 415x283x100mm

Weight 5.75Kgs

Remote controller RC-15(Option)

GFCI Option

Safetycertication EN60950-1:

EMC

EN55022: Class B

EN55024:

EN61000-3-2:

EN61000-3-3:

E Mark 10R-029594

Protection:

*Inputlowvoltage ..........................................

*Inputovervoltage.........................................

* Low battery alarm.........................................

*Overtemperature .........................................

*Overload......................................................

* Short circuit ..................................................

Reset mode

Automatic

Manual

Pure sine 2000W series

Rated input voltage 12 V DC 24 V DC

Constant output power 2000 W

Peakoutputpower(amax.of10min.) 4000 W (2200 W)

Maximuminputcurrent 240A 120A

Outputvoltage 230VAC+/-3%

Outputfrequency 50Hz

Outputwaveform Pure sine wave

Totalharmonicdistortion 3%

No load current <1.6A <1A

Inputvoltagerange 10.7V ~ 16.5V 21.4V ~ 33V

Low voltage alarm 10.7V 21.4V

Low voltage shutdown 10 V 20 V

Efciencyupto 85%

Dimensions(LxWxH) 415x283x100mm

Weight 5.9Kgs

Remote controller RC-15(Option)

GFCI Option

Safetycertication EN60950-1:

EMC

EN55022: Class B

EN55024:

EN61000-3-2:

EN61000-3-3:

E Mark 10R-029594

Protection:

*Inputlowvoltage ..........................................

*Inputovervoltage.........................................

* Low battery alarm.........................................

*Overtemperature .........................................

*Overload......................................................

* Short circuit ..................................................

Reset mode

Automatic

Manual

Safety precautions:

Toreduceriskofelectricshock,thisproductshouldONLYbeopenedby

anauthorizedtechnicianwhenserviceisrequired.Disconnecttheproduct

frommainsandotherequipmentifaproblemshouldoccur.Donotexposetheproducttowateror

moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

Noguaranteeorliabilitycanbeacceptedforanychangesandmodicationsoftheproductordamage

caused due to incorrect use of this product.

General:

Designsandspecicationsaresubjecttochangewithoutnotice.

All logos brands and product names are trademarks or registered trademarks of their respective

holders and are hereby recognized as such.

Keepthismanualandpackagingforfuturereference.

Attention:

Thisproductismarkedwiththissymbol.Itmeansthatusedelectricalandelectronicproducts

shouldnotbemixedwithgeneralhouseholdwaste.Thereisaseparatecollectionssystem

for these products.

RISK HOC SOF ELECTRIC K

DO NO T OPEN

CAUTION

Produkt Specifikationer

Mærke:	HQ
Kategori:	Ikke kategoriseret
Model:	-PURE2KW-24
Tænd-/slukkontakt:	Ja
Bredde:	283 mm
Dybde:	415 mm
Højde:	100 mm
Vægt:	5900 g
Produktfarve:	Blå
Pakkevægt:	6560 g
Pakkedybde:	455 mm
Pakkebredde:	330 mm
Pakkehøjde:	150 mm
Strømforsyningstype:	Automatisk
Udgangseffekt:	2000 W
LED-indikatorer:	Ja
Udgangsspænding:	230 V
Indgangsspænding:	24 V
Formål:	Universel
Indgangsfrekvens:	- Hz
Stærkstrøm typen:	DC-to-AC
Strømbeskyttelsesfunktioner:	Overheating, Overload
Effektivitet:	85 %
AC udgange, antal:	2 AC stikkontakt(er)
Uddgående frekvens:	50 Hz
