Thank You!

Thank you for choosing Humminbird®, America's #1 name in fishfinders.Humminbird®has built its reputation by designing and

manufacturing top-quality,thoroughly reliable marine equipment.Your Humminbird®is designed for trouble-free use in even the

harshest marine environment. In the unlikely event that your Humminbird®does require repairs, we offer an exclusive Service Policy-

free of charge during the first year after purchase,and available at a reasonable rate after the one-year period. For complete details,

see the separate warranty card included with your unit. We encourage you to read this operations manual carefully in order to get

full benefit from all the features and applications of your Humminbird®product.

Contact our Customer Resource Center at 1-334-687-0503 or visit our website at www.humminbird.com. The PiranhaMax comes

in three models:

•PiranhaMax10 - Single Beam, 160V x 132H Display

•PiranhaMax15 - Dual Beam, 160V x 132H Display

•PiranhaMax20 - Dual Beam, 240V x 160H Display

WARNING!

This device should not be used as a navigational aid to prevent collision, grounding, boat damage, or personal injury. When the boat is moving, water

depth may change too quickly to allow time for you to react. Always operate the boat at very slow speeds if you suspect shallow water or submerged objects.

CAUTION:

Do not handle the bottom of the transducer while it is transmitting sonar. Prolonged contact with the transducer element can cause physical discomfort

or minor tissue damage.

WARNING!

Disassembly and repair of this electronic unit should only be performed by authorized service personnel. Any modification of the serial number or

attempt to repair the original equipment or accessories by unauthorized individuals will void the warranty. Handling and/or opening this unit may result in exposure

to lead, in the form of solder.

WARNING!

This product contains lead, a chemical known to the state of California to cause cancer, birth defects and other reproductive harm.

PiranhaMax Sonar Technology

The PiranhaMax is the easiest to use fishfinder ever. For most anglers, all you’ll ever need to do is power on and fish! The

PiranhaMax automatically determines depth and makes adjustments to keep the bottom and fish visible on the display.

The PiranhaMax uses sonar technology to send sound waves from the transducer into the water. The returned “echoes” are plotted

on the display, creating a very accurate picture of the underwater world, including distance to underwater objects such as the bot-

tom, fish and structure.

Your PiranhaMax will have either Single Beam or Dual Beam sonar. Find the correct sonar description that applies to your unit.

Single Beam Sonar

Your PiranhaMax10 uses a 200 kHz single beam sonar system with a 20° area of

coverage. Boat speed, wave action, bottom hardness, water conditions and trans-

ducer installation can all affect depth capability.

Dual Beam Sonar

Your or PiranhaMax15 PiranhaMax20 uses a 200/83 kHz dual beam sonar sys-

tem with a wide (60°) area of coverage. Dual Beam sonar is optimized to show the

greatest bottom definition using a narrow (20°) beam yet can still indicate fish

found in the wide (60°) beam when the Fish ID+TM feature is turned on. Dual

Beam is ideal for a wide range of conditions - from shallow to very deep water in

both fresh and salt water. Boat speed, wave action, bottom hardness, water condi-

tions and transducer installation can all affect depth capability.

531262-1_B

oﬀered by Busse-Yachtshop.de

What You See On the Display

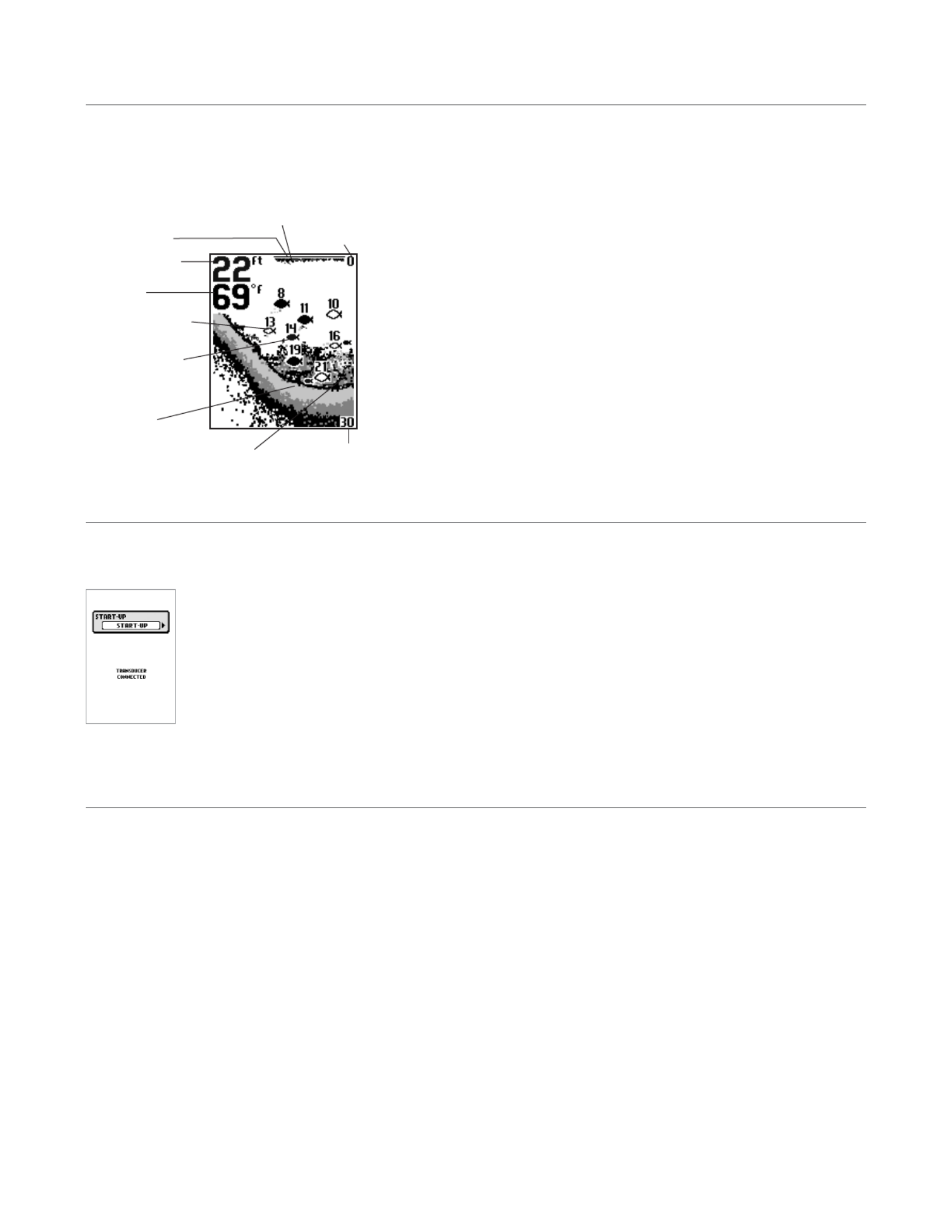

The PiranhaMax displays underwater information in an easy-to-understand format. The top of the display corresponds to the water

surface at the transducer, and the bottom of the display corresponds to the Depth Range automatically selected for the current water

depth. The Bottom Contour varies as the depth under the boat changes. Digital readouts provide precise information for depth, fish

and water temperature.

As the boat moves, terrain and bottom composition variations are displayed.

Fish, baitfish and thermoclines (underwater temperature changes) are dis-

played when detected. Underwater conditions vary greatly, so some experience

and interpretation is needed to realize all the benefits of the PiranhaMax – use

the picture above as a guide to the most common conditions and practice using

the PiranhaMax over known bottom types.

Powering ON and OFF

Press and release the POWER-MENU key to power the PiranhaMax on. Press and hold the POWER-MENU key until the unit shuts

down to power off.

When the PiranhaMax powers on, the Start-Up menu temporarily appears. From this menu, select either Start-Up,

Simulator, or SetUp.

• Use Start-Up for on the water use

• Use Simulator for learning how to use the system with simulated sonar data; access Simulator by pressing the

RIGHT Arrow Key once

• Use SetUp to display additional set-up menu choices; access SetUp by pressing the RIGHT Arrow Key twice (See

SetUp Menu for more information).

The Menu System

A simple menu system allows you to access your PiranhaMax’s adjustable settings. To activate the menu system, press the POWER-

MENU key. Press the POWER-MENU key repeatedly to display the PiranhaMax menu settings, one at a time. When a menu setting

is on the display, use the RIGHT and LEFT Arrow keys to adjust the menu setting. Menus settings are removed from the screen auto-

matically after several seconds. In Normal operating mode, most menu settings saved to memory will not return to their default val-

ues when the unit is turned off. See individual menu choices for more information.

NOTE:

Each time the POWER-MENU key is pressed, the backlight momentarily illuminates for easy viewing at night. Adjust the LIGHT menu setting to keep the

backlight on.

NOTE:

If Simulator Mode is selected from the Start-Up Menu and a transducer is plugged in, some menu setting changes will be saved in memory even after the unit
