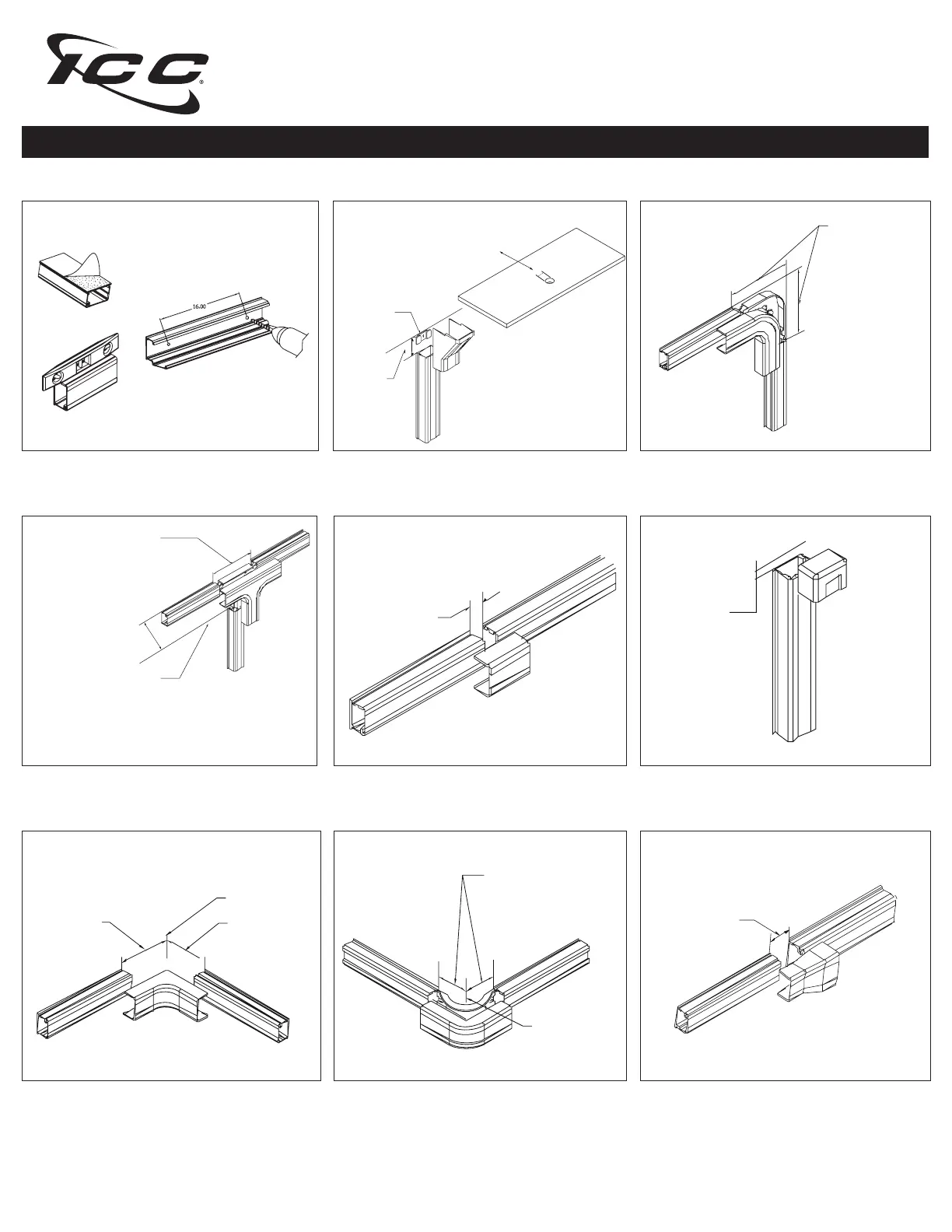

I N S T A L L A T I O N I N S T R U C T I O N S

Raceway System

0” min.

1-1/4” max.

Cap will

extend up to

3/16”

from raceway

0” min.

2-1/4” max.

1/2” min.

2-1/4” max.

Ceiling

Max cut out:

ICRW11CExx - 3/4” diameter

ICRW12CExx - 1-3/8” diameter

ICRW13CExx - 1-3/4” diameter

Raceway Placement

With Base

3-27/32” min.

4” max.

With Baseout

2-1/2” min.

4” max.

Raceway Placement

With Base

5-1/2” min.

5-3/4” max.

Without Base

3” min.

5-3/4” max.

Raceway Placement

With Base

3-25/32” min.

4” max.

Without Base

2-1/2” min.

4” max.

1-3/4” min.

2-1/2” max.

1-3/4” min.

2-1/2” max.

Inside Wall Corner

Outside Wall Corner

Raceway Placement

With Base Without Base

2” min. 1” min.

2-1/4” max. 2-1/4” max.

Figure 9: Used to transition from one size of raceway

to another

Figure 2: Routes cable from ceiling into the raceway Figure 3: 90 is used for right angle turns on ˚the same

surface. Base is slotted for screw down mounting, if

necessary.

Figure 4: Used to branch raceway runs. Base is slotted

for screw down mounting, if necessary.

Figure 5: Used to cover joint where two sections of

raceway come together

Figure 6: Used for closing the open end of raceway

Figure 7: Used for right angle turns around internal corners Figure 8: Used for right angle turns around external

corners. Base is slotted for screw down mounting

Figure 1: Secure raceway with included adhesive

backing or drill holes for screw mounting. Use a level

to align raceway.

Ceiling entry

Joint Cover

Outside CornerInside Corner Cover

Tee

Flat Elbow

End Cap

Reducer

888-ASK-4ICC csr@icc.com icc.com

Raceway System

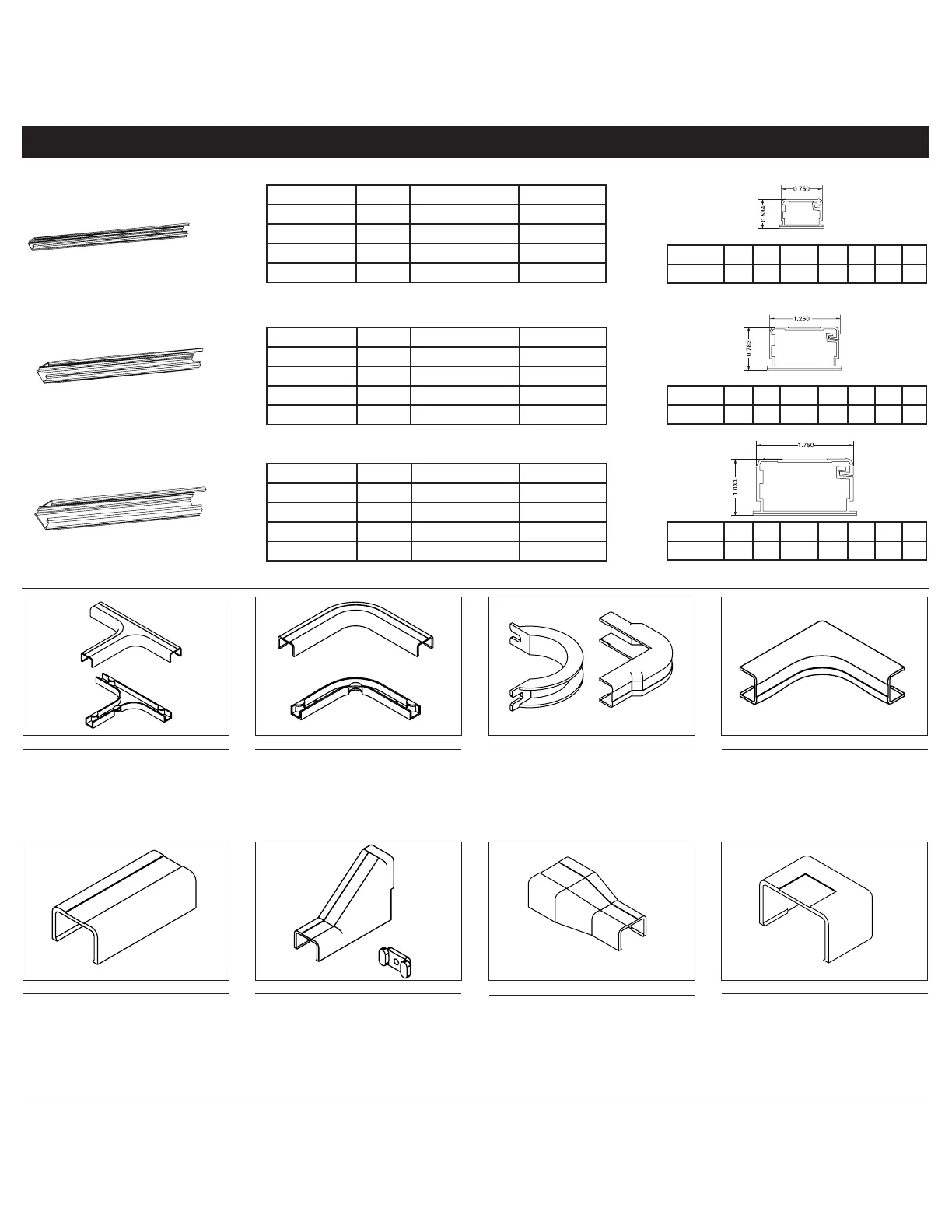

Item # Length Descrption Qty.

ICRWR11Sxx* 1 Ft. 3/4” W x 1/2” H Min. Order 6Ft.

ICRWR118xx* 1 Ft. 3/4” W x 1/2” H Min. Order 8Ft.

ICRW22R6xx* 6 Ft. 3/4” W x 1/2” H Single Pack

ICRW22R8xx* 8 Ft. 3/4” W x 1/2” H Single Pack

Item # Length Descrption Qty.

ICRWR12Sxx* 1 Ft. 1 1/4” W x 3/4” H Min. Order 6Ft.

ICRWR128xx* 1 Ft. 1 1/4” W x 3/4” H Min. Order 8Ft.

ICRW33R6xx* 6 Ft. 1 1/4” W x 3/4” H Single Pack

ICRW33R8xx* 8 Ft. 1 1/4” W x 3/4” H Single Pack

Item # Length Descrption Qty.

ICRWR13Sxx* 1 Ft. 1 3/4” W x 1” H Min. Order 6Ft.

ICRWR138xx* 1 Ft. 1 3/4” W x 1” H Min. Order 8Ft.

ICRW44R6xx* 6 Ft. 1 3/4” W x 1” H Single Pack

ICRW44R8xx* 8 Ft. 1 3/4” W x 1” H Single Pack

Types of Cables CAT 5e CAT 6 CAT 6A FTP 25-Pair 6 Fiber 1 Fiber Coax

# of Cables 15 10 6 4 9 39 7

Types of Cables CAT 5e CAT 6 CAT 6A FTP 25-Pair 6 Fiber 1 Fiber Coax

# of Cables 6 4 2 1 4 16 3

Types of Cables CAT 5e CAT 6 CAT 6A FTP 25-Pair 6 Fiber 1 Fiber Coax

# of Cables 29 19 11 7 17 72 14

Tees and Bases

ICRW22TBxx¹ 3/4” 1 set

ICRW33TBxx¹ 1 1/4” 1 set

ICRW44TBxx¹ 1 3/4” 1 set

ICRW11TBxx¹ 3/4” 10 sets

ICRW12TBxx¹ 1 1/4” 10 sets

ICRW13TBxx¹ 1 3/4” 10 sets

¹xx = IV-Ivory, WH-White

Joint Covers

ICRW22JCxx¹ 3/4” 1 pc

ICRW33JCxx¹ 1 1/4” 1 pc

ICRW44JCxx¹ 1 3/4” 1 pc

ICRW11JCxx¹ 3/4” 10 pcs

ICRW12JCxx¹ 1 1/4” 10 pcs

ICRW13JCxx¹ 1 3/4” 10 pcs

¹xx = IV-Ivory, WH-White

Ceiling Entries and Mounting Clips

ICRW22CMxx¹ 3/4” 1 set

ICRW33CMxx¹ 1 1/4” 1 set

ICRW44CMxx¹ 1 3/4” 1 set

ICRW11CExx¹ 3/4” 10 sets

ICRW12CExx¹ 1 1/4” 10 sets

ICRW13CExx¹ 1 3/4” 10 sets

¹xx = IV-Ivory, WH-White

Outside Corner Covers and Bases

ICRW22UCxx¹ 3/4” 1 set

ICRW33UCxx¹ 1 1/4” 1 set

ICRW44UCxx¹ 1 3/4” 1 set

ICRW11OBxx¹ 3/4” 10 sets

ICRW12OBxx¹ 1 1/4” 10 sets

ICRW13OBxx¹ 1 3/4” 10 sets

¹xx = IV-Ivory, WH-White

Reducers

ICRW22RExx¹ 1 1/4” to 3/4” 1 pc

ICRW33RExx¹ 1 3/4” to 3/4” 1 pc

ICRW44RExx¹ 1 3/4” to 11/4” 1 pc

ICRW11ROxx¹ 1 1/4” to 3/4” 10 pcs

ICRW12ROxx¹ 1 3/4” to 3/4” 10 pcs

ICRW13ROxx¹ 1 3/4” to 11/4” 10 pcs

¹xx = IV-Ivory, WH-White

Inside Corner Covers

ICRW22NCxx¹ 3/4” 1 pc

ICRW33NCxx¹ 1 1/4” 1 pc

ICRW44NCxx¹ 1 3/4” 1 pc

ICRW11ICxx¹ 3/4” 10 pcs

ICRW12ICxx¹ 1 1/4” 10 pcs

ICRW13ICxx¹ 1 3/4” 10 pcs

¹xx = IV-Ivory, WH-White

End Caps

ICRW22ECxx¹ 3/4” 1 pc

ICRW33ECXX¹ 1 1/4” 1 pc

ICRW44ECxx¹ 1 3/4” 1 pc

ICRW11ECxx¹ 3/4” 10 pcs

ICRW12ECxx¹ 1 1/4” 10 pcs

ICRW13ECxx¹ 1 3/4” 10 pcs

¹xx = IV-Ivory, WH-White

90○ Flat Elbows and Bases

ICRW22EBxx¹ 3/4” 1 set

ICRW33EBxx¹ 1 1/4” 1 set

ICRW44EBxx¹ 1 3/4” 1 set

ICRW11EBxx¹ 3/4” 10 sets

ICRW12EBxx¹ 1 1/4” 10 sets

ICRW13EBxx¹ 1 3/4” 10 sets

¹xx = IV-Ivory, WH-White

1. Raceway sections have a one piece design and are easy to install.

2. Latching system: Installations and changes are quick and easy with simple self locking latch.

3. Mounting: Adhesive backing makes installation quick and easy

4. Raceways are easy to cut, trim and paint to ensure a custom look to match the surroundings

5. Raceway can incorporate a wide variety of cable types (UTP, STP, ScTP, coaxial, audio, video, and ﬁ ber optic cables)

6. Raceways are made of 94V-0 for low-power low voltage (under 50V indoor application use only)

F E A T U R E S & B E N E F I T S

Based on 50% ﬁ ll capacity and ICC cabling O.D.

*Color (xx) = IV=Ivory, WH-White
