I N S T A L L A T I O N I N S T R U C T I O N S

Ladder Rack System

IMPORTANT: Before you start, please plan on how the ladder rack system is to be conﬁ gured.

• To mount ladder rack runway to the wall

• Includes 1 bracket and 2 J-Bolts

• Wall fasteners are not included

• Hole size for mounting to the wall is 0.35”

Note: Drywall can not support the weight of ladder rack

• Includes 1 triangle and 2 J-Bolts

• Wall fasteners are not included

• Hole size for mounting to the wall is 0.35”

Note: It is recommended to install a triangle every 5’

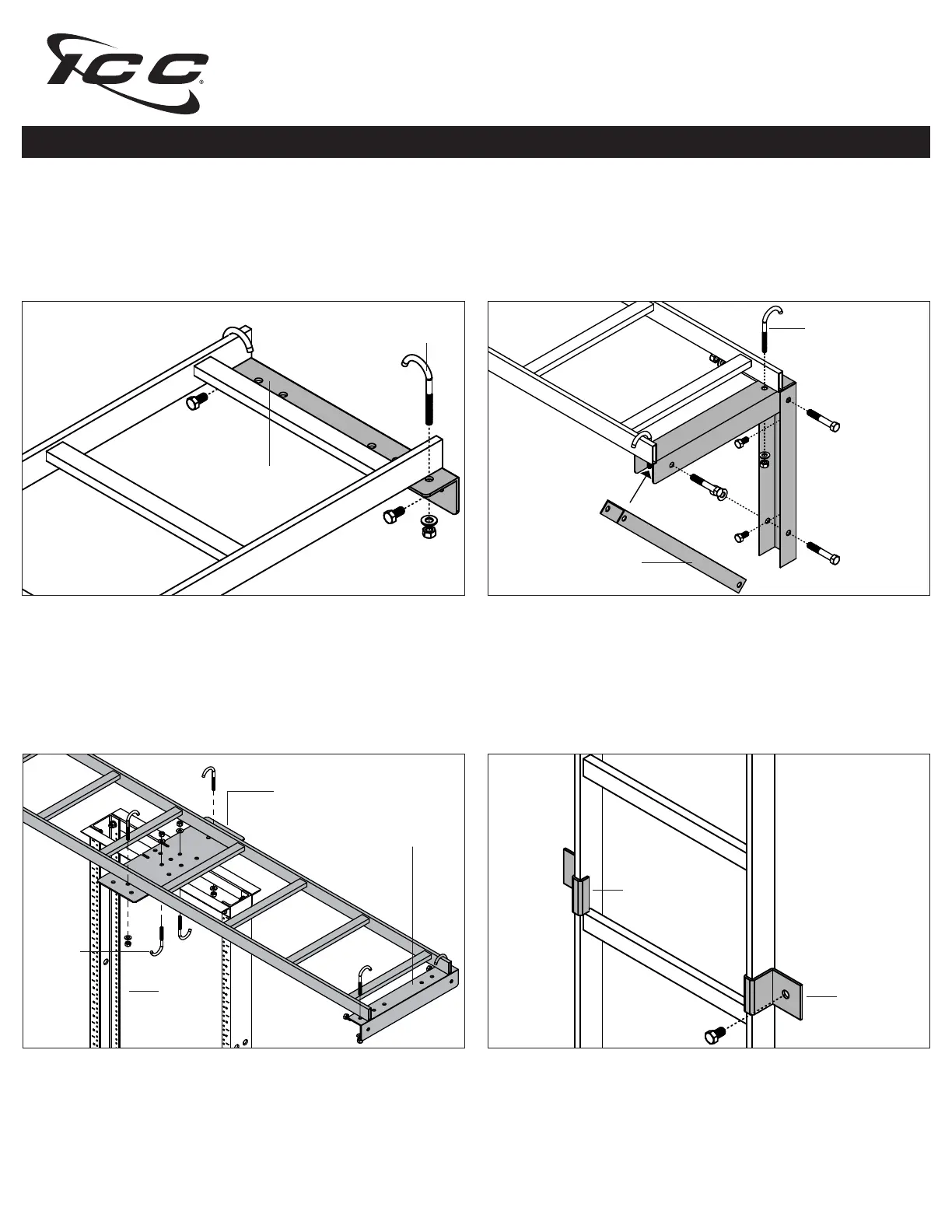

How to Mount Ladder

Wall Support Bracket, Perpendicular

Part No.: ICCMSLAWSK

Wall Support Triangle, Parallel

Part No.: ICCMSLTWSK

J-Bolt J-Bolt

Wall Support Bracket

Triangle

Wall Support Bracket, Vertical

Part No.: ICCMSLVWBK

• To secure ladder rack runway ﬂ at against the wall

• Includes 2 brackets

• Wall fasteners not included

• Hole size for mounting to the wall is 0.43”

Wall Bracket

5’ Ladder Rack Kit, Perpendicular

Part No.: ICCMSLRW05

• To route cable from rack to wall

• Includes a 5’ ladder rack, a relay bracket, a wall bracket,

2 J-bolts and 2 end caps

• Hole size for mounting to the wall is 0.35”

Wall Support Bracket

Rack

Relay Rack Bracket

J-Bolt

888-ASK-4ICC csr@icc.com icc.com

I N S T A L L A T I O N I N S T R U C T I O N S

Ladder Rack System

IMPORTANT: Before you start, please plan on how the ladder rack system is to be conﬁ gured.

• To sustain over-hanging ladder rack runway to the ceiling

• Includes 2 threaded rods(6’), 2 ladder brackets, 2 ceiling

brackets, and 8 nuts

• Ceiling fasteners not included

• Hole size for mounting to the ceiling is 0.53”

• To join ladder rack runway at ends

• Includes 2 feet and 2 Butt splice kits

• Floor fasteners not included

• Hole size for mounting to the ﬂ oor is 0.55”

How to Mount Ladder

• To maintain proper cable bend radius at drop points

• Includes 1 radius controlled drop, 6 bolts and 3 nuts

Floor Mount Kit Ceiling Mount Kit with 6’ Rods

Cable Radius Drop

Part No.: ICCMSLMFFK

Part No.: ICCMSLCRDK

Part No.: ICCMSLCMRK

4 Post Relay Rack Brackets

Part No.: ICCMSL4PBK

• To secure ladder rack runway over 4 post racks

• Includes 2 parallel mounting brackets, 2 perpendicular

mounting brackets and 2 J-Bolts

Bracket

Rack

4-Post Adjustable Distribution Rack

Part #:

ICCMSR4P84 7’H, 45 RMS

Adjustable

Radius drop

Feet

Rod

Ceiling bracket

Ladder bracket

Butt splice
