• Use appropriate personal protective equipment

such as safety glasses, face shields, insulating

gloves, insulating boots, and/or insulating

mats.

• Use the 3-Step Testing Method. Before each

use:

• Verify tester operation by measuring a

known voltage. Apply tester to circuit under

test. And, then test on the known live volt-

age again to ensure proper operation.

• Connect the black common lead to ground

before applying the red test lead to voltage.

Disconnect the red test lead from the volt-

age first.

• Always work with a partner.

• When using the probes, keep fingers as far

behind the probe tips as possible.

Features:

• Vibration Mode with indicator movement

• Independent solenoid and electronic circuitry

design provides back-up voltage indication

for added safety

• Low Impedance Measuring Device

• Replaceable Test Leads

• Shielded probe tips

• Ultrasonically welded for added durability

Accessories:

• 61-072 Resistor-fused test leads

• C-90 Soft-sided carrying case

• 61-010 Leather case

To Measure AC Voltage:

• Ensure that the plug for the test leads is fully

seated into the banana jacks.

• Connect the tester in parallel with the load or

circuit.

• The tester indicates both the voltage type and

the voltage level.

To Measure DC Voltage:

• Ensure that the plug for the test leads is fully

seated into the banana jacks.

• Connect the tester in parallel with the load or

circuit.

• The tester indicates the voltage type, polarity,

and the voltage level.

Voltage Tester

Instruction Manual

WARNING

Read First: Safety Information

Use the tester only as specified in this manual;

otherwise, the protection provided by the tester

may be impaired.

Warning

To avoid possible electric shock or personal

injury, follow these guidelines:

• Do not use tester if it is damaged. Visually

inspect tester to ensure case is not cracked.

• Inspect and replace leads if insulation is

damaged, metal is exposed, or probes are

cracked. Pay particular attention to the

insulation surrounding the connectors.

• Do not use tester if it operates abnormally as

protection maybe impaired.

• Do not use during electrical storms or in wet

weather.

• Do not use around explosive gas, dust, or vapor.

• Do not apply more than the rated voltage to

the tester. Voltage is not to exceed 600V.

• Always operate this solenoid-type tester

within the specified duty cycle on the front of

the tester. Duty cycle ratio is:

• 1:7 ON:OFF time for 240V or less

• 1:40 ON:OFF time for 240V or greater.

• Maximum ON time is 15 seconds.

Caution

To protect yourself, think "Safety First":

• Voltages exceeding 30VAC or 60VDC pose

a shock hazard so use caution.

• Never ground yourself when taking electrical

measurements.

#61-065

ND 5119-5 61-065 Vol-Con Ins 2/19/07 9:18 AM Page 1

Maintenance:

• Clean the case with a damp cloth and mild

detergent. Do not use abrasives or solvents.

Service, and Replacement Parts:

For replacement parts or to inquire about

service information contact

IDEAL INDUSTRIES, INC.

Attn: Repair Department

1000 Park Avenue

Sycamore, IL 60178

Technical Support: 1-877-201-9005 or visit

our website at www.testersandmeters.com.

Specifications:

VAC Ranges: 120V, 240V, 480V, 600V AC.

VAC Accuracy: Relative indication only

VDC Ranges: 120V, 240V, 600V DC

VDC Accuracy: Relative indication only

Neon bulb lights from 100-600V AC/DC

Operating Frequency: 25-60 Hz

Input Impedance: Low

Overload protection: 1000VDC/750VAC rms.

Operating Environment: 32° F to 122° F

(<70% humidity)

Storage Temp.: -4° F to 140° F

(<80% humidity)

Accessories included: Test Leads, operating

instructions

Dimensions: 7.2" (H), 2.4" (W), 1.5" (D)

Weight: 8.0 oz

Safety:

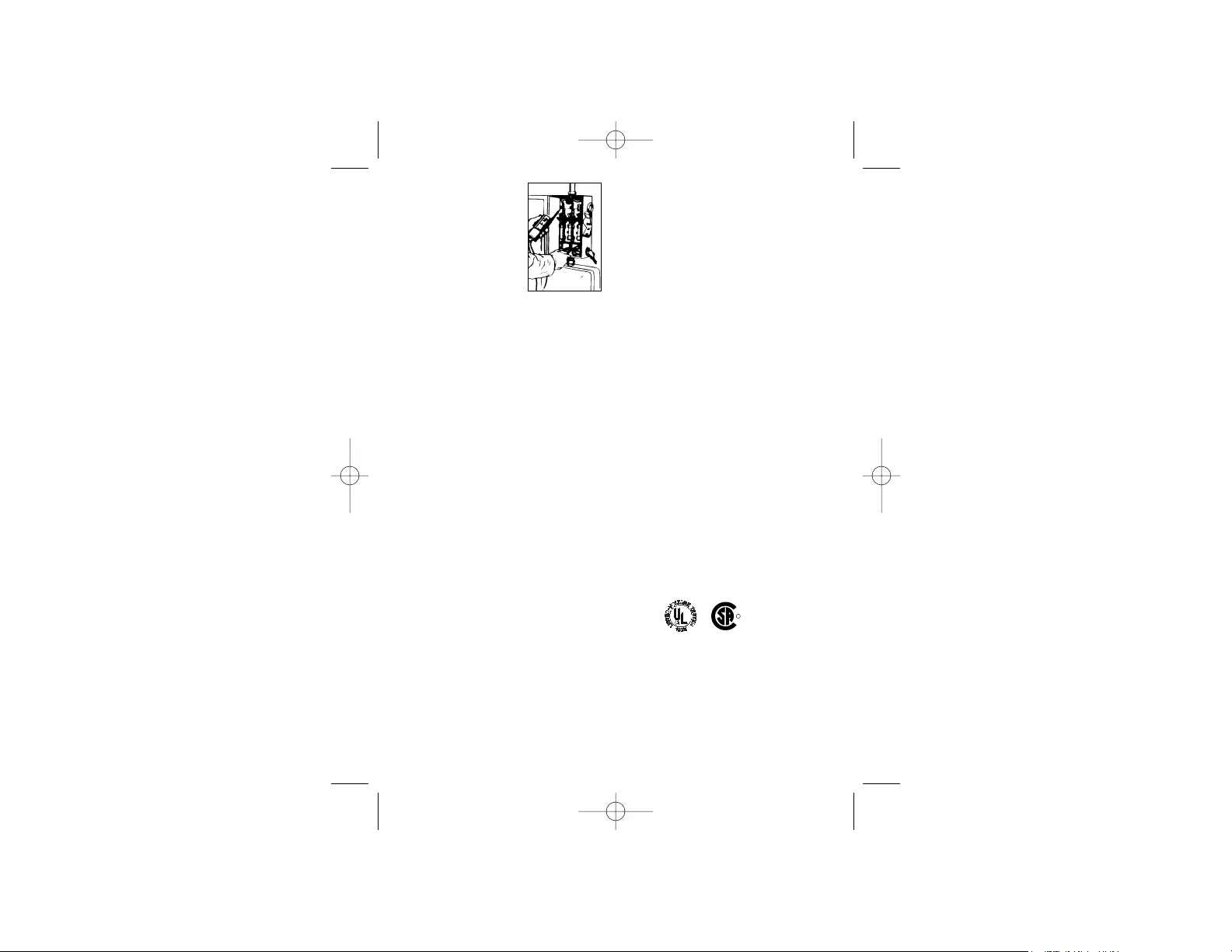

Applications:

• Locating Blown Fuses

With power on: Place

tester across the “source”

side of one fuse and the

load side of an adjoining

fuse. If no voltage is

indicated, the fuse next to

the load side prod is blown.

If voltage is indicated, the fuse next to the

load side prod is OK. Repeat the same test

with the prods on the opposite side of the

same two fuses to check the other fuse.

On a three phase circuit, repeat the same test

as above. An indication of no voltage or

lower than normal line voltage indicates the

blown fuse.

• Testing for 25 to 60 Cycle Frequency

Place tester between each side of AC line. A

low frequency hum and slow vibrations indi-

cate 25 cycle current. 60 cycle current is

indicated by a higher frequency hum and

more rapid vibrations.

Test Lead Replacement:

• Replace leads only with IDEAL test leads

below.

• # 61-070 Standard Test Leads with

Shielded Probe Tips

• # 61-072 Resistor-fused Test Leads with

Shielded Probe Tips. Each probe tip con-

tains a special, current-limiting resistor

which acts like a fuse to limit short-circuit

current and prevents dangerous arcing

during a shorted condition. The resistors

are rated to 140Ω +/- 10%. Fusing cur-

rent is 1A at 125V. Fusing time is 30-

60ms at 125V, without causing dangerous

conditions during opening of the fuse ele-

ment. Leads need to be replaced when

fuse has opened.

ND 5119-5 61-065 Vol-Con Ins 2/19/07 9:18 AM Page 3
