IDX UC-PD2 Manual

IDX Batterioplader UC-PD2

Læs gratis den danske manual til IDX UC-PD2 (2 sider) i kategorien Batterioplader. Denne vejledning er vurderet som hjælpsom af 21 personer og har en gennemsnitlig bedømmelse på 5.0 stjerner ud af 11 anmeldelser. Har du et spørgsmål om IDX UC-PD2, eller vil du spørge andre brugere om produktet?

Download PDF
Side 1/2
UC-PD2
UC-PD2
Recommended batteries : IDX V-Mount Lithium Ion batteries equipped with USB PD
Input voltage：AC100V〜240V 50 / 60Hz Automatic
Output voltage：
USB-C port：
DC5V/3A、DC9V/3A、DC12V/3A、DC15V/3A、DC20V/5A（ ）MAX100W
USB-A port： Single port ： DC5V/3A、DC9V/2A、DC12V/1.5A
Dual port ： DC5V/2A + DC5V/2A
DC Connector : USB Type-C 2port / USB Type-A 2port
Operating temperature ：0 / 3 〜25˚C 2 〜 77˚F
Operating humidity：5％〜80％ RH
Protection circuit : Over-voltage, Over-current, Short circuit
Dimensions：approx. 69 ( W ) × 87 ( H ) × 32 ( D )mm
approx. 2.71 ( W ) × 3.42 ( H ) × 1.26 ( D ) inches
The attached USB Type-C cable 5A length : approx. 1.5m approx. 59inches
Weight : approx. 290g / 0.64lbs
Charge time standard：For the latest charging time information, please visit our website
( https://idxtek.com/pages/charging-times )
IDX Lithium-ion batteries equipped with USB PD can be charged.
Equipped with two USB-C ports, supporting USB PD standards up to
100W single port and up to 65W dual port.The output voltage is
automatically switched by connecting the battery.The maximum output
when charging the battery depends on the USB PD input
specifications on the battery side.
Equipped with two USB-A ports, it can supply up to 18W single port
and up to 10W dual port at the same time.It can be used for portable
devices powered by USB
AC plug can be folded and stored.
POWER LED lights when connecting the AC plug to the outlet.
1. Connect the AC plug to the outlet.
Waring : Use in a flat surface only.
* The shape of the AC plugs varies by region
2. Connect the supplied USB Type-C cable
into the USB-C port on the charger and
the USB-C port on the IDX battery to start charging.
Confirm the IDX battery LED indicator is lit up when charging.
3. Remove the connector after charging.
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
①
②
④
③
⑤
●
 
●
●
●
●
●
●
●
●
●
Do not connect to an AC power source that exceeds the voltage
specification stated on the unit.
Use only with the compatible batteries listed in this manual.
Do not sho t the contact pins with any metal object. r
Do not ca y or store with metal equipment.rr
Do not immerse in water.
Do not attempt to open he outer casing or break apart.t
Do not subject the unit to extreme physical impact or pressure, or
place any object across the terminals that could cause it to short.
Do not a tempt to use if damaged.t
Protect the power cord from any damage.
Please don’t use the charger which has damages on the cable
and connector is deformed.
●
●
●
●
●
●
●
Use the approved power cord / appliance connector / plug
conforming to the proper ratings (voltage, ampere) and safety
regulations of each country if applicable.
Keep the unit away form excessively d y hot or humid environments.r
Stop charging immediately if the charging does not complete
within the designated time.
In case of abnormal smell , leak , color change or case deformity
during use, turn the power off and unplug the cable from the socket
to avoid possible injury .
Do not carry the charger while the battery is attached.
Do not charge the battery while the battery is used with equipments.
Do not charge the battery while the battery is charged from
other charger.

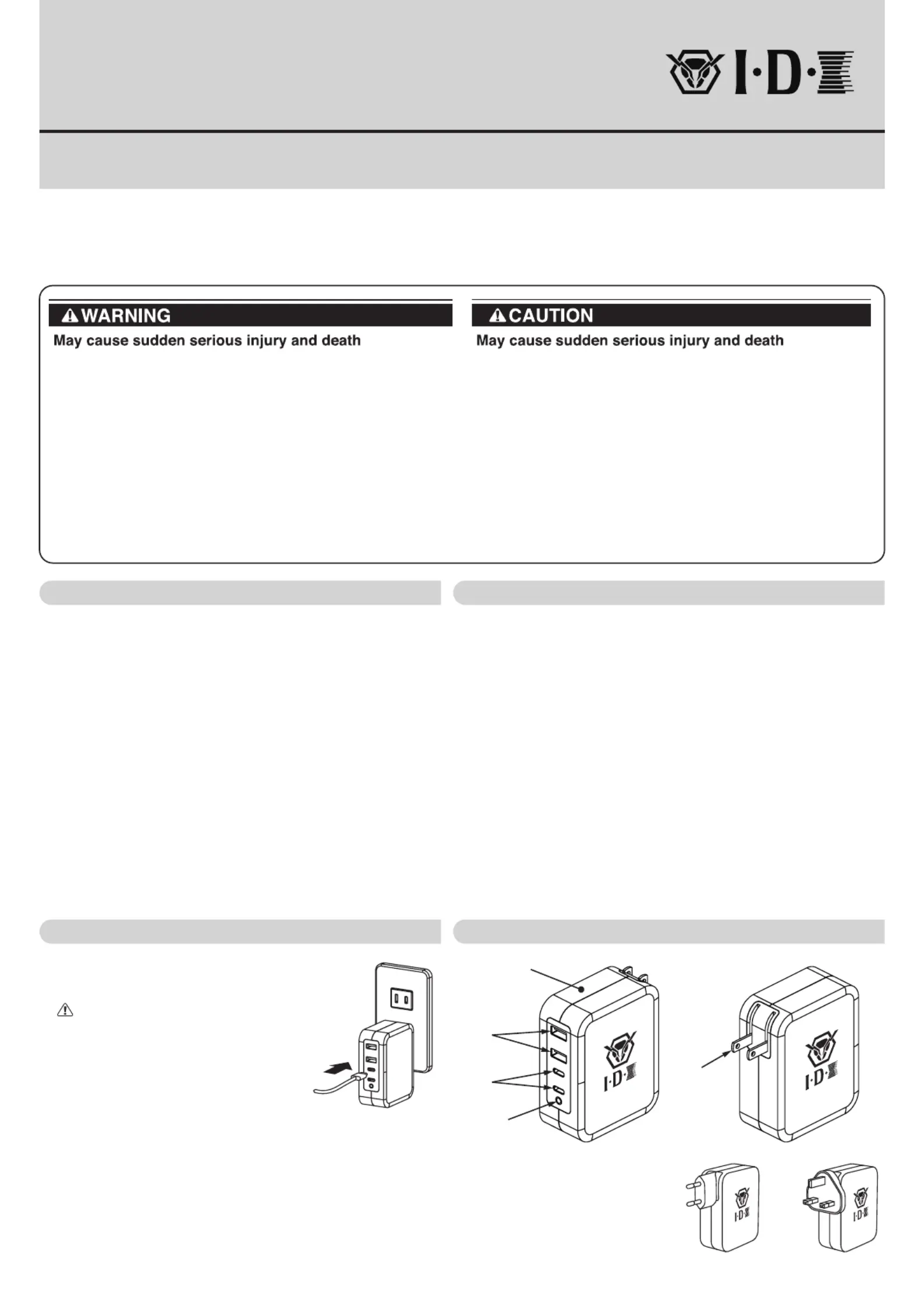

Operating Instructions
① Body
② Power LED
③ USB-A connector ×2
④ USB-C connector ×2
⑤ AC plug
● ● for EU for UK
● for US
* The shape of the AC plugs varies by region
Features Specifications
Location and Function of Parts
2ch USB Power Delivery Charger
Instruction Manual
Thank you for purchasing the UC-PD2. This UC-PD2 is the charger which supports USB PD (Power Delivery)
function. We strongly recommend reading this Instruction Manual on how to best use the UC-PD2 . Please keep
this manual for your reference. If you have any additional questions, please contact your local IDX office listed
at the end of this manual.
UC-PD2
UC-PD2
USBA2
100W
USBC2
USBC1
C1+C2
C1 C2 A1 A2
C1+A1 C1+A2 C2+A1 C2+A2 A1+A2
USBA1
USBA2
USBC2
USBC1
USBA1
USBA2
USBC2
USBC1
USBA1
USBA2
USBC2
USBC1
USBA1

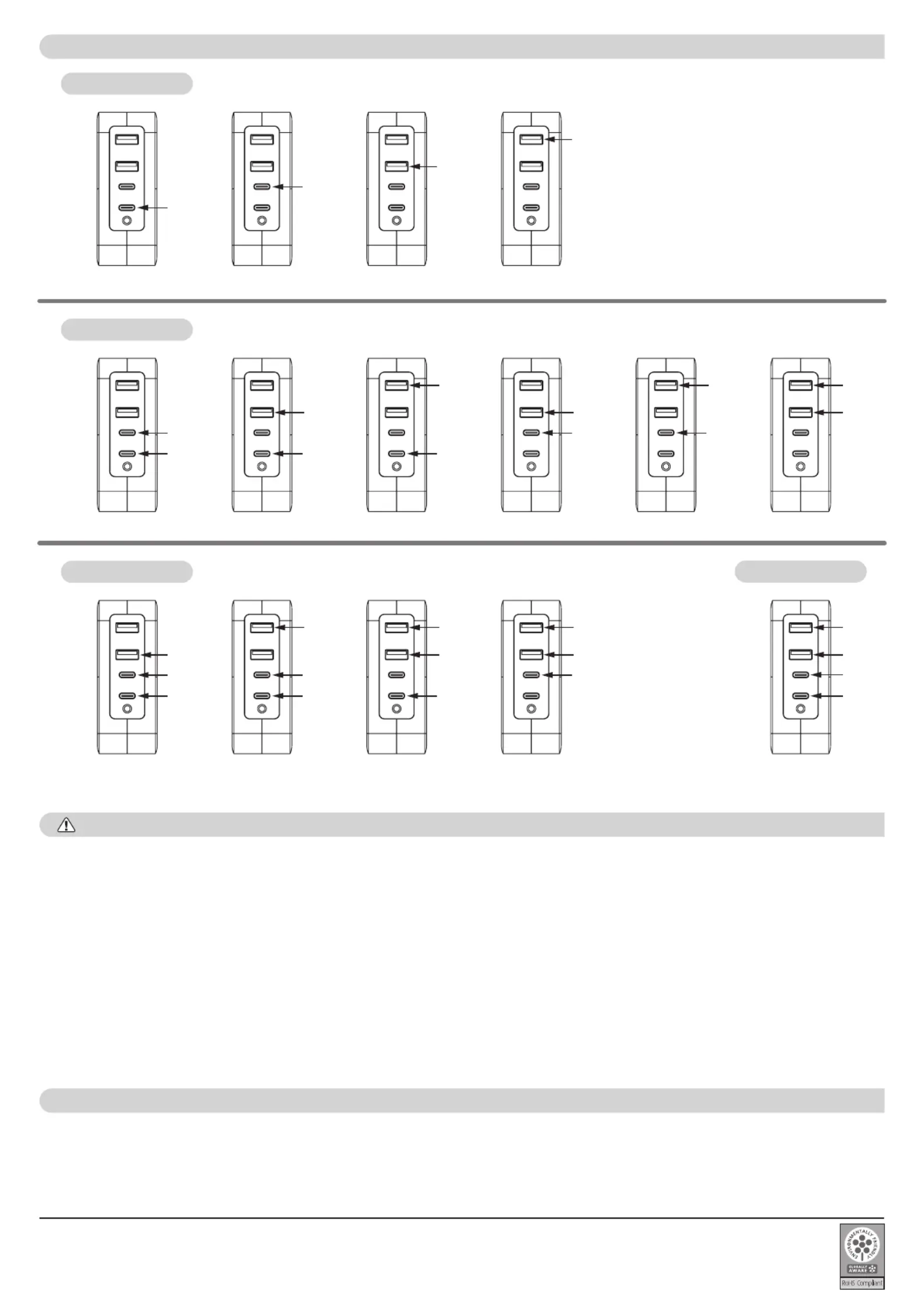

Charging power specification on 4 ports
 
( The power in the figure shows the maximum value )
Caution
●Single port use
●Dual port use
●
●
●
●
●
●
●
●
●
●
●
●
100W
18W
18W
65W
65W
100W
18W
100W
18W
100W
18W
100W
18W 10W
10W
C1+C2+A1 C1+C2+A2 C1+A1+A2 C2+A1+A2 C1+C2+A1+A2
●Three port use ●Four port use
65W
30W
18W
65W
30W
18W
100W
10W
10W
100W
10W
10W 10W
10W
30W
65W
When using this product, the surface of the main body may become hot. This product is designed for indoor use. Use within the recommended
room temperature. Expected to be hot when charging two IDX batteries with the USB-C port.
This product is designed to dispense heat from the casing. Use on a flat surface well ventilated.
This product meets the applicable safety standards. It can be used without problems even if the charger becomes hot.
Charging with USB Power Delivery requires to connect the equipment which supports USB Power Delivery.
The output voltage is switched automatically when connecting the battery.
Depending on the condition of the connected battery it may not be charged with the maximum power, this is not a malfunction.
Please use the USB Type-C cable included. It is compatible with the USB PD standard and can be charged up to 100W (Single charging).
When charging with a USB Type-A port at a maximum output of 18W. Please use a cable appropriate for this power level.
Please insert the USB-C connector firmly. Charging starts automatically once plugged in.
Please check the charging status by pressing LED check button on the connected battery.
Not all products equipped with USB can be charged with this charger.
* When using 3 or more ports with 2 USB-C ports in use, the maximum USB C1 is 65W and the maximum USB C2 is 30W.
202206
C2MK220069-1
* Design and specifications are subject to change without notice. * USB Type-C® and USB-C® are trademarks or registered trademark of USB Implementers Forum companies.
Manufacturer
Importer for EU
Impor ter for USA
:
:
:
IDX Company ,Ltd. 6-28-11 Shukugawara, Tama-ku, Kawasaki-shi, Kanagawa-ken, 214-0021 Japan
Tel : +81-44-850-8801 Fax : +81-44-850-8838 URL : https://www.idx.tv/ E-mail : idx.japan@idx.tv
IDX Technology Europe,Ltd. Unit 9, Langley Park, Waterside Drive, Langley, Berkshire SL3 6AD, England
Tel : +44-1753-547692 Fax : +44-1753-546660 URL : http://www.idx- europe.co.uk/ E-mail : idx.europe@idx.tv
IDX System Technology, Inc. 2377 Crenshaw Blvd, Suite 154, Torrance CA 90501 USA
Tel : +1-310-328-2850 Fax : +1-310-328-8202 URL : http://www.idxtek.com/ E-mail : idx.usa@idx.tv
Compensation for recorded content
