IFM AC1257 Manual

IFM Ikke kategoriseret AC1257

Læs gratis den danske manual til IFM AC1257 (2 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 36 personer og har en gennemsnitlig bedømmelse på 4.3 stjerner ud af 18.5 anmeldelser. Har du et spørgsmål om IFM AC1257, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/2

ifm electronic Gmbh

Friedrichstraße 1

45128 Essen

Germany

The information in this document is believed to be accurate and reliable and may change without notice.

EN AC1257 Installation Manual AS-Interface® DC/DC Converter 24V/30.6V, 4A, 122W

DE AC1257 Installationsanleitung AS-Interface® DC/DC-Wandler 24V/30.6V, 4A, 122W

FR AC1257 Manuel d'installation Convertisseur AS-Interface® 24V/30.6V, 4A, 122W

ES AC1257 Manual de instalación Convertidor AS-Interface® 24V/30.6V, 4A, 122W

IT AC1257 Manuale di Installazione Convertitore AS-Interface® 24V/30.6V, 4A, 122W

PT AC1257 Manual de instalação Conversor AS-Interface® 24V/30.6V, 4A, 122W

Doc. ID: PU-376.015.80-xxA (2021-04-05-MW2)

DIS-Nr.: 11396842 / 00

Read this first! English

Vor Inbetriebnahme lesen! Deutsch

Before operating this device, please read this manual thoroughly and retain this manual for

future reference! This device may only be installed and put into operation by qualified

personnel. If damage or malfunction should occur during operation, immediately turn power

off and send device to the factory for inspection. The device does not contain serviceable

parts. The information presented in this document is believed to be accurate and reliable and

may change without notice. For any clarifications the English translation will be used.

Bitte lesen Sie diese Warnungen und Hinweise sorgfältig durch, bevor Sie das Gerät in Betrieb

nehmen. Bewahren Sie die Anleitung zum Nachlesen auf. Das Gerät darf nur durch

fachkundiges und qualifiziertes Personal installiert werden. Bei Funktionsstörungen oder

Beschädigungen schalten Sie sofort die Versorgungsspannung ab und senden das Gerät zur

Überprüfung ins Werk. Das Gerät beinhaltet keine Servicebauteile. Die angegebenen Daten

dienen allein der Produktbeschreibung und sind nicht als zugesicherte Eigenschaften im

Rechtssinne aufzufassen. Im Zweifelsfall gilt der englische Text.

WARNING Risk of electrical shock, fire, personal injury, or death: WARNUNG

Missachtung nachfolgender Punkte kann einen elektrischen

Schlag, Brände, schwere Unfälle oder Tod zur Folge haben:

- Turn power off before working on the device. Protect against inadvertent re-powering.

- Do not open, modify or repair the device.

- Use caution to prevent any foreign objects from entering the housing.

- Do not use in wet locations or in areas where moisture or condensation can be expected.

- Do not touch during power-on and immediately after power-off. Hot surfaces may cause

burns.

- Schalten Sie die Eingangsspannung vor Installations-, Wartungs- oder Änderungsarbeiten

ab und sichern Sie diese gegen unbeabsichtigtes Wiedereinschalten.

- Führen Sie keine Änderungen oder Reparaturversuche am Gerät durch. Gerät nicht öffnen!

- Verhindern Sie das Eindringen von Fremdkörpern, wie z.B. Büroklammern und Metallteilen.

- Betreiben Sie das Gerät nicht in feuchter Umgebung oder in einer Umgebung, bei der mit

Betauung oder Kondensation zu rechnen ist.

- Gehäuse nicht während des Betriebes oder kurz nach dem Abschalten berühren. Heiße

Oberflächen können Verletzungen verursachen.

A lire avant mise sous tension! Français

Lea primero! Español

Veuillez lire ces instructions de montage et d'entretien avant de mettre l'alimentation sous

tension. Conservez ce manuel qui vous sera toujours utile. Cette alimentation ne doit être

installée que par du personnel qualifié et compétent. En cas de dommage ou

dysfonctionnement, coupez immédiatement la tension d’alimentation et retournez l’appareil à

l’usine pour vérification. ! L’alimentation ne contient pas de pièces échangeables Les

données indiquées dans ce document servent uniquement à donner une description du

produit et n'ont aucune valeur juridique. En cas de divergences, le texte anglais fait foi.

Conserve este manual como referencia para futuras consultas. La fuente de alimentación solo

puede ser instalada y puesta en funcionamiento por personal cualificado. Por favor lea

detenidamente este manual antes de conectar la fuente de alimentación. Si se produce un fallo

o mal funcionamiento durante la operación, desconecte inmediatamente la tensión de

alimentación. En ambos casos, el equipo debe ser inspeccionado en fábrica. La información

presentada en este documento es exacta y fiable en cuanto a la descripción del producto y

puede cambiar sin aviso. En casa de duda, prevalece el texto inglés.

AVERTISSEMENT Prendre en compte les points suivants, afin

d'éviter toute détérioration électrique, incendie,

dommage aux personnes ou mort: ADVERTENCIA Riesgo de descarga eléctrica, incendio, accidente

grave o muerte:

- Mettre l’alimentation hors tension avant toute intervention sur celle-ci et s'assurer qu'il n'y

a pas risque de redémarrage.

- Ne pas ouvrir, modifier ou réparer l'alimentation.

- Veiller à ce qu'aucun objet ne rentre en contact avec l'intérieur de l'alimentation

(trombones, pièces métalliques).

- Ne pas faire fonctionner l'appareil dans un environnement humide ou dans un

environnement où il peut y avoir de la condensation.

- Ne pas toucher le carter pendant le fonctionnement ou directement après la mise hors

tension. Surface chaude risquant d’entraîner des blessures.

- Desconectar la tensión de red antes de trabajar en la fuente de alimentación. Evite una

posible reconexión involuntaria.

- No realizar ninguna modificación o reparación de la unidad. No abrir la unidad.

- Evitar la introducción en la carcasa de objetos extraños.

- No usar el equipo en ambientes húmedos. No operar el equipo en ambientes donde se

espere la formación de rocío o condensación.

- No tocar durante el funcionamiento ni inmediatamente después del apagado. El calor de la

superficie puede causar quemaduras graves.

Leggere prima questa parte! Italiano

Leia primeiro! Portuguès

Prima di collegare il sistema di alimentazione elettrica si prega di leggere attentamente le

seguenti avvertenze. Conservare le istruzioni per la consultazione futura. Il sistema di

alimentazione elettrica deve essere installato solo da personale competente e qualificato. Se

durante il funzionamento si verificano anomalie o guasti, scollegare immediatamente la

tensione di alimentazione. In entrambi i casi è necessario far controllare l'apparecchio dal

produttore! I dati sono indicati solo a scopo descrittivo del prodotto e non vanno considerati

come caratteristiche garantite dell'apparecchio. In caso di differenze o problemi è valido il

testo inglese

Recomendamos a leitura cuidadosa das seguintes advertências e observações, antes de

colocar em funcionamento a fonte de alimentação. Guarde as Instruções para futura consulta,

em casos de dúvida. A fonte de alimentação deverá ser instalada apenas por profissionais da

área, tecnicamente qualificados. Se por acaso, durante a utilização ocorrer algum defeito de

funcionamento ou dano, desligue imediatamente a tensão de alimentação. Em ambos os casos,

será necessária uma verificação na Fábrica! Os dados mencionados têm como finalidade

somente a descrição do produto, e não devem ser interpretados como propriedades garantidas

no sentido jurídico. Em caso de duvidas aplica-se o texto em inglês.

AVVERTENZA Il mancato rispetto delle seguenti norme può

provocare folgorazione elettrica, incendi, gravi

incidenti e perfino la morte:

ATENÇÃO A não observância ou o incumprimento dos pontos a seguir

mencionados, poderá causar uma descarga elétrica, incêndios,

acidentes graves ou morte:

- Prima di eseguire interventi di installazione, di manutenzione o di modifica scollegare la

tensione di rete ed adottare tutti i provvedimenti necessari per impedirne il ricollegamento

non intenzionale.

- Non tentare di aprire, di modificare o di riparare da soli l'apparecchio.

- Impedire la penetrazione di corpi estranei nell'apparecchio, ad esempio fermagli o altri

oggetti metallici.

- Non far funzionare l'apparecchio in un ambiente umido. Non far funzionare l'apparecchio

in un ambiente soggetto alla formazione di condensa o di rugiada.

- Non toccare quando acceso e subito dopo lo spegnimento. La superficie calda può

causare scottature.

- Antes de trabalhos de instalação, manutenção ou modificação, desligue a tensão de

alimentação, protegendo-a contra uma nova ligação involuntária.

- Não efectue nenhuma modificação ou tentativa de reparação no aparelho. Quando

necessário contacte o seu distribuidor. Não abra o aparelho.

- Proteger a fonte de alimentação contra a introdução inadvertida de corpos metálicos, como

por ex., clipes ou outras peças de metal.

- Não usar o aparelho em ambientes húmidos. Não usar o aparelho em ambientes propensos

a condensações.

- Não tocar enquanto estiver em funcionamento, nem após a desligar. A superficie poderá

estar quente e provocar lesões.

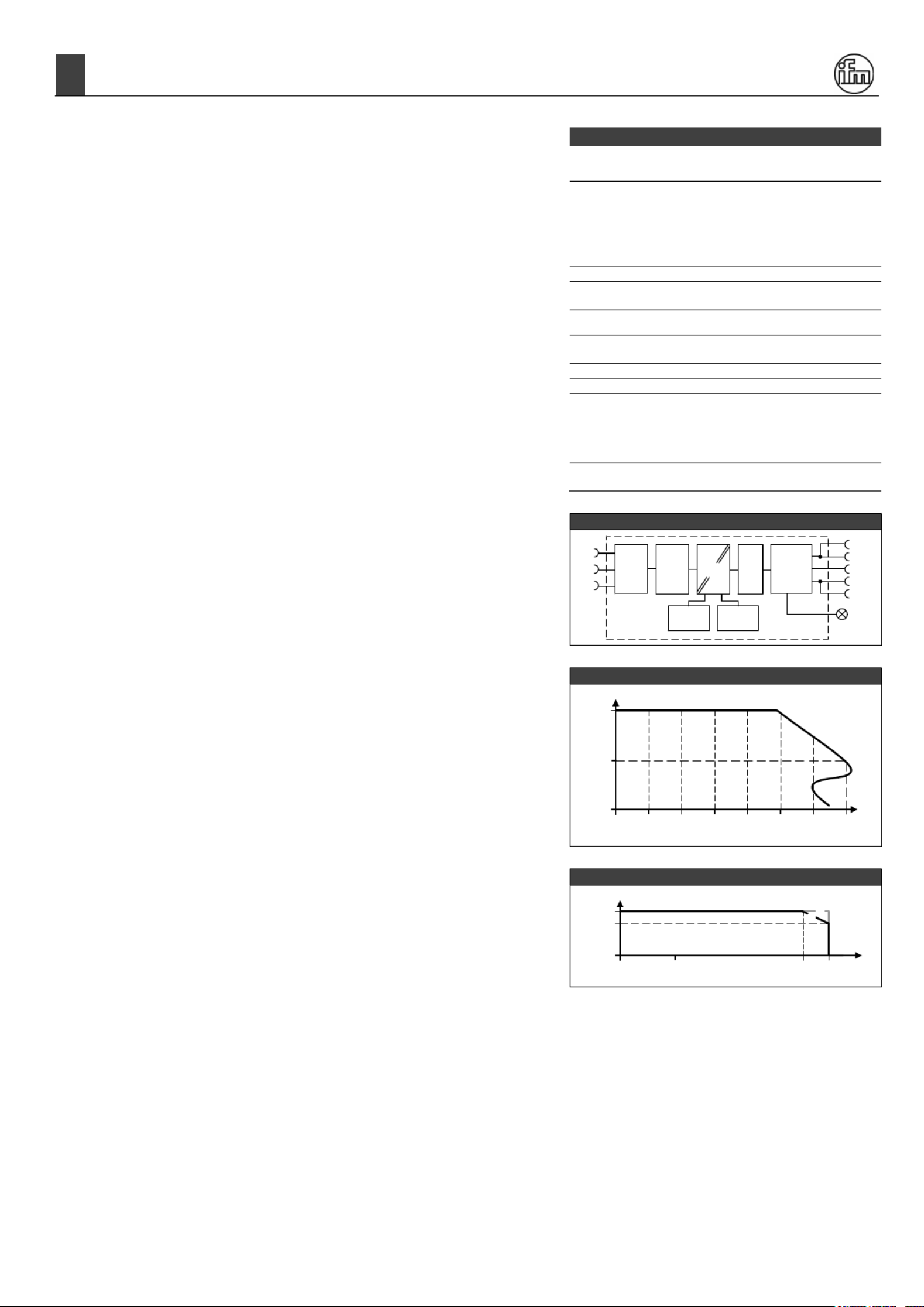

EN AC1257 Installation Manual

Product Description

The AC1257 is a DIN-rail mountable DC/DC converter, which provides network power for the AS-

Interface® system. The AS-Interface® system is a field bus technology, where power and data are

provided by the same single two-conductor wire. Therefore, special DC/DC converters with an

integrated data-decoupling circuit are required to prevent the modulated signal voltage on the AS-

Interface® bus from being corrupted.

Intended Use

This device is designed for installation in an enclosure and is intended for commercial use to supply

power to AS-Interface® network systems.

Do not use this device in equipment, where malfunctioning may cause severe personal injury or

threaten human life without additional appropriate safety devices, that are suited for the end-

application.

If this device is used in a manner outside of its specification, the protection provided by the device may

be impaired.

When operating without AS-Interface structure (e.g. in a laboratory test), connect a 470μF/35V

capacitor between AS-Interface + and AS-Interface – terminals to avoid output voltage oscillations.

Installation Instructions

Install device in an enclosure providing protection against electrical, mechanical and fire hazards.

Install the device onto a DIN-rail according to EN 60715 with the input terminals on the bottom of the

device.

Make sure that the wiring is correct by following all local and national codes. Use appropriate copper

cables that are designed for a minimum operating temperature of 60°C for ambient temperatures up to

+45°C, 75°C for ambient temperatures up to +60°C and 90°C for ambient temperatures up to +70°C.

Ensure that all strands of a stranded wire enter the terminal connection. Unused screw terminals

should be securely tightened.

The device is designed for pollution degree 2 areas in controlled environments. No condensation or

frost is allowed.

The enclosure of the device provides a degree of protection of IP20. The housing does not provide

protection against spilled liquids.

The isolation of the devices is designed to withstand impulse voltages up to 1.5kV according to IEC

60664-1.

The input can be powered from batteries or similar DC sources. The continuous voltage between the

supply voltage and the PE/ground potential must not exceed 60Vdc. The input must be powered from

a PELV or SELV source or an "Isolated Secondary Circuit" in order to maintain a SELV or PELV

output.

Check for correct input polarity. The device will not operate when the voltage is reversed.

A disconnecting means shall be provided for the input of the device.

The device is designed as “Class of Protection III” equipment according to IEC 61140. A PE (ground)

connection is not required. However, connecting the chassis ground terminal to ground can be

beneficial to gain a high EMI immunity.

The device is designed for convection cooling and does not require an external fan. Do not obstruct

airflow and do not cover ventilation grid!

The device is designed for altitudes up to 5000m (16400ft). Above 2000m (6560ft) a reduction in

output current is required.

Keep the following minimum installation clearances: 40mm on top, 20mm on the bottom, 5mm left and

right side. Increase the 5mm to 15mm in case the adjacent device is a heat source. When the device

is permanently loaded with less than 50%, the 5mm can be reduced to zero.

The device is designed, tested and approved for branch circuits up to 50A without additional protection

device. If an external fuse is utilized, do not use circuit breakers smaller than 10A B- or 8A C-

Characteristic to avoid a nuisance tripping of the circuit breaker.

The maximum surrounding air temperature is +70°C (+158°F). The operational temperature is the

same as the ambient or surrounding air temperature and is defined 2cm below the device.

The device is designed to operate in areas between 10% and 90% relative humidity.

Functional Description

The output is electronically protected against no-load, overload and short circuit.

The green AS-i-OK LED reports a nominal output voltage of a running device. The LED is off as soon

as the unit is in overload mode.

The device is equipped with an over-temperature protection. In case of a high temperature, the output

shuts down and starts automatically again after cooling off.

Do not parallel devices for higher output currents.

Do not connect outputs of devices in a series connection for higher output voltages.

In case of an internal defect, a redundant circuit limits the maximum output voltage to 36V. The output

shuts down and automatically attempts to restart.

Technical Data

All values are typical figures specified at 24Vdc input voltage, 30.6V 4A

output load, 25°C ambient temperature and after a 5 minutes run-in time

unless otherwise noted.

Output voltage DC 30.6V Nominal

Adjustment range Not adjustable Factory setting 30.6V

Output current 4A Below +60°C ambient

3A At +70°C ambient

Derate linearly between +60°C and +70°C

For use on AS-Interface

® networks only

Current limitation >4.4A

Input voltage DC DC 24V -25% / +35%

Input current DC 5.5A

Input inrush current 1.2A pk Temperature

independent

Efficiency 90.5%

Power losses 12.7W

Hold-up time 6ms

Temperature range -25 to +70°C

Max. wire size (litz wire) 4mm²

Wire size AWG AWG 20-10

Max. wire diameter 2.8mm

Wire stripping length 7mm / 0.28inch

Tightening torque 1Nm / 9lb.inch

Size (wxhxd) 40x124x120mm Without DIN-rail

Weight 540g / 1.19lb

Functional Diagram

Output

Overvoltage

Protection

AS-i +

Output

Filter

AS-i-ok

(green)

Power

Converter

Shield

AS-i

Decoupling

Unit

AS-i +

AS-i -

Reverse

Polarity

Protection

Inrush

Limiter

Chassis

Ground

Input

Fuse

Input

Filter

Temperature

Shut-down

Output Characteristic

Output voltage

Output current

15V

1A 2A 3A 4A0A

30.6V

5A 6A

Temperature Range

Allowed output current

Ambient temperature

-25

+60 +70°C

A: continuous

B: short term (max. 60s)

Produkt Specifikationer

Mærke:	IFM
Kategori:	Ikke kategoriseret
Model:	AC1257

Har du brug for hjælp?

Hvis du har brug for hjælp til IFM AC1257 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret IFM Manualer

28 Juli 2025

21 Juli 2025

20 Juli 2025

20 Juli 2025

20 Juli 2025

15 Juli 2025

11 Juli 2025

11 Juli 2025

10 Juli 2025

10 Juli 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Crestron CLCI-MCEX Manual

29 Juli 2025

Advantech EKI-2525SI Manual

29 Juli 2025

Advantech EIS-D210 Manual

29 Juli 2025

Panduit JMJH2-X20 Manual

29 Juli 2025

Advantech PCM-26D2CA Manual

29 Juli 2025

Advantech iDAQ-871 Manual

29 Juli 2025

Panduit SRBPBL Manual

29 Juli 2025

Advantech IPC-631 Manual

29 Juli 2025

Advantech ICR-2413 Manual

29 Juli 2025

Teslong WF150 Manual

29 Juli 2025
