ifm electronic Gmbh

Friedrichstraße 1

45128 Essen

Germany

The information in this document is believed to be accurate and reliable and may change without notice.

EN DN4012 Installation Manual Power Supply 1-Phase, 24V, 5A, 120W

DE DN4012 Installationsanleitung Stromversorgung 1-Phase, 24V, 5A, 120W

FR DN4012 Manuel d'installation Alimentation d'Énergie 1-Phase, 24V, 5A, 120W

ES DN4012 Manual de instalación Fuente De Alimentación 1-Phase, 24V, 5A, 120W

IT DN4012 Manuale di Installazione Gruppo di alimentazione 1-Phase, 24V, 5A, 120W

PT DN4012 Manual de instalação Fonte De Alimentação 1-Phase, 24V, 5A, 120W

Doc. ID: PU-365.015.80-xxA (2021-04-05-MW2)

DIS-Nr.: 11396648 / 00

Read this first! English

Vor Inbetriebnahme lesen! Deutsch

Before operating this device, please read this manual thoroughly and retain this manual for

future reference! This device may only be installed and put into operation by qualified

personnel. If damage or malfunction should occur during operation, immediately turn power

off and send device to the factory for inspection. The device does not contain serviceable

parts. The information presented in this document is believed to be accurate and reliable and

may change without notice. For any clarifications the English translation will be used.

Bitte lesen Sie diese Warnungen und Hinweise sorgfältig durch, bevor Sie das Gerät in Betrieb

nehmen. Bewahren Sie die Anleitung zum Nachlesen auf. Das Gerät darf nur durch

fachkundiges und qualifiziertes Personal installiert werden. Bei Funktionsstörungen oder

Beschädigungen schalten Sie sofort die Versorgungsspannung ab und senden das Gerät zur

Überprüfung ins Werk. Das Gerät beinhaltet keine Servicebauteile. Die angegebenen Daten

dienen allein der Produktbeschreibung und sind nicht als zugesicherte Eigenschaften im

Rechtssinne aufzufassen. Im Zweifelsfall gilt der englische Text.

WARNING Risk of electrical shock, fire, personal injury, or death: WARNUNG

Missachtung nachfolgender Punkte kann einen elektrischen

Schlag, Brände, schwere Unfälle oder Tod zur Folge haben:

- Turn power off before working on the device. Protect against inadvertent re-powering.

- Do not open, modify or repair the device.

- Use caution to prevent any foreign objects from entering the housing.

- Do not use in wet locations or in areas where moisture or condensation can be expected.

- Do not touch during power-on and immediately after power-off. Hot surfaces may cause

burns.

- Schalten Sie die Eingangsspannung vor Installations-, Wartungs- oder Änderungsarbeiten

ab und sichern Sie diese gegen unbeabsichtigtes Wiedereinschalten.

- Führen Sie keine Änderungen oder Reparaturversuche am Gerät durch. Gerät nicht öffnen!

- Verhindern Sie das Eindringen von Fremdkörpern, wie z.B. Büroklammern und Metallteilen.

- Betreiben Sie das Gerät nicht in feuchter Umgebung oder in einer Umgebung, bei der mit

Betauung oder Kondensation zu rechnen ist.

- Gehäuse nicht während des Betriebes oder kurz nach dem Abschalten berühren. Heiße

Oberflächen können Verletzungen verursachen.

A lire avant mise sous tension! Français

Lea primero! Español

Veuillez lire ces instructions de montage et d'entretien avant de mettre l'alimentation sous

tension. Conservez ce manuel qui vous sera toujours utile. Cette alimentation ne doit être

installée que par du personnel qualifié et compétent. En cas de dommage ou

dysfonctionnement, coupez immédiatement la tension d’alimentation et retournez l’appareil à

l’usine pour vérification. ! L’alimentation ne contient pas de pièces échangeables Les

données indiquées dans ce document servent uniquement à donner une description du

produit et n'ont aucune valeur juridique. En cas de divergences, le texte anglais fait foi.

Conserve este manual como referencia para futuras consultas. La fuente de alimentación solo

puede ser instalada y puesta en funcionamiento por personal cualificado. Por favor lea

detenidamente este manual antes de conectar la fuente de alimentación. Si se produce un fallo

o mal funcionamiento durante la operación, desconecte inmediatamente la tensión de

alimentación. En ambos casos, el equipo debe ser inspeccionado en fábrica. La información

presentada en este documento es exacta y fiable en cuanto a la descripción del producto y

puede cambiar sin aviso. En casa de duda, prevalece el texto inglés.

AVERTISSEMENT Prendre en compte les points suivants, afin

d'éviter toute détérioration électrique, incendie,

dommage aux personnes ou mort: ADVERTENCIA Riesgo de descarga eléctrica, incendio, accidente

grave o muerte:

- Mettre l’alimentation hors tension avant toute intervention sur celle-ci et s'assurer qu'il n'y

a pas risque de redémarrage.

- Ne pas ouvrir, modifier ou réparer l'alimentation.

- Veiller à ce qu'aucun objet ne rentre en contact avec l'intérieur de l'alimentation

(trombones, pièces métalliques).

- Ne pas faire fonctionner l'appareil dans un environnement humide ou dans un

environnement où il peut y avoir de la condensation.

- Ne pas toucher le carter pendant le fonctionnement ou directement après la mise hors

tension. Surface chaude risquant d’entraîner des blessures.

- Desconectar la tensión de red antes de trabajar en la fuente de alimentación. Evite una

posible reconexión involuntaria.

- No realizar ninguna modificación o reparación de la unidad. No abrir la unidad.

- Evitar la introducción en la carcasa de objetos extraños.

- No usar el equipo en ambientes húmedos. No operar el equipo en ambientes donde se

espere la formación de rocío o condensación.

- No tocar durante el funcionamiento ni inmediatamente después del apagado. El calor de la

superficie puede causar quemaduras graves.

Leggere prima questa parte! Italiano

Leia primeiro! Portuguès

Prima di collegare il sistema di alimentazione elettrica si prega di leggere attentamente le

seguenti avvertenze. Conservare le istruzioni per la consultazione futura. Il sistema di

alimentazione elettrica deve essere installato solo da personale competente e qualificato. Se

durante il funzionamento si verificano anomalie o guasti, scollegare immediatamente la

tensione di alimentazione. In entrambi i casi è necessario far controllare l'apparecchio dal

produttore! I dati sono indicati solo a scopo descrittivo del prodotto e non vanno considerati

come caratteristiche garantite dell'apparecchio. In caso di differenze o problemi è valido il

testo inglese

Recomendamos a leitura cuidadosa das seguintes advertências e observações, antes de

colocar em funcionamento a fonte de alimentação. Guarde as Instruções para futura consulta,

em casos de dúvida. A fonte de alimentação deverá ser instalada apenas por profissionais da

área, tecnicamente qualificados. Se por acaso, durante a utilização ocorrer algum defeito de

funcionamento ou dano, desligue imediatamente a tensão de alimentação. Em ambos os casos,

será necessária uma verificação na Fábrica! Os dados mencionados têm como finalidade

somente a descrição do produto, e não devem ser interpretados como propriedades garantidas

no sentido jurídico. Em caso de duvidas aplica-se o texto em inglês.

AVVERTENZA Il mancato rispetto delle seguenti norme può

provocare folgorazione elettrica, incendi, gravi

incidenti e perfino la morte:

ATENÇÃO A não observância ou o incumprimento dos pontos a seguir

mencionados, poderá causar uma descarga elétrica, incêndios,

acidentes graves ou morte:

- Prima di eseguire interventi di installazione, di manutenzione o di modifica scollegare la

tensione di rete ed adottare tutti i provvedimenti necessari per impedirne il ricollegamento

non intenzionale.

- Non tentare di aprire, di modificare o di riparare da soli l'apparecchio.

- Impedire la penetrazione di corpi estranei nell'apparecchio, ad esempio fermagli o altri

oggetti metallici.

- Non far funzionare l'apparecchio in un ambiente umido. Non far funzionare l'apparecchio

in un ambiente soggetto alla formazione di condensa o di rugiada.

- Non toccare quando acceso e subito dopo lo spegnimento. La superficie calda può

causare scottature.

- Antes de trabalhos de instalação, manutenção ou modificação, desligue a tensão de

alimentação, protegendo-a contra uma nova ligação involuntária.

- Não efectue nenhuma modificação ou tentativa de reparação no aparelho. Quando

necessário contacte o seu distribuidor. Não abra o aparelho.

- Proteger a fonte de alimentação contra a introdução inadvertida de corpos metálicos, como

por ex., clipes ou outras peças de metal.

- Não usar o aparelho em ambientes húmidos. Não usar o aparelho em ambientes propensos

a condensações.

- Não tocar enquanto estiver em funcionamento, nem após a desligar. A superficie poderá

estar quente e provocar lesões.

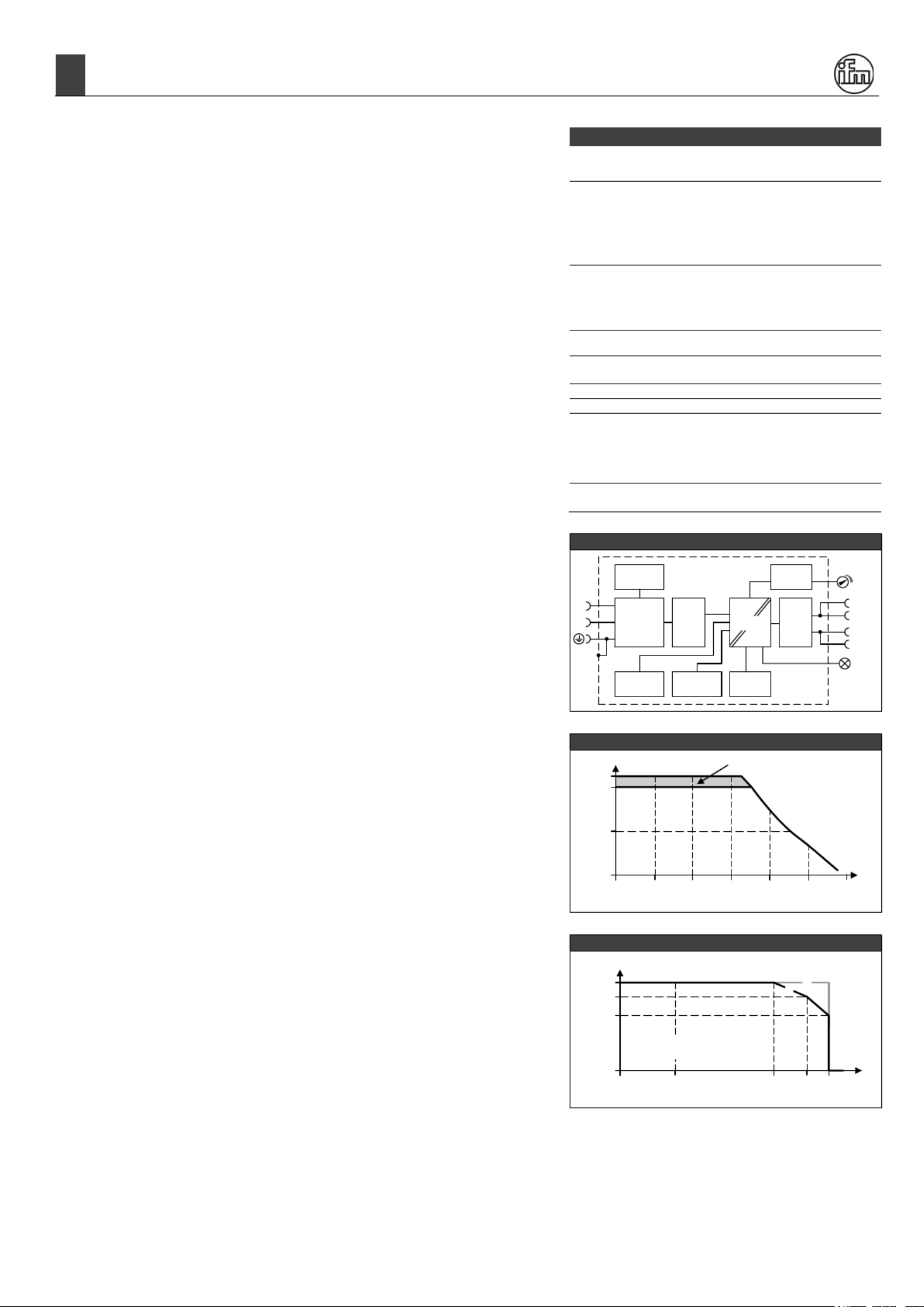

EN DN4012 Installation Manual

Product Description

The DN4012 is a DIN-rail mountable single-phase-input power supply, which provides a floating,

stabilized and galvanically separated SELV/PELV output voltage.

Intended Use

This device is designed for installation in an enclosure and is intended for commercial use, such as in

industrial control, process control, monitoring and measurement equipment or the like.

Do not use this device in equipment, where malfunctioning may cause severe personal injury or

threaten human life without additional appropriate safety devices, that are suited for the end-

application.

If this device is used in a manner outside of its specification, the protection provided by the device may

be impaired.

Without additional measures to reduce the harmonic input current (PFC), the power supply is not

suited to be connected to the public mains system in residential, commercial and light-industrial

environments. No additional measures are necessary for use in industrial environments. Exceptions

for various countries outside the European Union exist and can be determined locally.

Installation Instructions

Install device in an enclosure providing protection against electrical, mechanical and fire hazards.

Install the device onto a DIN-rail according to EN 60715 with the input terminals on the bottom of the

device. Other mounting orientations require a reduction in output current.

Make sure that the wiring is correct by following all local and national codes. Use appropriate copper

cables that are designed for a minimum operating temperature of 60°C for ambient temperatures up to

+45°C, 75°C for ambient temperatures up to +60°C and 90°C for ambient temperatures up to +70°C.

Ensure that all strands of a stranded wire enter the terminal connection. Use ferrules for wires on the

input terminals. Unused screw terminals should be securely tightened.

The device is designed for pollution degree 2 areas in controlled environments. No condensation or

frost is allowed.

The enclosure of the device provides a degree of protection of IP20. The housing does not provide

protection against spilled liquids.

The device is designed for overvoltage category II zones. Below 2000m altitude the device is tested

for impulse withstand voltages up to 4kV, which corresponds to OVC III according to IEC 60664-1.

The device is designed as “Class of Protection I” equipment according to IEC 61140. Do not use

without a proper PE (Protective Earth) connection.

The device is suitable to be supplied from TN, TT and IT mains networks. The continuous voltage

between the input terminals and the PE potential must not exceed 300Vac.

A disconnecting means shall be provided for the input of the device.

The device is designed for convection cooling and does not require an external fan. Do not obstruct

airflow and do not cover ventilation grid!

The device is designed for altitudes up to 5000m (16400ft). Above 2000m (6560ft) a reduction in

output current is required.

Keep the following minimum installation clearances: 40mm on top, 20mm on the bottom, 5mm left and

right side. Increase the 5mm to 15mm in case the adjacent device is a heat source. When the device

is permanently loaded with less than 50%, the 5mm can be reduced to zero.

The device is designed, tested and approved for branch circuits up to 20A without additional protection

device. If an external fuse is utilized, do not use circuit breakers smaller than 10A B- or 6A C-

Characteristic to avoid a nuisance tripping of the circuit breaker.

The maximum surrounding air temperature is +70°C (+158°F). The operational temperature is the

same as the ambient or surrounding air temperature and is defined 2cm below the device.

The device is designed to operate in areas between 5% and 95% relative humidity.

Functional Description

The output is electronically protected against no-load, overload and short circuit and can supply any

kind of loads, including inductive and capacitive loads.

Do not apply return voltages from the load to the output terminals higher than 35V.

The output voltage can be adjusted with a small flat-blade screwdriver on the front of the unit.

The green DC-OK LED reports a voltage on the output terminals above 21V.

The device is equipped with an over-temperature protection. In case of a high temperature, the output

shuts down and starts automatically again after cooling off.

Do not parallel devices for higher output currents.

Same devices can be connected in series for higher output voltages. It is allowed to connect as many

devices in series as needed, providing the sum of the output voltage does not exceed 150Vdc.

In case of an internal defect, a redundant circuit limits the maximum output voltage to 39V. The output

shuts down and automatically attempts to restart.

Technical Data

All values are typical figures specified at 230Vac 50Hz input voltage, 24V

5A output load, 25°C ambient temperature and after a 5 minutes run-in

time unless otherwise noted.

Output voltage DC 24V Nominal

Adjustment range 24 – 28Vdc Factory setting 24.1V

Output current 6.0 – 5.1A Below +45°C ambient

5.0 – 4.3A At +60°C ambient

3.8 – 3.2A At +70°C ambient

Derate linearly between +45°C and +70°C

Input voltage AC AC 100-120V /

200-240V

±10%, auto select

Mains frequency 50 – 60Hz ±6%

Input current AC 2.0 / 1.23A At 120 / 230Vac

Power factor 0.56 / 0.47 At 120 / 230Vac

Input inrush current 3 / 3A pk At 120 / 230Vac, temp.

independent

Efficiency 89.4 / 90.2% At 120 / 230Vac

Power losses 14.5 / 13.2W At 120 / 230Vac

Hold-up time 80 / 78ms At 120 / 230Va

Temperature range -25 to +70°C

Max. wire size (litz wire) 4mm²

Wire size AWG AWG 20-10

Max. wire diameter 2.8mm

Wire stripping length 7mm / 0.28inch

Tightening torque 1Nm / 9lb.inch

Size (wxhxd) 40x124x122.5mm

Without DIN-rail

Weight 510g / 1.12lb

Functional Diagram

Output

Overvoltage

Protection

Inrush

Current

Limiter

Output

Voltage

Regulator

Power

Converter

Output

Filter

Output

Power

Manager

Temperature

Shut-down

Input Fuse

Input Filter

Input Rectifier

OUT

DC-OK

LED

115/230V

Auto Select

Output Characteristic

Output voltage

12A

24V

Output current

12V

2A 6A 8A 10A0A

Adjustment range

28V

Temperature Range

Allowed output current at 24V

Ambient temperature

-25

0 +45 +70°C

3.75A

+60

A: continuous

B: short term (max. 60s)

Produkt Specifikationer

Mærke:	IFM
Kategori:	Ikke kategoriseret
Model:	DN4012

Har du brug for hjælp?

Hvis du har brug for hjælp til IFM DN4012 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret IFM Manualer

28 Juli 2025

21 Juli 2025

20 Juli 2025

20 Juli 2025

20 Juli 2025

15 Juli 2025

11 Juli 2025

11 Juli 2025

10 Juli 2025

10 Juli 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Crestron CLCI-MCEX Manual

29 Juli 2025

Advantech EKI-2525SI Manual

29 Juli 2025

Advantech EIS-D210 Manual

29 Juli 2025

Panduit JMJH2-X20 Manual

29 Juli 2025

Advantech PCM-26D2CA Manual

29 Juli 2025

Advantech iDAQ-871 Manual

29 Juli 2025

Panduit SRBPBL Manual

29 Juli 2025

Advantech IPC-631 Manual

29 Juli 2025

Advantech ICR-2413 Manual

29 Juli 2025

Teslong WF150 Manual

29 Juli 2025
