ifm electronic Gmbh

Friedrichstraße 1

45128 Essen

Germany

The information in this document is believed to be accurate and reliable and may change without notice.

EN DN4014 Installation Manual Power Supply 1-Phase, 24V, 20A, 480W

DE DN4014 Installationsanleitung Stromversorgung 1-Phase, 24V, 20A, 480W

FR DN4014 Manuel d'installation Alimentation d'Énergie 1-Phase, 24V, 20A, 480W

ES DN4014 Manual de instalación Fuente De Alimentación 1-Phase, 24V, 20A, 480W

IT DN4014 Manuale di Installazione Gruppo di alimentazione 1-Phase, 24V, 20A, 480W

PT DN4014 Manual de instalação Fonte De Alimentação 1-Phase, 24V, 20A, 480W

Doc. ID: PU-382.015.80-xxA (2021-04-05-MW2)

DIS-Nr.: 11396817 / 00

Read this first! English

Vor Inbetriebnahme lesen! Deutsch

Before operating this device, please read this manual thoroughly and retain this manual for

future reference! This device may only be installed and put into operation by qualified

personnel. If damage or malfunction should occur during operation, immediately turn power

off and send device to the factory for inspection. The device does not contain serviceable

parts. The information presented in this document is believed to be accurate and reliable and

may change without notice. For any clarifications the English translation will be used.

Bitte lesen Sie diese Warnungen und Hinweise sorgfältig durch, bevor Sie das Gerät in Betrieb

nehmen. Bewahren Sie die Anleitung zum Nachlesen auf. Das Gerät darf nur durch

fachkundiges und qualifiziertes Personal installiert werden. Bei Funktionsstörungen oder

Beschädigungen schalten Sie sofort die Versorgungsspannung ab und senden das Gerät zur

Überprüfung ins Werk. Das Gerät beinhaltet keine Servicebauteile. Die angegebenen Daten

dienen allein der Produktbeschreibung und sind nicht als zugesicherte Eigenschaften im

Rechtssinne aufzufassen. Im Zweifelsfall gilt der englische Text.

WARNING Risk of electrical shock, fire, personal injury, or death: WARNUNG

Missachtung nachfolgender Punkte kann einen elektrischen

Schlag, Brände, schwere Unfälle oder Tod zur Folge haben:

- Turn power off before working on the device. Protect against inadvertent re-powering.

- Do not open, modify or repair the device.

- Use caution to prevent any foreign objects from entering the housing.

- Do not use in wet locations or in areas where moisture or condensation can be expected.

- Do not touch during power-on and immediately after power-off. Hot surfaces may cause

burns.

- Schalten Sie die Eingangsspannung vor Installations-, Wartungs- oder Änderungsarbeiten

ab und sichern Sie diese gegen unbeabsichtigtes Wiedereinschalten.

- Führen Sie keine Änderungen oder Reparaturversuche am Gerät durch. Gerät nicht öffnen!

- Verhindern Sie das Eindringen von Fremdkörpern, wie z.B. Büroklammern und Metallteilen.

- Betreiben Sie das Gerät nicht in feuchter Umgebung oder in einer Umgebung, bei der mit

Betauung oder Kondensation zu rechnen ist.

- Gehäuse nicht während des Betriebes oder kurz nach dem Abschalten berühren. Heiße

Oberflächen können Verletzungen verursachen.

A lire avant mise sous tension! Français

Lea primero! Español

Veuillez lire ces instructions de montage et d'entretien avant de mettre l'alimentation sous

tension. Conservez ce manuel qui vous sera toujours utile. Cette alimentation ne doit être

installée que par du personnel qualifié et compétent. En cas de dommage ou

dysfonctionnement, coupez immédiatement la tension d’alimentation et retournez l’appareil à

l’usine pour vérification. ! L’alimentation ne contient pas de pièces échangeables Les

données indiquées dans ce document servent uniquement à donner une description du

produit et n'ont aucune valeur juridique. En cas de divergences, le texte anglais fait foi.

Conserve este manual como referencia para futuras consultas. La fuente de alimentación solo

puede ser instalada y puesta en funcionamiento por personal cualificado. Por favor lea

detenidamente este manual antes de conectar la fuente de alimentación. Si se produce un fallo

o mal funcionamiento durante la operación, desconecte inmediatamente la tensión de

alimentación. En ambos casos, el equipo debe ser inspeccionado en fábrica. La información

presentada en este documento es exacta y fiable en cuanto a la descripción del producto y

puede cambiar sin aviso. En casa de duda, prevalece el texto inglés.

AVERTISSEMENT Prendre en compte les points suivants, afin

d'éviter toute détérioration électrique, incendie,

dommage aux personnes ou mort: ADVERTENCIA Riesgo de descarga eléctrica, incendio, accidente

grave o muerte:

- Mettre l’alimentation hors tension avant toute intervention sur celle-ci et s'assurer qu'il n'y

a pas risque de redémarrage.

- Ne pas ouvrir, modifier ou réparer l'alimentation.

- Veiller à ce qu'aucun objet ne rentre en contact avec l'intérieur de l'alimentation

(trombones, pièces métalliques).

- Ne pas faire fonctionner l'appareil dans un environnement humide ou dans un

environnement où il peut y avoir de la condensation.

- Ne pas toucher le carter pendant le fonctionnement ou directement après la mise hors

tension. Surface chaude risquant d’entraîner des blessures.

- Desconectar la tensión de red antes de trabajar en la fuente de alimentación. Evite una

posible reconexión involuntaria.

- No realizar ninguna modificación o reparación de la unidad. No abrir la unidad.

- Evitar la introducción en la carcasa de objetos extraños.

- No usar el equipo en ambientes húmedos. No operar el equipo en ambientes donde se

espere la formación de rocío o condensación.

- No tocar durante el funcionamiento ni inmediatamente después del apagado. El calor de la

superficie puede causar quemaduras graves.

Leggere prima questa parte! Italiano

Leia primeiro! Portuguès

Prima di collegare il sistema di alimentazione elettrica si prega di leggere attentamente le

seguenti avvertenze. Conservare le istruzioni per la consultazione futura. Il sistema di

alimentazione elettrica deve essere installato solo da personale competente e qualificato. Se

durante il funzionamento si verificano anomalie o guasti, scollegare immediatamente la

tensione di alimentazione. In entrambi i casi è necessario far controllare l'apparecchio dal

produttore! I dati sono indicati solo a scopo descrittivo del prodotto e non vanno considerati

come caratteristiche garantite dell'apparecchio. In caso di differenze o problemi è valido il

testo inglese

Recomendamos a leitura cuidadosa das seguintes advertências e observações, antes de

colocar em funcionamento a fonte de alimentação. Guarde as Instruções para futura consulta,

em casos de dúvida. A fonte de alimentação deverá ser instalada apenas por profissionais da

área, tecnicamente qualificados. Se por acaso, durante a utilização ocorrer algum defeito de

funcionamento ou dano, desligue imediatamente a tensão de alimentação. Em ambos os casos,

será necessária uma verificação na Fábrica! Os dados mencionados têm como finalidade

somente a descrição do produto, e não devem ser interpretados como propriedades garantidas

no sentido jurídico. Em caso de duvidas aplica-se o texto em inglês.

AVVERTENZA Il mancato rispetto delle seguenti norme può

provocare folgorazione elettrica, incendi, gravi

incidenti e perfino la morte:

ATENÇÃO A não observância ou o incumprimento dos pontos a seguir

mencionados, poderá causar uma descarga elétrica, incêndios,

acidentes graves ou morte:

- Prima di eseguire interventi di installazione, di manutenzione o di modifica scollegare la

tensione di rete ed adottare tutti i provvedimenti necessari per impedirne il ricollegamento

non intenzionale.

- Non tentare di aprire, di modificare o di riparare da soli l'apparecchio.

- Impedire la penetrazione di corpi estranei nell'apparecchio, ad esempio fermagli o altri

oggetti metallici.

- Non far funzionare l'apparecchio in un ambiente umido. Non far funzionare l'apparecchio

in un ambiente soggetto alla formazione di condensa o di rugiada.

- Non toccare quando acceso e subito dopo lo spegnimento. La superficie calda può

causare scottature.

- Antes de trabalhos de instalação, manutenção ou modificação, desligue a tensão de

alimentação, protegendo-a contra uma nova ligação involuntária.

- Não efectue nenhuma modificação ou tentativa de reparação no aparelho. Quando

necessário contacte o seu distribuidor. Não abra o aparelho.

- Proteger a fonte de alimentação contra a introdução inadvertida de corpos metálicos, como

por ex., clipes ou outras peças de metal.

- Não usar o aparelho em ambientes húmidos. Não usar o aparelho em ambientes propensos

a condensações.

- Não tocar enquanto estiver em funcionamento, nem após a desligar. A superficie poderá

estar quente e provocar lesões.

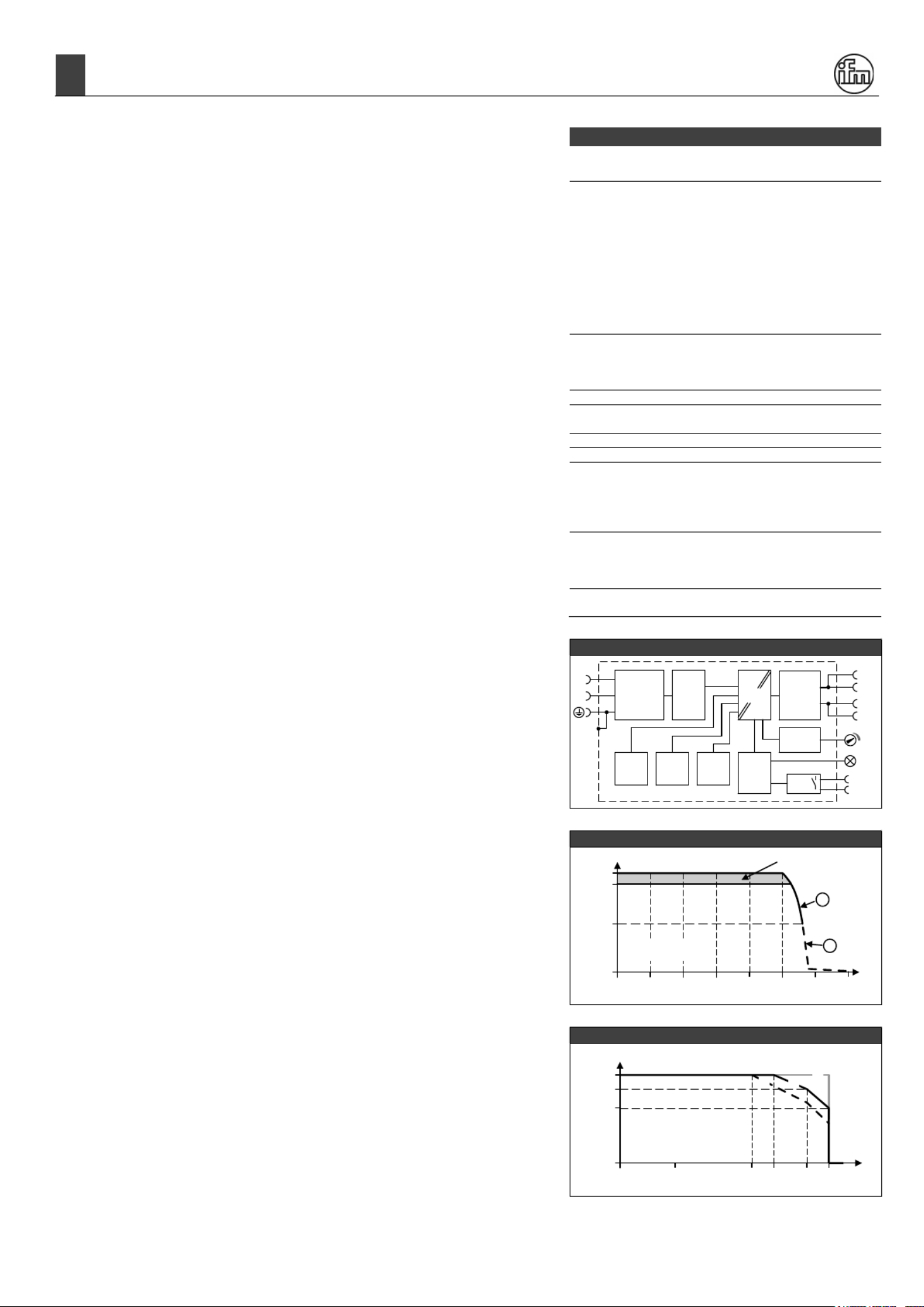

EN DN4014 Installation Manual

Product Description

The DN4014 is a DIN-rail mountable single-phase-input power supply, which provides a floating,

stabilized and galvanically separated SELV/PELV output voltage.

Intended Use

This device is designed for installation in an enclosure and is intended for commercial use, such as in

industrial control, process control, monitoring and measurement equipment or the like.

Do not use this device in equipment, where malfunctioning may cause severe personal injury or

threaten human life without additional appropriate safety devices, that are suited for the end-

application.

If this device is used in a manner outside of its specification, the protection provided by the device may

be impaired.

Installation Instructions

Install the device in an enclosure providing protection against electrical, mechanical and fire hazards.

Install the device onto a DIN-rail according to EN 60715 with the input terminals on the bottom of the

device.

Make sure that the wiring is correct by following all local and national codes. Use appropriate copper

cables that are designed for a minimum operating temperature of 60°C for ambient temperatures up to

+45°C, 75°C for ambient temperatures up to +60°C and 90°C for ambient temperatures up to +70°C.

Ensure that all strands of a stranded wire enter the terminal connection. Unused screw terminals

should be securely tightened.

The device is designed for pollution degree 2 areas in controlled environments. No condensation or

frost is allowed.

The enclosure of the device provides a degree of protection of IP20. The housing does not provide

protection against spilled liquids.

The device is designed for overvoltage category II zones. Below 2000m altitude the device is tested

for impulse withstand voltages up to 4kV, which corresponds to OVC III according to IEC 60664-1.

The device is designed as “Class of Protection I” equipment according to IEC 61140.

Do not use without a proper PE (Protective Earth) connection.

The device is suitable to be supplied from TN, TT and IT mains networks. The continuous voltage

between the input terminals and the PE potential must not exceed 300Vac.

A disconnecting means shall be provided for the input of the device.

The device is designed for convection cooling and does not require an external fan. Do not obstruct

airflow and do not cover ventilation grid!

The device is designed for altitudes up to 5000m (16400ft). Above 2000m (6560ft) a reduction in

output current is required.

Keep the following minimum installation clearances: 40mm on top, 20mm on the bottom, 5mm left and

right side. Increase the 5mm to 15mm in case the adjacent device is a heat source. When the device

is permanently loaded with less than 50%, the 5mm can be reduced to zero.

The device is designed, tested and approved for branch circuits up to 32A (IEC) and 30A (UL) without

additional protection device. If an external fuse is utilized, do not use circuit breakers smaller than 10A

B- or C-Characteristic to avoid a nuisance tripping of the circuit breaker.

The maximum surrounding air temperature is +70°C (+158°F). The operational temperature is the

same as the ambient or surrounding air temperature and is defined 2cm below the device.

The device is designed to operate in areas between 5% and 95% relative humidity.

Functional Description

The output is electronically protected against no-load, overload and short circuit and can supply any

kind of loads, including unlimited inductive and capacitive loads. If capacitors with a capacitance >0.5F

are connected, the unit might charge the capacitor in an intermittent mode.

Do not apply return voltages from the load to the output higher than 35V.

The output voltage can be adjusted with a small flat-blade screwdriver on the front of the unit.

The green DC-OK LED reports an output voltage above 90% of the adjusted voltage of a running

device.

The DC-OK relay monitors the output voltage and the contact is closed when the DC-OK LED is on.

Contact ratings: 60Vdc 0.3A, 30Vdc 1A, 30Vac 0.5A for resistive loads.

The device is equipped with an over-temperature protection. In case of a high temperature, the output

shuts down and starts automatically again after cooling off.

At heavy overloads (when output voltage falls below 13V), the device delivers continuous output

current for 2s. After this, the output is switched off for 18s before a new start attempt is automatically

performed. This cycle is repeated as long as the overload exists.

Devices can be paralleled to increase the output power. The ambient temperature is not allowed to

exceed +40°C. The output voltage shall be adjusted to the same value (±100mV) with the same load

conditions on all devices, or the devices can be left with the factory settings. Energize all units at the

same time. It also might be necessary to cycle the input power (turn-off for at least five seconds), if the

output was in overload or short circuit. If more than three devices are connected in parallel, a diode,

fuse or circuit breaker with a rating of 30A or 32A is required on each output.

Same devices can be connected in series for higher output voltages. It is allowed to connect as many

devices in series as needed, providing the sum of the output voltage does not exceed 150Vdc.

In case of an internal defect, a redundant circuit limits the maximum output voltage to 32V. The output

shuts down and automatically attempts to restart.

Technical data

All values are typical figures specified at 230Vac 50Hz input voltage, 24V

20A output load, 25°C ambient temperature and after a 5 minutes run-in

time unless otherwise noted.

Output voltage DC 24V Nominal

Adjustment range 24 – 28Vdc Factory setting 24.1V

Output current For AC 120-240V mains

24.0 – 20.6A Below +45°C ambient

20.0 – 17.1A At +60°C ambient

15.0 – 12.8A At +70°C ambient

For AC 100V mains

20.4 – 17.5A Below +45°C ambient

17.0 – 14.5A At +60°C ambient

12.8 – 10.9A At +70°C ambient

Derate linearly between +45°C and +70°C

Input voltage AC AC 100 - 240V -15%/+10%

Mains frequency 50 – 60Hz ±6%

Input current AC 4.36 / 2.33A At 120 / 230Vac

Power factor 0.99 / 0.95 At 120 / 230Vac

Input inrush current 9 / 7A pk At 120 / 230Vac

Efficiency 92.7 / 94.0% At 120 / 230Vac

Power losses 37.8 / 30.6W At 120 / 230Vac

Hold-up time 26 / 26ms At 120 / 230Vac

Temperature range -25 to +70°C

Max. wire size (litz wire) 4mm² Power terminals

Wire size AWG AWG 20-10 Power terminals

Max. wire diameter 2.8mm Power terminals

Wire stripping length 7mm / 0.28inch Power terminals

Tightening torque 1Nm / 9lb.inch Power terminals

Max. wire size (litz wire) 1.5mm²

Signal terminals

Wire size AWG AWG 26-14 Signal terminals

Max. wire diameter 1.5 mm Signal terminals

Wire stripping length 7mm / 0.28inch Signal terminals

Size (wxhxd) 65x124x132.5mm

Without DIN-rail

Weight 1000g / 2.2lb

Functional Diagram

Output

Over-

Voltage

Protection

PFC

Converter

Power

Converter

Output

Filter

Output

Power

Manager

Temper-

ature

Shut-

down

Input Fuse

Input Filter

Input Rectifier

Inrush Current

Limiter

Output

Voltage

Regulator

Output

Voltage

Monitor

OUT

DC-ok

Contact

DC-ok

LED

DC-ok

Relay

Output Characteristic

Output voltage

35A

24V

Output current

13V

5A 15A 20A 25A0A

Adjustment range

28V

10A

A: continuous current

B: intermittent current

30A

Temperature Range

Allowed output current at 24V

Ambient temperature

-25

A: AC 100V, continuous

B: AC 120-240V, continuous

C: short term (max. 5s)

24A

0 +45 +70°C

15A

20A

+60

+35

Produkt Specifikationer

Mærke:	IFM
Kategori:	Ikke kategoriseret
Model:	DN4014

Har du brug for hjælp?

Hvis du har brug for hjælp til IFM DN4014 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret IFM Manualer

8 September 2025

29 August 2025

29 August 2025

28 August 2025

28 August 2025

28 August 2025

27 August 2025

25 August 2025

22 August 2025

20 August 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Ibm System Storage N6220 Manual

12 September 2025

Autel MaxiEV BCE100 Manual

12 September 2025

M-Audio iControl Manual

12 September 2025

Steinberg VST Live 2 Manual

12 September 2025

PCE FLEX 16-E Manual

12 September 2025

Tineco iFloor 3 Breeze Manual

12 September 2025

V7 RMWC9UV450-1N Manual

12 September 2025

Parisot Taylor 2319LISU Manual

12 September 2025

Leen Bakker Bergen Manual

12 September 2025

Redragon GA-200 Manual

12 September 2025
