Side 1/21
Operating instructions
Inductive sensors with IO-Link and 2 switching outputs
11456696 / 0005 / 2022
GB
Inductive sensors with IO-Link and 2 switching outputs
2
Contents
1 Preliminary note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Intended use................................................................ 5
4 Function ................................................................... 6
4.1 Switching function with switch point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.2 Switching function with counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 Installation.................................................................. 9
5.1 Information on flush and non-flush mounting in metal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.2 Minimum distance when installing units of the same type . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Parameter setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.1 Input configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.1.1 Configure digital input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7.2 Output configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7.2.1 Configure switching outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7.2.1.1 Switch point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7.2.2 Configure counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.2.3 Switch off output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.2.4 Configure output polarity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.2.5 Damping.......................................................... 16
7.3 Read counter values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.4 Reset counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.4.1 Reset counters via IO-Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.4.2 Reset counters via input signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.5 Device reset ........................................................... 17
7.6 Diagnosis ............................................................. 18
7.6.1 Operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.6.2 Internal temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.7 Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.7.1 Device information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.7.2 Optical localisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.7.2.1 Optical localisation via IO-Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.7.2.2 Optical localisation via input signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8 Maintenance, repair and disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 Factory setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Inductive sensors with IO-Link and 2 switching outputs
3
1 Preliminary note
You will find instructions, technical data, approvals and further information using the QR code on the
unit / packaging or at .www.ifm.com
1.1 Symbols used
Requirement
Instructions
Reaction, result
[...] Designation of keys, buttons or indications
Cross-reference
Important note
Non-compliance may result in malfunction or interference.
Information
Supplementary note
Inductive sensors with IO-Link and 2 switching outputs
7
Term Explanation
Window mode Window mode
Tab.1: definition of terms

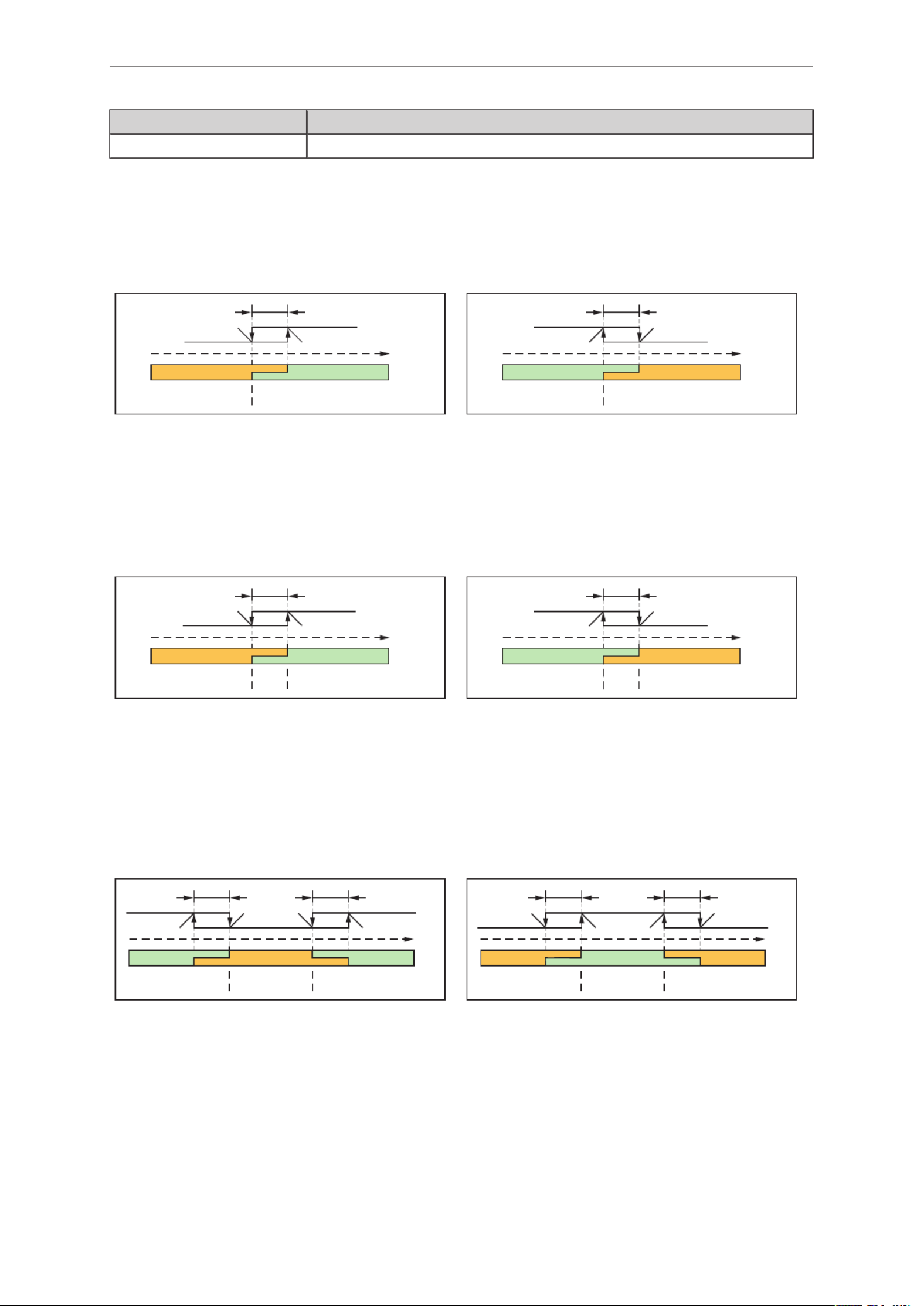

Single point mode
Only one switch point (SP1) is manually set or taught. The switch-off point results from the switch point
and the set hysteresis (H).
SP1
SP1+H
SP1
H
OFF ON
SSC
teach
0 PDV
Single point mode – low active
SP1+H: switch-on point
SP1: switch-off point
SP1
SP1+H
SP1
H
ON OFF
SSC
teach
0 PDV
Single point mode – high active
SP1: switch-on point
SP1+H: switch-off point
Two point mode
A switch point (SP1) and a switch-off point (SP2) are manually set or taught.
SP2
SP1
SP2
H
OFF ON
SSC
SP1teach
0 PDV
Two point mode – low active
SP2: switch-off point
SP1: switch-on point
SP2
SP1
SP2
H
ON
SSC
SP1
OFF
teach
0 PDV
Single point mode – high active
SP1: switch-off point
SP2: switch-on point
Window mode
Two switch points (SP1) and (SP2) are manually set or taught. The two switch points delimit a window
area.
SP2
SP2
SP2-H
H
ON
SSC
0 PDV
SP1
SP1+H
SP1
H
OFF ON
teach teach
Window mode – low active
The output switches off (low active) within the switching
limits SP1 and SP2.
The output switches on (high active) when the process
value leaves the window area and the set hysteresis is
exceeded: SP1+H or SP2-H.
SP2
SP2
SP2-H
H
OFF
SSC
teach teach SP1
SP1+H
SP1
H
ON OFF
0 PDV
Window mode – high active
The output switches on (high active) within the switching
limits SP1 and SP2.
The output switches off (low active) when the process
value leaves the window area and the set hysteresis is
exceeded: SP1+H or SP2-H.
See also: Configure switching outputs ( 14).Ò/
Inductive sensors with IO-Link and 2 switching outputs
9

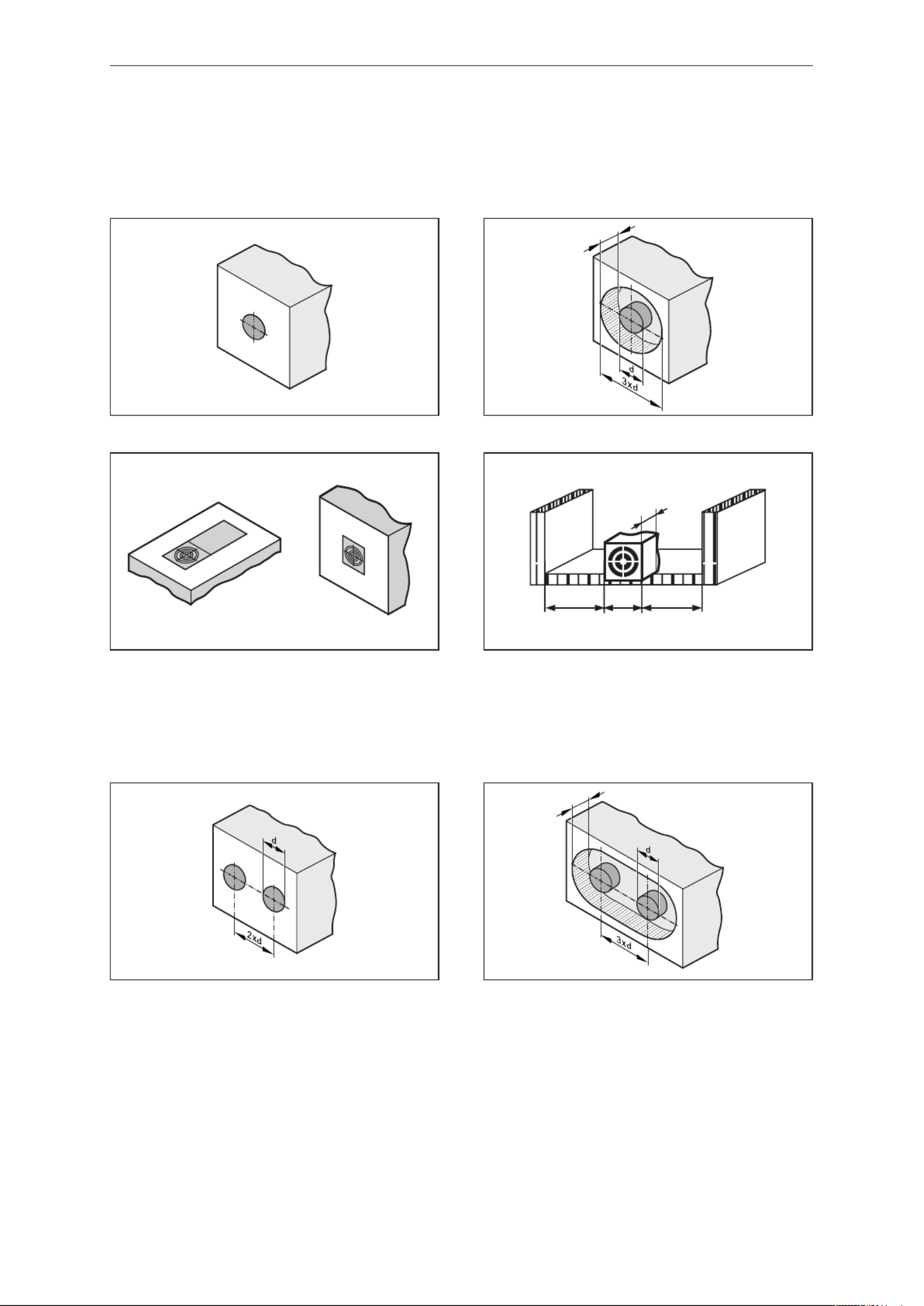

5 Installation
5.1 Information on flush and non-flush mounting in metal
Fig.2: cylindrical design, flush
2 x Sn
Fig.3: cylindrical design, non-flush
Fig.4: rectangular design, flush
a
2 x a 2 x aa
Fig.5: rectangular design, non-flush
5.2 Minimum distance when installing units of the same type
Fig.6: distance, flush
2 x Sn
Fig.7: distance, non-flush
Inductive sensors with IO-Link and 2 switching outputs
10
8 x Sn
Fig.8: distance, frontal
The minimum distance between units may only be disregarded for units with different oscillator
frequencies or different sensing principles.
Inductive sensors with IO-Link and 2 switching outputs
11

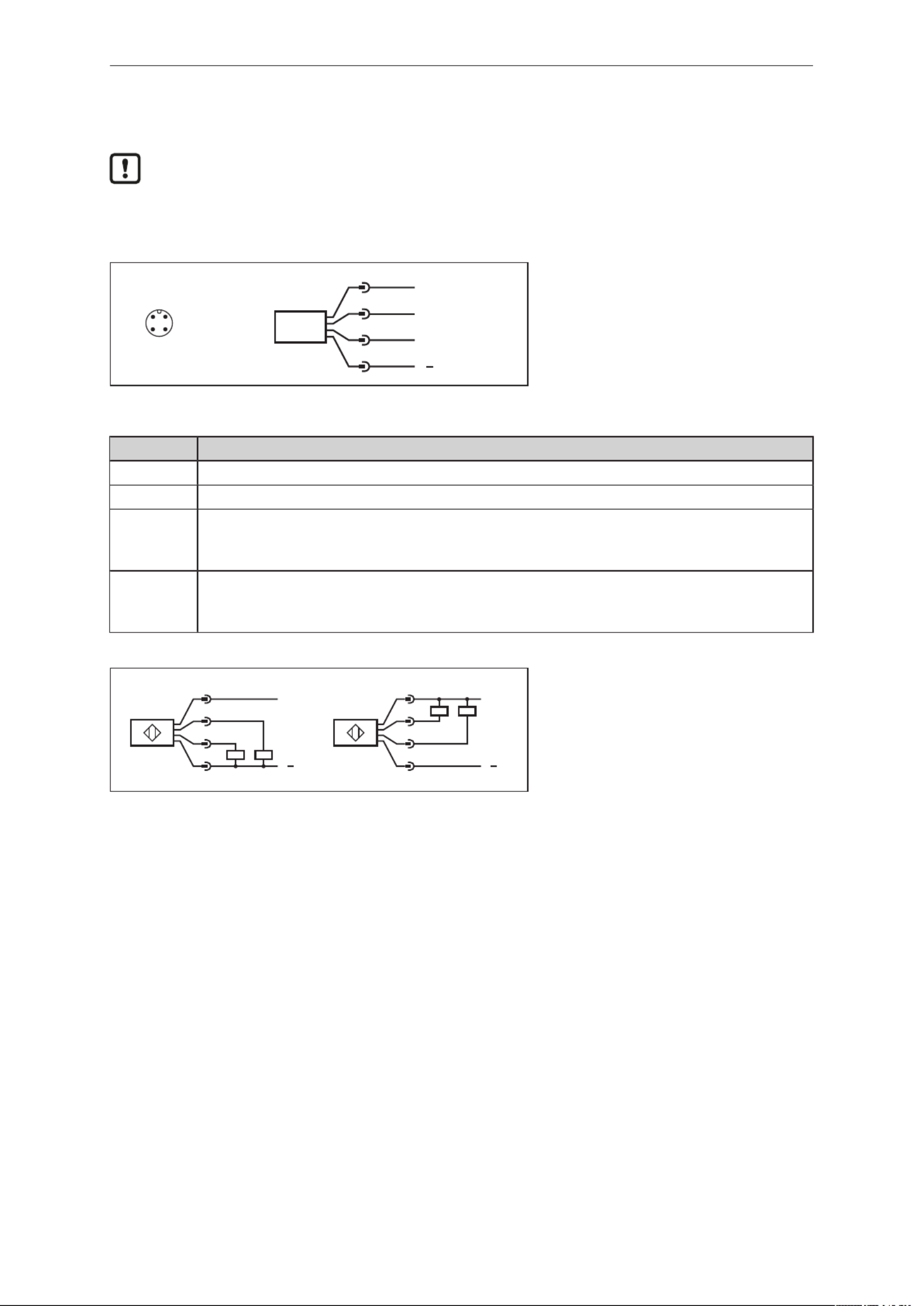

6 Electrical connection
The unit must be connected by a qualified electrician.
uObserve the national and international regulations for the installation of electrical equipment.
uDisconnect power.
uConnect the unit as follows:
L
1 BN
2 WH
4 BK
3 BU
OUT1/IO-Link
OUT2/InD
L+
43
2 1
BK: black BN: brown
BU: blue WH: white
Pin Connection
1 L+
3 L-
4 Switching output OUT1
• IO-Link
• OFF
2 Switching output OUT2
Can be set to digital input
• OFF
L
1
2
4
3
L+
L
1
2
4
3
L+
Fig.9: example connection PNP/NPN
Inductive sensors with IO-Link and 2 switching outputs
12
7 Parameter setting
The parameters are set via the IO-Link interface on pin 4 using the parameter setting software.
In addition, when using pin 2 as a digital input, the following settings can also be triggered via an input
signal:
switch point teach
reset of switching cycles counters
optical localisation of the sensor via a flashing LED
configure switching signal channel for OUT1/ switch-point logic
See also: Input configuration ( 12)Ò/.
Parameters can be set before installation or during operation.
If you change parameters during operation, this will influence the function of the plant.
uEnsure that there will be no malfunctions in your plant.
During parameter setting the unit remains in the operating mode. It continues to monitor with the
existing parameter until the parameter setting has been completed.
Requirements for parameter setting via the IO-Link interface:
üA suitable parameter setting software, e.g. ifm moneo|configure
üThe Input Output Device Description (IODD) for the device, see documentation.ifm.com
üOne IO-Link master
uConnect the IO-Link master to a parameter setting software.
uSet the port of the master to the IO-Link operating mode.
uConnect the device to a free port of the IO-Link master.
wThe unit switches to IO-Link mode.
uChange parameter settings in the software.
uWrite parameter settings to the unit.
Notes on parameter setting Manual of the parameter setting softwareÒ
7.1 Input configuration
The digital input enables the sensor to be controlled without an IO-Link master.
OUT2 is set as a digital input via the parameter setting software. The input signal can be provided
through a trigger edge (e.g. pushbutton) or a static high/low signal (e.g. switch). The input signal
changes the current function and operating principle of the sensor.
Via the input configuration, the conditions for the input signal and the sensor function to be triggered
can be set using the parameters [DIn2] and [DIF2].
Selectable values:
Inductive sensors with IO-Link and 2 switching outputs
13
Pulse through trigger edge:
[DIn2] [DIF2] Sensor function
+EDG:
rising trigger edge
-EDG:
falling trigger edge
D_IN_DEFAULT_IDLE Factory setting: no function
D_IN_BLINK_TOGGLE Optical localisation
D_IN_TEACH_SP1 Teach switch point 1 For the taught switch point,
the set switch point mode,
switch-point logic and hystere-
sis values apply.
D_IN_TEACH_SP2 Teach switch point 2
D_IN_RESET_CNT_ALL Reset switching cycles counters 1 and 2
D_IN_RE-
SET_CNT_SSC1
Reset switching cycles counter 1
D_IN_RE-
SET_CNT_SSC2
Reset switching cycles counter 2
Pulse through static signal:
[DIn2] [DIF2] Sensor function
LEVL:
static signal
(0: low; 1: high)
D_IN_DEFAULT_IDLE Factory setting: no function
D_IN_OU1_HI_SSC1_LO
_SSC2
Configuration of the switching channel selection of OUT1:
Input signal (OUT2): [ou1]:
high SSC1
low SSC2
D_IN_SSC1_HI_CLOS-
ER_LO_OPENER
Configuration of the switch-point logic of SSC1:
Input signal (OUT2): [SSC1 Config. Logic]:
high high active (NO)
low low active (NC)
D_IN_SSC2_HI_CLOS-
ER_LO_OPENER
Configuration of the switch-point logic of SSC2:
Input signal (OUT2): [SSC2 Config. Logic]:
high high active (NO)
low low active (NC)
7.1.1 Configure digital input
uCall up [Parameters] > [Output Configuration].
uSelect [ou2] and set digital input: [In.D].
uSelect [Parameters] > [Digital input 2].
uSelect [DIn2] and configure input signal: [+EDG], [-EDG], [LEVL].
uSelect [DIF2] and set the sensor function.
7.2 Output configuration
The following functions can be selected for the switching outputs OUT1 and OUT2:
Switching function with switch point
Switching function with counter
Output switched off.
The output signal at OUT1 and OUT2 can be deactivated. The output then goes to high
impedance. Communication via the IO-Link interface on OUT1 remains active.
Inductive sensors with IO-Link and 2 switching outputs
15
SP2 ≥ 388 and SP2 ≤ SP1-Hmin
(Hmin = minimum hysteresis = 3% of the set switch point)
If the criteria are not met, the current parameter settings are retained.
Set switch point via IO-Link
üThe switch point mode, the switch-point logic and the hysteresis are set.
uSelect [Parameters] > [Digital output x].
uSelect [SSCx Param. SP1] and set switch point 1 for the switching signal channel SSCx.
Additionally for two point mode and window mode: Select [SSCx Param. SP2] and set switch point 2
for the switching signal channel SSCx.
uSelect [SSCx Param.SP2] and set switch point 2 for the switching signal channel SSCx.
SP1 should be as high as possible in order to be able to set SP2 and H in as wide a range as
possible.
Teach switch point via IO-Link
üThe switch point mode, the switch-point logic and the hysteresis are set.
uPlace object in position 1 in front of the sensor.
uSelect [Parameters] > [Teach].
uSelect [TI Select] and determine switching signal channel: [SSC1] or [SSC2].
uSave parameter set.
uExecute command: [Teach SP1].
wSwitch point SP1 for SSCx is set.
Additionally for two point mode and window mode: Select [SSCx Param. SP2] and set switch point 2
for the switching signal channel SSCx.
uPlace object in position 2 in front of the sensor.
uExecute command: [Teach SP2].
wSwitch point SP2 for SSCx is set.
Teach switch point via input signal
üThe switch point mode, the switch-point logic and the hysteresis are set.
üThe digital input is configured with the following setting: [D_IN_TEACH_SP1]. ( Configure digitalÒ
input 13)/
uPlace object in position 1 in front of the sensor.
uSelect [Parameters] > [Teach].
uSelect [TI Select] and determine switching signal channel: [SSC1] or [SSC2].
uTrigger input signal.
wSwitch point SP1 for SSCx is set.
Additionally for two point mode and window mode: Select [SSCx Param. SP2] and set switch point 2
for the switching signal channel SSCx.
üThe digital input is configured with the following setting: [D_IN_TEACH_SP2].
uPlace object in position 2 in front of the sensor.
uTrigger input signal.
wSwitch point SP2 for SSCx is set.


Produkt Specifikationer

Mærke: IFM
Kategori: Ikke kategoriseret
Model: II5984

Har du brug for hjælp?

Hvis du har brug for hjælp til IFM II5984 stil et spørgsmål nedenfor, og andre brugere vil svare dig




Ikke kategoriseret IFM Manualer

IFM

IFM TAD191 Manual

21 Juli 2025
IFM

IFM VVB302 Manual

20 Juli 2025
IFM

IFM UGT301 Manual

20 Juli 2025
IFM

IFM IEP201 Manual

20 Juli 2025
IFM

IFM AC2953 Manual

15 Juli 2025
IFM

IFM SU2050 Manual

11 Juli 2025
IFM

IFM SU9050 Manual

11 Juli 2025
IFM

IFM SU8651 Manual

10 Juli 2025
IFM

IFM SU2651 Manual

10 Juli 2025
IFM

IFM SU7651 Manual

10 Juli 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer
