Installation Instructions
Electronic pressure sensor
PX3111
PX322x
PX323x
PX3244
PX3422
PX911x
PX913x
704571/06 02/2011
2
1 Safety instructions
Please read the product description prior to installing the unit. Please check that
the product is suitable for your application without any restrictions.
If the operating instructions or the technical data are not adhered to, personal
injury and/or damage to property may occur.
Please check in all applications that the product materials (see Technical data) are
compatible with the media to be measured.
For gaseous media the application is limited to max. 363 PSI.
High-pressure units (5000 PSI) are supplied with a pressure relief mechanism and
an integrated damping device to comply with the regulations for UL approval and
to avoid any risk of injury in case of bursting when bursting pressure is exceeded.
Any manipulation of the damping device is not permissible.
When the damping device is removed, there is no damping function any
more. ATTENTION: risk of injury!
For units with cULus approval this approval becomes invalid when the
damping device is removed.
Contents
1 Safety instructions ...............................................................................................2
2 Function and features ..........................................................................................4
3 Installation............................................................................................................5
4 Electrical connection ............................................................................................5
5 Scale drawing ......................................................................................................6
6 Technical data ......................................................................................................8
3
For units with cULus approval and the scope of validity cULus:
The device shall be supplied from an isolating transformer having a secondary
Listed fuse rated as noted in the following table.
Overcurrent protection
Control-circuit wire size Maximum protective device rating
Ampere
AWG (mm2)
26 (0.13) 1
24 (0.20) 2
22 (0.32) 3
20 (0.52) 5
18 (0.82) 7
16 (1.3) 10
The Sensor shall be connected only by using any R/C (CYJV2) cord, having suit-
able ratings.
4
2 Function and features
The pressure sensor detects the system pressure and converts it into an analog
output signal.
• 0 to 10 V (PX9xxx)
• 10 to 0 V (PX9119)
• 4 to 20 mA (PX3xxx)
• 20 to 4 mA (PX3229)
Applications (type of pressure: relative pressure)
Order no. Measuring range Permissible
overload pressure Bursting pressure
PSI PSI PSI
PX3220
PX9110 0 to 5000 11600 17400
PX3111
PX9111 0 to 3000 5800 12300
PX3222
PX9112 0 to 1000 4350 9400
PX3223 0 to 500 2175 5075
PX3224
PX9114 0 to 100 1087 2175
PX3244 0 to 150 1087 2175
PX9134 0 to 200 1087 2175
PX3226
PX9116 0 to 30 290 725
PX3237 0 to 20 145 450
PX3227
PX9117 0 to 15 145 450
PX3238 0 to 5 145 450
PX3229
PX9119 -14.5 to 0 (vacuum) 145 450
PX3422 -14.5 to 735.5 4350 9400
inH2O inH2O inH2O
PX3228
PX9118 0 to 100 4015 12043
5
Avoid static and dynamic overpressure exceeding the given over-load
pressure.
Even if the bursting pressure is exceeded only for a short time the unit can
be destroyed (danger of injuries)!
3 Installation
Before mounting and removing the sensor, make sure that no pressure is
applied to the system.
Mount the pressure sensor on a suitable process connection (see type label “Port
Size”).

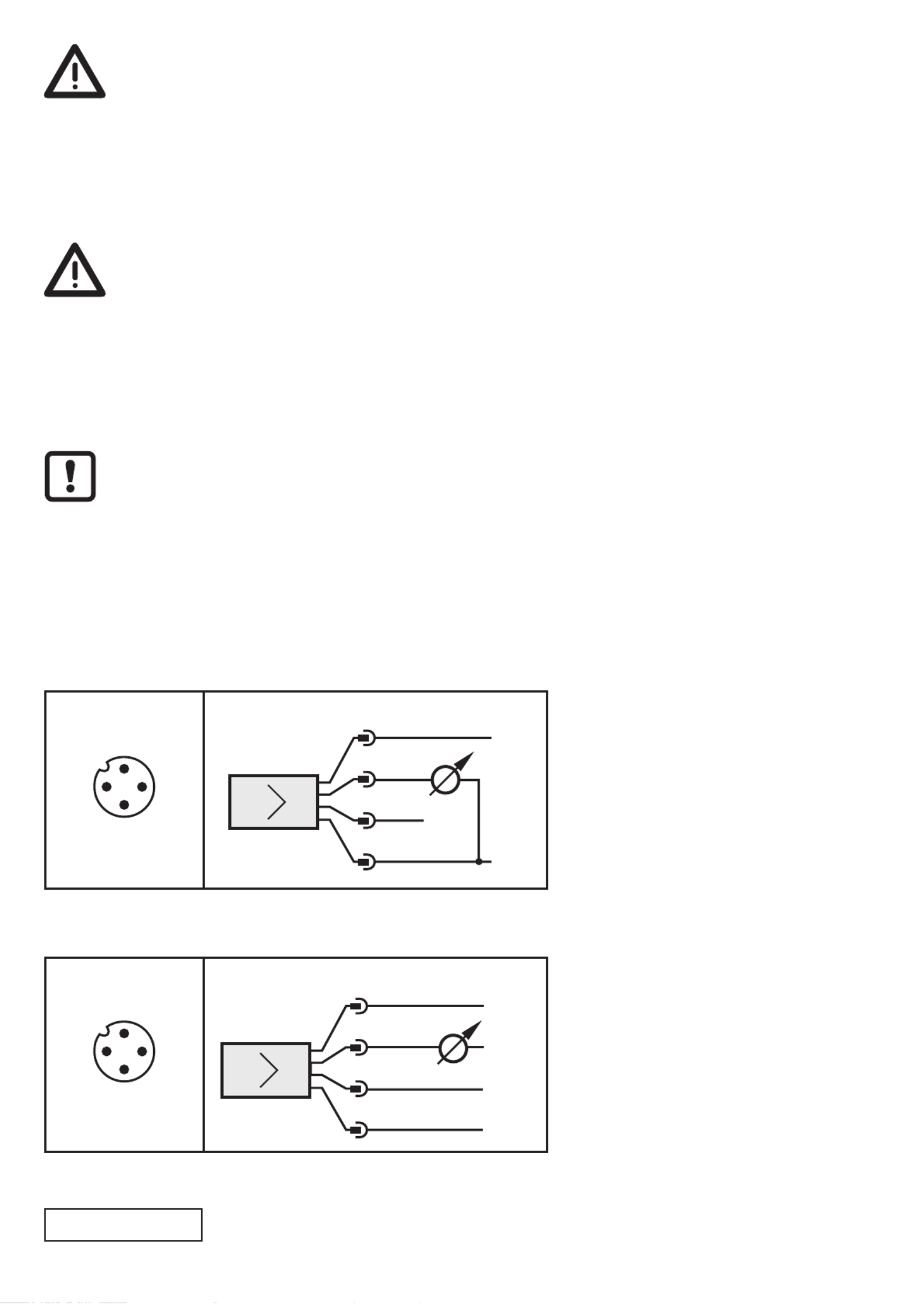

4 Electrical connection
The unit must be connected by a qualified electrician.
The national and international regulations for the installation of electrical
equipment must be adhered to.
Voltage supply to EN50178, SELV, PELV.
► Disconnect power before connecting the unit as follows:
Voltage output (PX9xxx)
Current output (PX3xxx)
For information about available sockets/connectors see:
www.ifm.com → Products → Accessories
6

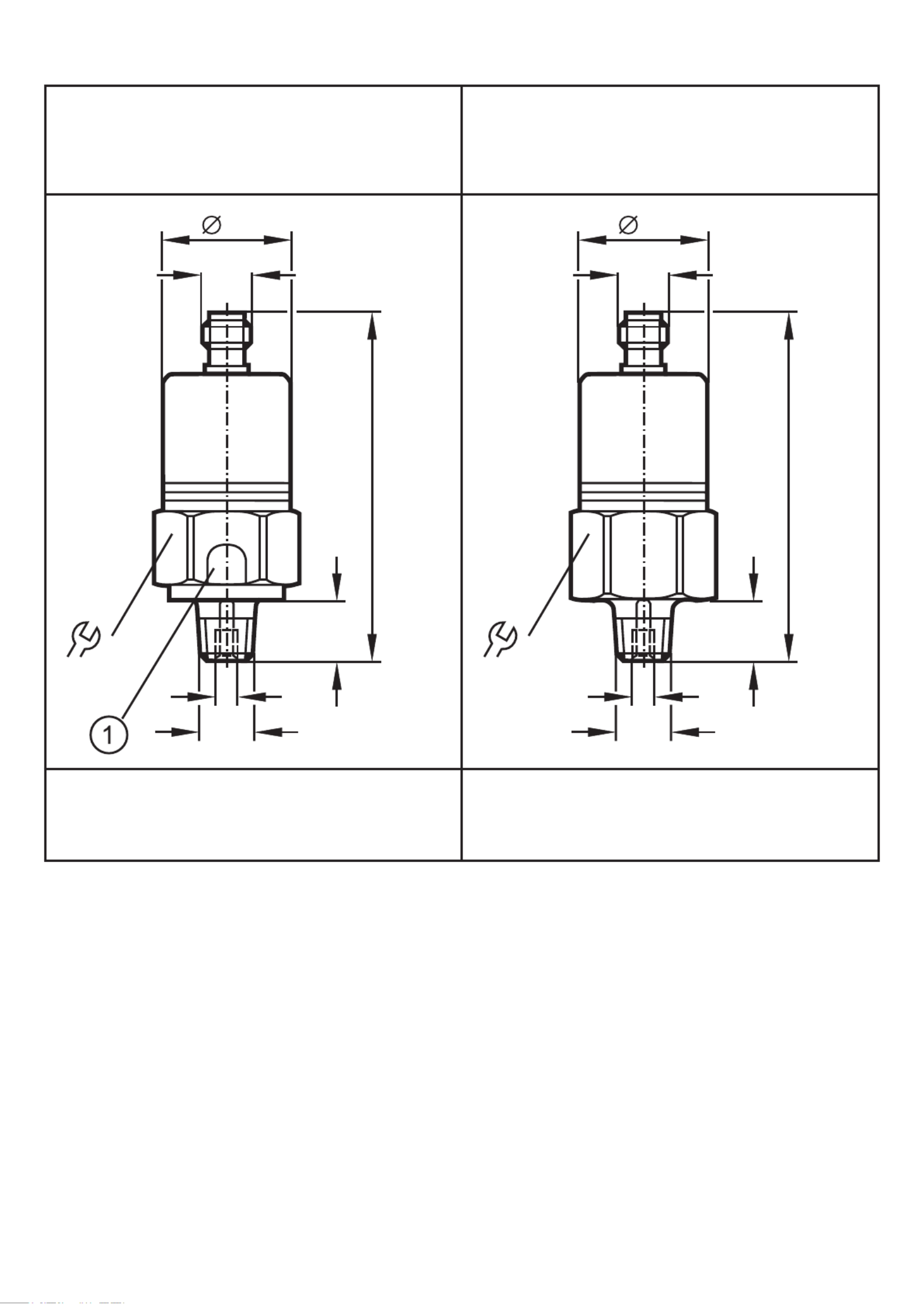

5 Scale drawing
PX3220 PX9110 PX3111
PX3222
PX3422
PX9111
PX9112
79,5
M12 x1
30
30
14
M5
-18 NPT
14
/
79,5
M12 x1
30
30
14
M5
-18 NPT
14
/
1: Pressure relief mechanism
No mechanical force must be exerted on
the pressure relief mechanism.
dimensions are in millimeters (25.4 mm = 1 inch)
process connection 1/4 NPT, tigtening torque 25 Nm
7

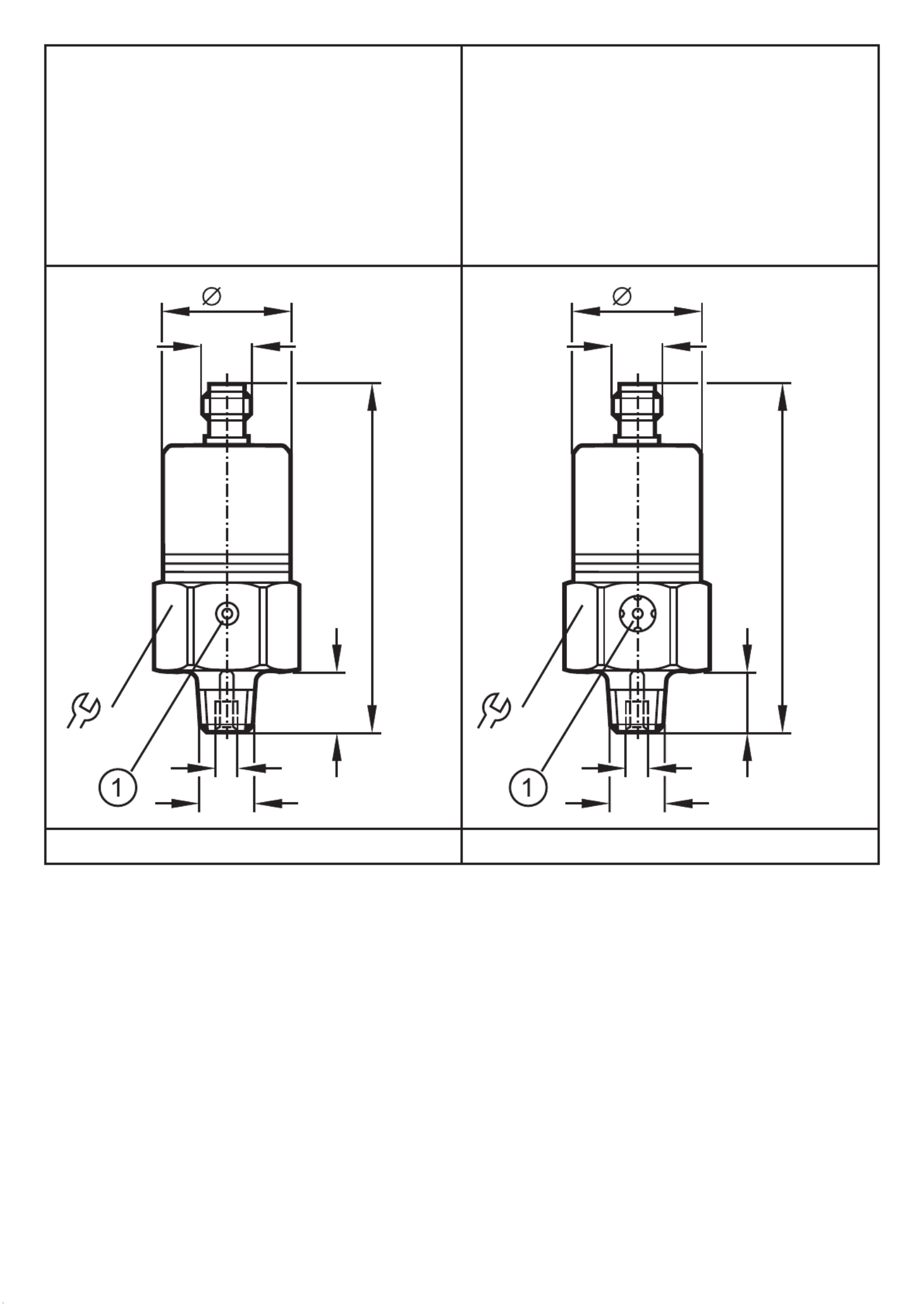

PX3223
PX3224
PX3244
PX3226
PX3227
PX3228
PX3229
PX9114
PX9116
PX9117
PX9118
PX9119
PX9134
PX3237
PX3238
79,5
M12 x1
30
30
14
M5
-18 NPT
14
/
79,5
M12 x1
30
30
14
M5
-18 NPT
14
/
1: Ventilation 1: Ventilation
dimensions are in millimeters (25.4 mm = 1 inch)
process connection 1/4 NPT, tigtening torque 25 Nm
